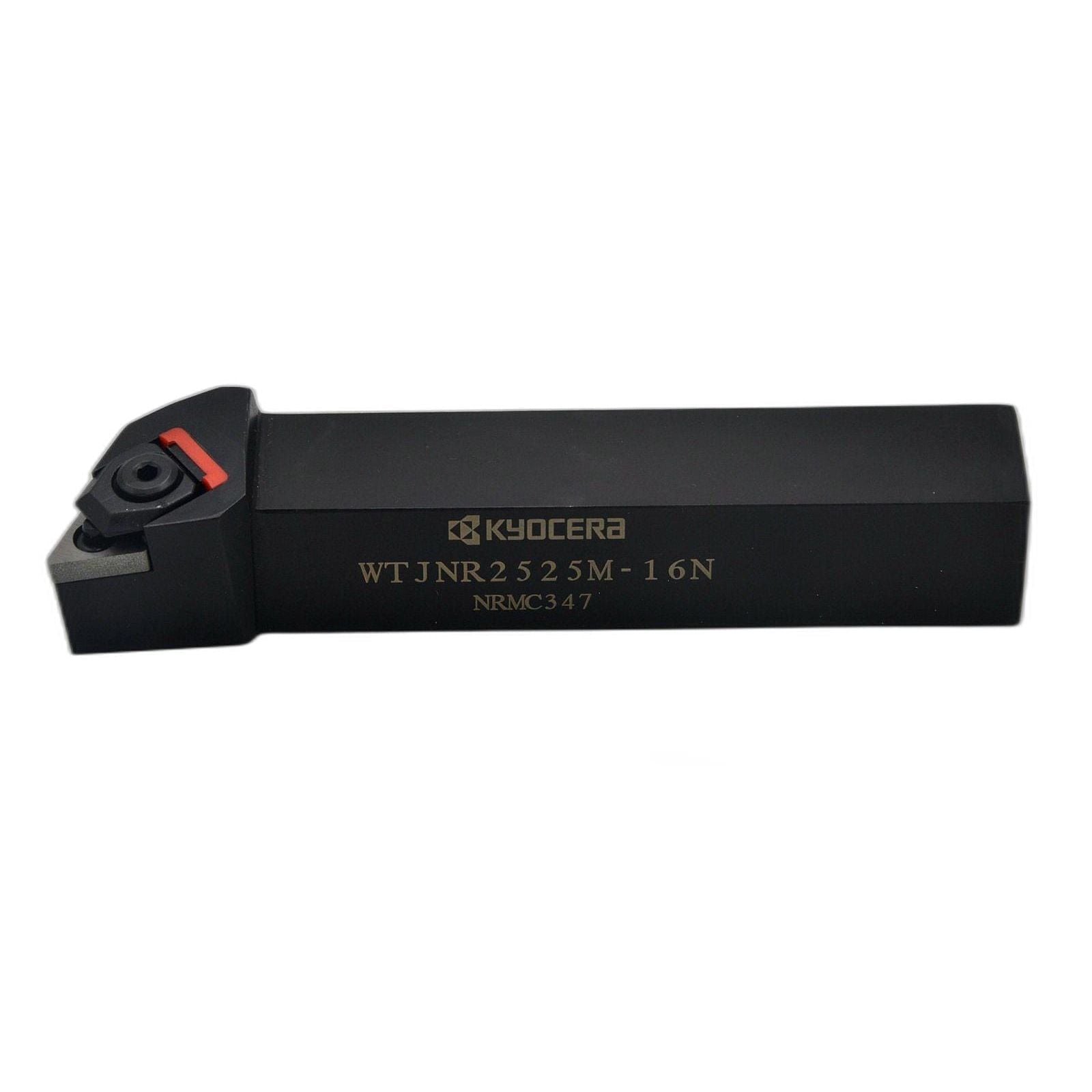

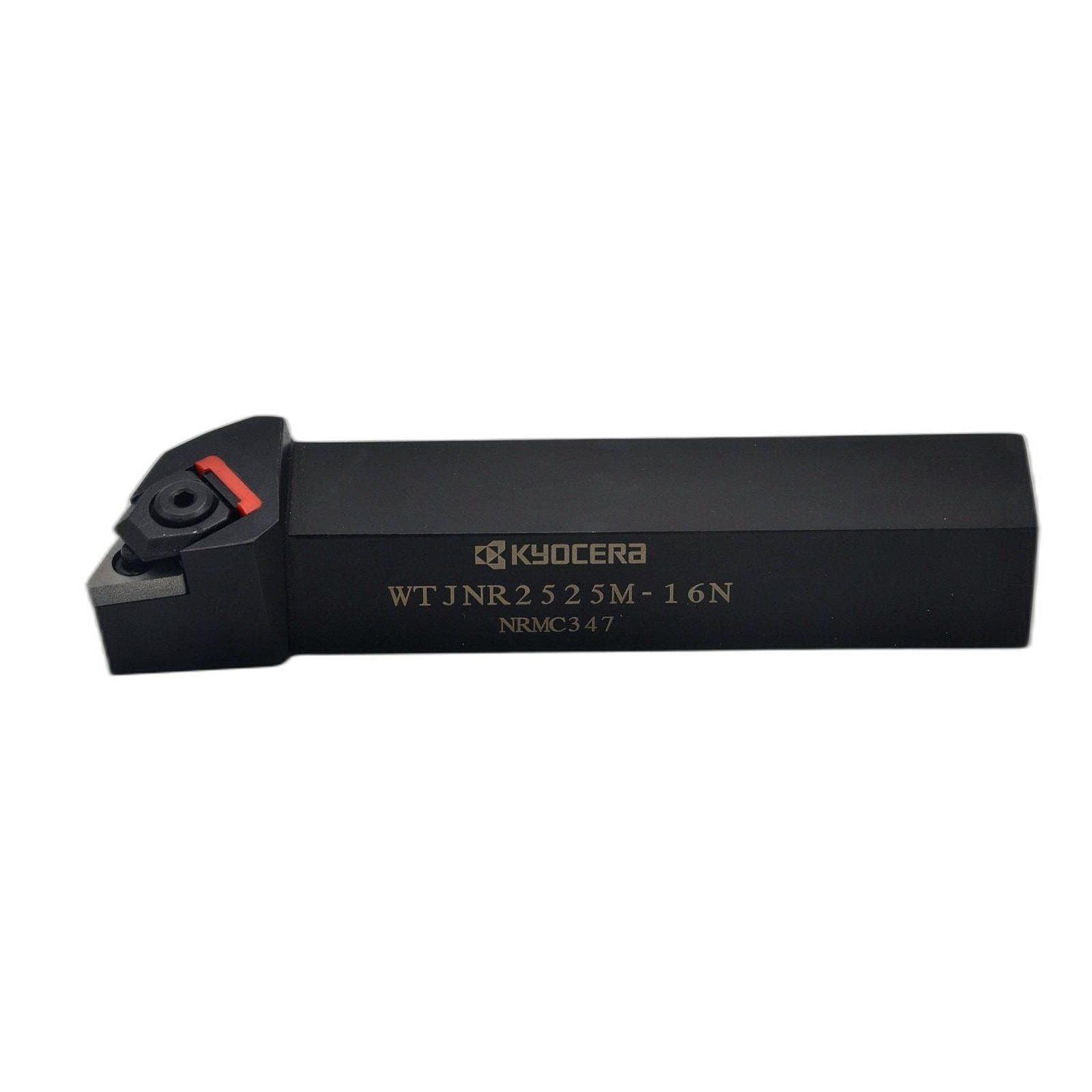

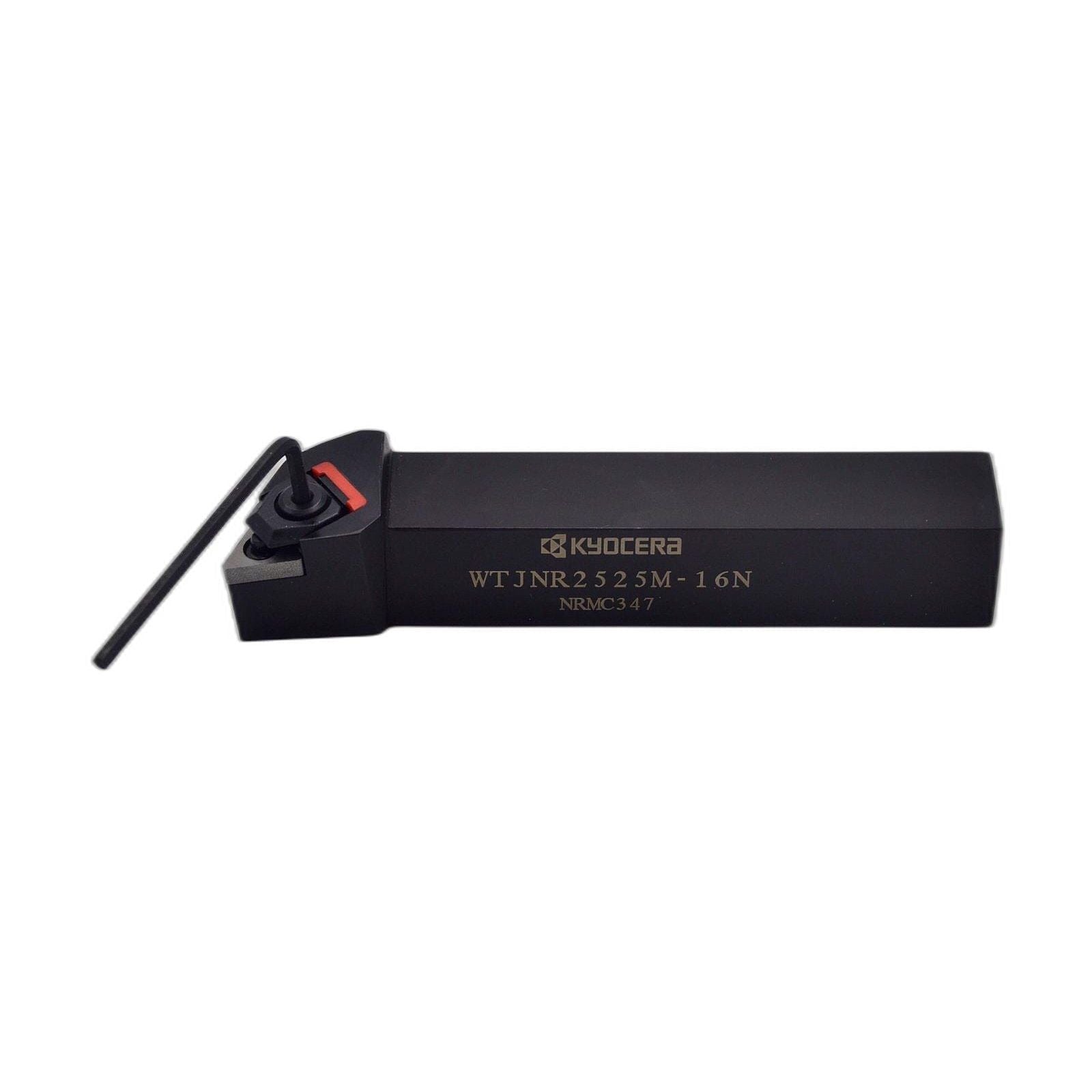

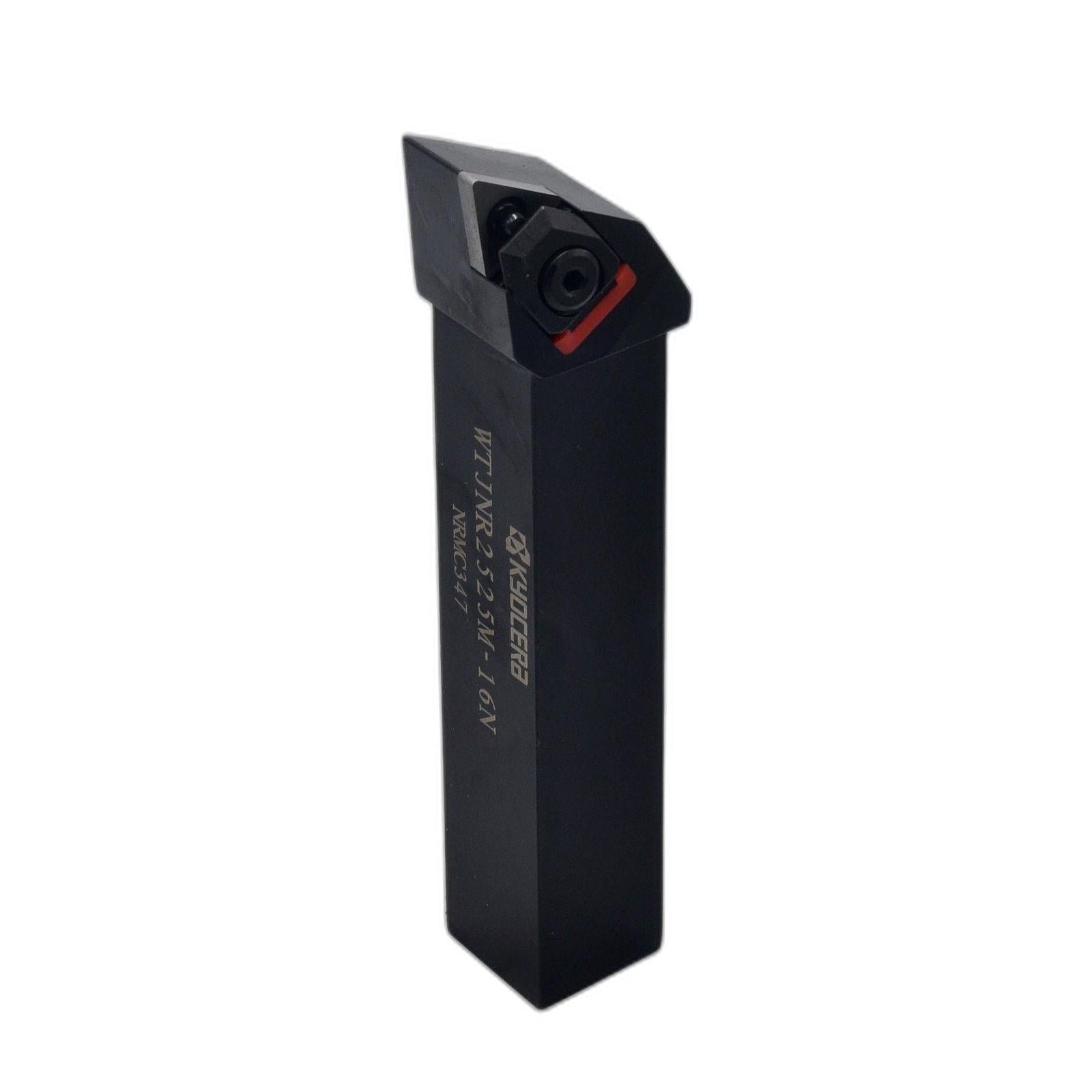

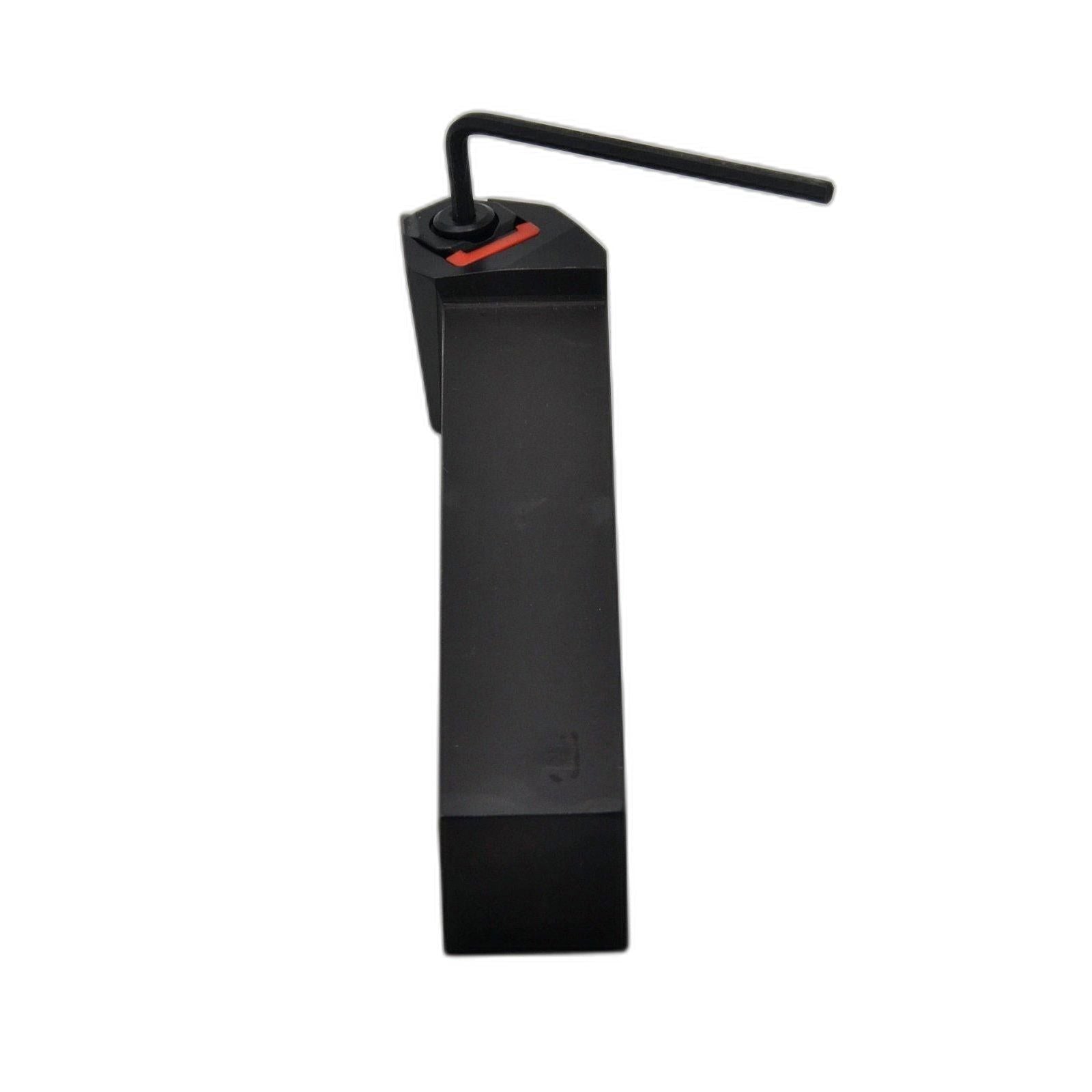

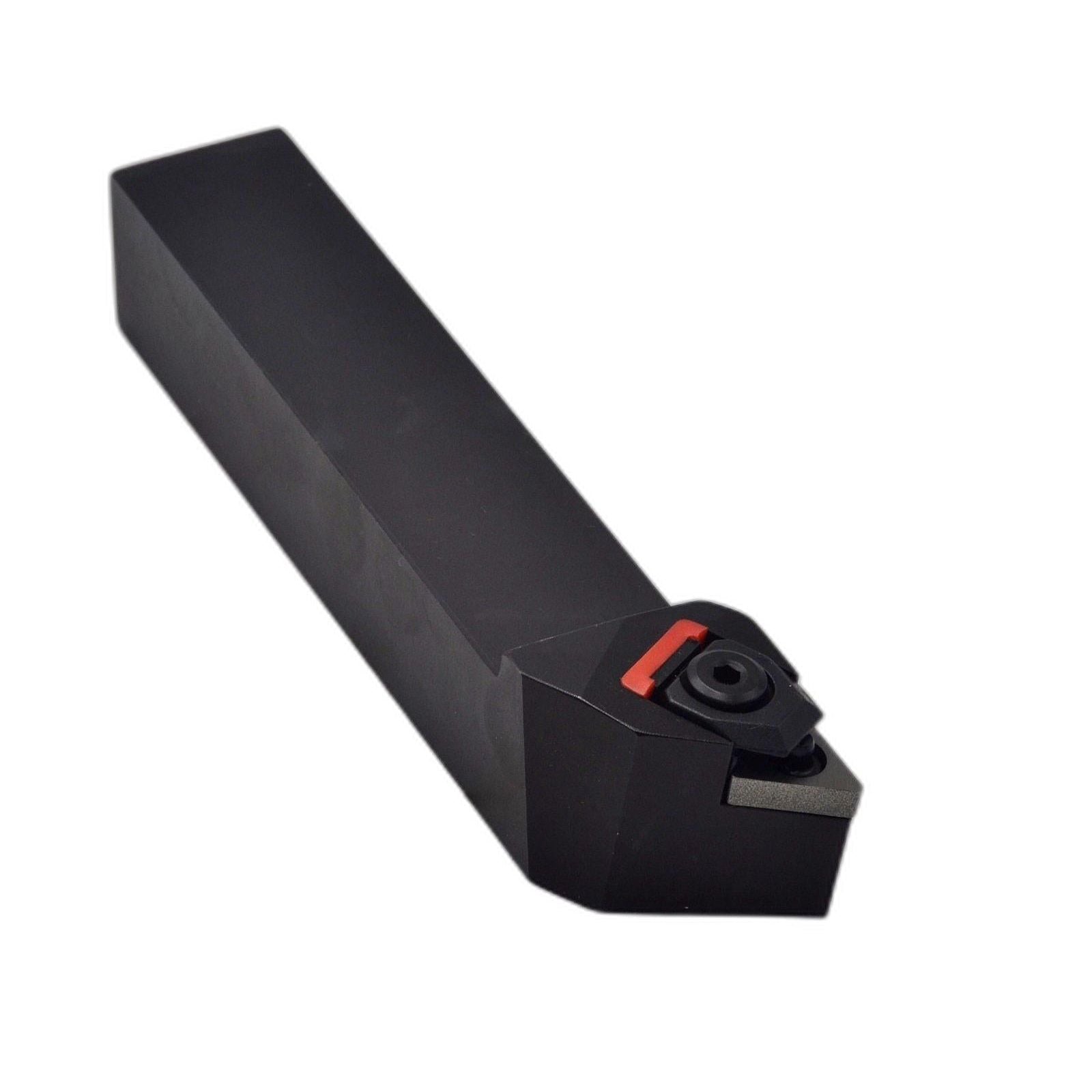

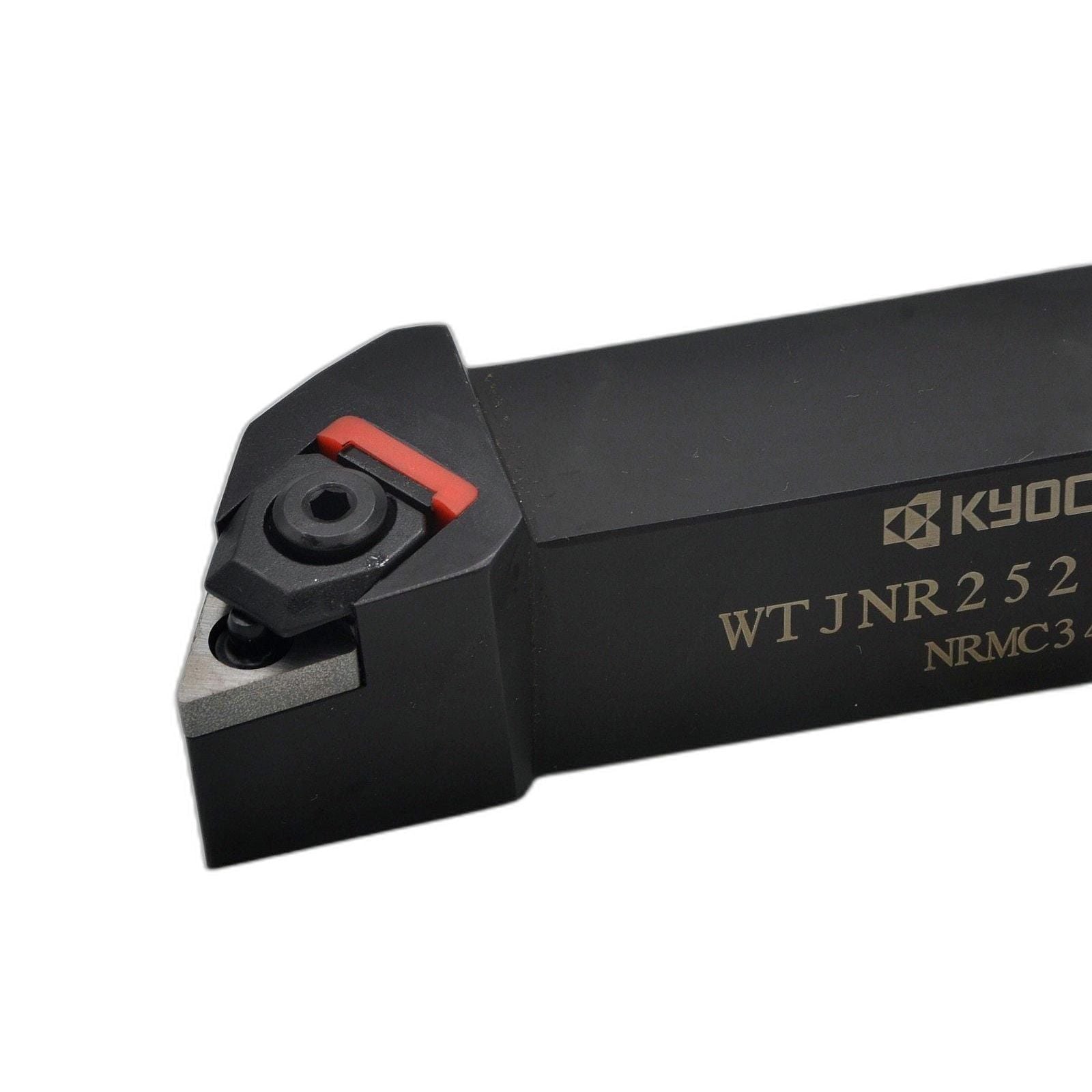

Kyocera WTJNR2525M-16N – Indexable Turning Toolholder (THC00624)
Couldn't load pickup availability
Kyocera WTJNR2525M-16N – Indexable Turning Toolholder (THC00624)
The Kyocera WTJNR2525M-16N is a high-rigidity external turning toolholder designed for heavy machining and copying applications. With a square shank of 25 mm × 25 mm and a total length (OAL) of 150 mm, it features a 93° lead angle and a right-hand configuration. The wedge-lock insert clamping system supports TNMG/TNMX style inserts, ensuring strong clamp force and stable cutting performance.
Key Features & Benefits
• Shank cross-section 25 mm × 25 mm — maximizes rigidity for demanding turning tasks.
• 93° lead angle — ideal for external turning and copying operations.
• Right-hand orientation — compatible with standard turning setups.
• Wedge-lock system — enhances clamping stability and insert repeatability.
• Supports TNMG/TNMX style inserts — gives flexible insert options for both roughing and finishing.
Technical Specifications
Item No: THC00624
Shank Width (B): 25 mm
Shank Height (H): 25 mm
Total Length (OAL): 150 mm
Lead Angle: 93°
Cutting Direction: Right-hand
Insert Style Compatible: TNMG/TNMX
Coolant: Without internal coolant
