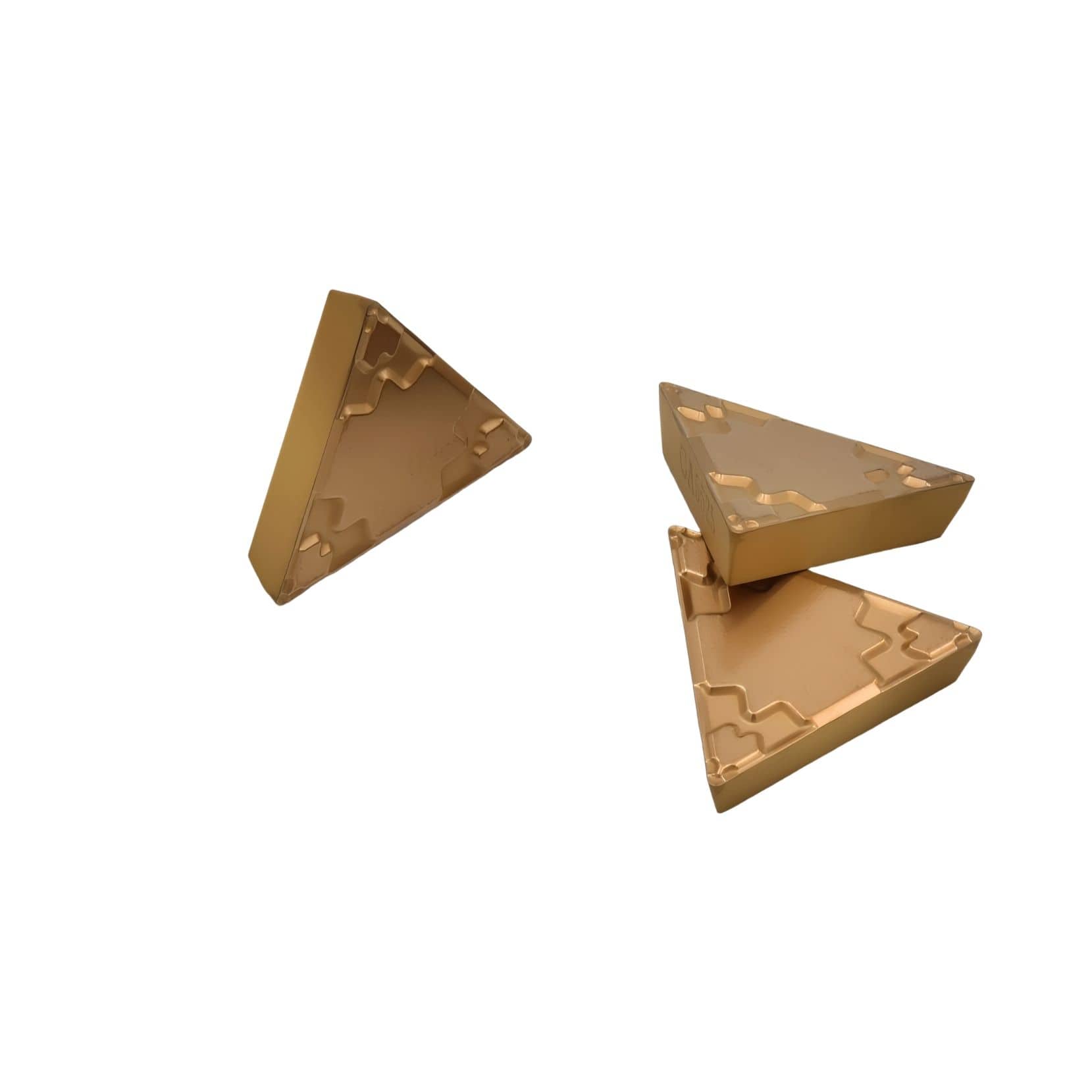

Kyocera TPMR160304GP CA5525 – Turning Insert (Positive Type, Steel Machining, Finishing Chipbreaker)
Couldn't load pickup availability
Kyocera TPMR160304GP CA5525 – Turning Insert (Positive Type, Steel Machining, GP Chipbreaker, Pack of 10)

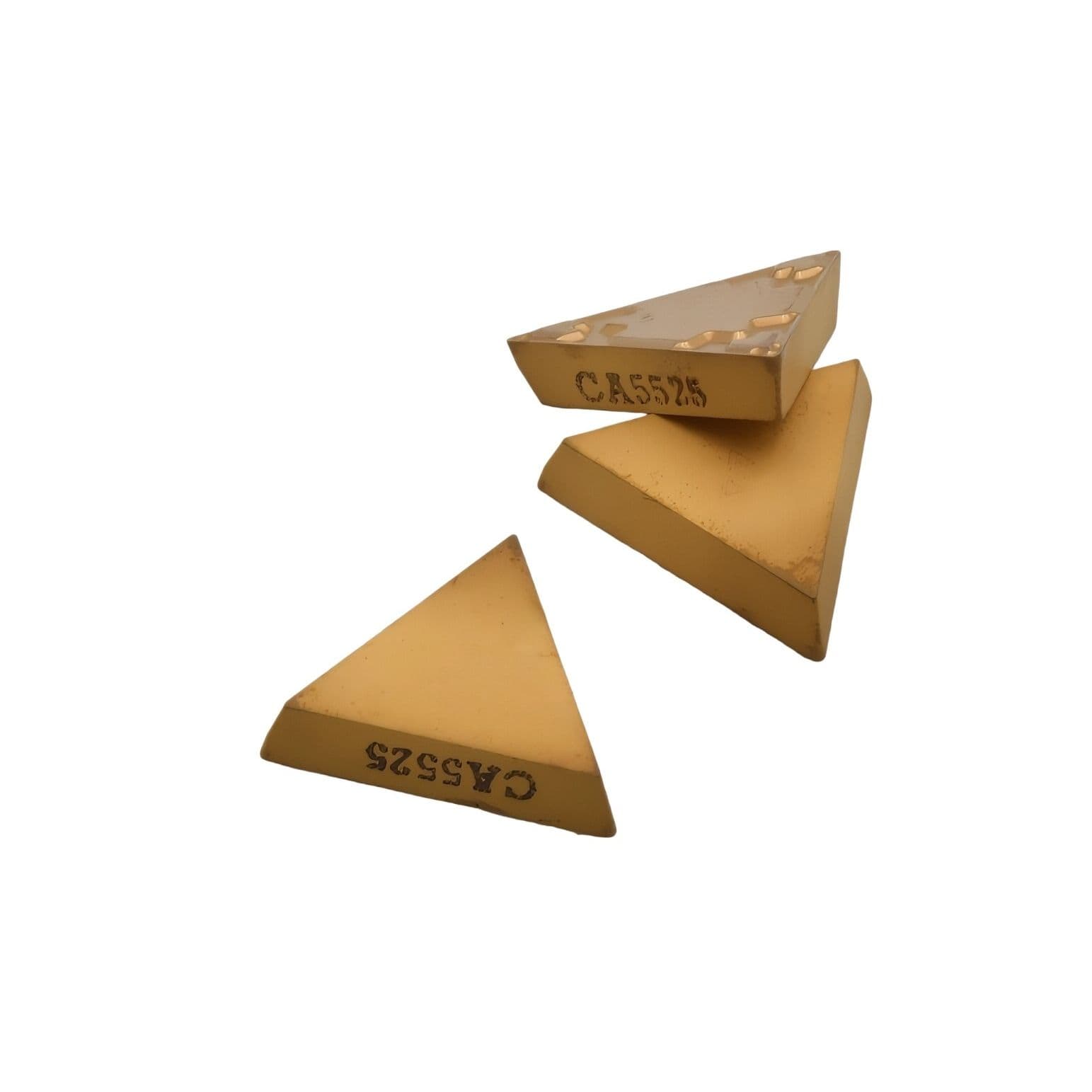

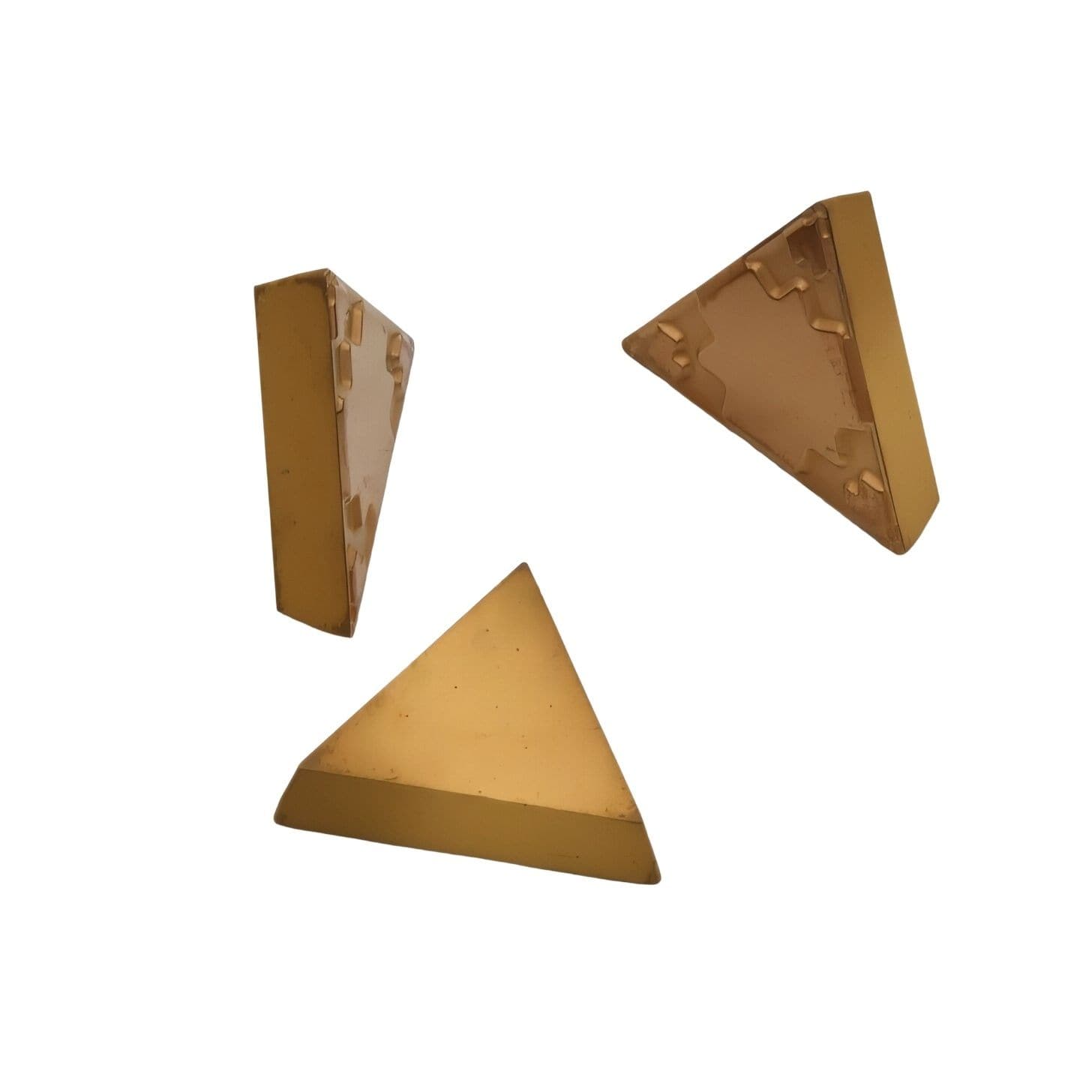

The Kyocera TPMR160304GP CA5525 is a positive-type triangular turning insert designed for steel machining. Supplied in a pack of 10 inserts, it features Kyocera’s advanced CA5525 CVD-coated carbide grade, delivering exceptional wear resistance, fracture toughness, and stable performance under both continuous and interrupted cutting conditions. The advanced multi-layer coating combines a highly uniform alumina layer, TiCN layer, and a proprietary carbide substrate to maximize tool life while improving resistance to crater wear and flank wear. The GP chipbreaker is optimized for general-purpose finishing to medium turning, providing reliable chip control, low cutting forces, and excellent surface finishes.
Key Features & Benefits
- CA5525 Grade: Premium CVD-coated carbide grade recommended for steel machining, offering an excellent balance of wear resistance and toughness.
- Advanced Coating: Uniform alumina layer minimizes crater wear, while the distinctive gold coating makes edge wear and defects easier to identify.

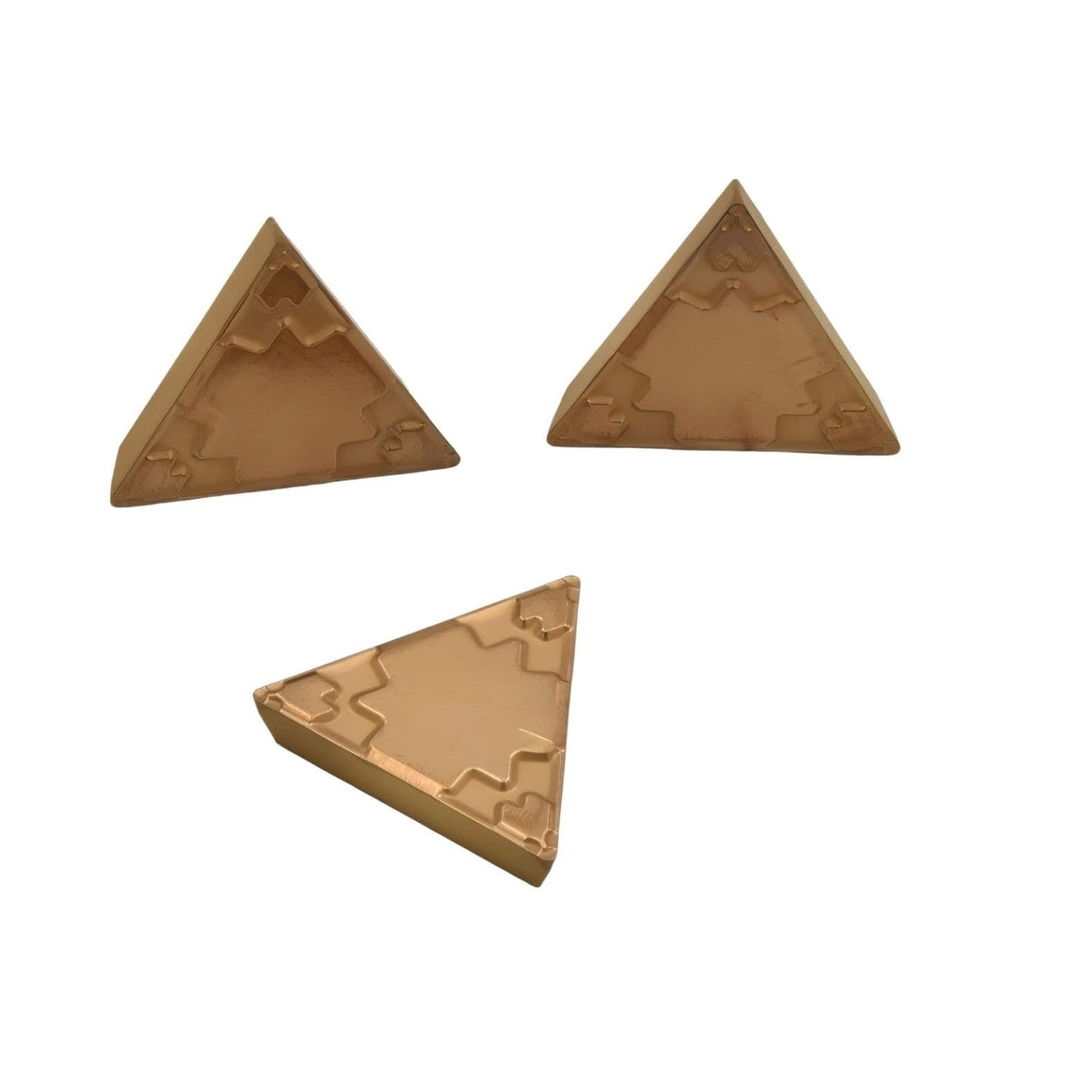

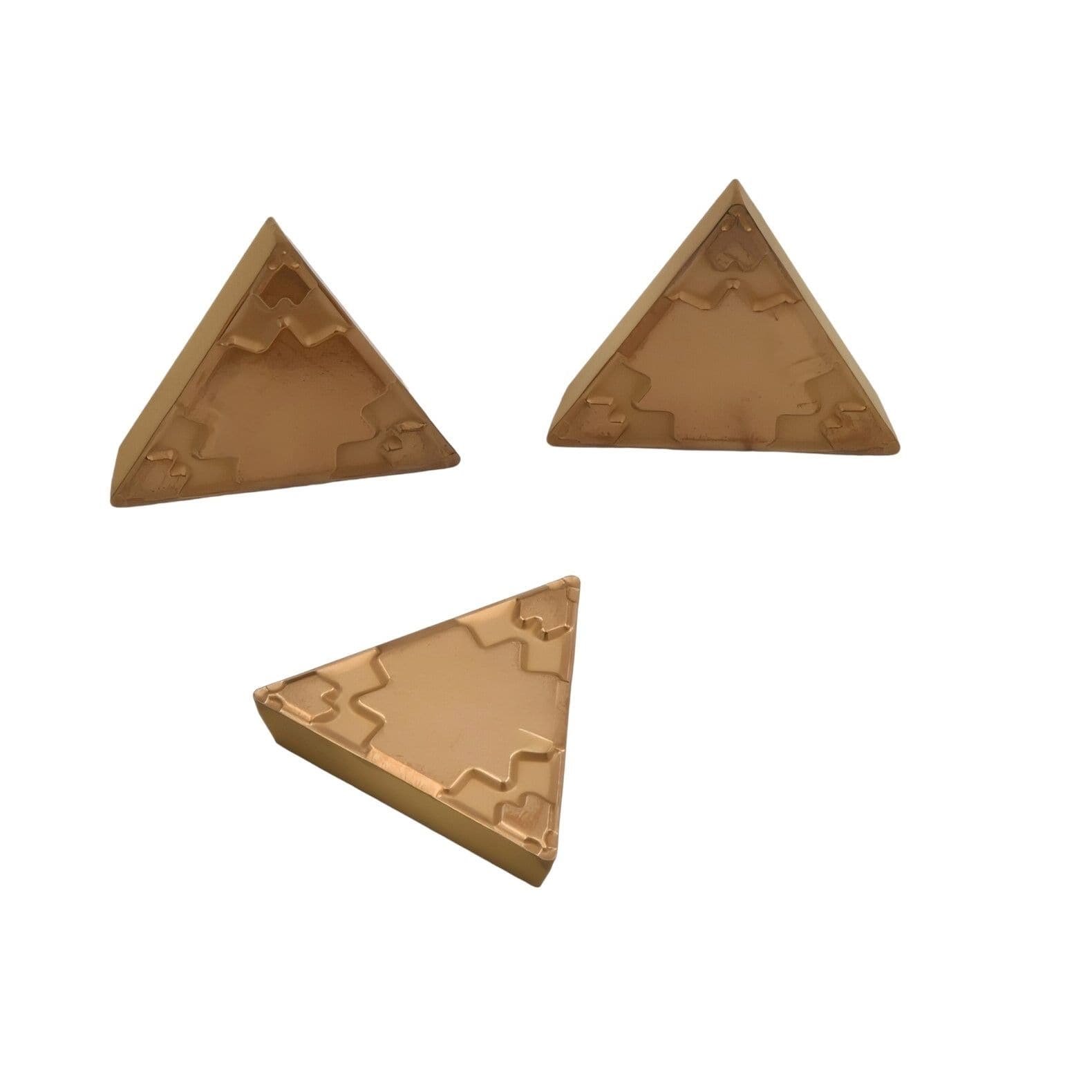

- GP Chipbreaker: General-purpose geometry providing stable chip control and smooth cutting performance in finishing to medium operations.
- Enhanced Durability: Internal evaluations demonstrate up to 1.5× greater wear resistance and 1.3× higher fracture resistance compared to conventional competitor grades.
- Stable Edge Performance: Improved resistance to chipping and plastic deformation for longer, more predictable tool life.

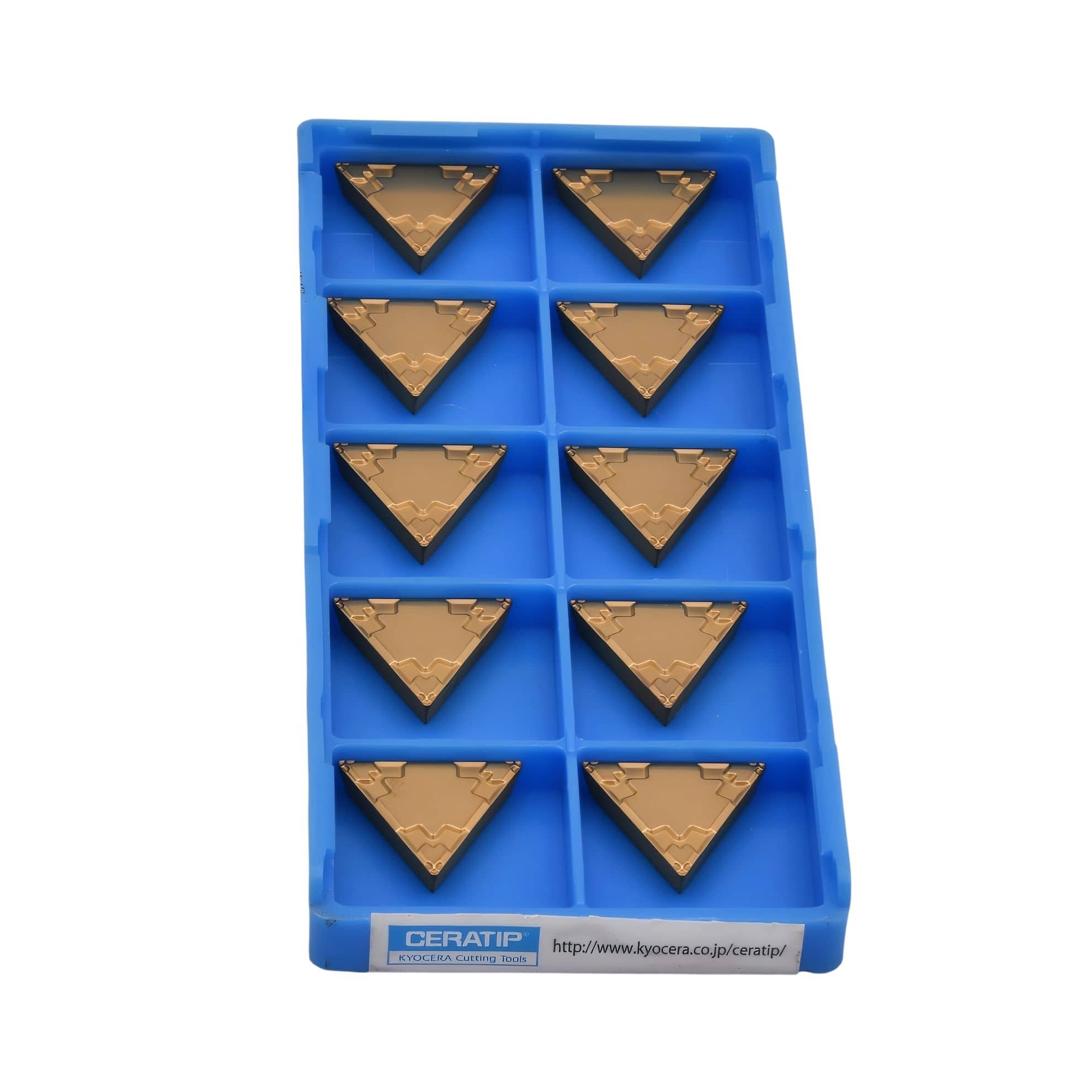

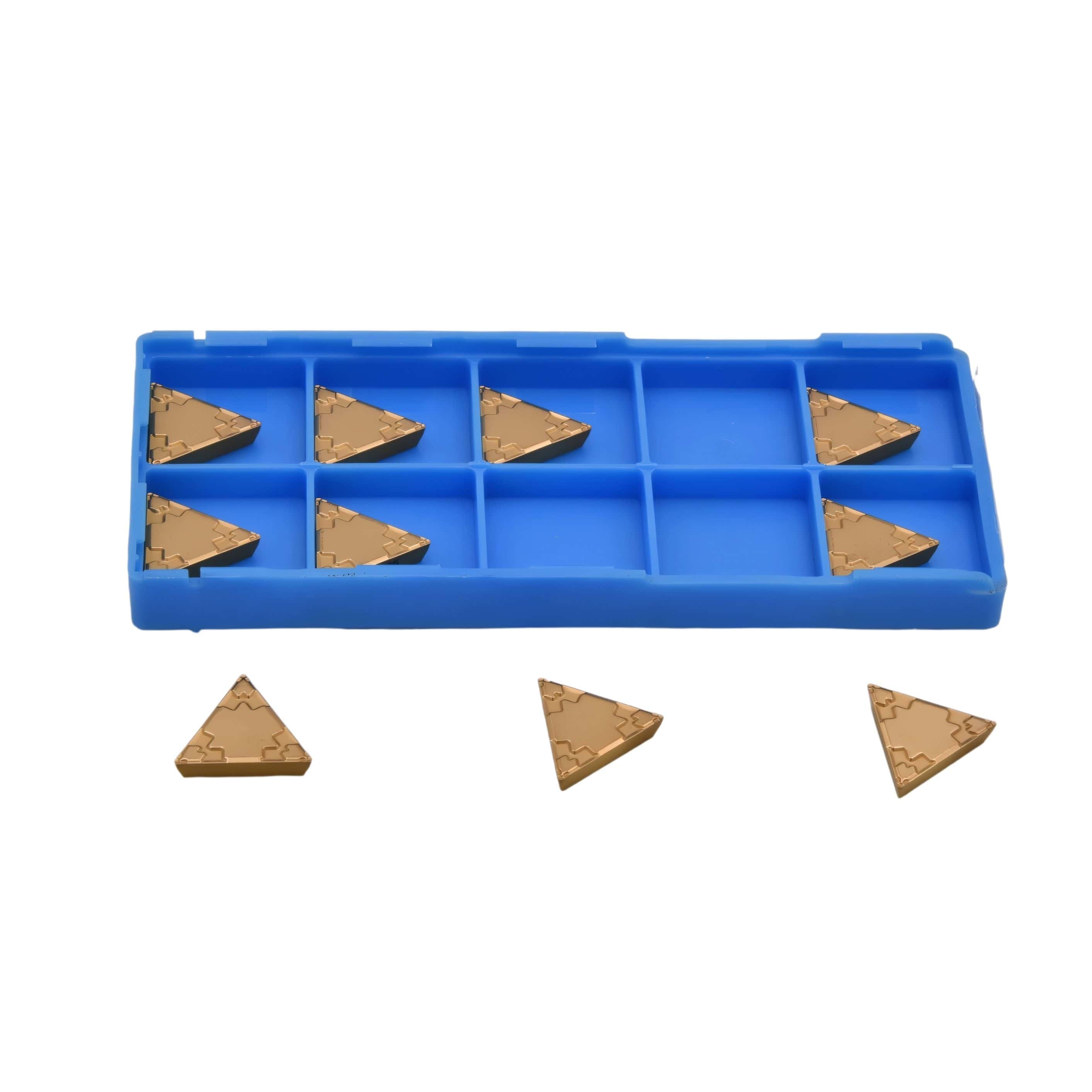

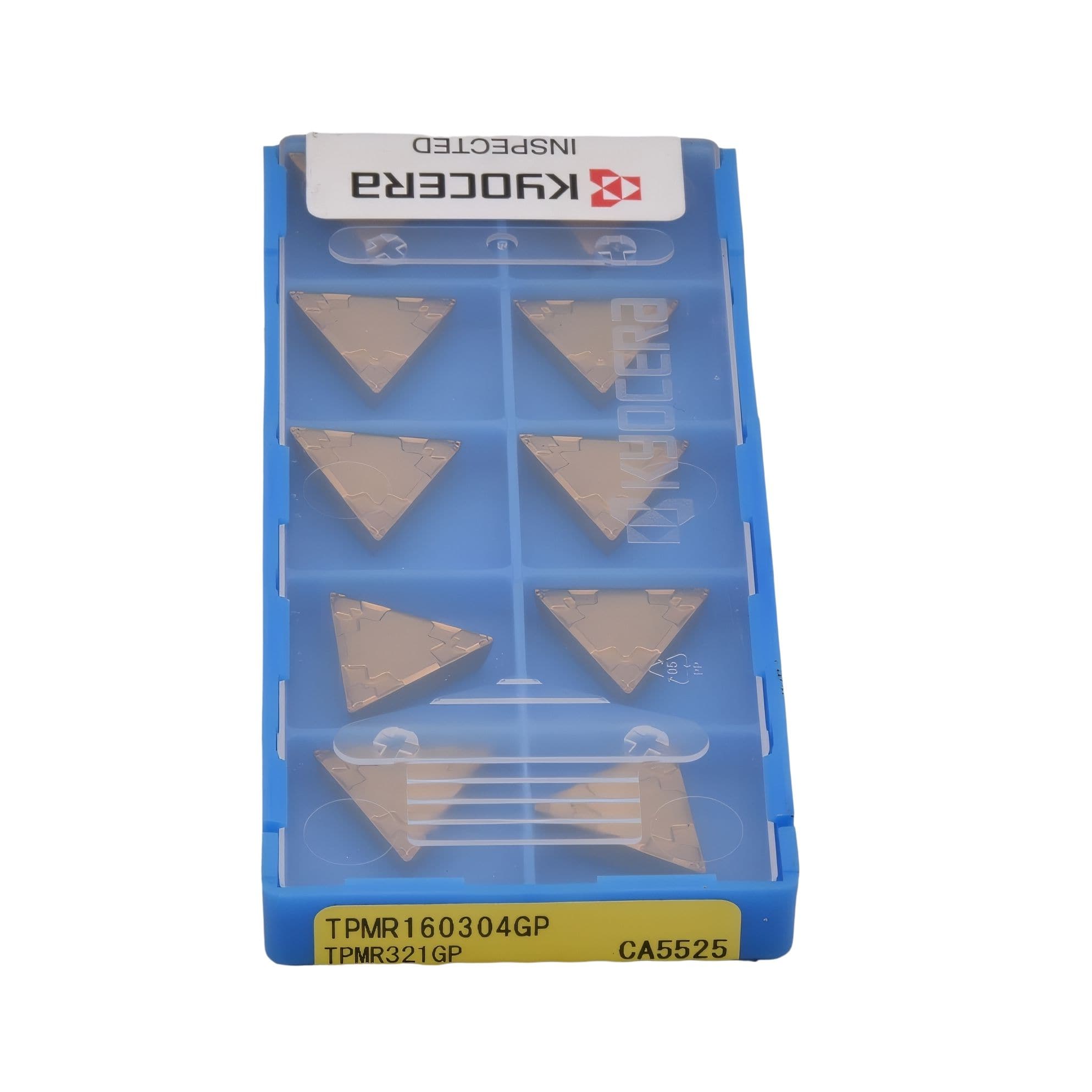

- Pack Quantity: Supplied as a pack of 10 inserts for production efficiency and convenient inventory management.
Applications
- General steel machining including automotive components, shafts, gears, and industrial parts.
- Suitable for continuous and interrupted cutting at medium to high cutting speeds.
- Ideal for finishing to medium turning applications requiring consistent surface quality and long tool life.
Technical Specifications

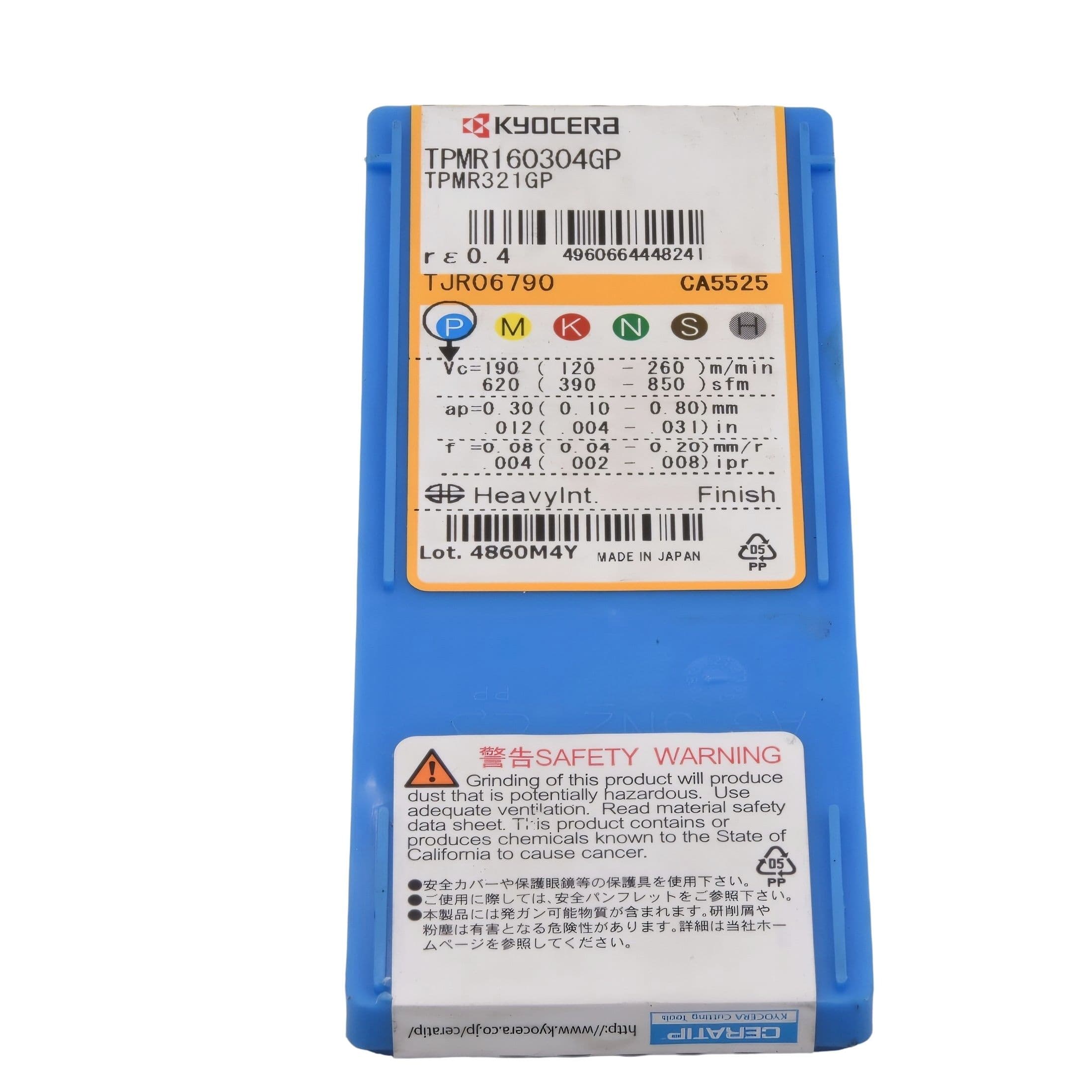

- Designation / Order Code: TPMR160304GP
- Insert Type: Positive, 60° triangular
- Inscribed Circle (IC): 9.525 mm
- Thickness: 3.18 mm
- Corner Radius (RE): 0.4 mm
- Grade: CA5525 (CVD-coated carbide)
- Chipbreaker: GP – General Purpose Finishing to Medium
- Pack Quantity: 10 pcs
