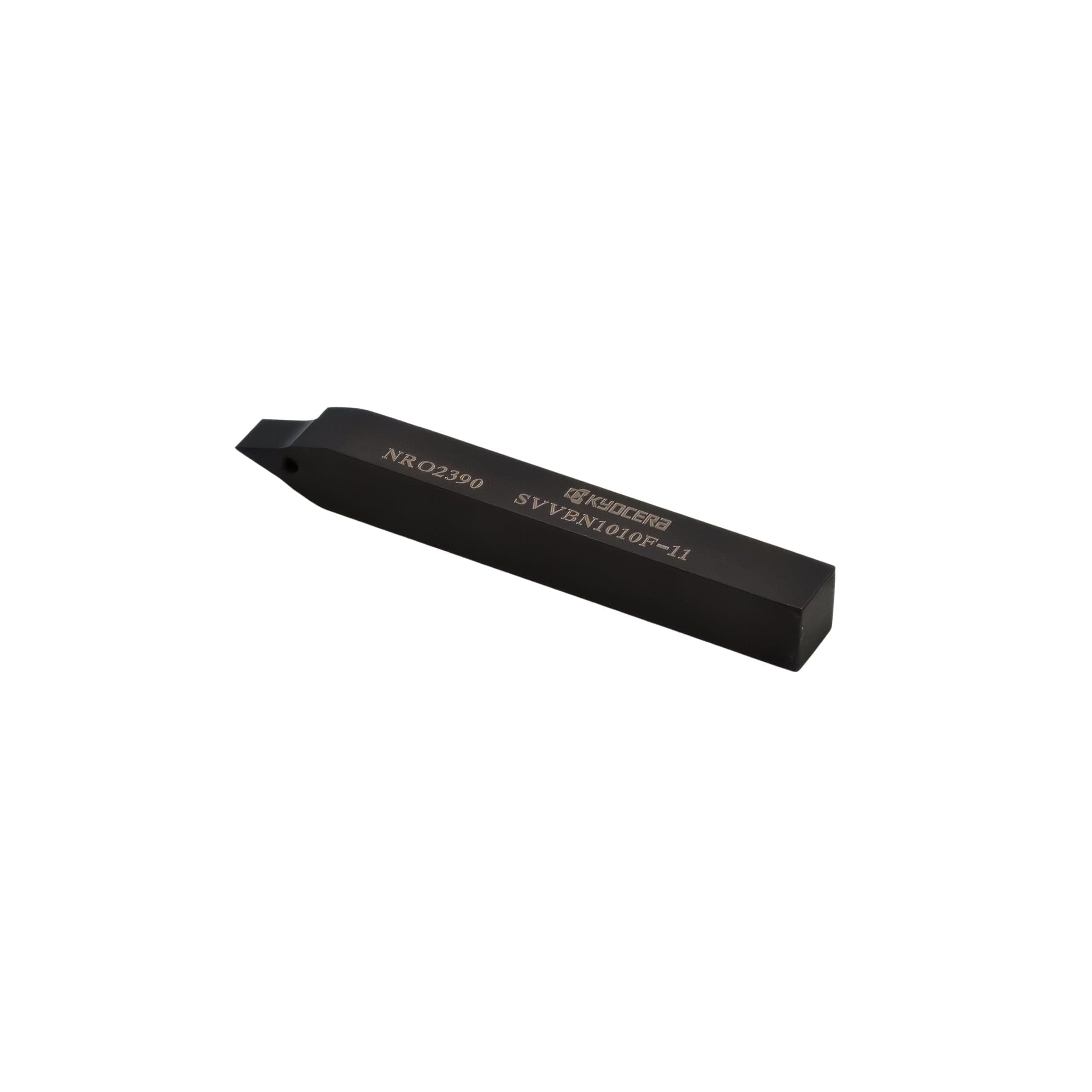

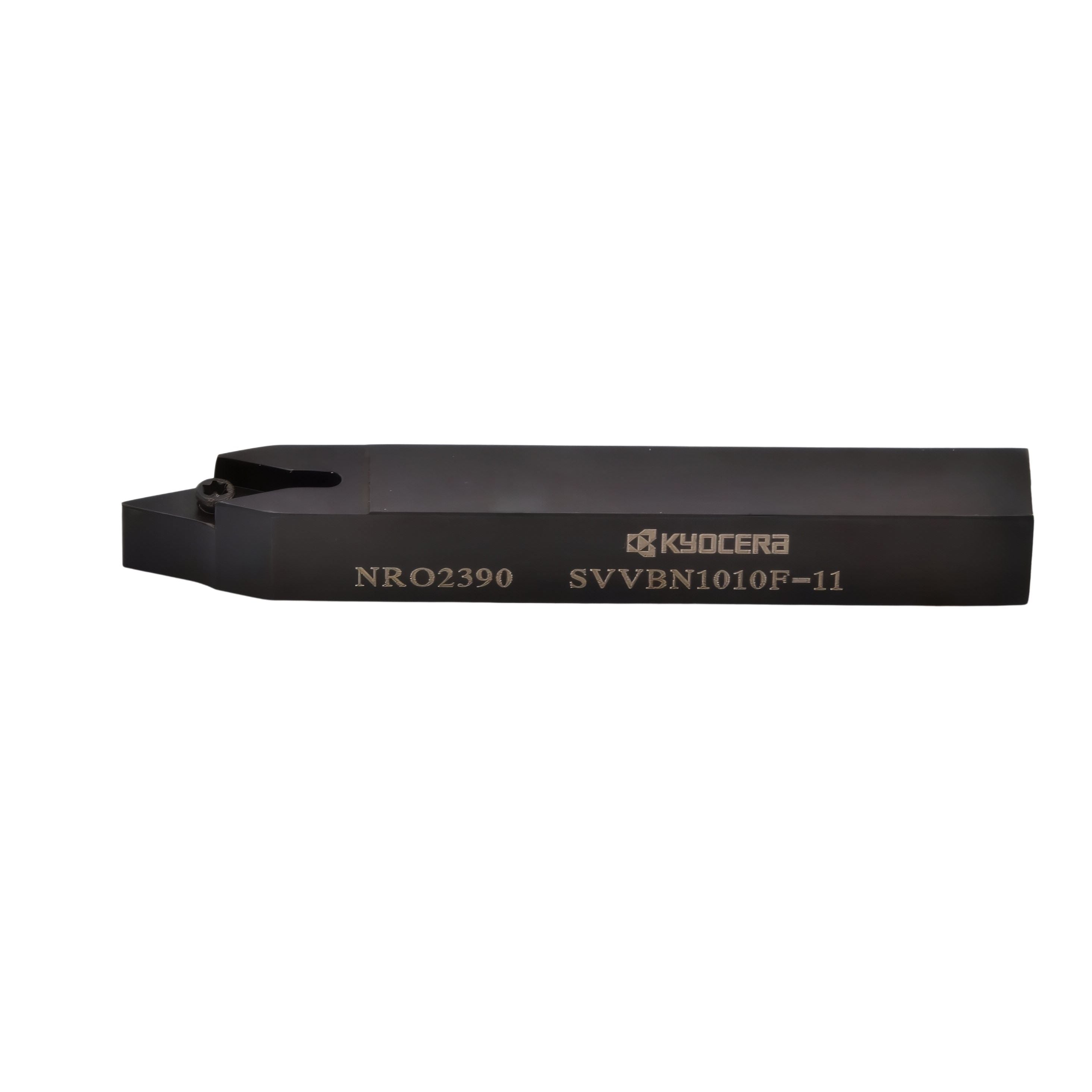

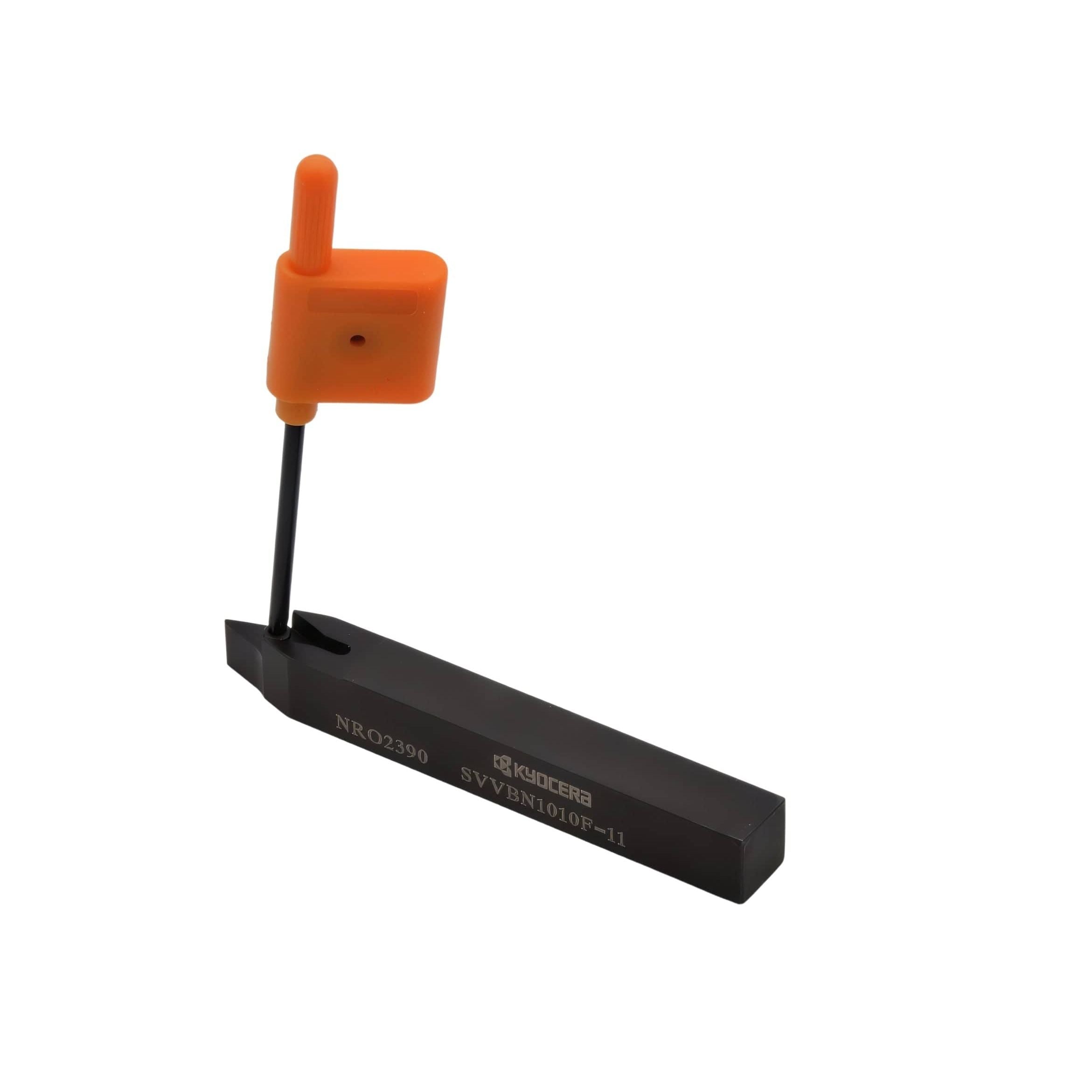

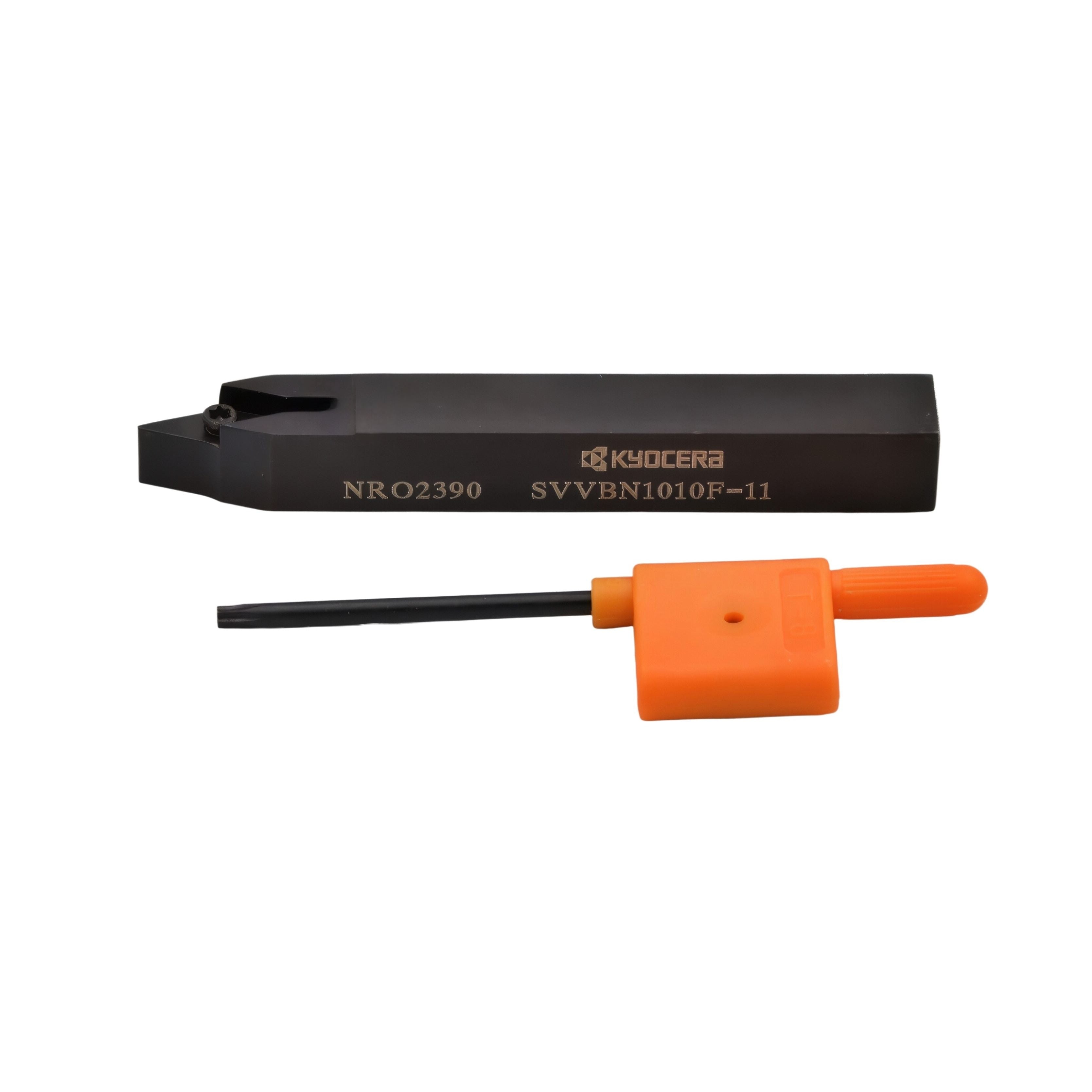

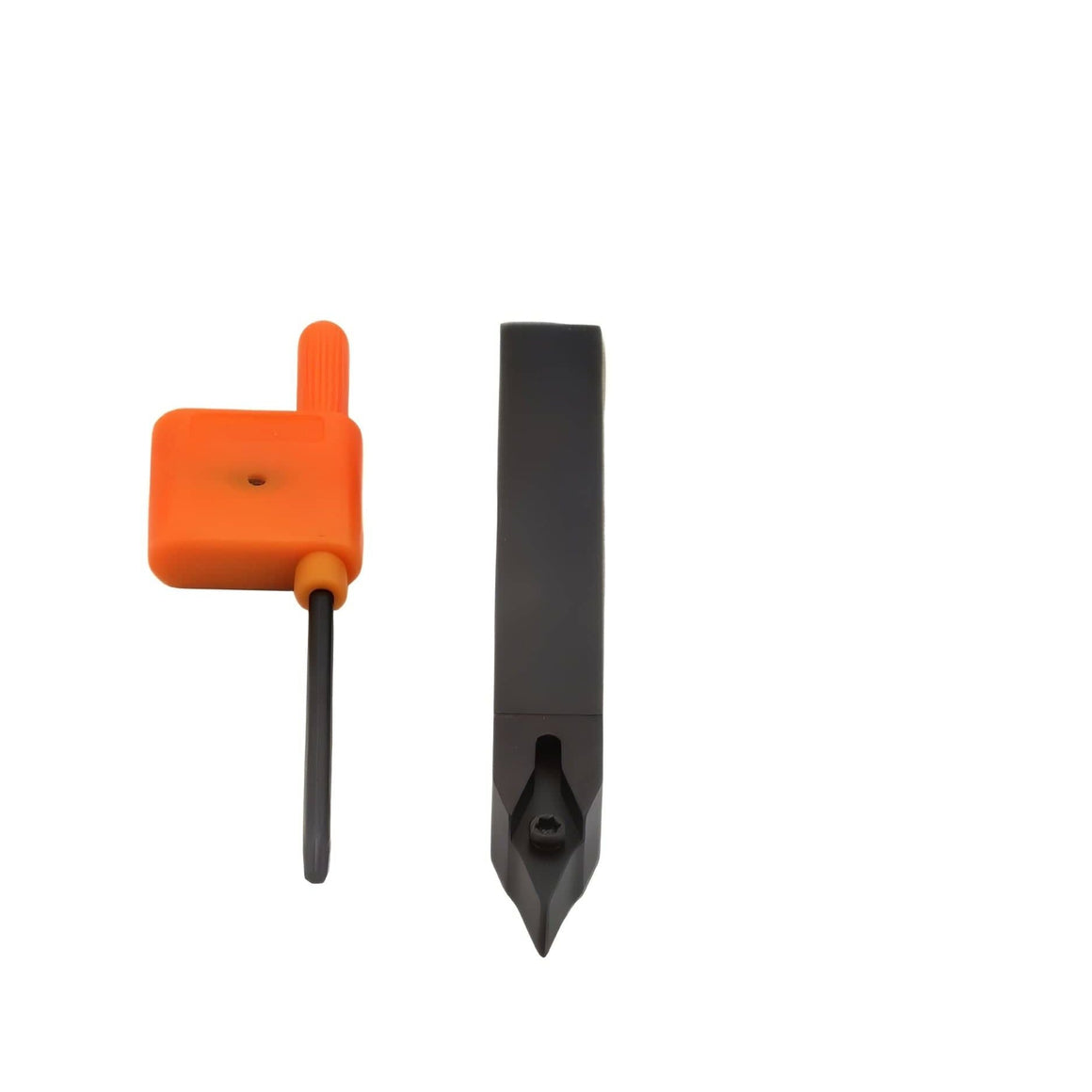

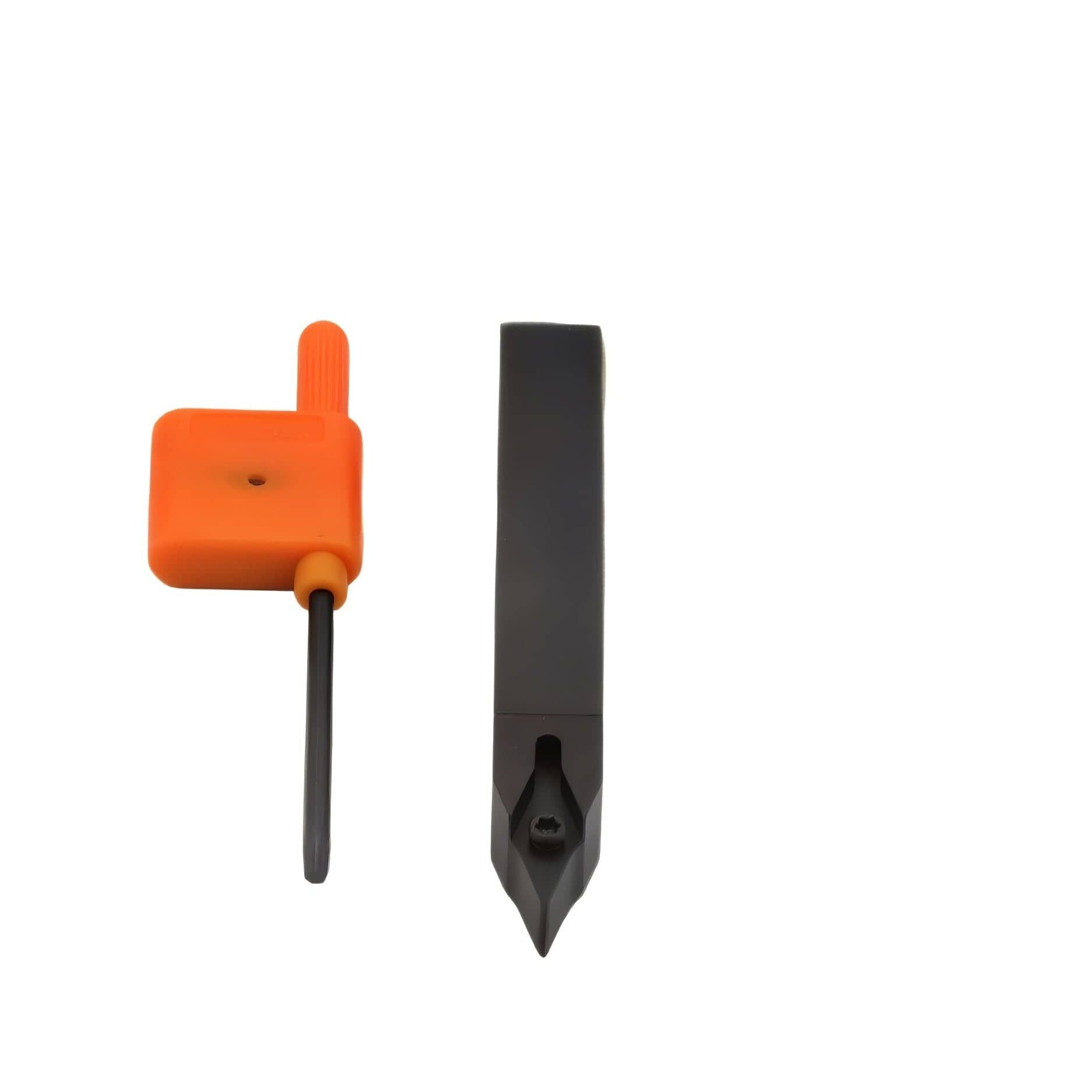

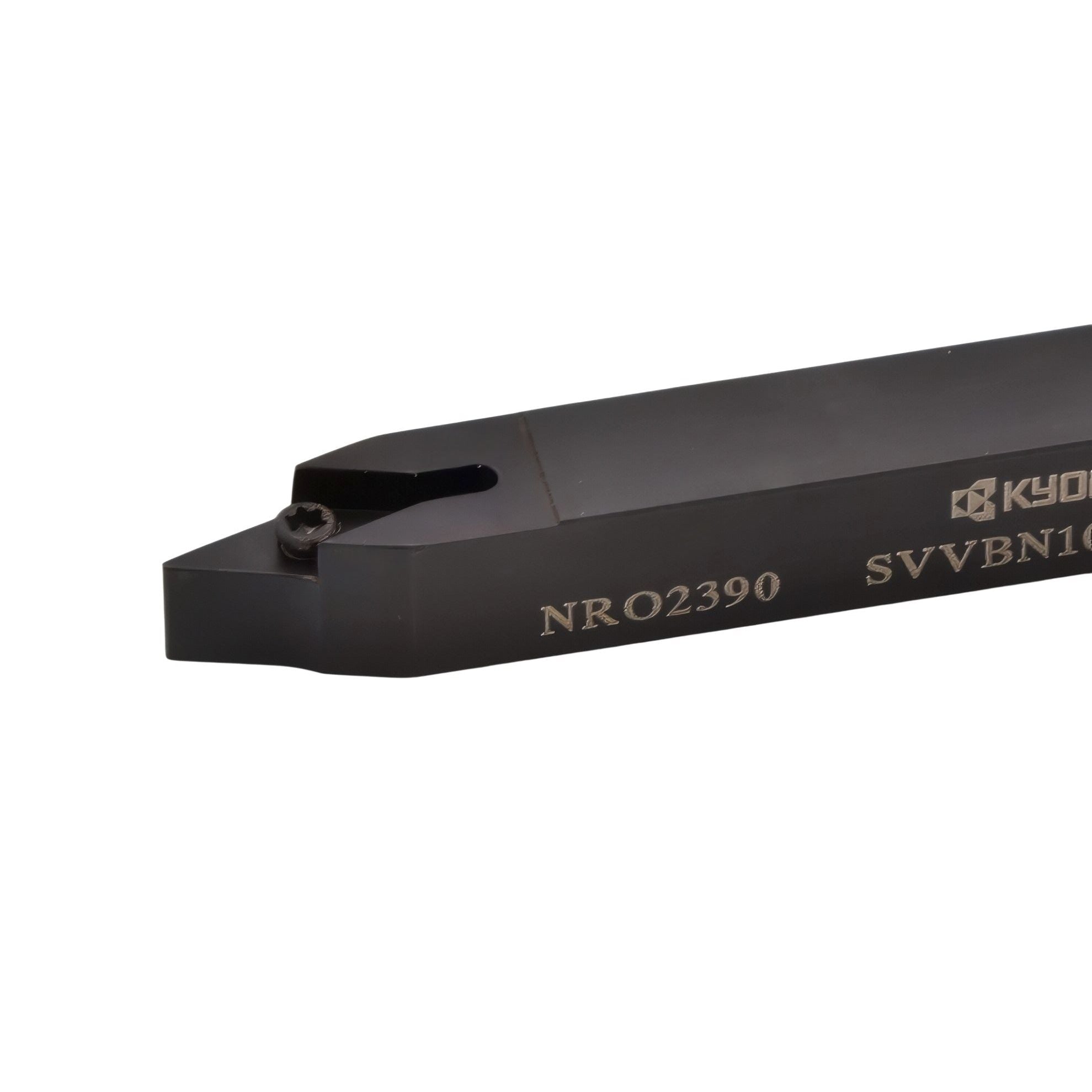

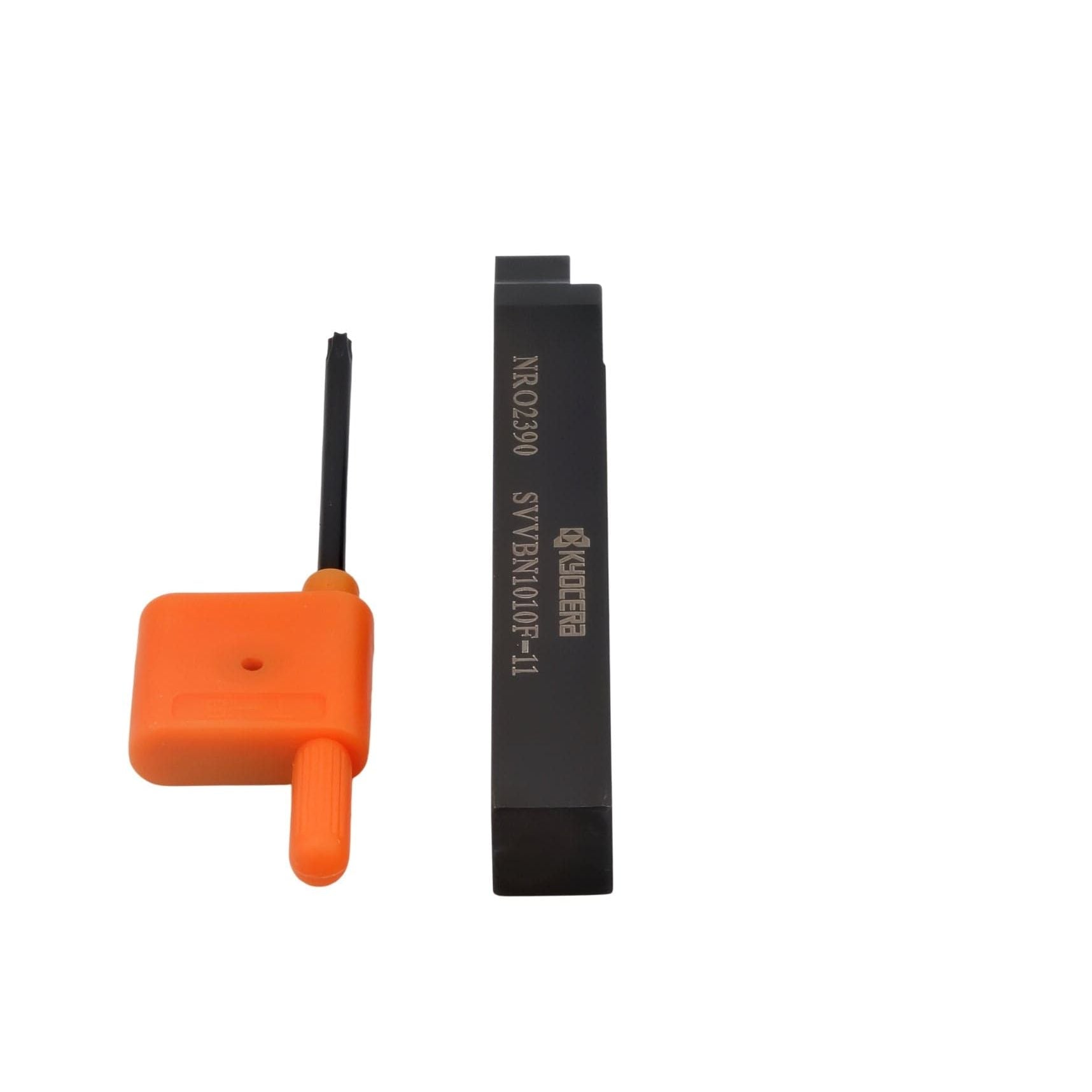

Kyocera SVVBN1616H-11 External Turning Toolholder
Couldn't load pickup availability
The Kyocera SVVBN1616H-11 external turning toolholder is a precision-engineered solution designed for fine profiling and finishing applications. With its neutral (N-type) configuration, this toolholder offers flexibility for multi-directional machining, making it ideal for complex part geometries and precision work.
Designed to accommodate 35° diamond inserts, the SVVBN series provides excellent accessibility and smooth cutting performance. The screw clamp system ensures secure insert retention and repeatable positioning, while the rigid steel construction minimises vibration and enhances surface finish. Its 16 x 16 mm shank makes it well-suited for compact machining setups and small to medium-sized components.
Key Features & Benefits
- External turning toolholder for precision profiling and finishing
- Neutral (N-type) configuration for versatile machining directions
- Compatible with 35° diamond inserts (VBMT style)
- Screw clamp system for secure and accurate insert positioning
- 16 x 16 mm shank for compact and stable setups
- High-strength steel construction for durability and rigidity
- Reduced vibration for improved surface finish
- Suitable for CNC and conventional lathes
Technical Specifications
- Brand: Kyocera
- Model: SVVBN1616H-11
- Item Number: THC07258
- Product Type: External Turning Toolholder
- Holder Style: SVVBN
- Insert Type: VBMT (35° Diamond)
- Insert Size: 11
- Shank Size: 16 x 16 mm
- Hand: Neutral
- Clamping System: Screw Clamp
- Material: Steel
- Total Length: 100 mm
- Cutting Edge Angle: 72.5°
- Internal Coolant: No
Kyocera tooling is globally recognised for its advanced engineering, durability, and machining performance, making it a trusted choice for precision manufacturing across a wide range of industries.
