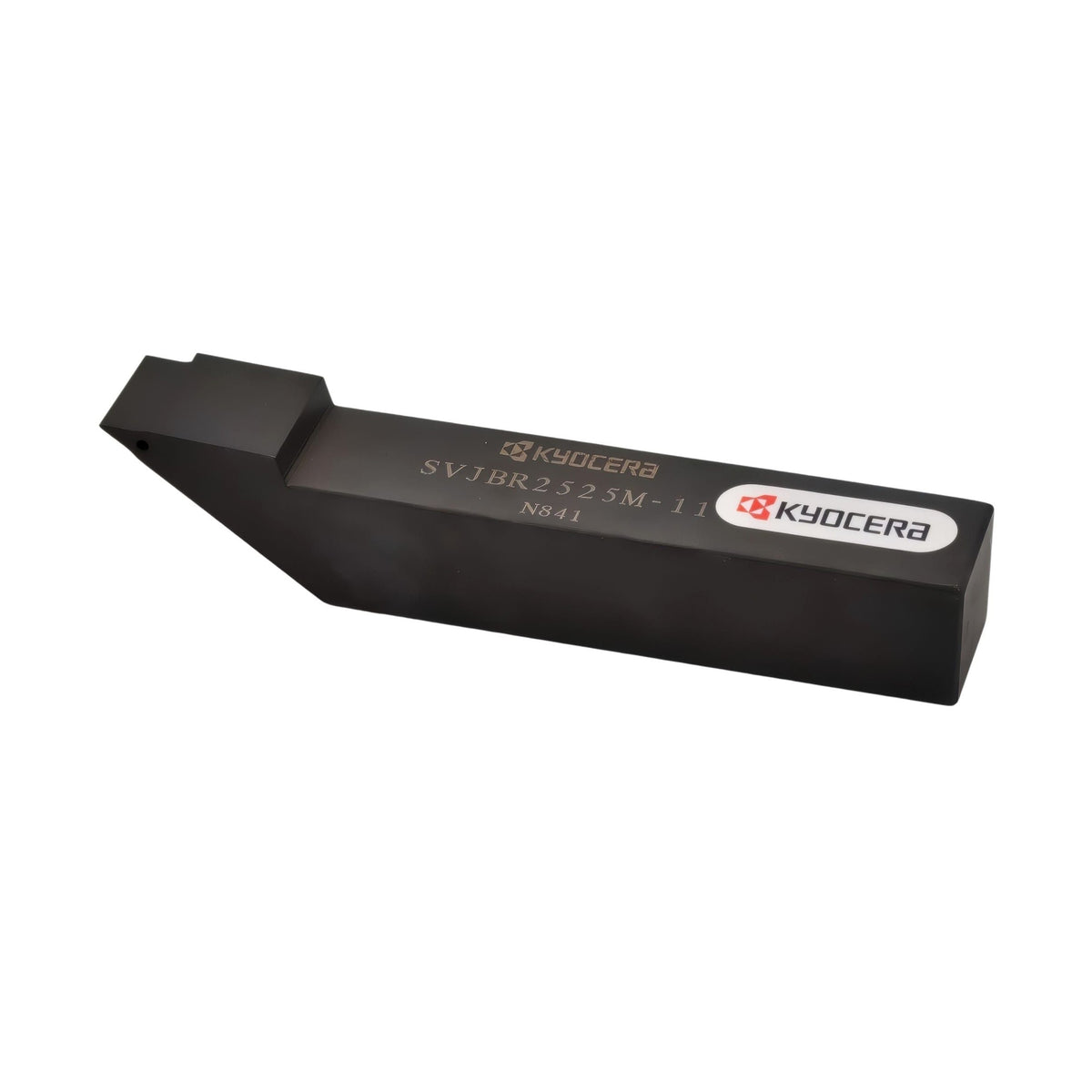

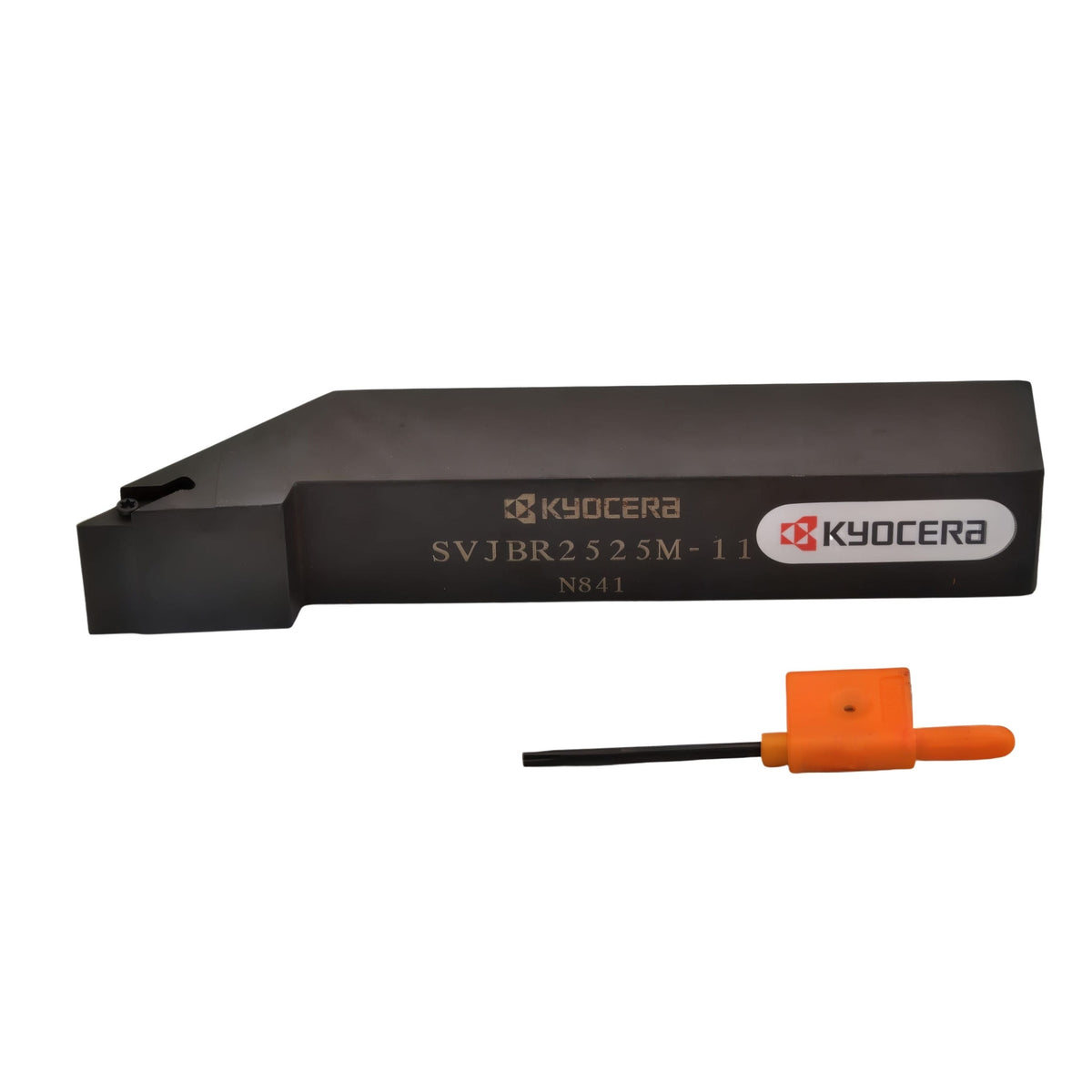

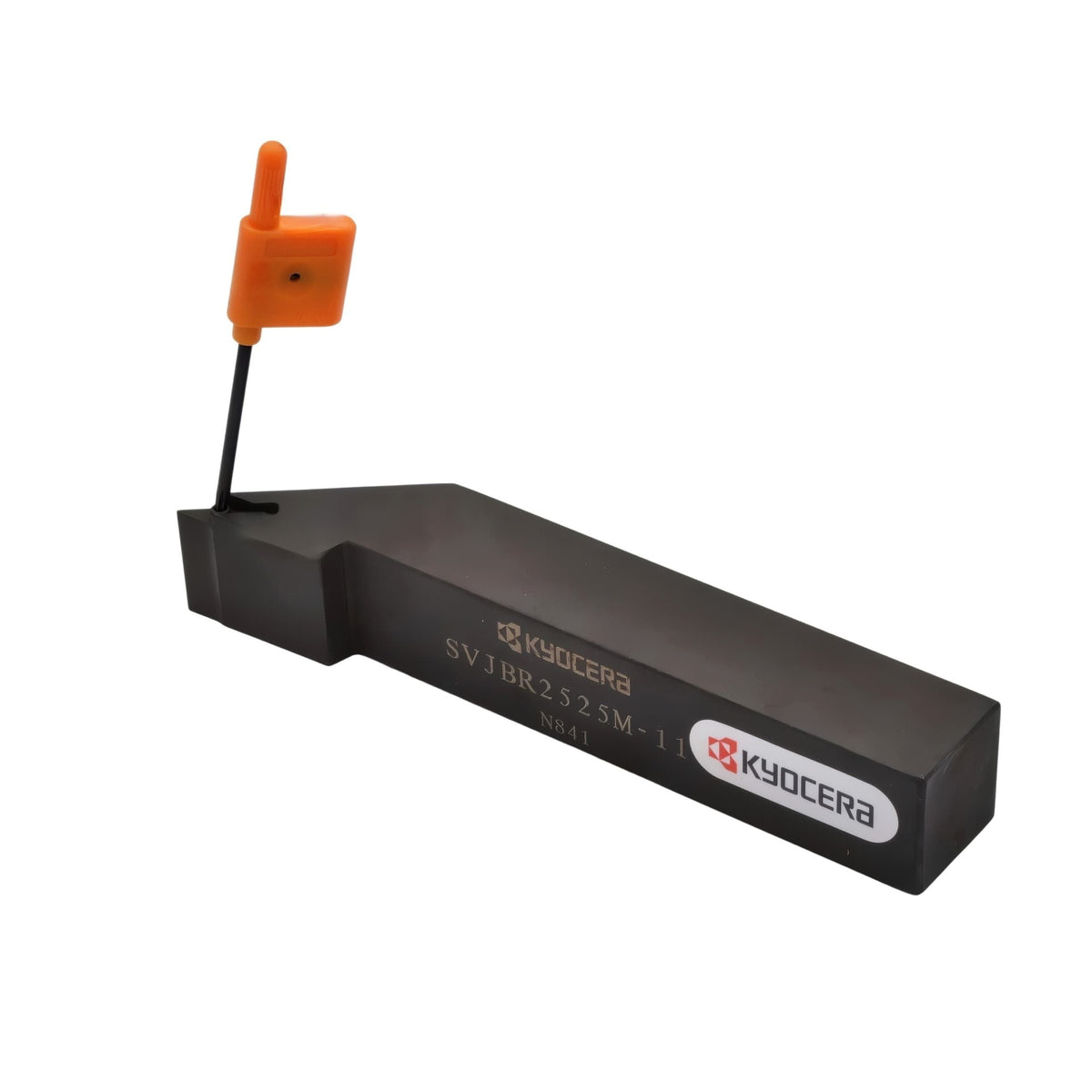

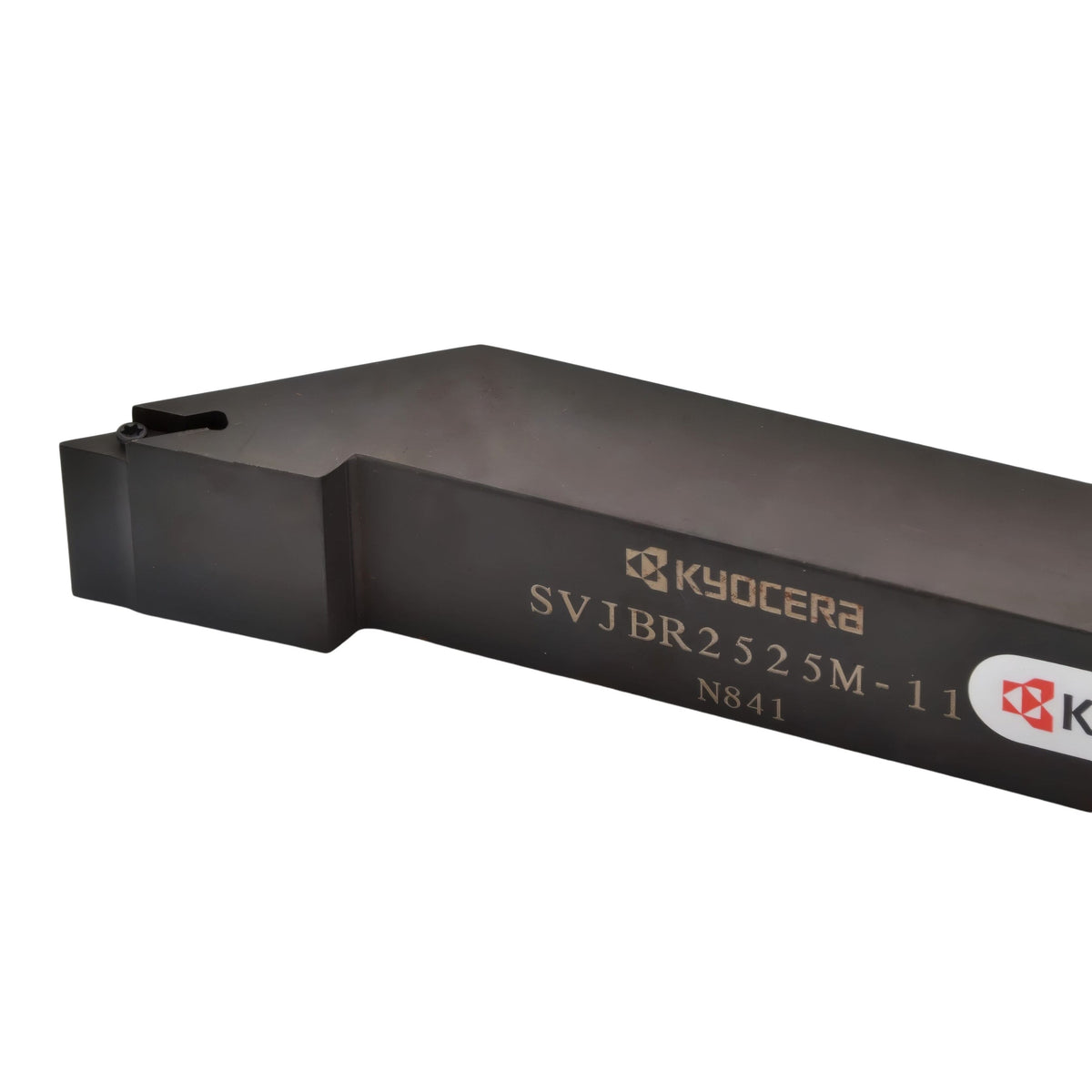

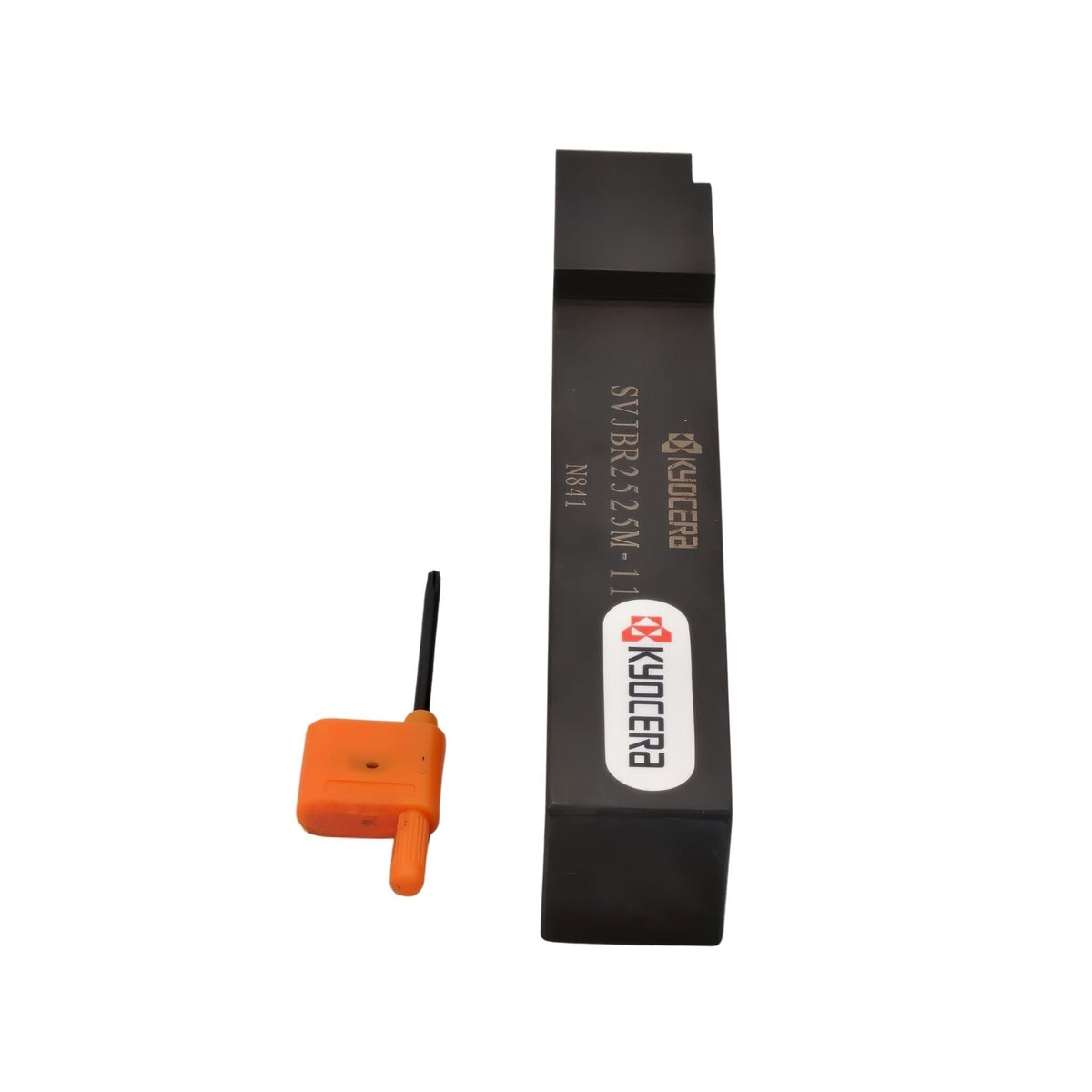

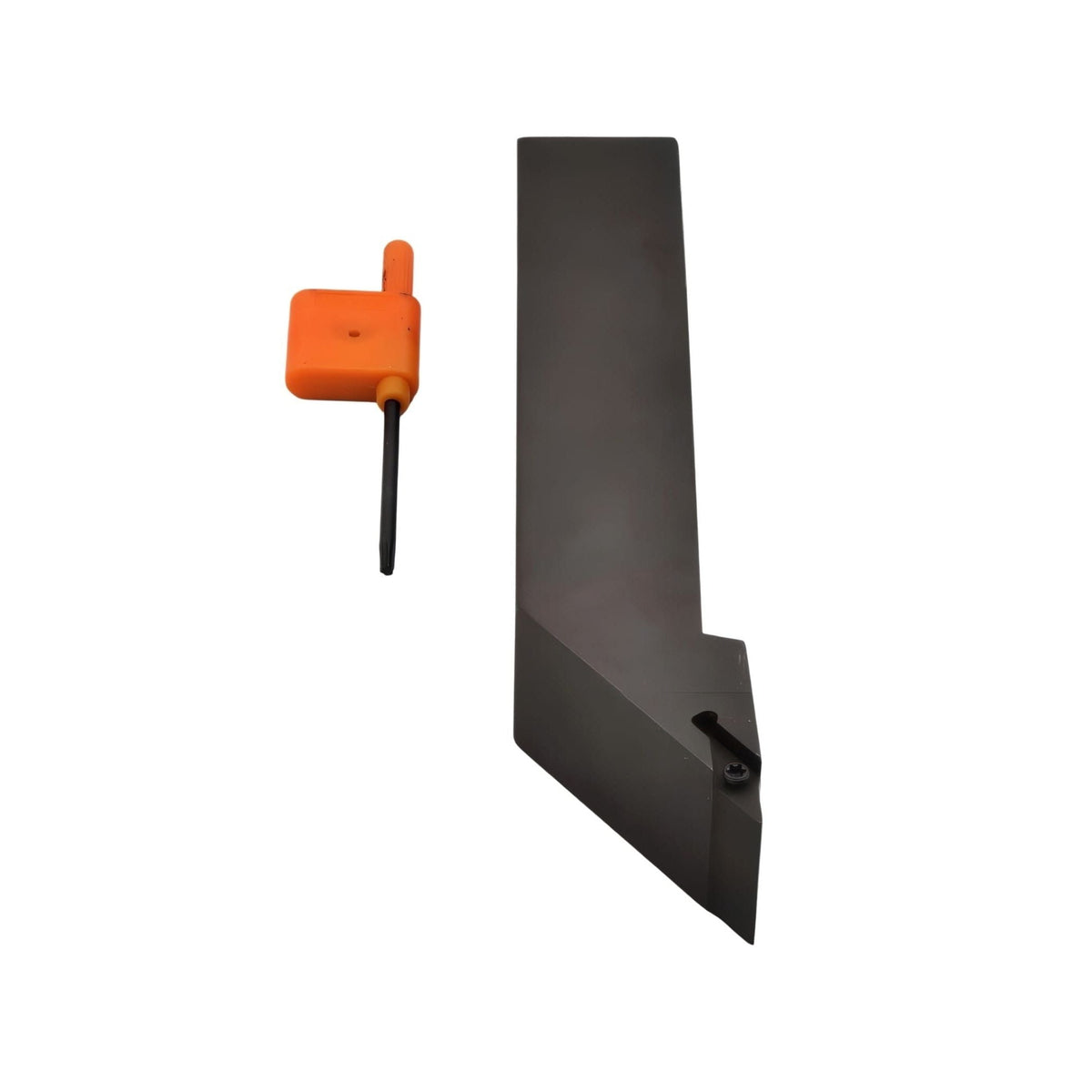

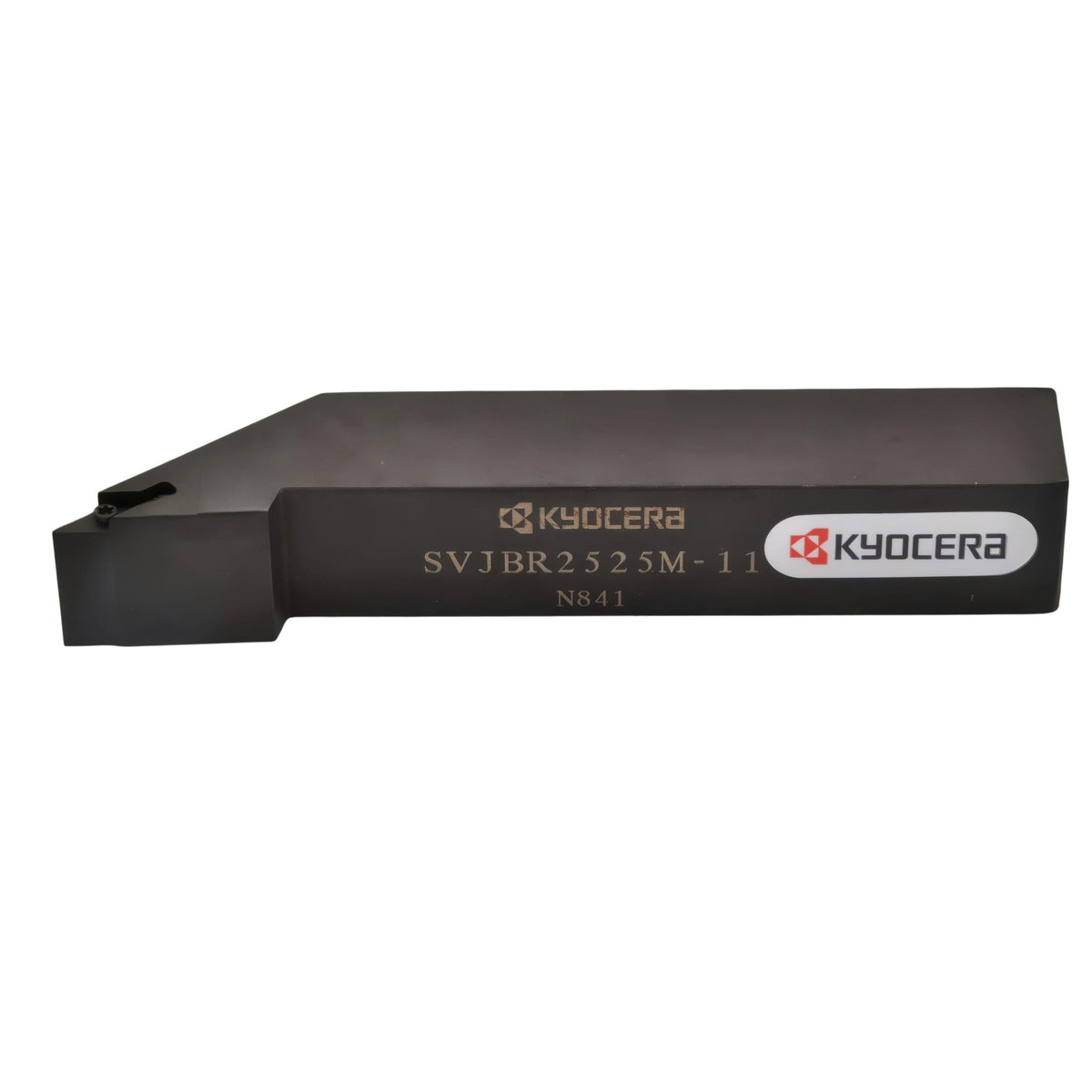

Kyocera SVJBR2525M-11 External Turning Toolholder – THC07312
Couldn't load pickup availability
The Kyocera SVJBR2525M-11 is a precision external turning toolholder designed for profiling and general turning applications. Built for stability and accuracy, it delivers consistent cutting performance with excellent chip control, making it suitable for a wide range of machining environments.
This right-hand toolholder is engineered to suit VB**11-style inserts, providing versatility across various materials and cutting conditions. Its square shank design ensures secure clamping and precise positioning, offering reliable performance in both CNC and manual lathe operations.
Key Features & Benefits
- Designed for external turning and profiling operations
- Compatible with VBMT11 inserts (35° positive rhombic)
- Right-hand cutting configuration for standard machining direction
- Square shank design for rigid and stable mounting
- High rigidity reduces vibration and improves surface finish
- Excellent chip control for efficient machining
- Suitable for general to medium-duty turning applications
- Durable construction for long service life
Technical Specifications
- Part Number: SVJBR2525M-11
- Item Number: THC07312
- Product Type: External Turning Toolholder
- Insert Compatibility: VBMT11
- Shank Width (B): 25 mm
- Shank Height (H): 25 mm
- Hand: Right
- Total Length (OAL): 150 mm
- Head Length (LH): 35 mm
- Clearance Angle: 5°
- Insert Included Angle: 35°
- Rake Angle Radial: 0°
- Rake Angle Axial: 0°
- Functional Height (HF): 25 mm
- Inscribed Circle (IC): 6.35 mm
- Tool Cutting Edge Angle: 93°
- Cutting Edge Length: 11.088 mm
- Corner Radius: 0.4 mm
- Insert Thickness: 3.18 mm
- Internal Coolant: No
Kyocera is globally recognised for high-performance cutting tools, delivering precision, durability, and consistent machining results across a wide range of industrial applications. :contentReference[oaicite:0]{index=0}
