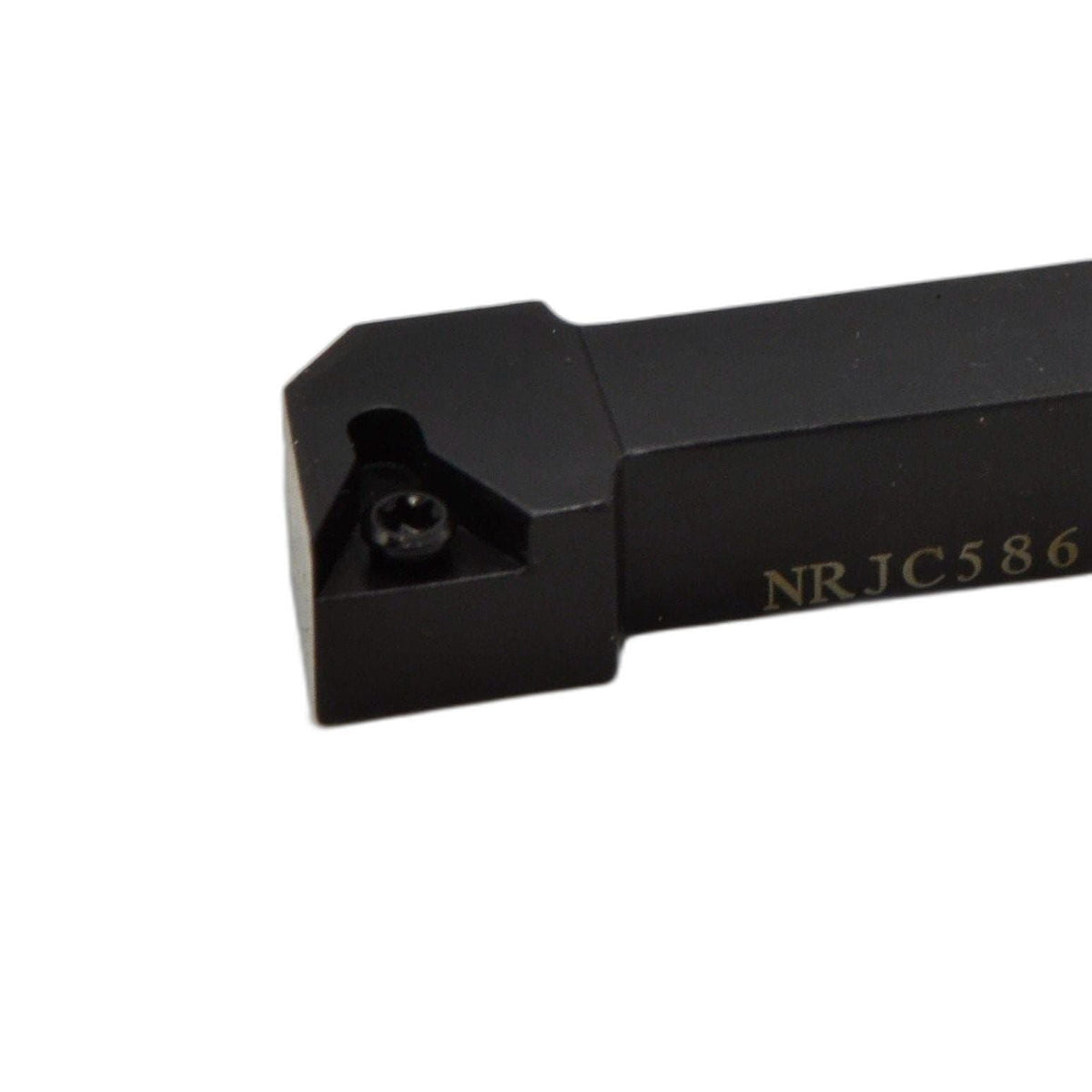

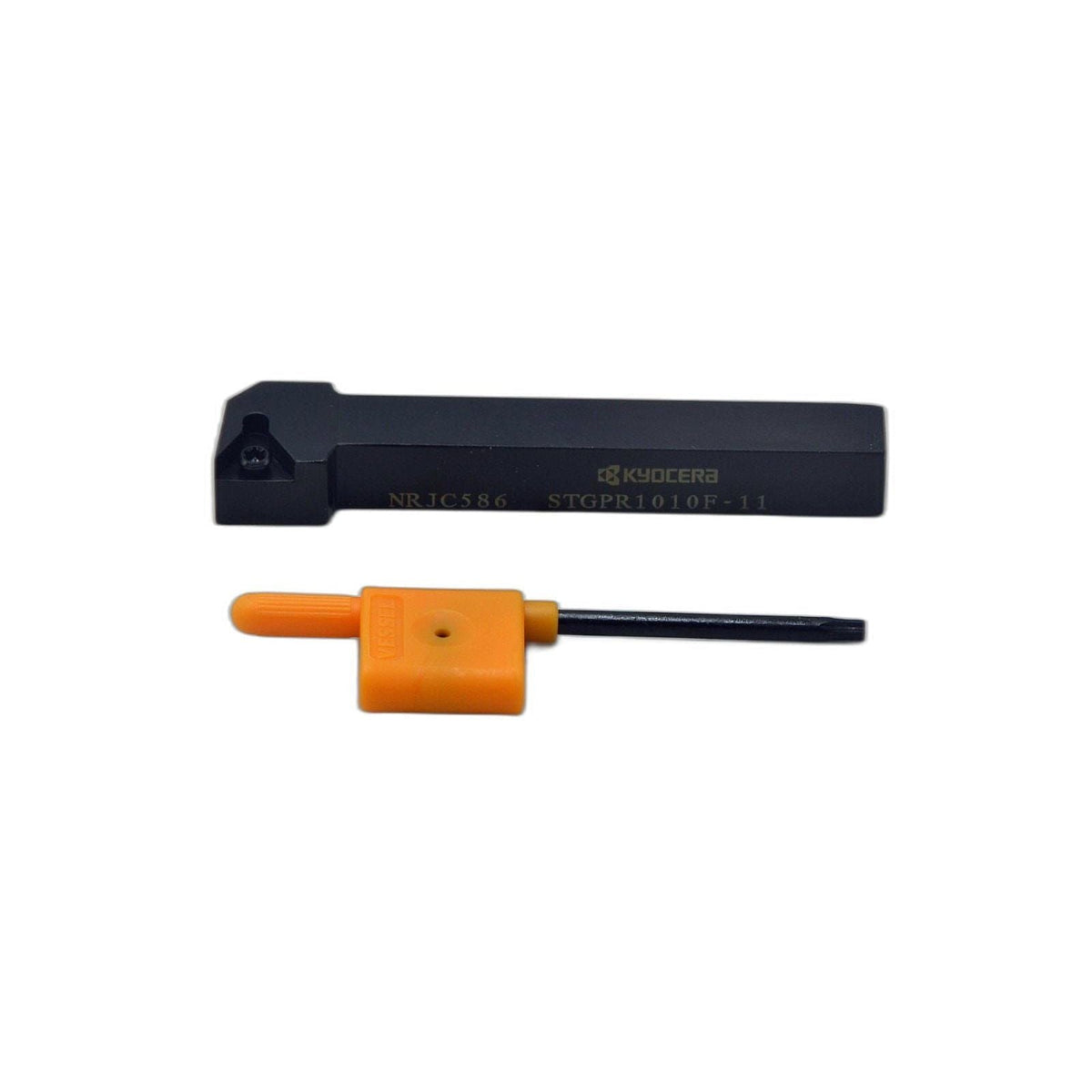

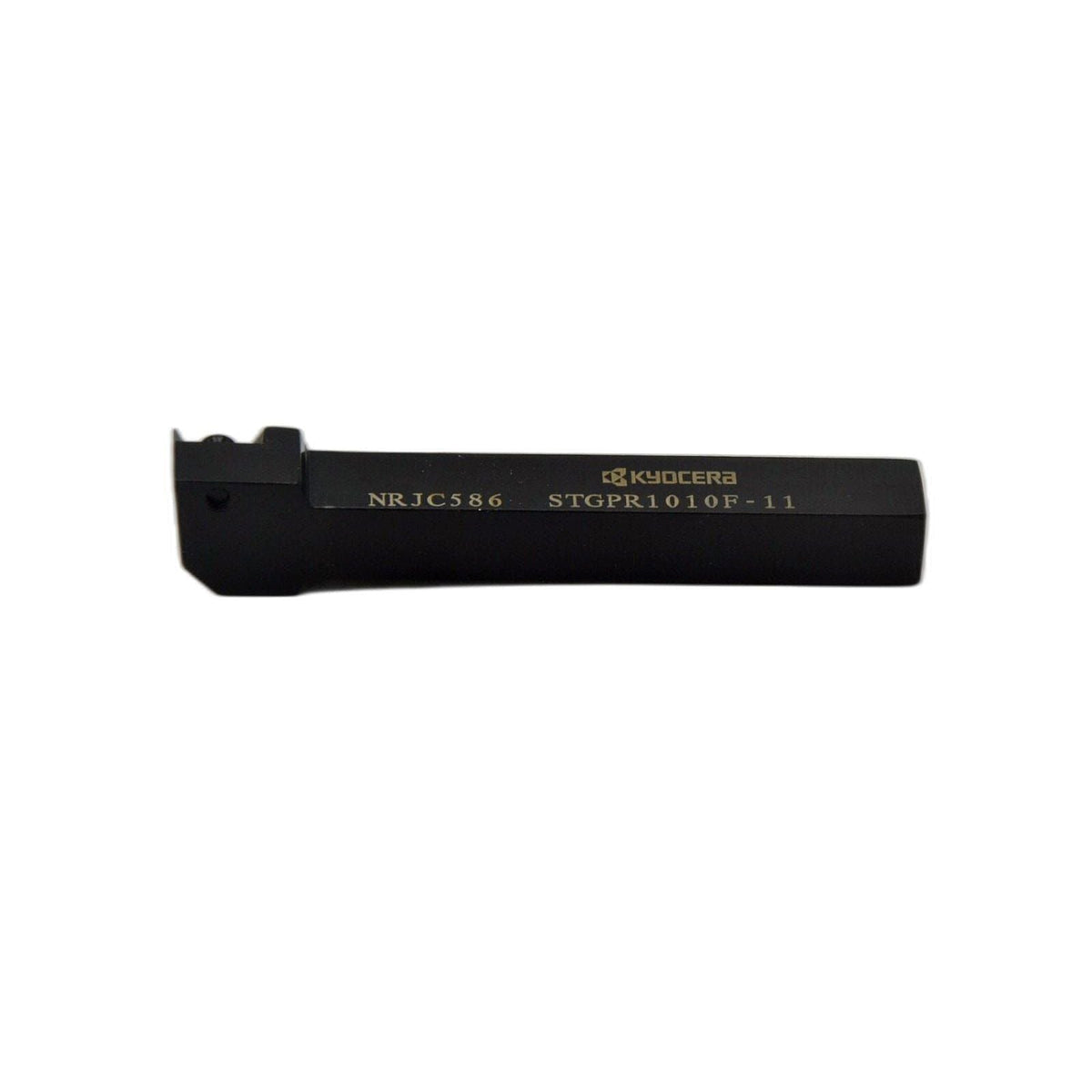

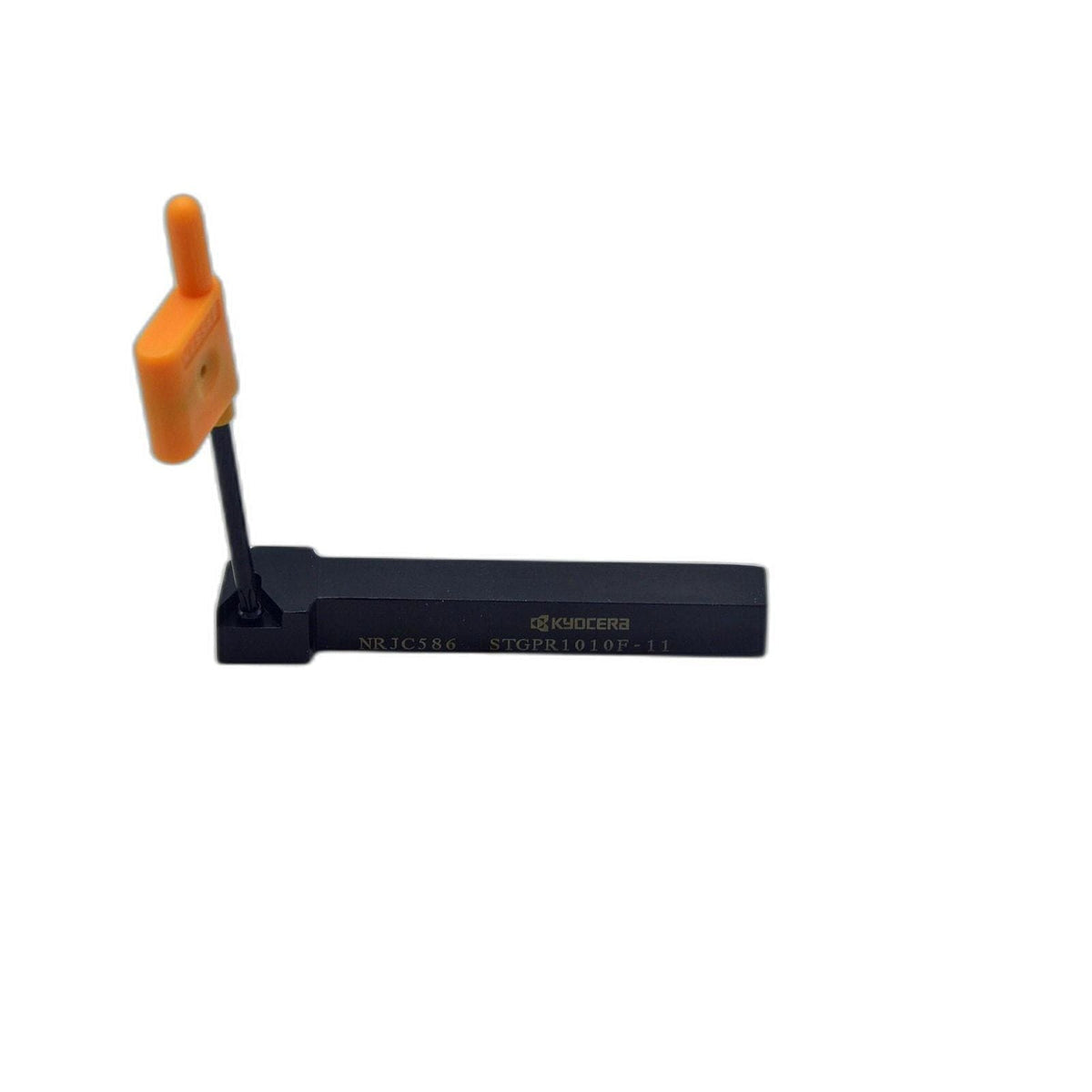

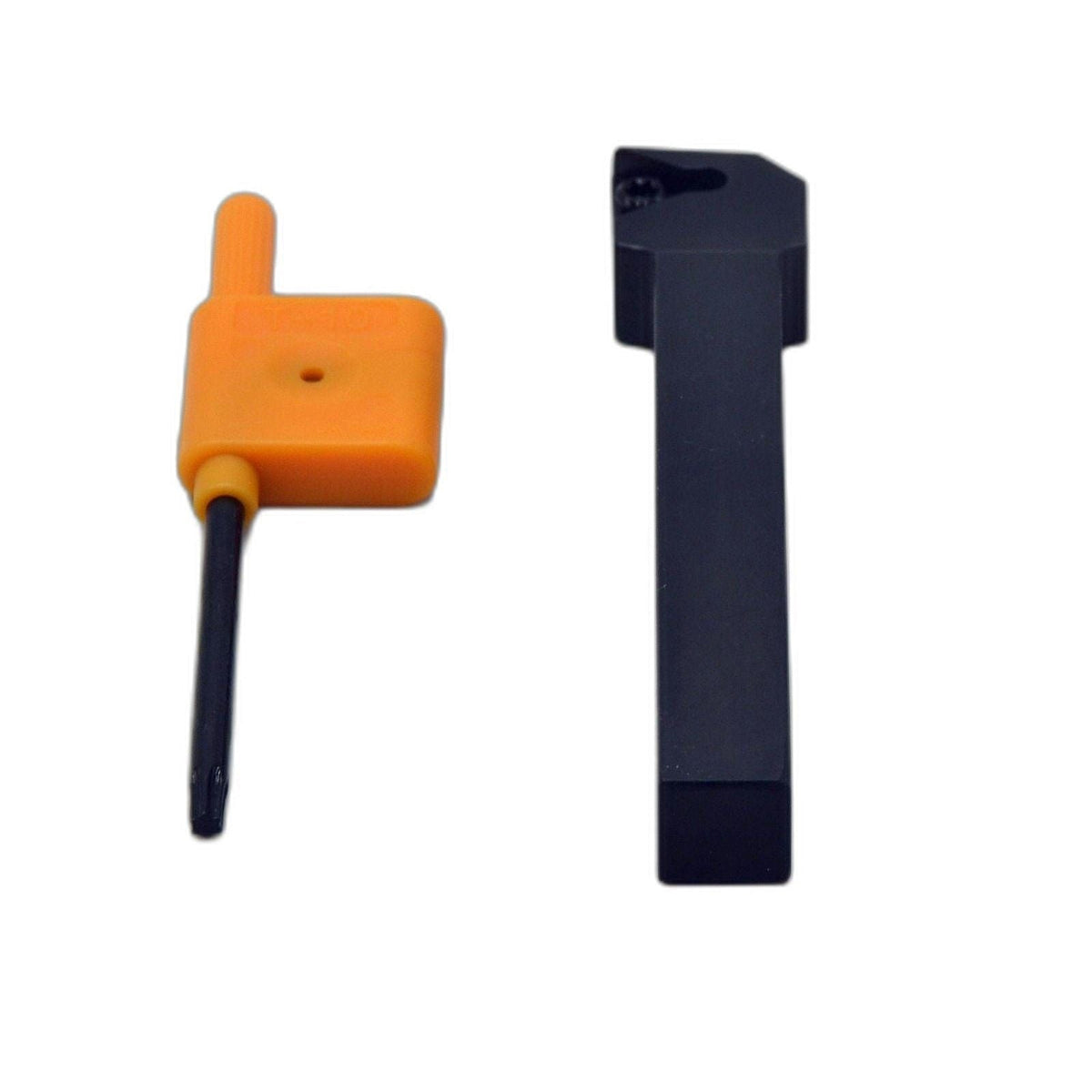

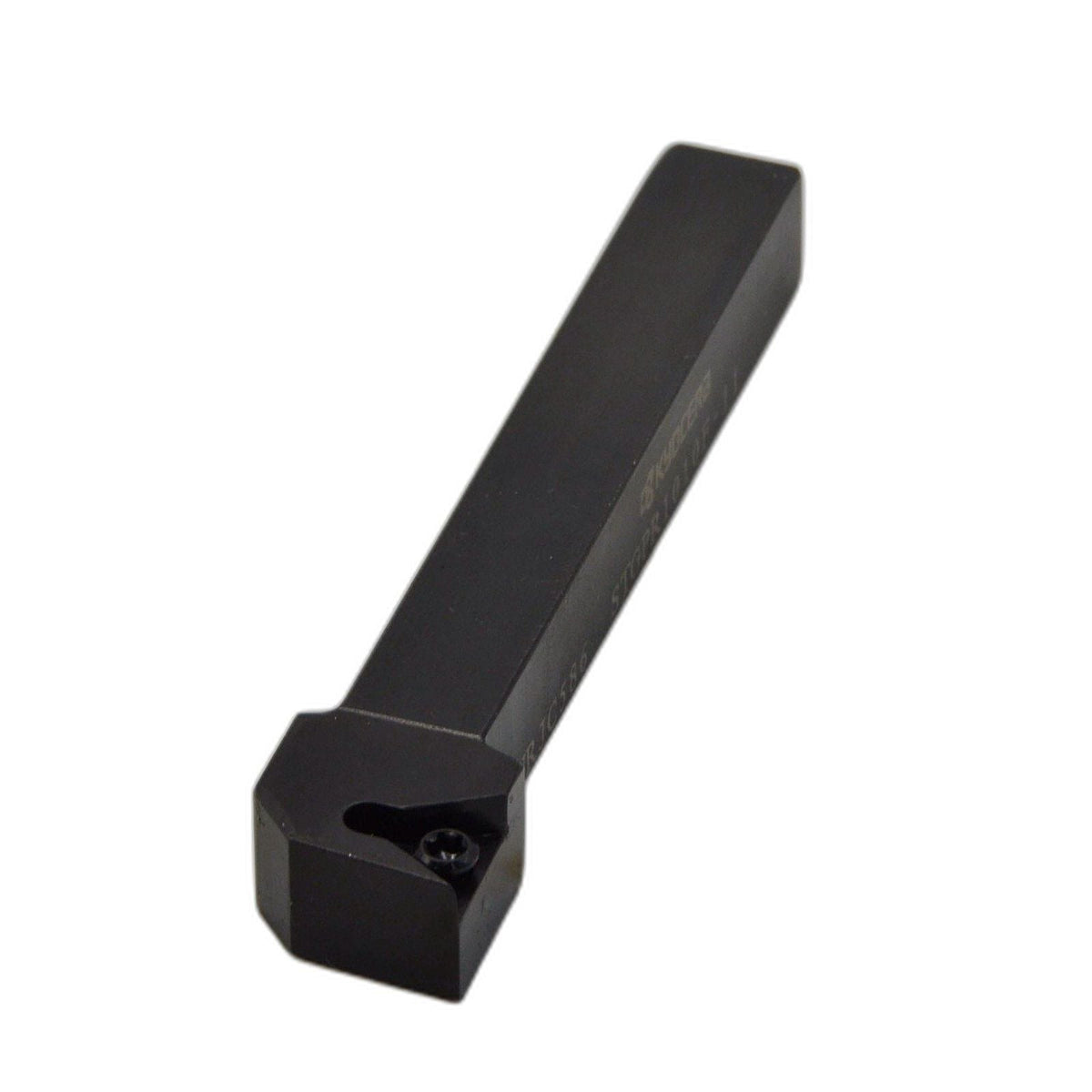

Kyocera STGPR1010F-11 – Indexable Turning Toolholder (THC08462)

Kyocera STGPR1010F-11 – Indexable Turning Toolholder (THC08462)

The Kyocera STGPR1010F-11 is a precision external turning toolholder designed for rigid, compact setups. With a shank section of 10 mm × 10 mm and a total length (L) of 80 mm, this right-hand holder accepts insert size 11 and is built without internal coolant for simplicity in general turning applications. :contentReference[oaicite:1]{index=1}

Key Features & Benefits

• Shank width 10 mm and height 10 mm — maximizes rigidity in compact tool-holder setups.
• Right-hand orientation — suitable for conventional turning operations.
• Total length 80 mm — short overhang, enhanced stability.
• Insert size 11 — common type for excellent availability and flexibility.
• No internal coolant — simplified setup in flood or dry turning environments.

Technical Specifications

Item No: THC08462
Shank Width (B): 10 mm
Shank Height (H): 10 mm
Insert Size: 11
Total Length (L): 80 mm
Type: Right-hand
Internal Coolant: No
