Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

SKU: KSP30331
(0)

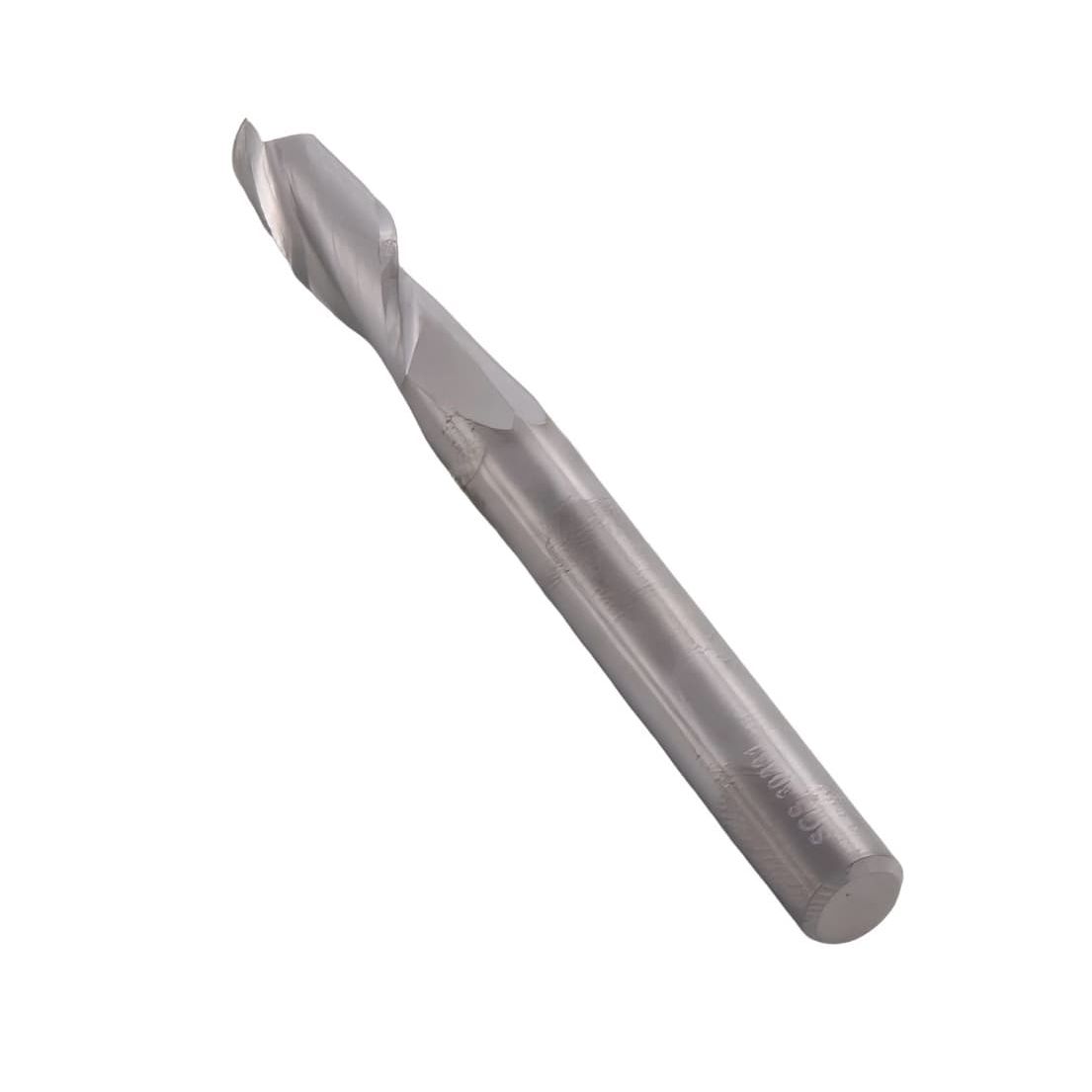

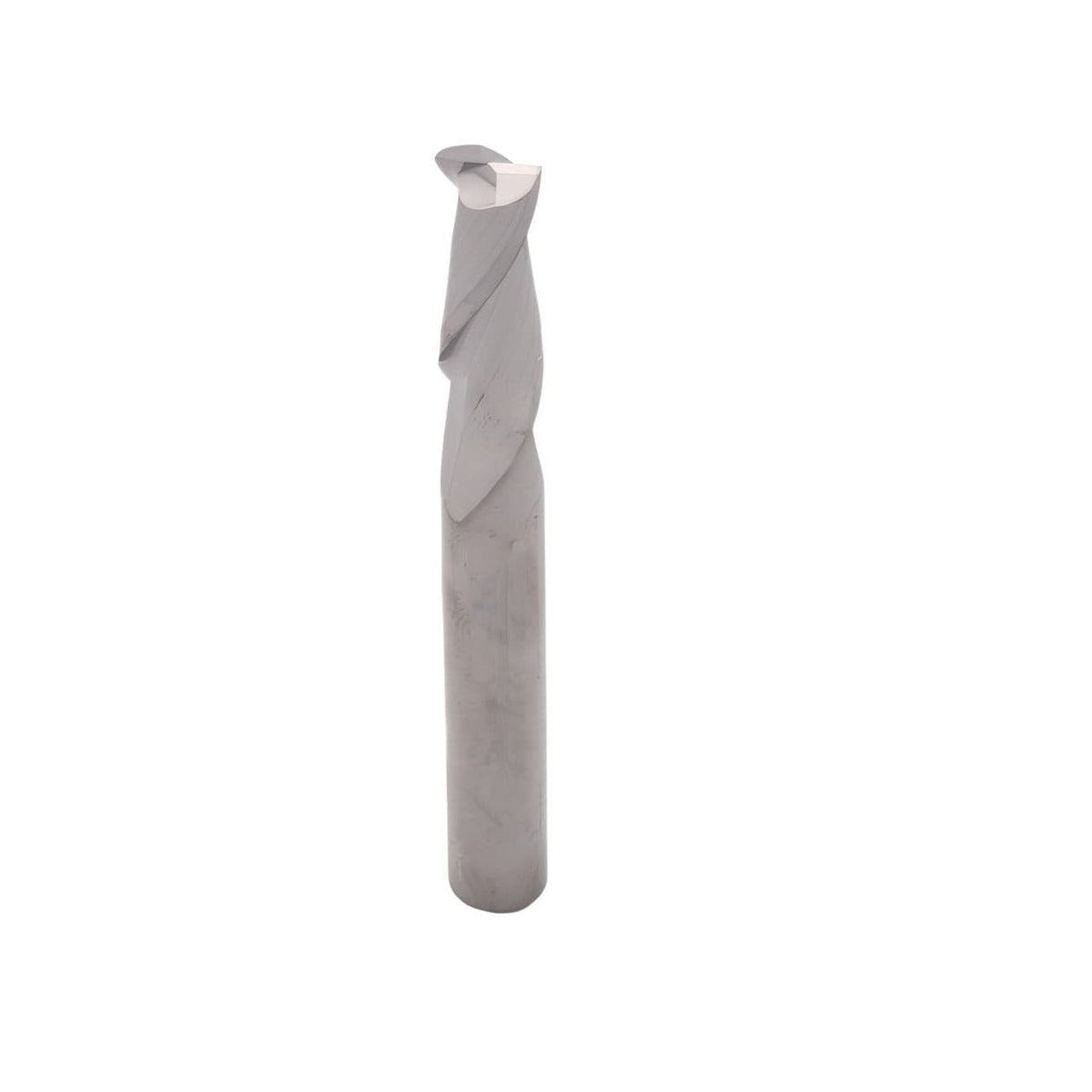

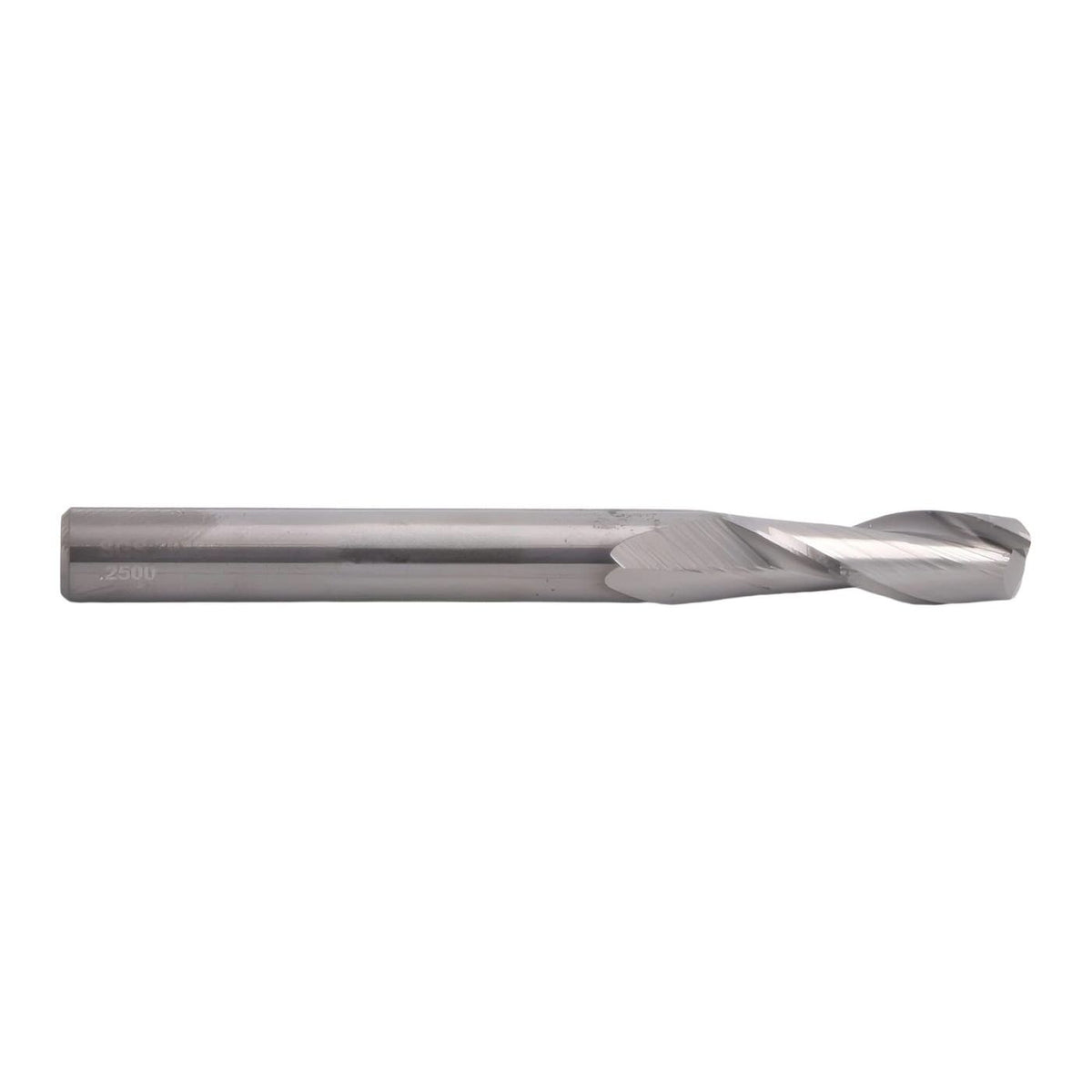

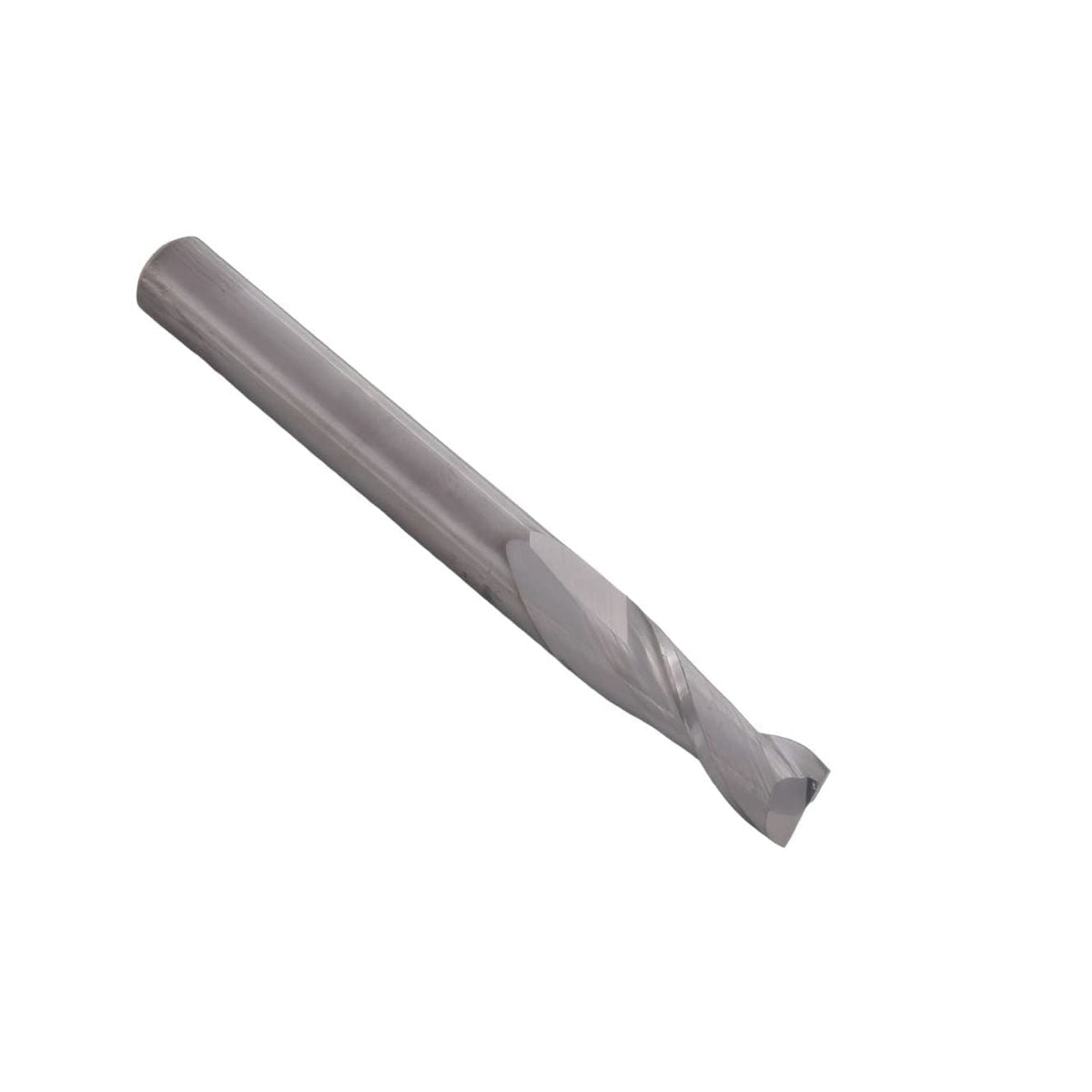

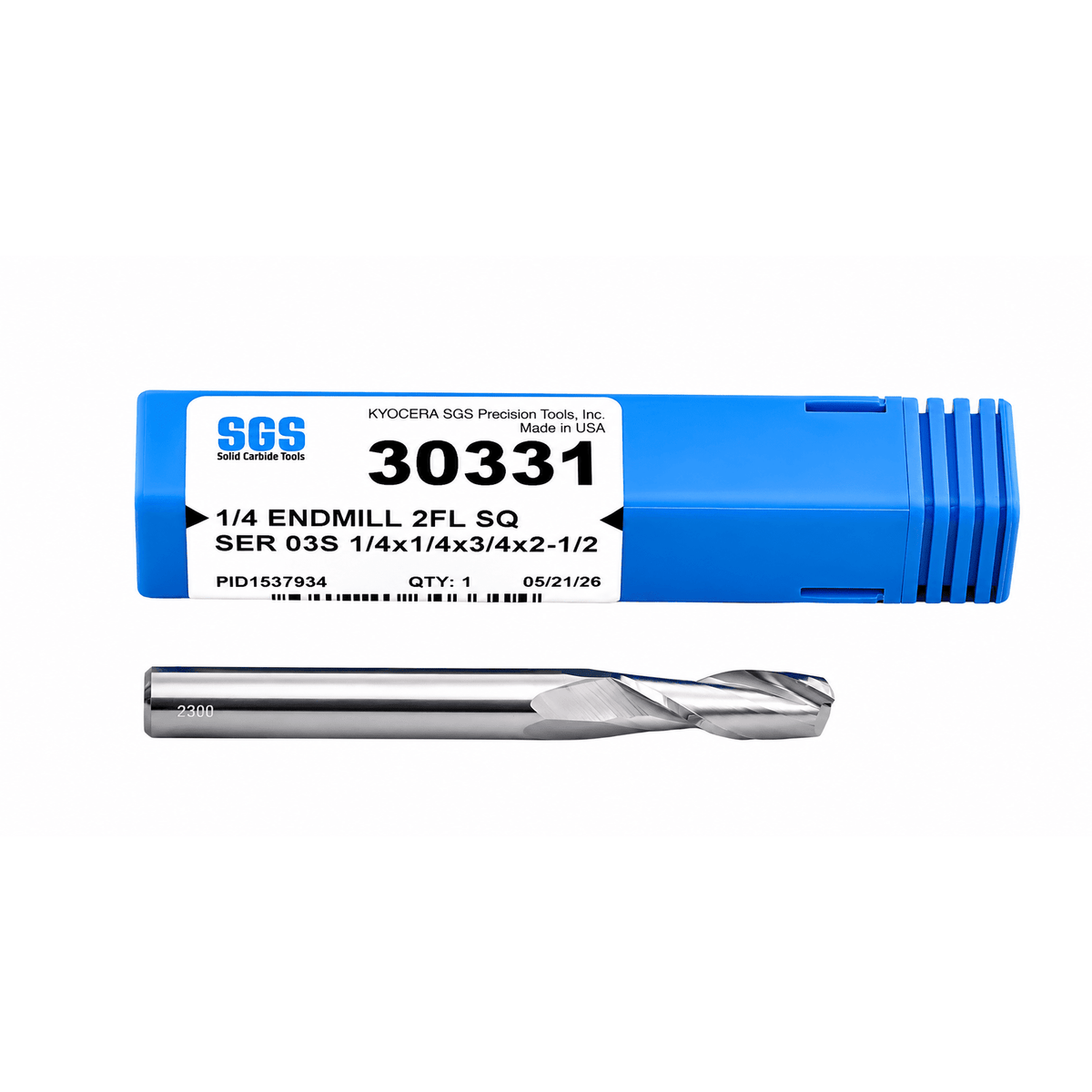

Kyocera SGS 30331 1/4" 2 Flute Uncoated Carbide Square End Mill

In stock
$94.90

Professional quality Kyocera SGS 30331 Series 03S general application end mill manufactured from solid carbide for reliable and precise machining across a wide range of materials. This 1/4" diameter end mill features two flutes, a 3/4" length of cut, 30° right-hand spiral and bright uncoated finish for dependable performance in general milling applications.

The two-flute design provides increased flute space for efficient chip evacuation, making this end mill well suited to general-purpose milling operations. The positive rake geometry and 30° helix promote smooth cutting action and efficient material removal, while the center-cutting design allows for plunging, slotting, profiling and general milling operations. This versatile end mill is suitable for machining steel, stainless steel, cast iron, non-ferrous materials, high temperature alloys and hardened materials.

Product Specifications

  • Brand: Kyocera SGS
  • Part Number: 30331
  • Series: 03S
  • Application: General Application End Mill
  • End Mill Type: Square End
  • Cutting Diameter: 1/4" (6.35mm)
  • Number of Flutes: 2
  • Length of Cut: 3/4" (19.05mm)
  • Shank Diameter: 1/4" (6.35mm)
  • Overall Length: 2-1/2" (63.50mm)
  • Shank Length: 1-3/4" (44.45mm)
  • Material: Solid Carbide
  • Coating: Bright/Uncoated
  • Shank Type: Straight
  • Flute Type: Spiral
  • Helix Angle: 30° Right Spiral
  • Cut Direction: Right Hand Cut Direction (RHC)
  • Rake Angle: Positive
  • Variable Helix: No
  • Center Cutting: Yes
  • Chip Breaker: No
  • Coolant Option: External Coolant
  • Tool Length: Long
  • Weldon Flat: No
  • Cutting Diameter Tolerance: +0.000/-0.050mm (+0.0000/-0.0020 inch)
  • Shank Diameter Tolerance: h6
  • Primary Workpiece Materials: Steel, Stainless Steel, Cast Iron, Non-Ferrous Materials, High Temperature Alloys
  • Secondary Workpiece Material: Hardened Materials
  • Shipping Weight: 0.0692
  • US Stock: 479

The Kyocera SGS 30331 is an excellent choice for CNC milling applications requiring a reliable 1/4" 2-flute solid carbide square end mill with 3/4" length of cut, 30° helix and bright uncoated finish for efficient chip evacuation, smooth cutting and dependable performance across a broad range of workpiece materials.
