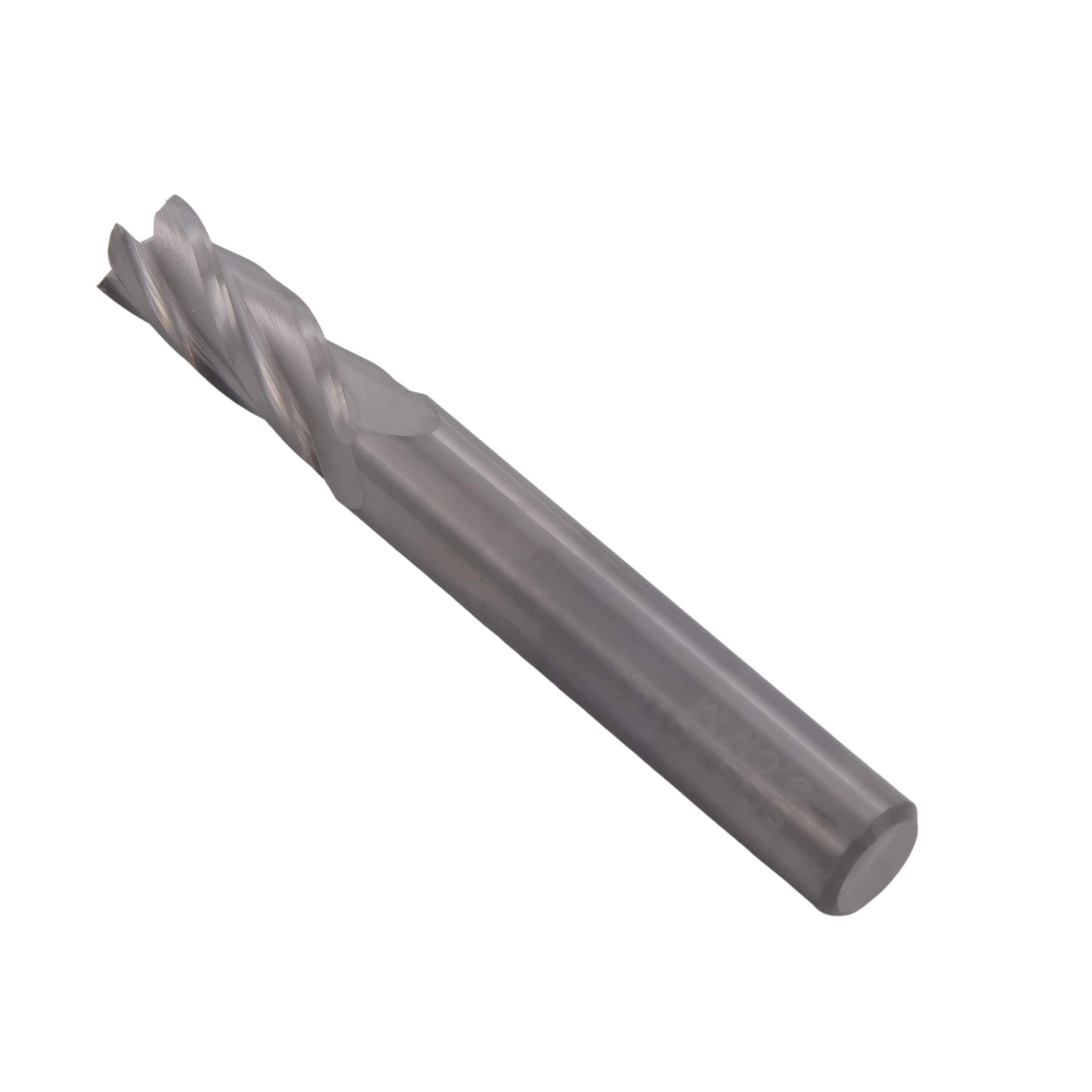

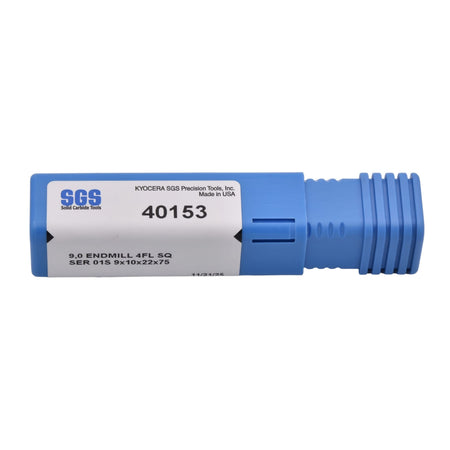

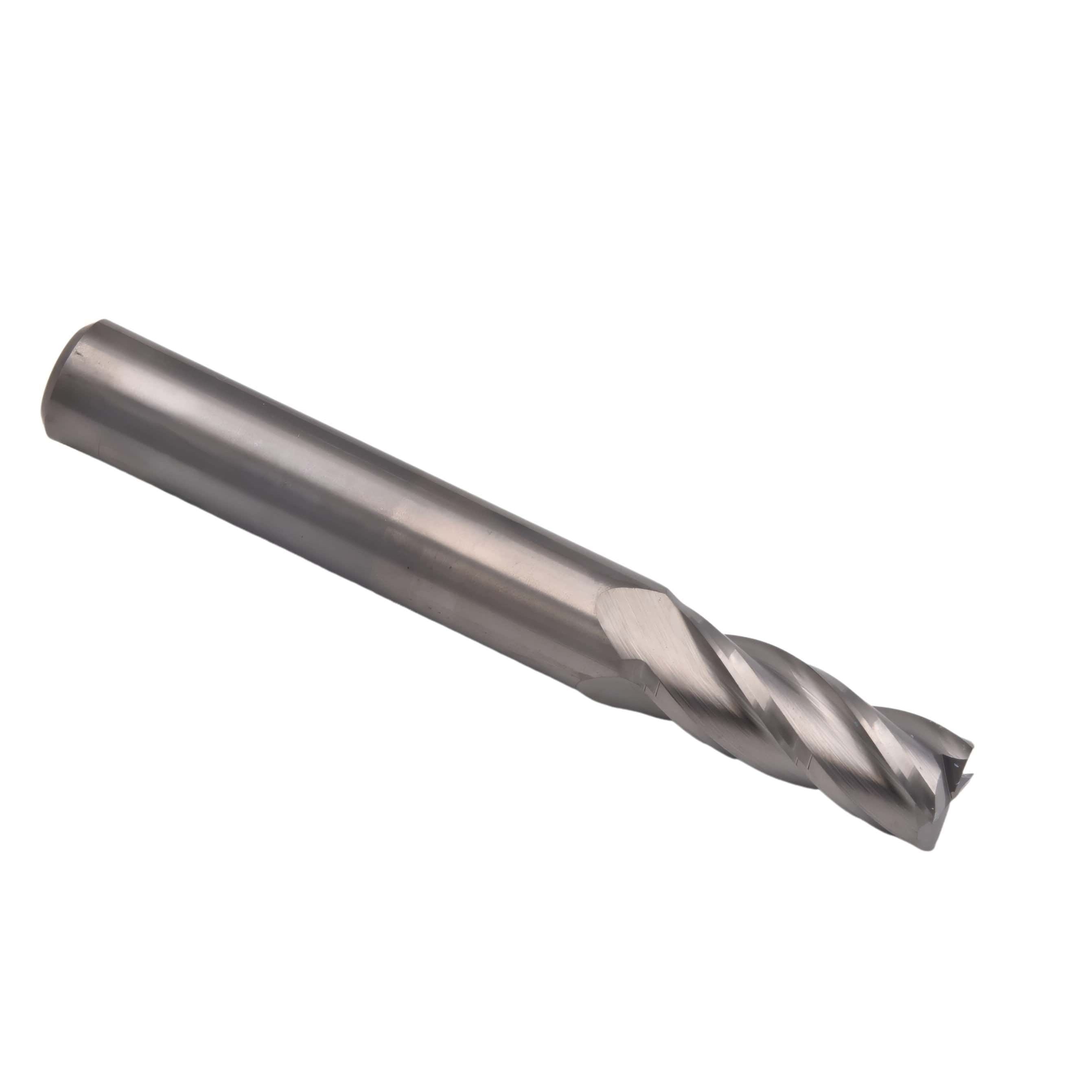

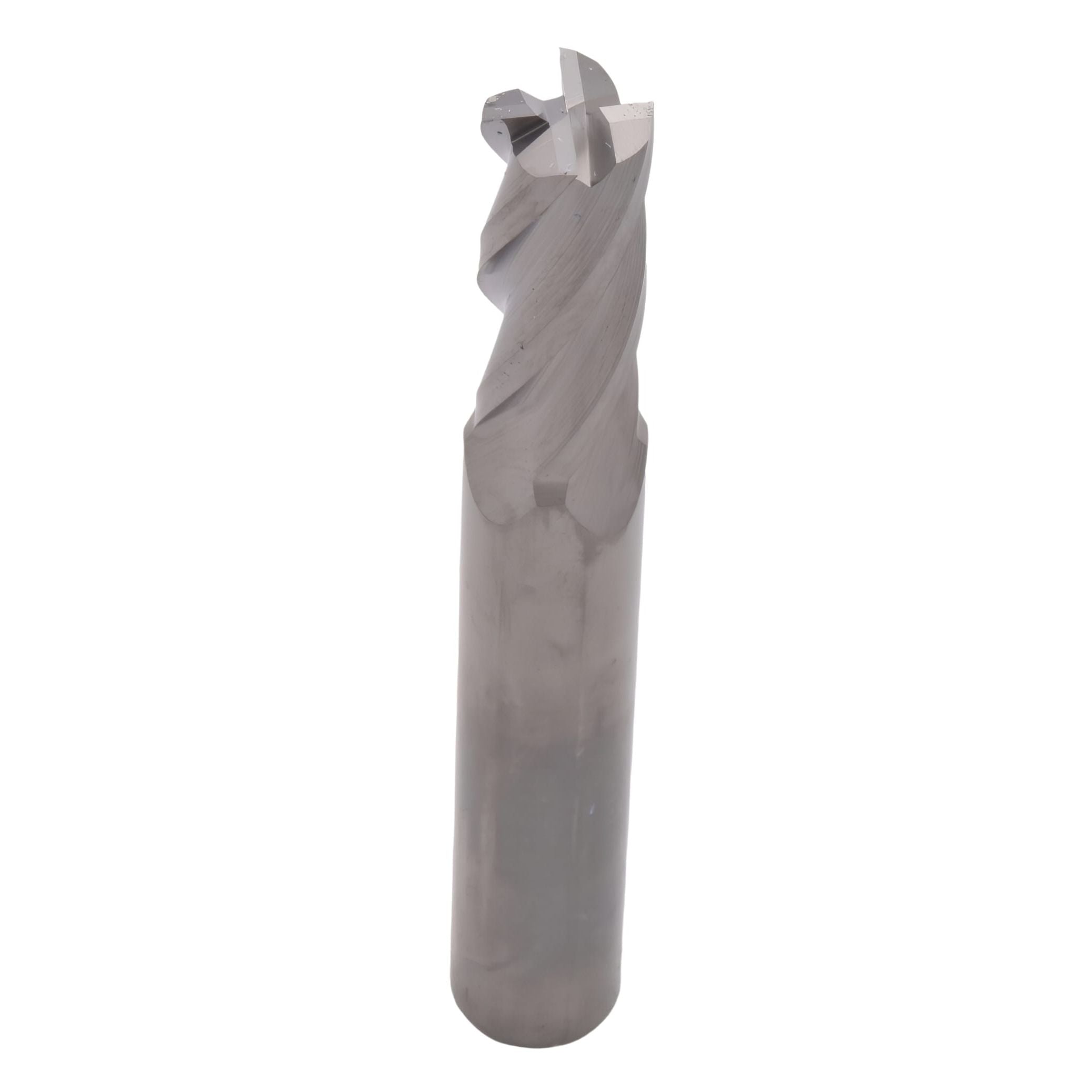

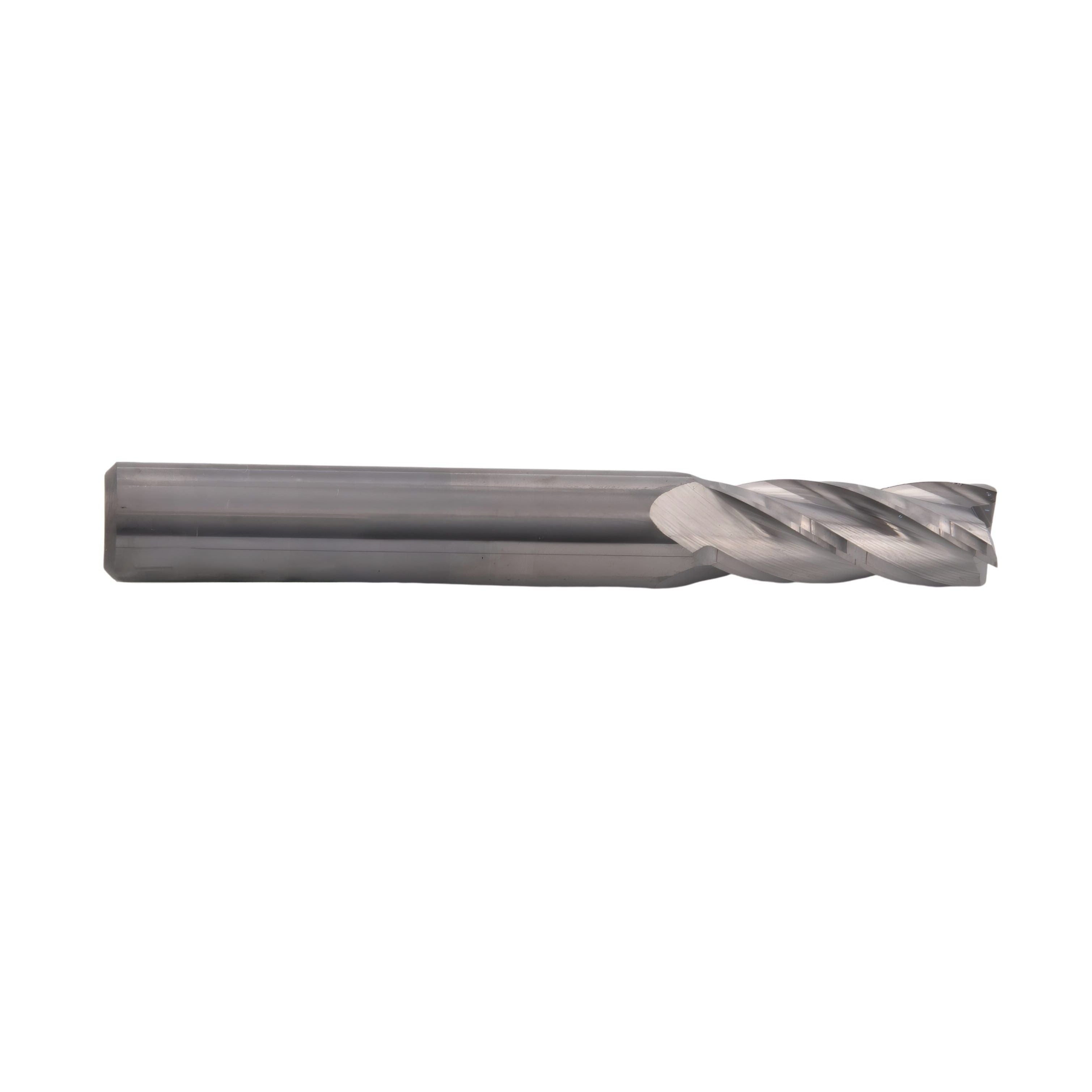

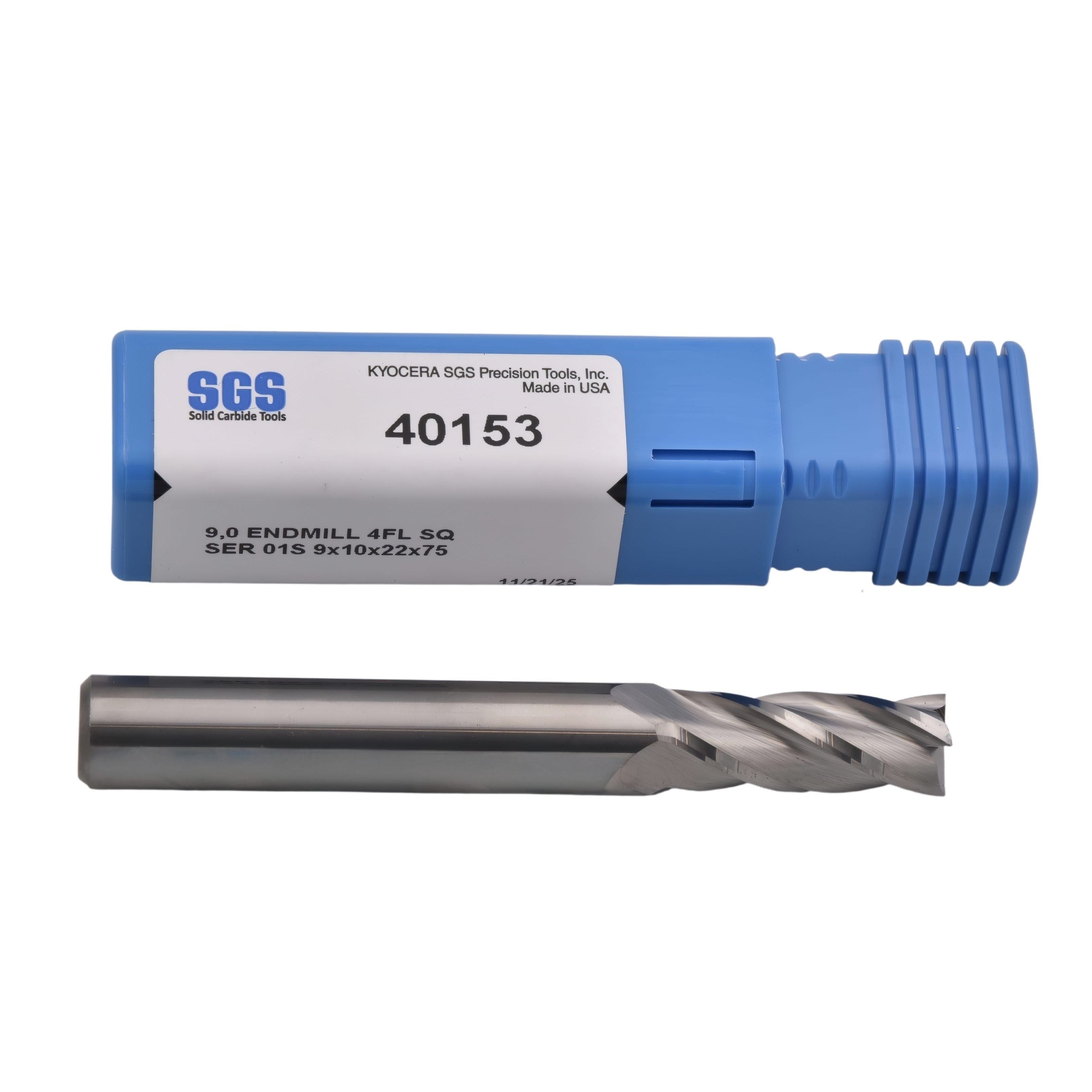

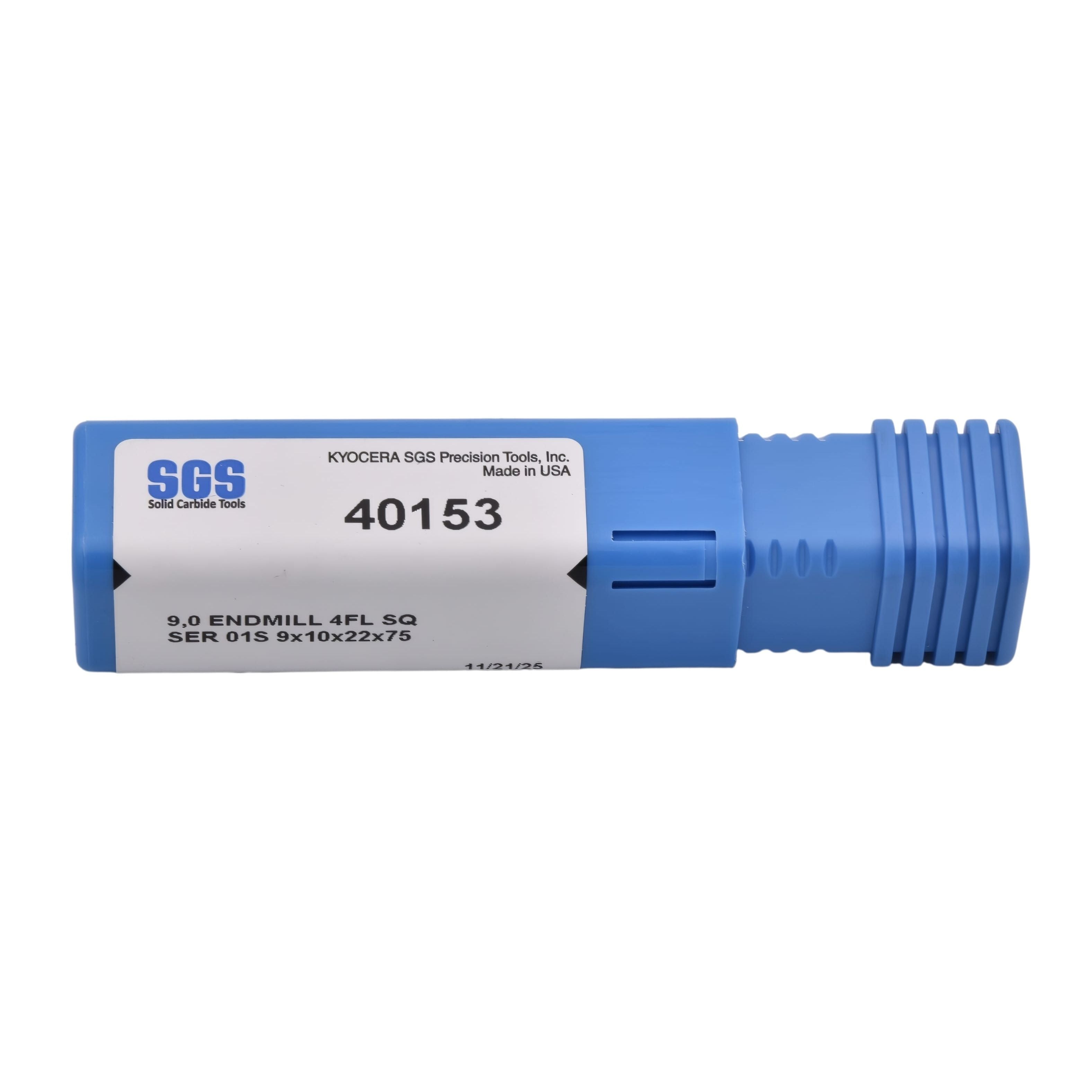

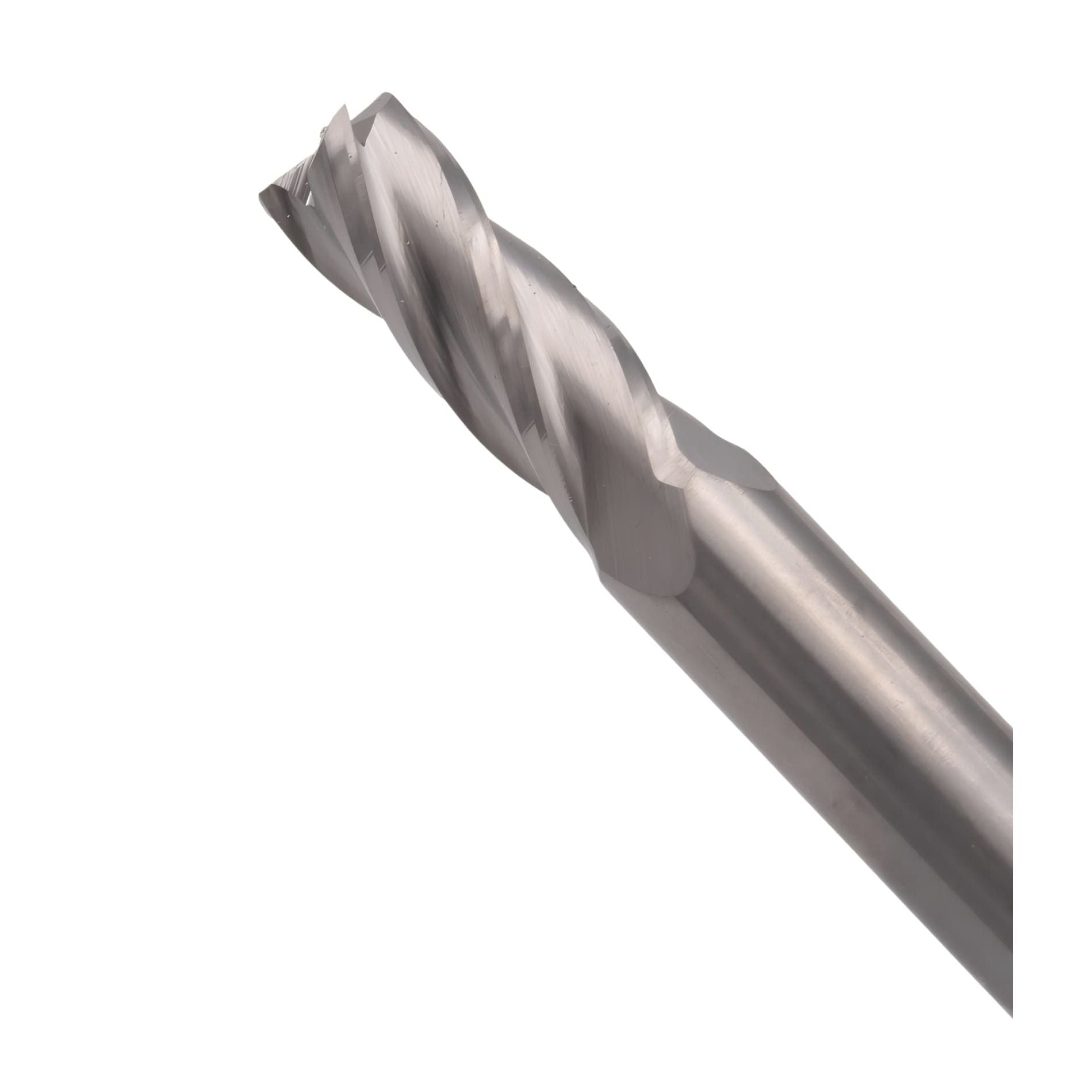

Kyocera SGS - 9.0mm 4 Flute Uncoated Carbide End Mill Short Series
Couldn't load pickup availability
Professional quality Kyocera SGS KSP40153 9mm 4 flute uncoated carbide end mill designed for general-purpose milling applications across a wide range of workpiece materials. This short series square end mill features a positive rake angle, right-hand cutting direction and 30° right-hand spiral geometry for reliable cutting performance and efficient chip evacuation.
Manufactured from carbide and supplied with a bright uncoated finish, the KSP40153 provides a versatile solution for machining steel, stainless steel, cast iron, non-ferrous materials and high temperature alloys. The tool is also suitable for secondary applications involving hardened materials. Its center-cutting design allows both conventional milling and plunging operations.
Product Features
- Genuine Kyocera SGS general application carbide end mill
- 9.00 mm cutting diameter
- 4 flute square end configuration
- Short series design for enhanced rigidity
- Uncoated bright carbide construction
- 30° right-hand spiral helix
- Positive rake angle for efficient cutting
- Right-hand cut direction
- Center cutting for plunging capability
- 22 mm length of cut
- 75 mm overall tool length
- 10 mm straight shank with h6 tolerance
- Suitable for external coolant
- No Weldon flat
Technical Specifications
- Brand: Kyocera SGS
- Part Number: KSP40153
- Series: 01S
- Series Description: General Application End Mill
- End Configuration: Square End
- Tool Type: Carbide End Mill
- Number of Flutes: 4
- Cutting Diameter (DC): 9.00 mm
- Shank Diameter (DCON): 10.00 mm
- Shank Diameter Tolerance: h6
- Length of Cut (APMX): 22.00 mm
- Overall Length (LF): 75.00 mm
- Shank Length (LS): 52.93 mm
- Tool Length: Regular
- Shank Type: Straight
- Helix Angle: 30°
- Helix Direction: Right Spiral
- Helix Type: Fixed Helix
- Cut Direction: Right Hand Cut
- Rake Angle: Positive
- Center Cutting: Yes
- Chip Breaker: No
- Weldon Flat: No
- Coolant: External Coolant
- Coating: Bright / Uncoated
- Flute Type: Spiral
- Cutting Diameter Tolerance: +0.000 / -0.050 mm
- Primary Workpiece Materials: Steel, Stainless Steel, Cast Iron, Non-Ferrous Materials and High Temperature Alloys
- Secondary Workpiece Material: Hardened Materials
- Shipping Weight: 0.0850
Applications
The Kyocera SGS KSP40153 is suitable for general-purpose milling applications including slotting, profiling, contouring, pocketing and other machining operations where a rigid short-series 4 flute square end mill is required. Its center-cutting geometry also provides plunging capability for compatible applications.
This versatile carbide end mill is designed for machining steel, stainless steel, cast iron, non-ferrous materials and high temperature alloys, with hardened materials listed as a secondary application.
