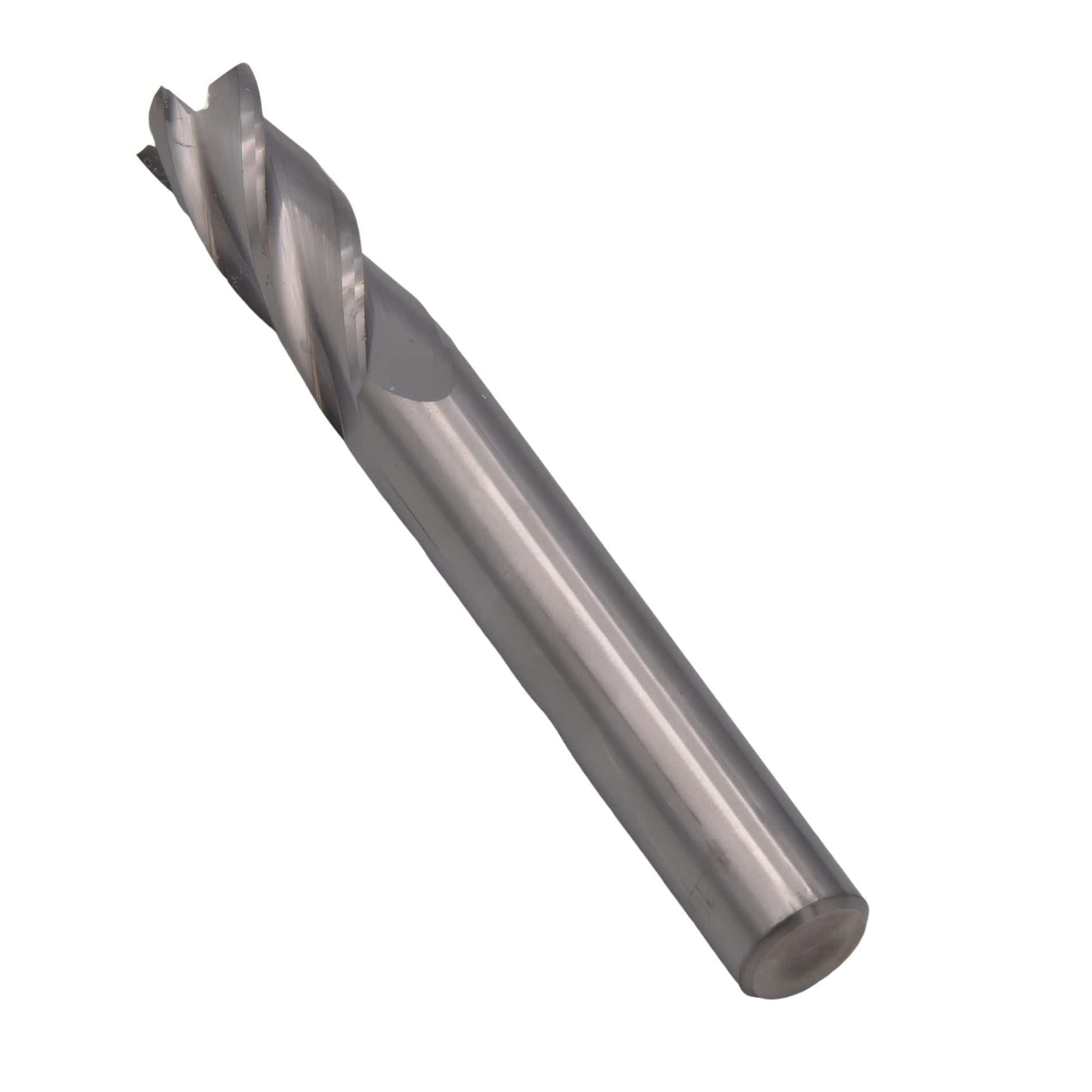

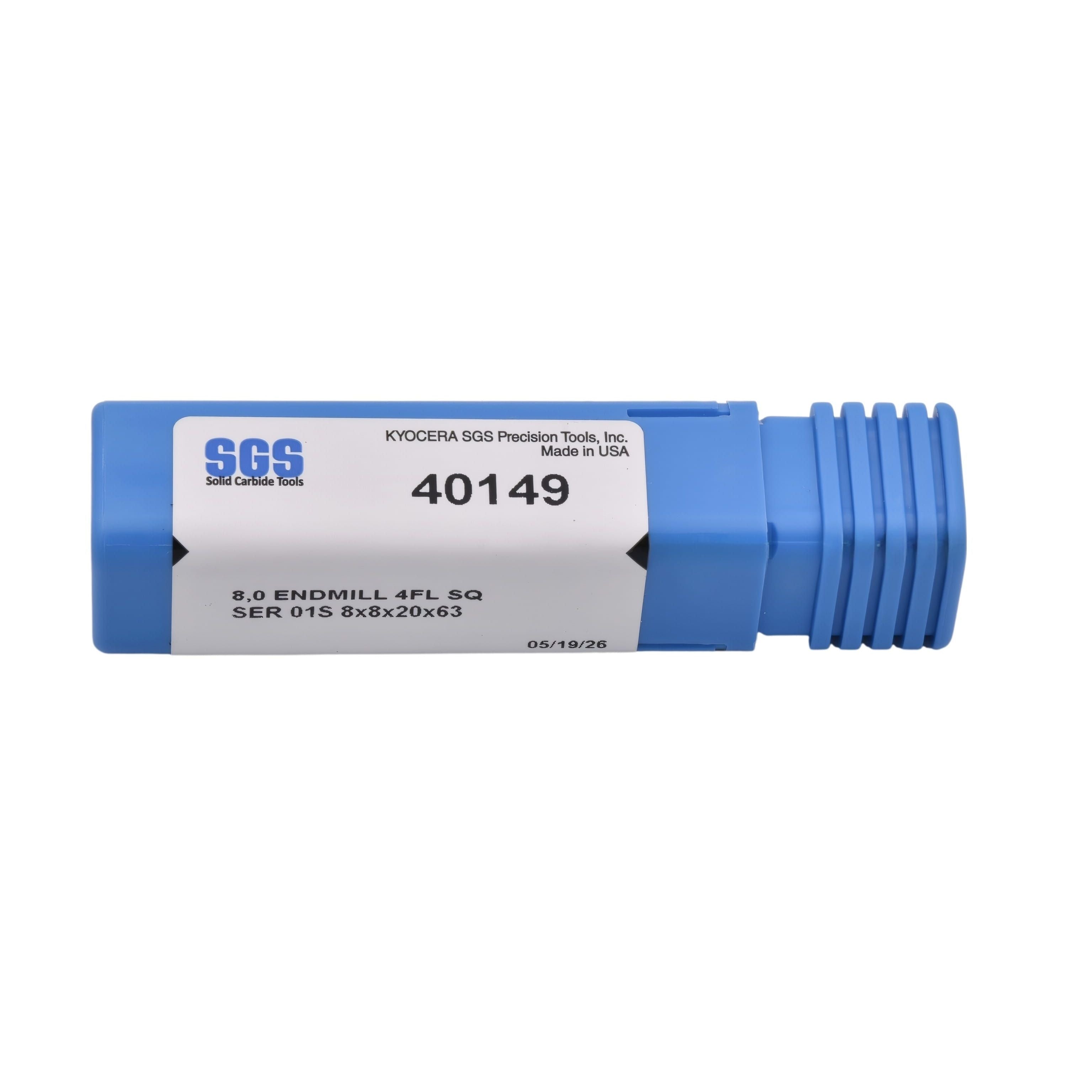

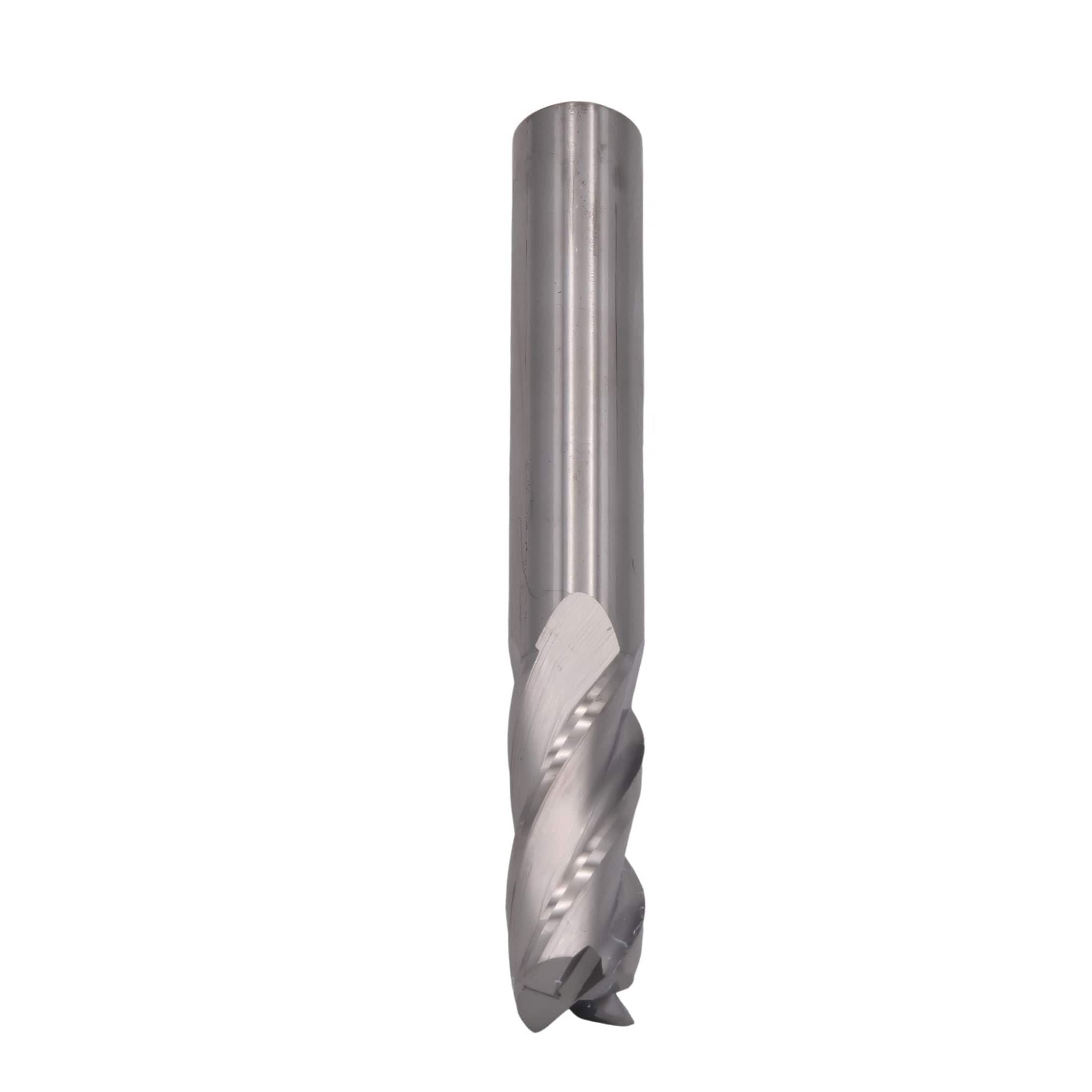

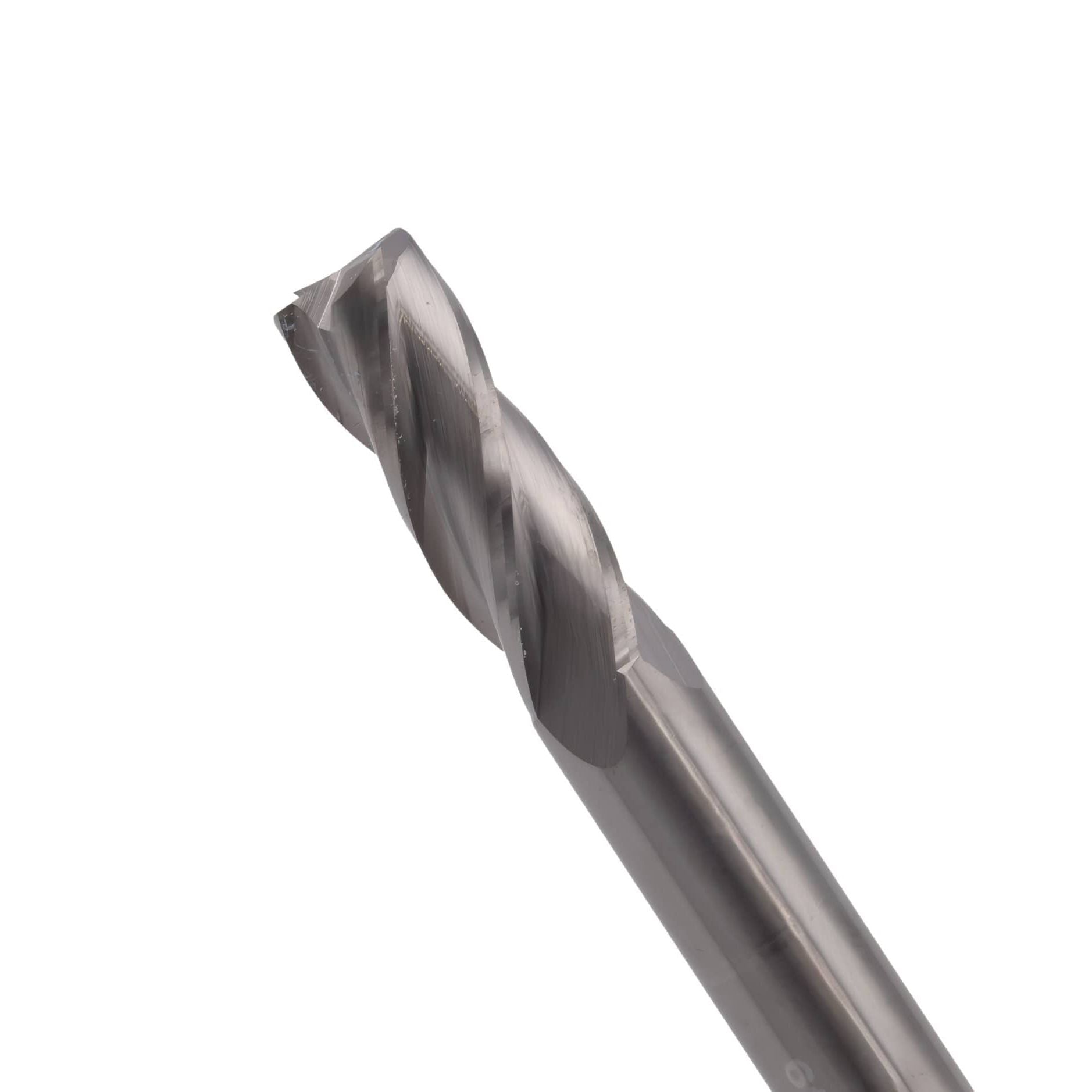

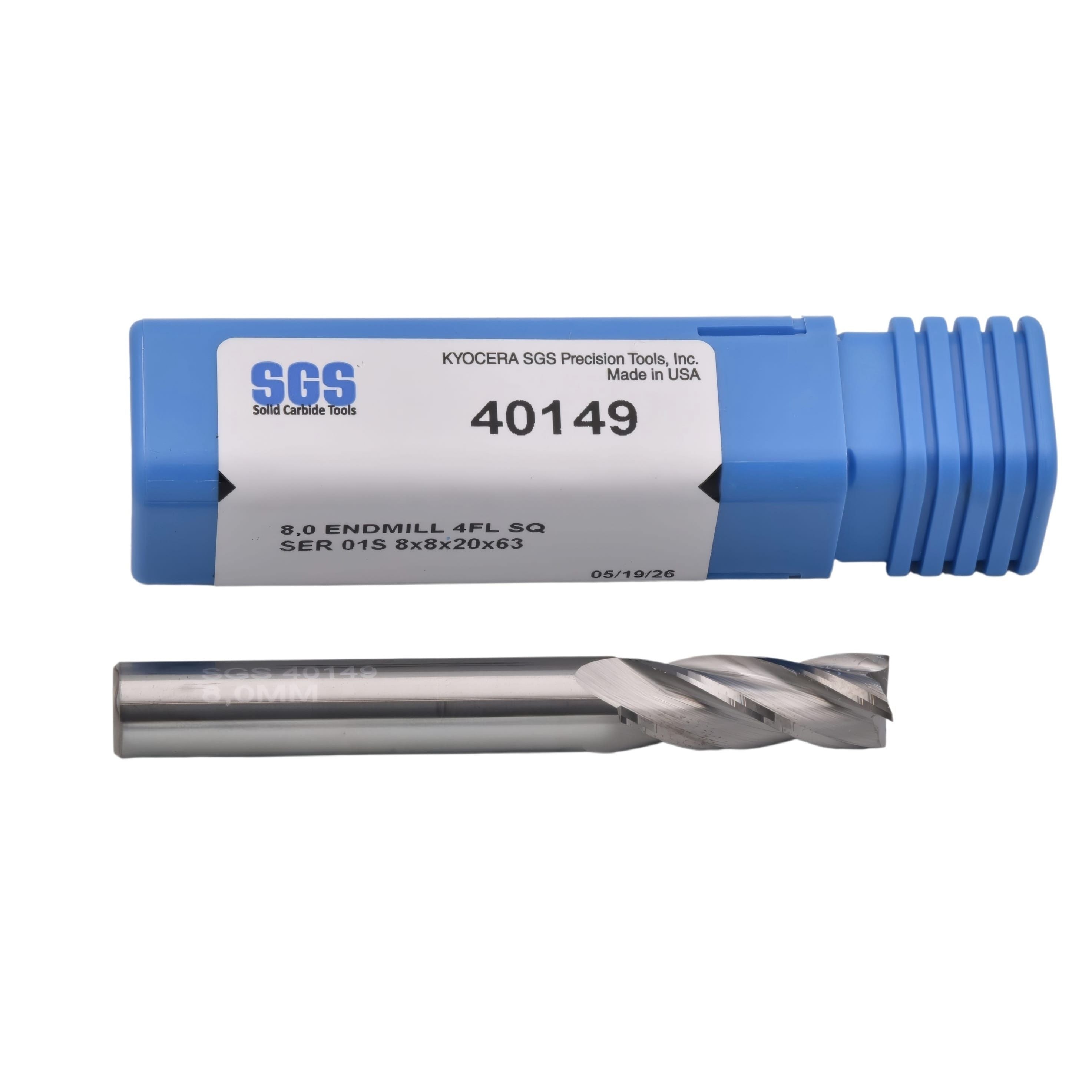

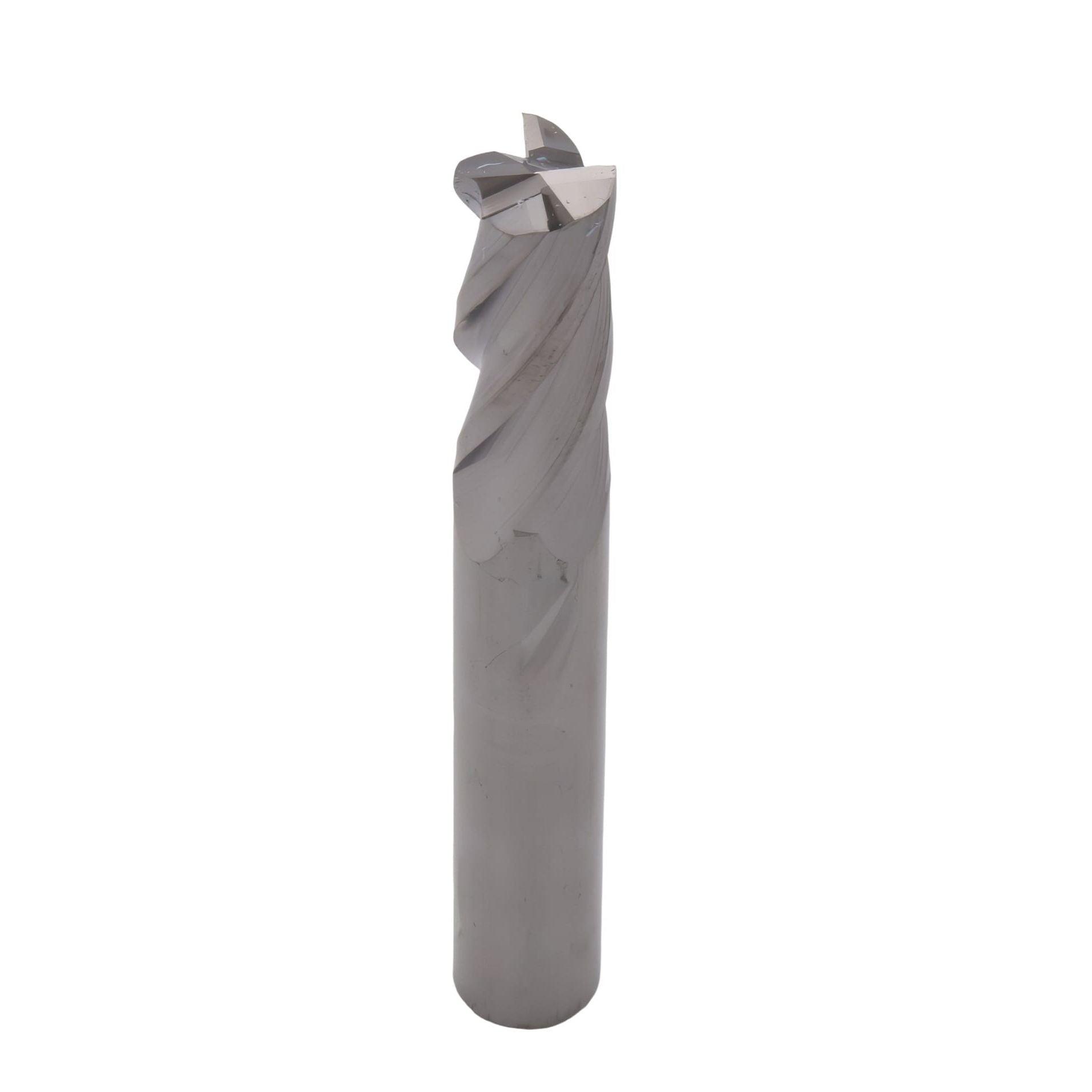

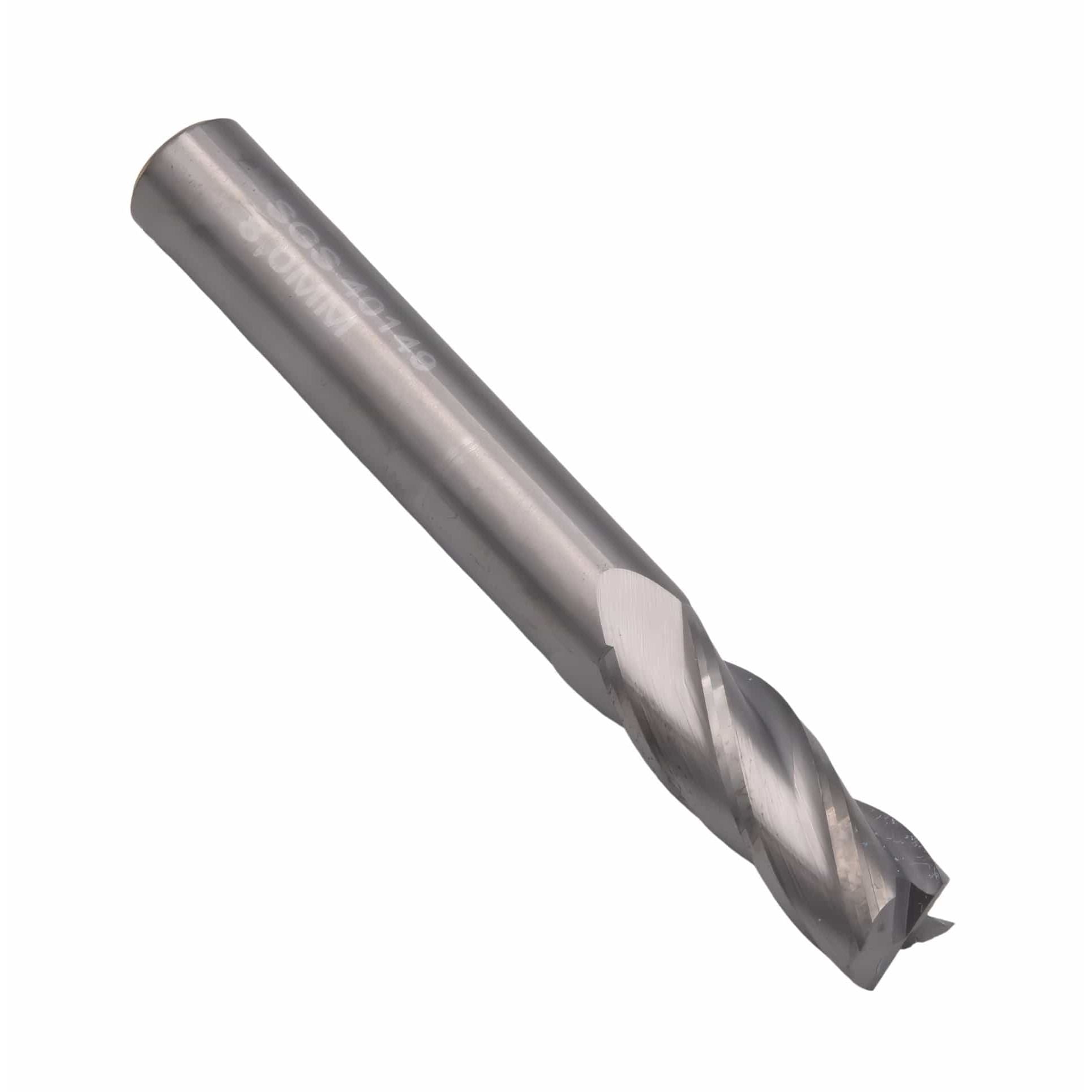

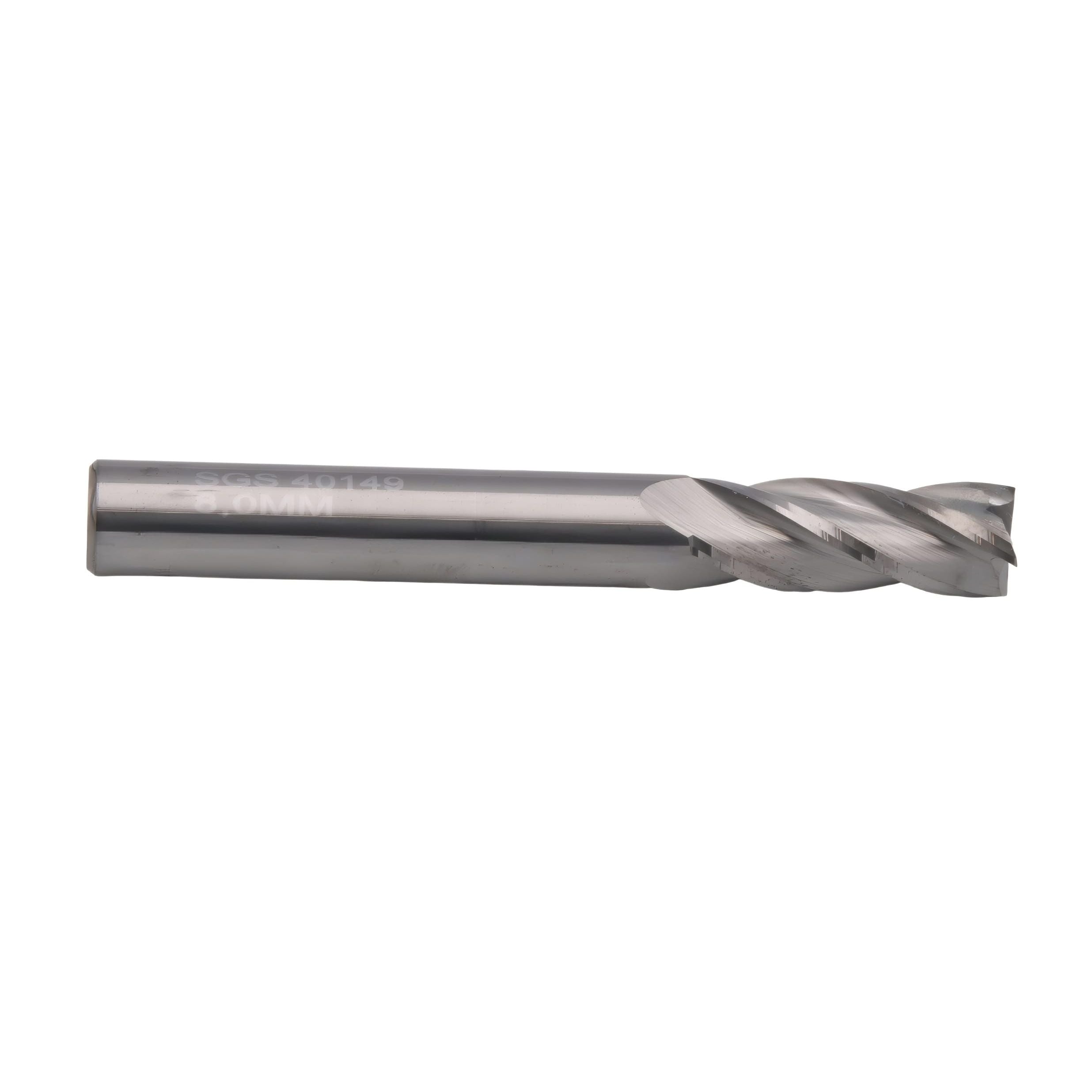

Kyocera SGS - 8.0mm 4 Flute Uncoated Carbide End Mill Short Series
Couldn't load pickup availability
Professional quality Kyocera SGS KSP40149 8.0mm 4 flute uncoated carbide end mill designed for general-purpose milling applications. This square end mill features a positive rake angle, 30° right-hand spiral geometry and right-hand cutting direction to provide efficient cutting performance and reliable chip evacuation across a wide range of workpiece materials.
Manufactured from carbide with a bright uncoated finish, the KSP40149 provides a versatile solution for machining steel, stainless steel, cast iron, non-ferrous materials and high temperature alloys. Hardened materials are also listed as a secondary application. The center-cutting design provides additional versatility for plunging and other machining operations.
Product Features
- Genuine Kyocera SGS general application carbide end mill
- 8.0mm cutting diameter
- 4 flute square end configuration
- Short series design for rigid and stable machining
- Bright uncoated carbide construction
- 30° right-hand spiral helix
- Positive rake angle for efficient cutting
- Right-hand cut direction
- Center cutting for plunging capability
- 20.00mm length of cut
- 63.00mm overall length
- 8.0mm straight shank
- h6 shank diameter tolerance
- External coolant compatible
- No Weldon flat
Technical Specifications
- Brand: Kyocera SGS
- Part Number: KSP40149
- Series: 01S
- Series Description: General Application End Mill
- End Configuration: Square End
- Tool Type: Carbide End Mill
- Number of Flutes: 4
- Cutting Diameter (DC): 8.00mm (0.3150 inch)
- Shank Diameter (DCON): 8.00mm (0.3150 inch)
- Shank Diameter Tolerance: h6
- Length of Cut (APMX): 20.00mm (0.7874 inch)
- Overall Length (LF): 63.00mm (2.4803 inch)
- Shank Length (LS): 43.00mm (1.6930 inch)
- Tool Length: Regular
- Shank Type: Straight
- Helix Angle: 30°
- Helix Direction: Right Spiral
- Variable Helix: No
- Cut Direction: Right Hand Cut
- Rake Angle: Positive
- Center Cutting: Yes
- Chip Breaker: No
- Weldon Flat: No
- Coolant: External Coolant
- Coating: Bright / Uncoated
- Flute Type: Spiral
- Cutting Diameter Tolerance: +0.000 / -0.050mm (+0.0000 / -0.0020 inch)
- Primary Workpiece Materials: Steel, Stainless Steel, Cast Iron, Non-Ferrous Materials and High Temperature Alloys
- Secondary Workpiece Material: Hardened Materials
- Shipping Weight: 0.0940
Applications
The Kyocera SGS KSP40149 is suitable for general-purpose milling operations including slotting, profiling, contouring, pocketing and plunging where an 8.0mm 4 flute square end mill is required. Its center-cutting geometry provides additional versatility for machining applications requiring axial entry into the workpiece.
This carbide end mill is designed for machining steel, stainless steel, cast iron, non-ferrous materials and high temperature alloys, with hardened materials listed as a secondary application.
