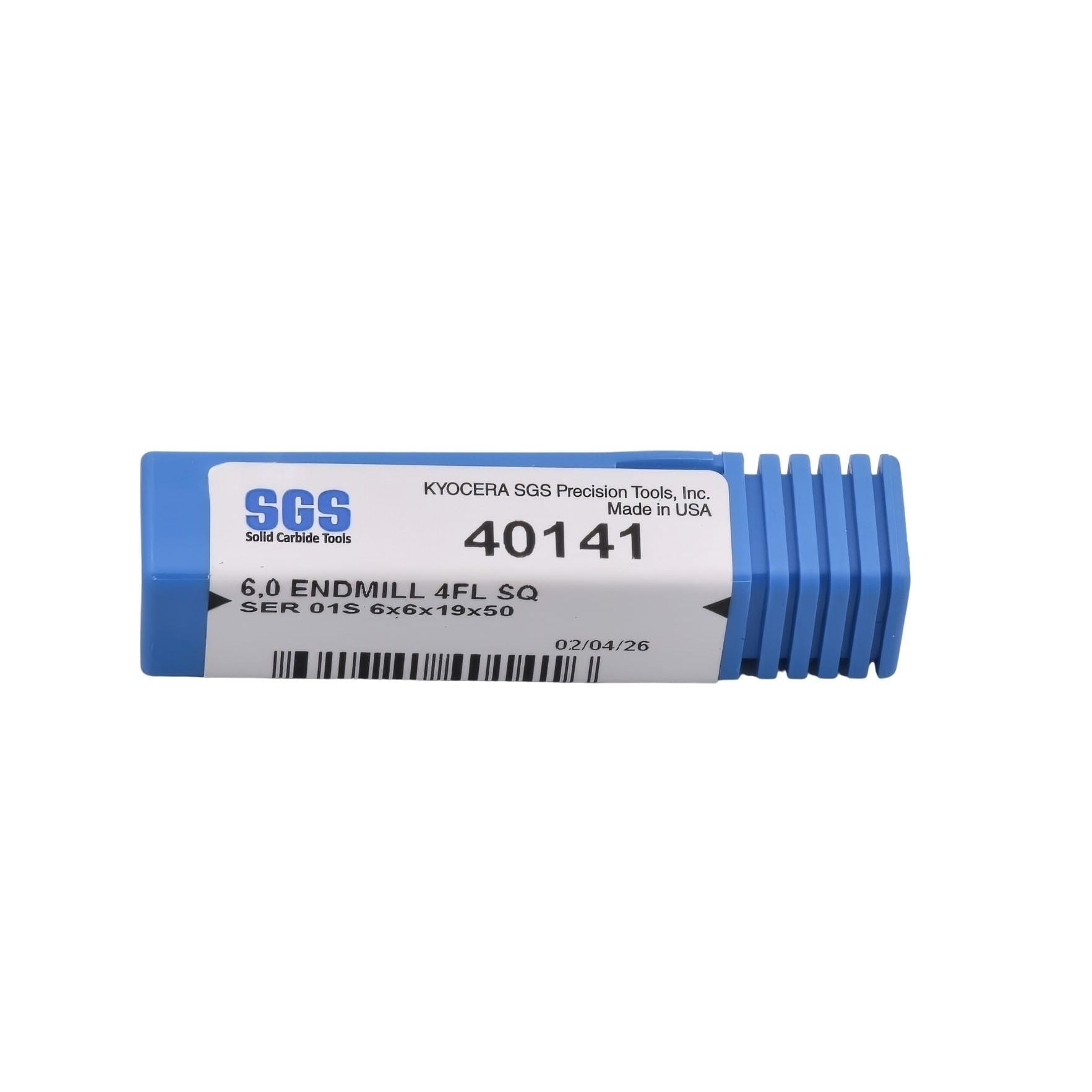

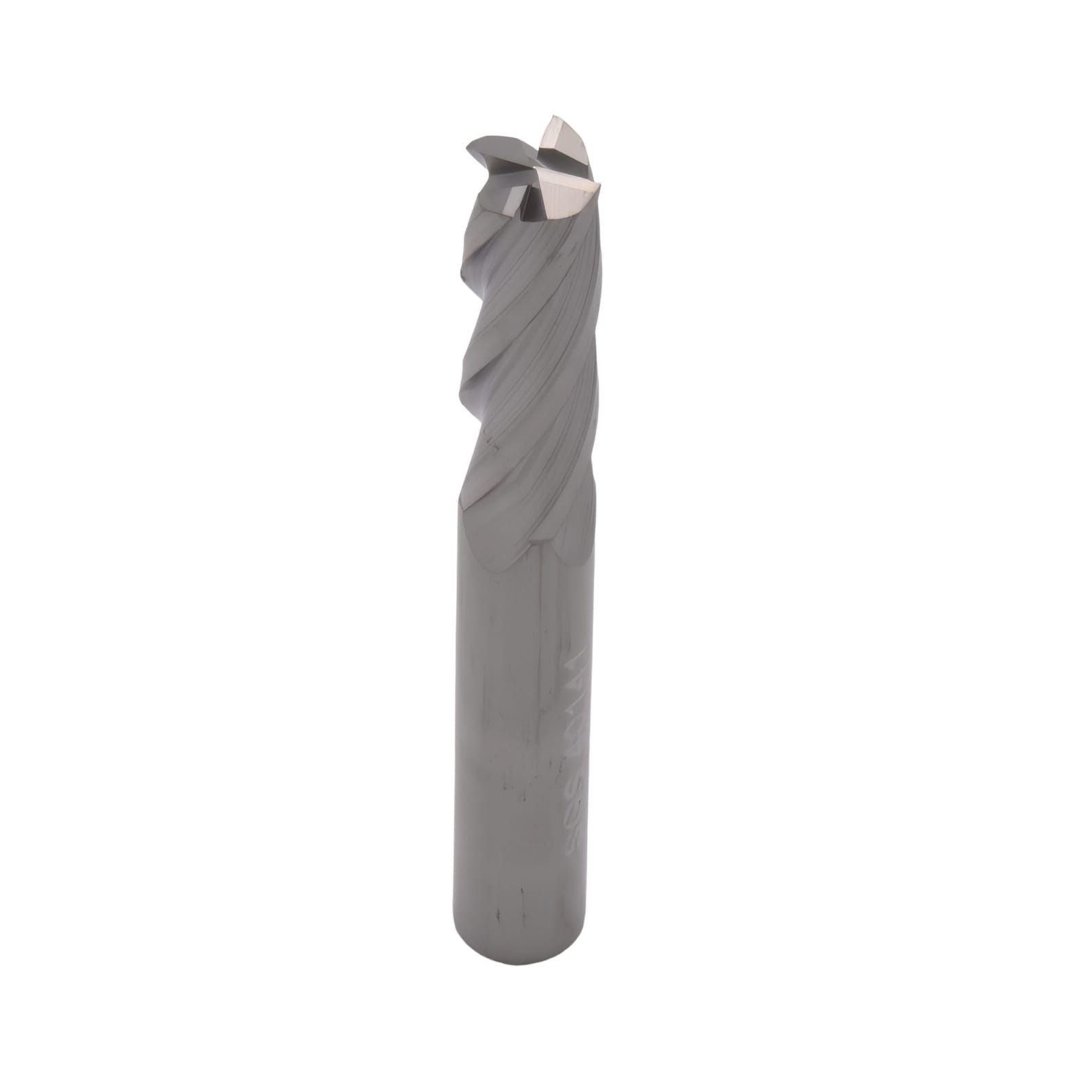

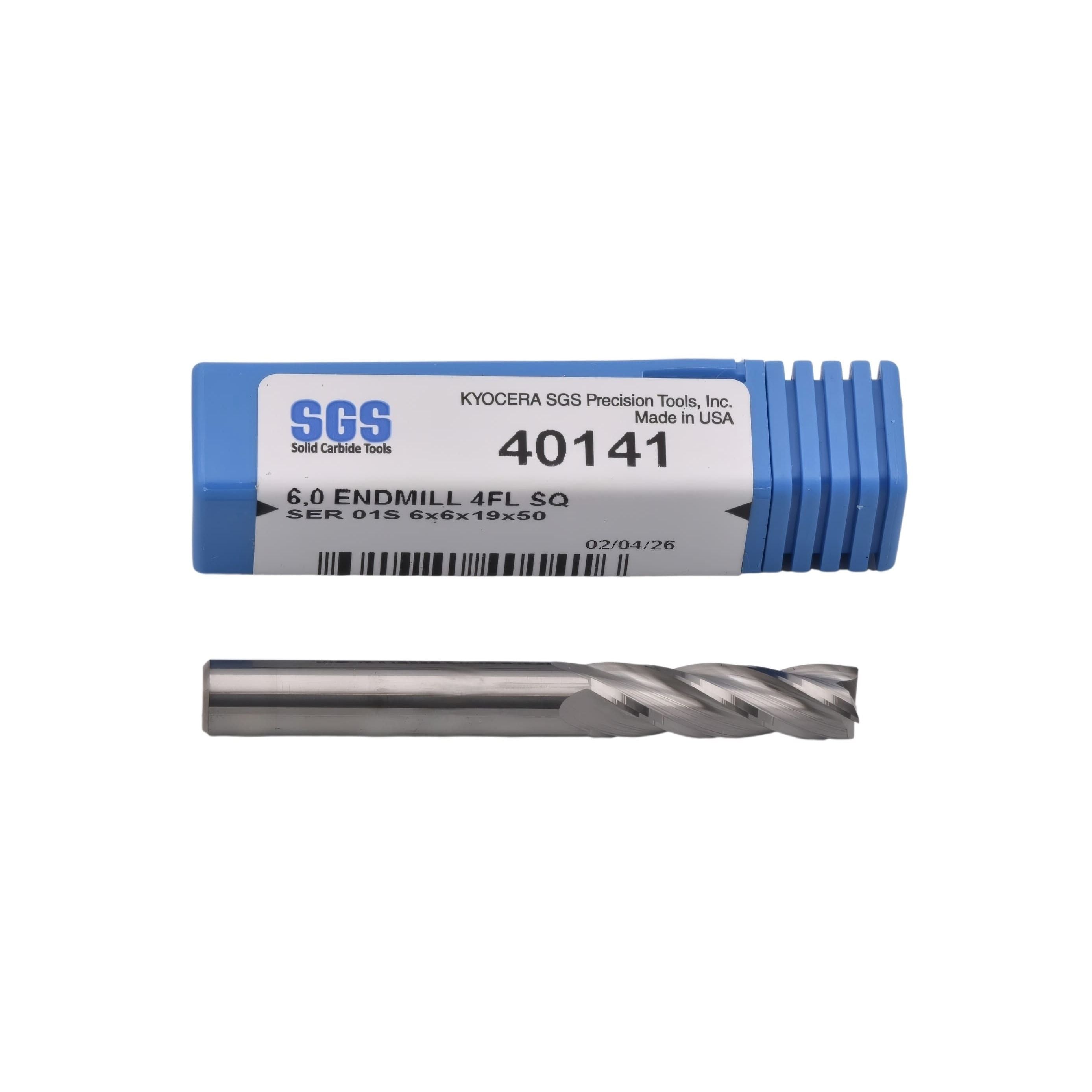

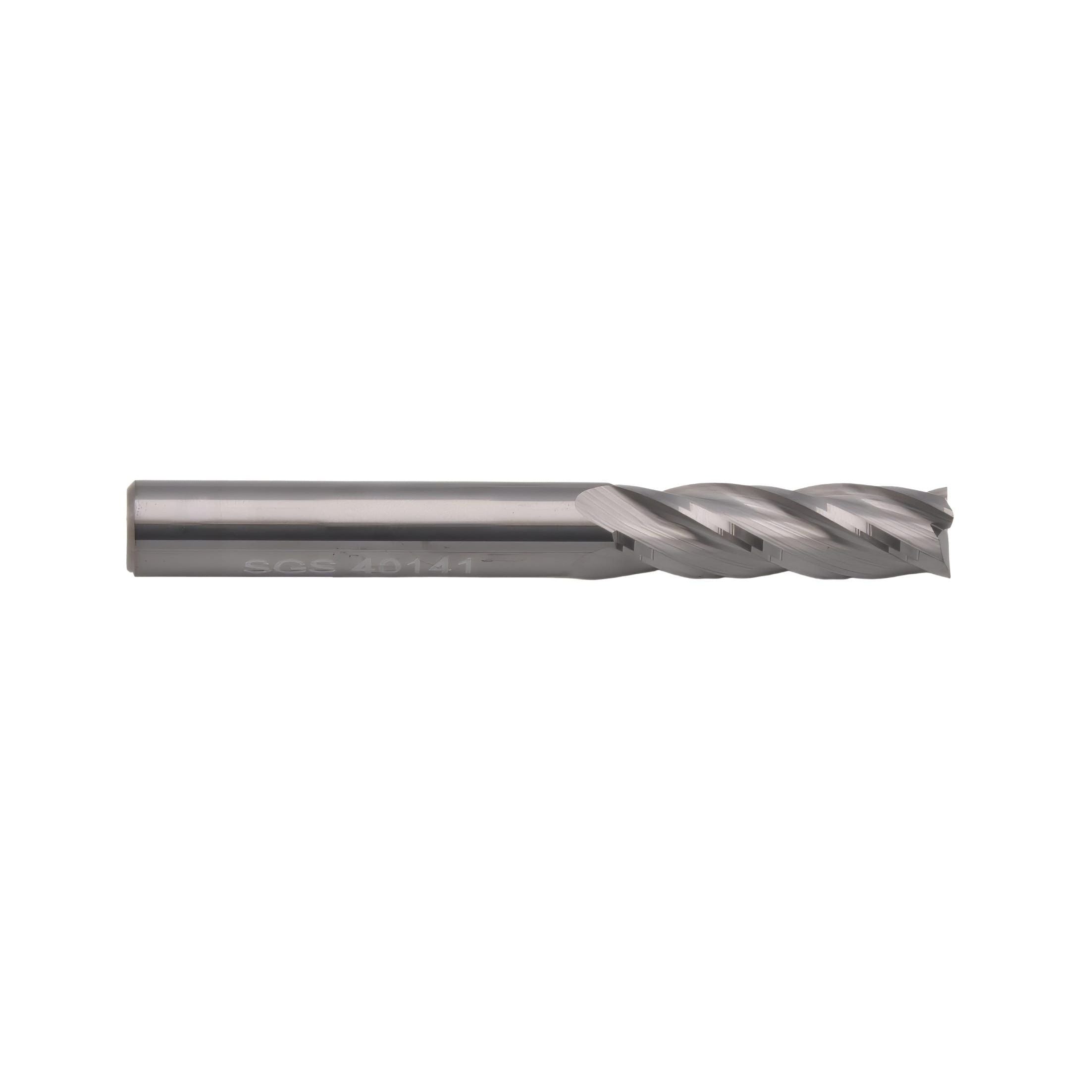

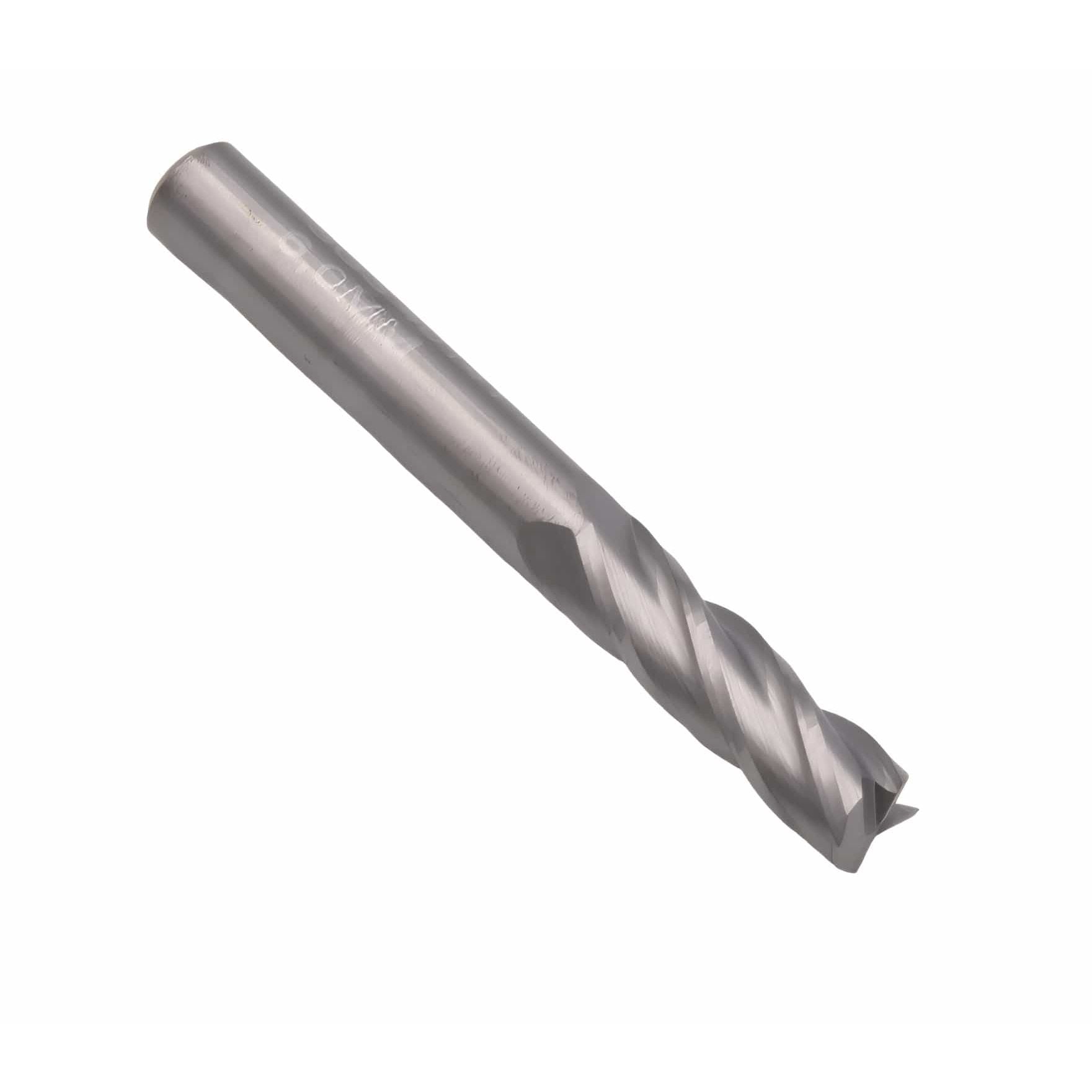

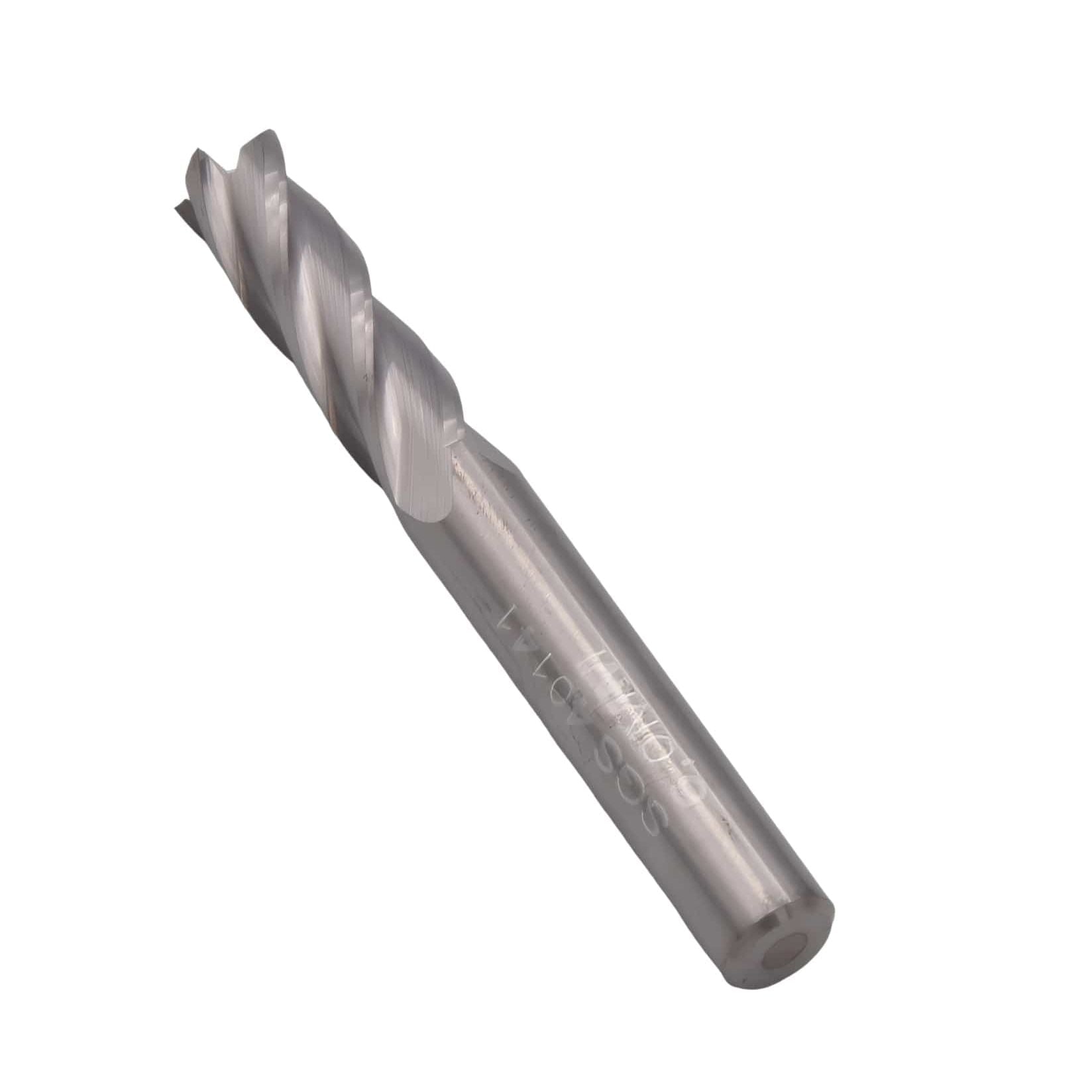

Kyocera SGS - 6.0mm 4 Flute Uncoated Carbide End Mill Short Series
Couldn't load pickup availability
Professional quality Kyocera SGS KSP40141 6mm 4 flute uncoated carbide end mill designed for general-purpose milling applications. This square end mill features a positive rake angle, 30° right-hand spiral geometry and right-hand cutting direction for efficient cutting performance and dependable chip evacuation across a broad range of workpiece materials.
Manufactured from carbide with a bright uncoated finish, the KSP40141 provides a versatile machining solution for steel, stainless steel, cast iron, non-ferrous materials and high temperature alloys. Hardened materials are also listed as a secondary application. The center-cutting design provides additional versatility for plunging and other axial entry operations.
Product Features
- Genuine Kyocera SGS general application carbide end mill
- 6.00 mm cutting diameter
- 4 flute square end configuration
- Short series design for stable machining
- Bright uncoated carbide construction
- 30° right-hand spiral helix
- Positive rake angle for efficient cutting
- Right-hand cut direction
- Center cutting for plunging capability
- 19 mm length of cut
- 50 mm overall length
- 6 mm straight shank
- h6 shank diameter tolerance
- External coolant compatible
- No Weldon flat
Technical Specifications
- Brand: Kyocera SGS
- Part Number: KSP40141
- Series: 01S
- Series Description: General Application End Mill
- End Configuration: Square End
- Tool Type: Carbide End Mill
- Number of Flutes: 4
- Cutting Diameter (DC): 6.00 mm
- Shank Diameter (DCON): 6.00 mm
- Shank Diameter Tolerance: h6
- Length of Cut (APMX): 19.00 mm
- Overall Length (LF): 50.00 mm
- Shank Length (LS): 31.04 mm
- Tool Length: Long
- Shank Type: Straight
- Helix Angle: 30°
- Helix Direction: Right Spiral
- Variable Helix: No
- Cut Direction: Right Hand Cut
- Rake Angle: Positive
- Center Cutting: Yes
- Chip Breaker: No
- Weldon Flat: No
- Coolant: External Coolant
- Coating: Bright / Uncoated
- Flute Type: Spiral
- Cutting Diameter Tolerance: +0.000 / -0.050 mm
- Primary Workpiece Materials: Steel, Stainless Steel, Cast Iron, Non-Ferrous Materials and High Temperature Alloys
- Secondary Workpiece Material: Hardened Materials
- Shipping Weight: 0.0457
Applications
The Kyocera SGS KSP40141 is suitable for general-purpose milling operations including slotting, profiling, contouring, pocketing and plunging where a 6mm 4 flute square end mill is required. Its center-cutting geometry provides additional versatility for applications requiring axial entry into the workpiece.
This carbide end mill is designed for machining steel, stainless steel, cast iron, non-ferrous materials and high temperature alloys, with hardened materials listed as a secondary application.
