Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

SKU: KSP48727
(0)

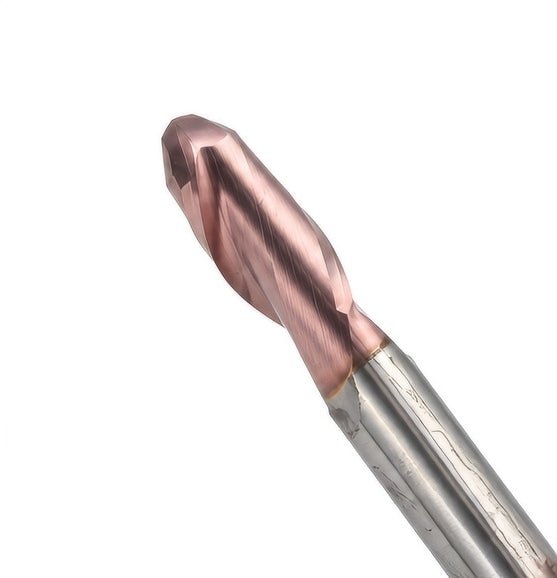

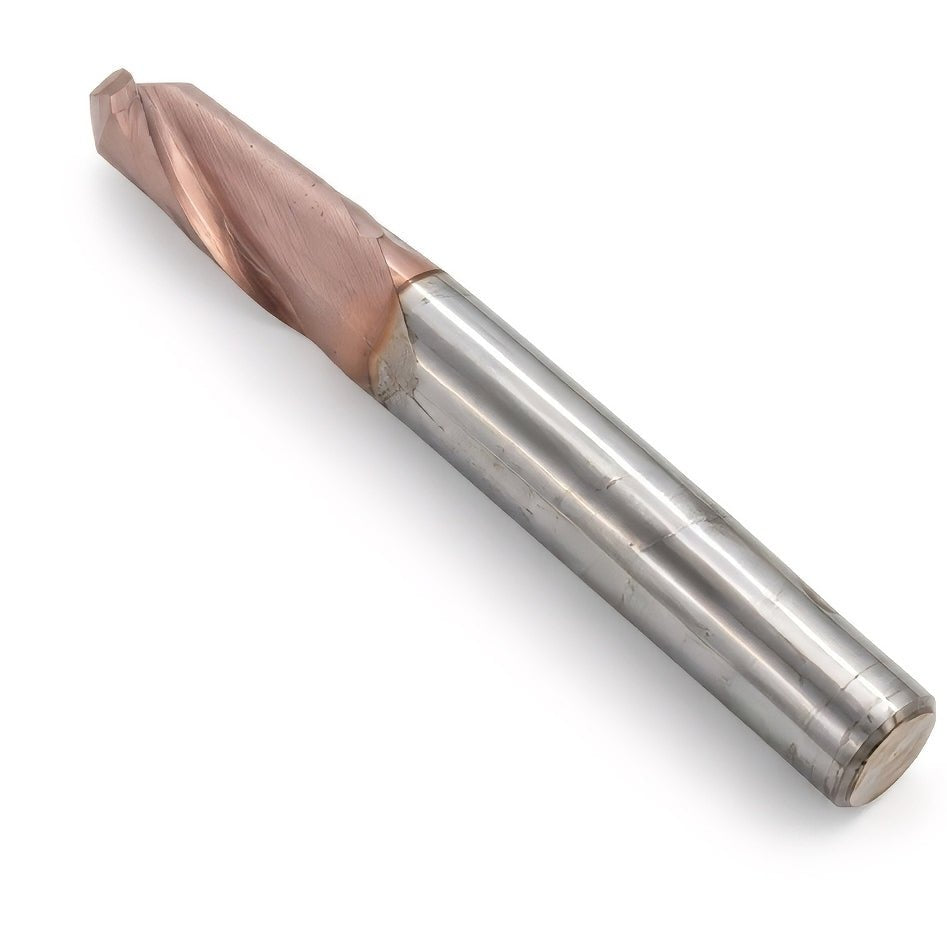

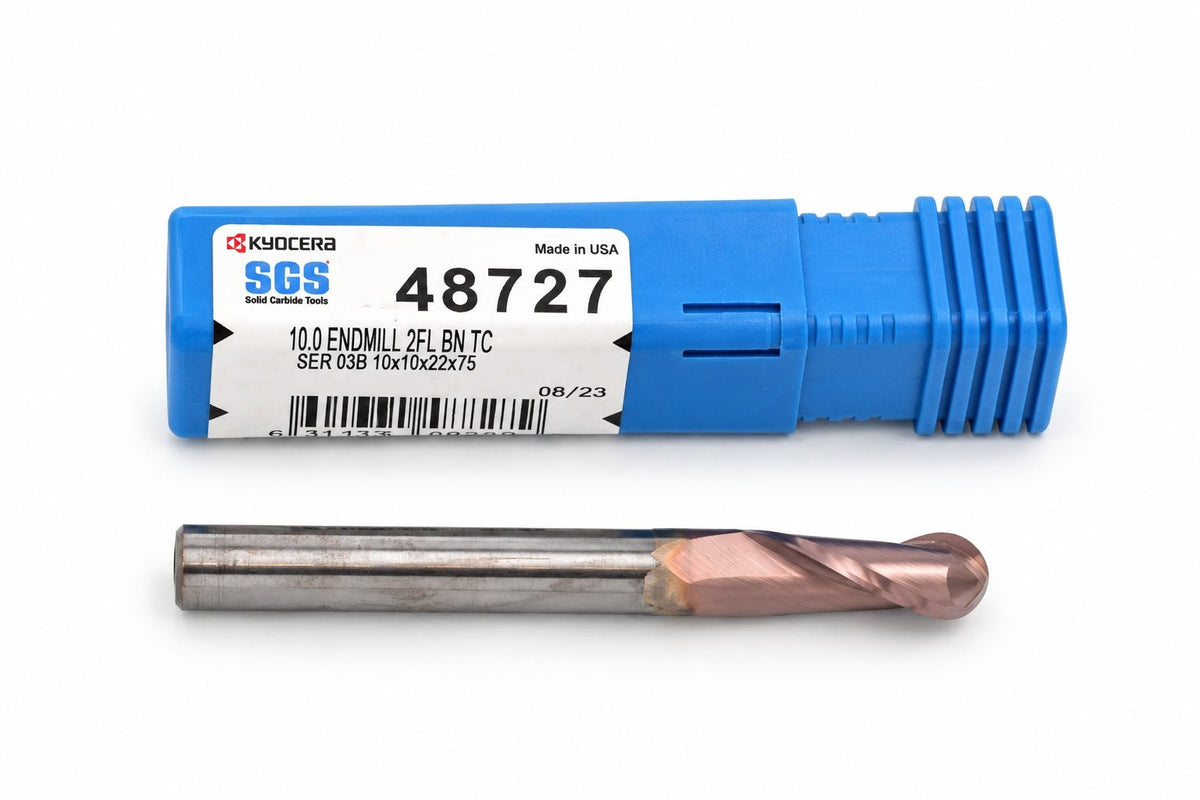

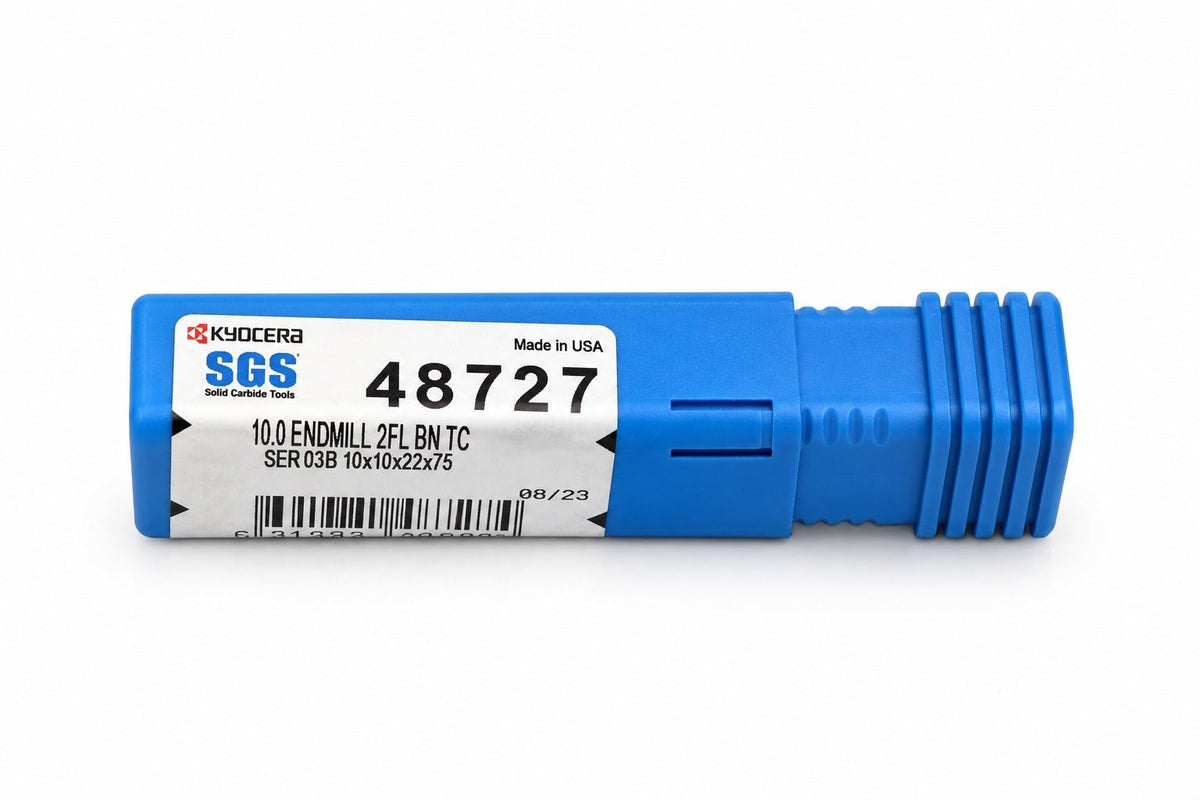

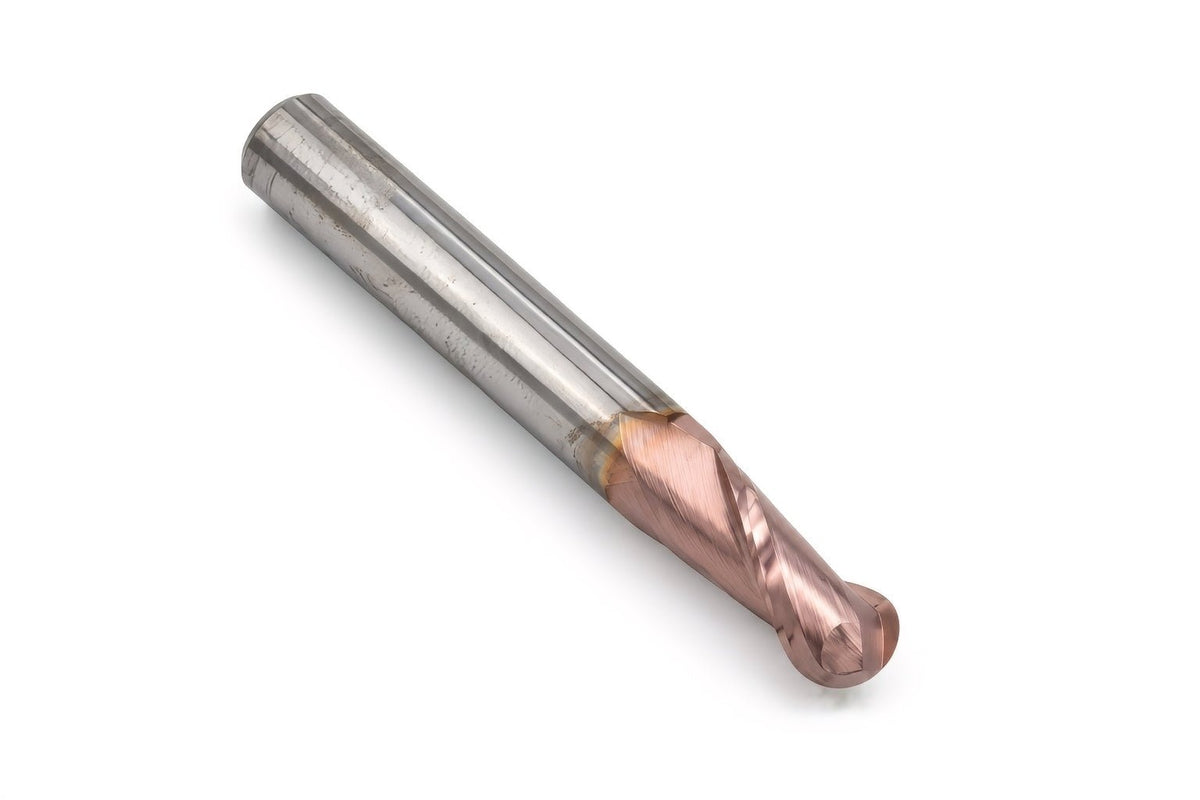

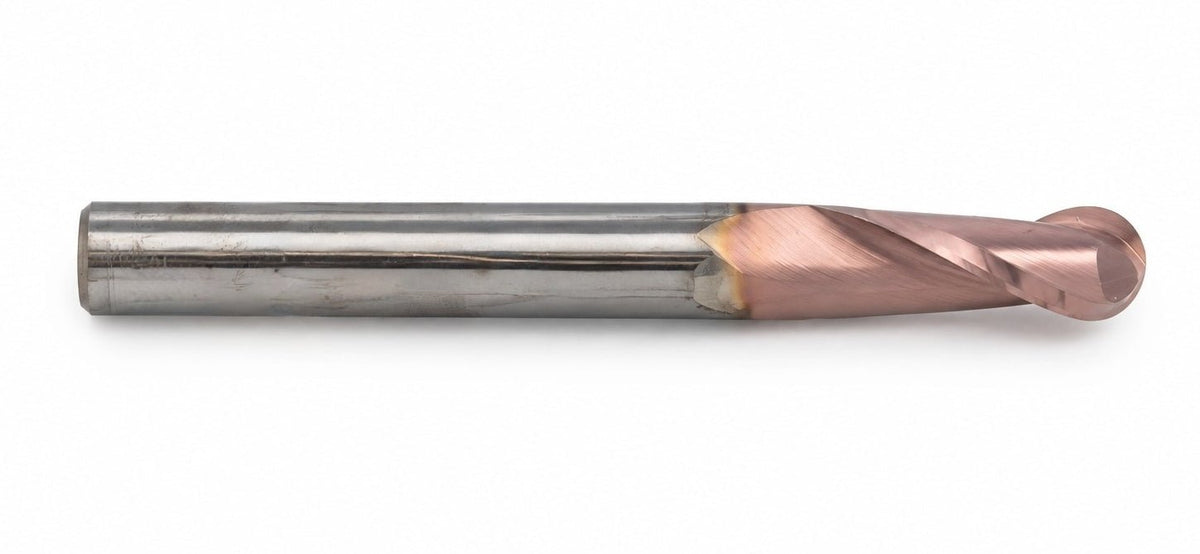

Kyocera SGS 48727 10mm 2 Flute TiCN Coated Carbide Ball Nose End Mill

In stock
$170.45

Professional quality Kyocera SGS 48727 Series 03B ball nose end mill manufactured from solid carbide for reliable and precise machining. This 10mm diameter end mill features two flutes, a 22mm length of cut and TiCN coating for dependable cutting performance and wear resistance.

The two-flute ball nose design provides increased flute space for chip evacuation and a rounded cutting profile for profiling and contouring operations. The solid carbide construction provides a rigid tool configuration, while the 10mm shank and 75mm overall length provide a practical configuration for general CNC milling applications.

Product Specifications

  • Brand: Kyocera SGS
  • Part Number: 48727
  • Series: 03B
  • Tool Type: Ball Nose End Mill
  • Cutting Diameter: 10mm
  • Number of Flutes: 2
  • Length of Cut: 22mm
  • Shank Diameter: 10mm
  • Overall Length: 75mm
  • Material: Solid Carbide
  • Coating: TiCN
  • End Configuration: Ball Nose
  • Flute Type: Spiral

The Kyocera SGS 48727 is an excellent choice for CNC milling applications requiring a reliable 10mm 2-flute solid carbide ball nose end mill with 22mm length of cut and TiCN coating for precise profiling, contouring and dependable cutting performance.
