Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

SKU: KSP48689
(0)

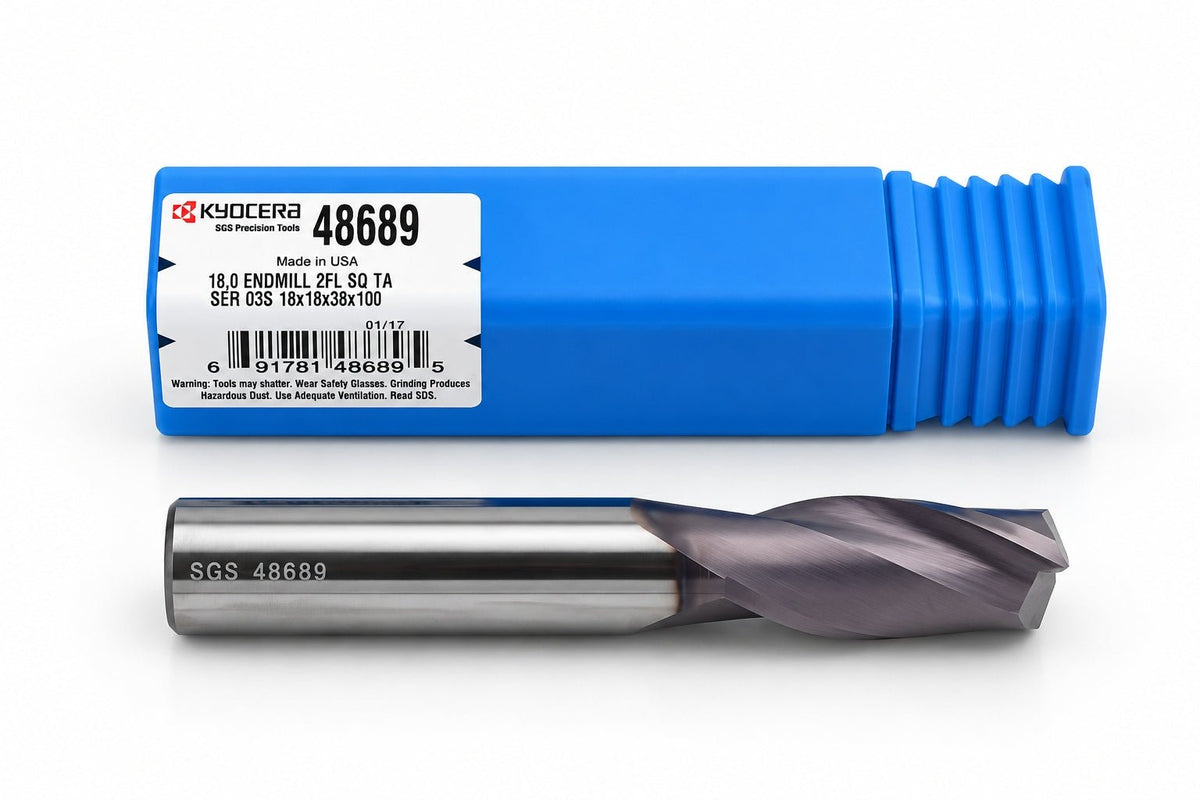

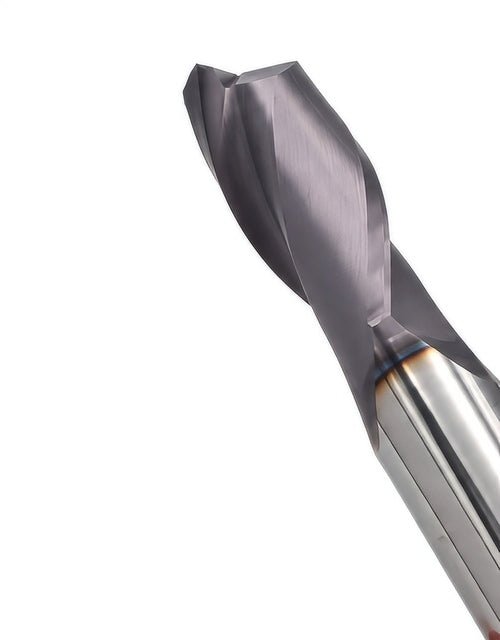

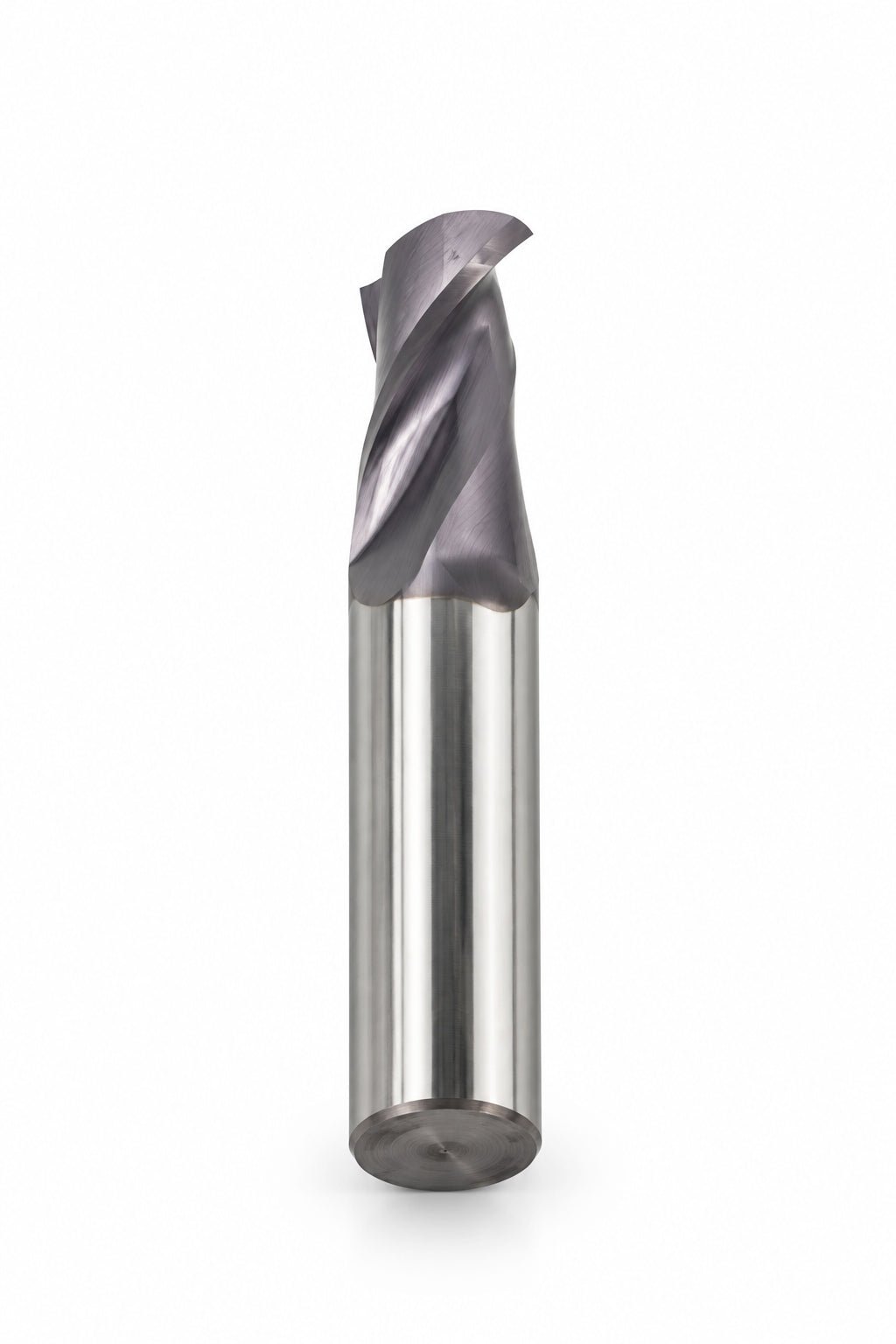

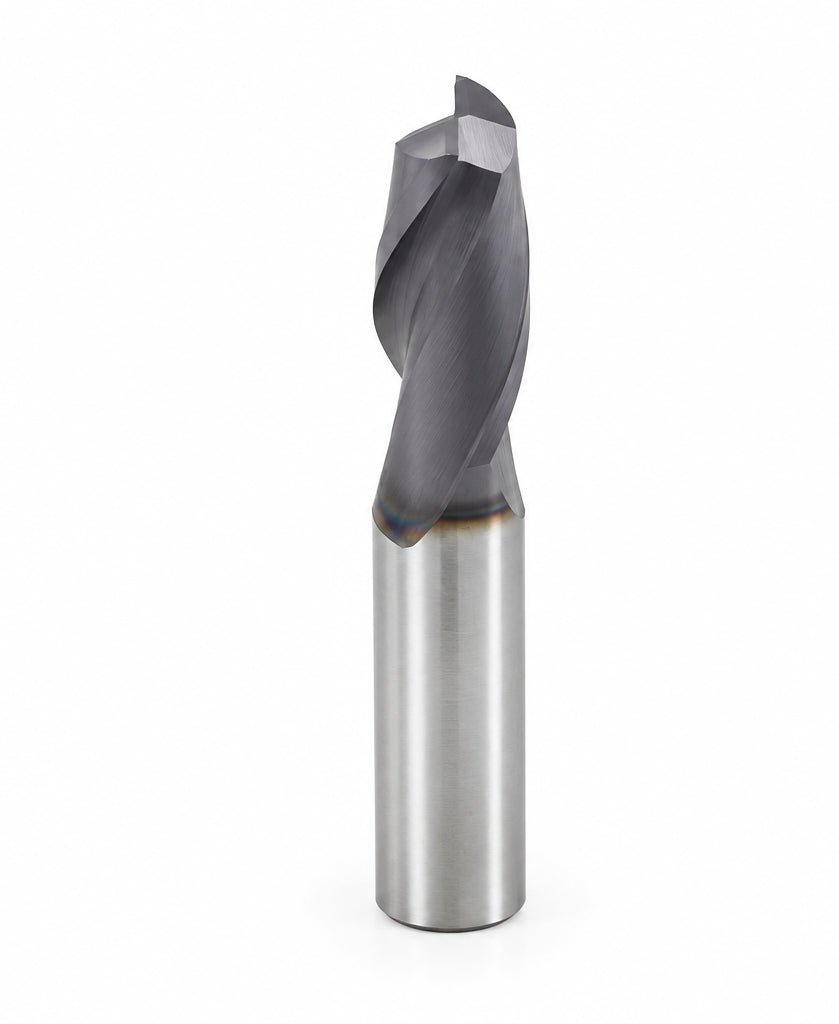

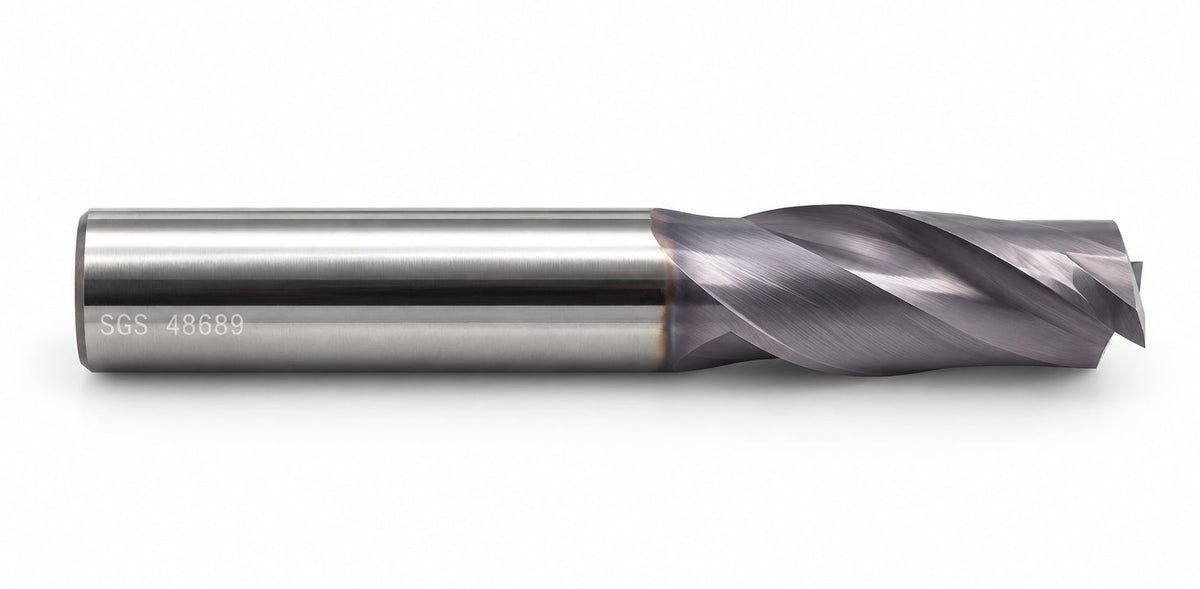

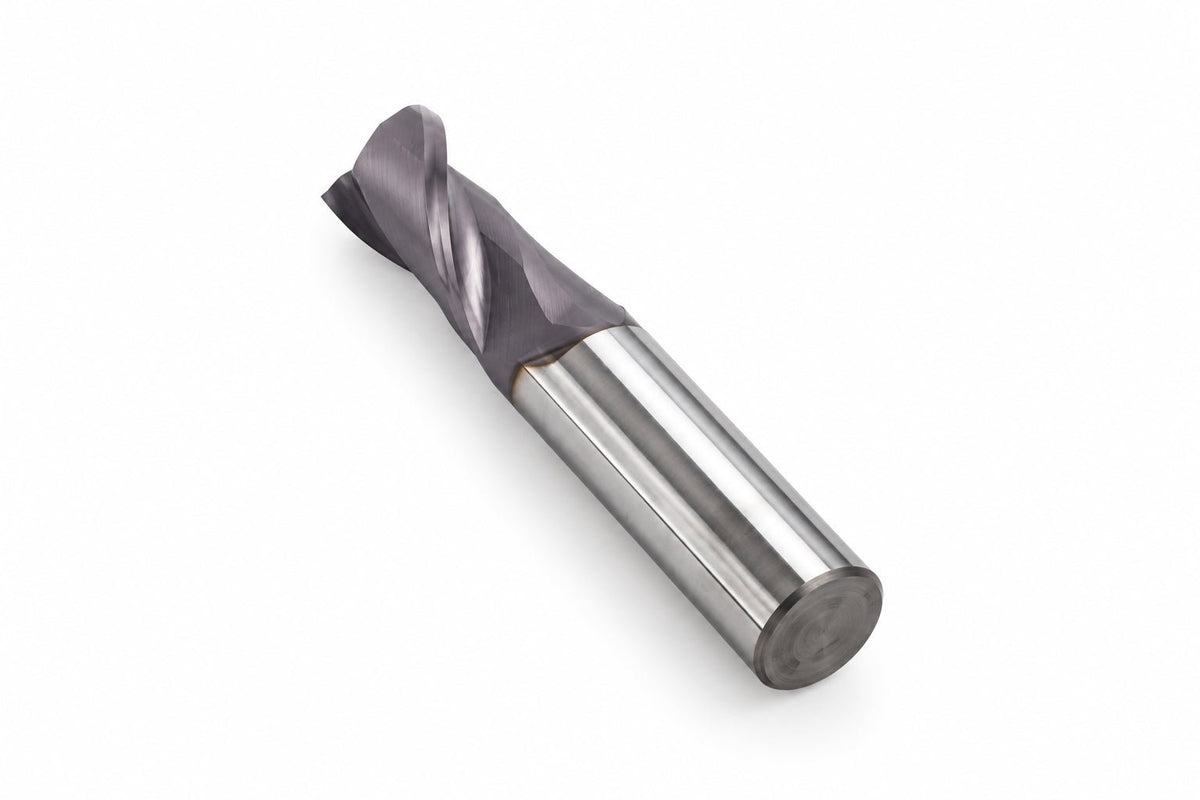

Kyocera SGS 48689 18mm 2 Flute Ti-NAMITE-A AlTiN Coated Carbide Square End Mill

Only 1 left
$612.22

Professional quality Kyocera SGS 48689 Series 03S general application square end mill manufactured from solid carbide for reliable and precise machining. This 18mm diameter end mill features two flutes, a 38mm length of cut, 30° right-hand spiral and Ti-NAMITE-A AlTiN coating for enhanced wear resistance and dependable performance across a range of workpiece materials.

The two-flute design provides increased flute space for chip evacuation, while the positive rake geometry and right-hand cut direction support efficient cutting. The center-cutting design allows for plunging, slotting, profiling and general milling operations. The straight 18mm shank provides compatibility with suitable toolholding systems, while the regular tool-length classification provides a standard configuration for general milling applications.

Product Specifications

  • Brand: Kyocera SGS
  • Part Number: 48689
  • Series: 03S
  • Application: General Application End Mill
  • End Mill Type: Square End
  • Cutting Diameter: 18mm (0.7087 inch)
  • Number of Flutes: 2
  • Length of Cut: 38mm (1.4961 inch)
  • Shank Diameter: 18mm (0.7087 inch)
  • Overall Length: 100mm (3.9370 inch)
  • Shank Length: 45.72mm (1.8000 inch)
  • Material: Solid Carbide
  • Coating: Ti-NAMITE-A AlTiN
  • Shank Type: Straight
  • Flute Type: Spiral
  • Helix Angle: 30° Right Spiral
  • Cut Direction: Right Hand Cut Direction (RHC)
  • Rake Angle: Positive
  • Variable Helix: No
  • Center Cutting: Yes
  • Chip Breaker: No
  • Coolant Option: External Coolant
  • Tool Length: Regular
  • Weldon Flat: No
  • Cutting Diameter Tolerance: +0.000/-0.050mm (+0.0000/-0.0020 inch)
  • Shank Diameter Tolerance: h6
  • Primary Workpiece Materials: Steel, Stainless Steel, Cast Iron, Non-Ferrous Materials, High Temperature Alloys
  • Secondary Workpiece Material: Hardened Materials

The Kyocera SGS 48689 is an excellent choice for CNC milling applications requiring a reliable 18mm 2-flute solid carbide square end mill with 38mm length of cut, 30° right-hand spiral and Ti-NAMITE-A AlTiN coating for efficient cutting and dependable performance across a broad range of workpiece materials.
