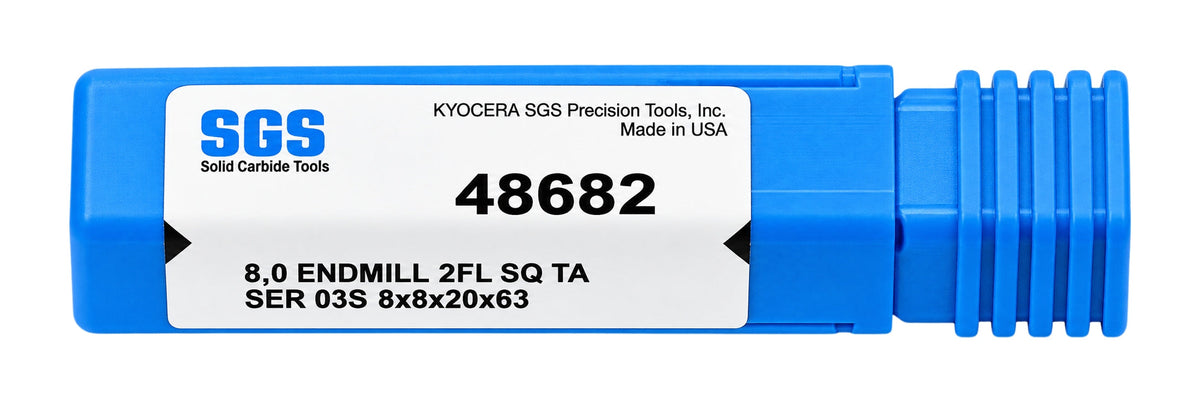

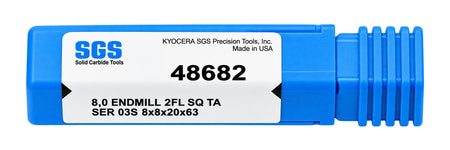

Kyocera SGS 48682 8mm 2 Flute Ti-NAMITE-A AlTiN Coated Carbide Square End Mill

Only 1 left
$144.89

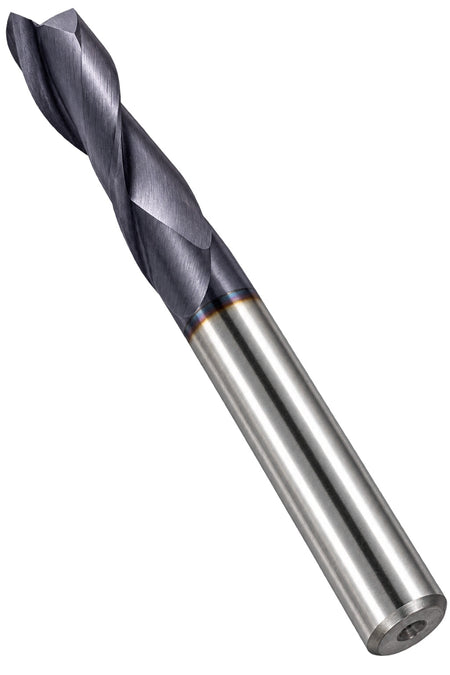

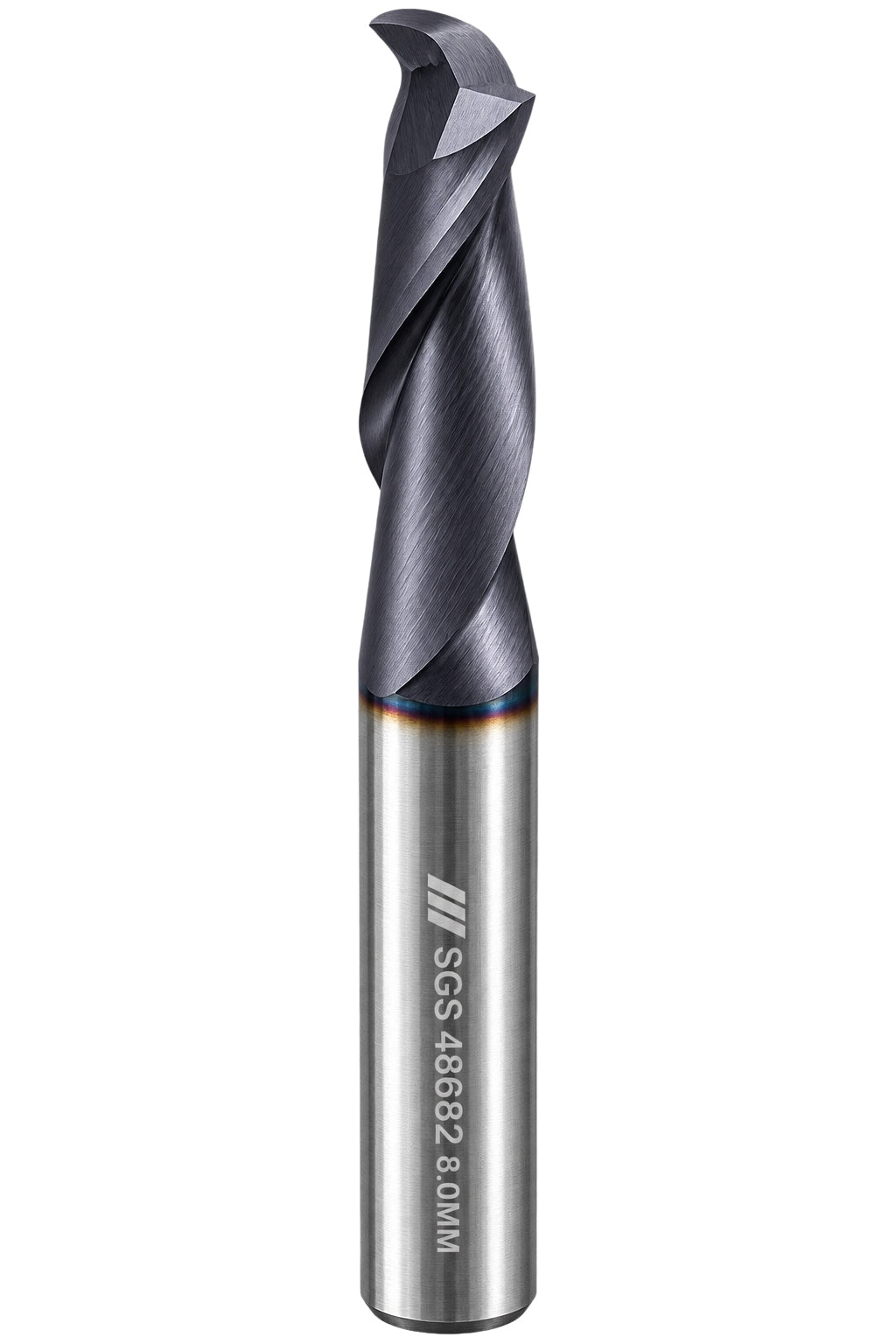

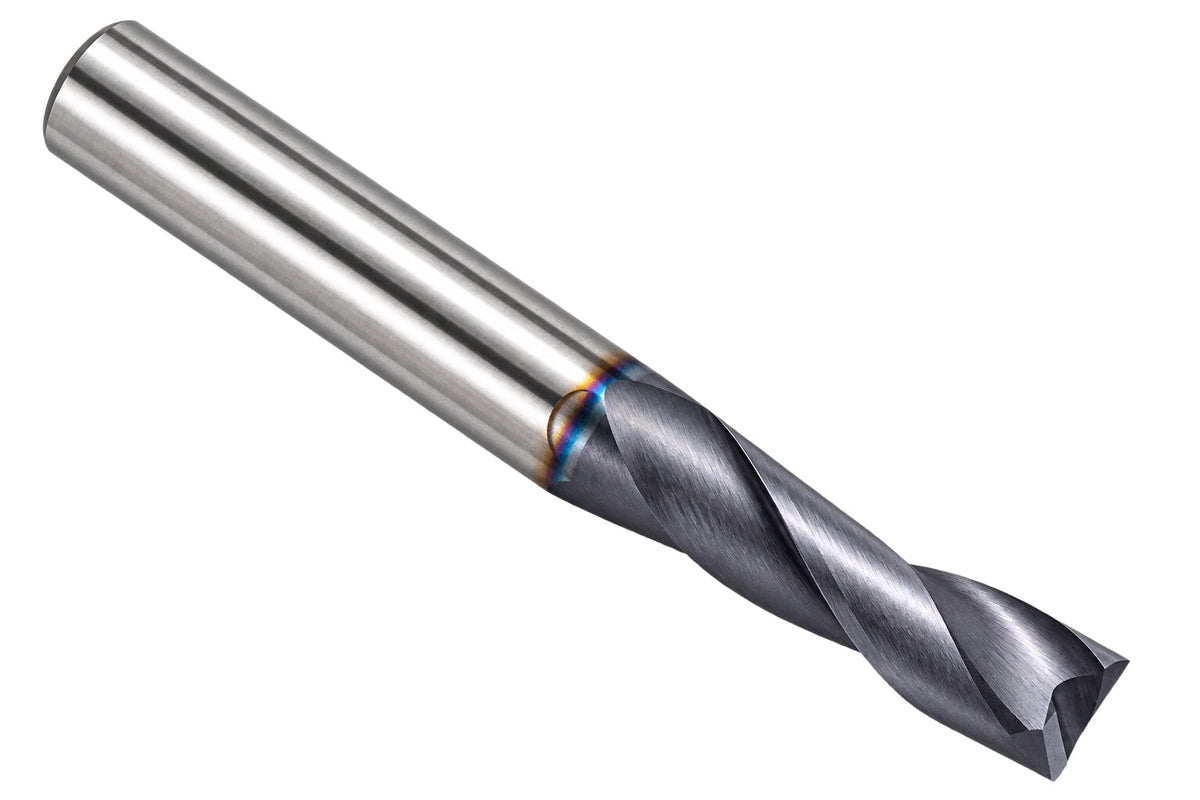

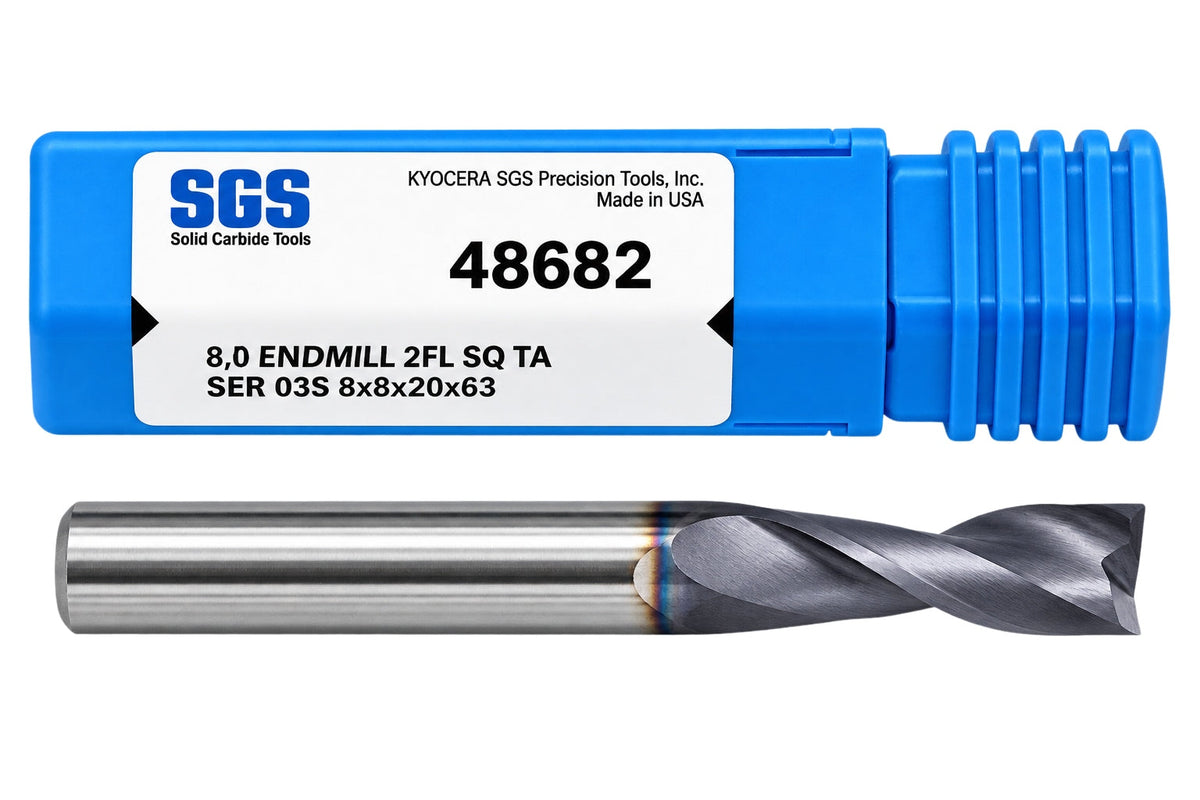

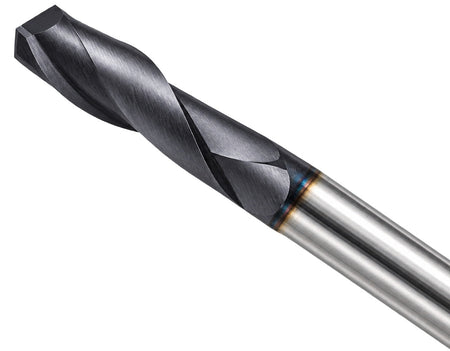

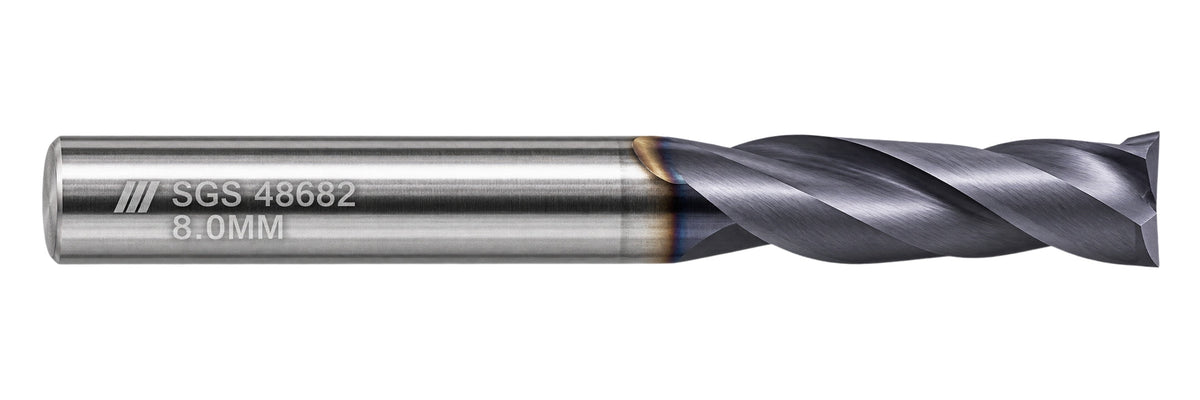

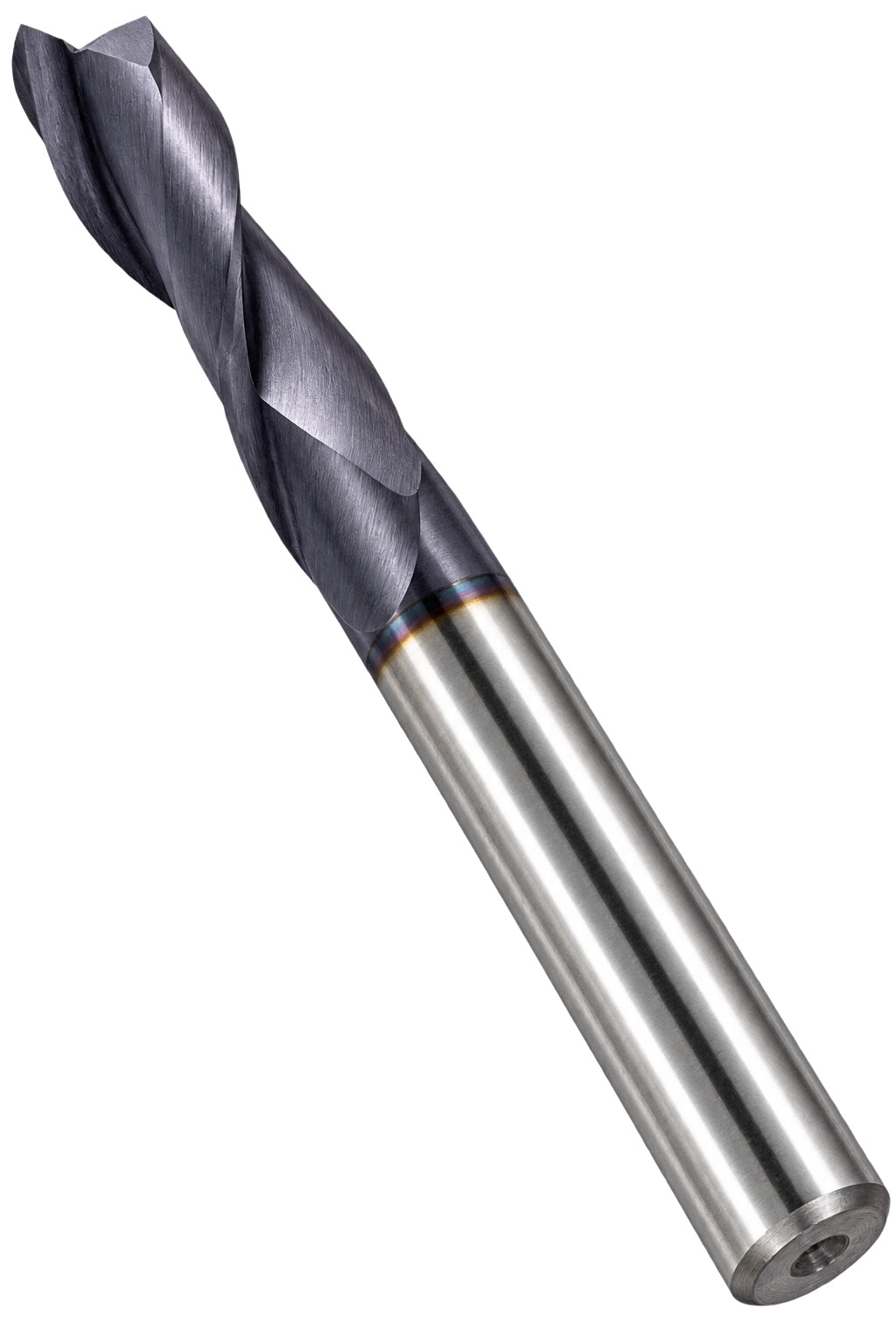

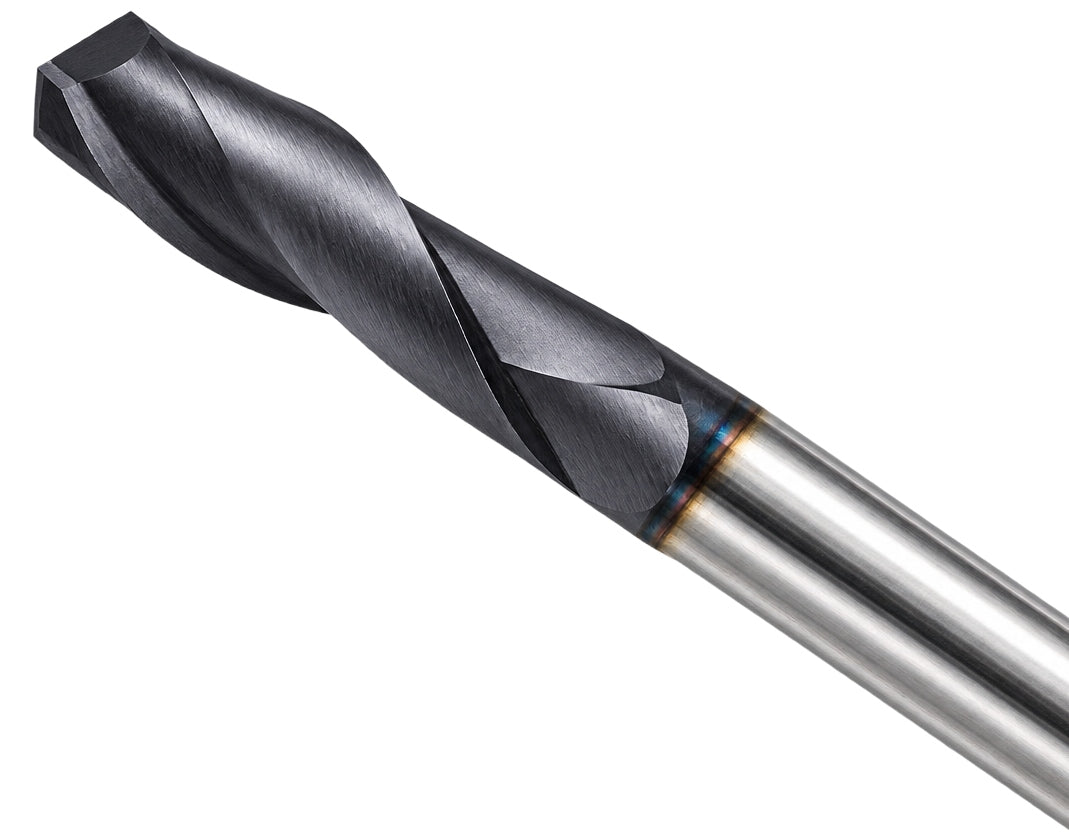

Professional quality Kyocera SGS 48682 Series 03S general application square end mill manufactured from solid carbide for reliable and precise machining. This 8mm diameter end mill features two flutes, a 20mm length of cut, 30° right-hand spiral and Ti-NAMITE-A AlTiN coating for enhanced wear resistance and dependable performance across a range of workpiece materials.

The two-flute design provides increased flute space for chip evacuation, while the positive rake geometry and right-hand cut direction support efficient cutting. The center-cutting design allows for plunging, slotting, profiling and general milling operations. The straight 8mm shank provides compatibility with suitable toolholding systems, while the regular tool-length classification provides a standard configuration for general milling applications.

Product Specifications

  • Brand: Kyocera SGS
  • Part Number: 48682
  • Series: 03S
  • Application: General Application End Mill
  • End Mill Type: Square End
  • Cutting Diameter: 8mm (0.3150 inch)
  • Number of Flutes: 2
  • Length of Cut: 20mm (0.7874 inch)
  • Shank Diameter: 8mm (0.3150 inch)
  • Overall Length: 63mm (2.4803 inch)
  • Shank Length: 43.00mm (1.6930 inch)
  • Material: Solid Carbide
  • Coating: Ti-NAMITE-A AlTiN
  • Shank Type: Straight
  • Flute Type: Spiral
  • Helix Angle: 30° Right Spiral
  • Cut Direction: Right Hand Cut Direction (RHC)
  • Rake Angle: Positive
  • Variable Helix: No
  • Center Cutting: Yes
  • Chip Breaker: No
  • Coolant Option: External Coolant
  • Tool Length: Regular
  • Weldon Flat: No
  • Cutting Diameter Tolerance: +0.000/-0.050mm (+0.0000/-0.0020 inch)
  • Shank Diameter Tolerance: h6
  • Primary Workpiece Materials: Steel, Stainless Steel, Cast Iron, Non-Ferrous Materials, High Temperature Alloys
  • Secondary Workpiece Material: Hardened Materials

The Kyocera SGS 48682 is an excellent choice for CNC milling applications requiring a reliable 8mm 2-flute solid carbide square end mill with 20mm length of cut, 30° right-hand spiral and Ti-NAMITE-A AlTiN coating for efficient cutting and dependable performance across a broad range of workpiece materials.
