Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

SKU: KSP48556
(0)

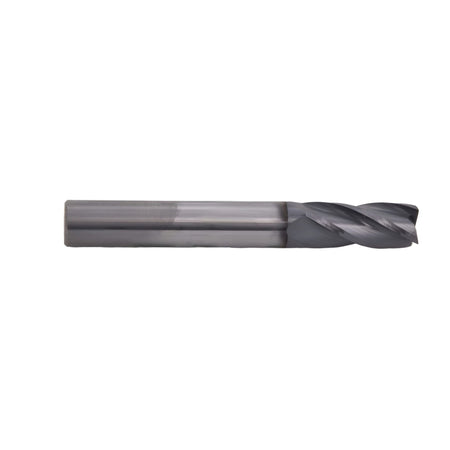

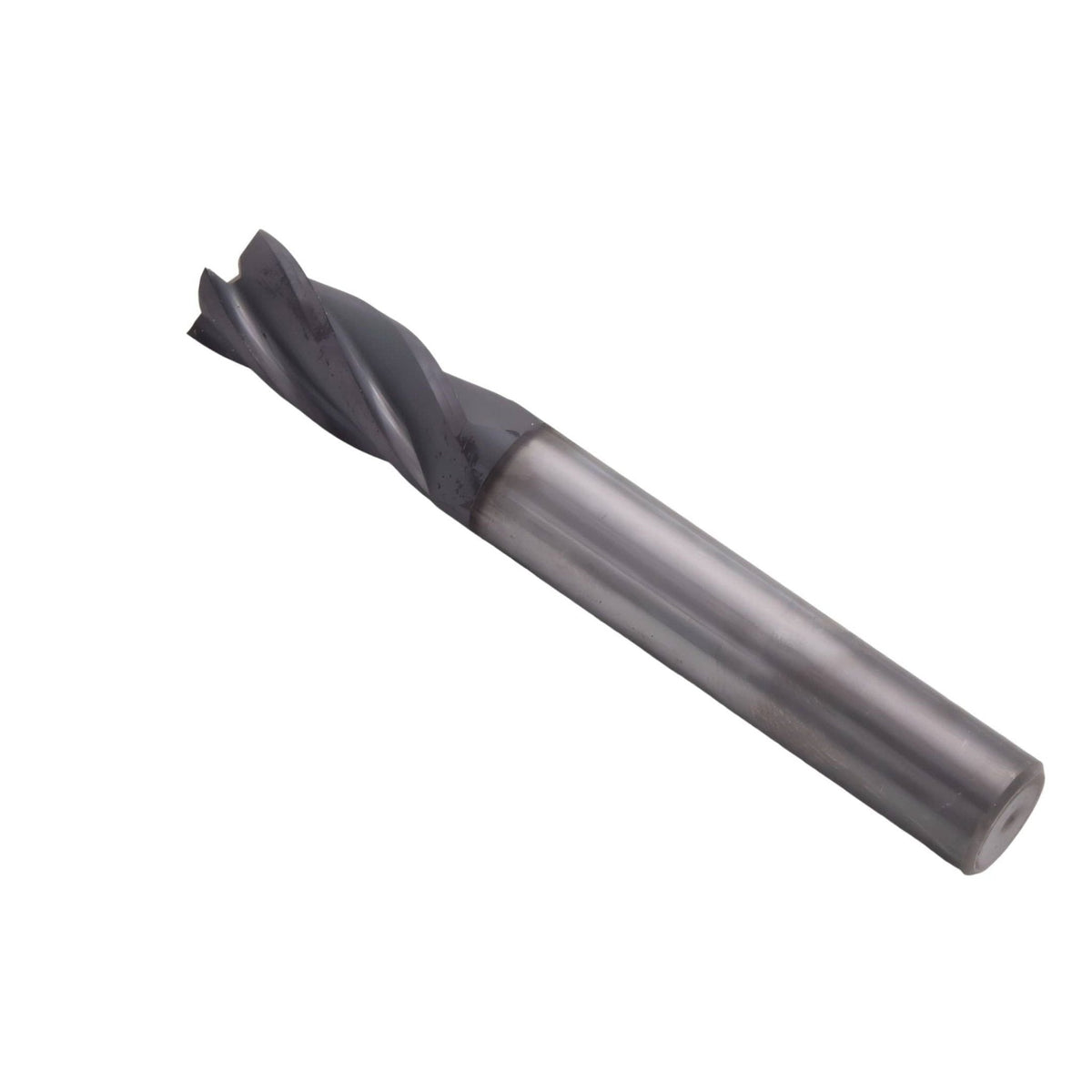

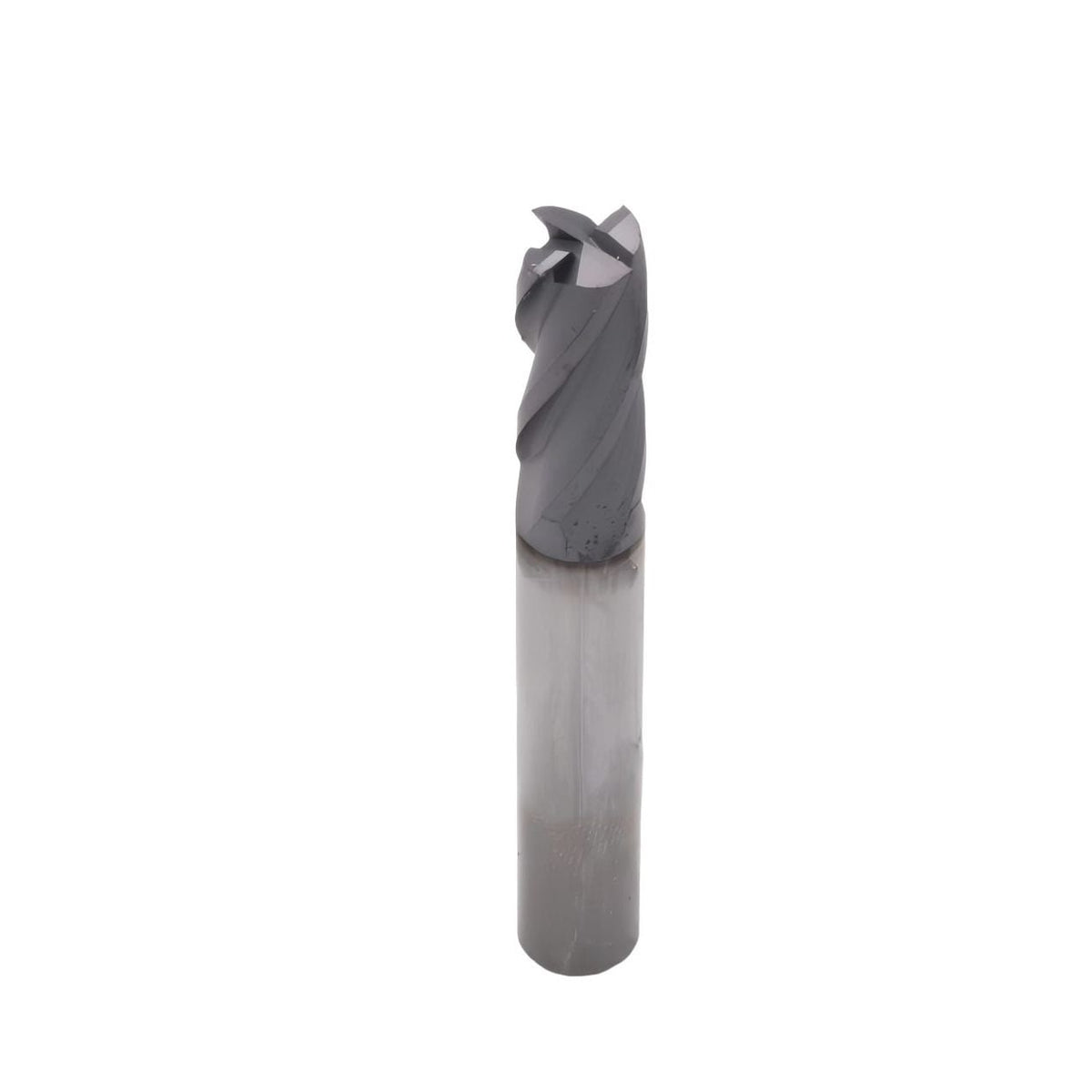

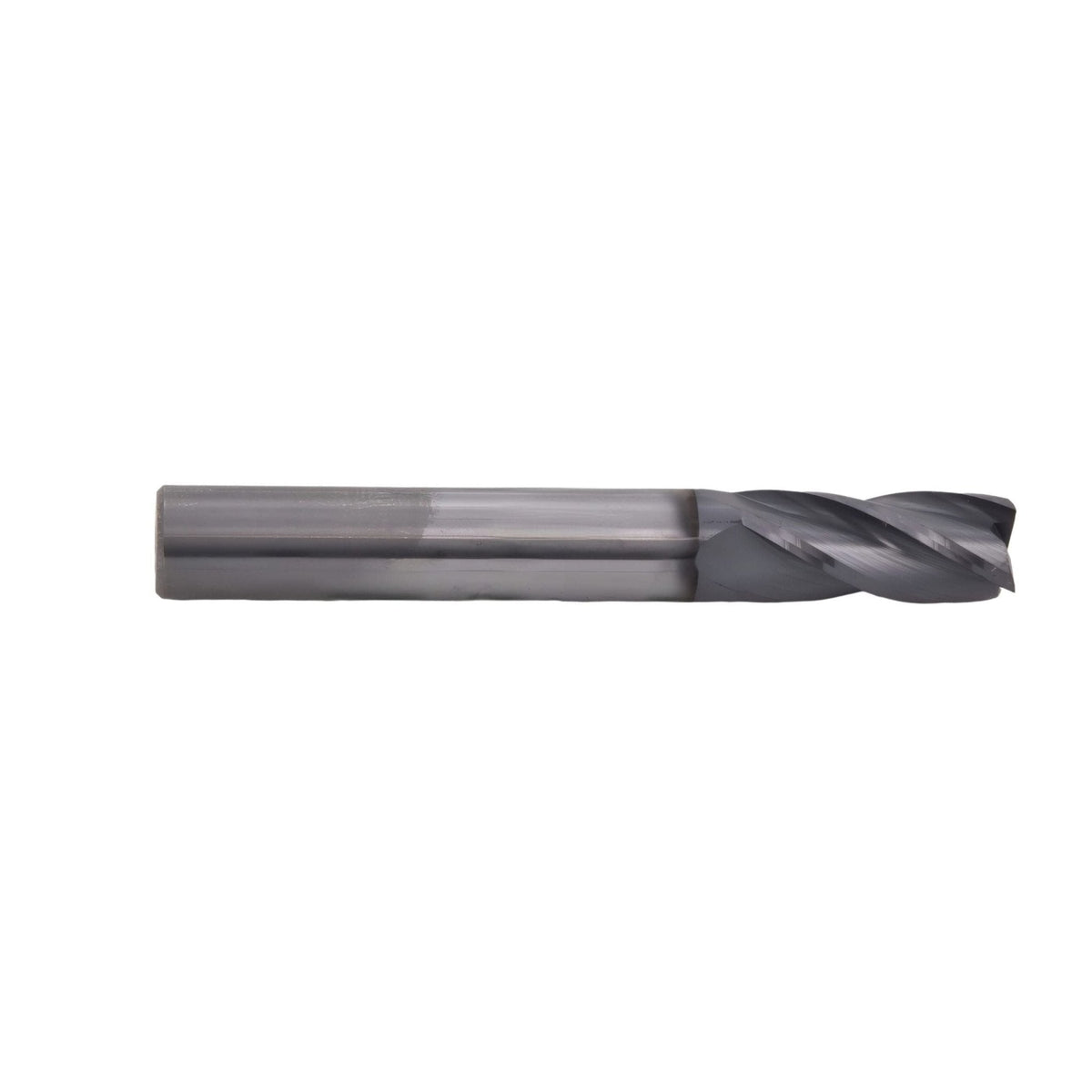

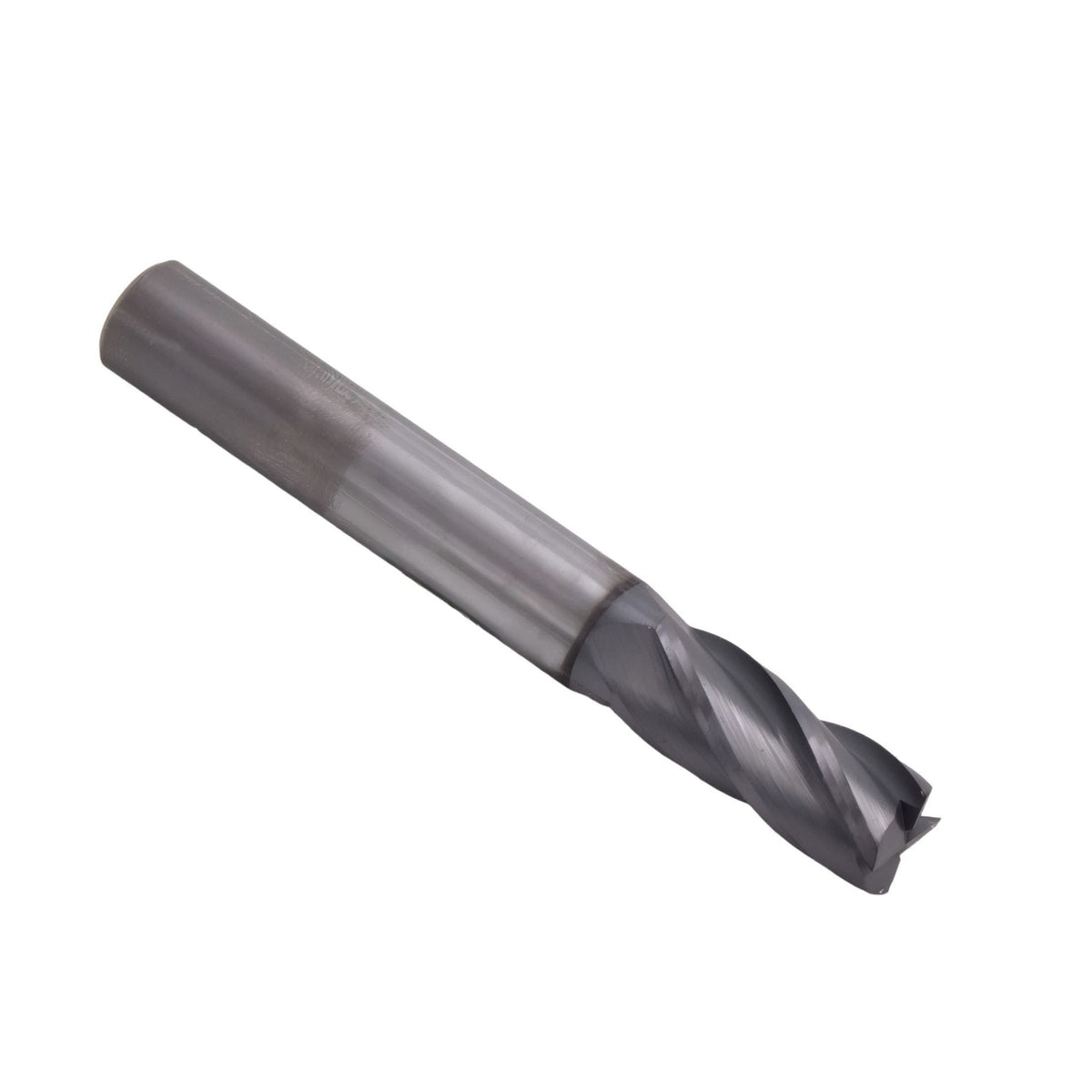

Kyocera SGS 48556 10mm 4 Flute Ti-NAMITE-A AlTiN Coated Carbide Square End Mill

In stock
$208.75

Professional quality Kyocera SGS 48556 Series 01S general application end mill manufactured from solid carbide for reliable and precise machining across a wide range of materials. This 10mm diameter end mill features four flutes, a 22mm length of cut, 30° right-hand spiral and Ti-NAMITE-A AlTiN coating for enhanced wear resistance and dependable performance in demanding milling applications.

The four-flute design provides a balance of material removal and surface finish, while the positive rake geometry and 30° helix promote efficient cutting and chip evacuation. The center-cutting design allows for plunging, slotting, profiling and general milling operations. This versatile end mill is suitable for machining steel, stainless steel, cast iron, non-ferrous materials, high temperature alloys and hardened materials.

Product Specifications

  • Brand: Kyocera SGS
  • Part Number: 48556
  • Series: 01S
  • Application: General Application End Mill
  • End Mill Type: Square End
  • Cutting Diameter: 10mm (0.3937 inch)
  • Number of Flutes: 4
  • Length of Cut: 22mm (0.8661 inch)
  • Shank Diameter: 10mm (0.3937 inch)
  • Overall Length: 75mm (2.9528 inch)
  • Shank Length: 52.93mm (2.0840 inch)
  • Material: Solid Carbide
  • Coating: Ti-NAMITE-A AlTiN
  • Shank Type: Straight
  • Flute Type: Spiral
  • Helix Angle: 30° Right Spiral
  • Cut Direction: Right Hand Cut Direction (RHC)
  • Rake Angle: Positive
  • Variable Helix: No
  • Center Cutting: Yes
  • Chip Breaker: No
  • Coolant Option: External Coolant
  • Tool Length: Regular
  • Weldon Flat: No
  • Cutting Diameter Tolerance: +0.000/-0.050mm (+0.0000/-0.0020 inch)
  • Shank Diameter Tolerance: h6
  • Primary Workpiece Materials: Steel, Stainless Steel, Cast Iron, Non-Ferrous Materials, High Temperature Alloys
  • Secondary Workpiece Material: Hardened Materials
  • Shipping Weight: 0.1740
  • US Stock: 35

The Kyocera SGS 48556 is an excellent choice for CNC milling applications requiring a reliable 10mm 4-flute solid carbide square end mill with 22mm length of cut, 30° helix and Ti-NAMITE-A AlTiN coating for efficient cutting, wear resistance and dependable performance across a broad range of workpiece materials.
