Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

SKU: KSP48547
(0)

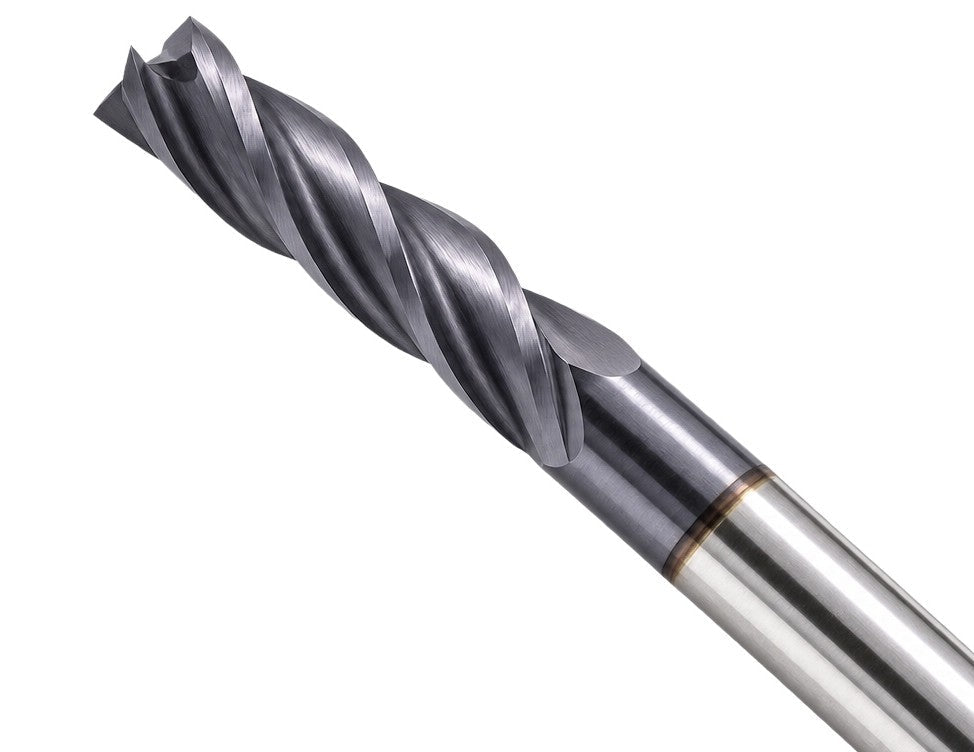

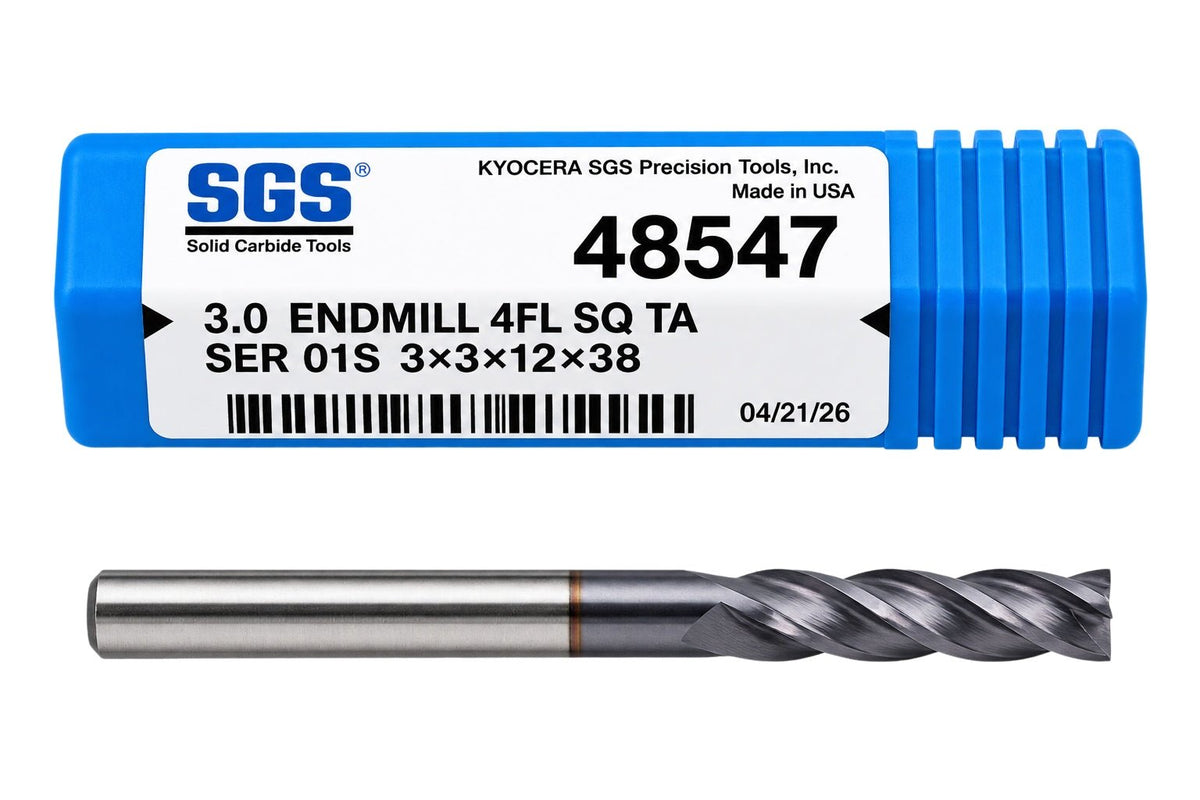

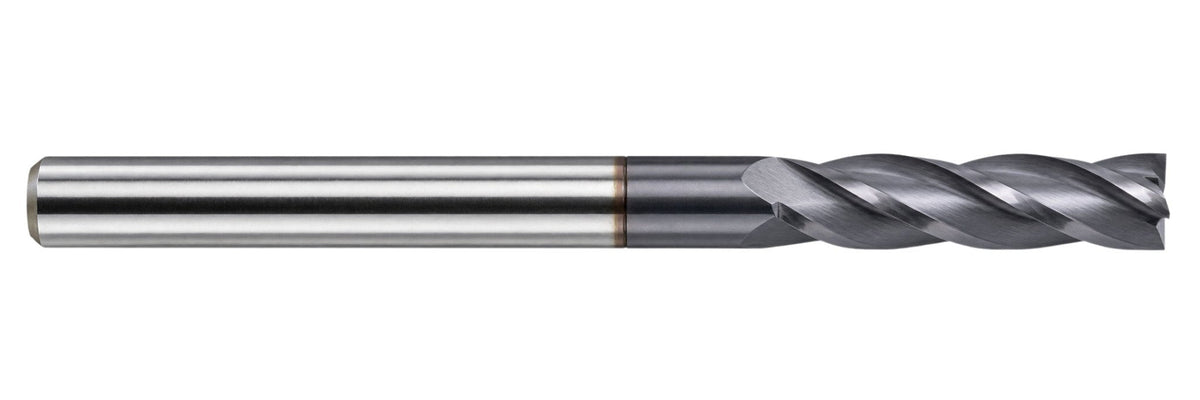

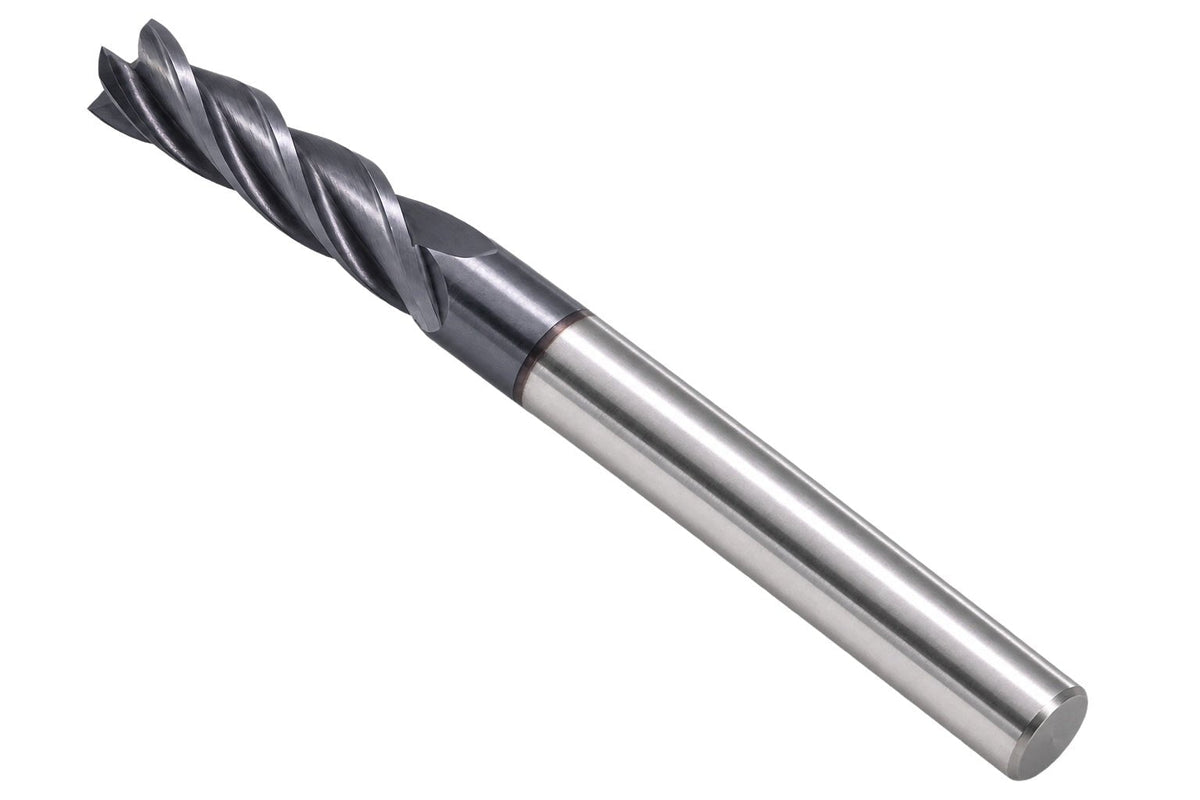

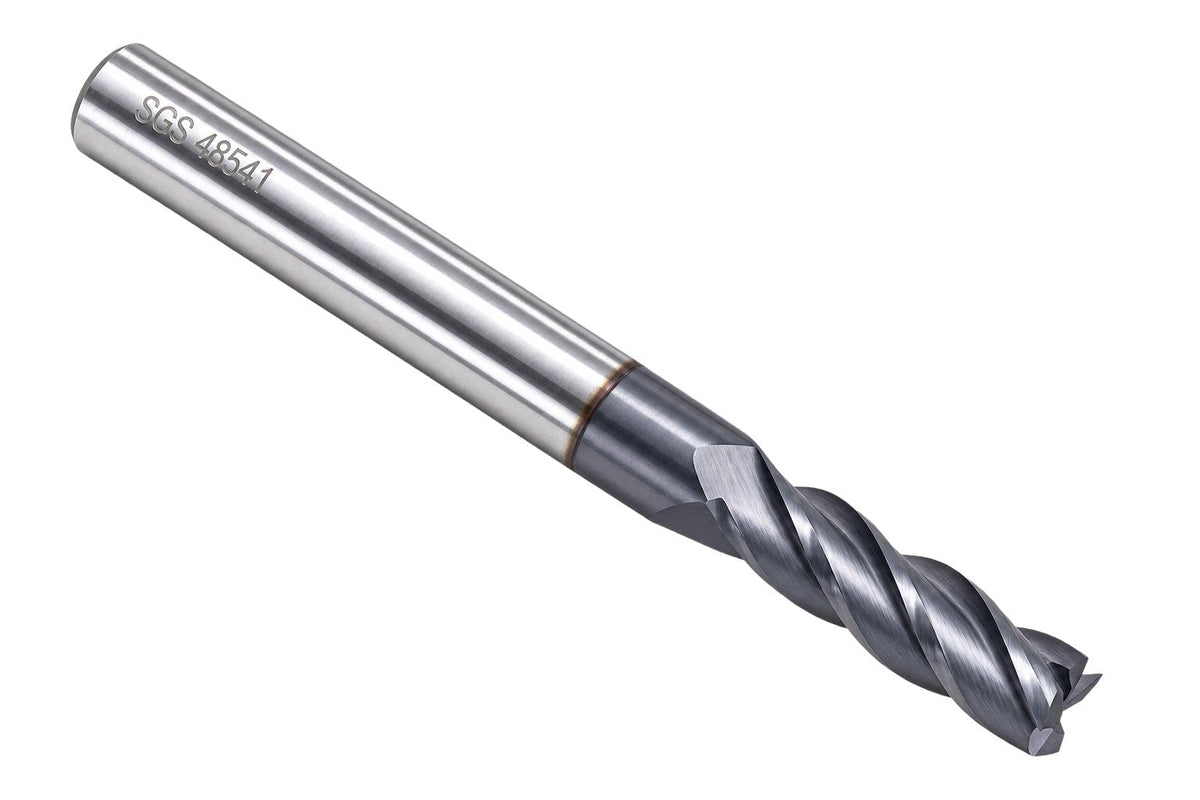

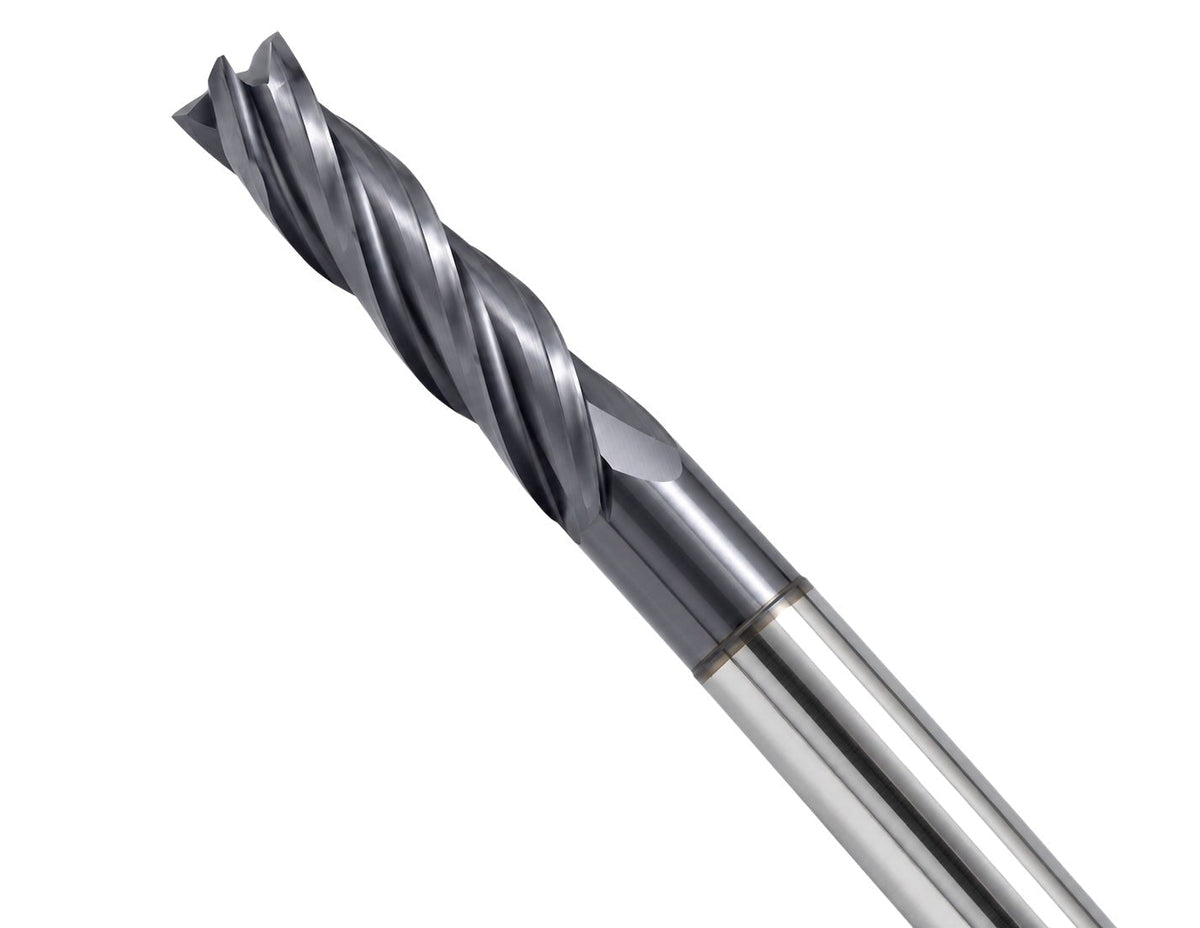

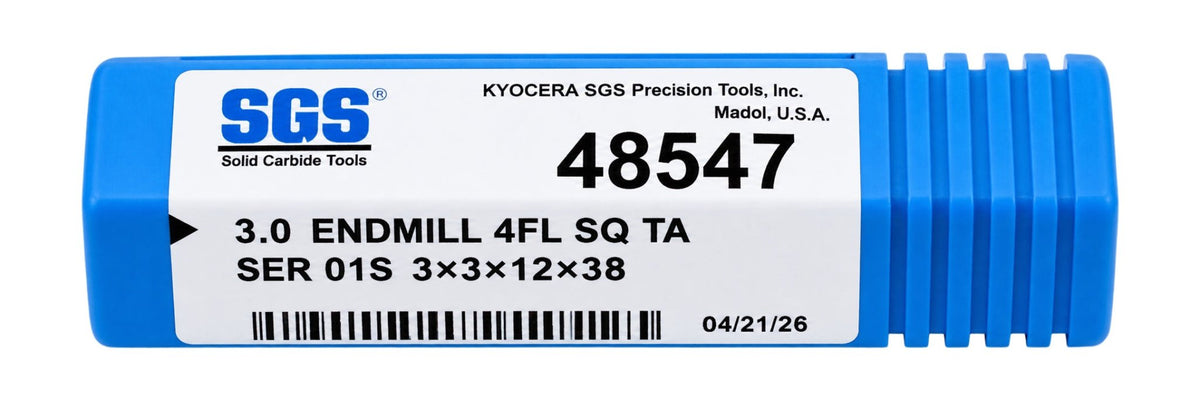

Kyocera SGS 48547 3mm 4 Flute Ti-NAMITE-A AlTiN Coated Carbide Square End Mill

Only 1 left
$81.53

Professional quality Kyocera SGS 48547 Series 01S general application end mill manufactured from solid carbide for reliable and precise machining across a wide range of materials. This 3mm diameter end mill features four flutes, a 12mm length of cut, 30° right-hand spiral and Ti-NAMITE-A AlTiN coating for enhanced wear resistance and dependable performance in demanding milling applications.

The four-flute design provides a balance of material removal and surface finish, while the positive rake geometry and 30° helix promote efficient cutting and chip evacuation. The center-cutting design allows for plunging, slotting, profiling and general milling operations. The 3mm straight shank provides a secure tool interface, while the long tool length offers additional reach for suitable machining applications. This versatile end mill is suitable for machining steel, stainless steel, cast iron, non-ferrous materials, high temperature alloys and hardened materials.

Product Specifications

  • Brand: Kyocera SGS
  • Part Number: 48547
  • Series: 01S
  • Application: General Application End Mill
  • End Mill Type: Square End
  • Cutting Diameter: 3mm (0.1181 inch)
  • Number of Flutes: 4
  • Length of Cut: 12mm (0.4724 inch)
  • Shank Diameter: 3mm (0.1181 inch)
  • Overall Length: 38mm (1.4961 inch)
  • Shank Length: 26.11mm (1.0280 inch)
  • Material: Solid Carbide
  • Coating: Ti-NAMITE-A AlTiN
  • Shank Type: Straight
  • Flute Type: Spiral
  • Helix Angle: 30° Right Spiral
  • Cut Direction: Right Hand Cut Direction (RHC)
  • Rake Angle: Positive
  • Variable Helix: No
  • Center Cutting: Yes
  • Chip Breaker: No
  • Coolant Option: External Coolant
  • Tool Length: Long
  • Weldon Flat: No
  • Cutting Diameter Tolerance: +0.000/-0.050mm (+0.0000/-0.0020 inch)
  • Shank Diameter Tolerance: h6
  • Primary Workpiece Materials: Steel, Stainless Steel, Cast Iron, Non-Ferrous Materials, High Temperature Alloys
  • Secondary Workpiece Material: Hardened Materials
  • Shipping Weight: 0.0120
  • US Stock: 108

The Kyocera SGS 48547 is an excellent choice for CNC milling applications requiring a reliable 3mm 4-flute solid carbide square end mill with 12mm length of cut, 3mm shank, 30° helix and Ti-NAMITE-A AlTiN coating for efficient cutting, wear resistance and dependable performance across a broad range of workpiece materials.
