Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

SKU: KSP41629
(0)

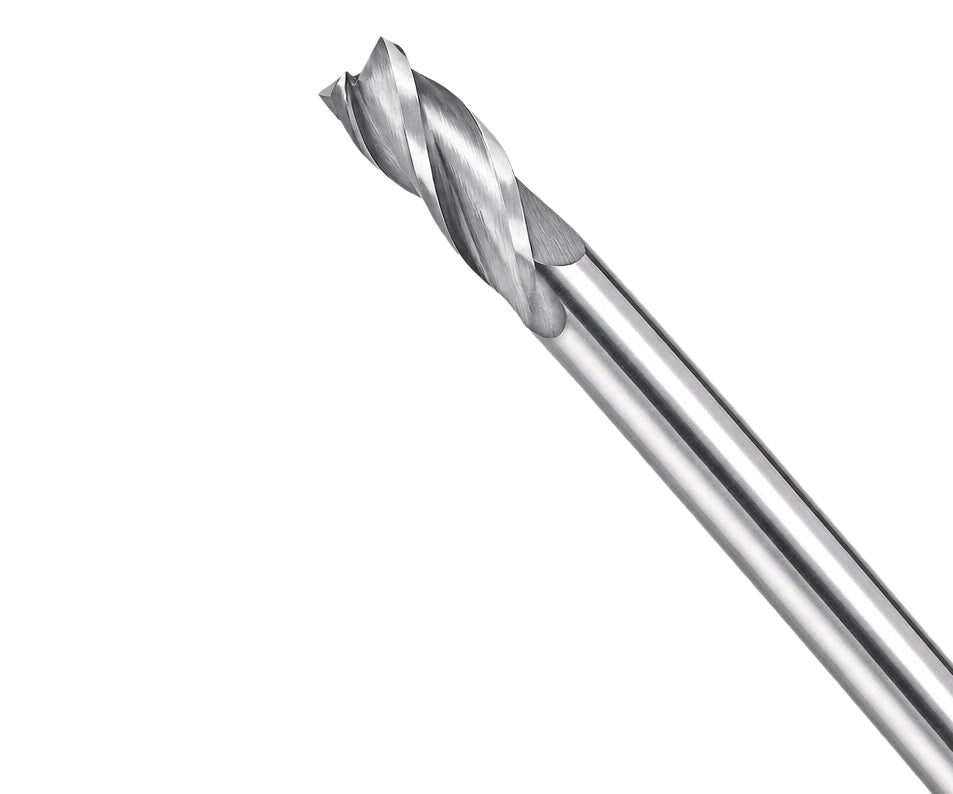

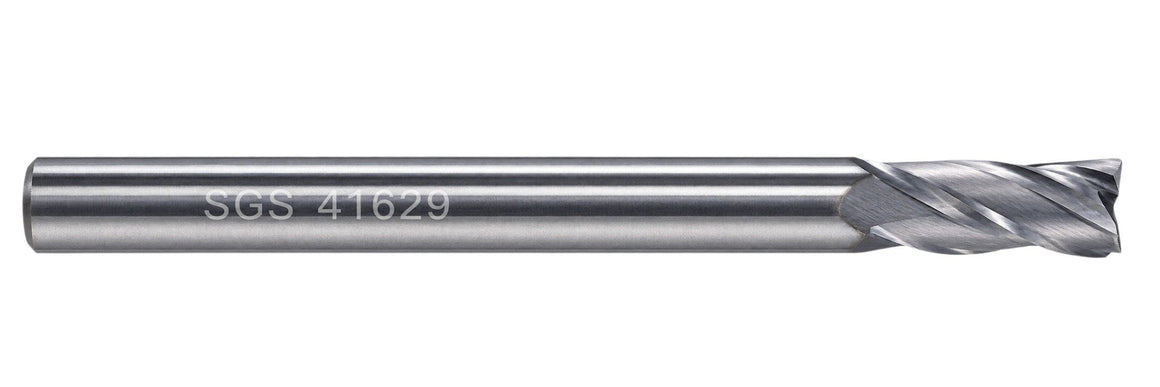

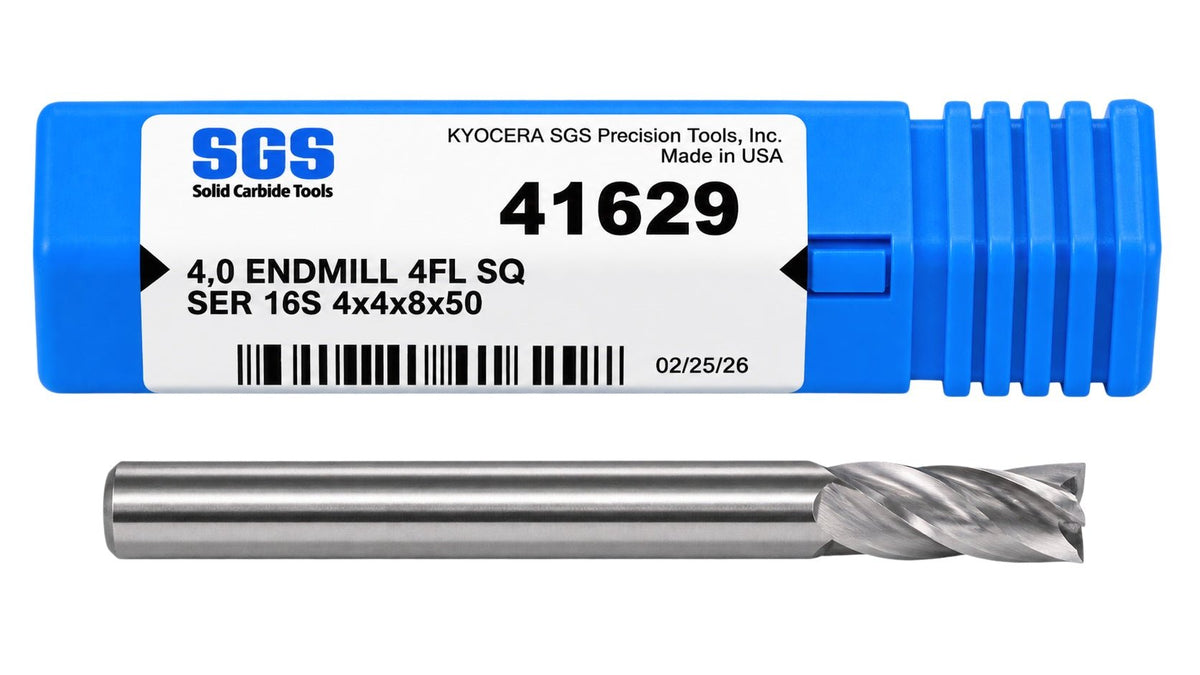

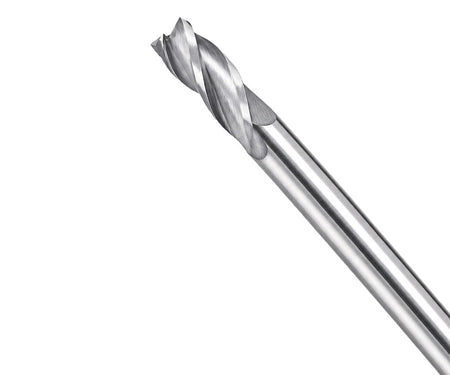

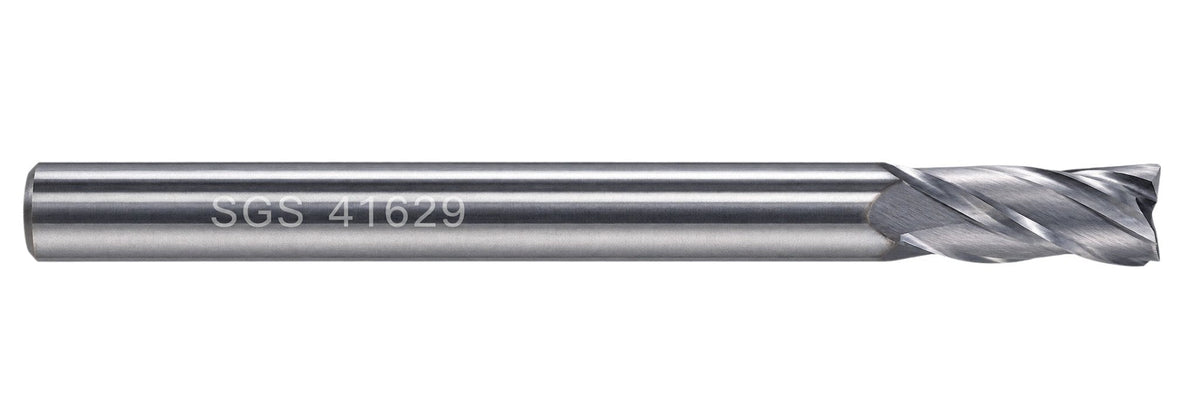

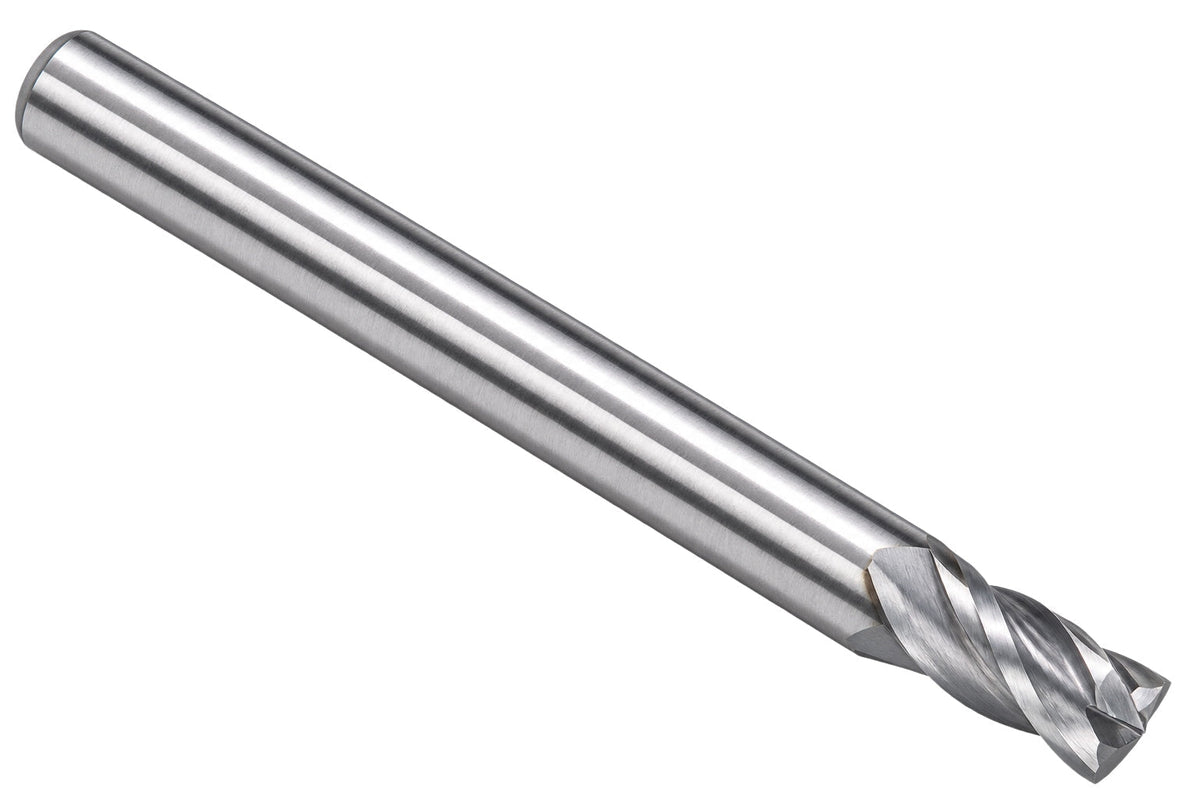

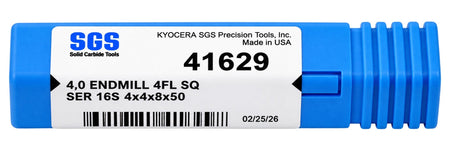

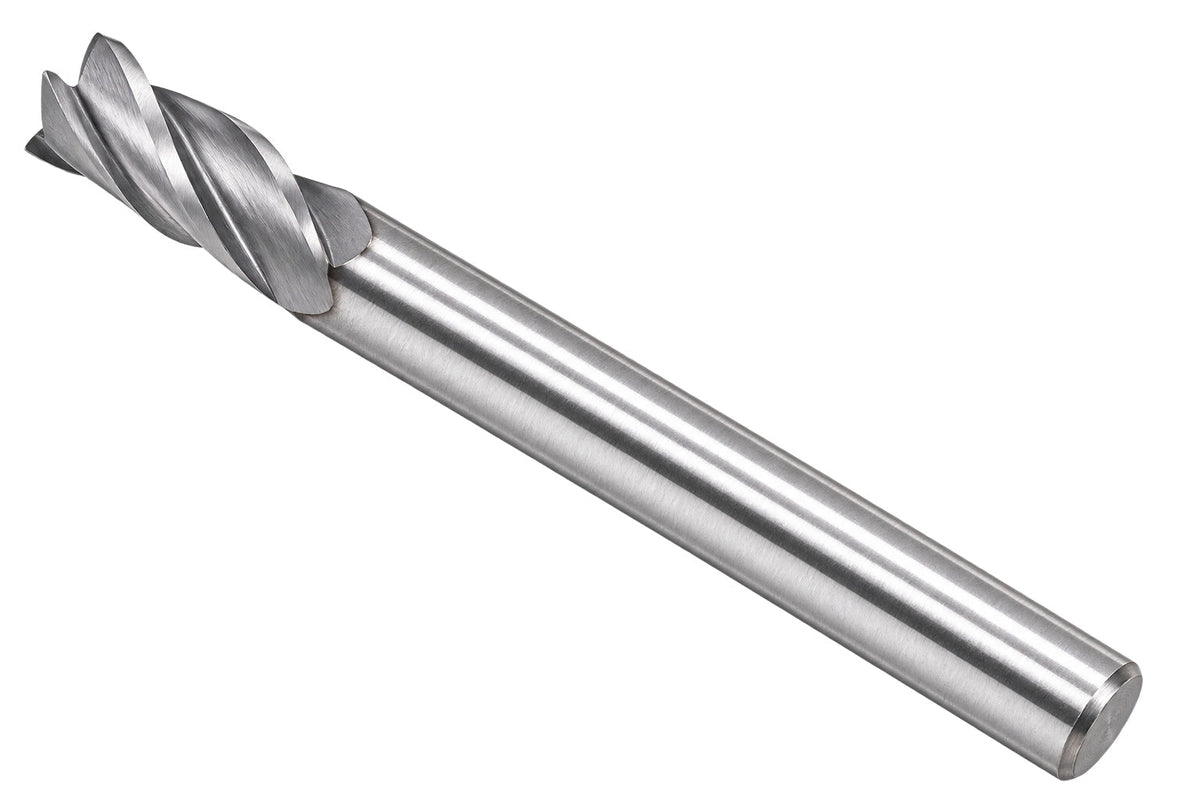

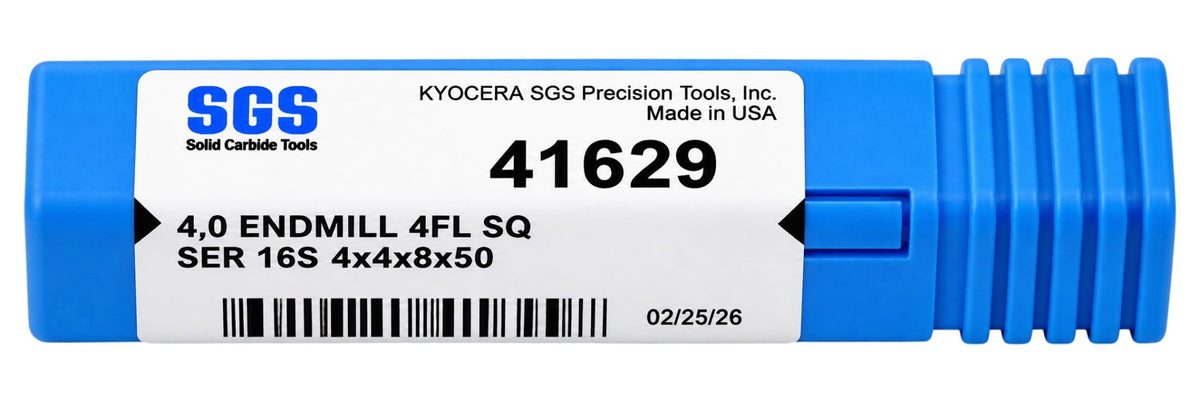

Kyocera SGS 41629 4mm 4 Flute Bright Uncoated Stub Carbide Square End Mill

Only 1 left
$65.30

Professional quality Kyocera SGS 41629 Series 16S general application square end mill manufactured from solid carbide for reliable and precise machining. This 4mm diameter end mill features four flutes, an 8mm length of cut, 30° right-hand spiral and Bright/Uncoated finish for dependable performance across a range of workpiece materials.

The four-flute design provides a balance of cutting performance and surface finish, while the positive rake geometry and right-hand cut direction support efficient machining. The center-cutting design allows for plunging, slotting, profiling and general milling operations. The straight 4mm shank provides a matching shank configuration, while the stub tool-length classification offers a compact tool configuration.

Product Specifications

  • Brand: Kyocera SGS
  • Part Number: 41629
  • Series: 16S
  • Application: General Application End Mill
  • End Mill Type: Square End
  • Cutting Diameter: 4mm (0.1575 inch)
  • Number of Flutes: 4
  • Length of Cut: 8mm (0.3150 inch)
  • Shank Diameter: 4mm (0.1575 inch)
  • Overall Length: 50mm (1.9685 inch)
  • Shank Length: 42.04mm (1.6550 inch)
  • Material: Solid Carbide
  • Coating: Bright/Uncoated
  • Shank Type: Straight
  • Flute Type: Spiral
  • Helix Angle: 30° Right Spiral
  • Cut Direction: Right Hand Cut Direction (RHC)
  • Rake Angle: Positive
  • Variable Helix: No
  • Center Cutting: Yes
  • Chip Breaker: No
  • Coolant Option: External Coolant
  • Tool Length: Stub
  • Weldon Flat: No
  • Cutting Diameter Tolerance: +0.000/-0.050mm (+0.0000/-0.0020 inch)
  • Shank Diameter Tolerance: h6
  • Primary Workpiece Materials: Steel, Stainless Steel, Cast Iron, Non-Ferrous Materials, High Temperature Alloys
  • Secondary Workpiece Material: Hardened Materials

The Kyocera SGS 41629 is an excellent choice for CNC milling applications requiring a 4mm 4-flute solid carbide square end mill with an 8mm length of cut, 30° right-hand spiral, positive rake geometry and Bright/Uncoated finish in a stub-length configuration.
