Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

SKU: KSP40349
(0)

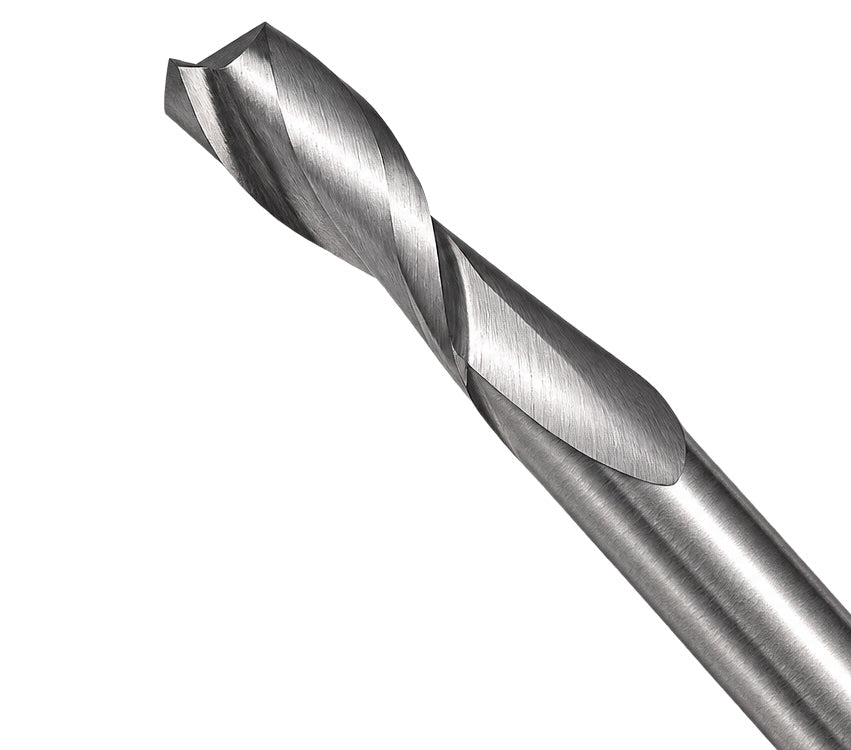

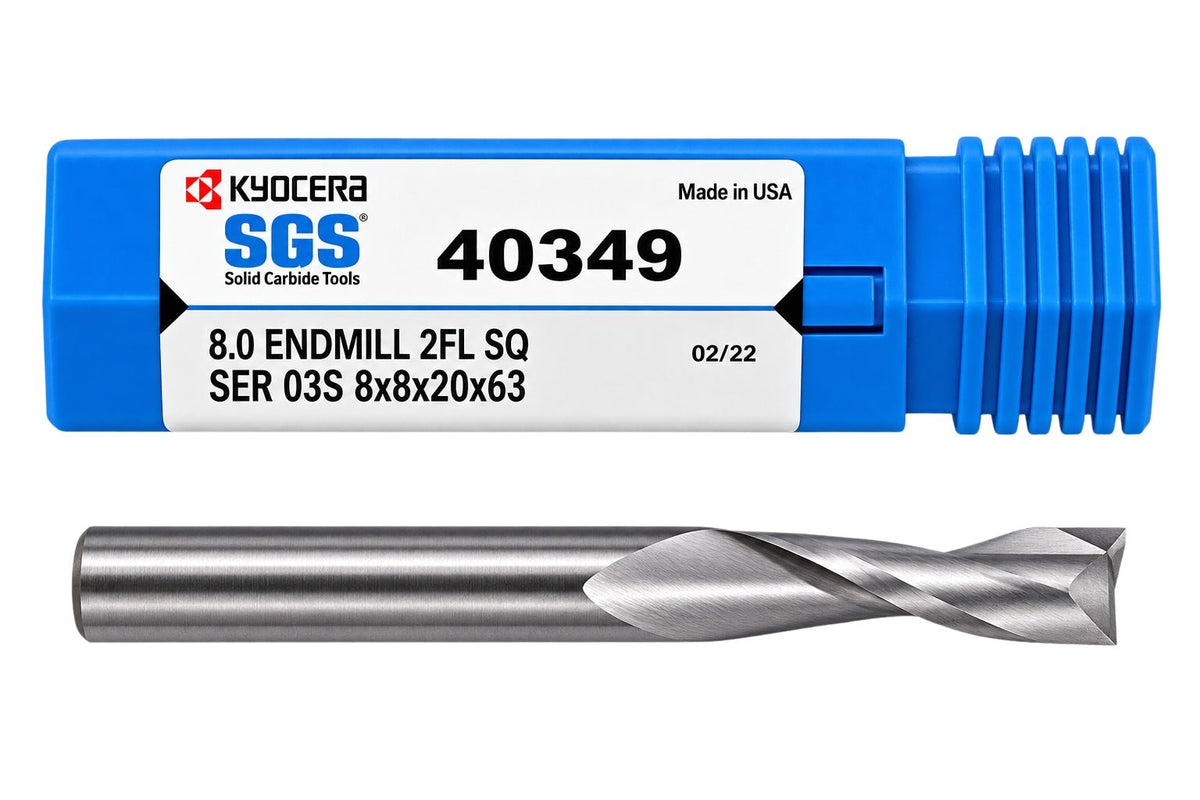

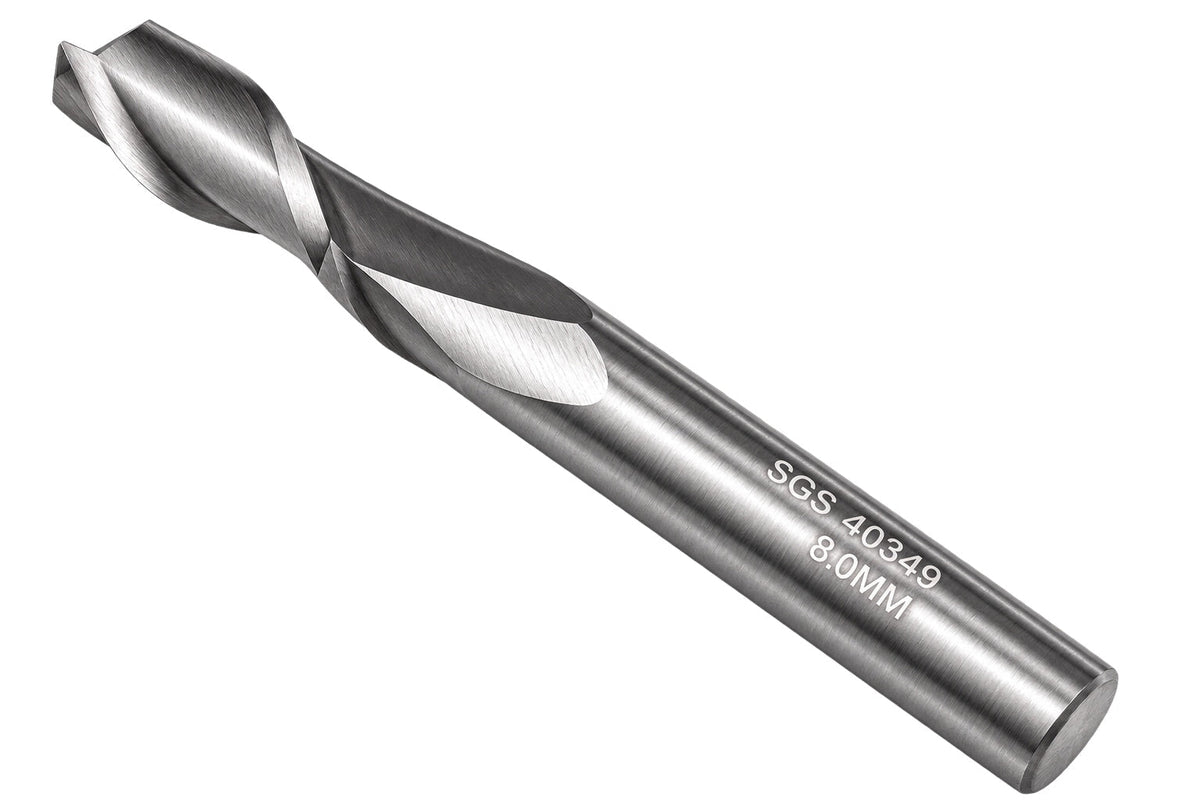

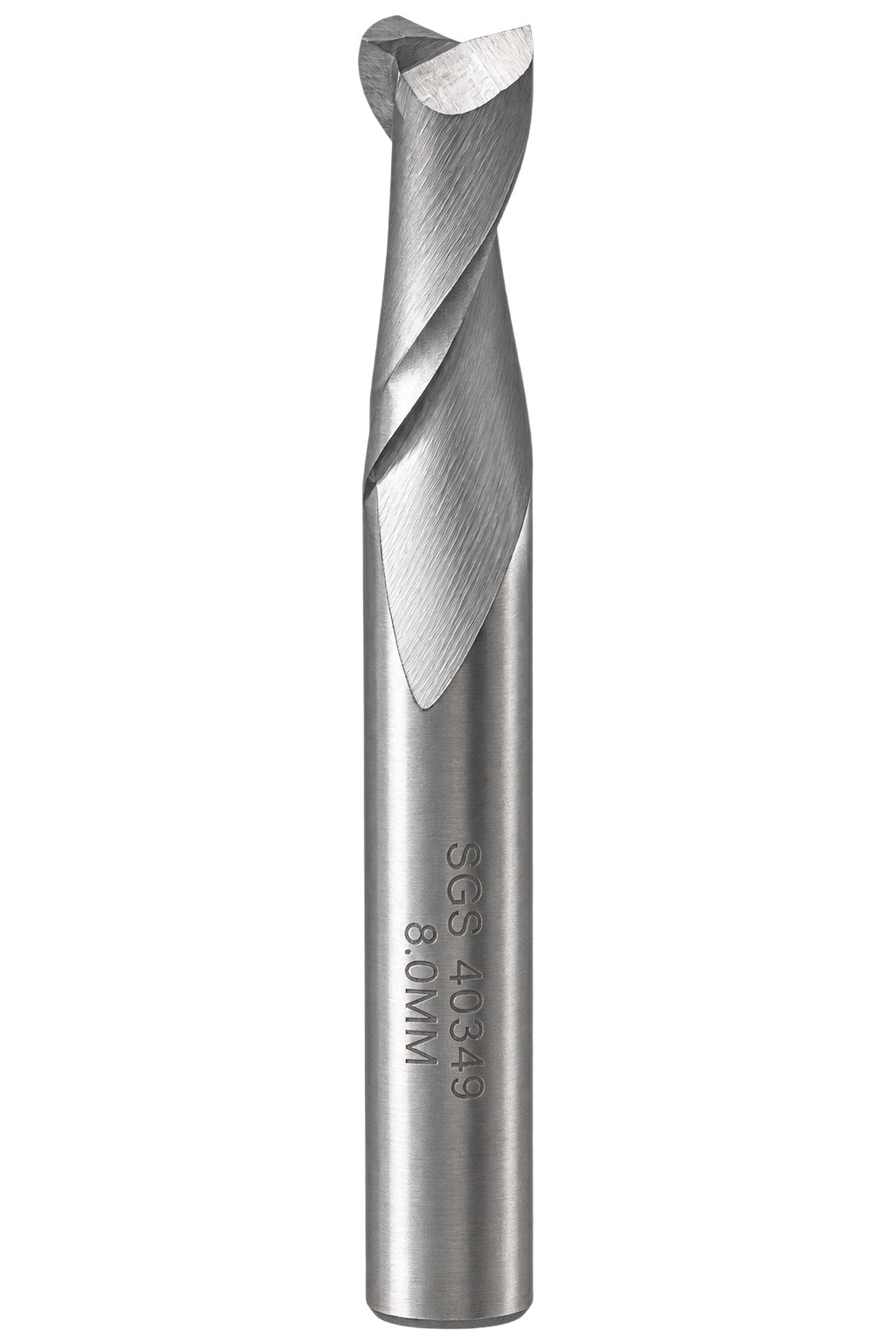

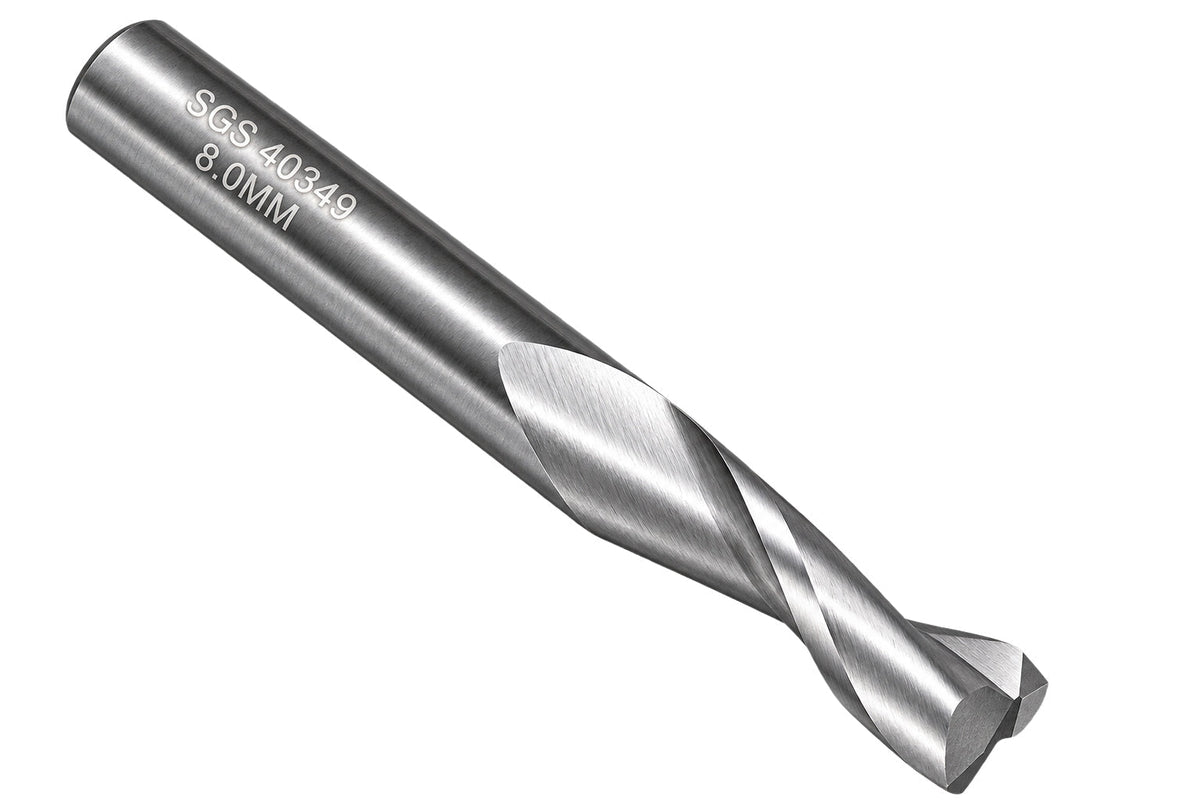

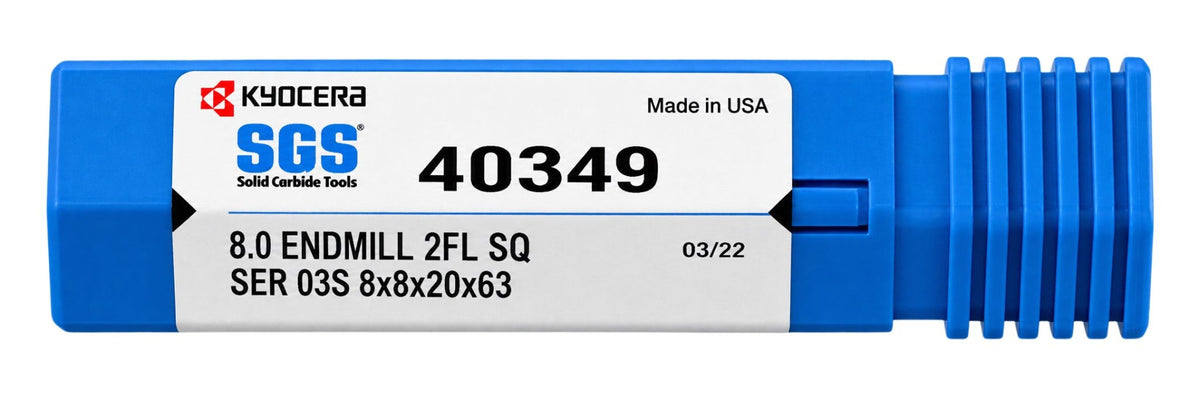

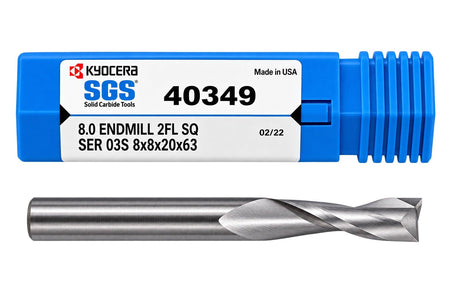

Kyocera SGS 40349 8mm 2 Flute Bright Uncoated Carbide Square End Mill

In stock
$126.23

Professional quality Kyocera SGS 40349 Series 03S general application square end mill manufactured from solid carbide for reliable and precise machining. This 8mm diameter end mill features two flutes, a 20mm length of cut, 30° right-hand spiral and Bright/Uncoated finish for dependable performance across a range of workpiece materials.

The two-flute design provides increased flute space for chip evacuation, while the positive rake geometry and right-hand cut direction support efficient cutting. The center-cutting design allows for plunging, slotting, profiling and general milling operations. The straight 8mm shank provides a matching shank configuration, while the regular tool-length classification provides a standard tool configuration for general milling applications.

Product Specifications

  • Brand: Kyocera SGS
  • Part Number: 40349
  • Series: 03S
  • Application: General Application End Mill
  • End Mill Type: Square End
  • Cutting Diameter: 8mm (0.3150 inch)
  • Number of Flutes: 2
  • Length of Cut: 20mm (0.7874 inch)
  • Shank Diameter: 8mm (0.3150 inch)
  • Overall Length: 63mm (2.4803 inch)
  • Shank Length: 43mm (1.6930 inch)
  • Material: Solid Carbide
  • Coating: Bright/Uncoated
  • Shank Type: Straight
  • Flute Type: Spiral
  • Helix Angle: 30° Right Spiral
  • Cut Direction: Right Hand Cut Direction (RHC)
  • Rake Angle: Positive
  • Variable Helix: No
  • Center Cutting: Yes
  • Chip Breaker: No
  • Coolant Option: External Coolant
  • Tool Length: Regular
  • Weldon Flat: No
  • Cutting Diameter Tolerance: +0.000/-0.050mm (+0.0000/-0.0020 inch)
  • Shank Diameter Tolerance: h6
  • Primary Workpiece Materials: Steel, Stainless Steel, Cast Iron, Non-Ferrous Materials, High Temperature Alloys
  • Secondary Workpiece Material: Hardened Materials

The Kyocera SGS 40349 is an excellent choice for CNC milling applications requiring an 8mm 2-flute solid carbide square end mill with a 20mm length of cut, 30° right-hand spiral, positive rake geometry and Bright/Uncoated finish in a regular-length configuration.
