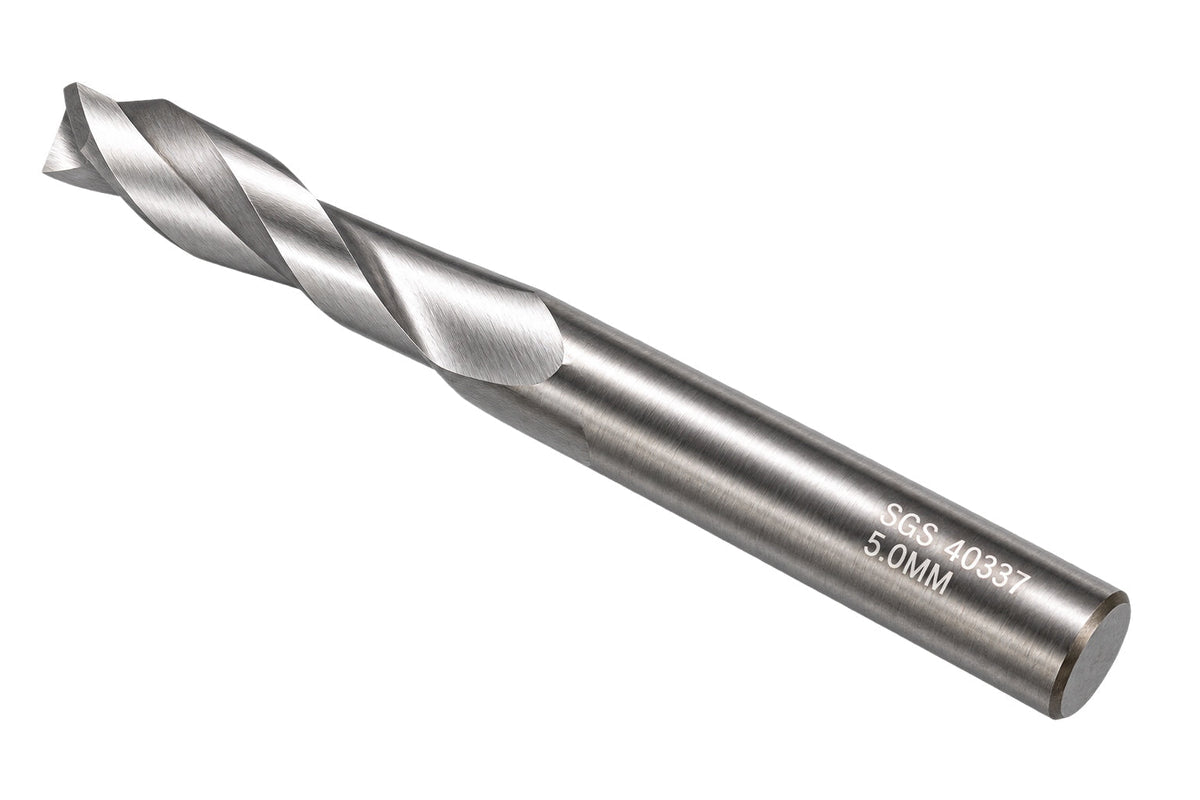

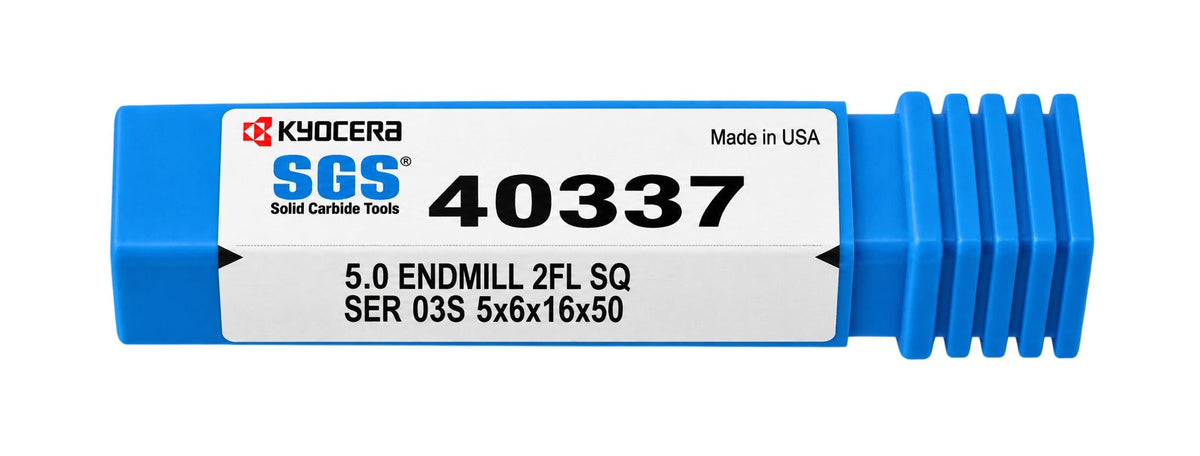

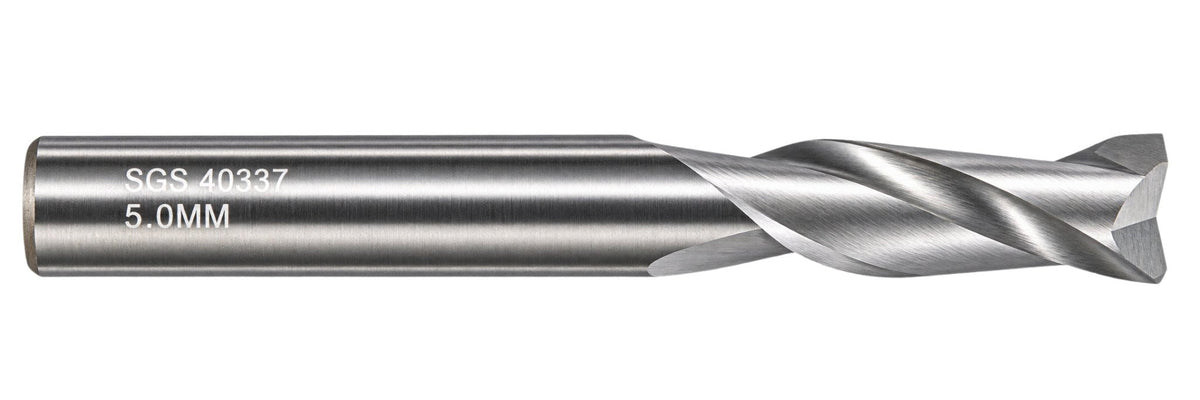

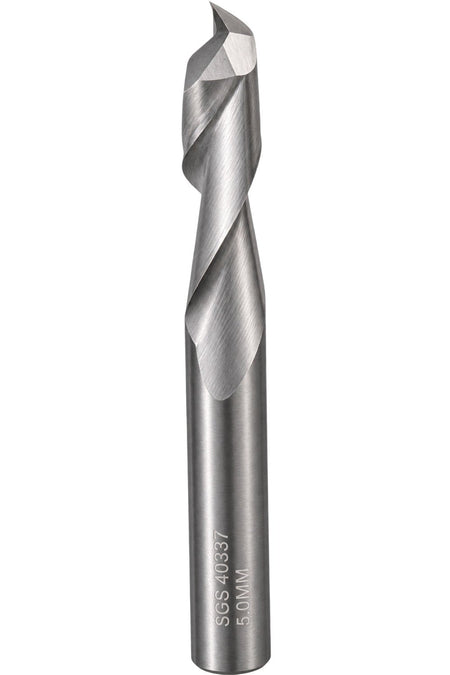

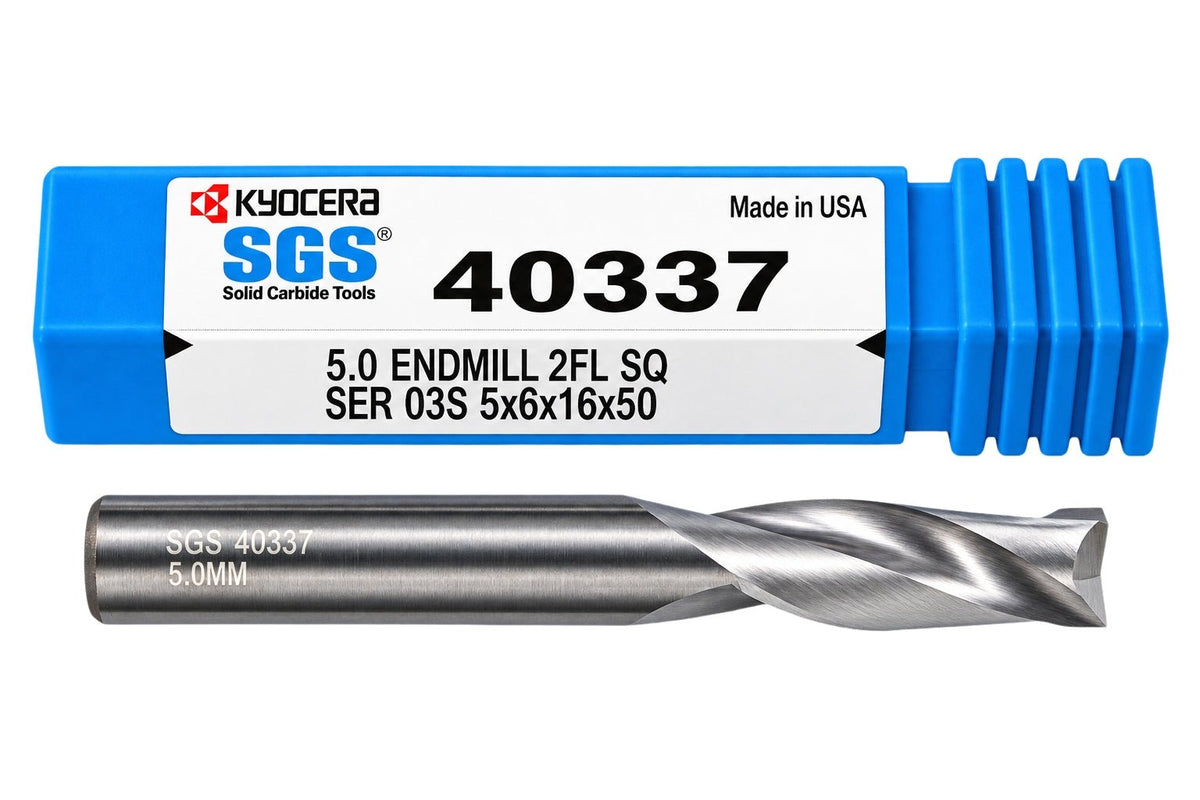

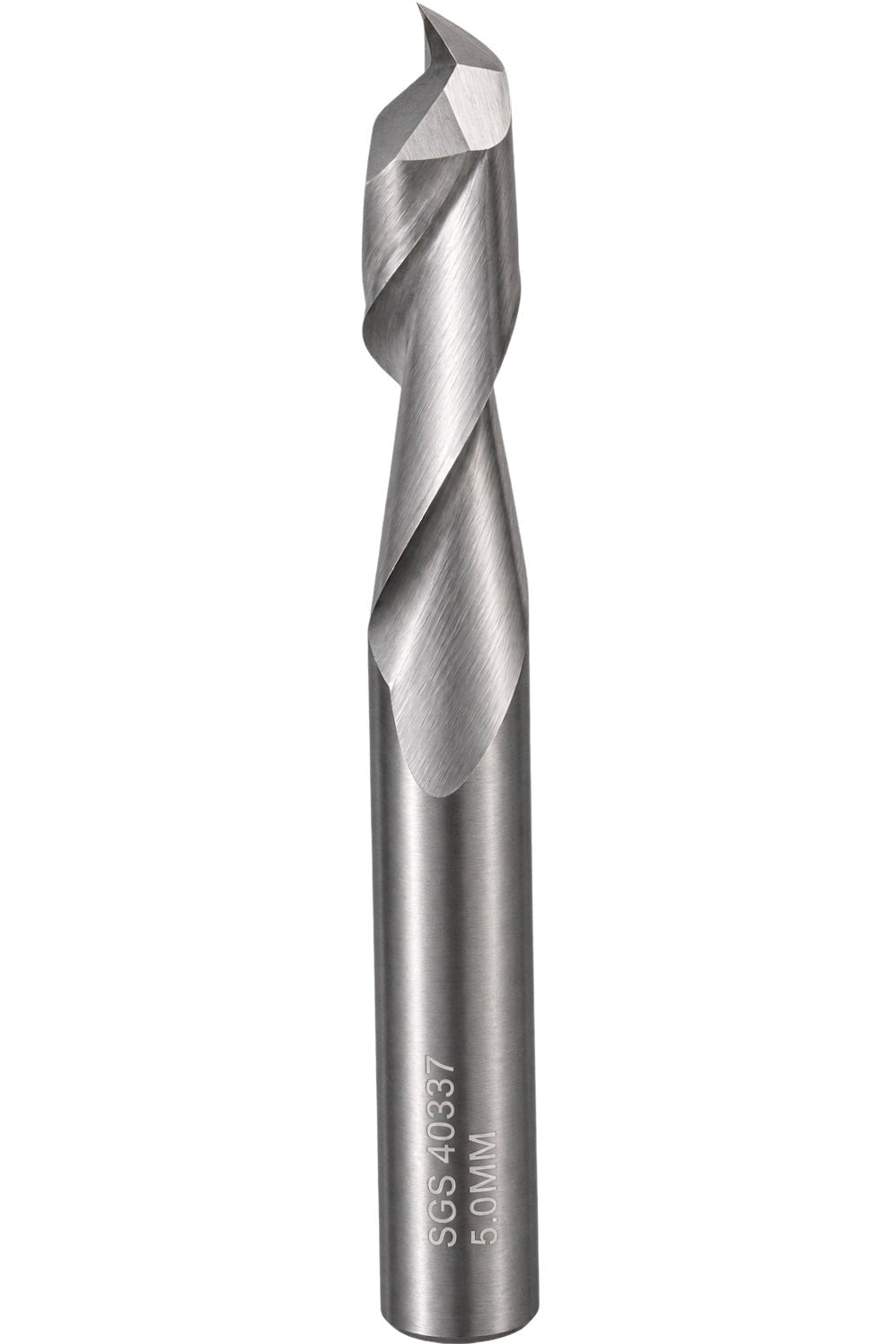

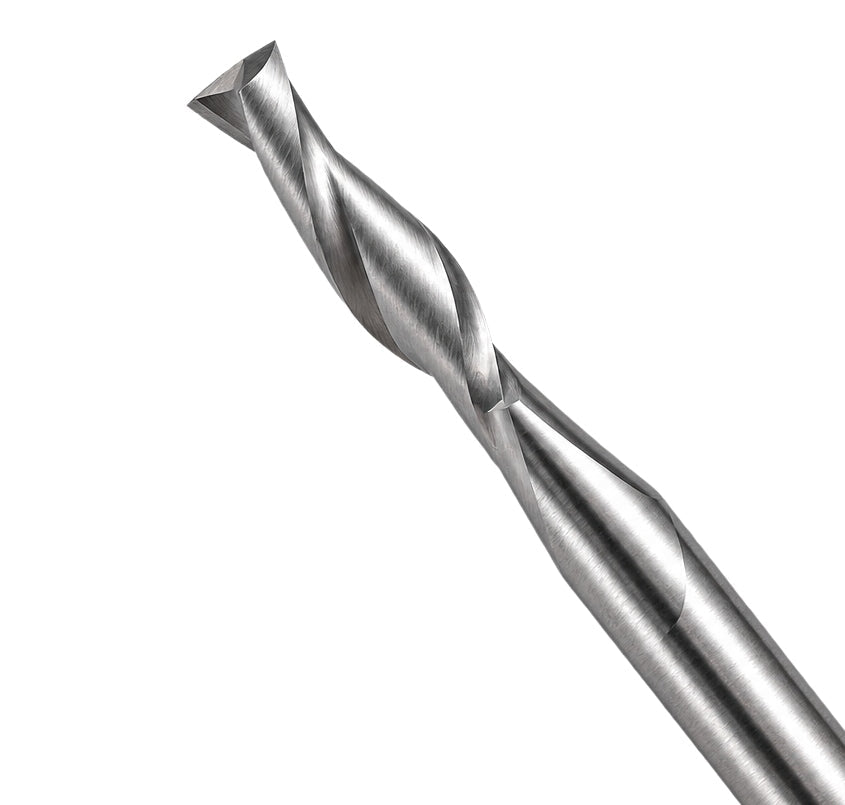

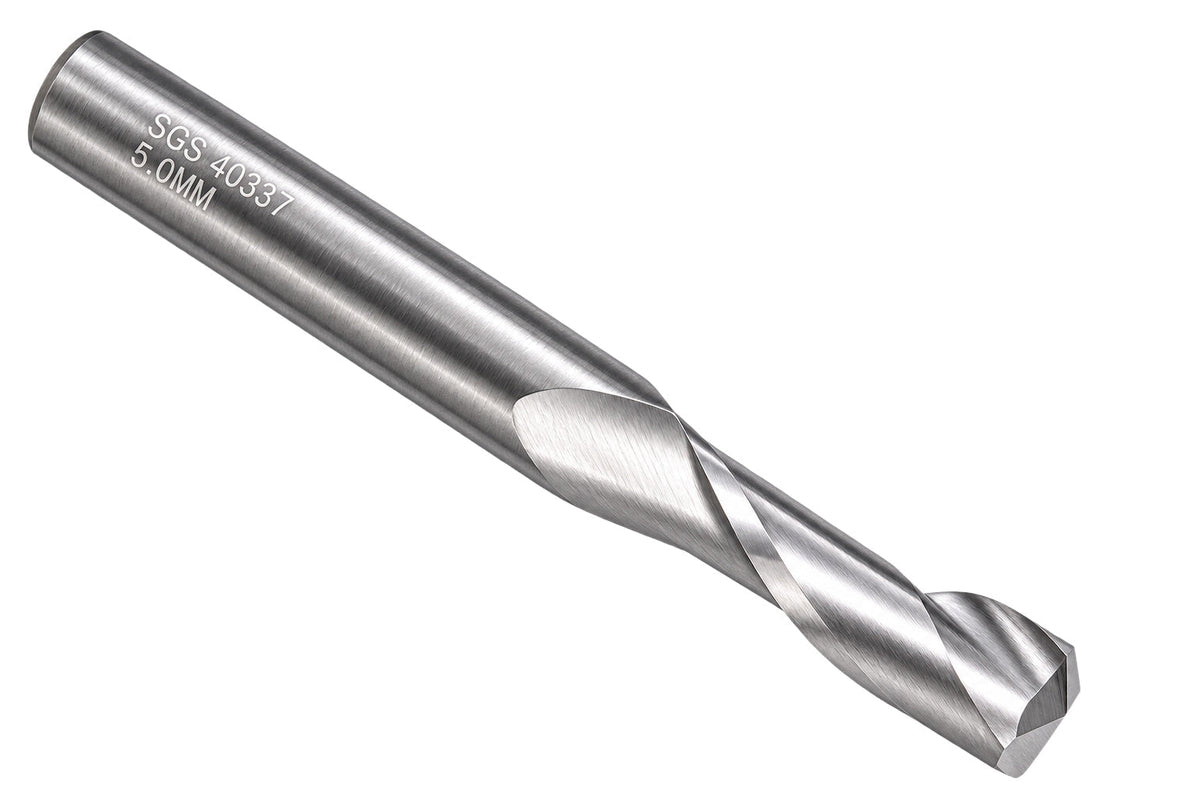

Kyocera SGS 40337 5mm 2 Flute Bright Uncoated Carbide Square End Mill

In stock
$85.73

Professional quality Kyocera SGS 40337 Series 03S general application square end mill manufactured from solid carbide for reliable and precise machining. This 5mm diameter end mill features two flutes, a 16mm length of cut, 30° right-hand spiral and Bright/Uncoated finish for dependable performance across a range of workpiece materials.

The two-flute design provides increased flute space for chip evacuation, while the positive rake geometry and right-hand cut direction support efficient cutting. The center-cutting design allows for plunging, slotting, profiling and general milling operations. The straight 6mm shank provides a robust configuration for suitable toolholding systems, while the long tool-length classification provides extended reach compared with shorter configurations.

Product Specifications

  • Brand: Kyocera SGS
  • Part Number: 40337
  • Series: 03S
  • Application: General Application End Mill
  • End Mill Type: Square End
  • Cutting Diameter: 5mm (0.1969 inch)
  • Number of Flutes: 2
  • Length of Cut: 16mm (0.6299 inch)
  • Shank Diameter: 6mm (0.2362 inch)
  • Overall Length: 50mm (1.9685 inch)
  • Shank Length: 34.04mm (1.3400 inch)
  • Material: Solid Carbide
  • Coating: Bright/Uncoated
  • Shank Type: Straight
  • Flute Type: Spiral
  • Helix Angle: 30° Right Spiral
  • Cut Direction: Right Hand Cut Direction (RHC)
  • Rake Angle: Positive
  • Variable Helix: No
  • Center Cutting: Yes
  • Chip Breaker: No
  • Coolant Option: External Coolant
  • Tool Length: Long
  • Weldon Flat: No
  • Cutting Diameter Tolerance: +0.000/-0.050mm (+0.0000/-0.0020 inch)
  • Shank Diameter Tolerance: h6
  • Primary Workpiece Materials: Steel, Stainless Steel, Cast Iron, Non-Ferrous Materials, High Temperature Alloys
  • Secondary Workpiece Material: Hardened Materials

The Kyocera SGS 40337 is an excellent choice for CNC milling applications requiring a 5mm 2-flute solid carbide square end mill with a 16mm length of cut, 30° right-hand spiral, positive rake geometry and Bright/Uncoated finish in a long-length configuration.
