Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

SKU: KSP40321
(0)

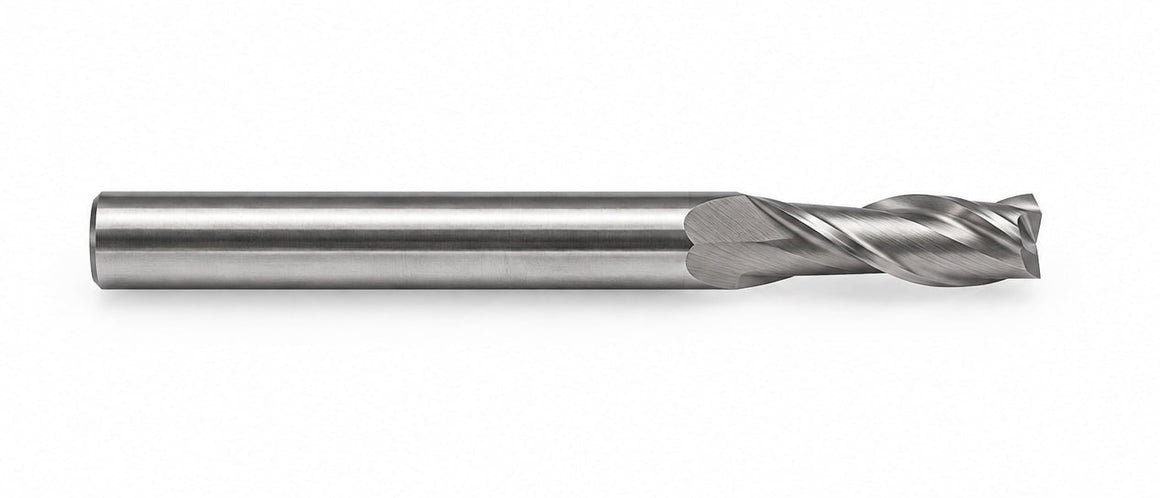

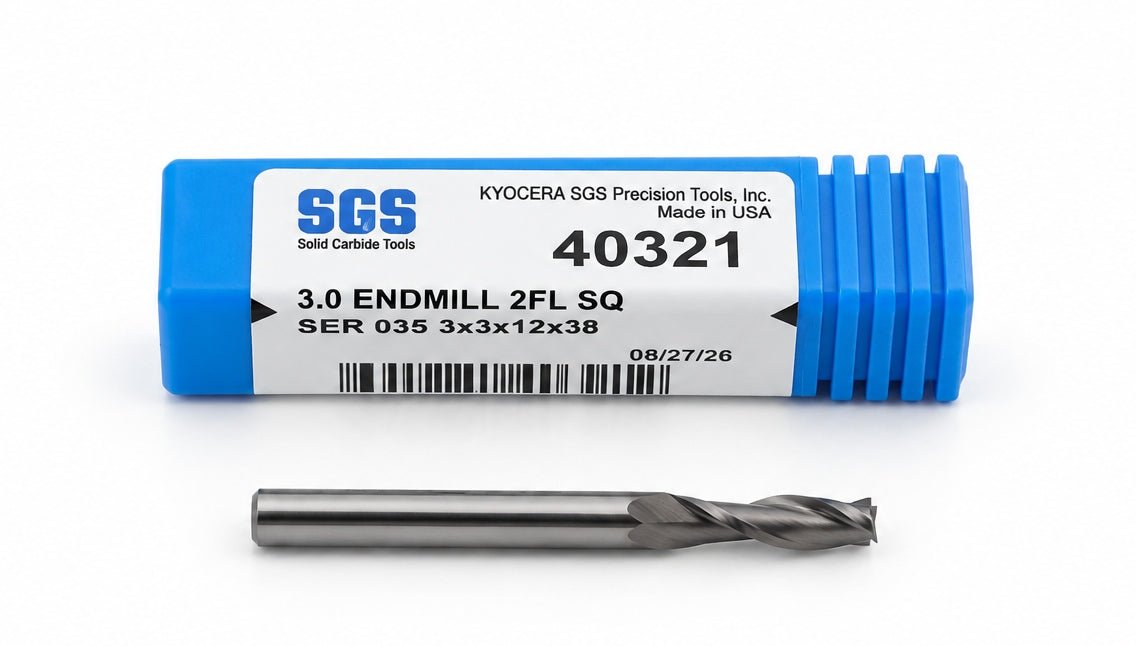

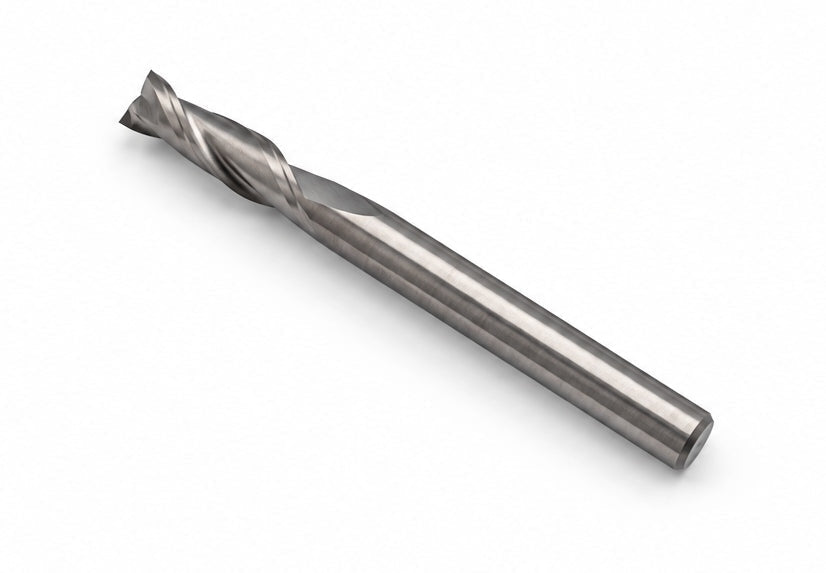

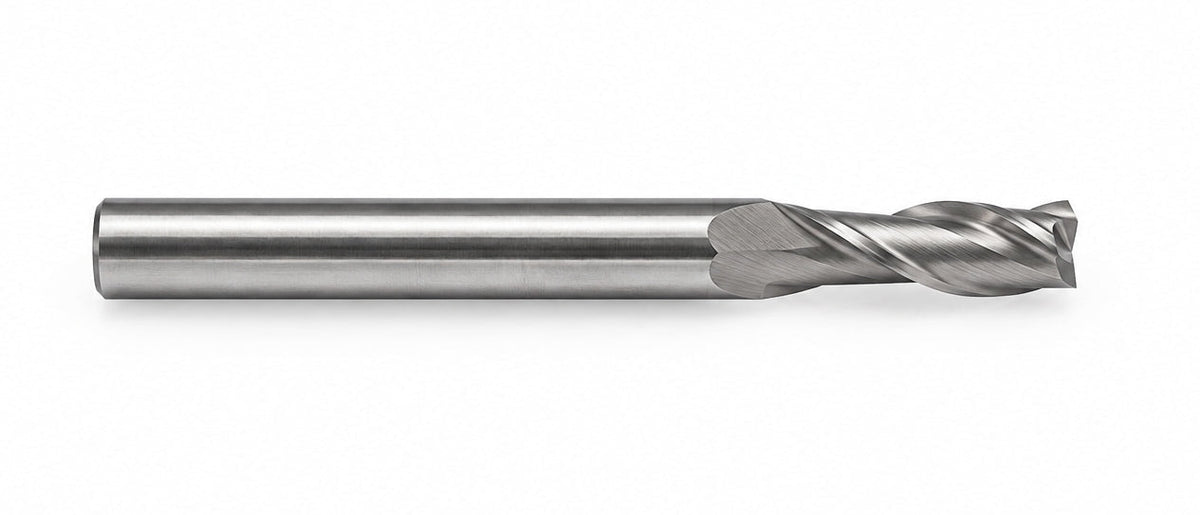

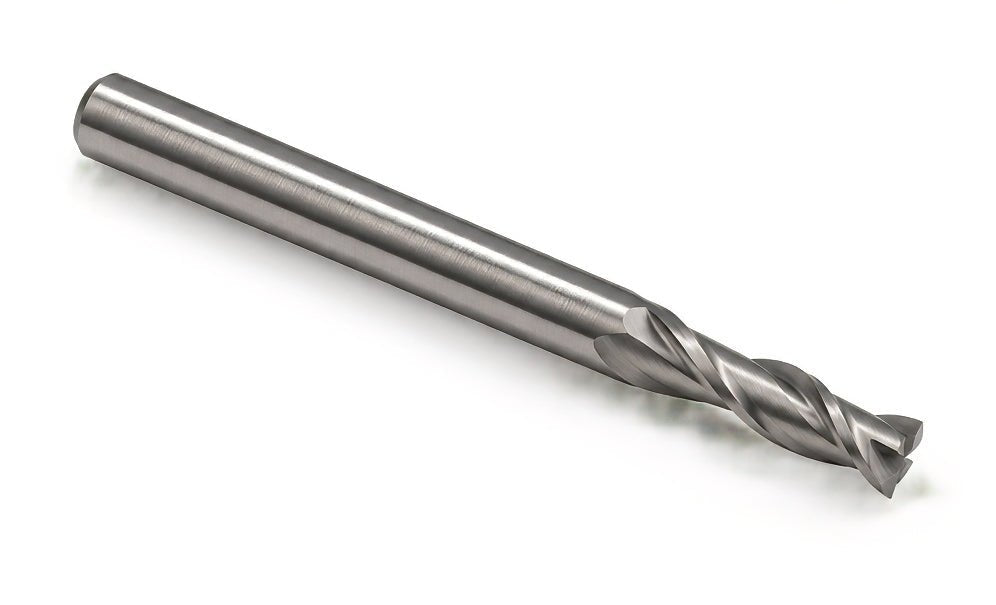

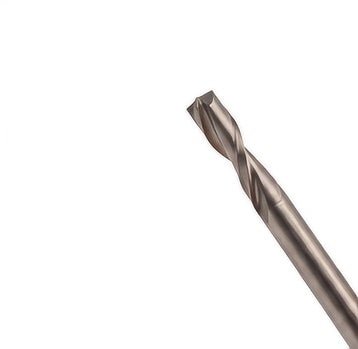

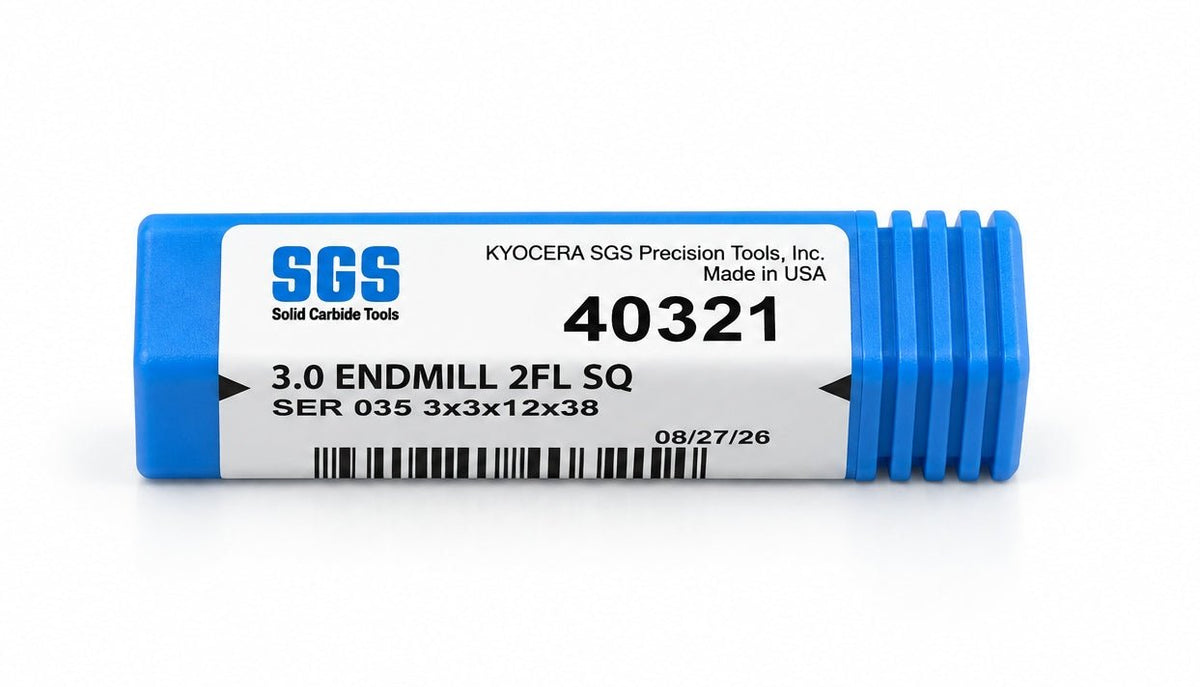

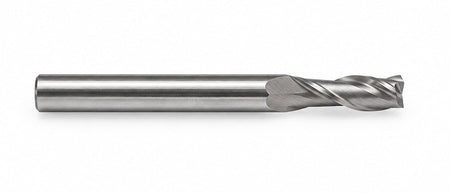

Kyocera SGS 40321 3mm 2 Flute Bright Uncoated Long Carbide Square End Mill

In stock
$69.40

Professional quality Kyocera SGS 40321 Series 03S general application square end mill manufactured from solid carbide for reliable and precise machining. This 3mm diameter end mill features two flutes, a 12mm length of cut, 30° right-hand spiral and bright uncoated finish for dependable performance across a range of workpiece materials.

The two-flute design provides increased flute space for chip evacuation, while the positive rake geometry and right-hand cut direction support efficient cutting. The center-cutting design allows for plunging, slotting, profiling and general milling operations. The straight 3mm shank provides compatibility with suitable toolholding systems, while the long tool-length classification provides extended reach compared with shorter configurations.

Product Specifications

  • Brand: Kyocera SGS
  • Part Number: 40321
  • Series: 03S
  • Application: General Application End Mill
  • End Mill Type: Square End
  • Cutting Diameter: 3mm (0.1181 inch)
  • Number of Flutes: 2
  • Length of Cut: 12mm (0.4724 inch)
  • Shank Diameter: 3mm (0.1181 inch)
  • Overall Length: 38mm (1.4961 inch)
  • Shank Length: 26.11mm (1.0280 inch)
  • Material: Solid Carbide
  • Coating: Bright/Uncoated
  • Shank Type: Straight
  • Flute Type: Spiral
  • Helix Angle: 30° Right Spiral
  • Cut Direction: Right Hand Cut Direction (RHC)
  • Rake Angle: Positive
  • Variable Helix: No
  • Center Cutting: Yes
  • Chip Breaker: No
  • Coolant Option: External Coolant
  • Tool Length: Long
  • Weldon Flat: No
  • Cutting Diameter Tolerance: +0.000/-0.050mm (+0.0000/-0.0020 inch)
  • Shank Diameter Tolerance: h6
  • Primary Workpiece Materials: Steel, Stainless Steel, Cast Iron, Non-Ferrous Materials, High Temperature Alloys
  • Secondary Workpiece Material: Hardened Materials

The Kyocera SGS 40321 is an excellent choice for CNC milling applications requiring a reliable 3mm 2-flute solid carbide square end mill with 12mm length of cut, 30° right-hand spiral and bright uncoated finish for efficient cutting and dependable performance across a broad range of workpiece materials.
