Kyocera SGS 40185 25mm 4 Flute Bright Uncoated Stub Carbide Square End Mill
Couldn't load pickup availability

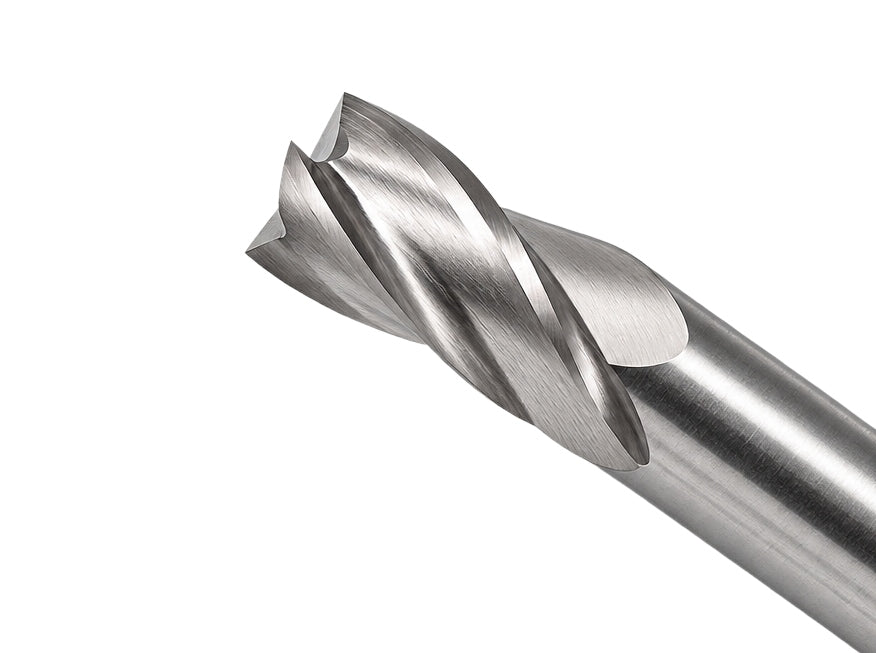

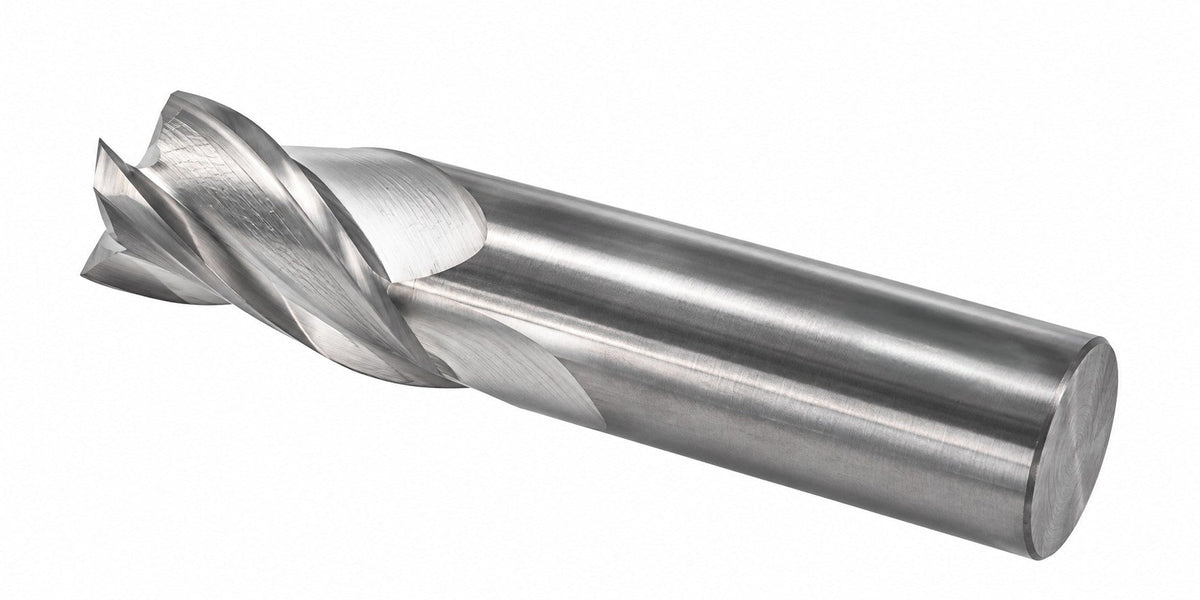

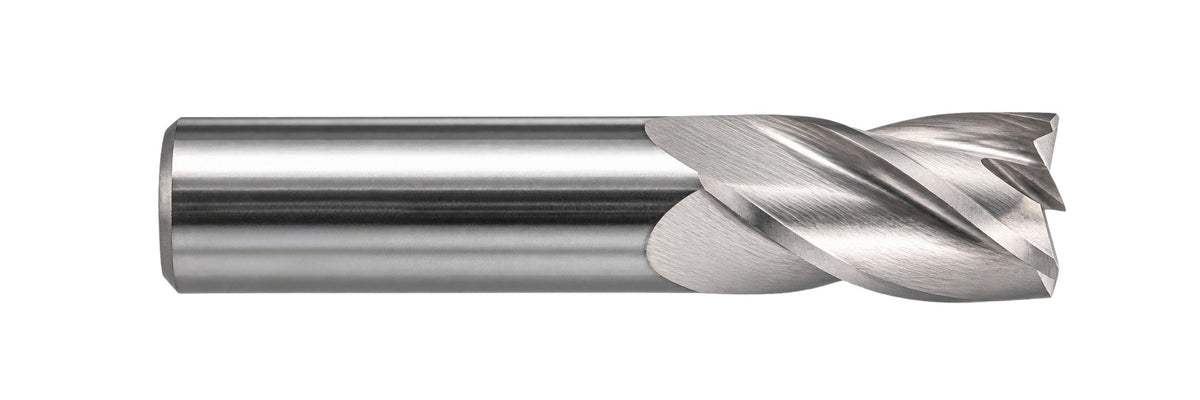

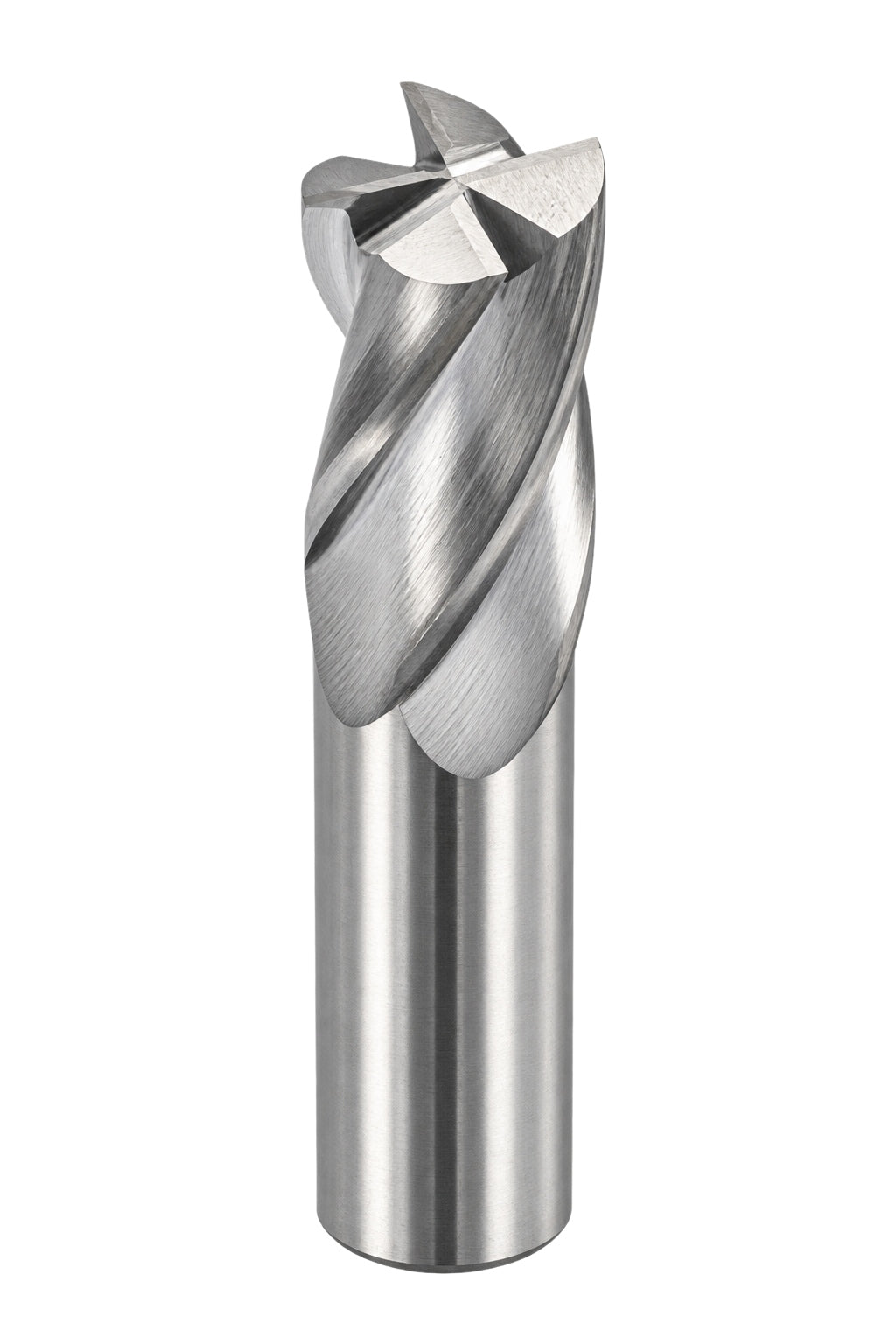

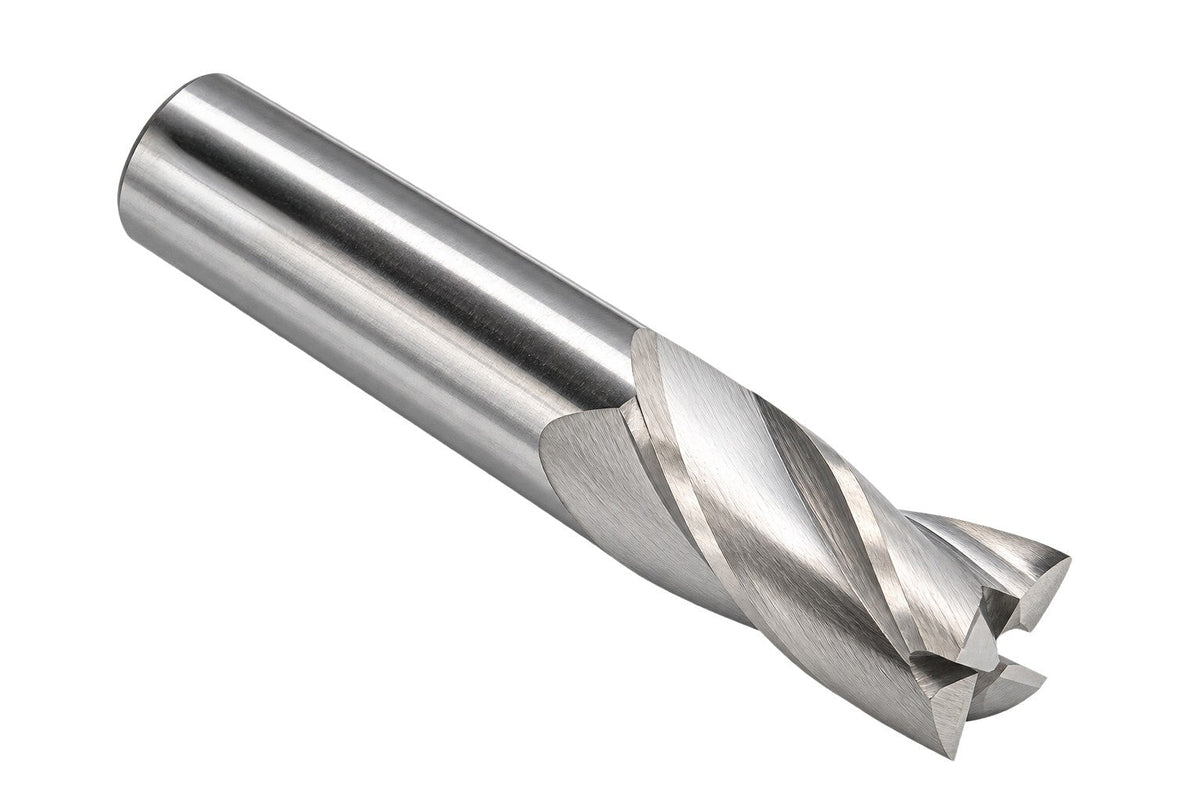

Professional quality Kyocera SGS 40185 Series 01S general application square end mill manufactured from solid carbide for reliable and precise machining across a wide range of workpiece materials. This 25mm diameter end mill features four flutes, a 38mm length of cut, 30° right-hand spiral and bright uncoated cutting edges for dependable general-purpose milling performance.
The four-flute design provides a balance of cutting performance and surface finish, while the positive rake geometry and 30° helix support efficient cutting and chip evacuation. The center-cutting design allows for plunging, slotting, profiling and general milling operations. The straight 25mm shank provides a secure tool interface, while the stub tool-length classification provides a compact configuration for suitable machining applications.
Product Specifications
- Brand: Kyocera SGS
- Part Number: 40185
- Series: 01S
- Application: General Application End Mill
- End Mill Type: Square End
- Cutting Diameter: 25mm (0.9843 inch)
- Number of Flutes: 4
- Length of Cut: 38mm (1.4961 inch)
- Shank Diameter: 25mm (0.9843 inch)
- Overall Length: 100mm (3.9370 inch)
- Shank Length: 62.08mm (2.4440 inch)
- Material: Solid Carbide
- Coating: Bright/Uncoated
- Shank Type: Straight
- Flute Type: Spiral
- Helix Angle: 30° Right Spiral
- Cut Direction: Right Hand Cut Direction (RHC)
- Rake Angle: Positive
- Variable Helix: No
- Center Cutting: Yes
- Chip Breaker: No
- Coolant Option: External Coolant
- Tool Length: Stub
- Weldon Flat: No
- Cutting Diameter Tolerance: +0.000/-0.050mm (+0.0000/-0.0020 inch)
- Shank Diameter Tolerance: h6
- Primary Workpiece Materials: Steel, Stainless Steel, Cast Iron, Non-Ferrous Materials, High Temperature Alloys
- Secondary Workpiece Material: Hardened Materials
- Shipping Weight: 1.3910
- US Stock: 12
The Kyocera SGS 40185 is an excellent choice for CNC milling applications requiring a 25mm 4-flute solid carbide square end mill with a 38mm length of cut, 25mm shank, 30° right-hand spiral, positive rake geometry and bright uncoated finish in a stub-length configuration.
