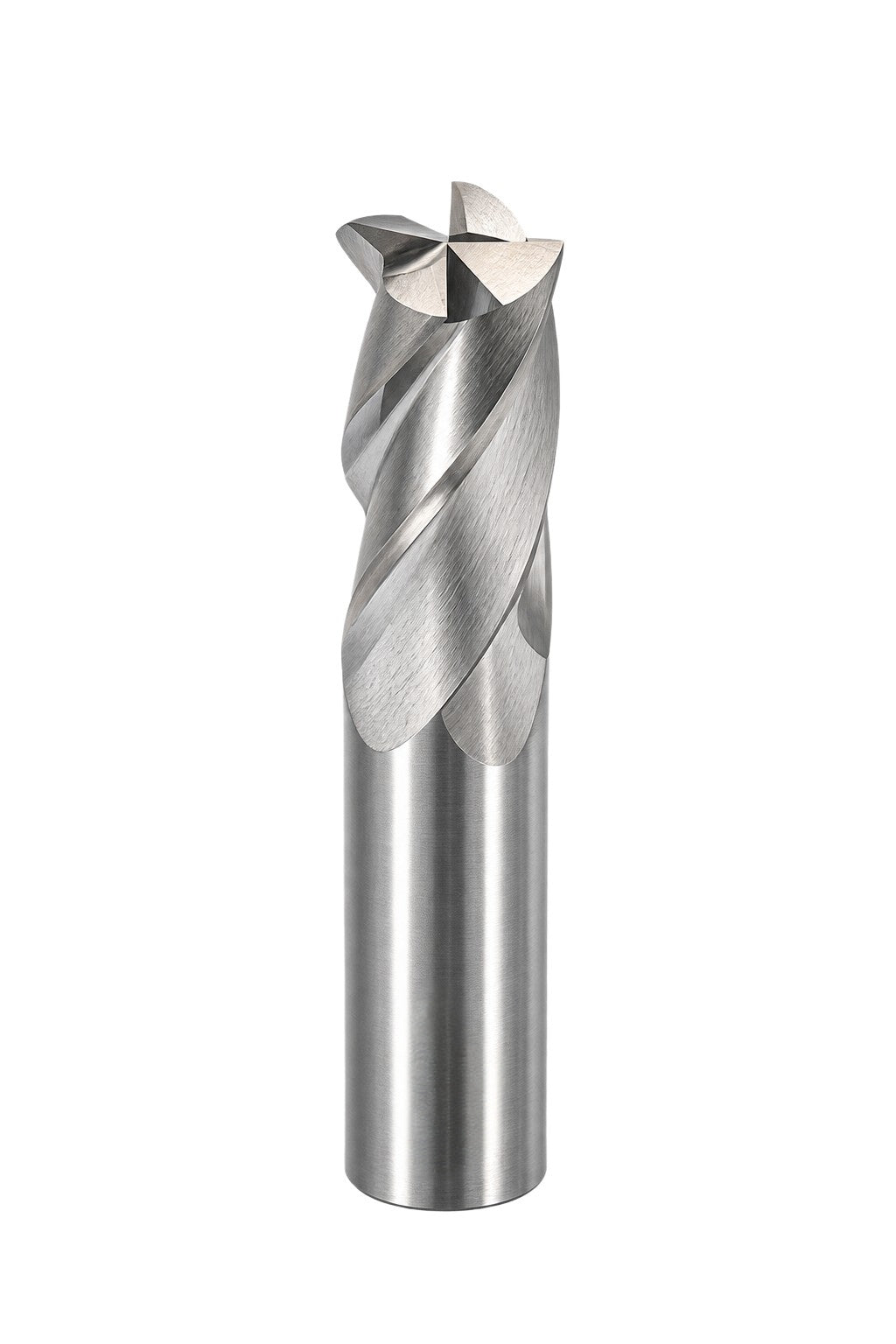

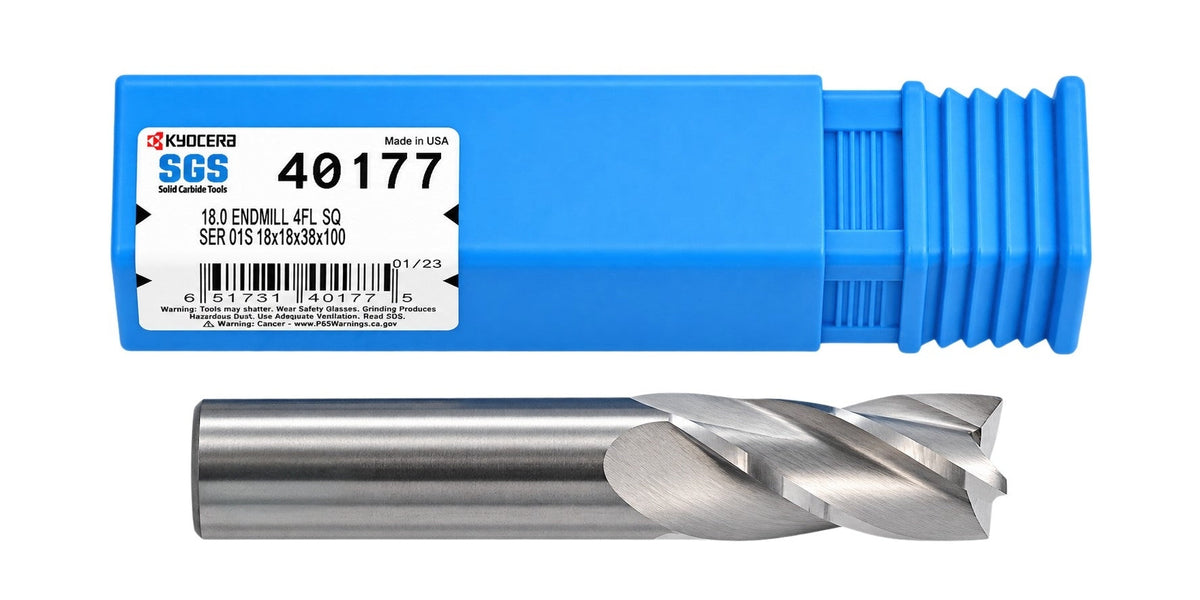

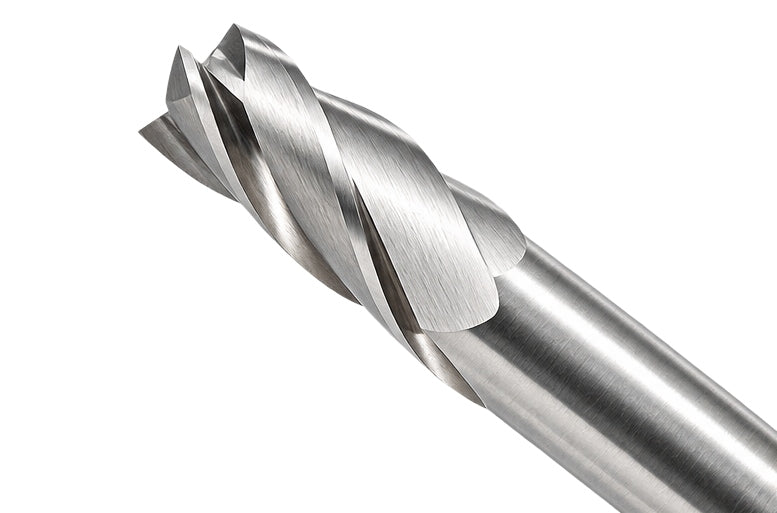

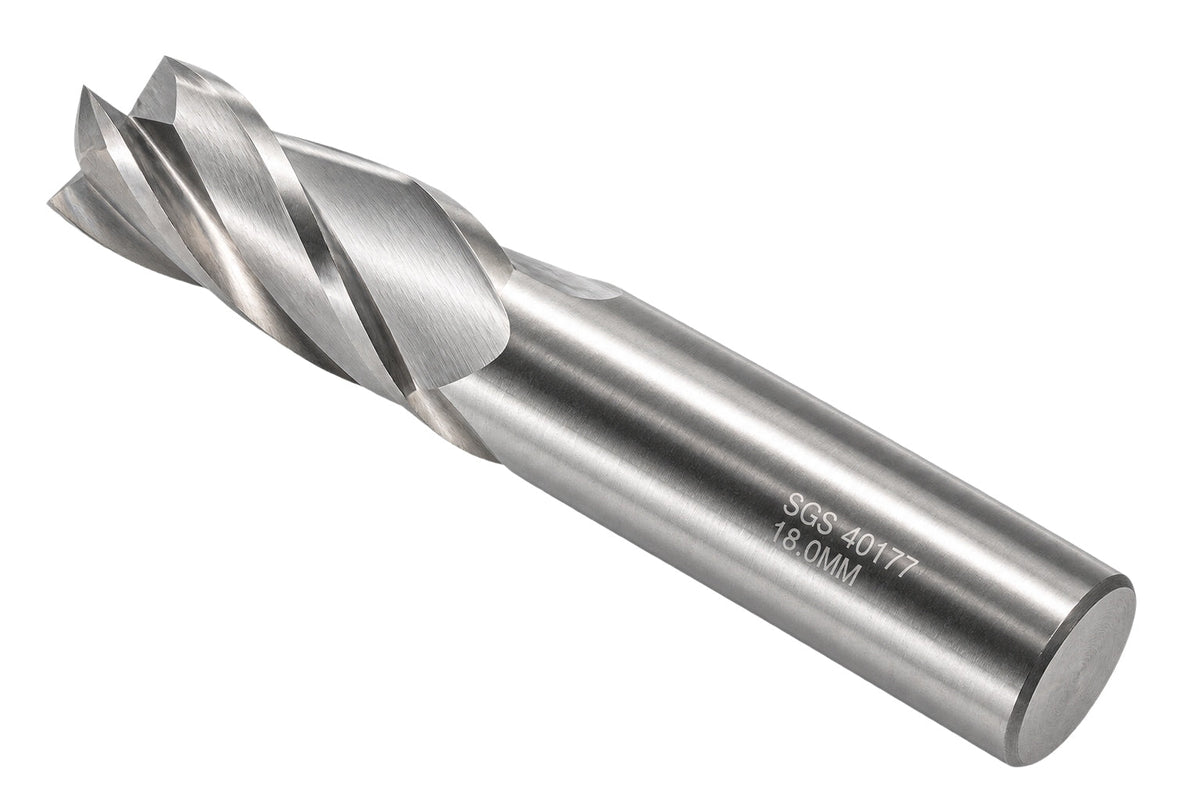

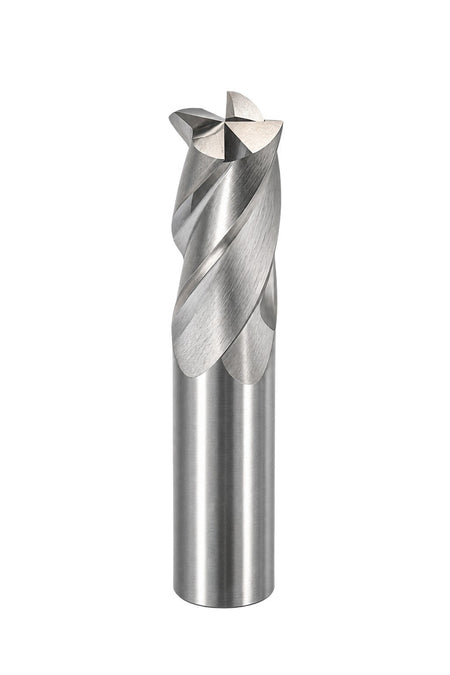

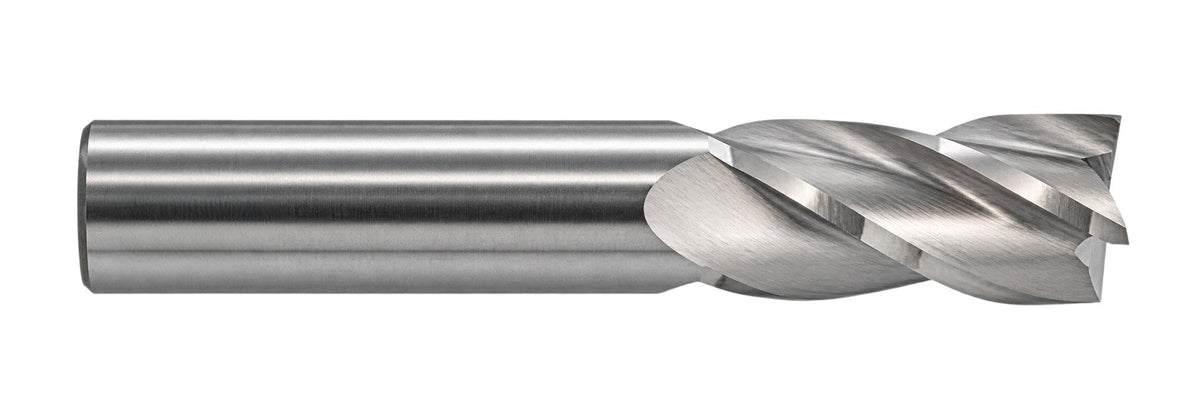

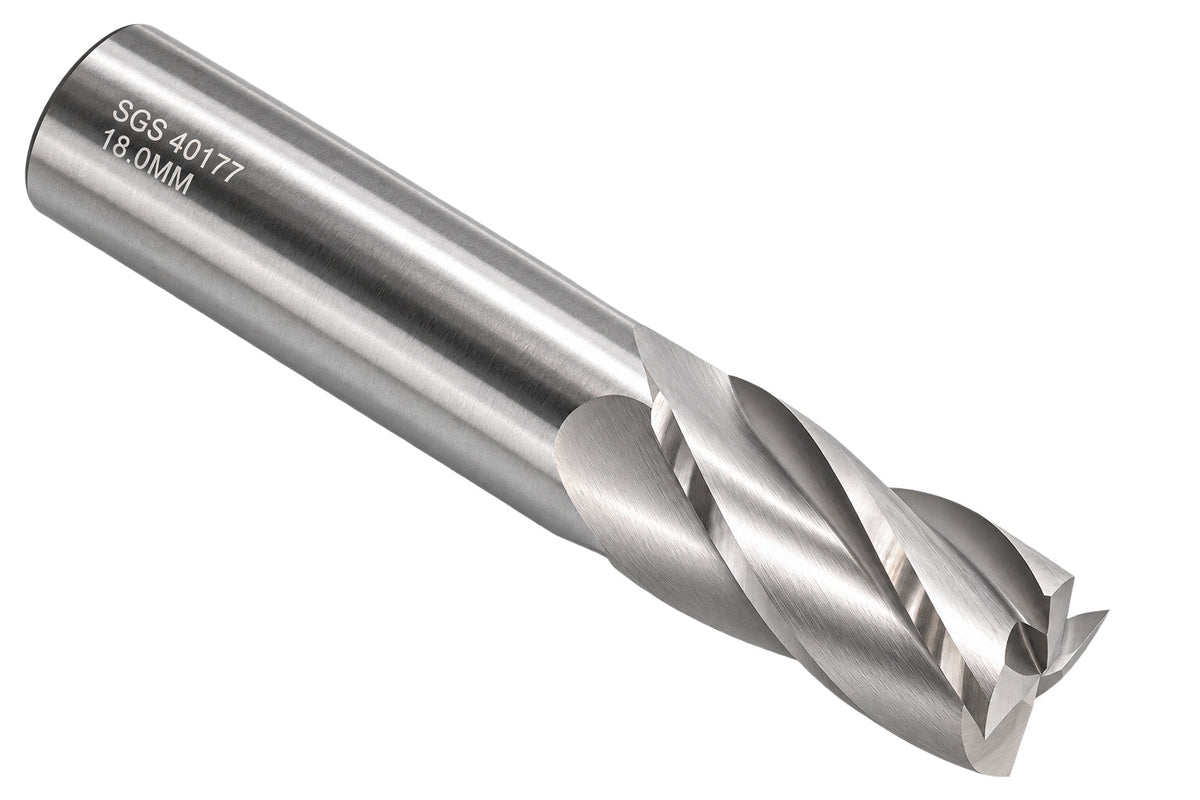

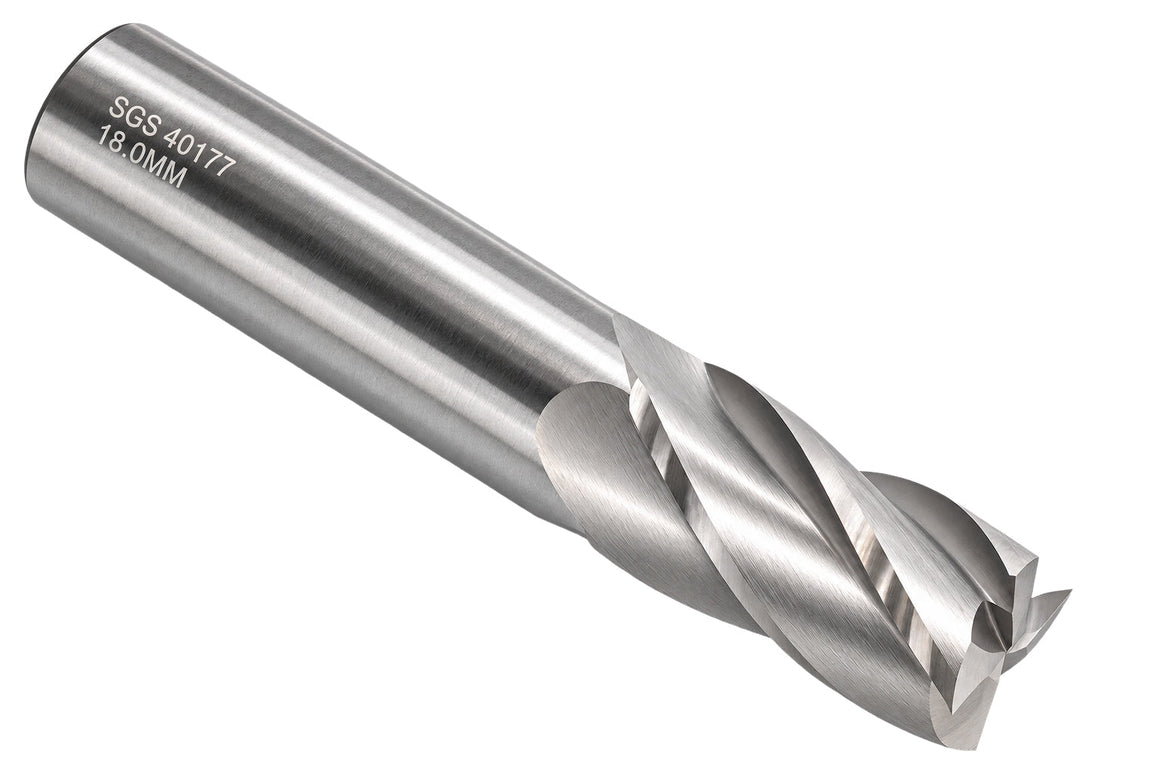

Kyocera SGS 40177 18mm 4 Flute Bright Uncoated Carbide Square End Mill

Only 1 left
$523.22

Professional quality Kyocera SGS 40177 Series 01S general application square end mill manufactured from solid carbide for reliable and precise machining across a wide range of workpiece materials. This 18mm diameter end mill features four flutes, a 38mm length of cut, 30° right-hand spiral and bright uncoated cutting edges for dependable general-purpose milling performance.

The four-flute design provides a balance of cutting performance and surface finish, while the positive rake geometry and 30° helix support efficient cutting and chip evacuation. The center-cutting design allows for plunging, slotting, profiling and general milling operations. The straight 18mm shank provides a secure tool interface, while the regular tool length offers a standard configuration for suitable CNC milling applications.

Product Specifications

  • Brand: Kyocera SGS
  • Part Number: 40177
  • Series: 01S
  • Application: General Application End Mill
  • End Mill Type: Square End
  • Cutting Diameter: 18mm (0.7087 inch)
  • Number of Flutes: 4
  • Length of Cut: 38mm (1.4961 inch)
  • Shank Diameter: 18mm (0.7087 inch)
  • Overall Length: 100mm (3.9370 inch)
  • Shank Length: 62.08mm (2.4440 inch)
  • Material: Solid Carbide
  • Coating: Bright/Uncoated
  • Shank Type: Straight
  • Flute Type: Spiral
  • Helix Angle: 30° Right Spiral
  • Cut Direction: Right Hand Cut Direction (RHC)
  • Rake Angle: Positive
  • Variable Helix: No
  • Center Cutting: Yes
  • Chip Breaker: No
  • Coolant Option: External Coolant
  • Tool Length: Regular
  • Weldon Flat: No
  • Cutting Diameter Tolerance: +0.000/-0.050mm (+0.0000/-0.0020 inch)
  • Shank Diameter Tolerance: h6
  • Primary Workpiece Materials: Steel, Stainless Steel, Cast Iron, Non-Ferrous Materials, High Temperature Alloys
  • Secondary Workpiece Material: Hardened Materials
  • Shipping Weight: 0.7590
  • US Stock: 2

The Kyocera SGS 40177 is an excellent choice for CNC milling applications requiring an 18mm 4-flute solid carbide square end mill with a 38mm length of cut, 18mm shank, 30° right-hand spiral, positive rake geometry and bright uncoated finish in a regular-length configuration.
