Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

SKU: KSP40165
(0)

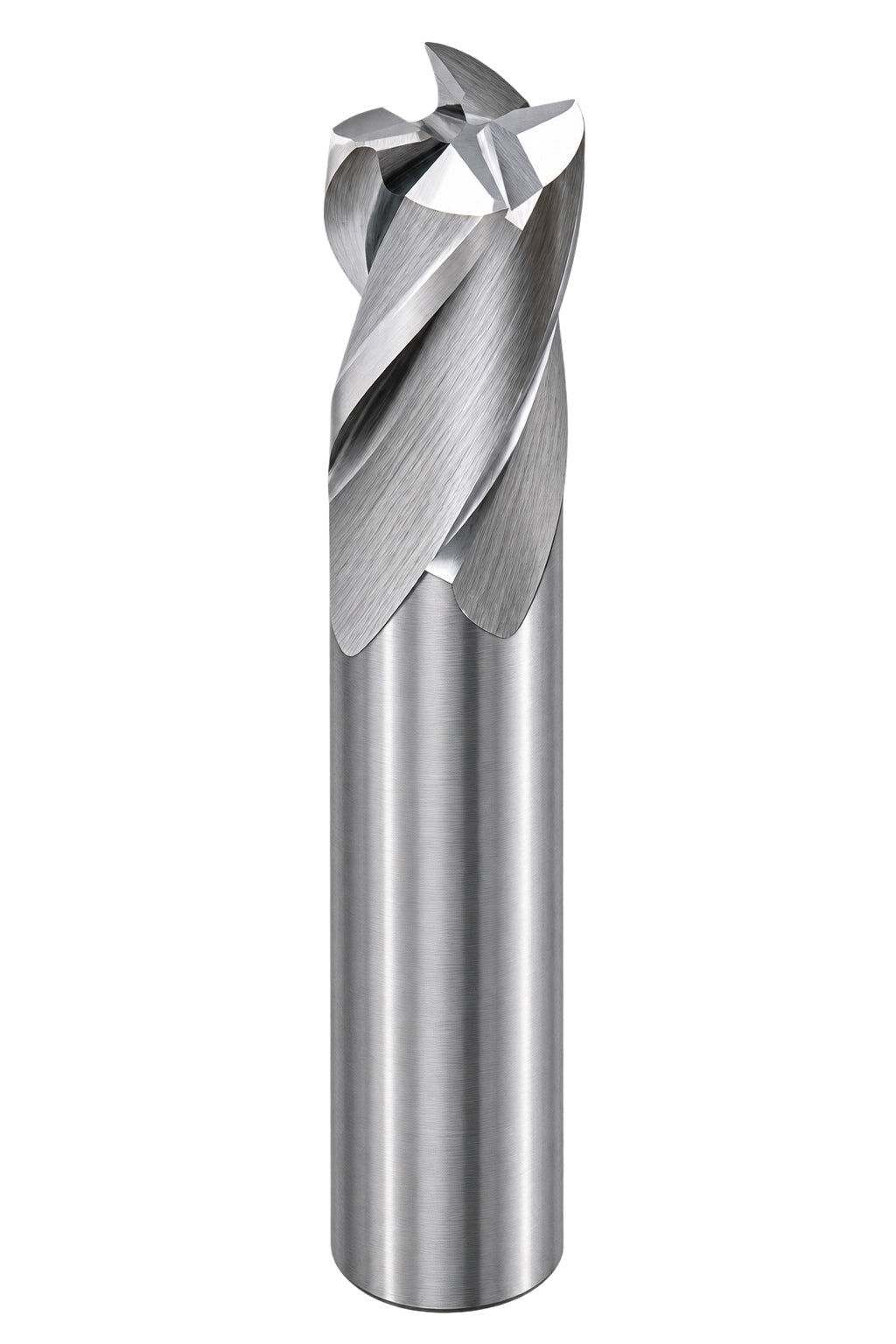

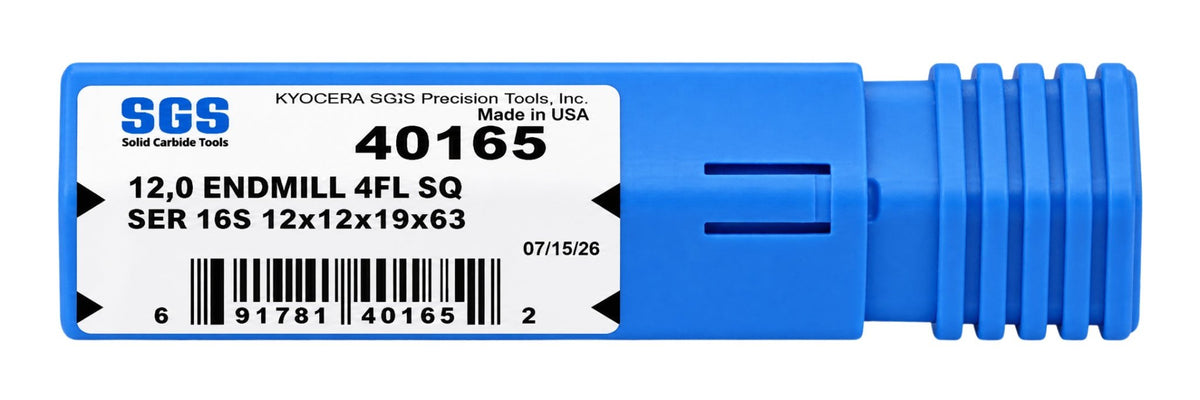

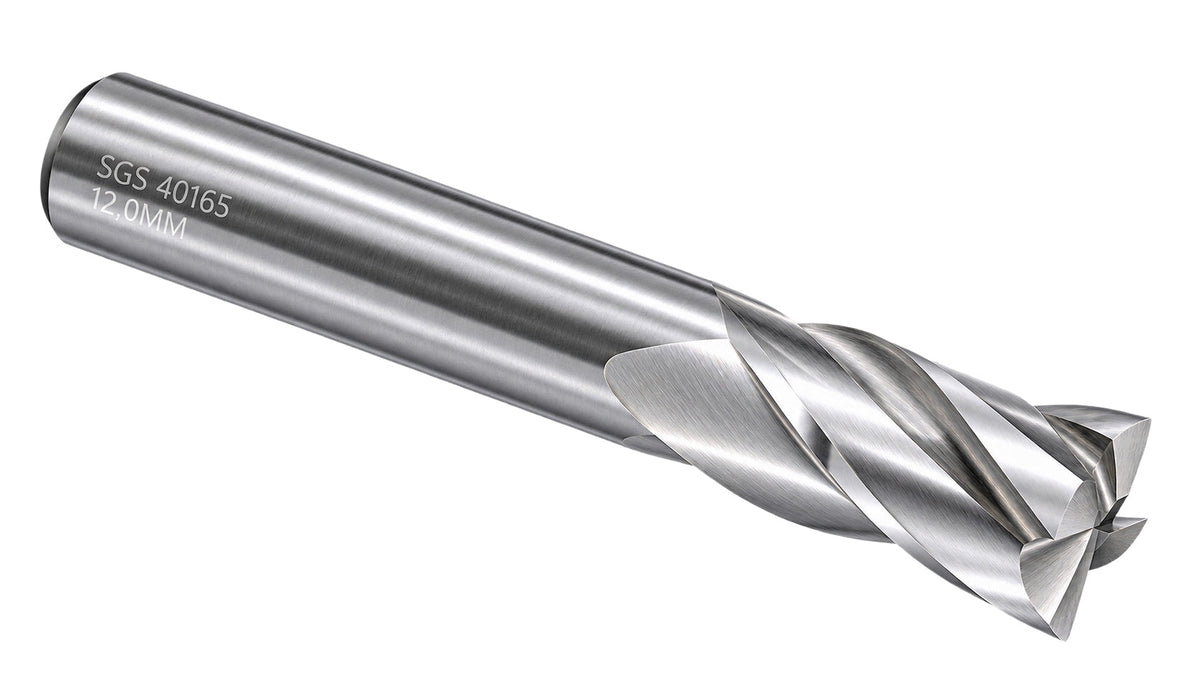

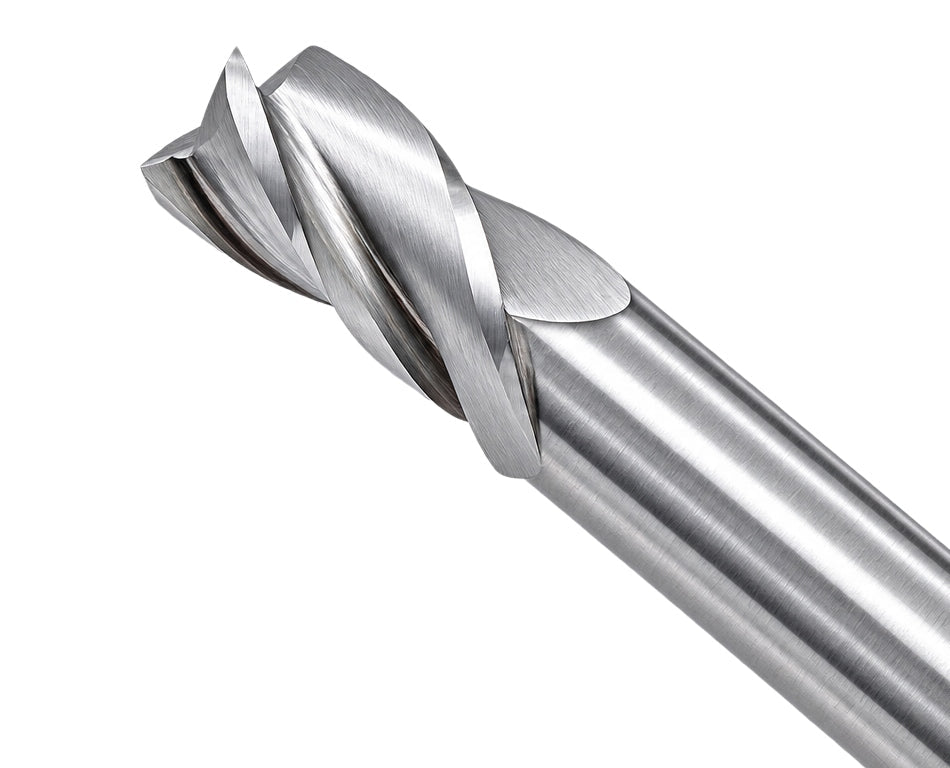

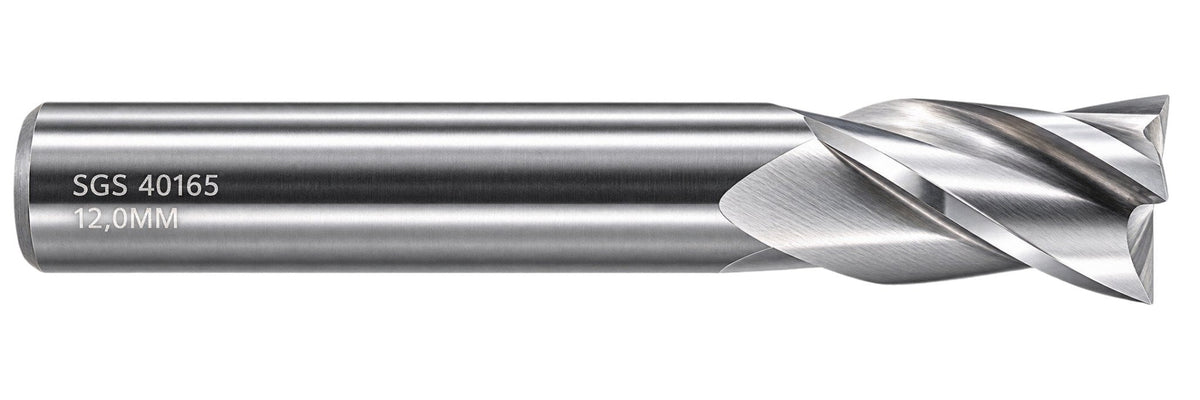

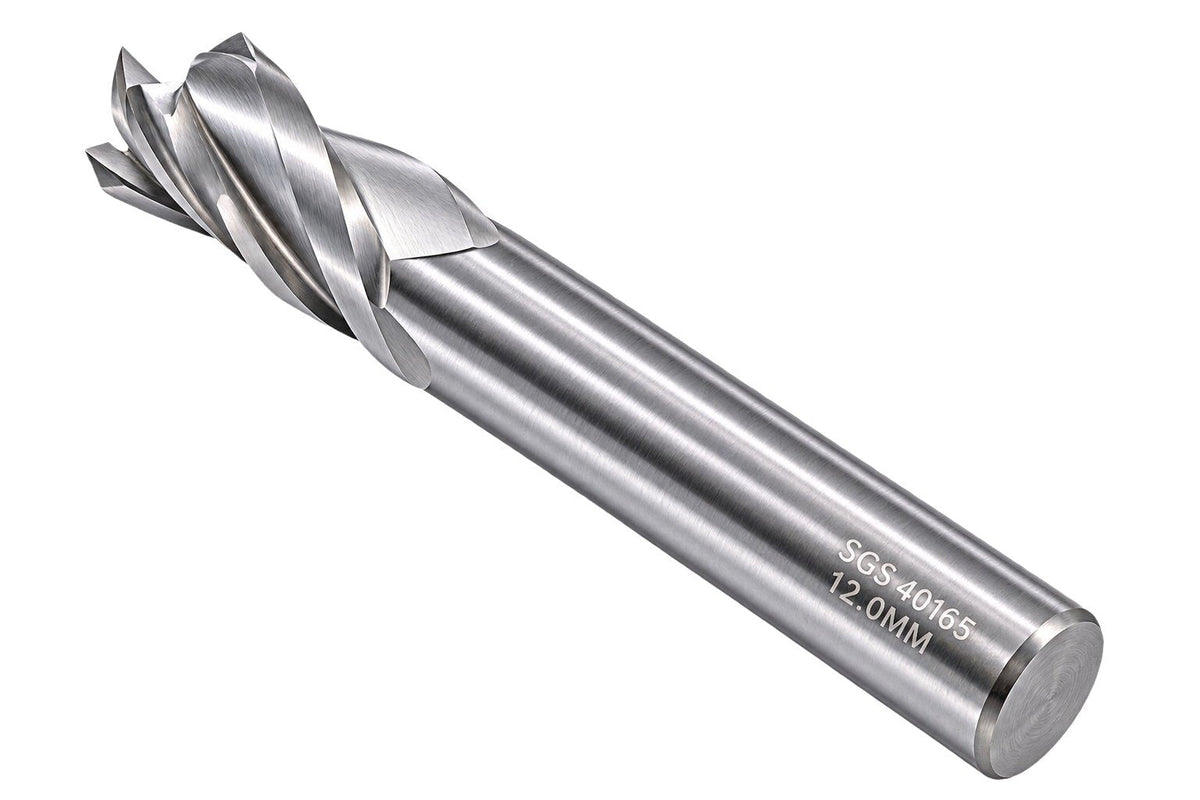

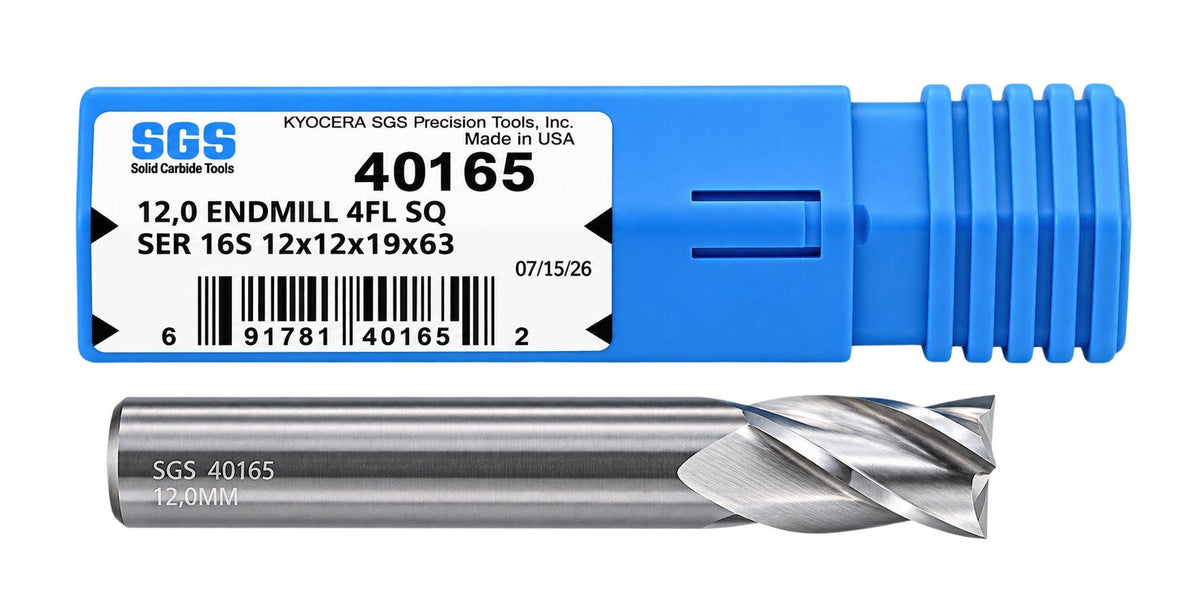

Kyocera SGS 40165 12mm 4 Flute Uncoated Stub Carbide Square End Mill

Only 1 left
$215.82

Professional quality Kyocera SGS 40165 Series 16S general application end mill manufactured from solid carbide for reliable and precise machining across a wide range of materials. This 12mm diameter end mill features four flutes, a 19mm length of cut, 30° right-hand spiral and bright uncoated finish for dependable performance in general milling applications.

The four-flute design provides a balance of material removal and surface finish, while the positive rake geometry and 30° helix promote efficient cutting and chip evacuation. The center-cutting design allows for plunging, slotting, profiling and general milling operations. The 12mm straight shank provides a secure tool interface, while the stub tool length offers a compact configuration for suitable machining applications. This versatile end mill is suitable for machining steel, stainless steel, cast iron, non-ferrous materials, high temperature alloys and hardened materials.

Product Specifications

  • Brand: Kyocera SGS
  • Part Number: 40165
  • Series: 16S
  • Application: General Application End Mill
  • End Mill Type: Square End
  • Cutting Diameter: 12mm (0.4724 inch)
  • Number of Flutes: 4
  • Length of Cut: 19mm (0.7480 inch)
  • Shank Diameter: 12mm (0.4724 inch)
  • Overall Length: 63mm (2.4803 inch)
  • Shank Length: 43.99mm (1.7320 inch)
  • Material: Solid Carbide
  • Coating: Bright/Uncoated
  • Shank Type: Straight
  • Flute Type: Spiral
  • Helix Angle: 30° Right Spiral
  • Cut Direction: Right Hand Cut Direction (RHC)
  • Rake Angle: Positive
  • Variable Helix: No
  • Center Cutting: Yes
  • Chip Breaker: No
  • Coolant Option: External Coolant
  • Tool Length: Stub
  • Weldon Flat: No
  • Cutting Diameter Tolerance: +0.000/-0.050mm (+0.0000/-0.0020 inch)
  • Shank Diameter Tolerance: h6
  • Primary Workpiece Materials: Steel, Stainless Steel, Cast Iron, Non-Ferrous Materials, High Temperature Alloys
  • Secondary Workpiece Material: Hardened Materials
  • Shipping Weight: 0.2040
  • US Stock: 6

The Kyocera SGS 40165 is an excellent choice for CNC milling applications requiring a reliable 12mm 4-flute solid carbide square end mill with 19mm length of cut, 30° helix and bright uncoated finish for efficient cutting, chip evacuation and dependable performance across a broad range of workpiece materials.
