Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

SKU: KSP30010
(0)

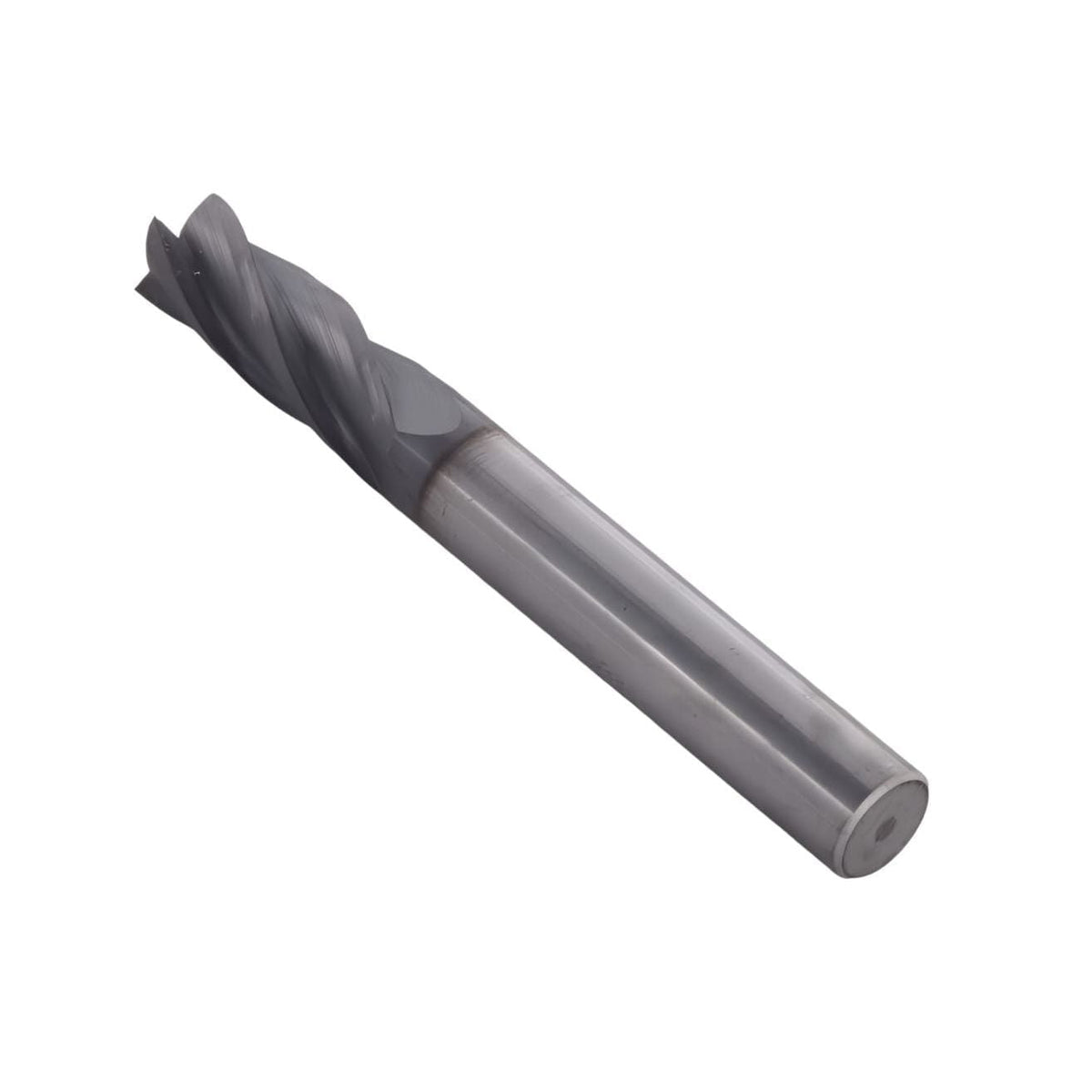

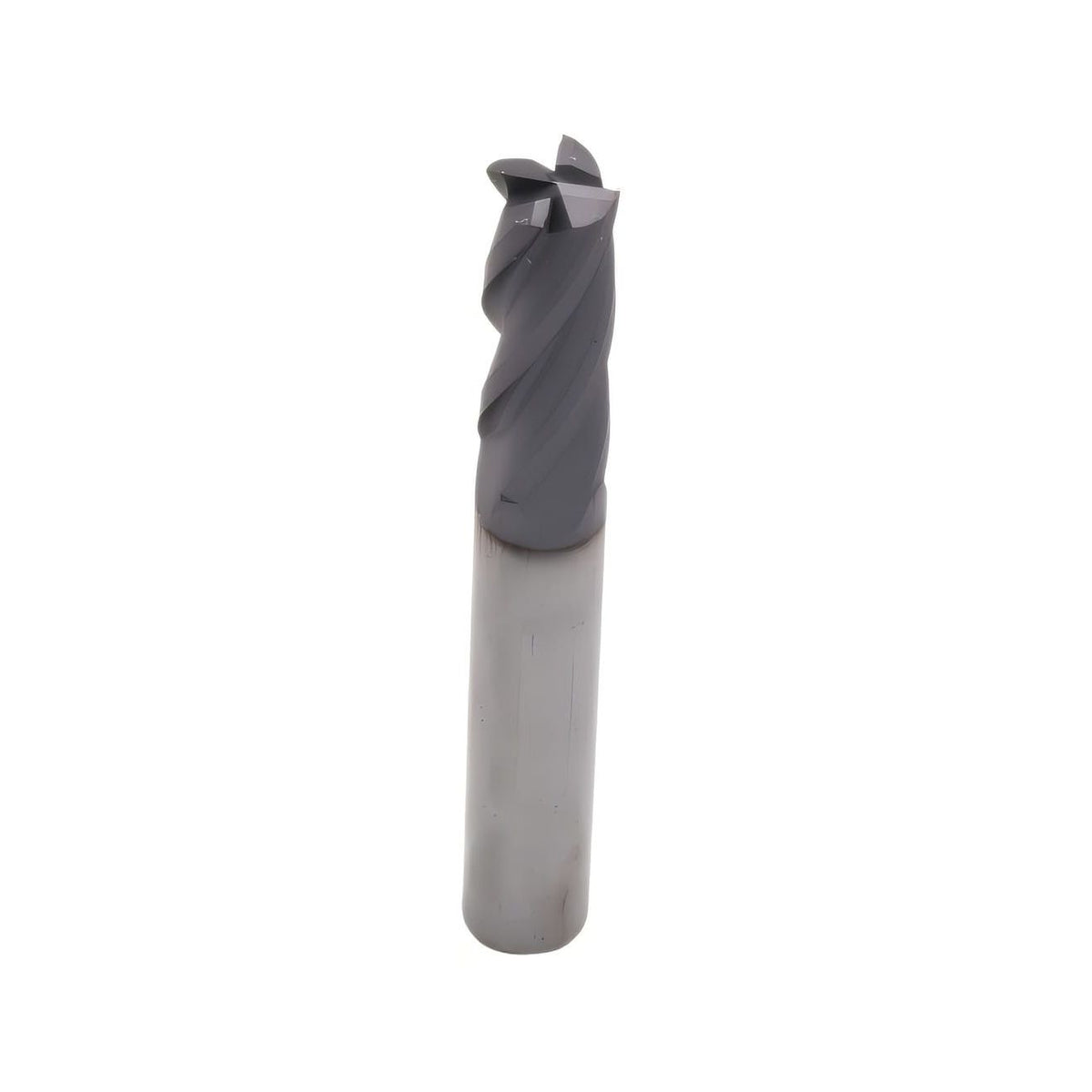

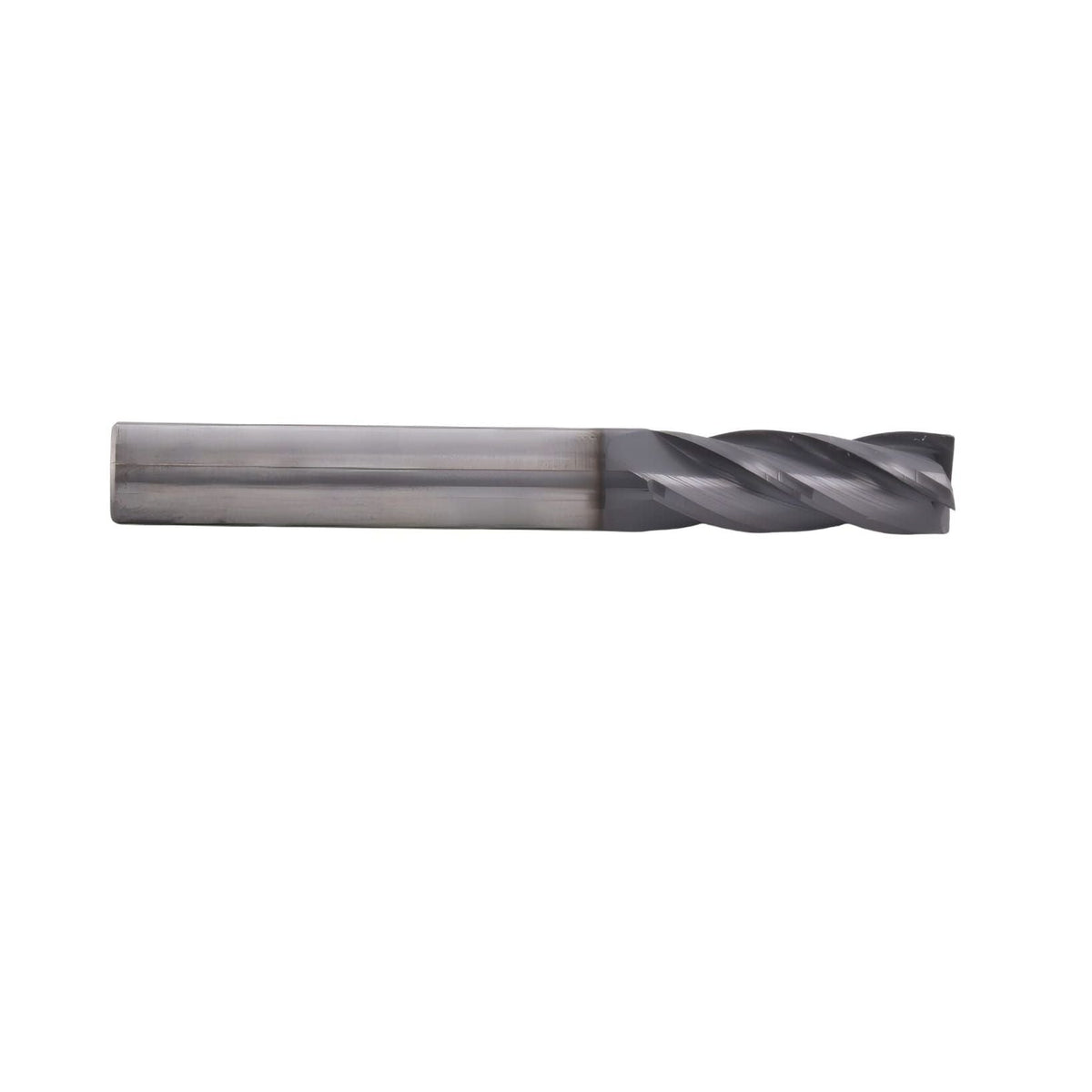

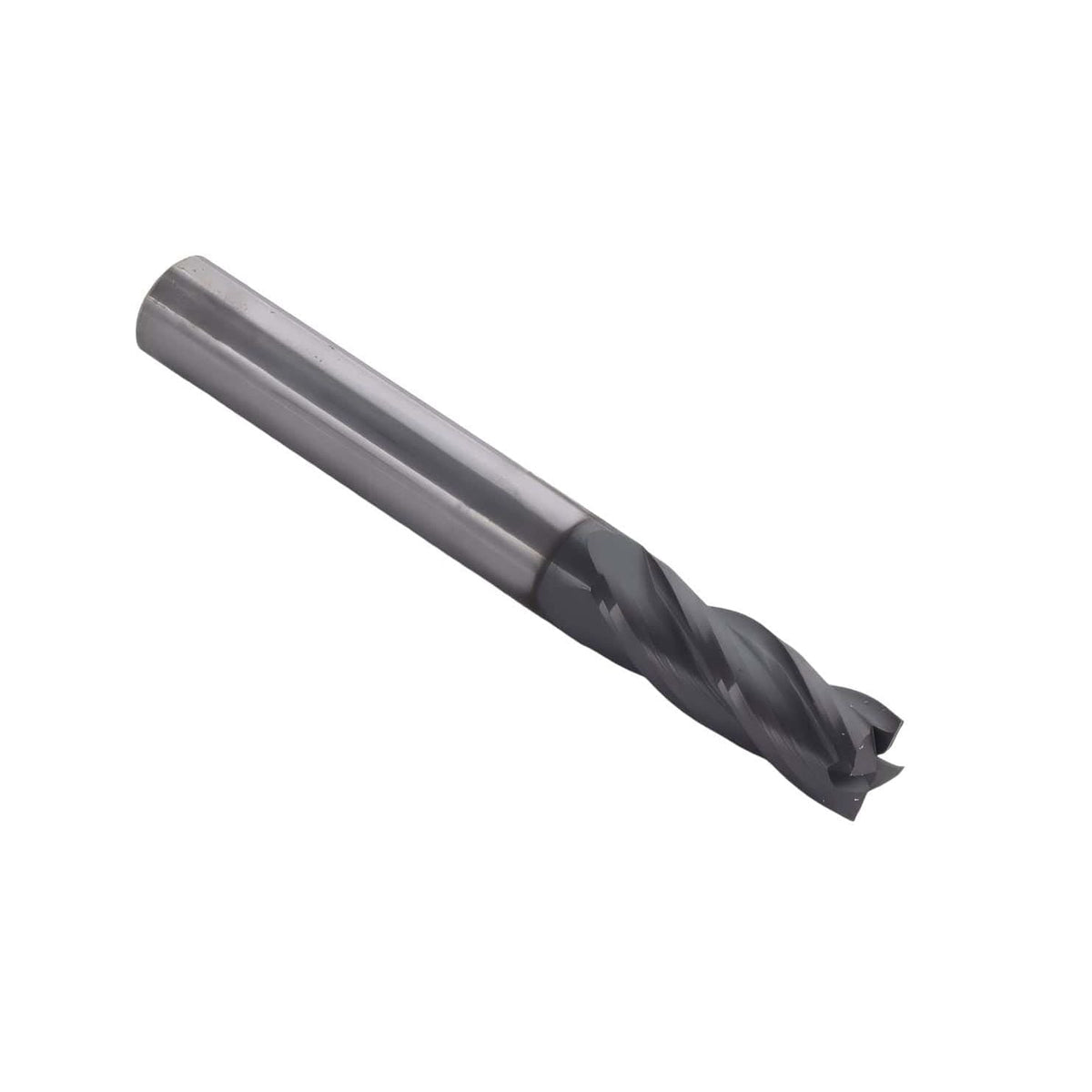

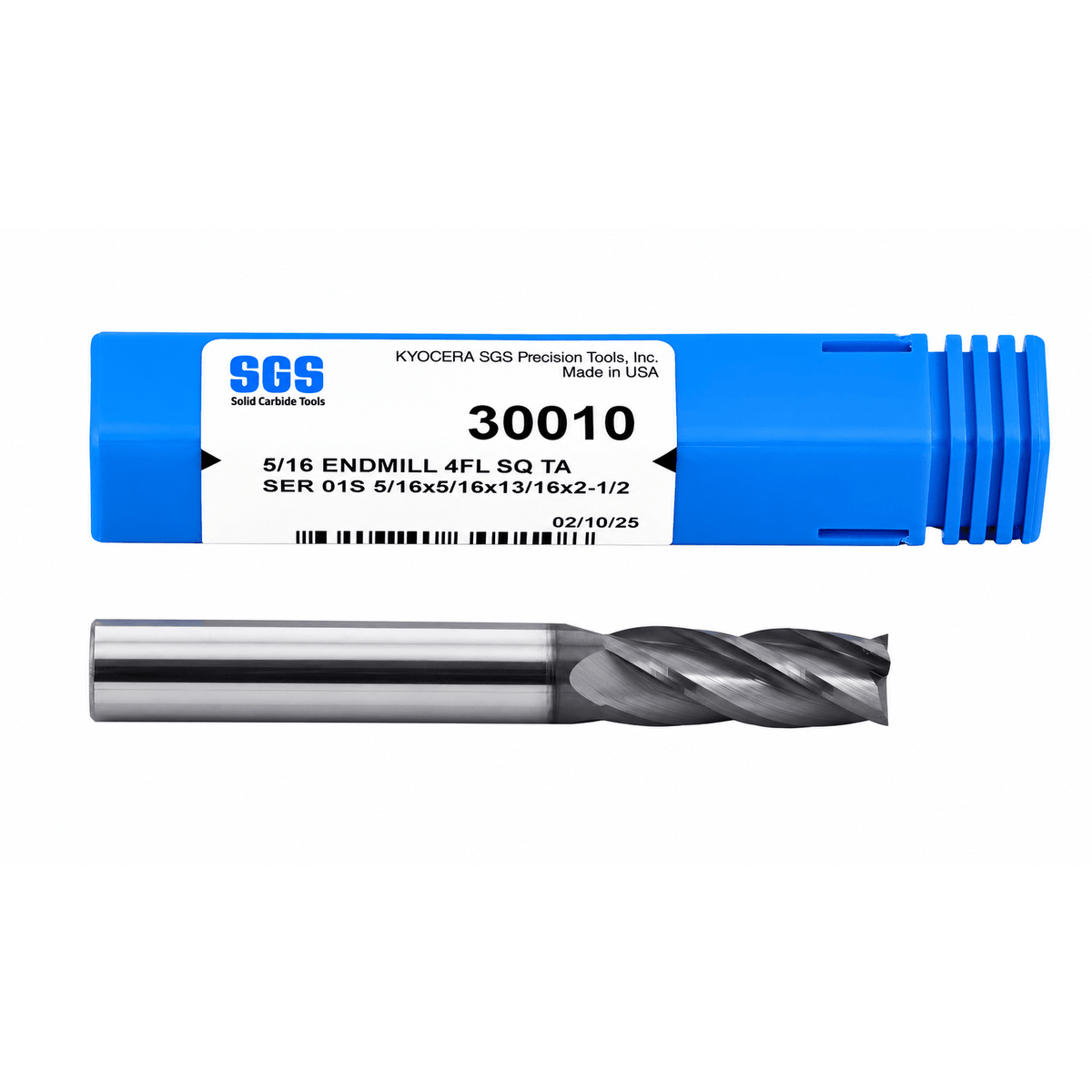

Kyocera SGS 30010 5/16" 4 Flute Ti-NAMITE-A AlTiN Coated Carbide Square End Mill

Only 1 left
$144.99

Professional quality Kyocera SGS 30010 Series 01S general application end mill manufactured from solid carbide for reliable and precise machining across a wide range of materials. This 5/16" diameter end mill features four flutes, a 0.8120" length of cut, 30° right-hand spiral and Ti-NAMITE-A AlTiN coating for enhanced wear resistance and dependable performance in demanding milling applications.

The four-flute design provides a balance of material removal and surface finish, while the positive rake geometry and 30° helix promote efficient cutting and chip evacuation. The center-cutting design allows for plunging, slotting, profiling and general milling operations. This versatile end mill is suitable for machining steel, stainless steel, cast iron, non-ferrous materials, high temperature alloys and hardened materials.

Product Specifications

  • Brand: Kyocera SGS
  • Part Number: 30010
  • Series: 01S
  • Application: General Application End Mill
  • End Mill Type: Square End
  • Cutting Diameter: 5/16" (7.94mm)
  • Number of Flutes: 4
  • Length of Cut: 0.8120" (20.62mm)
  • Shank Diameter: 5/16" (7.94mm)
  • Overall Length: 2-1/2" (63.50mm)
  • Shank Length: 1.6880" (42.88mm)
  • Material: Solid Carbide
  • Coating: Ti-NAMITE-A AlTiN
  • Shank Type: Straight
  • Flute Type: Spiral
  • Helix Angle: 30° Right Spiral
  • Cut Direction: Right Hand Cut Direction (RHC)
  • Rake Angle: Positive
  • Variable Helix: No
  • Center Cutting: Yes
  • Chip Breaker: No
  • Coolant Option: External Coolant
  • Tool Length: Regular
  • Weldon Flat: No
  • Cutting Diameter Tolerance: +0.000/-0.050mm (+0.0000/-0.0020 inch)
  • Shank Diameter Tolerance: h6
  • Primary Workpiece Materials: Steel, Stainless Steel, Cast Iron, Non-Ferrous Materials, High Temperature Alloys
  • Secondary Workpiece Material: Hardened Materials
  • Shipping Weight: 0.0880
  • US Stock: 294

The Kyocera SGS 30010 is an excellent choice for CNC milling applications requiring a reliable 5/16" 4-flute solid carbide square end mill with 0.8120" length of cut, 30° helix and Ti-NAMITE-A AlTiN coating for efficient cutting, wear resistance and dependable performance across a broad range of workpiece materials.
