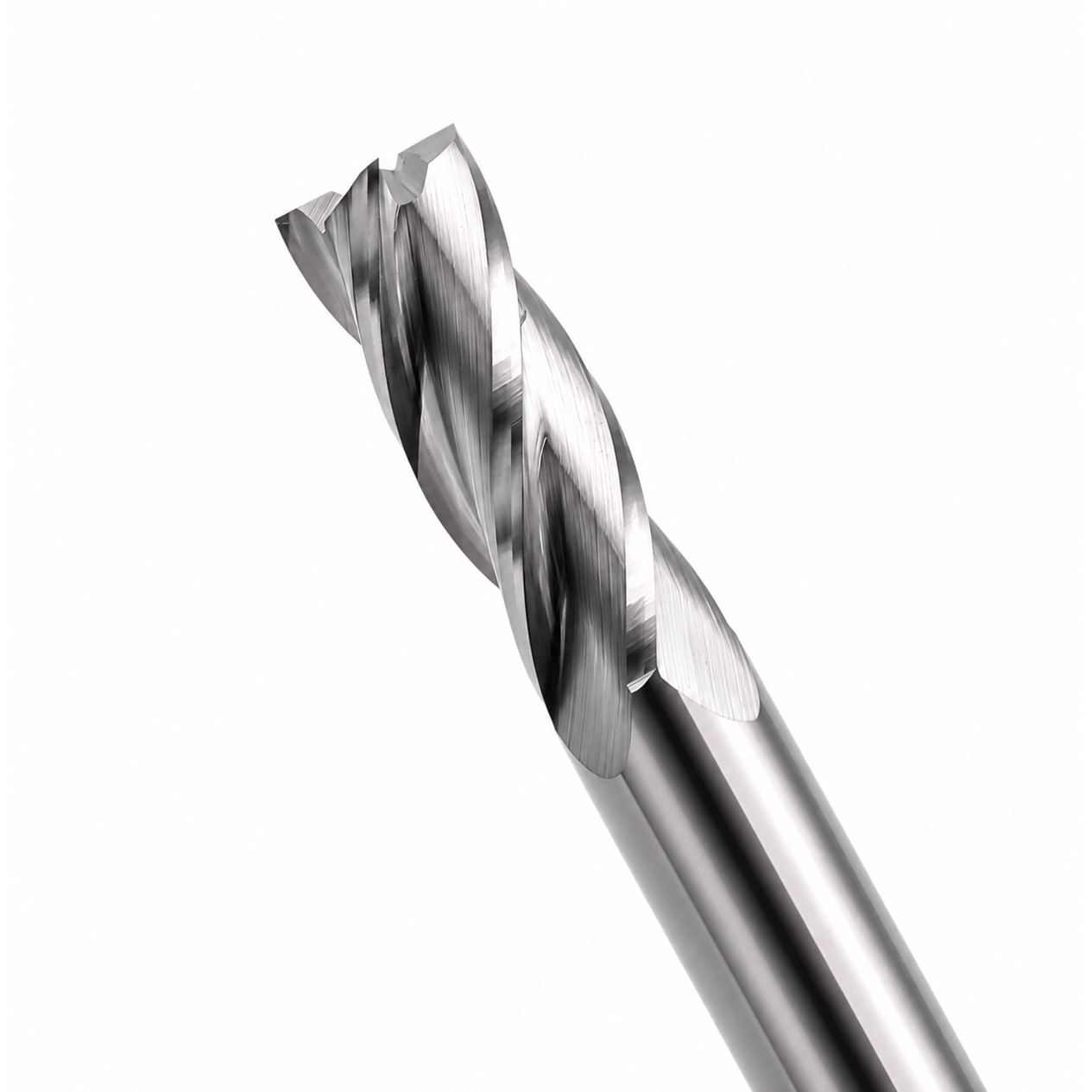

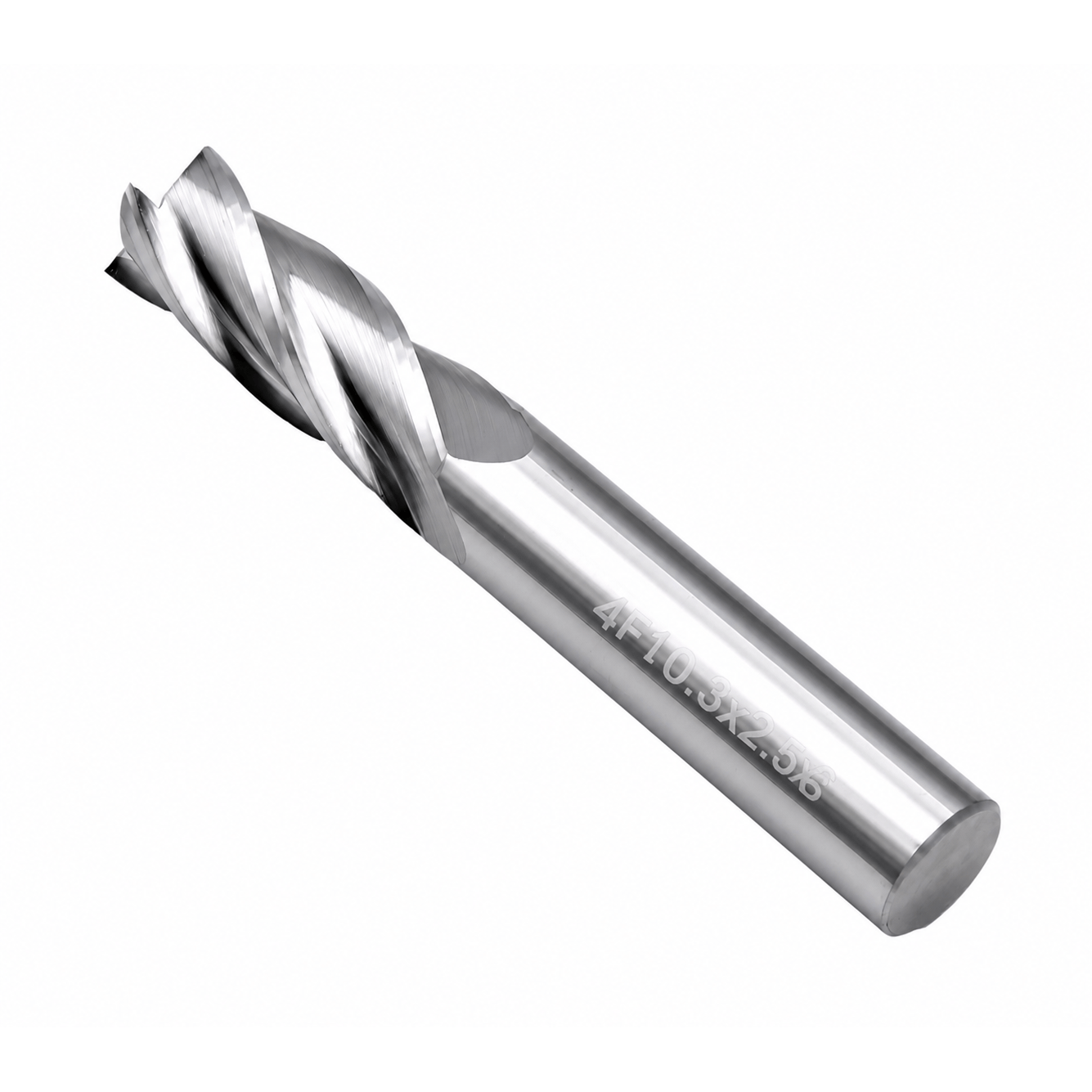

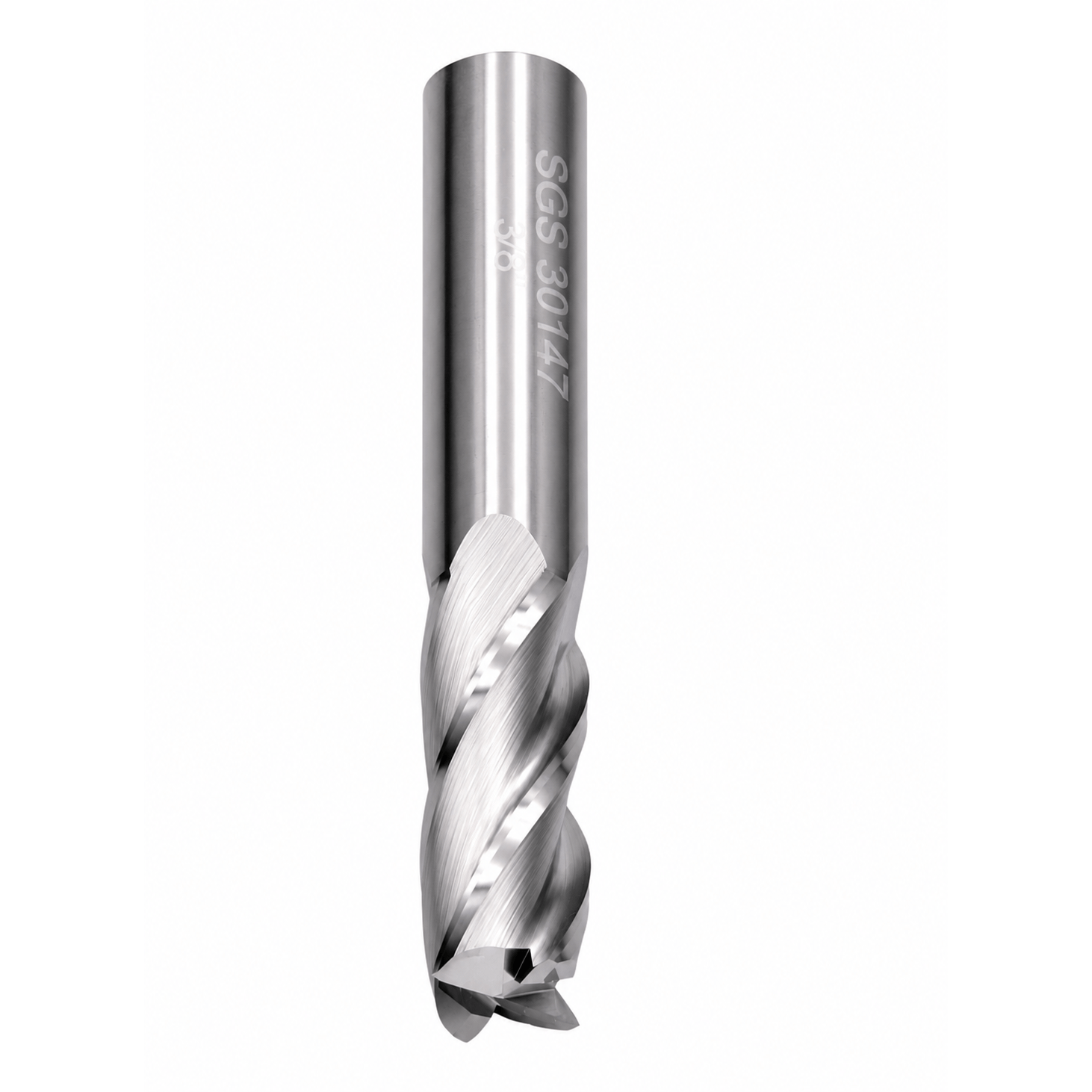

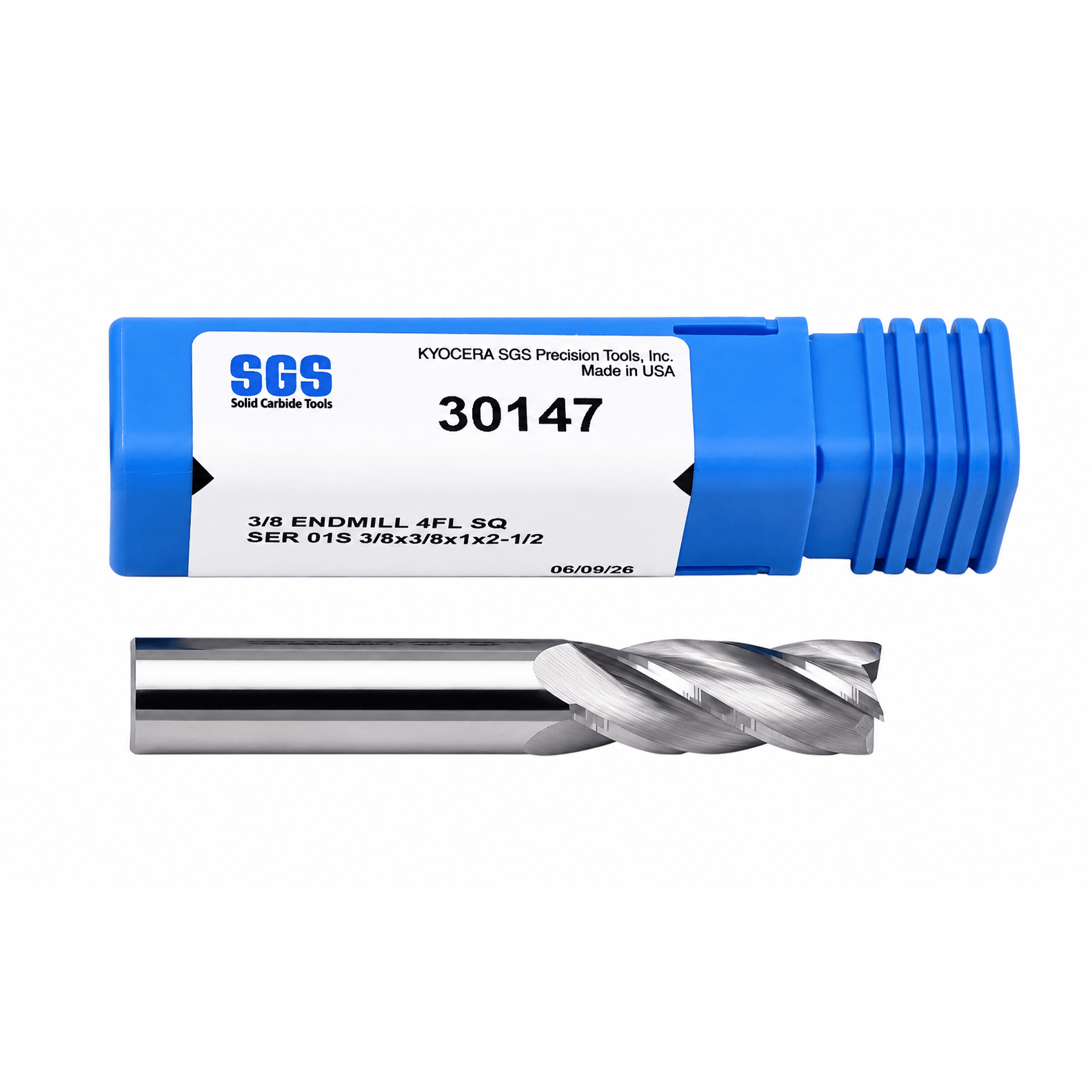

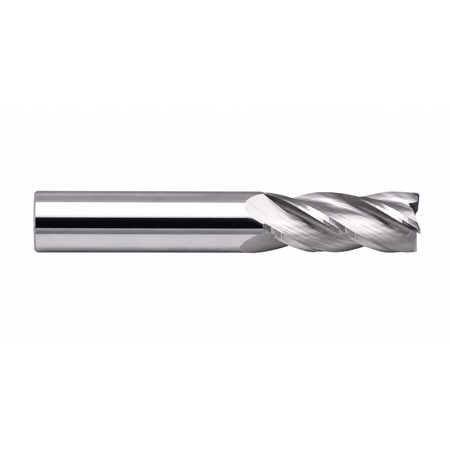

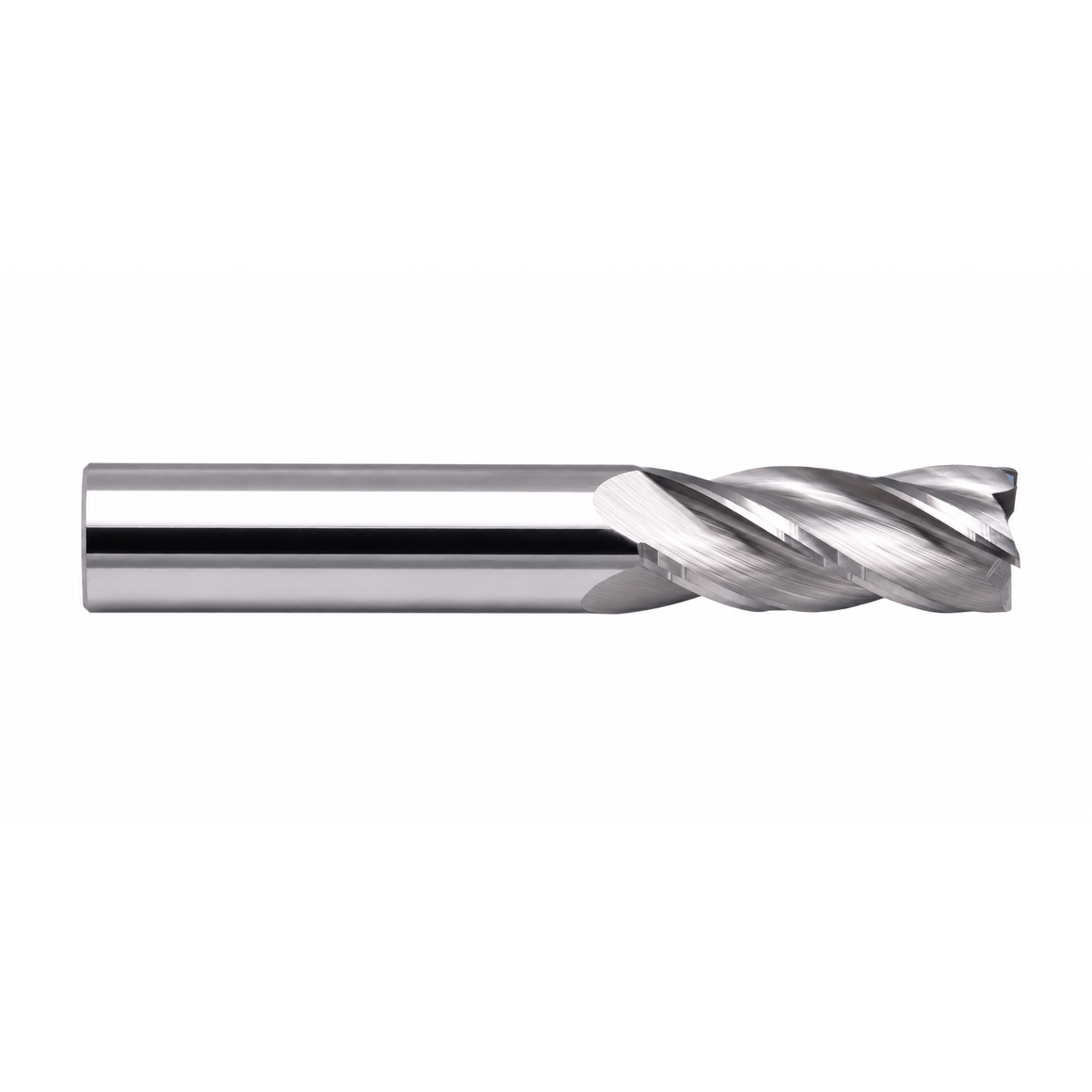

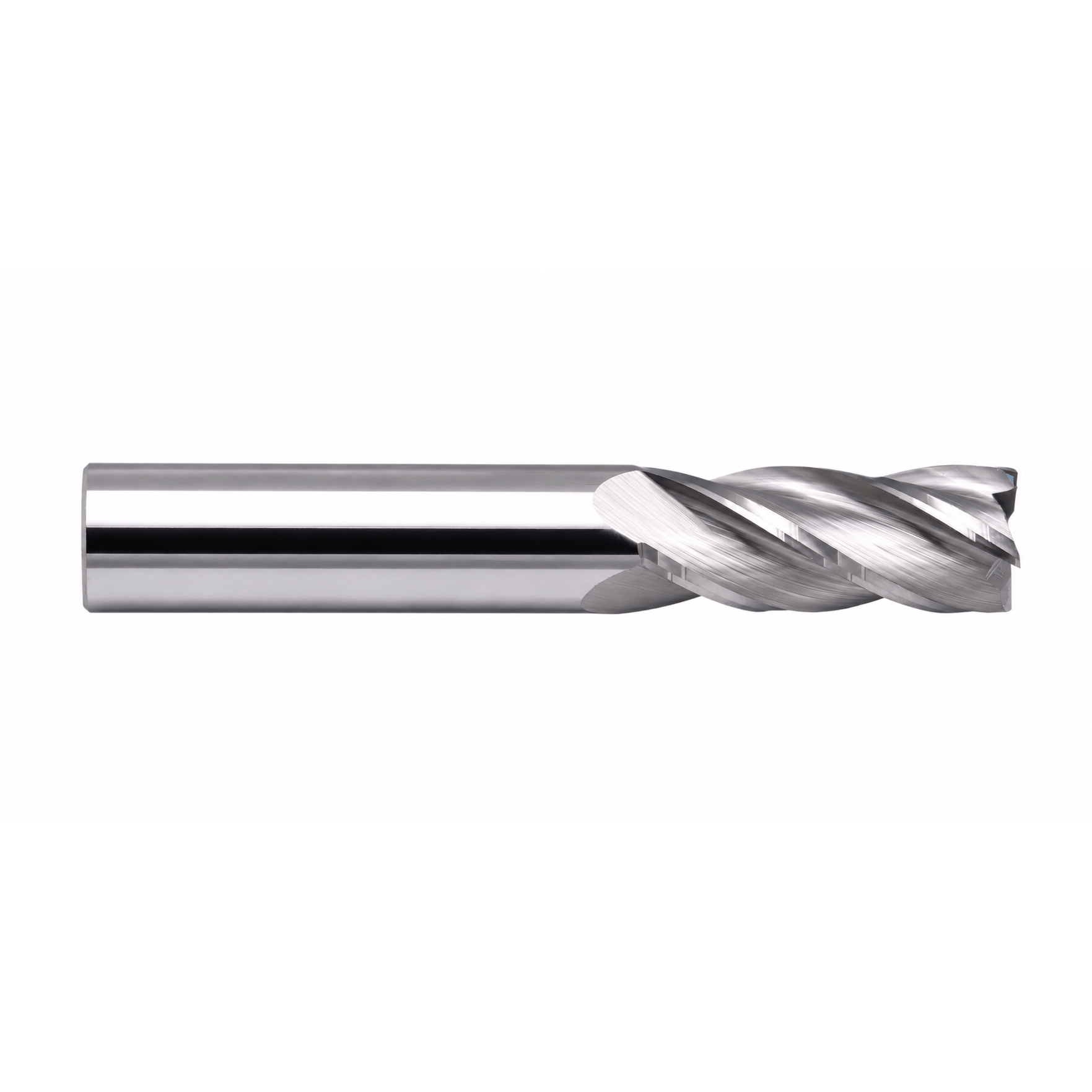

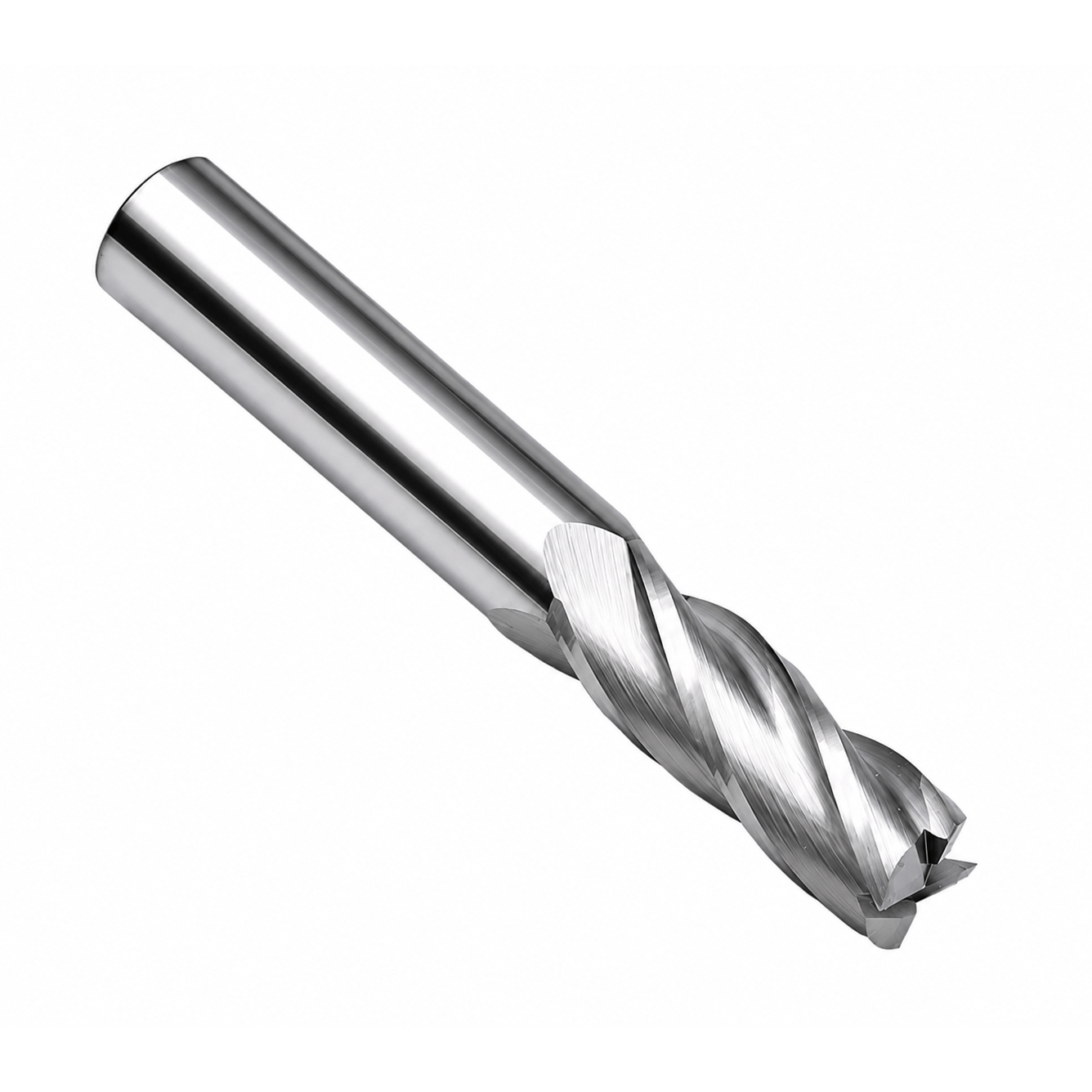

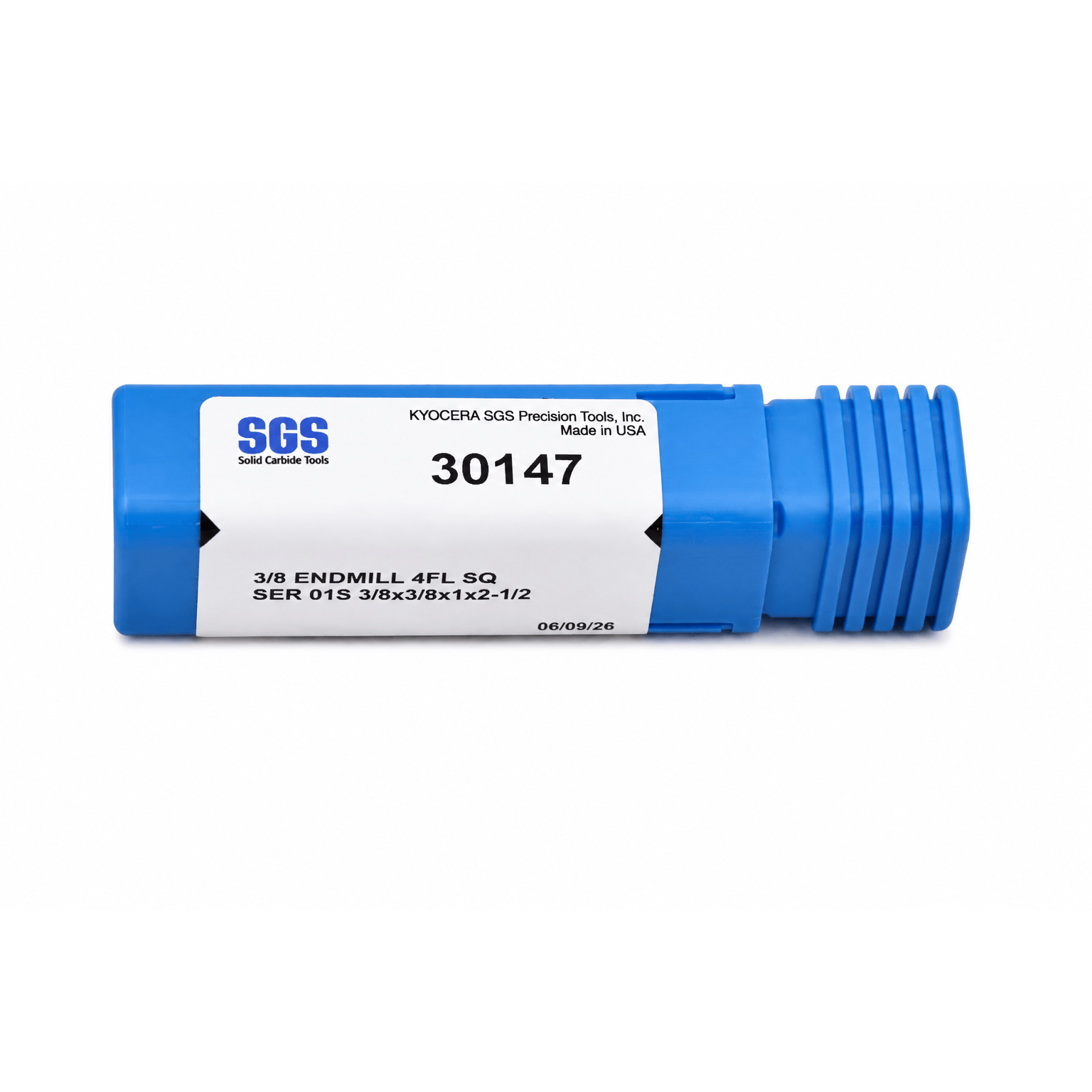

Kyocera SGS - 3/8" 4 Flute Uncoated Carbide End Mill Short Series

Professional quality Kyocera SGS KSP30147 3/8 inch 4 flute uncoated carbide end mill designed for general-purpose milling applications. This square end mill features a positive rake angle, 30° right-hand spiral geometry and right-hand cutting direction to provide efficient cutting performance and reliable chip evacuation across a wide range of workpiece materials.

Manufactured from carbide with a bright uncoated finish, the KSP30147 provides a versatile solution for machining steel, stainless steel, cast iron, non-ferrous materials and high temperature alloys. Hardened materials are also listed as a secondary application. The center-cutting design provides additional versatility for plunging and other machining operations.

Product Features

• Genuine Kyocera SGS general application carbide end mill
• 3/8 inch cutting diameter
• 4 flute square end configuration
• Short series design for rigid and stable machining
• Bright uncoated carbide construction
• 30° right-hand spiral helix
• Positive rake angle for efficient cutting
• Right-hand cut direction
• Center cutting for plunging capability
• 1 inch length of cut
• 2-1/2 inch overall length
• 3/8 inch straight shank
• h6 shank diameter tolerance
• External coolant compatible
• No Weldon flat

Technical Specifications

• Brand: Kyocera SGS
• Part Number: KSP30147
• Series: 01S
• Series Description: General Application End Mill
• End Configuration: Square End
• Tool Type: Carbide End Mill
• Number of Flutes: 4
• Cutting Diameter (DC): 3/8 inch (9.53 mm)
• Shank Diameter (DCON): 3/8 inch (9.53 mm)
• Shank Diameter Tolerance: h6
• Length of Cut (APMX): 1 inch (25.40 mm)
• Overall Length (LF): 2-1/2 inch (63.50 mm)
• Shank Length (LS): 1-1/2 inch (38.10 mm)
• Tool Length: Regular
• Shank Type: Straight
• Helix Angle: 30°
• Helix Direction: Right Spiral
• Variable Helix: No
• Cut Direction: Right Hand Cut
• Rake Angle: Positive
• Center Cutting: Yes
• Chip Breaker: No
• Weldon Flat: No
• Coolant: External Coolant
• Coating: Bright / Uncoated
• Flute Type: Spiral
• Cutting Diameter Tolerance: +0.000 / -0.002 inch (+0.000 / -0.050 mm)
• Primary Workpiece Materials: Steel, Stainless Steel, Cast Iron, Non-Ferrous Materials and High Temperature Alloys
• Secondary Workpiece Material: Hardened Materials
• Shipping Weight: 0.1280

Applications

The Kyocera SGS KSP30147 is suitable for general-purpose milling operations including slotting, profiling, contouring, pocketing and plunging where a 3/8 inch 4 flute square end mill is required. Its center-cutting geometry provides additional versatility for machining applications requiring axial entry into the workpiece.

This carbide end mill is designed for machining steel, stainless steel, cast iron, non-ferrous materials and high temperature alloys, with hardened materials listed as a secondary application.
