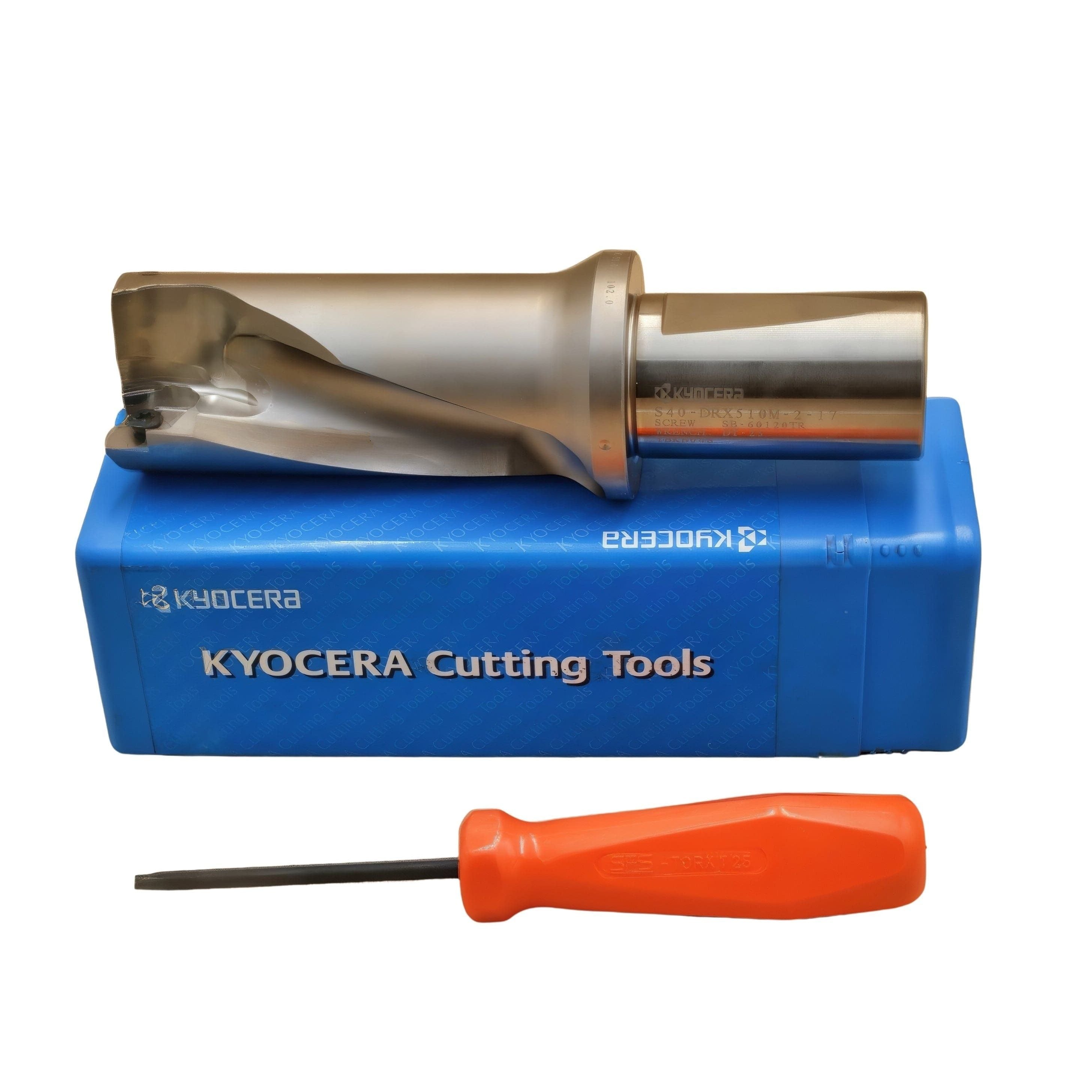

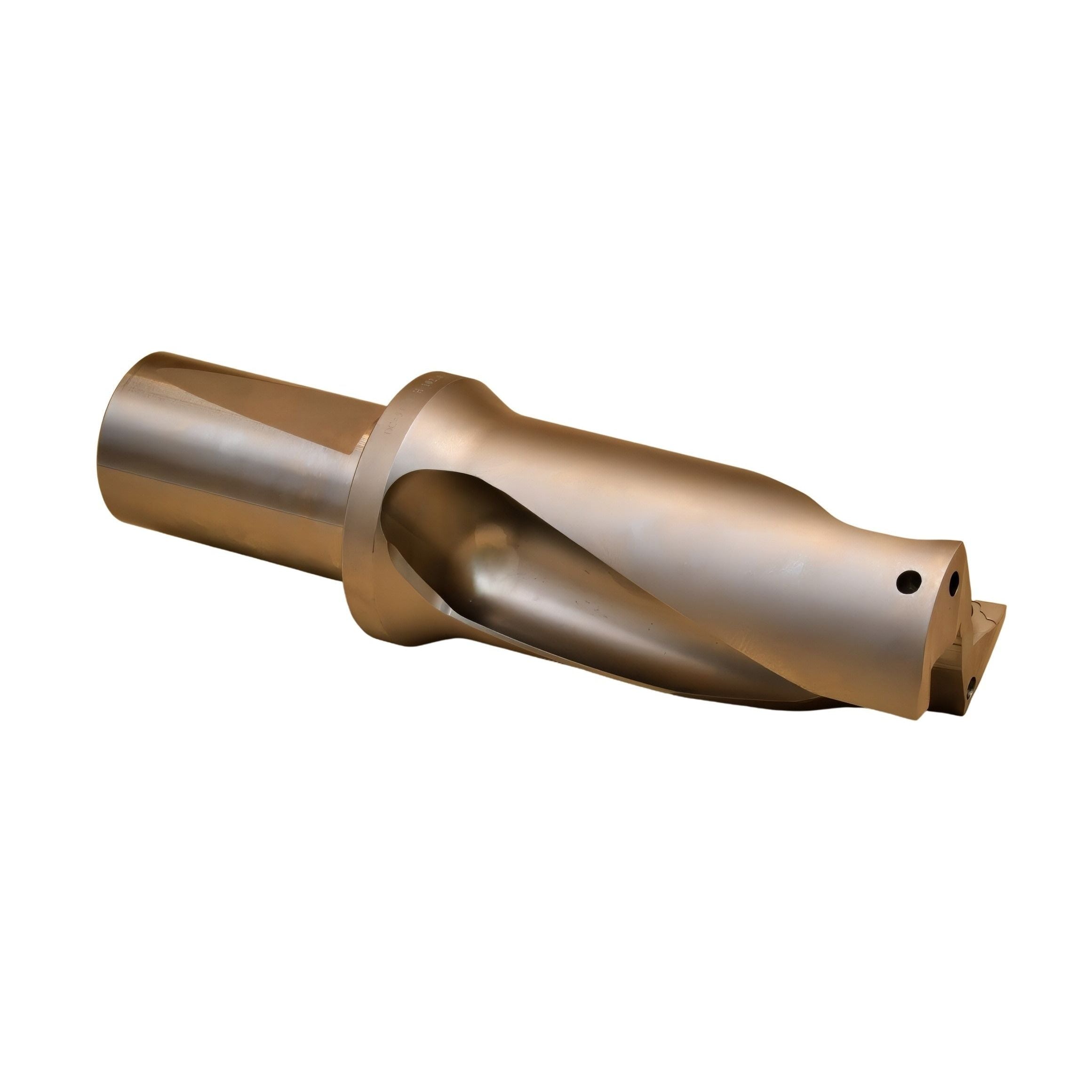

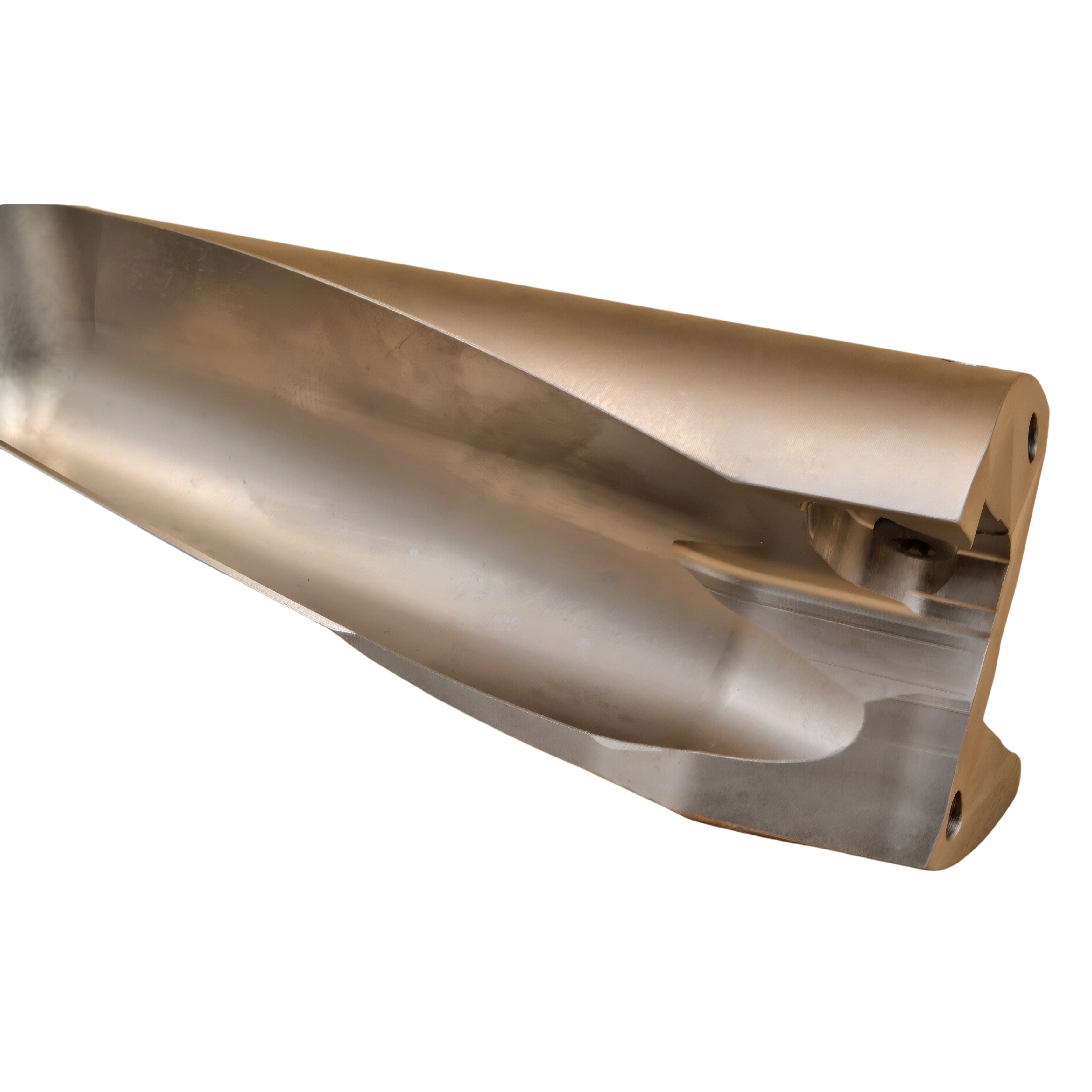

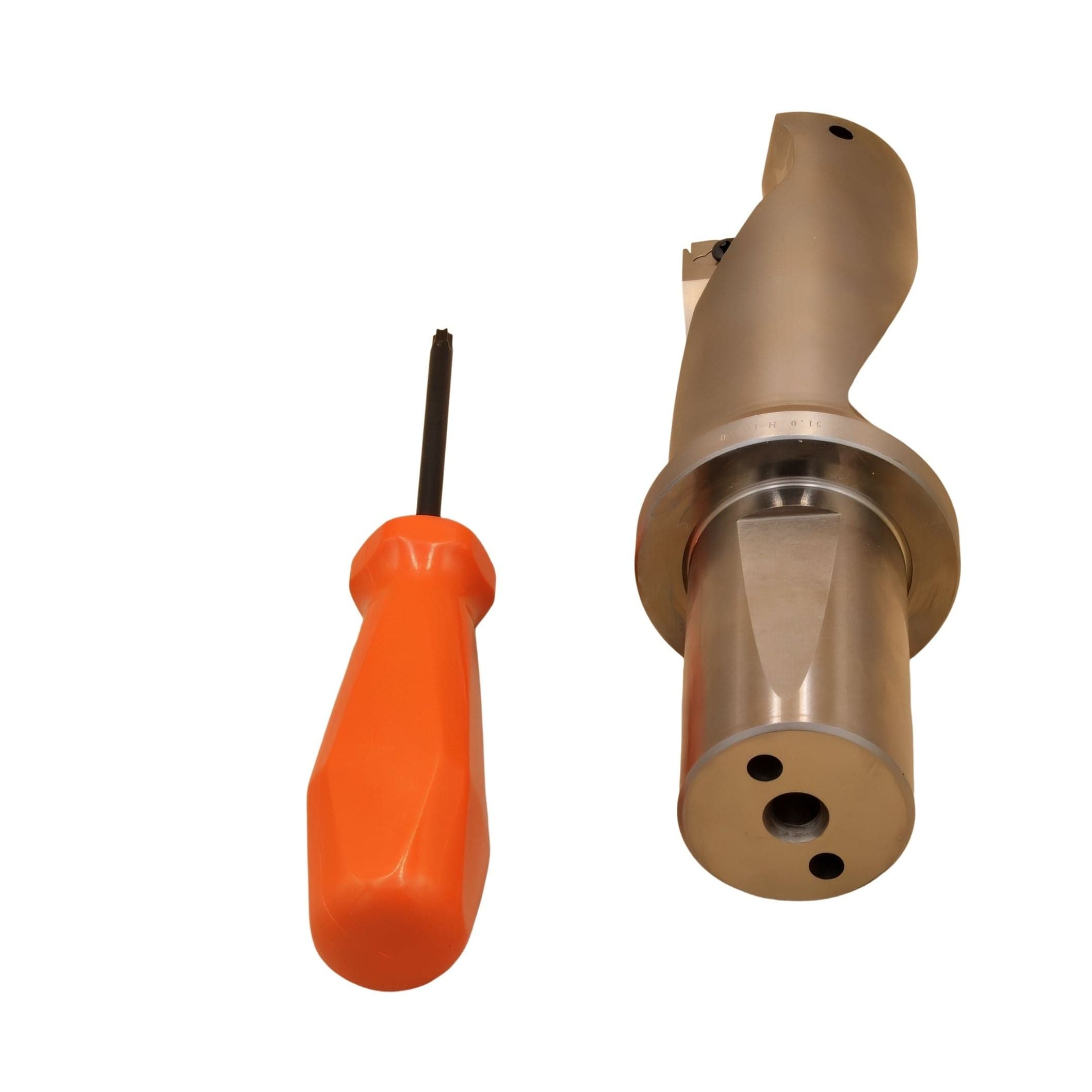

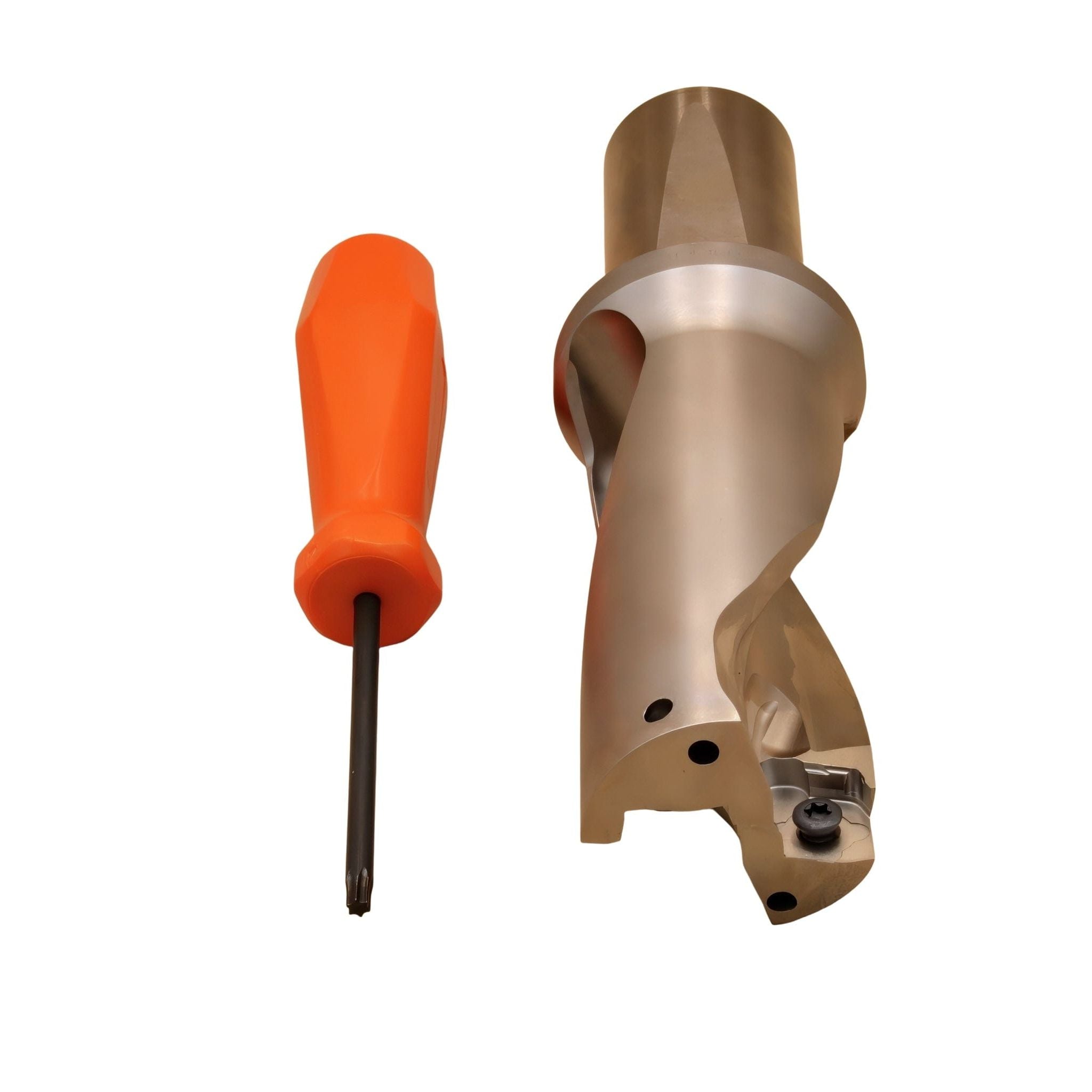

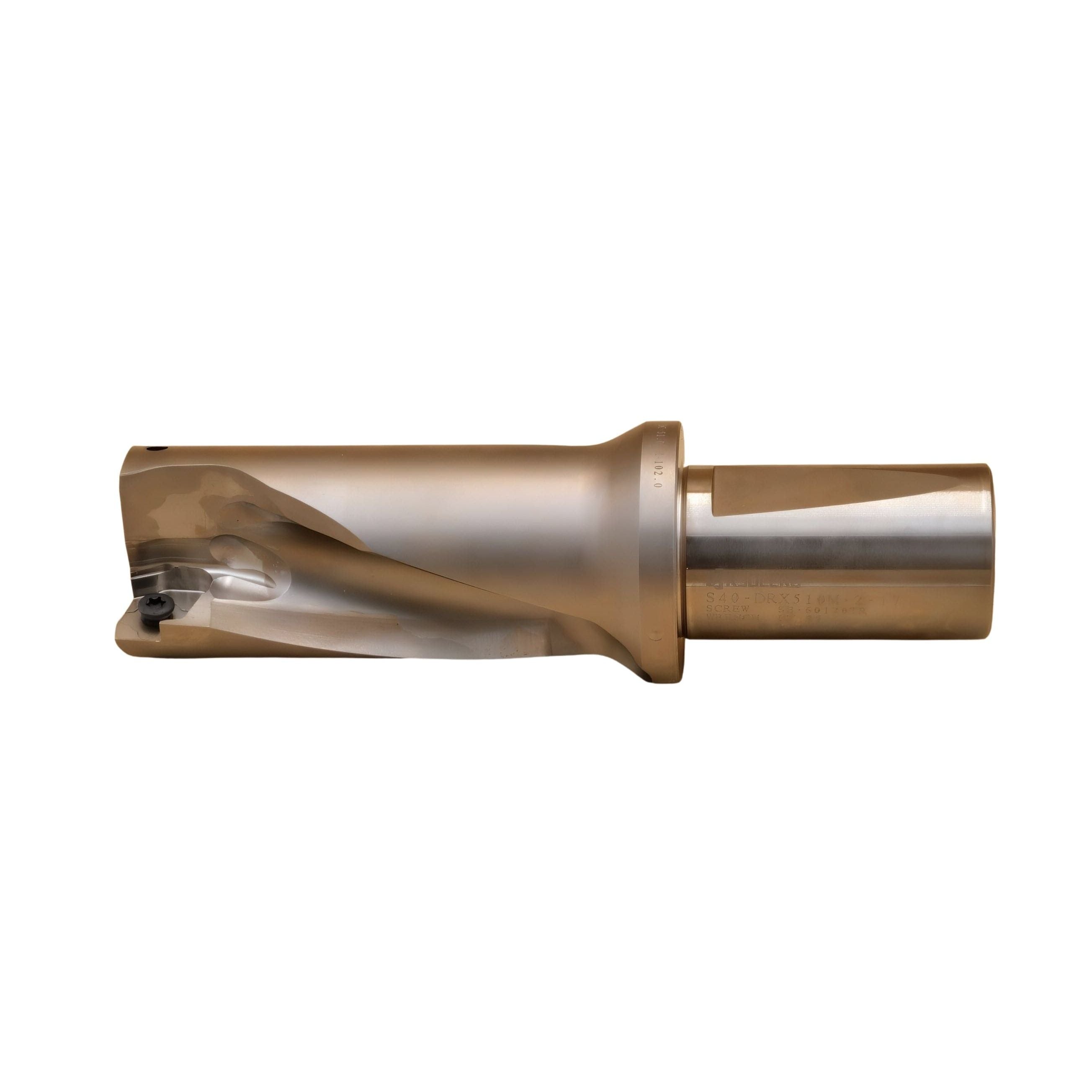

Kyocera S40-DRX510M-2-17 Indexable Drill Body
Couldn't load pickup availability
The Kyocera S40-DRX510M-2-17 is a high-performance indexable drill body engineered for efficient large-diameter holemaking in CNC machining environments. Part of Kyocera’s advanced DRX drilling series, this tool delivers outstanding cutting stability, excellent chip evacuation, and reliable hole accuracy across a wide range of engineering materials including carbon steel, alloy steel, and stainless steel.
Designed for demanding production environments, the DRX drill system uses replaceable carbide inserts that allow quick indexing and significantly lower tooling costs compared with solid carbide drills. The rigid 40 mm shank and optimised flute geometry provide excellent vibration resistance and stable cutting performance, making it ideal for high-feed drilling operations in heavy machining applications.
Key Features & Benefits
- High-performance DRX series indexable drill body
- Designed for large-diameter CNC drilling applications
- Replaceable carbide inserts reduce tooling costs
- Optimised flute design for efficient chip evacuation
- Rigid body construction for improved drilling stability
- Suitable for steel, stainless steel, and general engineering materials
- Through-coolant compatible for improved tool life
Technical Specifications
- Model: S40-DRX510M-2-17
- Brand: Kyocera
- Series: DRX
- Tool Type: Indexable Drill Body
- Drill Diameter: 51 mm
- Shank Diameter: 40 mm
- Insert Configuration: 2 insert system
- Coolant: Through-coolant compatible
Kyocera Cutting Tools are globally recognised for precision engineering, advanced coating technology, and exceptional durability. The DRX drilling system provides reliable performance, excellent hole quality, and high metal removal rates in demanding industrial machining applications.
