Kyocera S32S-SVPBR16-40A – Internal Boring Bar (THC13494)

Kyocera S32S-SVPBR16-40A – Internal Boring Bar (THC13494)

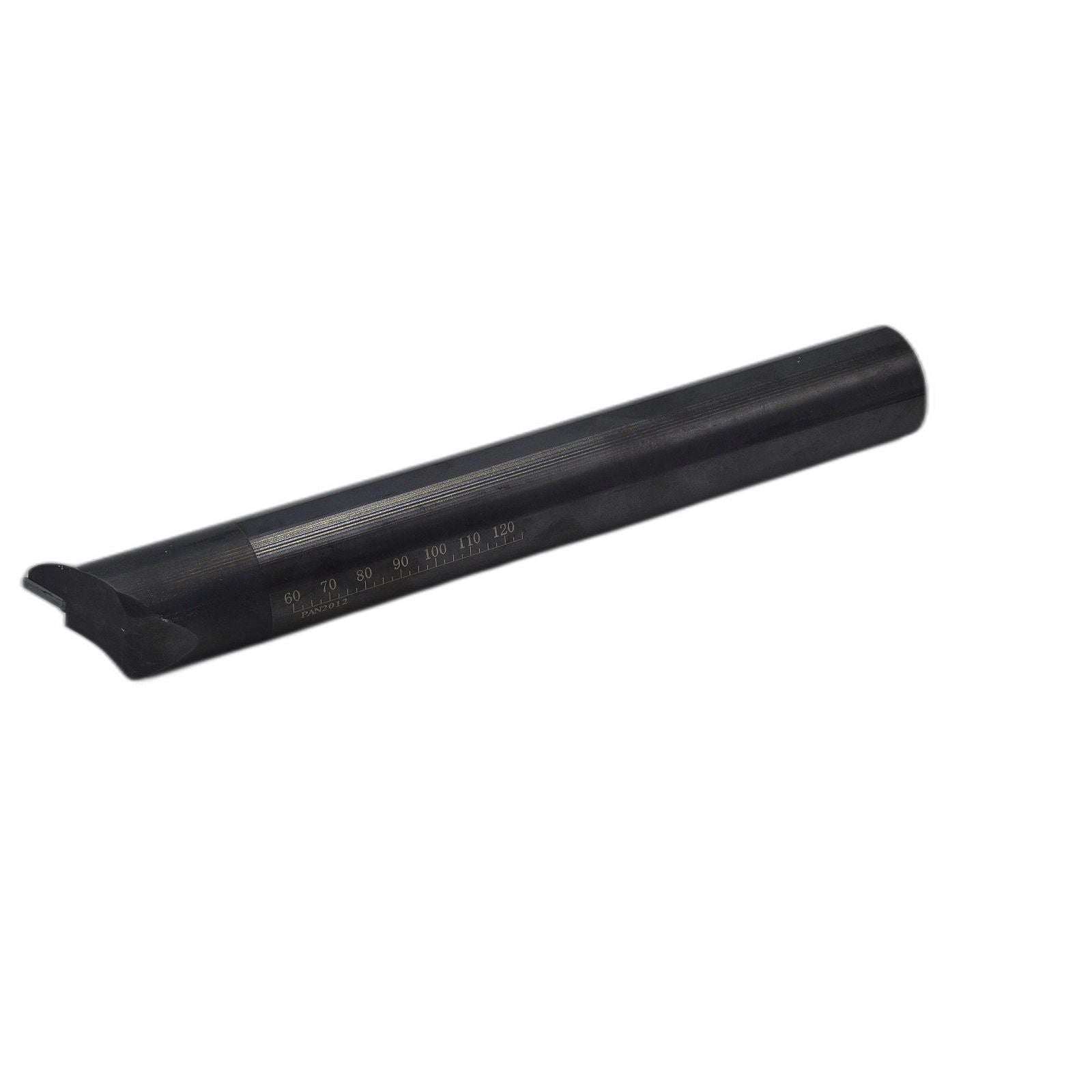

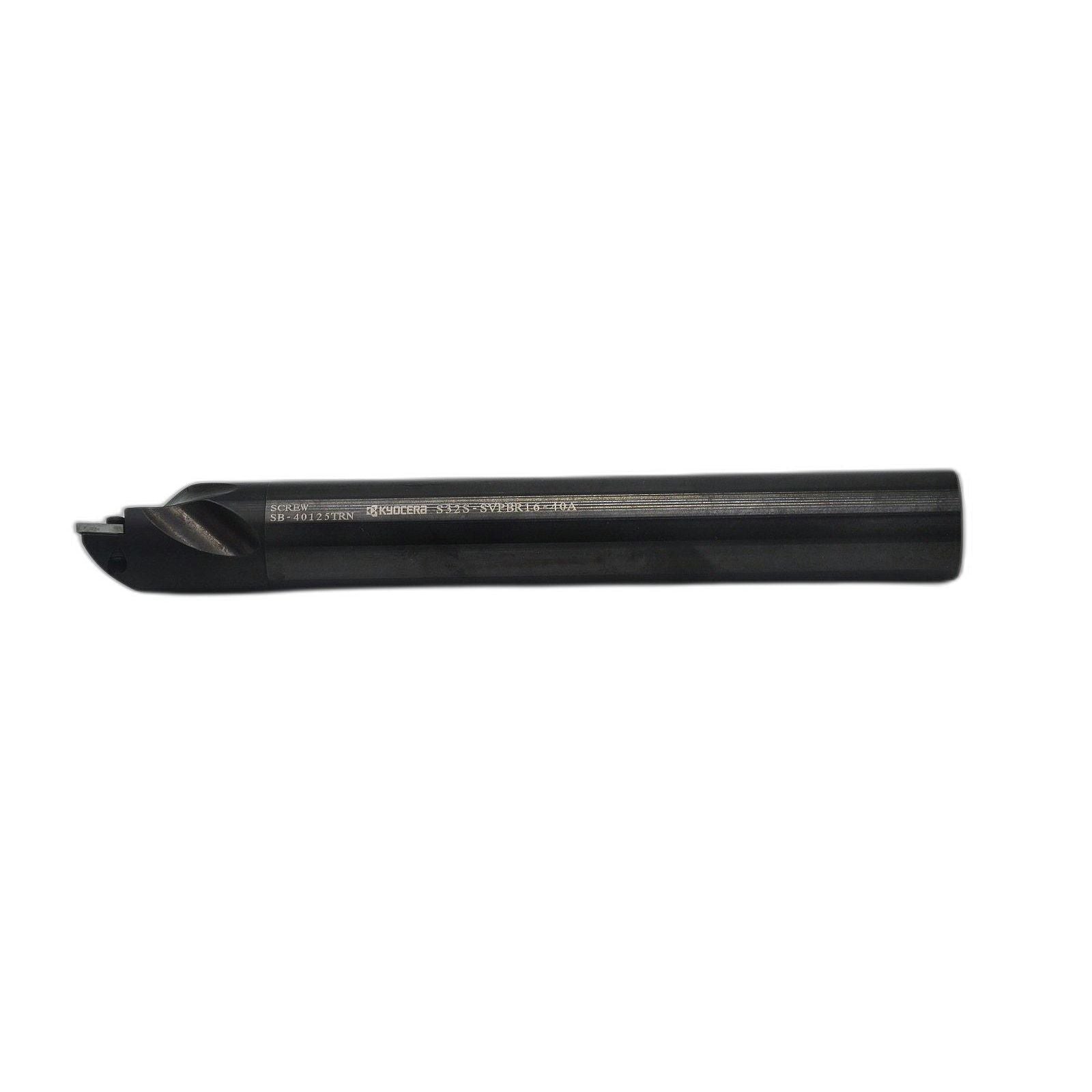

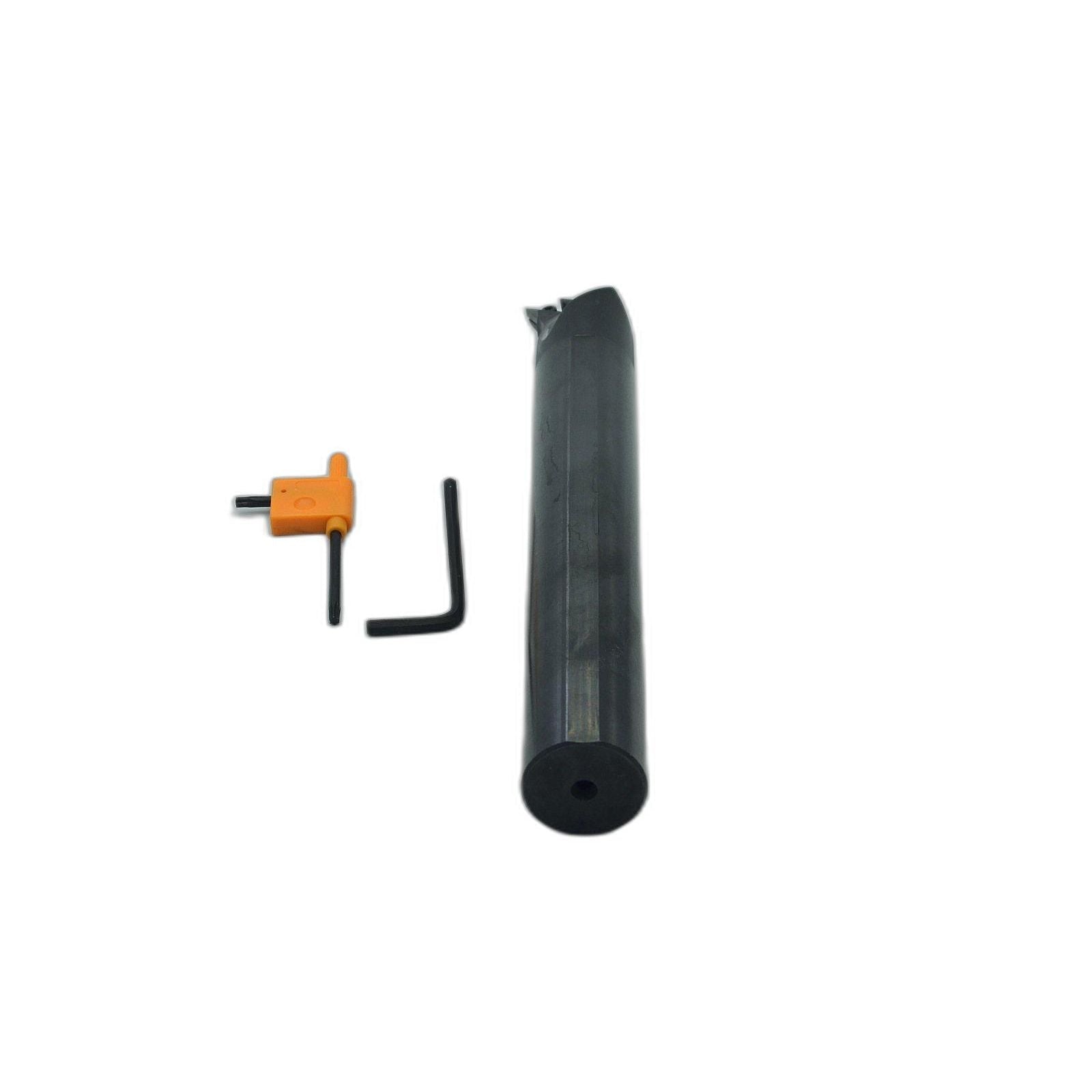

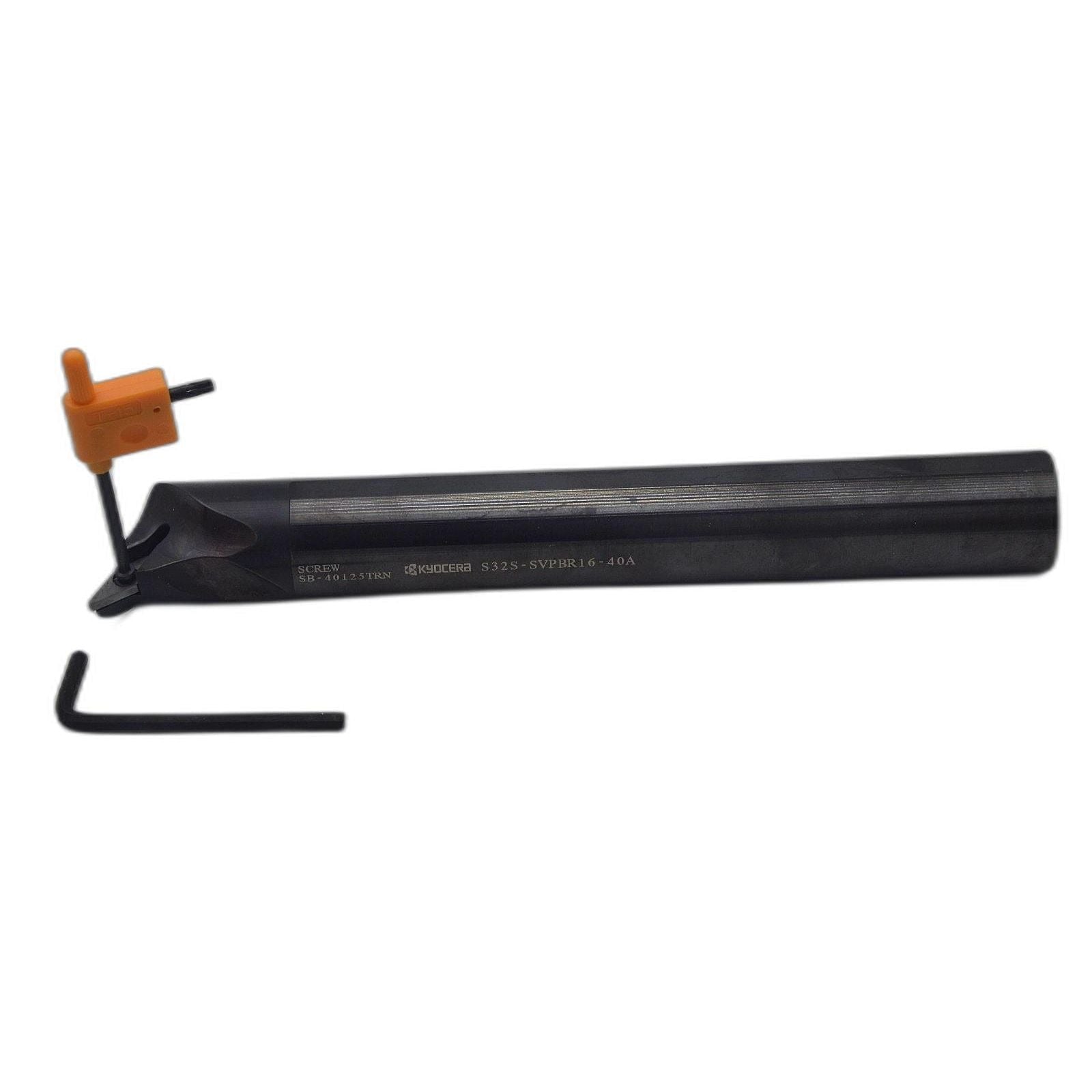

The Kyocera S32S-SVPBR16-40A is a heavy-duty internal boring bar designed for profiling and copy turning in larger bores. With a round shank diameter of 32 mm and a minimum bore diameter of 40 mm, this right-hand toolholder offers excellent rigidity and stability for internal turning operations. It is designed to use VBMT160404-style inserts, providing a sharp cutting edge and reliable performance in a wide range of materials.

Key Features & Benefits

• 32 mm round shank — high rigidity for deep internal boring and profiling.
• Minimum bore diameter 40 mm — suitable for medium to large internal turning applications.

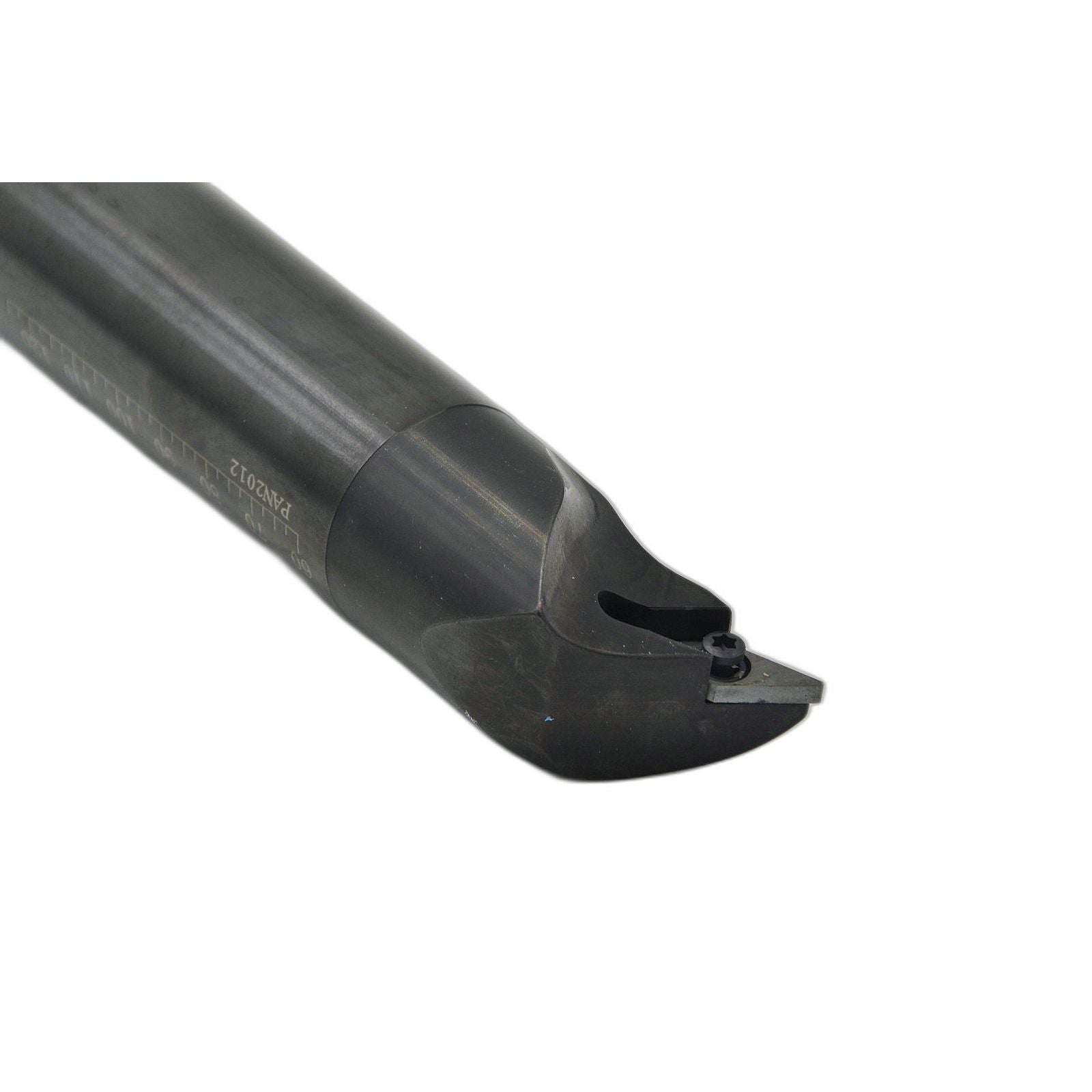

• Uses VBMT160404 inserts — proven insert style for accurate profiling and copy turning.
• Total length 250 mm with 54 mm head length — provides generous reach while maintaining stability.
• Right-hand configuration — compatible with standard internal turning setups.

Technical Specifications

Item No: THC13494
Standard Designation: S32S-SVPBR16-40A
Shank Diameter (DCON): 32 mm (round shank)
Minimum Bore Diameter: 40 mm
Total Length (OAL): 250 mm
Head Length (B1 / LH): 54 mm
Insert Type: VBMT160404 (IC 9.525 mm, thickness 4.76 mm)
Corner Radius: 0.4 mm
Cutting Direction: Right-hand
Internal Coolant: No
