Kyocera S25S-SVPBR16-31A – Internal Boring Bar (THC13492)

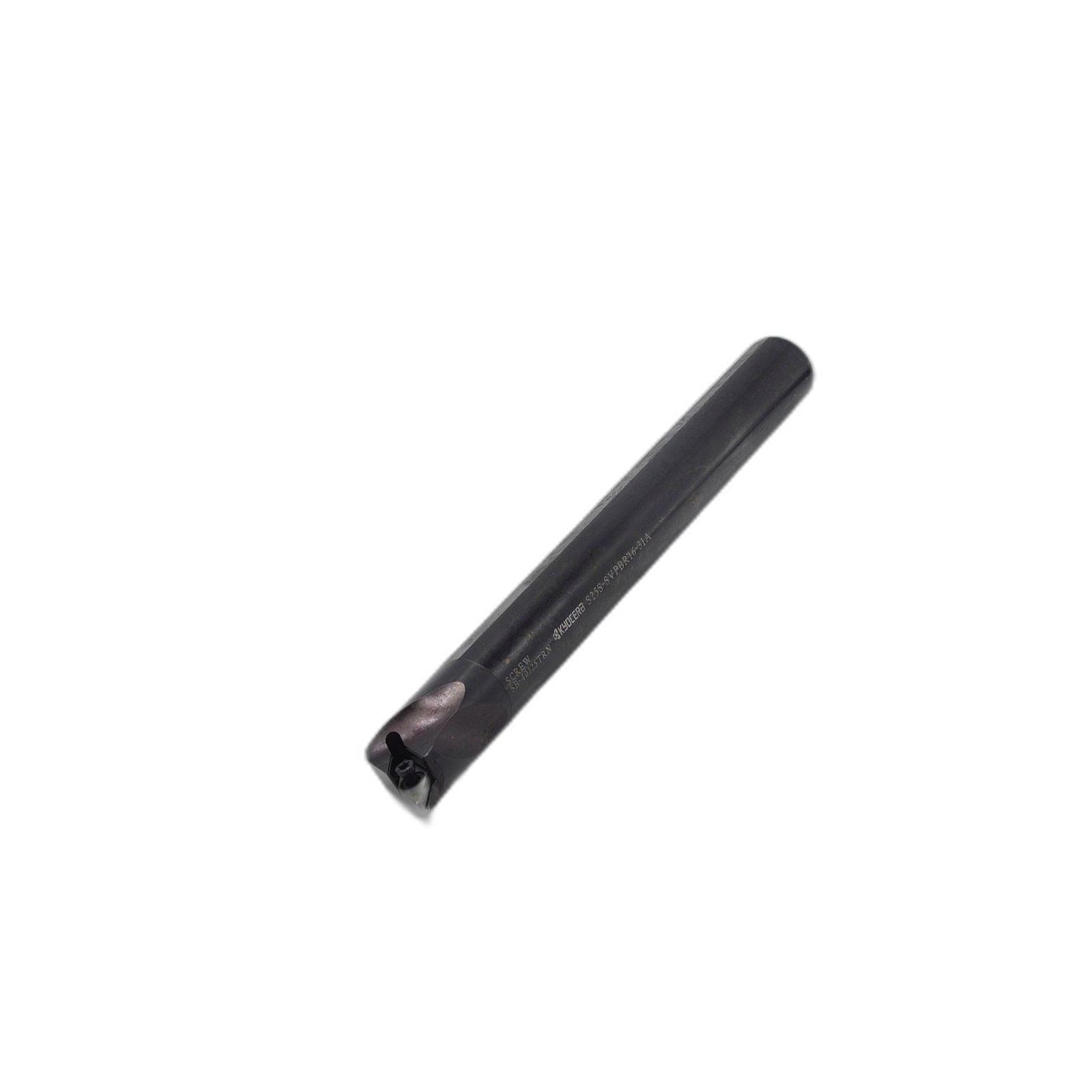

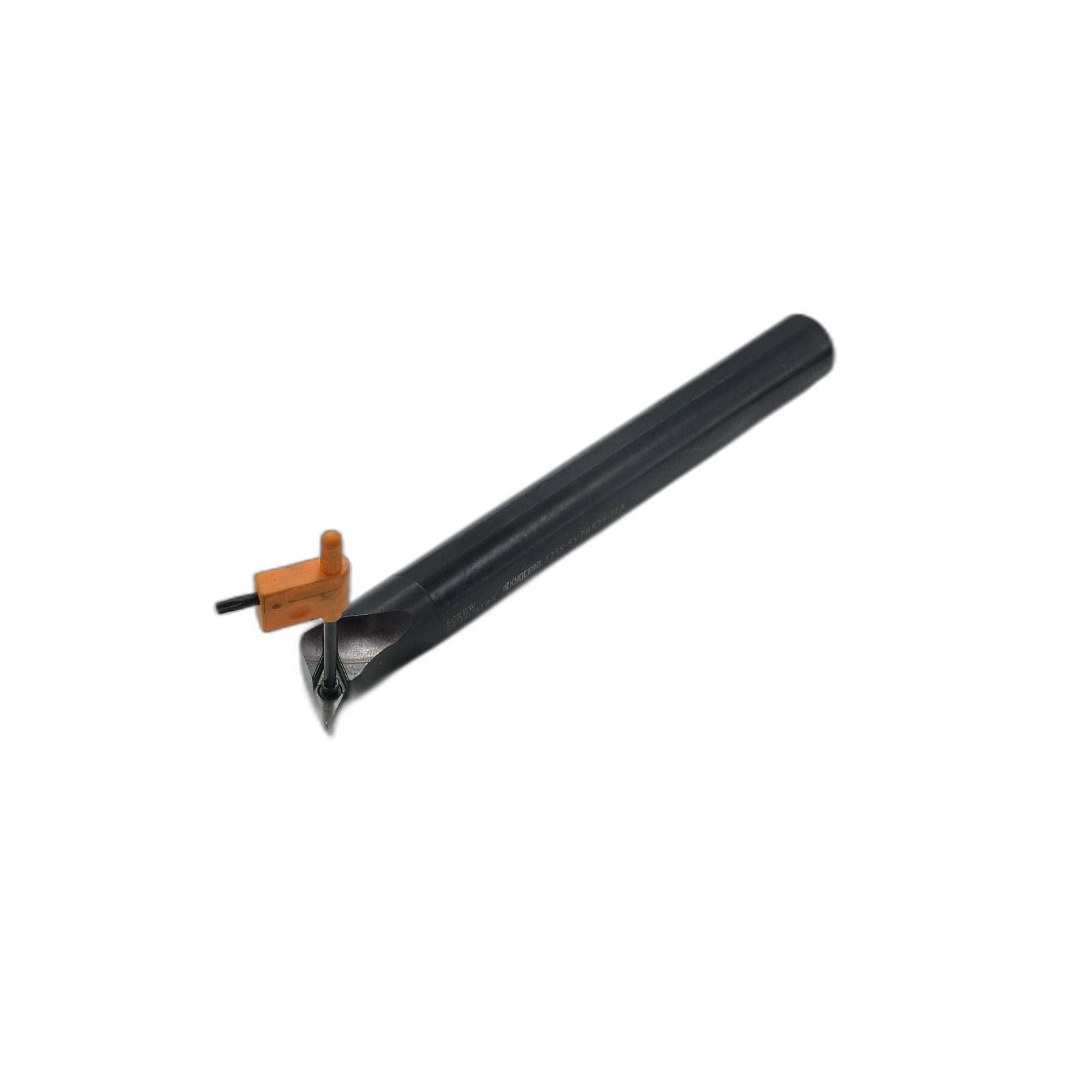

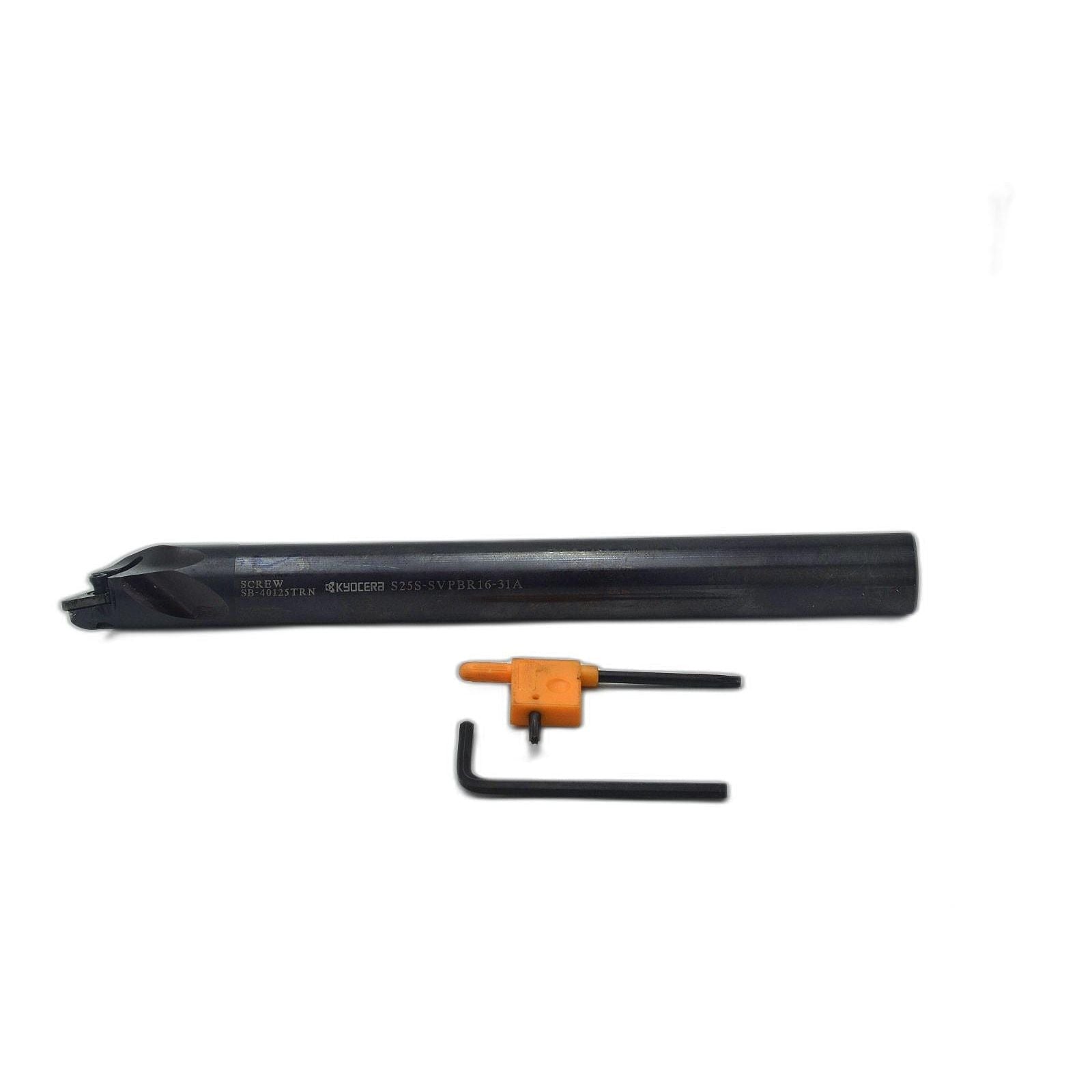

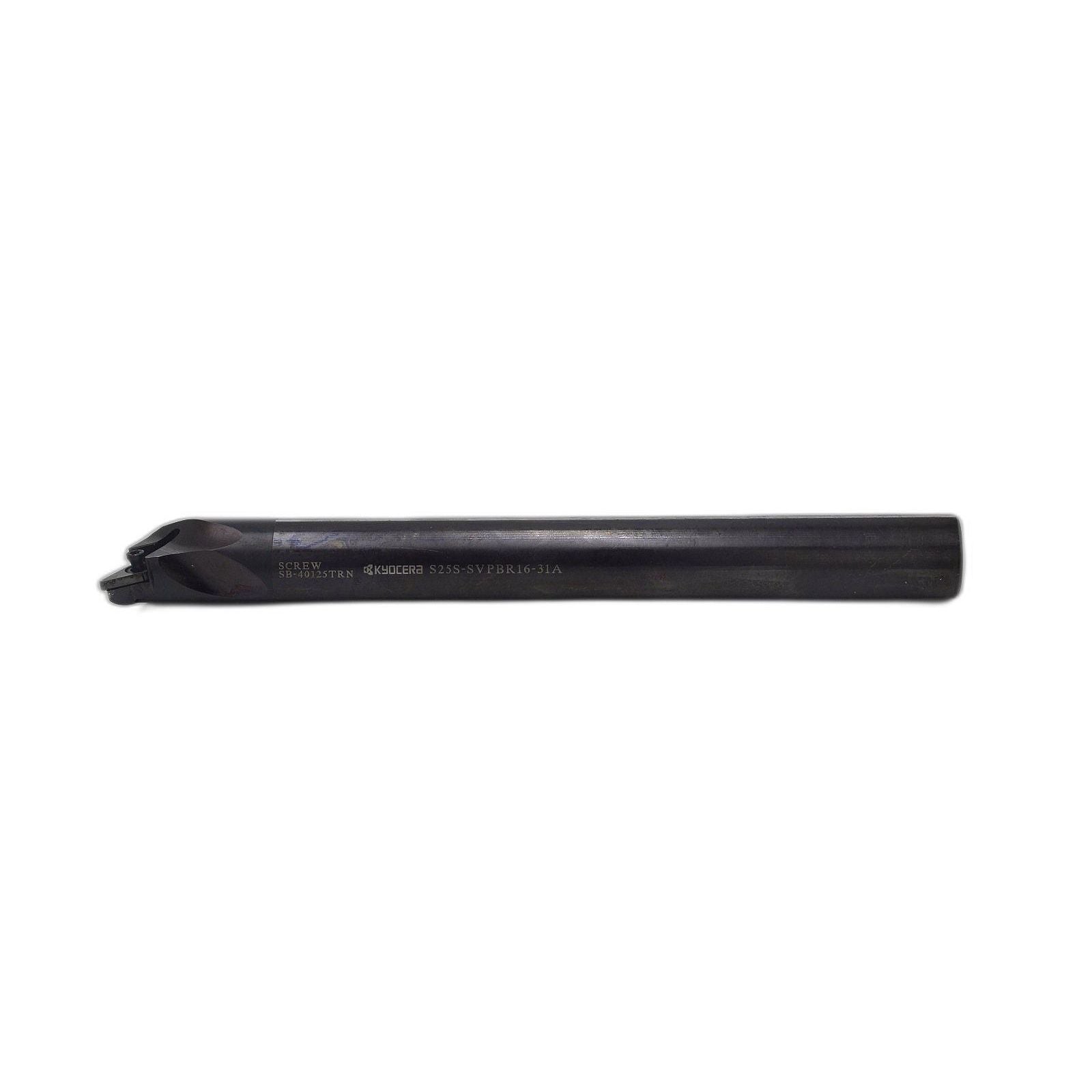

The Kyocera S25S-SVPBR16-31A is a precision internal boring bar designed for high-rigidity internal turning operations. With a minimum bore diameter of 31 mm, a shank diameter of 25 mm, a total length (OAL) of 250 mm and a head length of 51 mm, this right-hand toolholder accommodates insert VBMT-160404 and is engineered for uptime and accuracy in demanding internal machining applications.
Key Features & Benefits
• Minimum bore diameter: 31 mm — allows for compact internal machining while maintaining stability.
• Shank diameter: 25 mm — provides rigidity and compatibility with standard boring setups.
• Total length 250 mm with head length 51 mm — delivers required reach while maintaining structural strength.
• Uses VBMT-160404 inserts with 35° two-bolt clamping — for reliable insert changeover and stable cutting.
• Right-hand orientation — compatible with most conventional internal turning machines.
Technical Specifications
Item No: THC13492
Minimum Bore Diameter: 31 mm
Shank Diameter (DCON): 25 mm
Total Length (OAL): 250 mm
Head Length (LH): 51 mm
Direction: Right-hand
Internal Coolant: No
