Kyocera S16Q-SVUBL11-20E – Internal Turning / Profiling Toolholder (16 mm Shank, VB.. Insert)
Couldn't load pickup availability
Kyocera S16Q-SVUBL11-20E – Internal Turning / Profiling Toolholder (16 mm Shank, VB.. Insert)

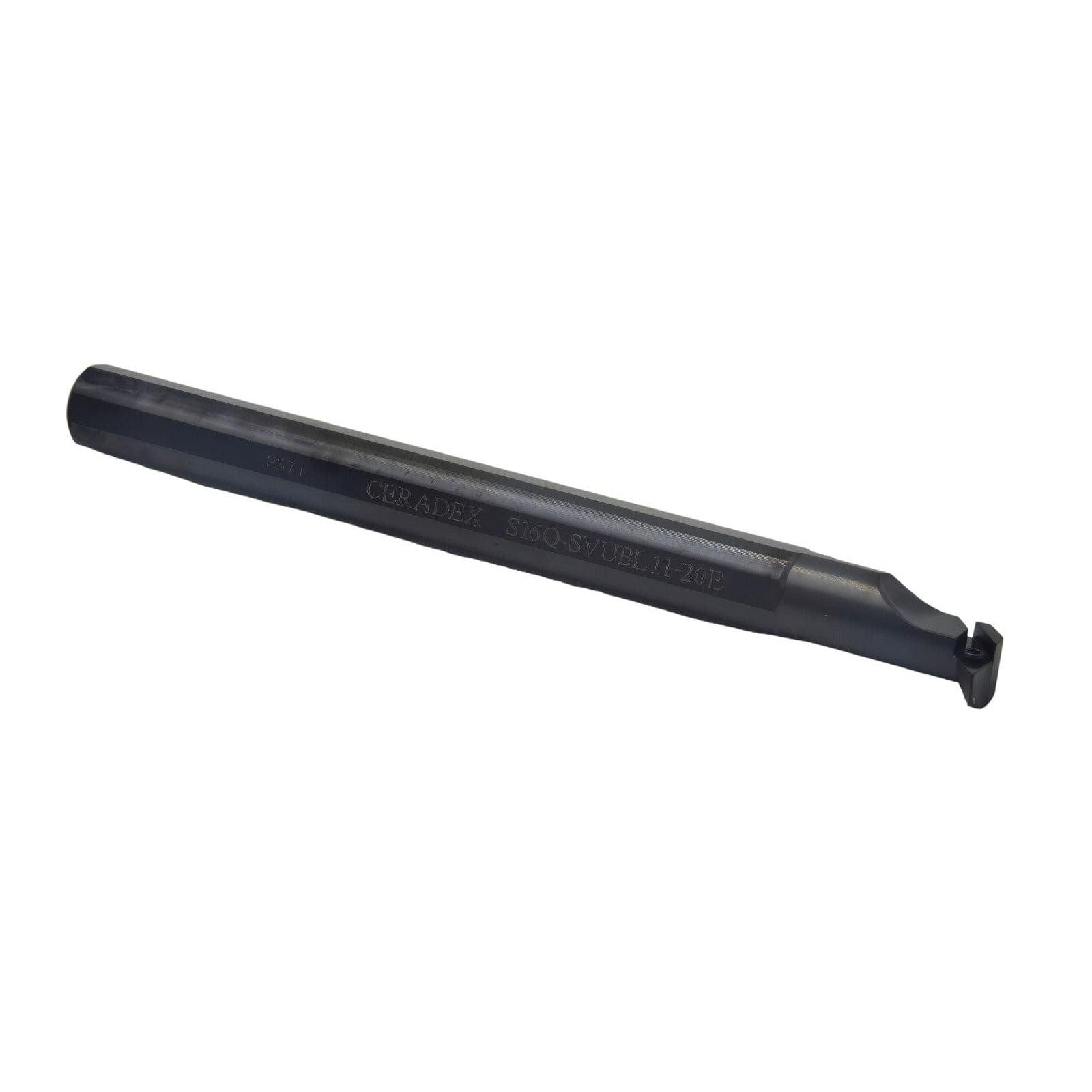

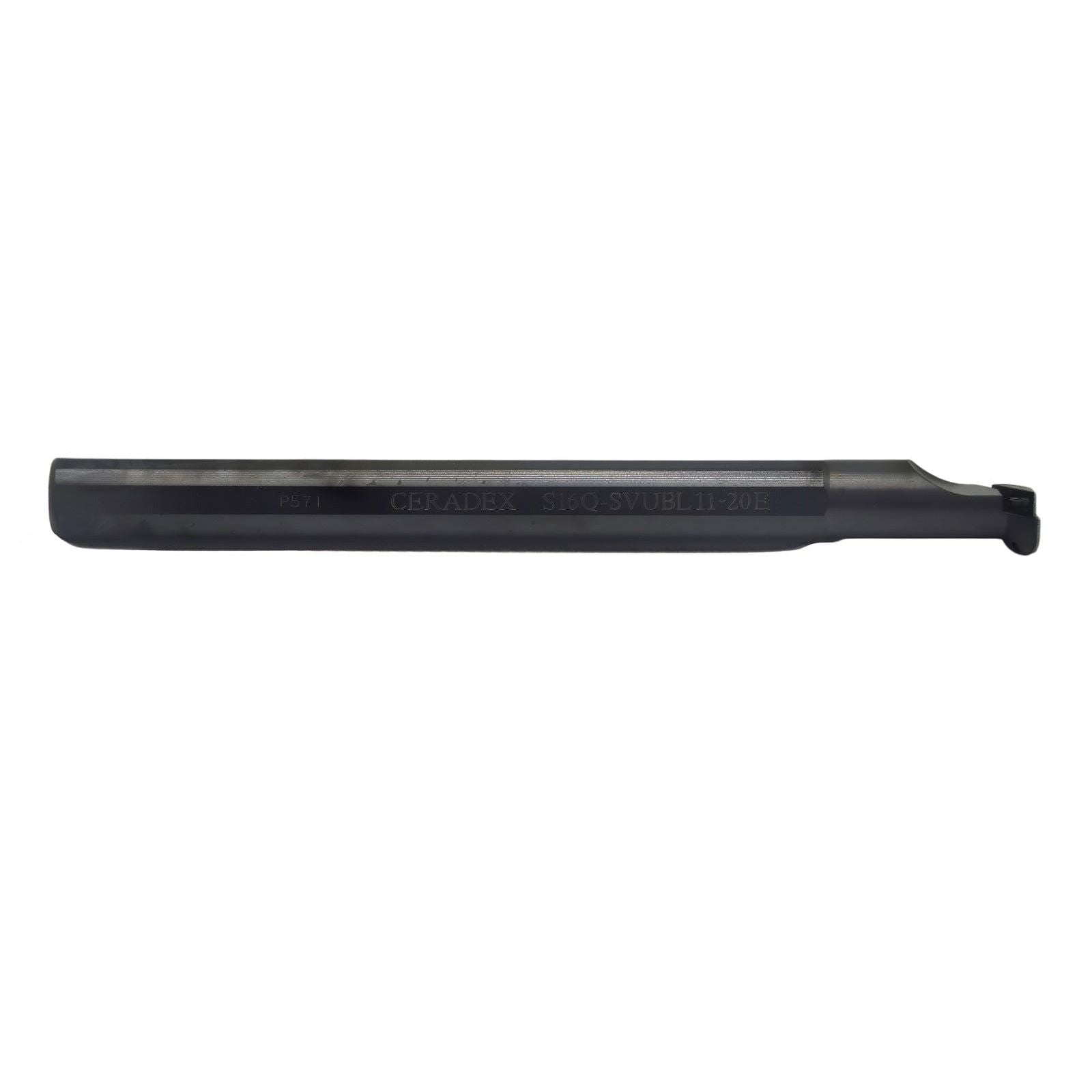

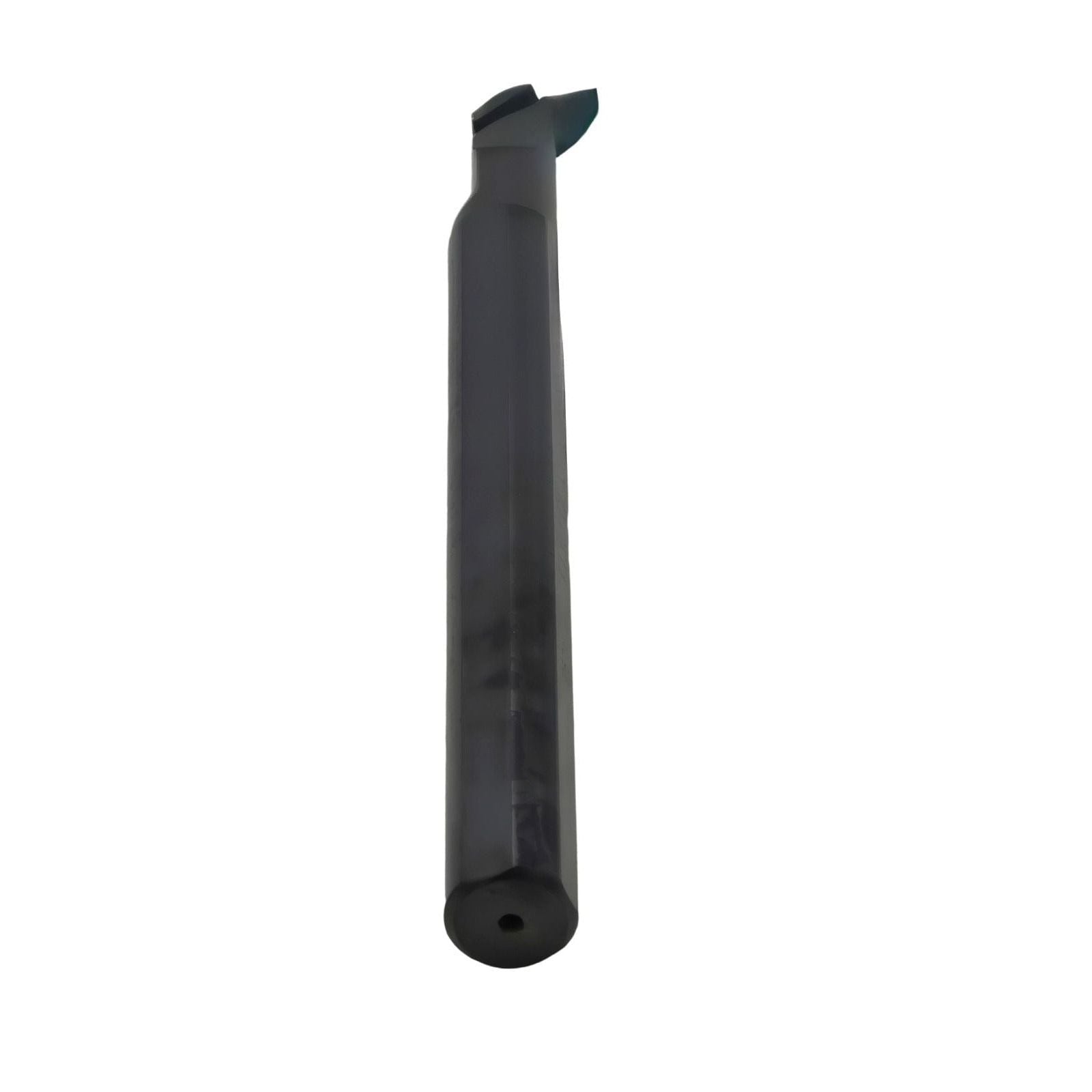

The Kyocera S16Q-SVUBL11-20E is a high-performance internal turning and profiling toolholder designed for VB.. series inserts. With a rigid 16 mm shank and extended reach, it provides excellent stability for precision internal machining, profiling, and finishing operations. The toolholder is engineered for consistent accuracy, reduced vibration, and reliable cutting performance in a wide range of materials.
This model features a precision-machined pocket, secure screw-down insert clamping, and a durable black-oxide coated body to enhance tool life and resist corrosion. Ideal for CNC and manual lathe applications requiring stable internal profiling.
Key Features & Benefits
- Suitable for VB.. style carbide inserts.
- 16 mm shank for improved rigidity in internal turning.
- Precision pocket design for secure and accurate insert seating.
- Screw-clamp system ensures reliable insert retention under load.
- Optimised geometry for smooth internal profiling and finishing.
- Black-oxide finish improves corrosion resistance and tool longevity.
Technical Specifications
- Model: S16Q-SVUBL11-20E
- Shank Diameter: 16 mm
- Compatible Inserts: VB.. series
- Clamping Method: Screw clamp
- Application: Internal turning, profiling, finishing

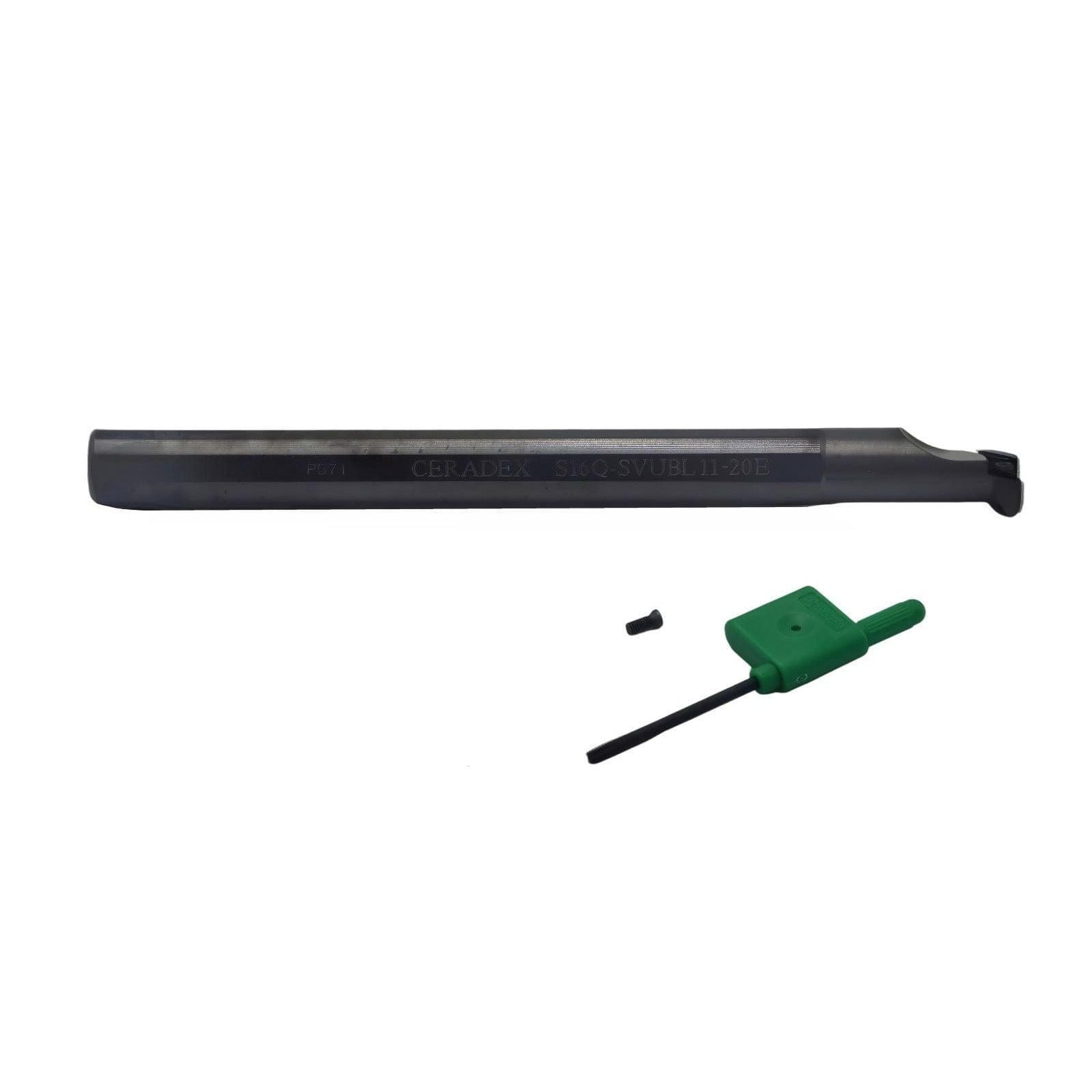

- Includes: Toolholder, clamp screw, Torx/hex key
