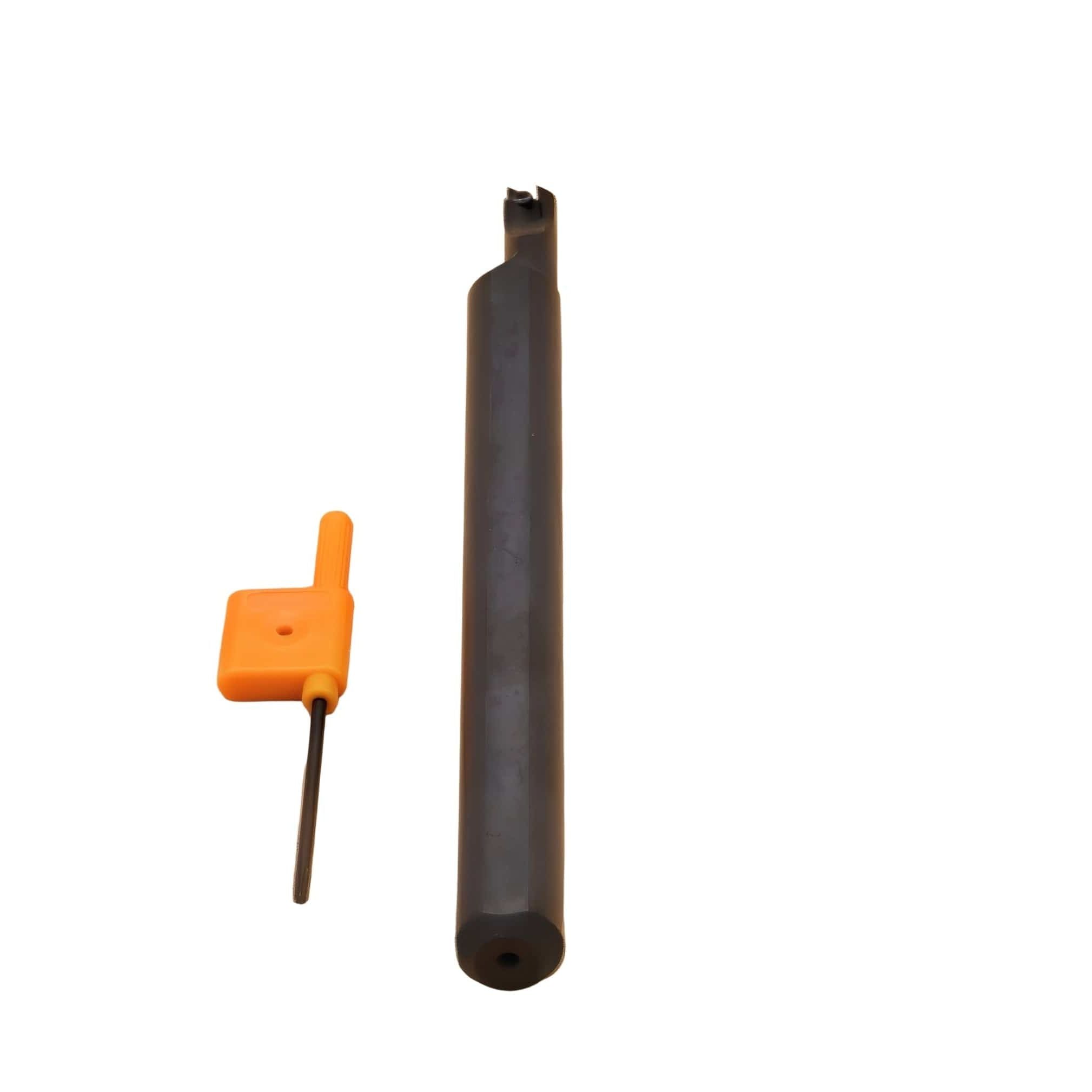

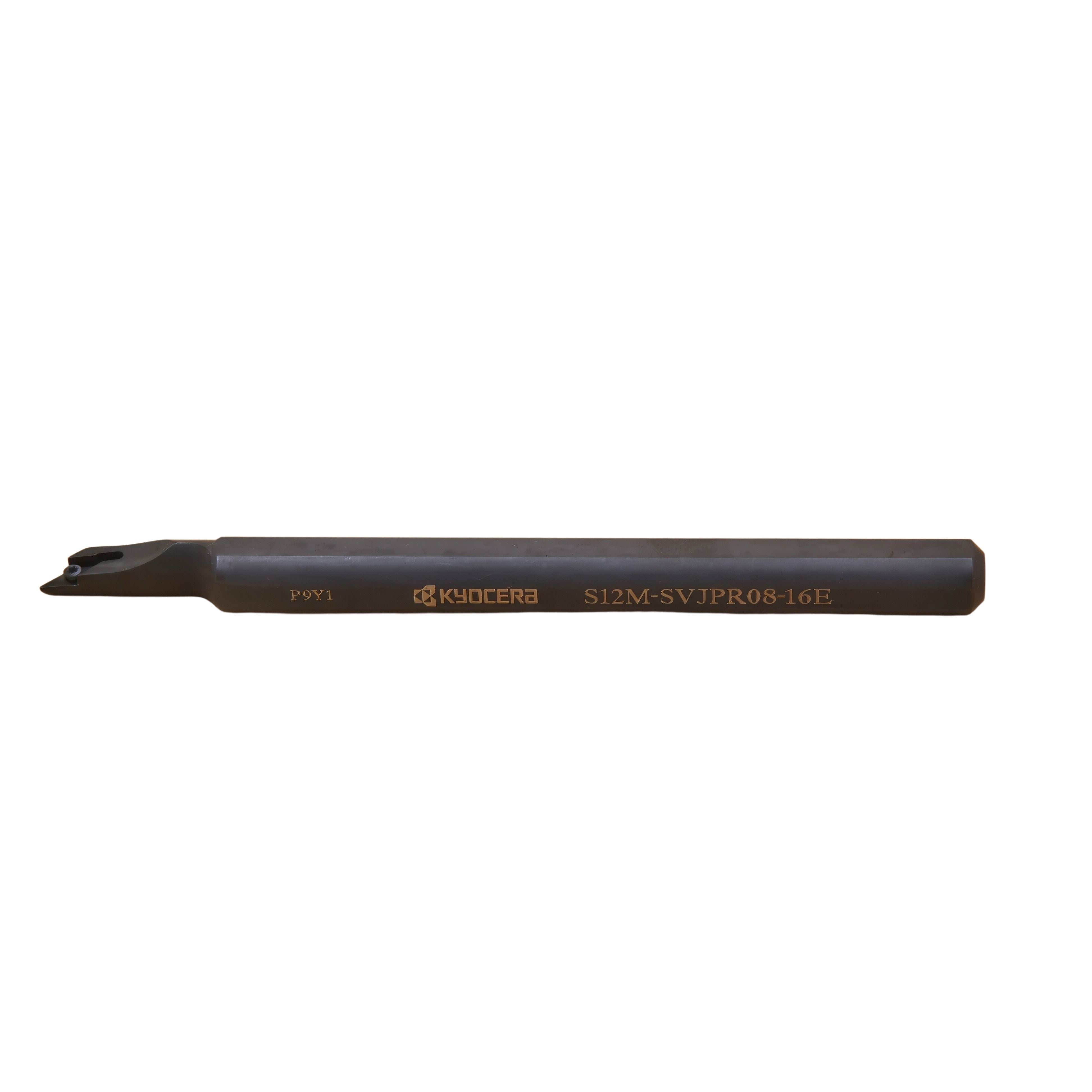

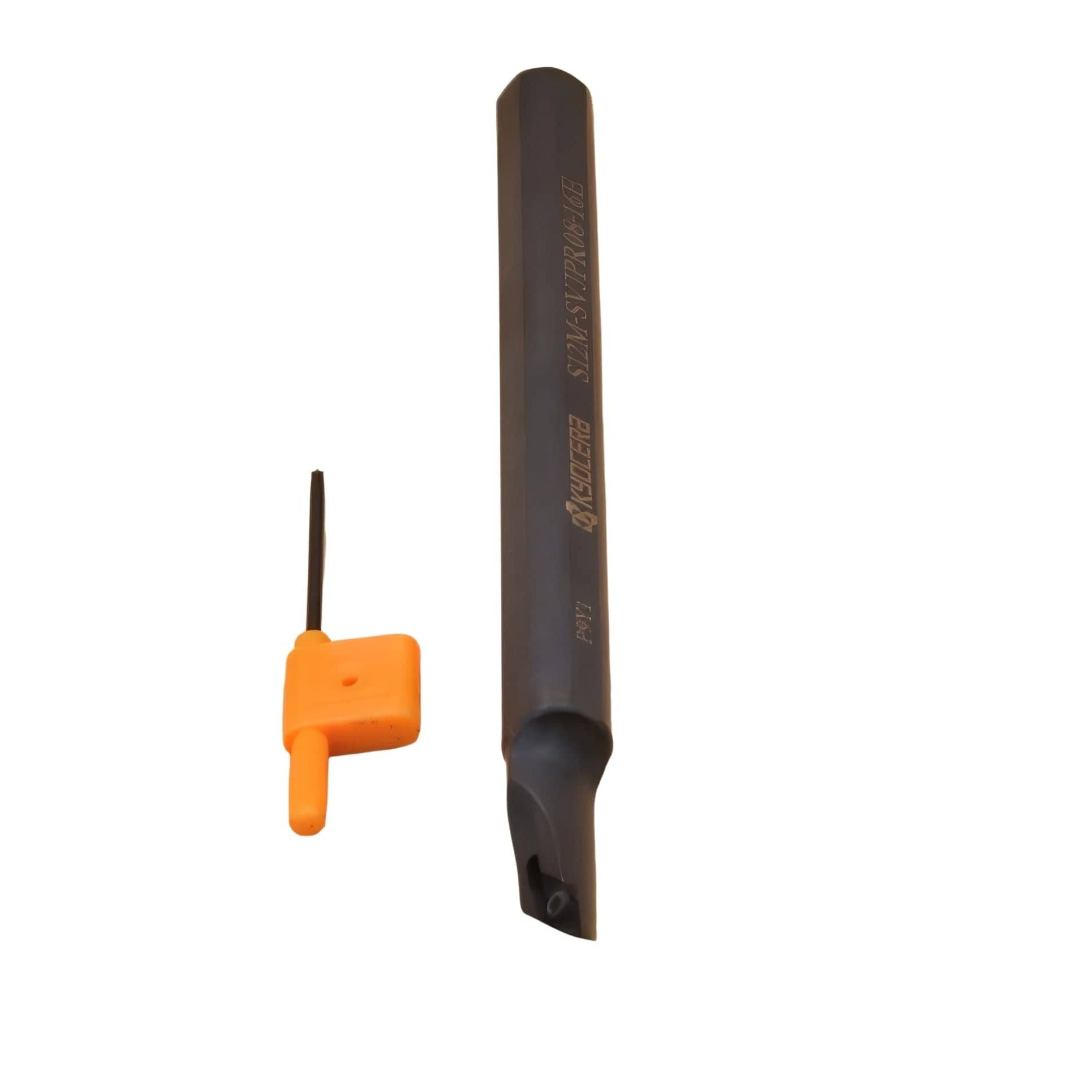

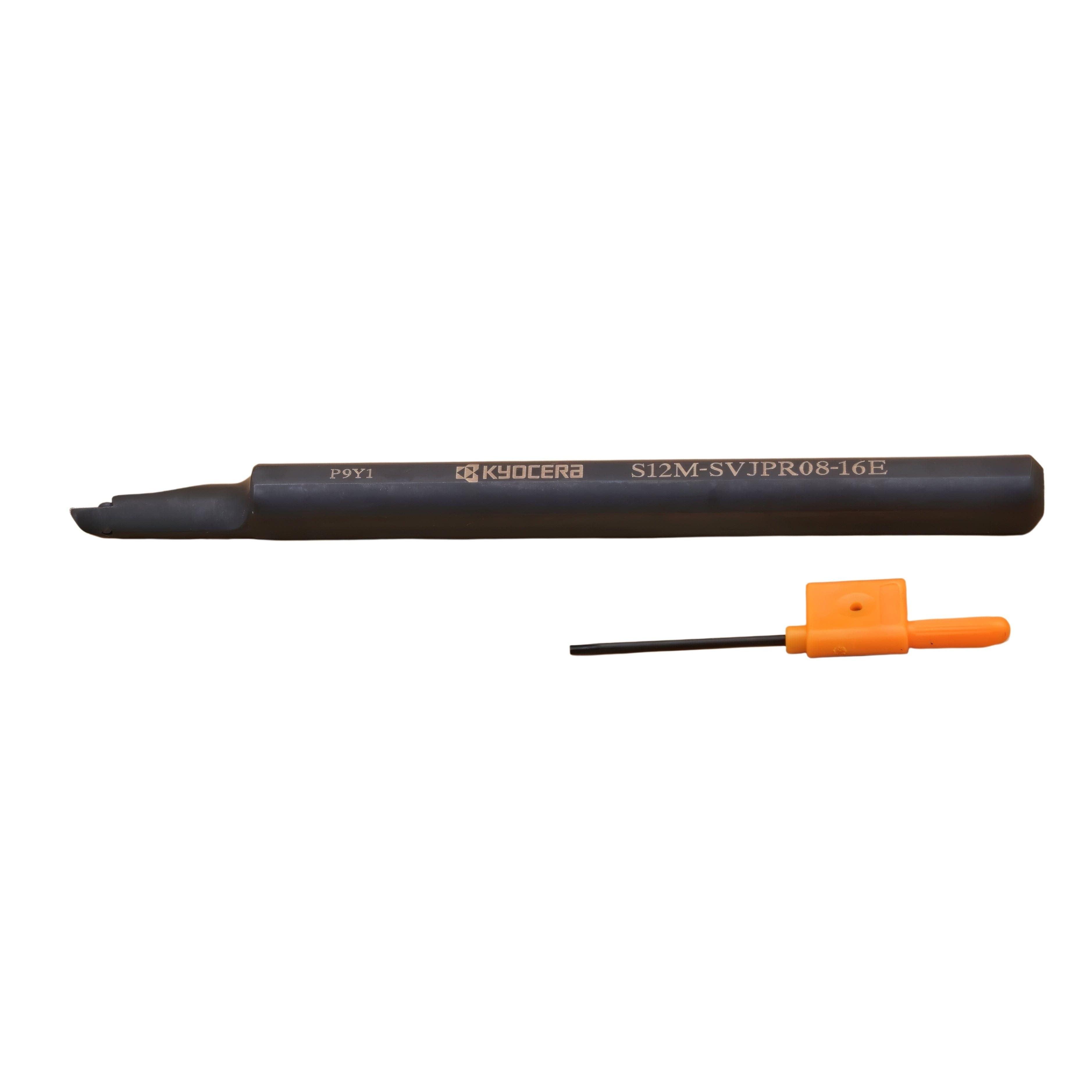

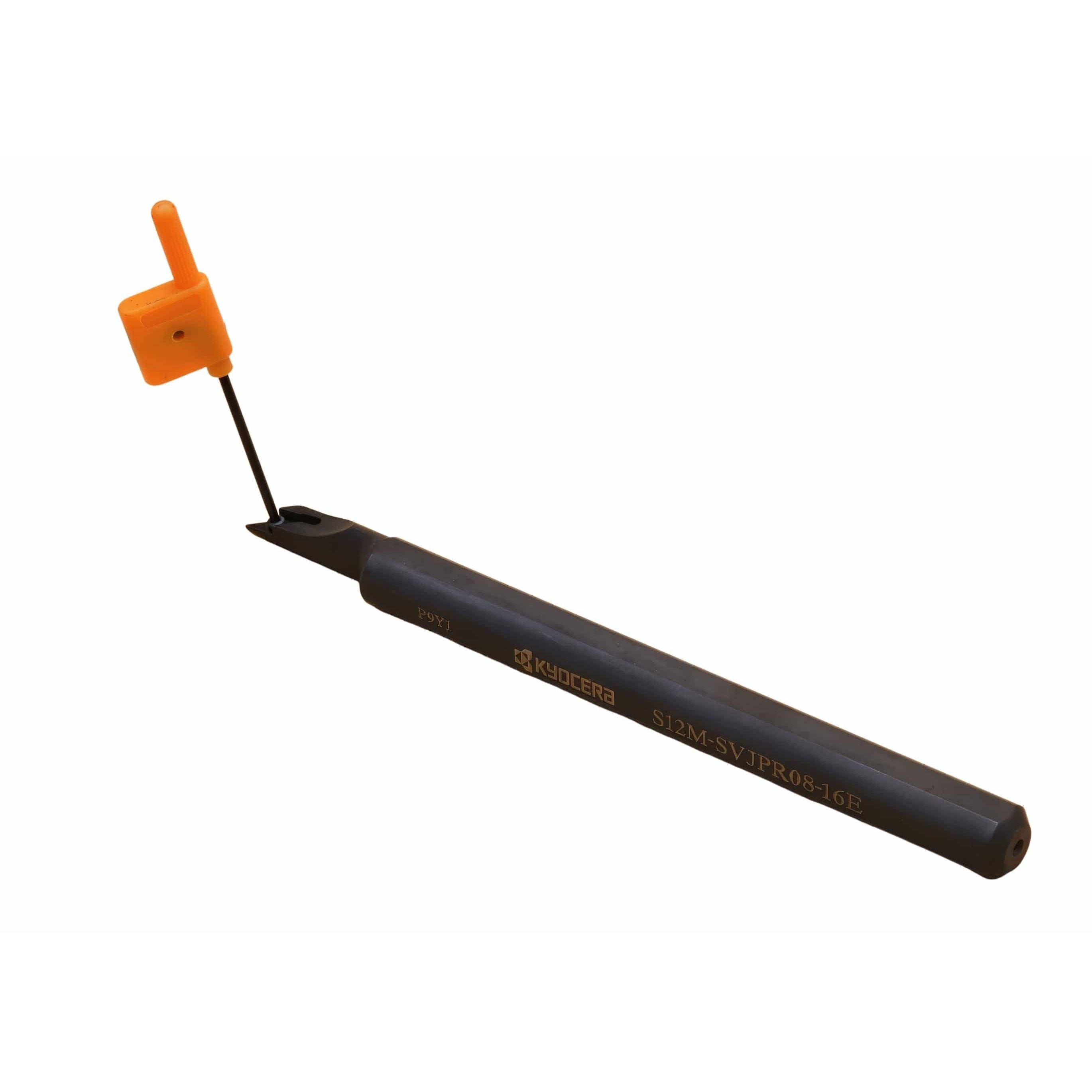

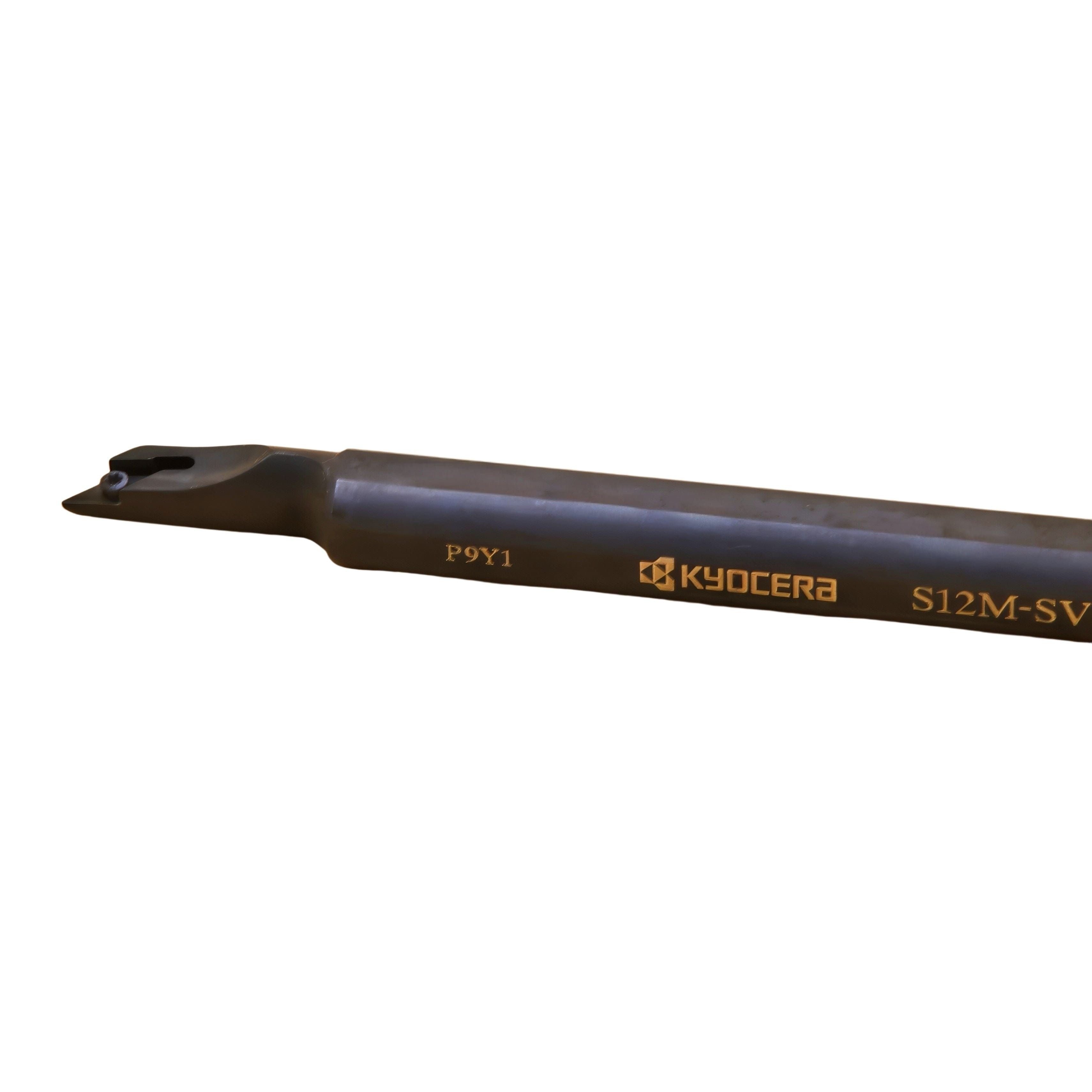

Kyocera S12M-SVJPR08-16E Internal Turning Toolholder
Couldn't load pickup availability
The Kyocera S12M-SVJPR08-16E is a precision internal turning toolholder designed for accurate and stable boring operations in CNC and conventional machining environments. Manufactured from high-strength alloy steel, this toolholder delivers excellent rigidity, helping to minimise vibration and maintain consistent cutting performance in demanding applications.
Featuring the SVJPR holder configuration, this toolholder is designed to securely clamp ISO size 08 inserts for reliable internal turning and profiling operations. The 12 mm cylindrical shank allows secure mounting in boring bar holders, while its optimised geometry supports efficient chip evacuation and smooth cutting performance across a range of materials including steel and stainless steel.
Key Features & Benefits
- Precision internal turning toolholder for boring and profiling applications
- SVJPR holder style compatible with ISO size 08 inserts
- High-strength alloy steel construction for durability and rigidity
- 12 mm shank diameter for secure and stable mounting
- Reduced vibration for improved surface finish and tool life
- Optimised design for efficient chip evacuation
- Suitable for CNC and conventional lathe operations
- Reliable performance across a wide range of engineering materials
Technical Specifications
- Brand: Kyocera
- Model: S12M-SVJPR08-16E
- Item Number: THC08449
- Product Type: Internal Turning Toolholder
- Holder Style: SVJPR
- Insert Size: 08
- Shank Diameter (DCON): 12 mm
- Minimum Bore Diameter: 16 mm
- Overall Length (OAL): Approx. 150 mm
- Hand: Right Hand
- Material: Alloy Steel
Kyocera cutting tools are globally recognised for their precision engineering and consistent machining performance. Their internal turning toolholders are designed to provide secure insert clamping, excellent rigidity, and dependable results across a wide range of machining applications.
