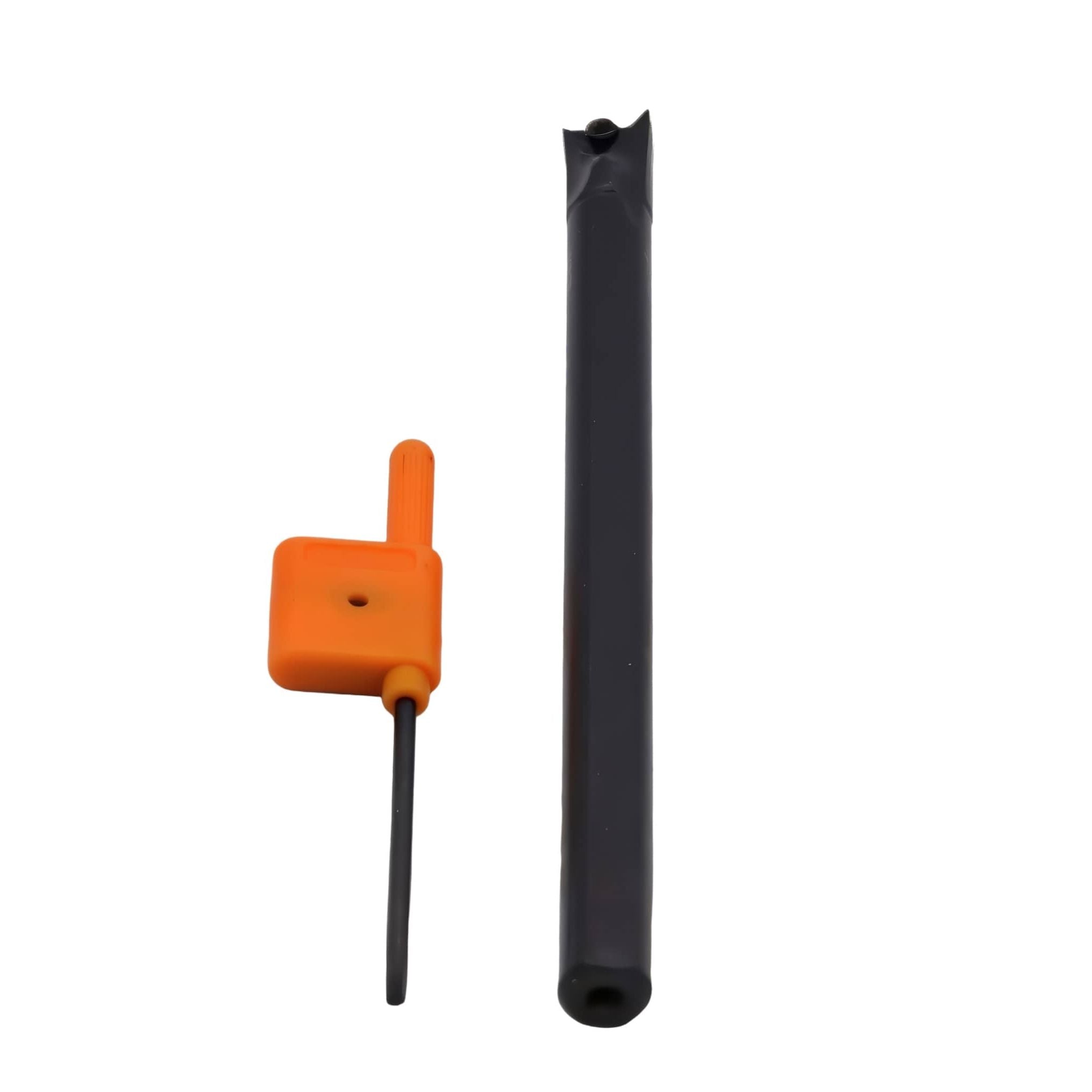

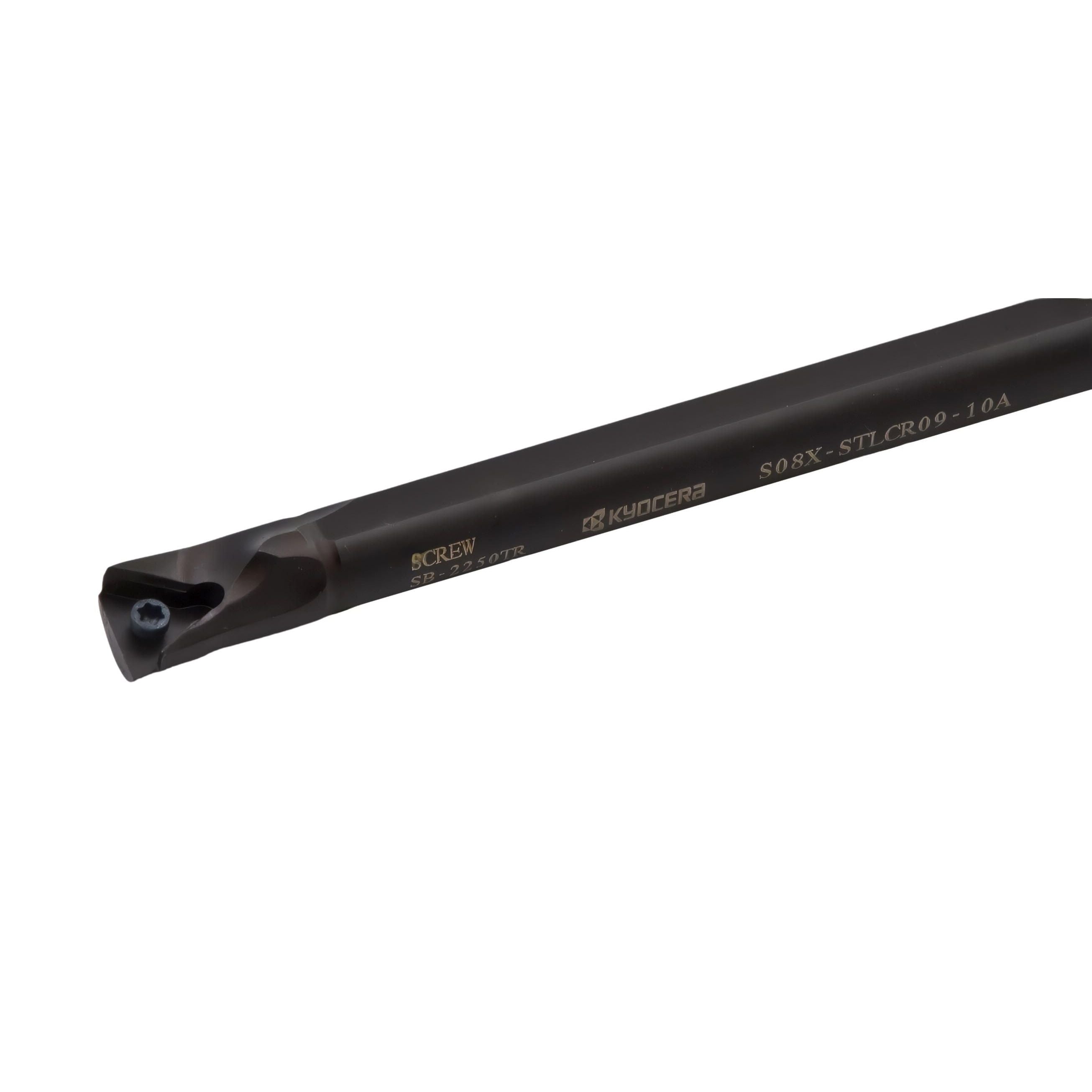

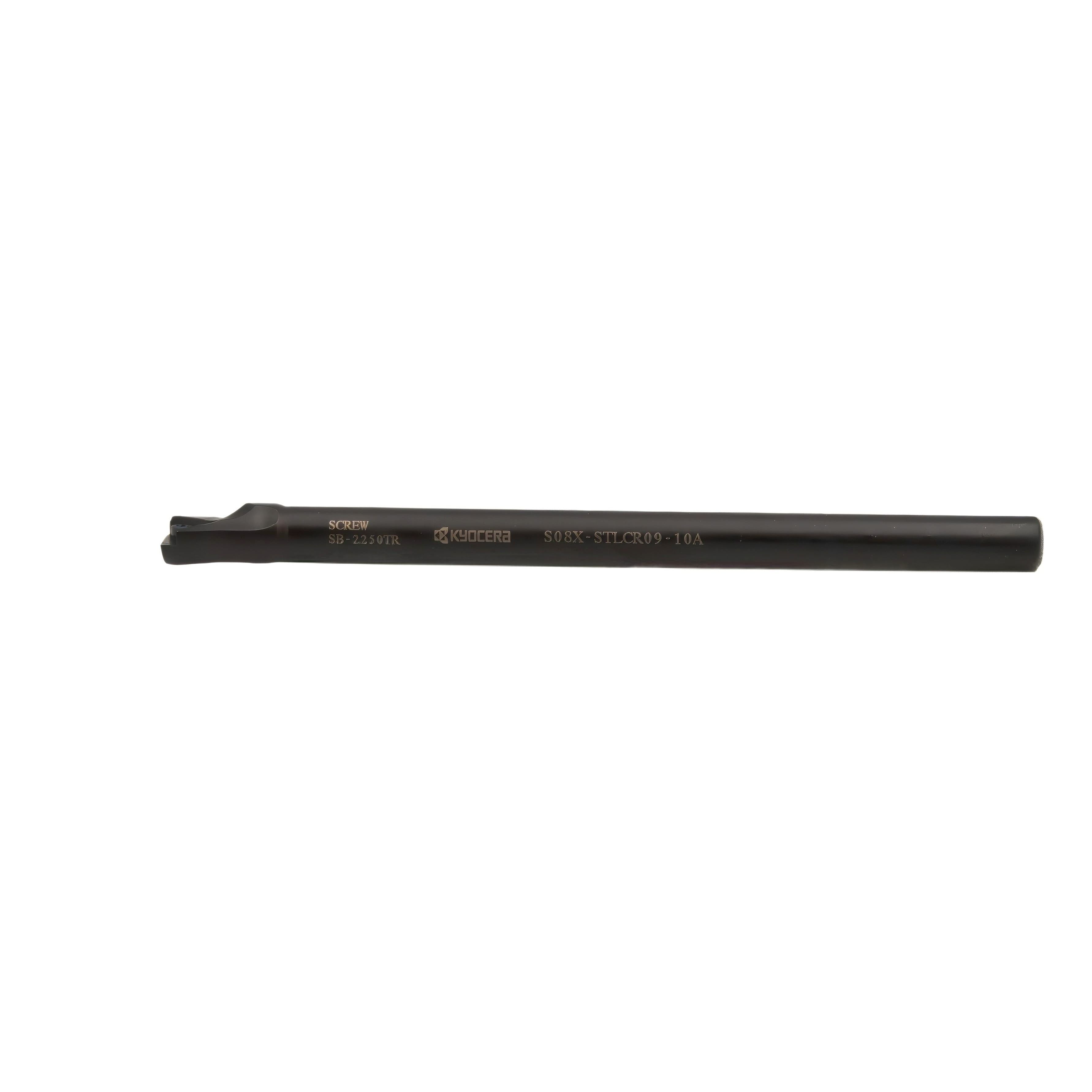

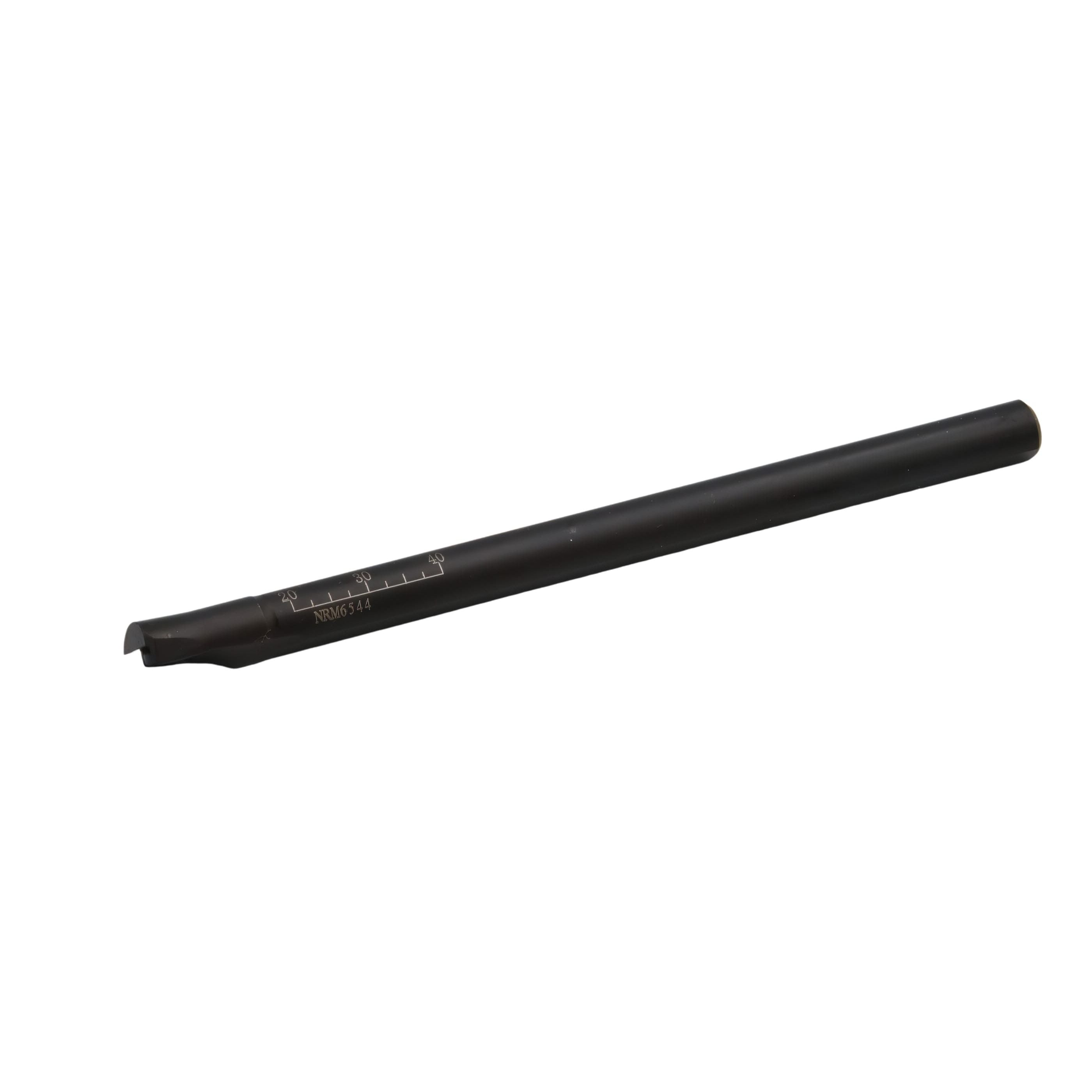

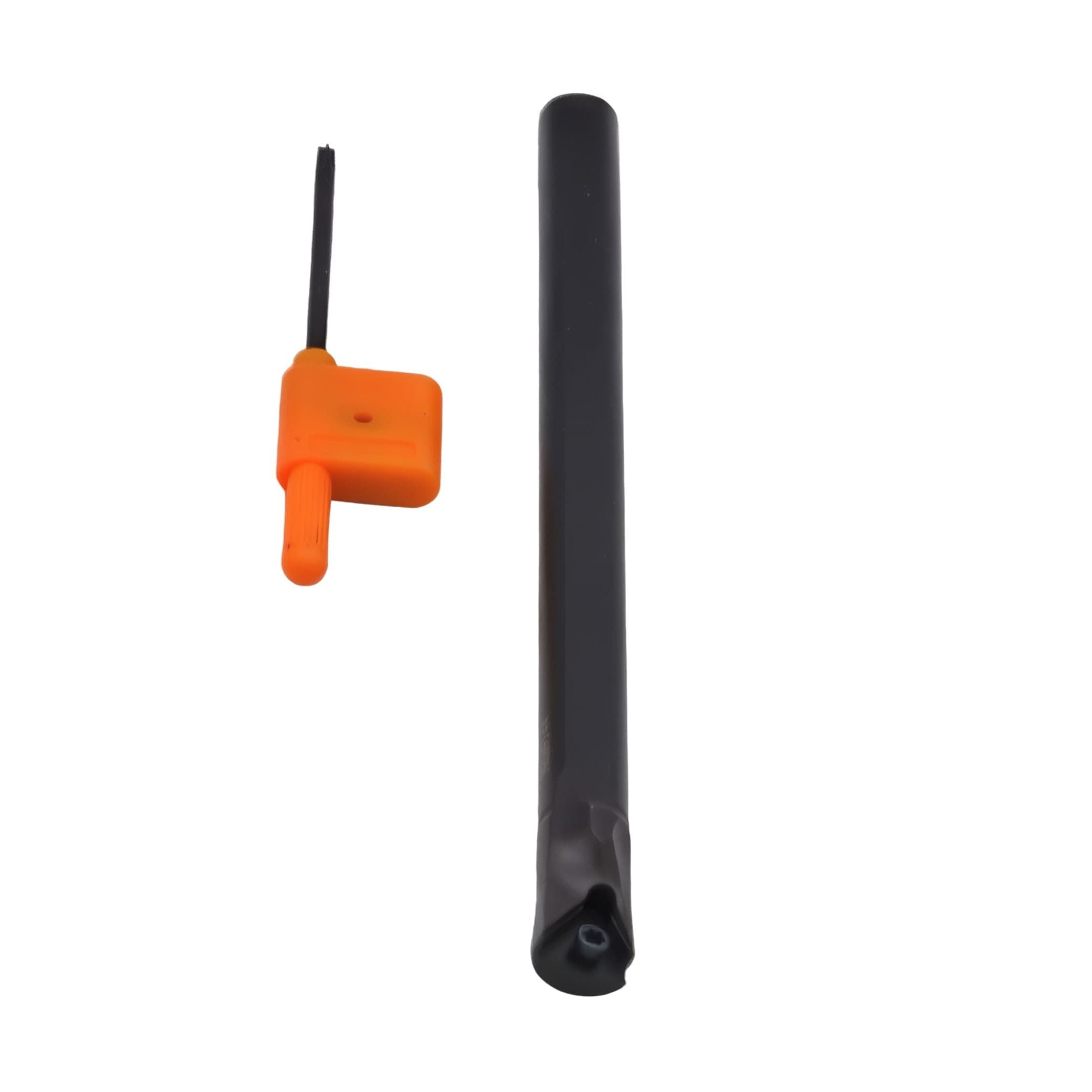

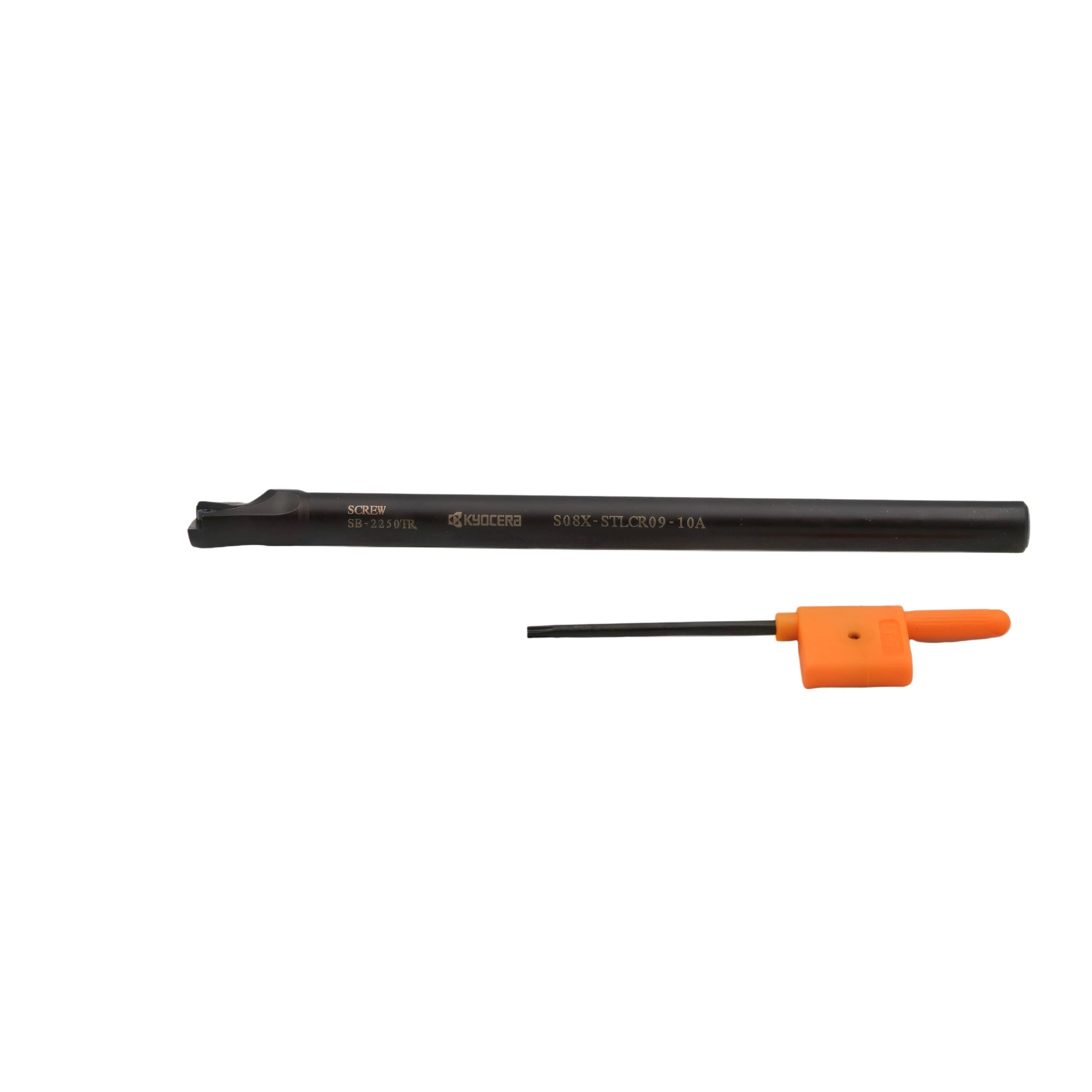

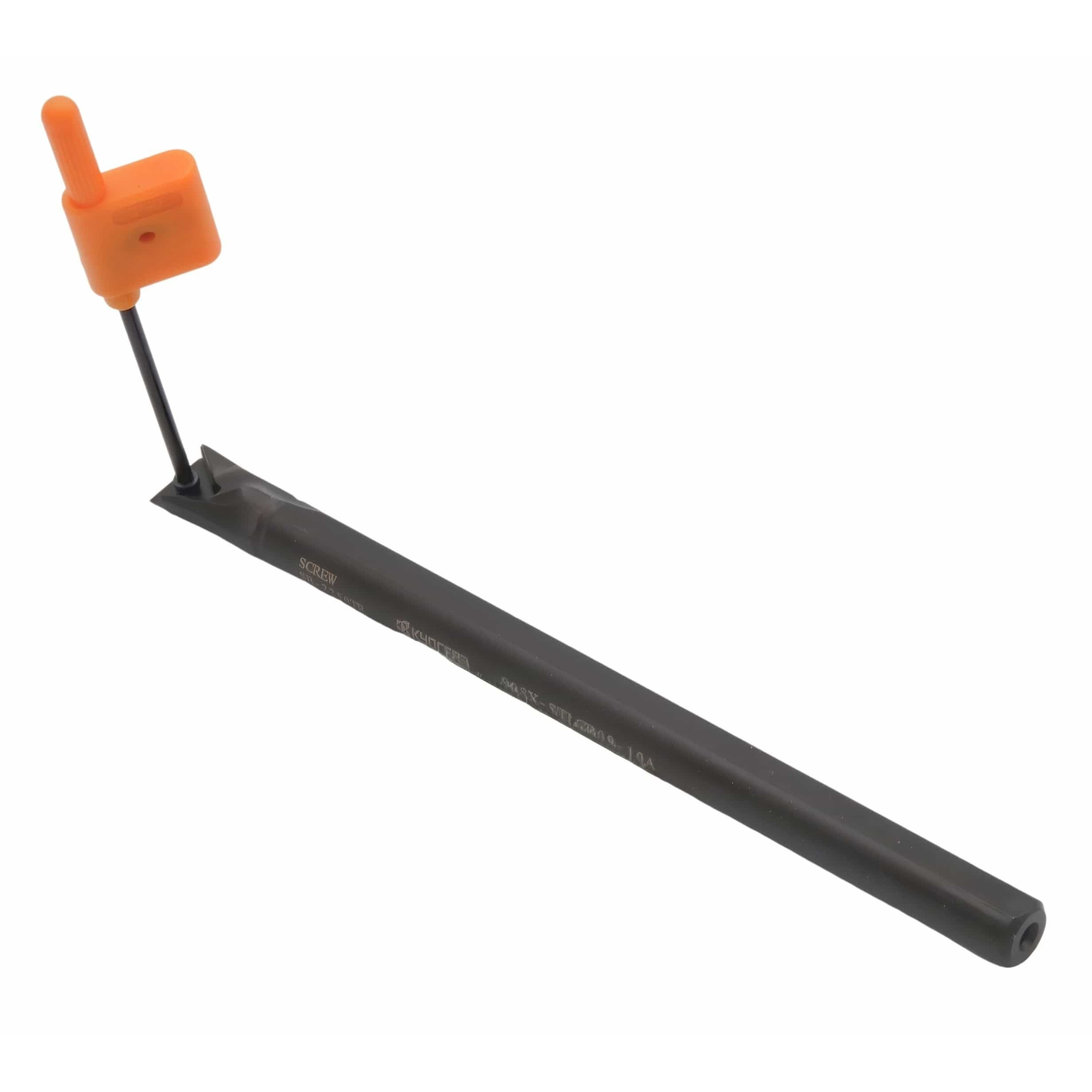

Kyocera S08X-STLCR09-10A Internal Turning Boring Bar – THC11836

The Kyocera S08X-STLCR09-10A internal turning toolholder is a high-precision boring bar designed for internal machining operations such as boring, internal facing, and profiling. Its compact 8 mm cylindrical shank allows access to small bore diameters, making it ideal for precision work in confined machining environments.

Designed for use with positive triangular inserts, this holder provides smooth cutting action with reduced cutting forces, improving surface finish and tool life. The right-hand configuration and optimised geometry ensure efficient chip evacuation and stable machining, while the rigid steel construction minimises vibration and enhances accuracy during operation.

Key Features & Benefits

• Internal turning boring bar for precision internal machining
• Compatible with positive triangular inserts (TCGT/TPGT style)
• Right-hand configuration for standard operations
• 8 mm shank diameter for small bore applications
• Minimum bore diameter: 10 mm
• Positive rake geometry for smooth cutting and reduced forces
• Excellent chip evacuation for improved machining efficiency
• Rigid steel construction for reduced vibration and higher accuracy

Technical Specifications

• Brand: Kyocera
• Model: S08X-STLCR09-10A
• Item Number: THC11836
• Product Type: Internal Turning Boring Bar
• Insert Type: Positive Triangular (TCGT/TPGT)
• Insert Size: 09
• Shank Diameter: 8 mm
• Minimum Bore Diameter: 10 mm
• Hand: Right
• Material: Steel
• Total Length: 120 mm
• Head Length: 16 mm
• Clearance Angle: 7°
• Insert Included Angle: 60°
• Rake Angle (Radial/Axial): 0° / 0°
• Tool Cutting Edge Angle: 95°
• Cutting Edge Length: 9.63 mm
• Corner Radius: 0.4 mm
• Insert Thickness: 2.38 mm
• Internal Coolant: No

Kyocera is globally recognised for precision cutting tools, delivering consistent performance, durability, and reliability across a wide range of machining applications.
