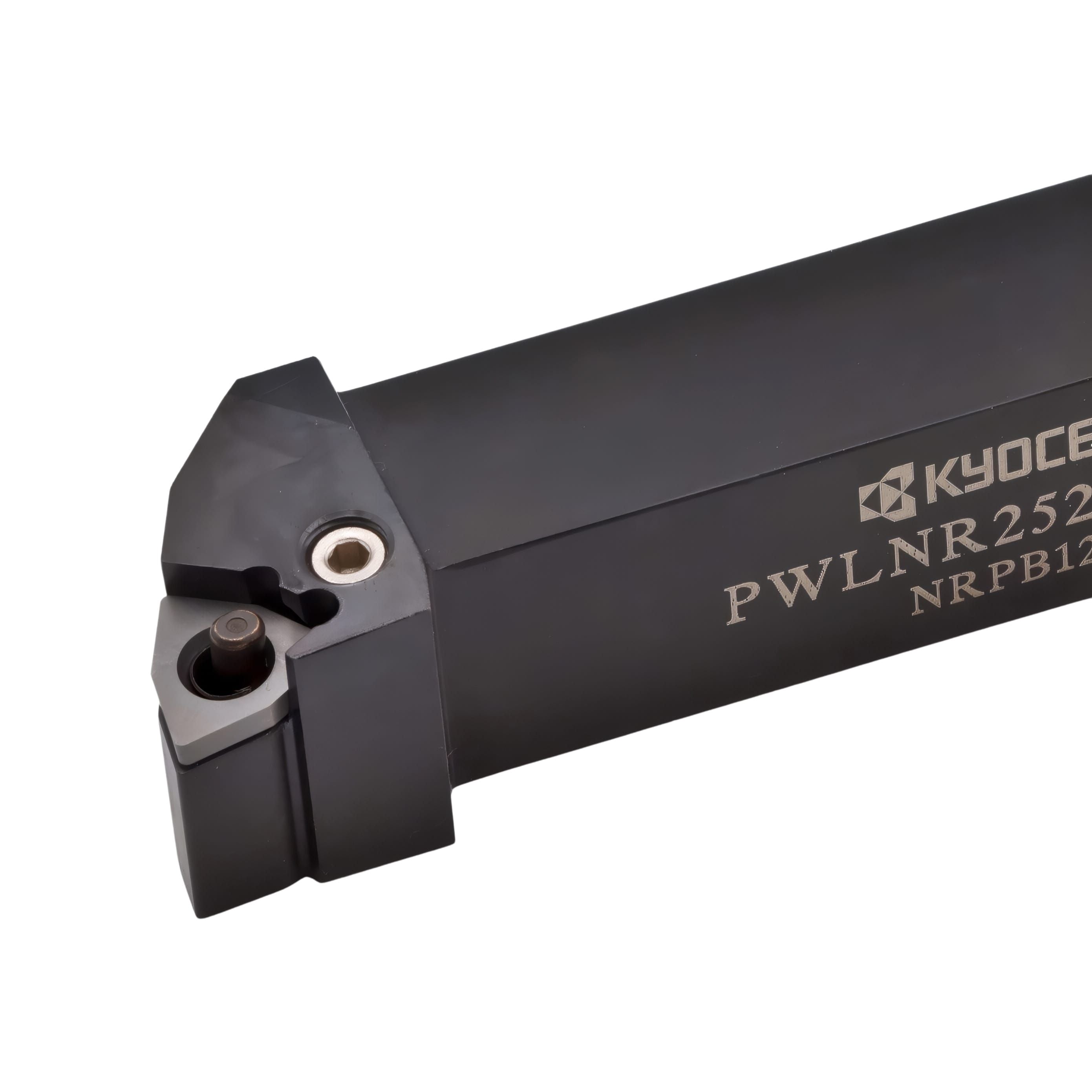

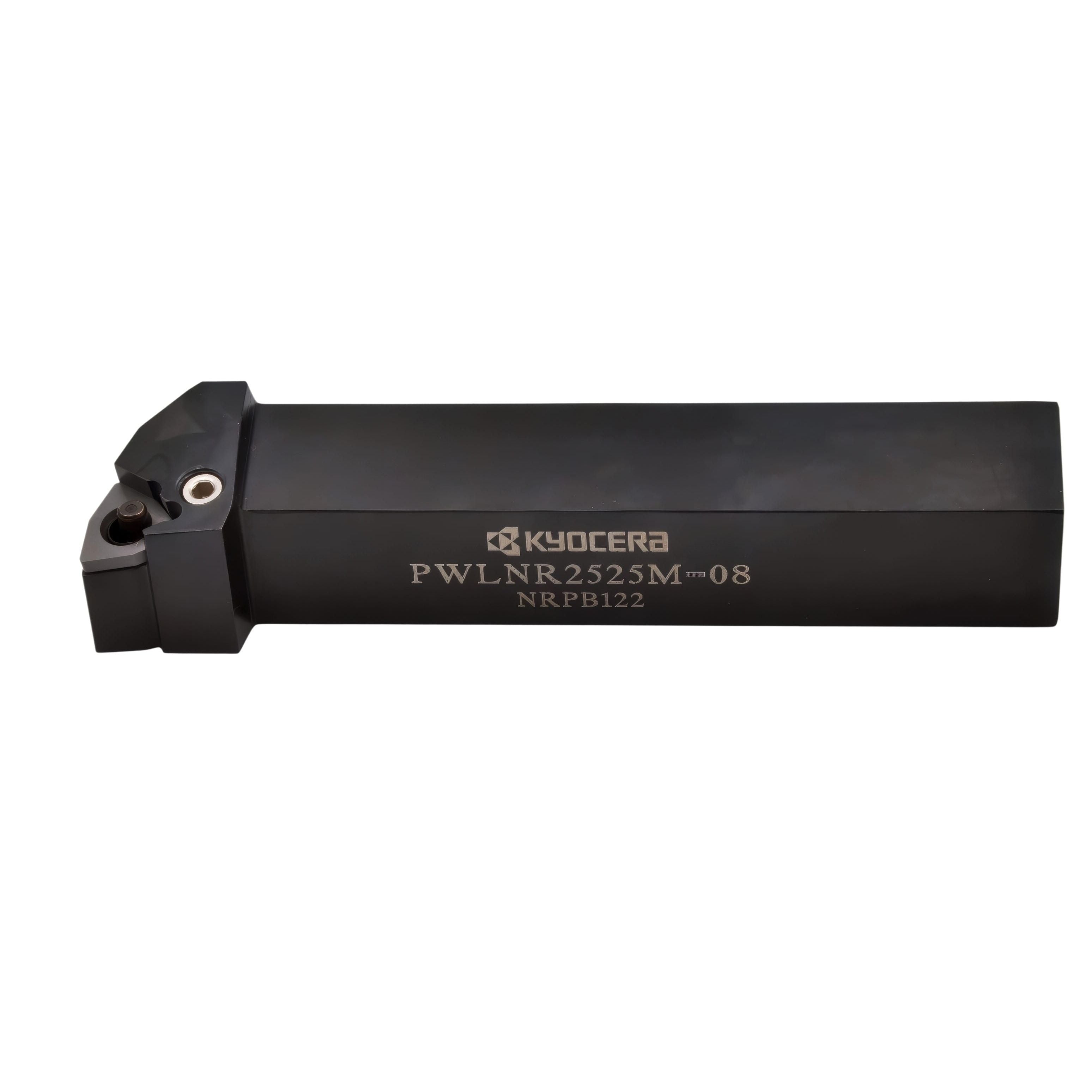

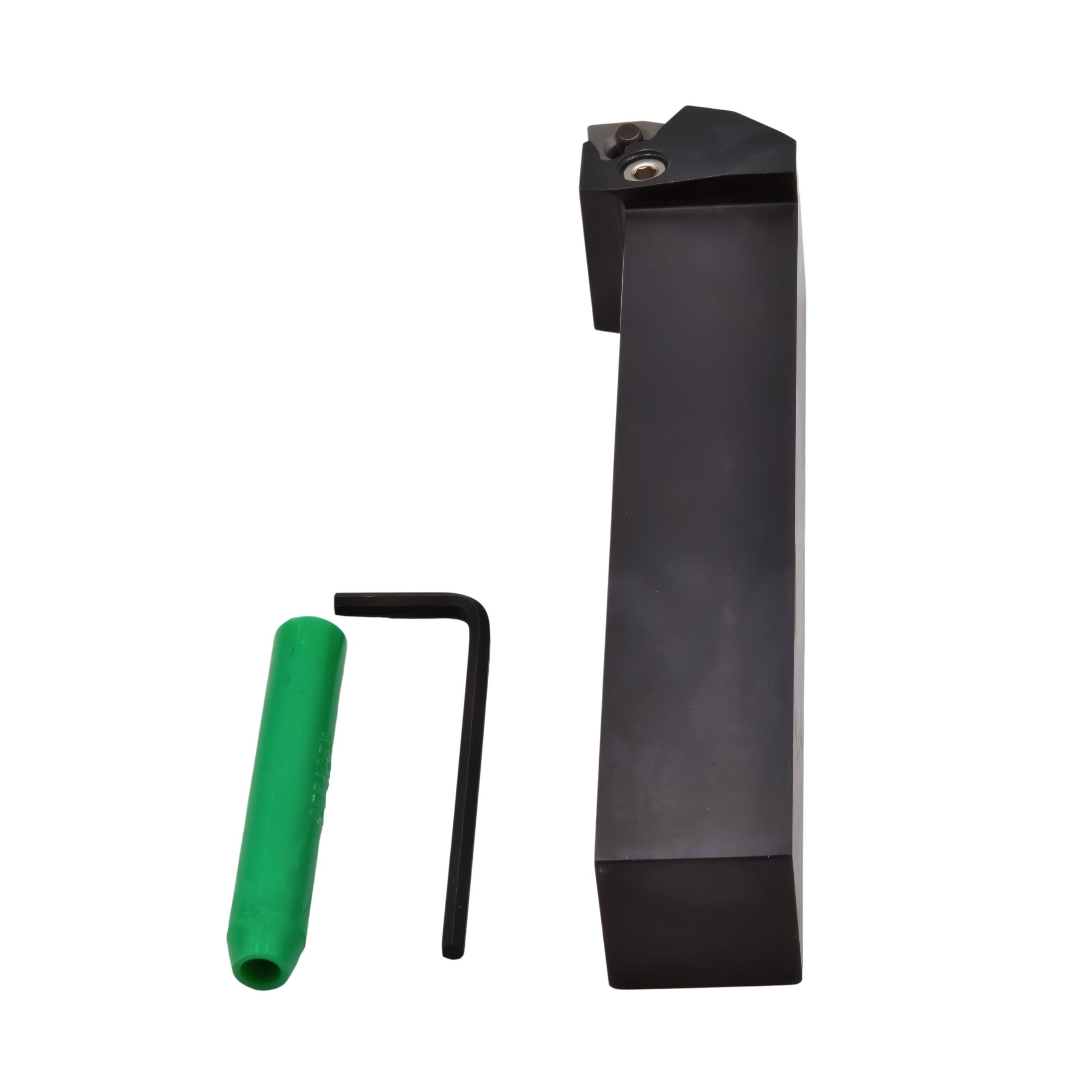

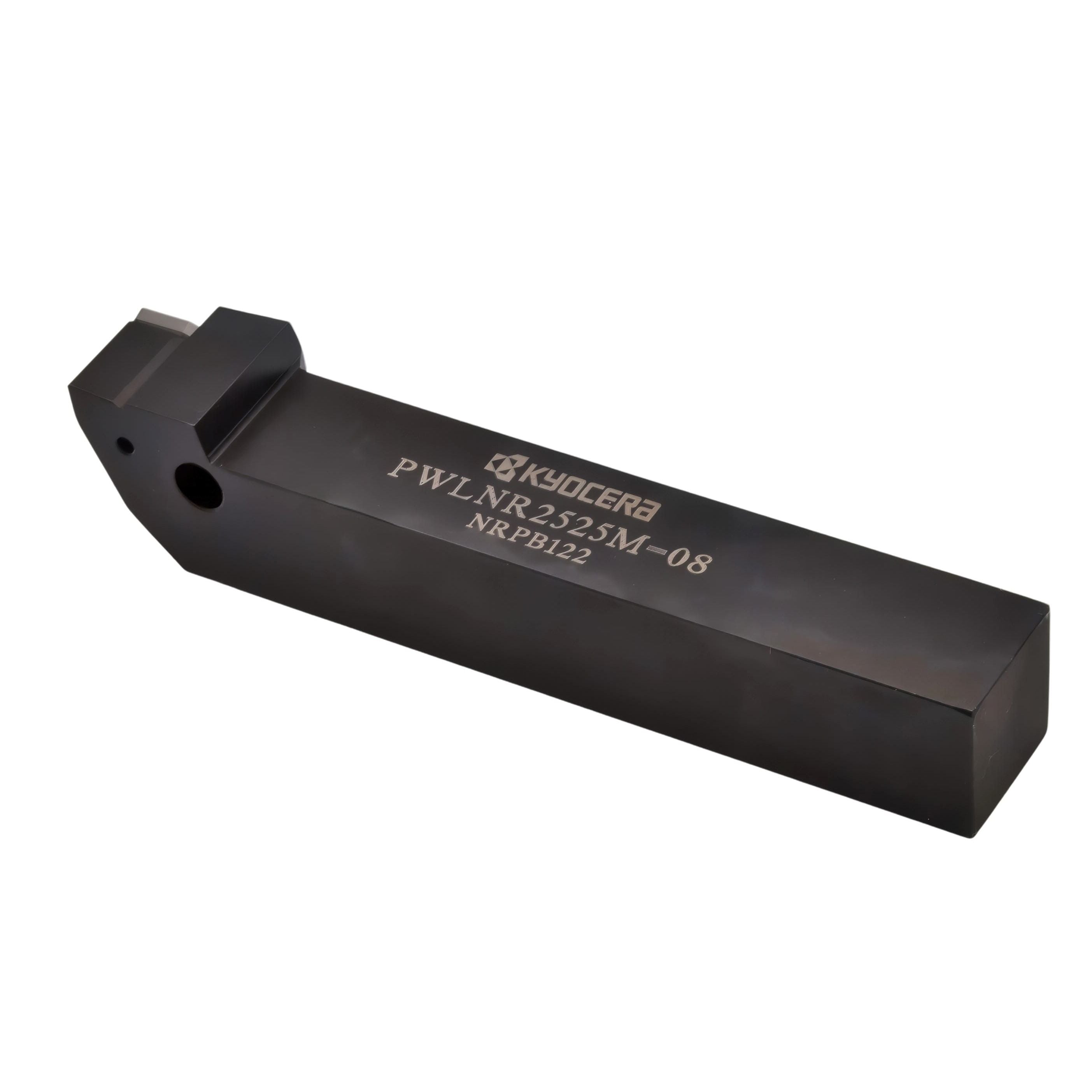

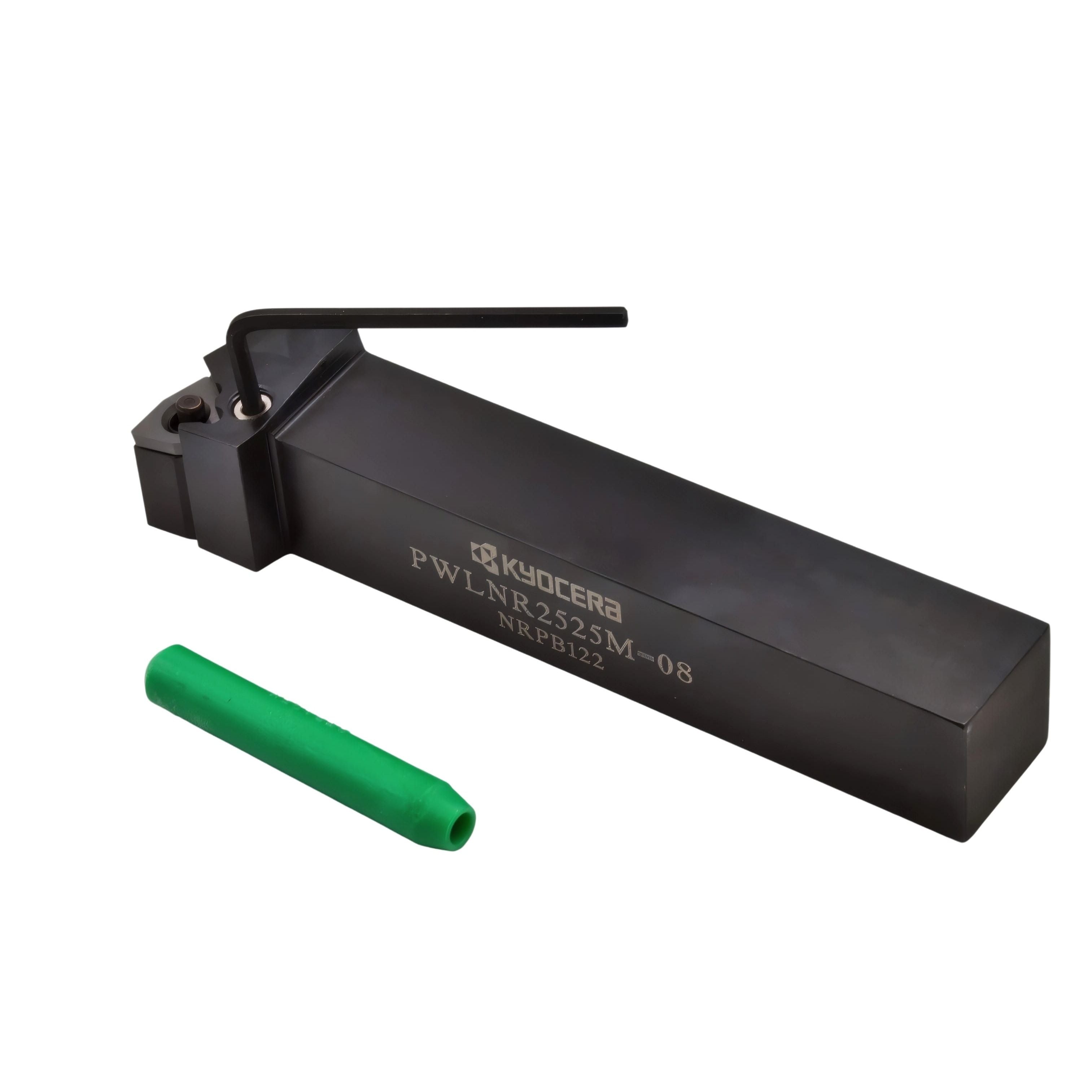

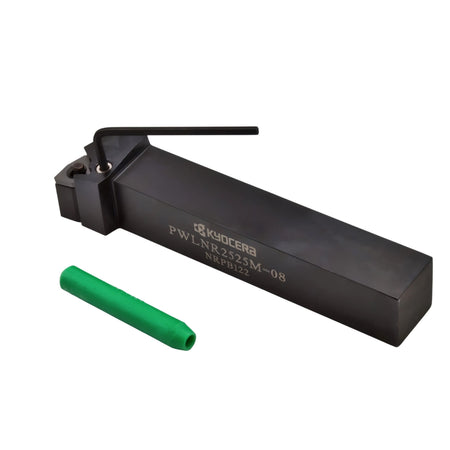

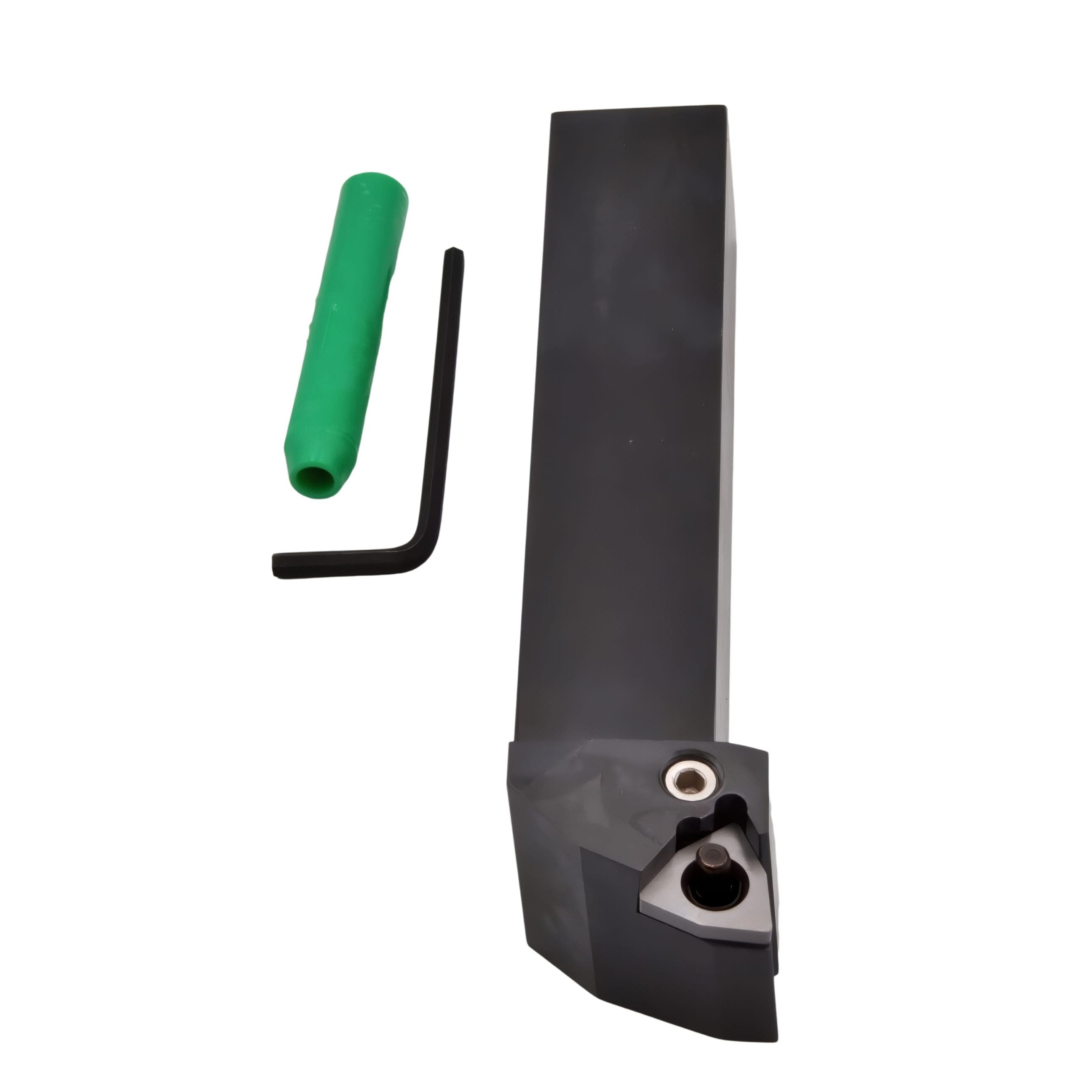

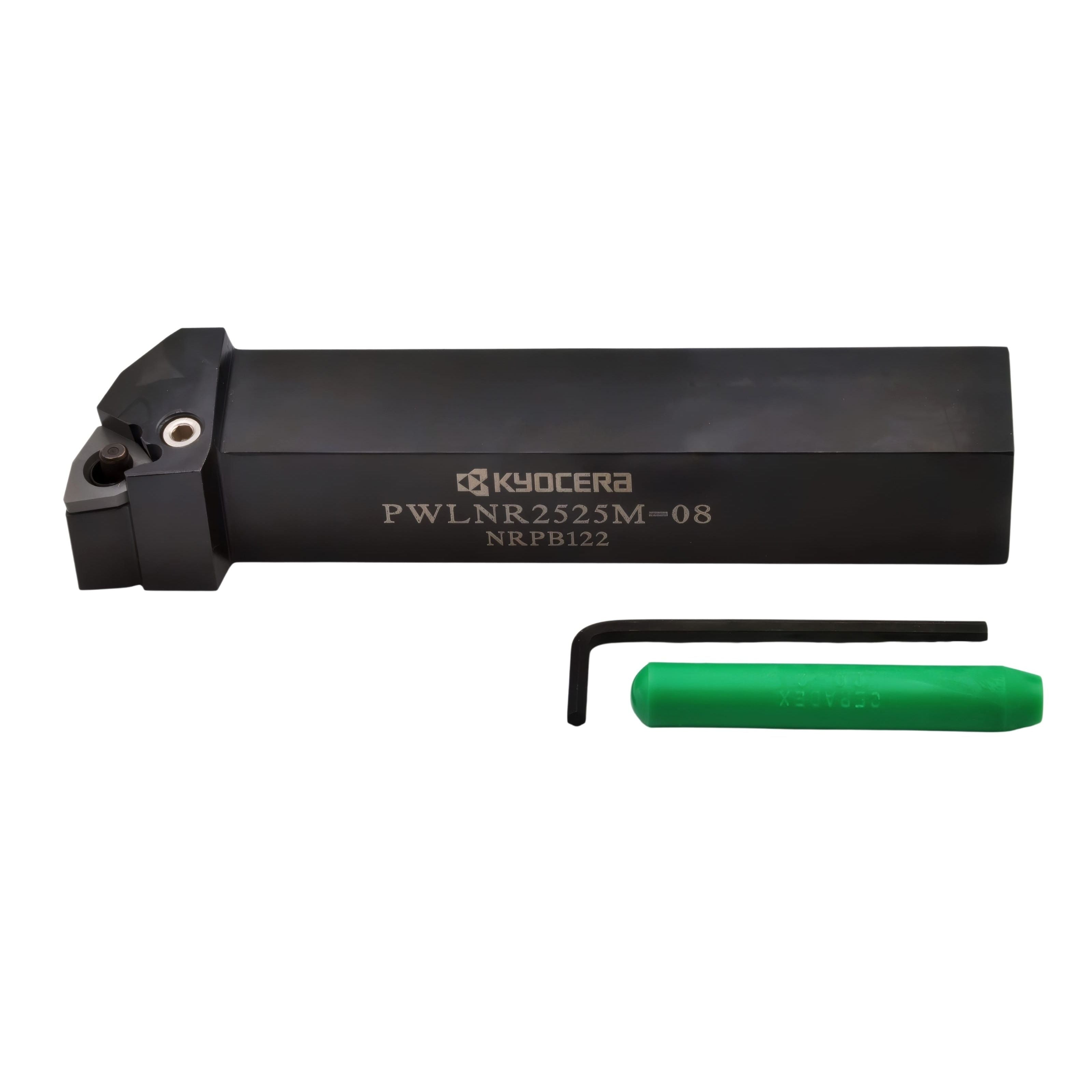

Kyocera PWLNR2525M-08 External Turning Toolholder – THC00150
Couldn't load pickup availability
The Kyocera PWLNR2525M-08 is a precision external turning toolholder engineered for reliable roughing, profiling, and general turning applications in CNC and manual machining operations. Featuring a robust 25mm x 25mm shank and right-hand cutting configuration, this toolholder provides excellent rigidity, stability, and cutting performance for demanding metalworking environments.
Designed to suit WNMG style inserts size 08, the PWLNR2525M-08 offers secure insert clamping and efficient chip control for smooth machining performance and improved surface finishes. Its durable construction and optimized geometry make it ideal for machining steel, stainless steel, cast iron, and a wide range of engineering materials.
Key Features & Benefits
- Suitable for external turning, facing, and profiling applications
- Compatible with WNMG 08 inserts
- 25mm square shank provides excellent rigidity and stability
- Right-hand cutting design for standard turning operations
- Secure insert clamping for improved machining consistency
- Excellent chip evacuation and vibration resistance
- Suitable for CNC lathes and manual machining centres
- Designed for steel, stainless steel, and cast iron machining
Technical Specifications
- Part Number: PWLNR2525M-08
- Item Number: THC00150
- Product Type: External Turning Toolholder
- Holder Style: PWLNR
- Cutting Direction: Right Hand
- Insert Type: WNMG
- Insert Size: 08
- Shank Width (B): 25 mm
- Shank Height (H): 25 mm
- Total Length (OAL): 150 mm
- Head Length (LH): 26 mm
- Cutting Edge Angle: 95°
- Insert Included Angle: 80°
- Inscribed Circle Diameter: 12.7 mm
- Cutting Edge Length: 8.687 mm
- Corner Radius: 0.8 mm
- Insert Thickness: 4.76 mm
- Functional Width: 32 mm
- Functional Width 2: 23 mm
- Internal Coolant: No
- Brand: Kyocera
Kyocera turning toolholders are engineered for durability, precision, and dependable cutting performance, helping machinists achieve high-quality results across a wide range of industrial machining applications.
