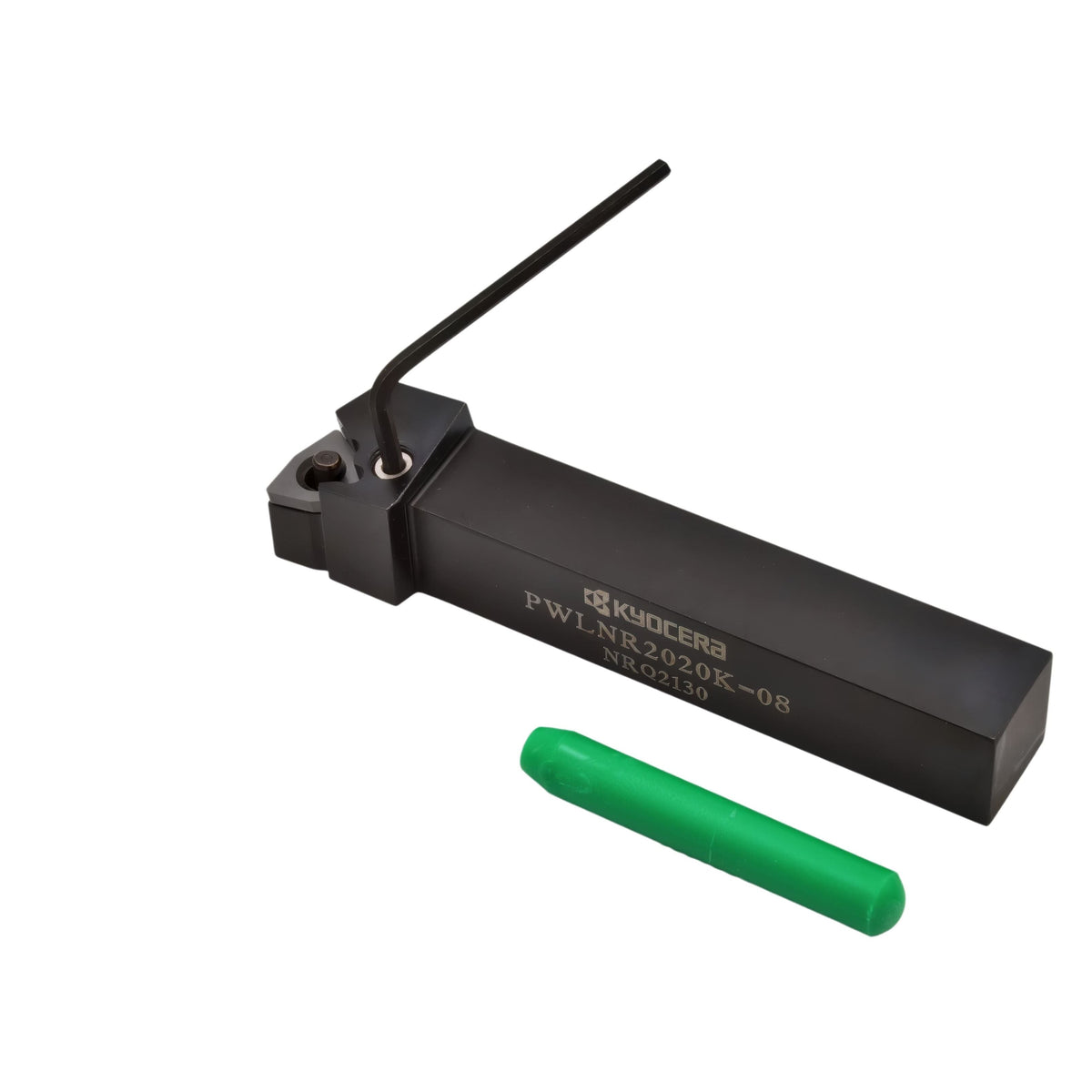

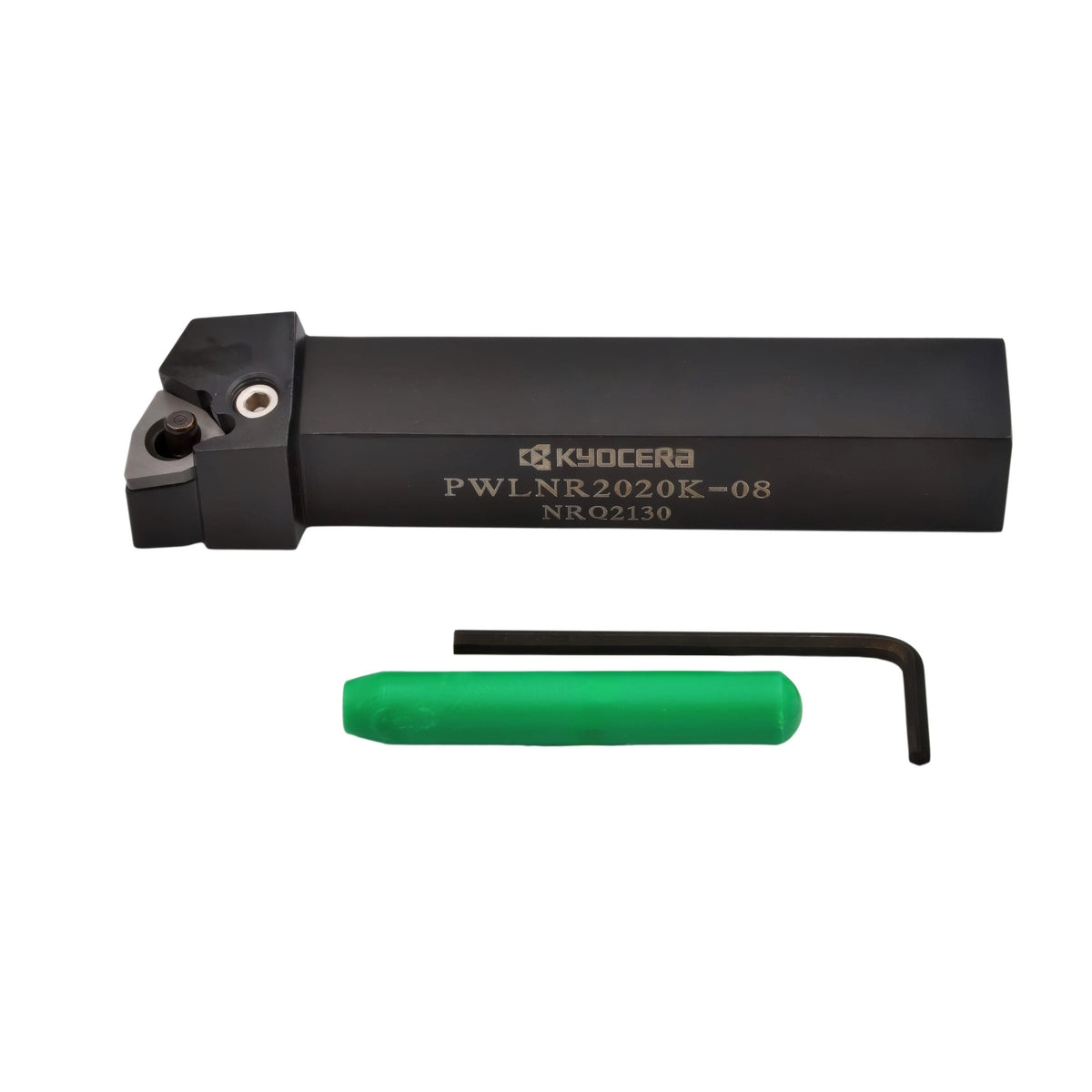

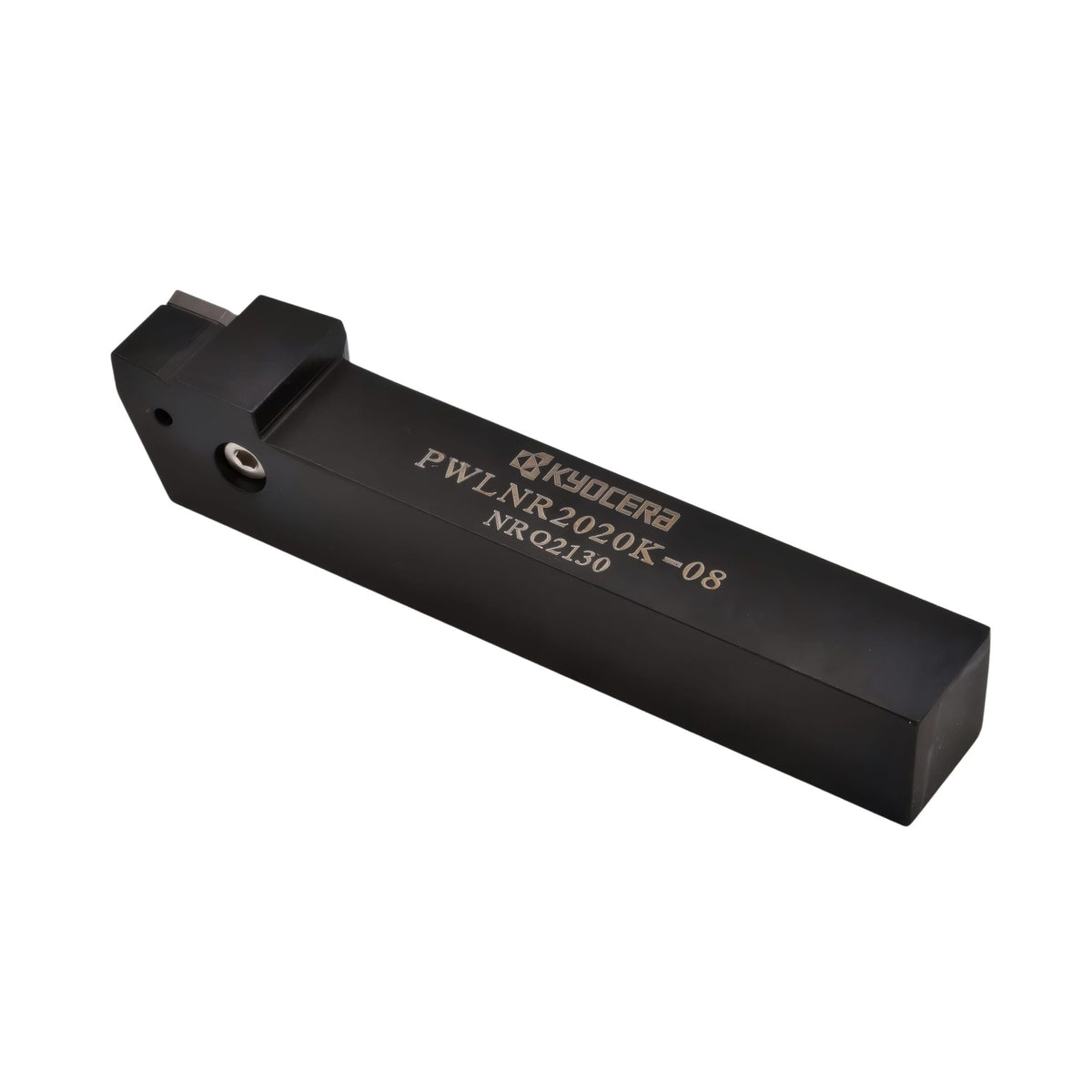

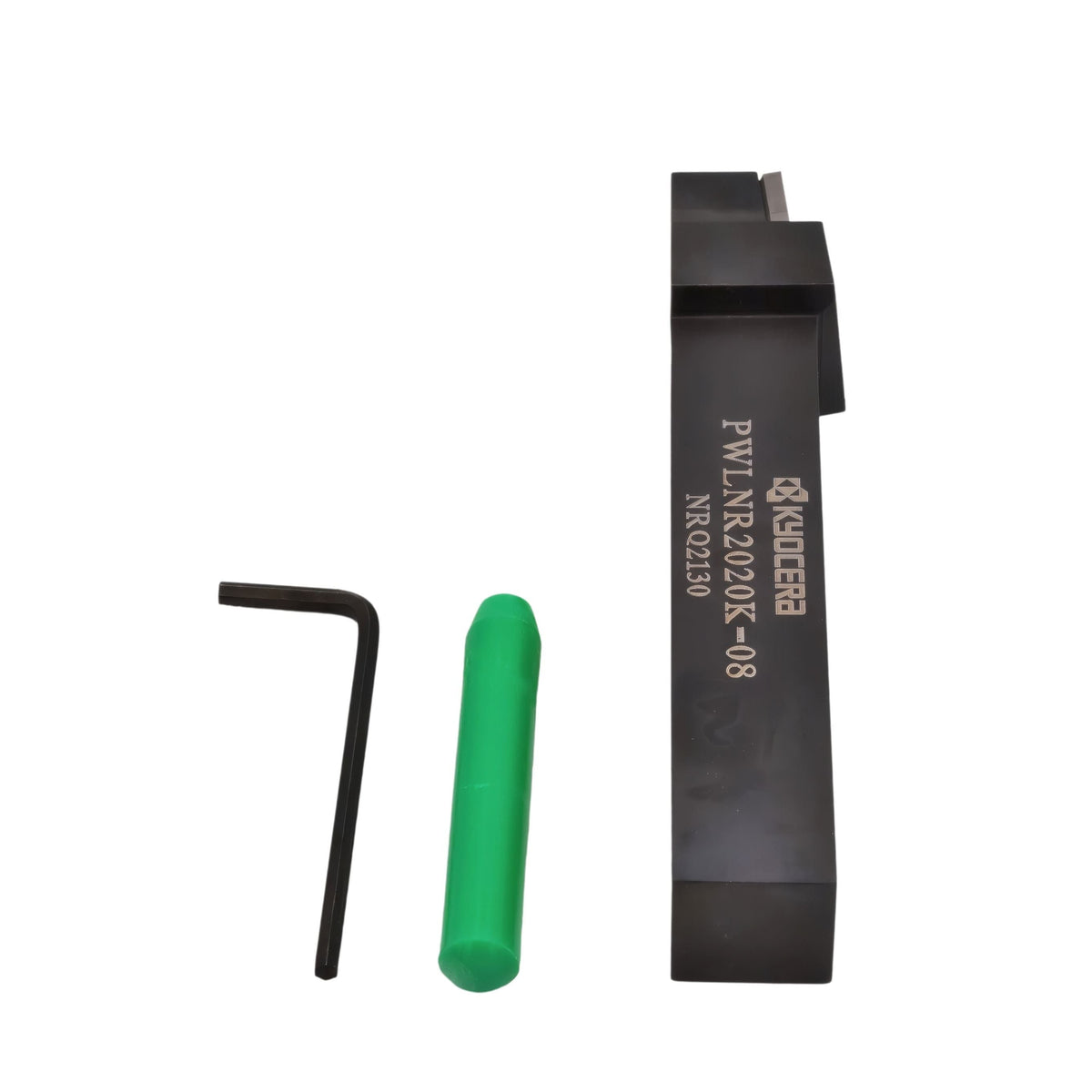

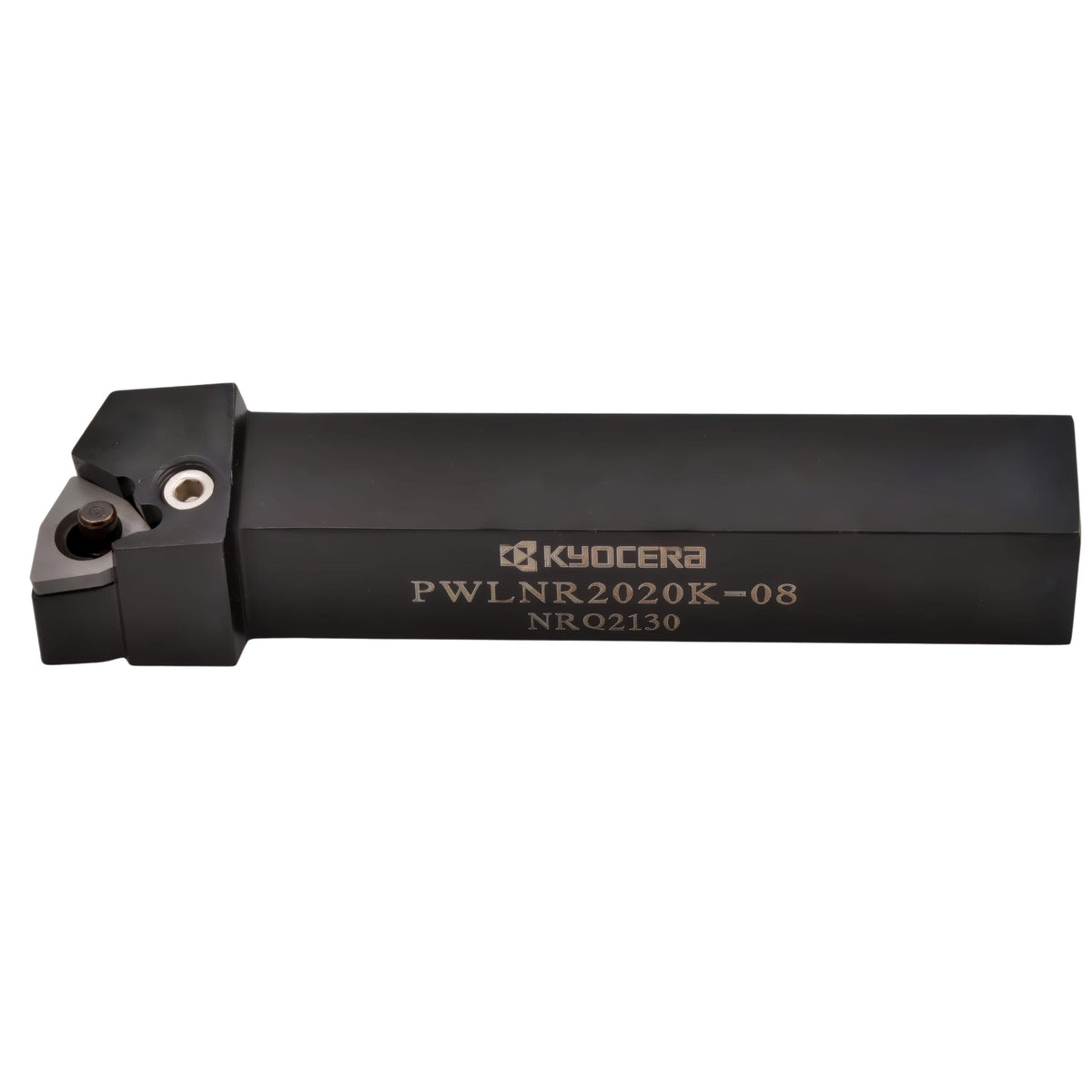

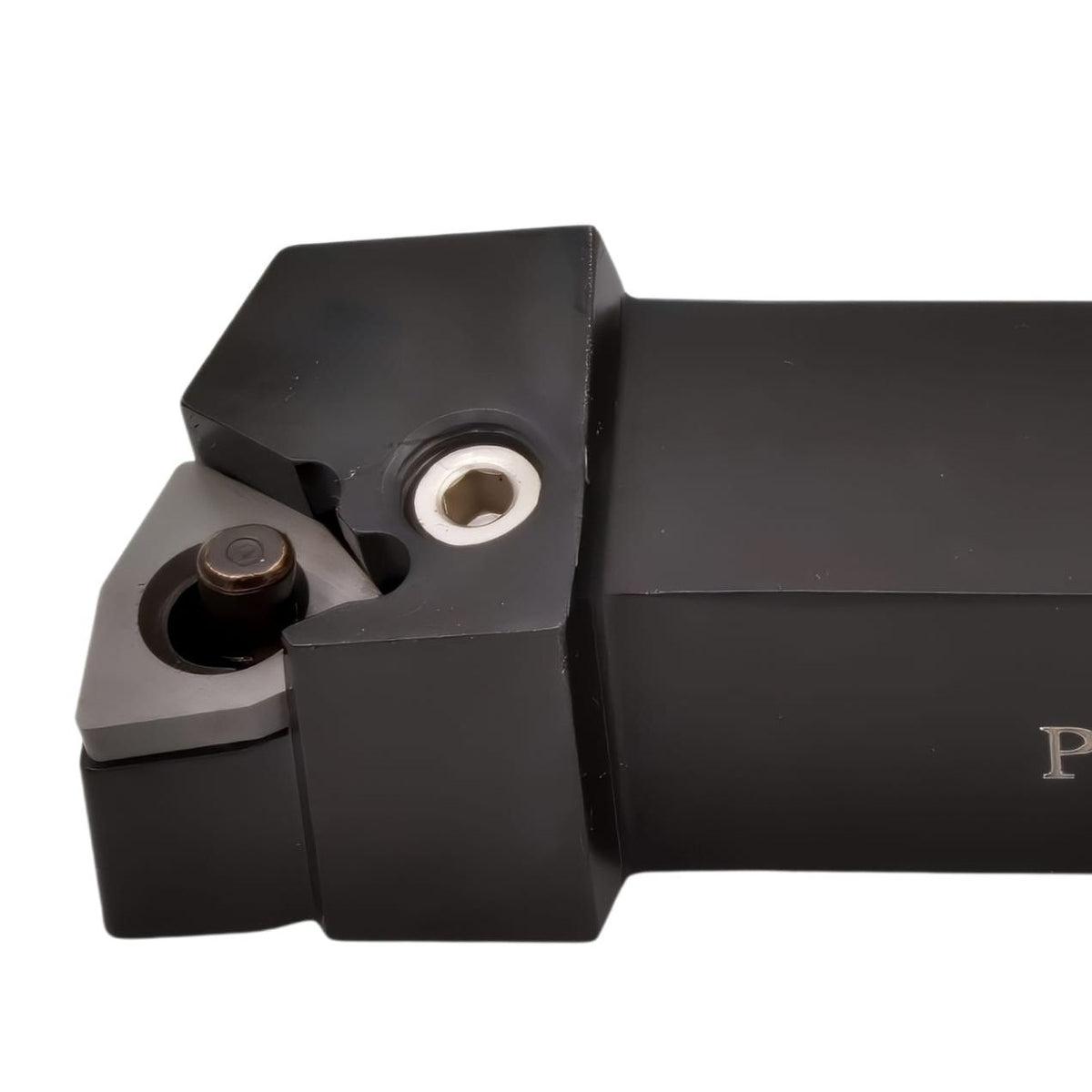

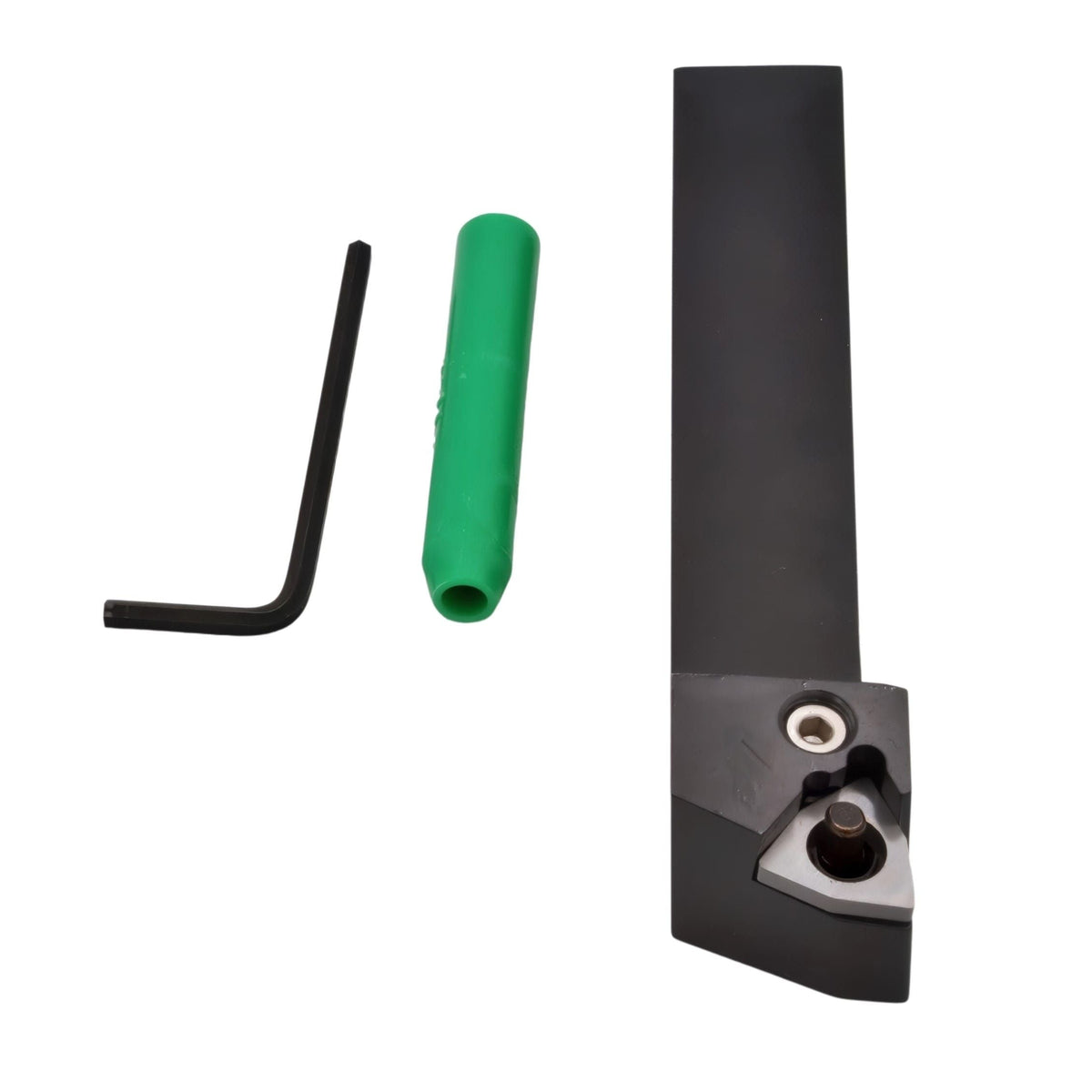

Kyocera PWLNR2020K-08 External Turning Toolholder 20 x 20mm Right Hand for WNMG 08 Inserts
Couldn't load pickup availability
The Kyocera PWLNR2020K-08 is a precision-engineered external turning toolholder designed for use with WNMG 08 negative turning inserts. Featuring a robust 20 x 20mm square shank and right-hand cutting configuration, this toolholder delivers excellent rigidity, stability, and machining accuracy for roughing, semi-finishing, and general-purpose turning applications.
Built for demanding CNC and conventional machining environments, the PWLNR2020K-08 utilizes a negative insert geometry with an 80° included angle, providing strong cutting edge support and reliable performance when machining steel, stainless steel, cast iron, and other engineering materials. The durable construction ensures long service life and consistent cutting performance.
Key Features & Benefits
- External turning toolholder for WNMG 08 inserts
- Strong negative insert geometry for heavy-duty machining
- 20 x 20mm square shank provides excellent rigidity
- Right-hand cutting direction
- Suitable for roughing, semi-finishing, and general turning operations
- Optimized for stable cutting performance and tool life
- Compatible with CNC lathes and conventional turning machines
- Reliable chip control and cutting stability
Technical Specifications
- Part Number: PWLNR2020K-08
- Item Number: THC00140
- Tool Type: External Turning Toolholder
- Insert Compatibility: WNMG 08
- Insert Included Angle (EPSR): 80°
- Hand: Right (R)
- Shank Width (B): 20 mm
- Shank Height (H): 20 mm
- Functional Height (HF): 20 mm
- Overall Length (OAL): 125 mm
- Functional Length (LF): 125 mm
- Head Length (LH): 26 mm
- Inscribed Circle Diameter (IC): 12.7 mm
- Tool Cutting Edge Angle (KAPR): 95°
- Cutting Edge Length (L): 8.687 mm
- Corner Radius (RE): 0.8 mm
- Insert Thickness (S): 4.76 mm
- Functional Width (WF): 25 mm
- Clearance Angle Major (AN): 0°
- Radial Rake Angle (GAMF): -6°
- Axial Rake Angle (GAMP): -6°
- Internal Coolant: No
- Brand: Kyocera
Kyocera turning toolholders are designed for high-performance metalworking applications, delivering excellent rigidity, machining accuracy, and dependable cutting performance in demanding production environments.
