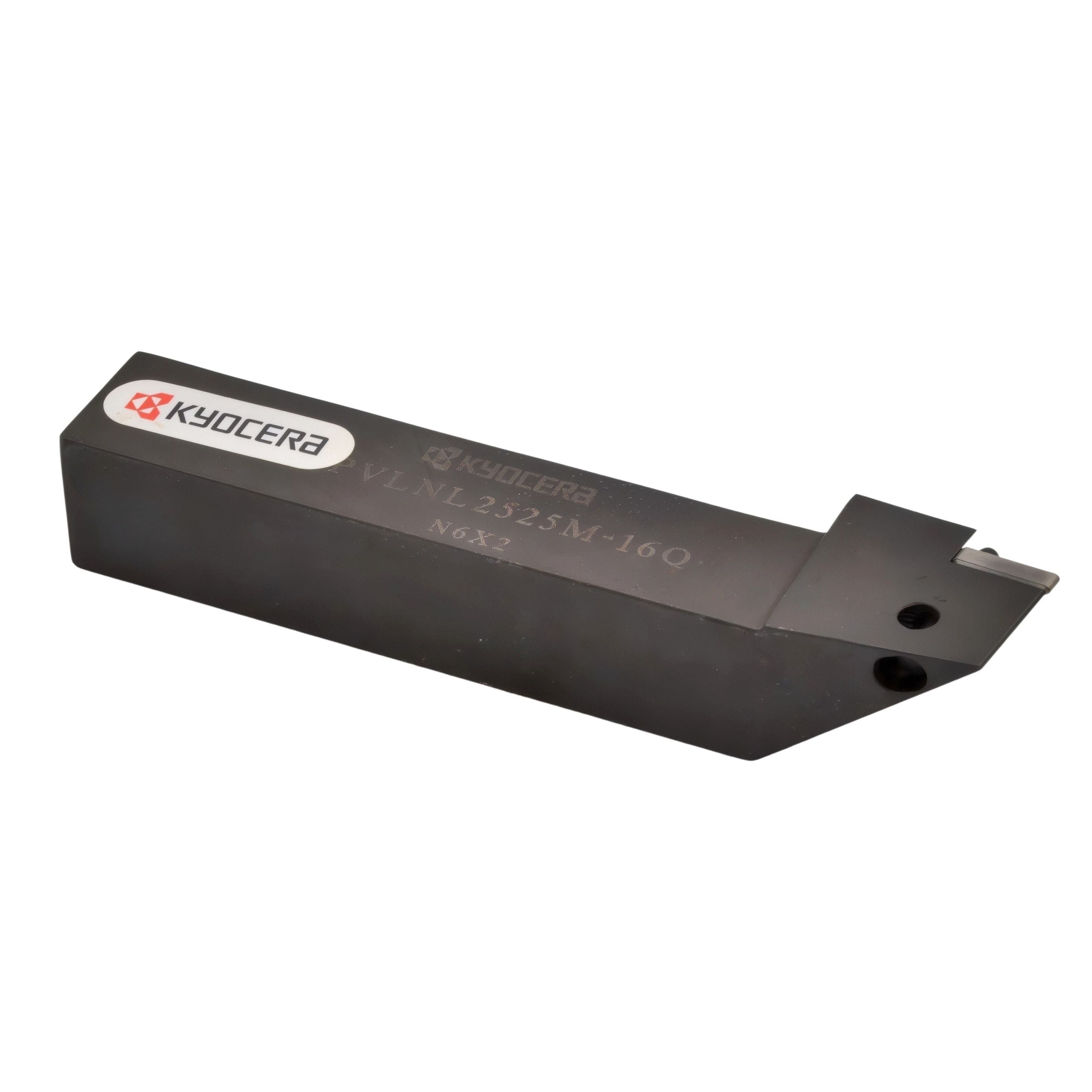

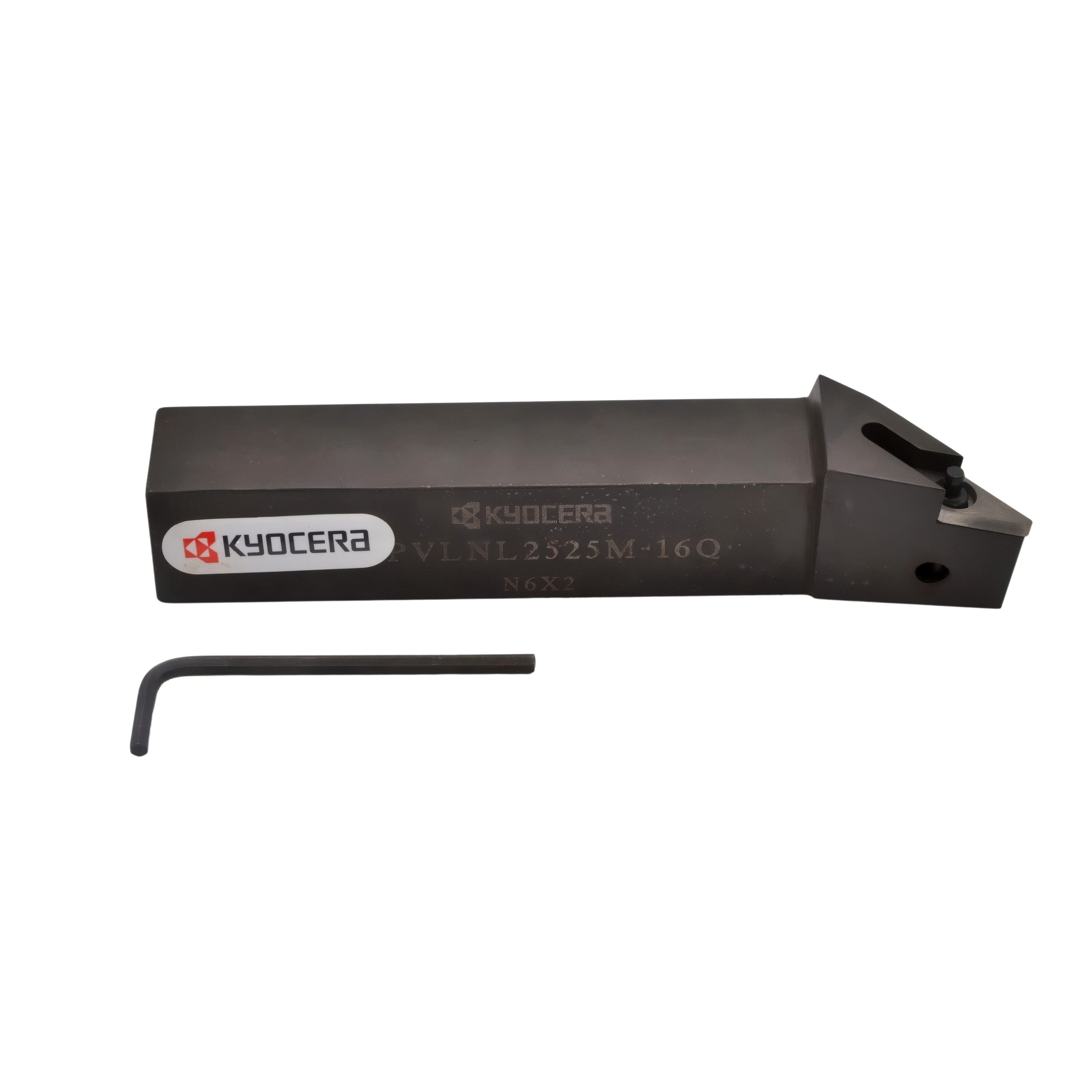

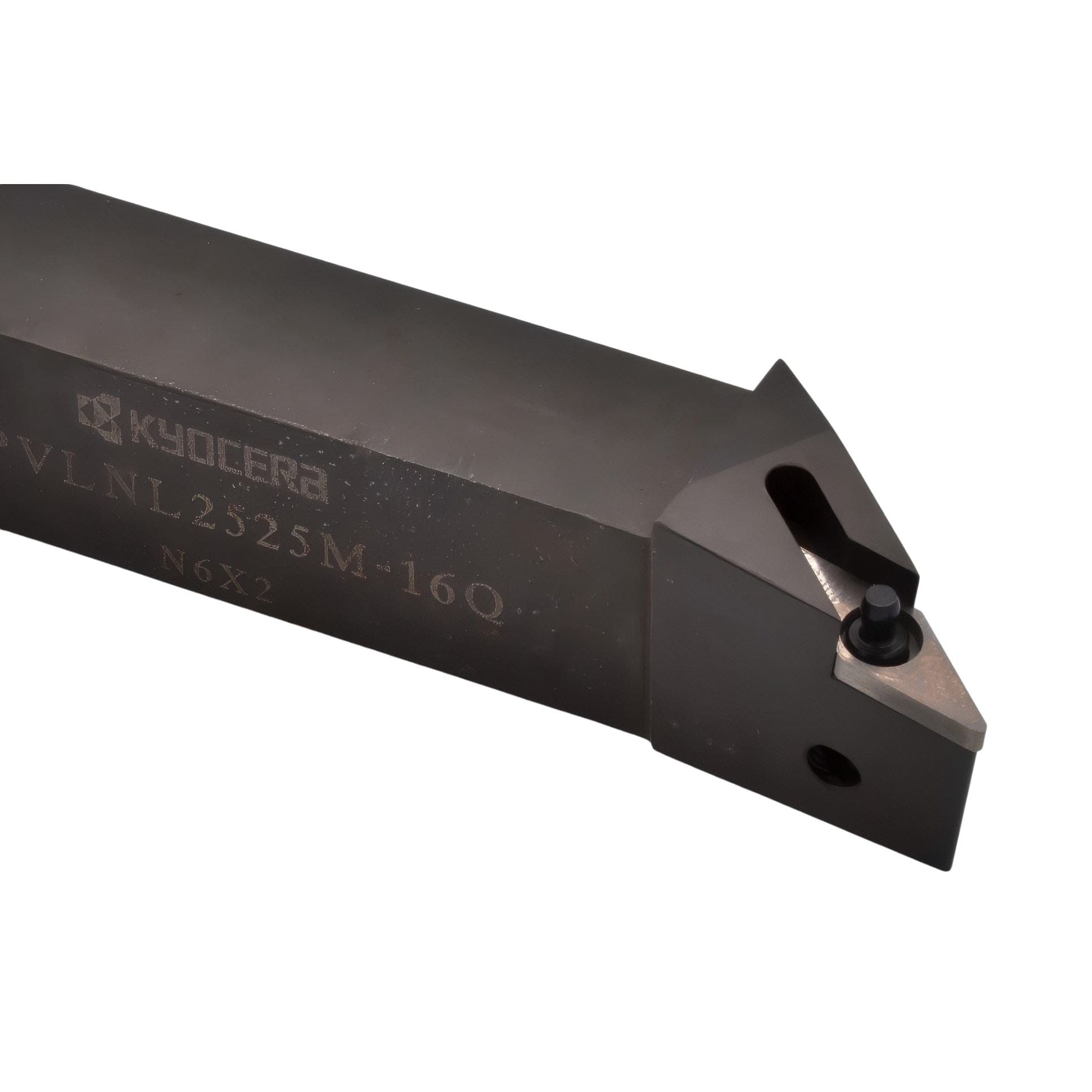

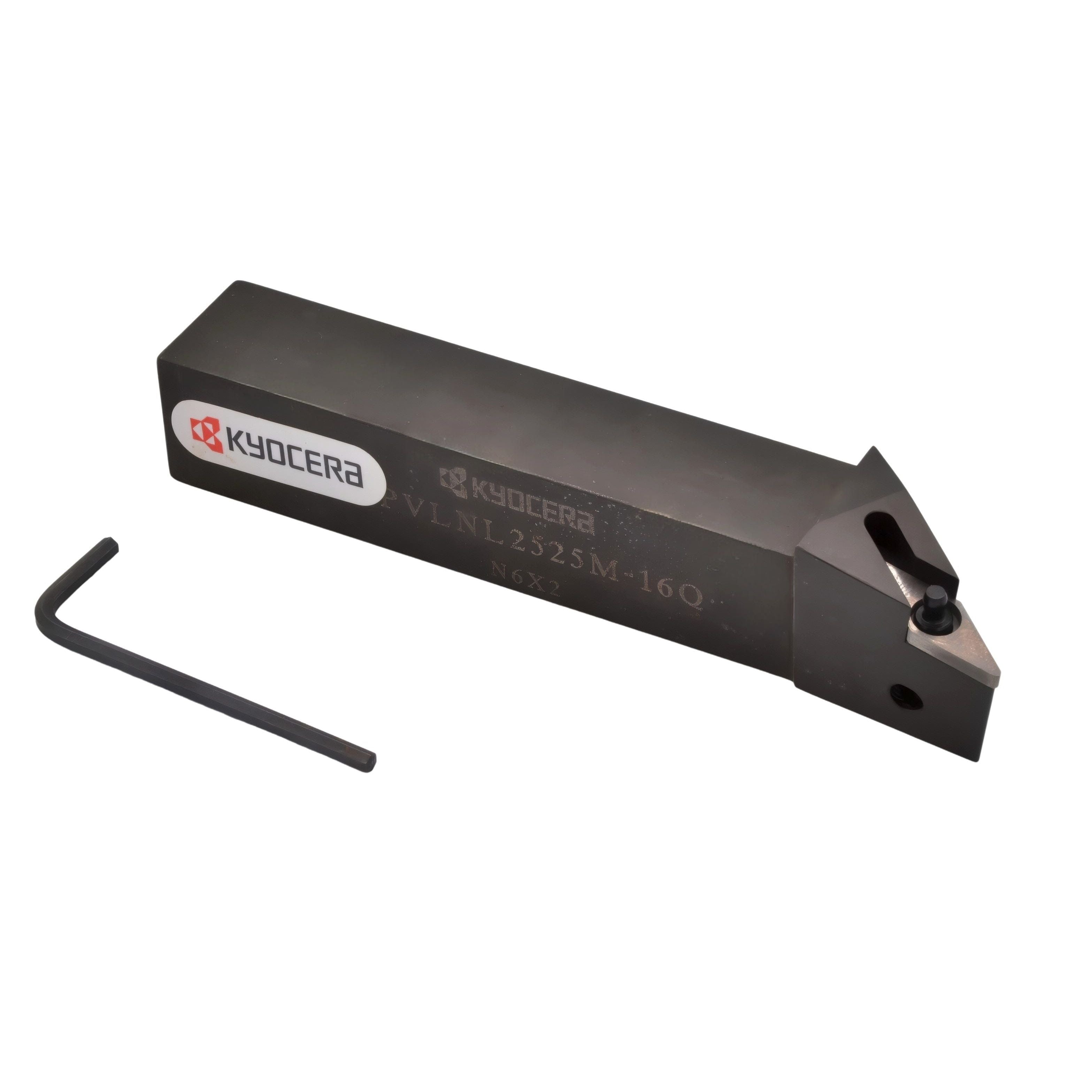

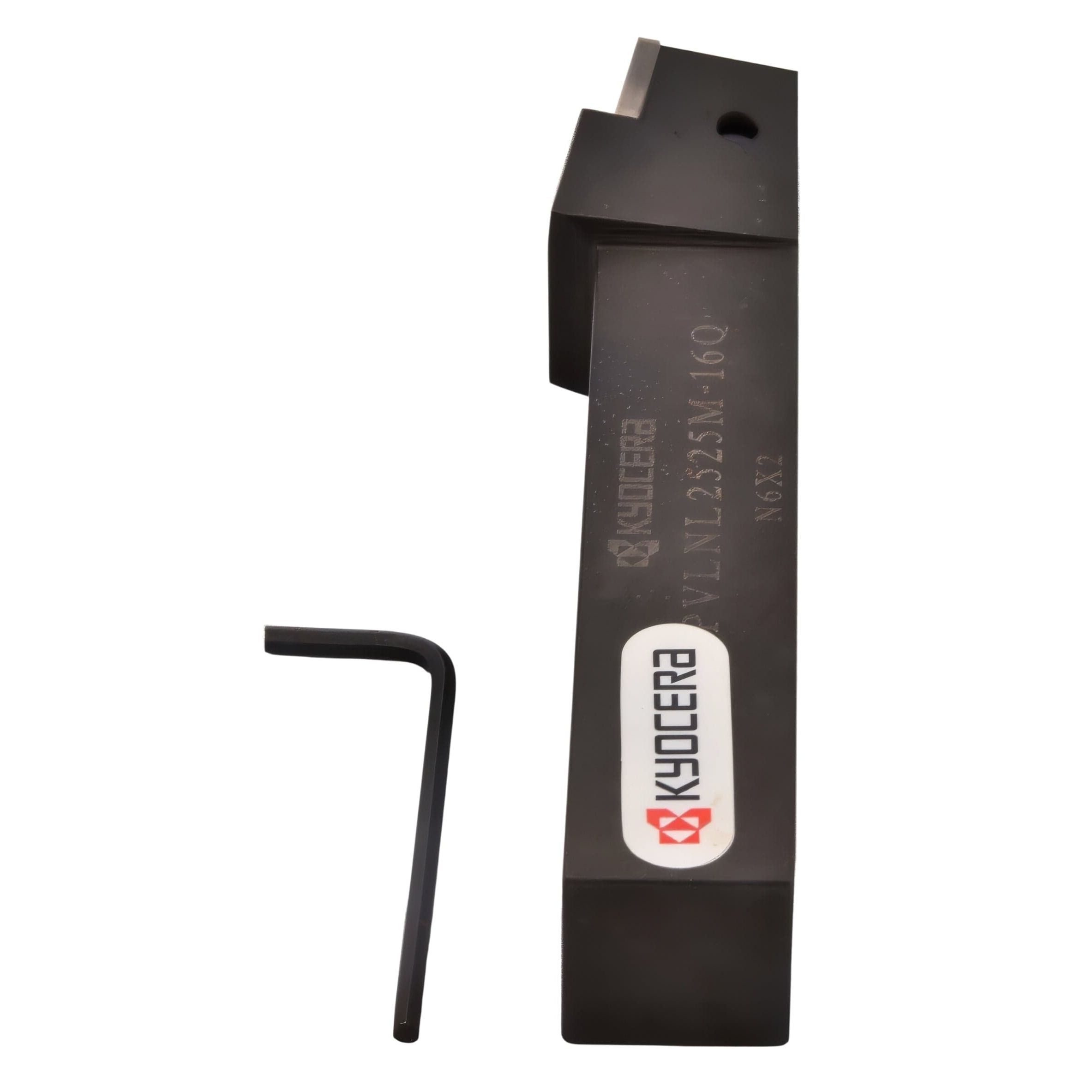

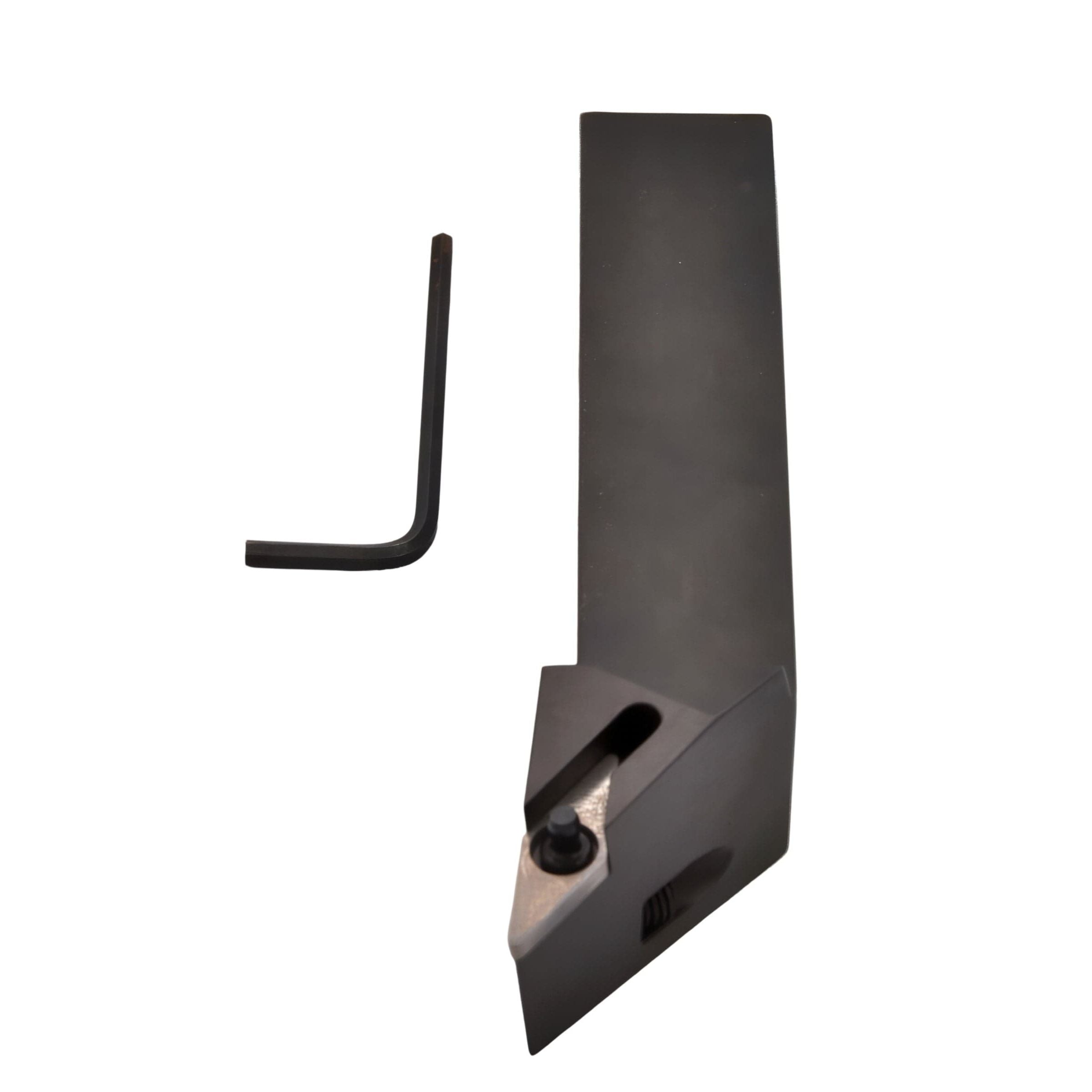

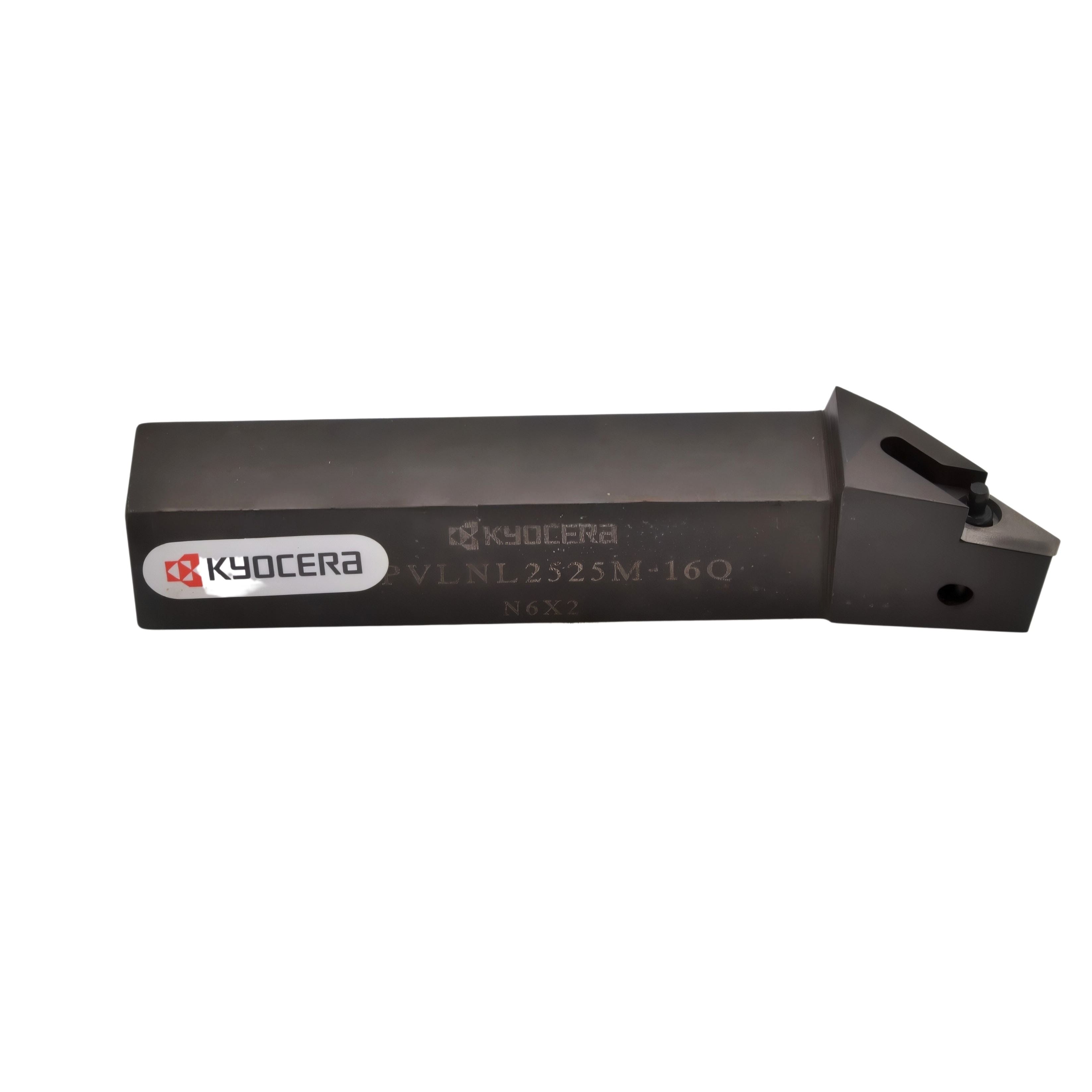

Kyocera PVLNL2525M-16Q External Turning Toolholder
Couldn't load pickup availability
The Kyocera PVLNL2525M-16Q external turning toolholder is designed for high-precision profiling and external turning operations. Featuring a left-hand configuration and optimised for 35° diamond inserts, this holder is ideal for copy turning, finishing, and contouring applications where accuracy and surface quality are critical.
Manufactured from high-strength steel, this toolholder provides excellent rigidity and stability, reducing vibration and ensuring consistent machining performance. The pin-lock clamping system secures the insert firmly for accurate positioning and repeatability. With a 25 x 25 mm shank and robust construction, it is suitable for both CNC and conventional lathe setups in demanding industrial environments.
Key Features & Benefits
- External turning toolholder for profiling and copy turning applications
- Left-hand configuration for controlled machining direction
- Designed for 35° diamond inserts (VNMG/VN-type)
- Pin-lock clamping system for secure insert retention
- 25 x 25 mm shank for stable and rigid mounting
- High-strength steel construction for durability and long tool life
- Reduced vibration for improved surface finish
- Suitable for CNC and conventional lathes
Technical Specifications
- Brand: Kyocera
- Model: PVLNL2525M-16Q
- Item Number: THC01160
- Product Type: External Turning Toolholder
- Holder Style: PVLNL
- Insert Type: VNMG (35° Diamond)
- Insert Size: 16
- Shank Size: 25 x 25 mm
- Hand: Left
- Clamping System: Pin Lock
- Material: Steel
- Total Length: 150 mm
- Head Length (LH): 37 mm
- Application: External turning and copy profiling
- Internal Coolant: No
Kyocera tooling is globally recognised for its advanced engineering, durability, and machining performance, making it a trusted choice for precision manufacturing across a wide range of industries.
