Kyocera PSSNR2525M-12 Right Hand Turning Toolholder 25 x 25 mm for SNMG12 Inserts

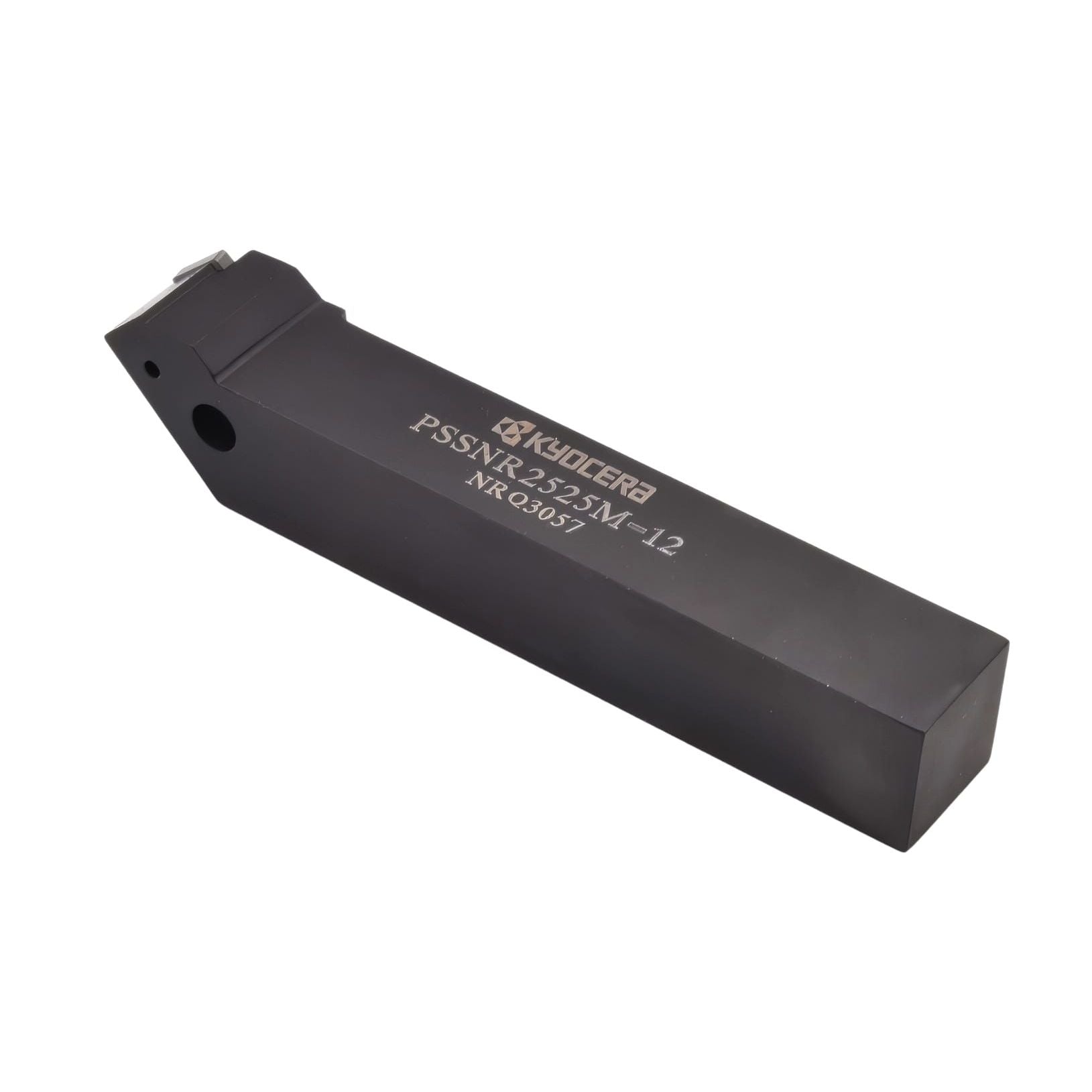

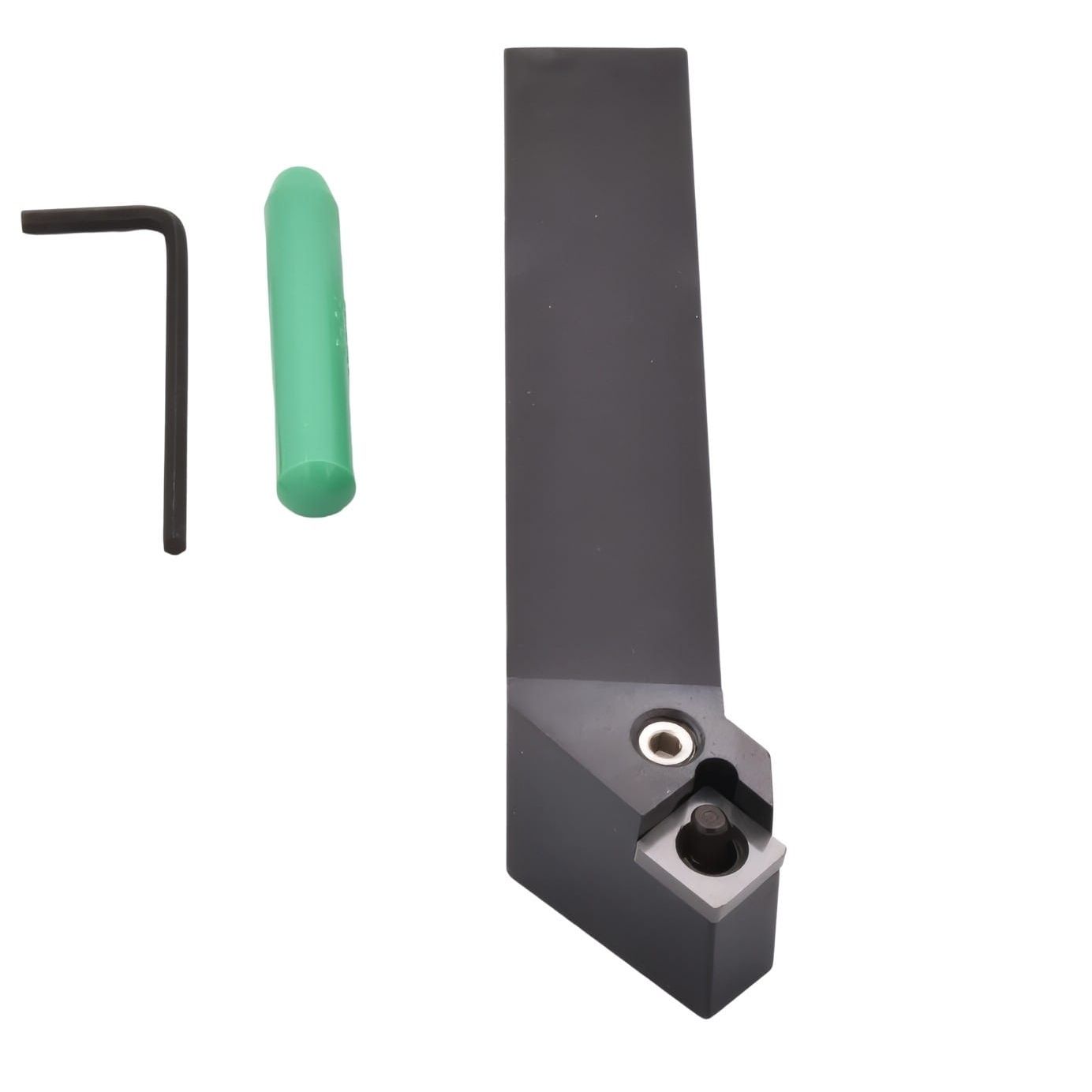

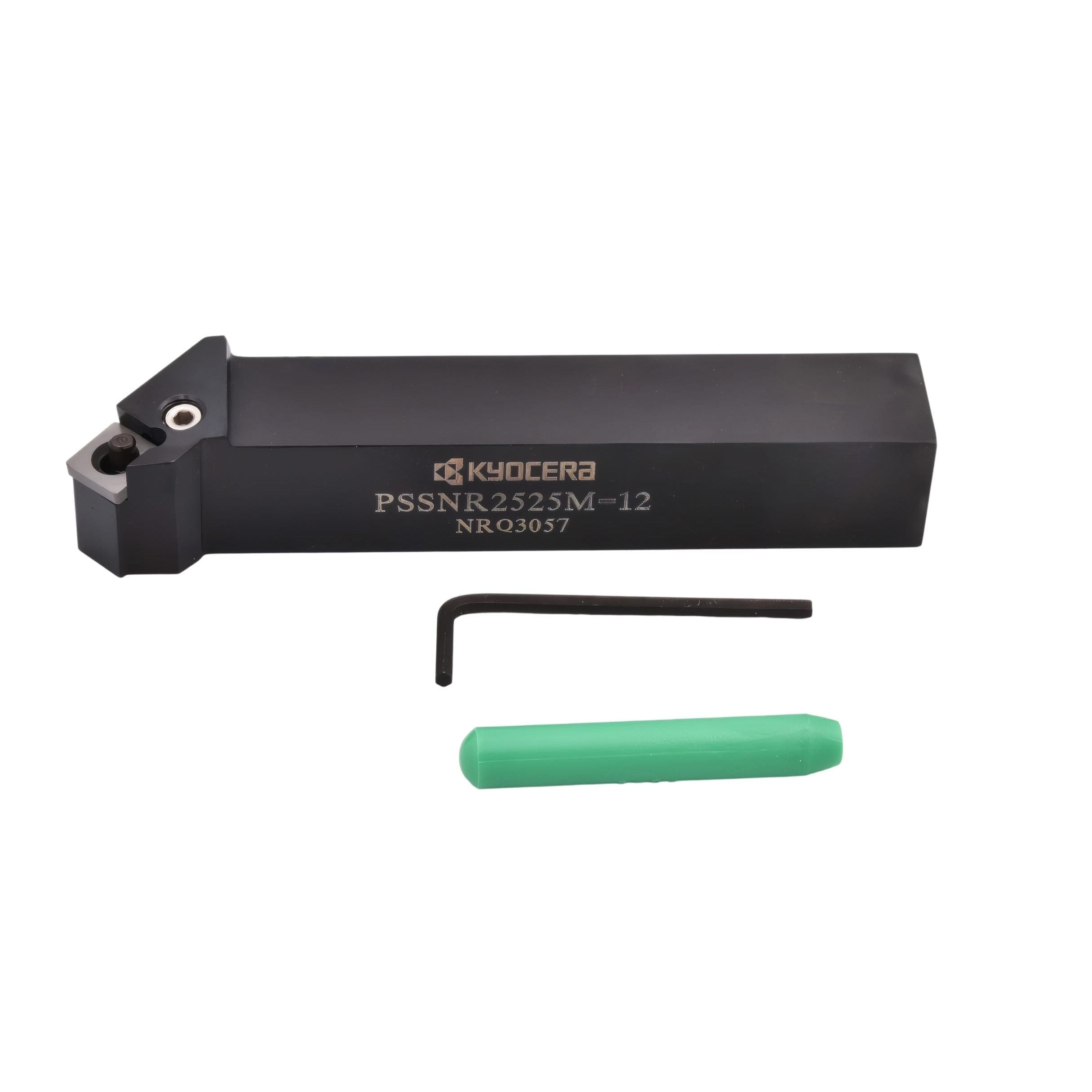

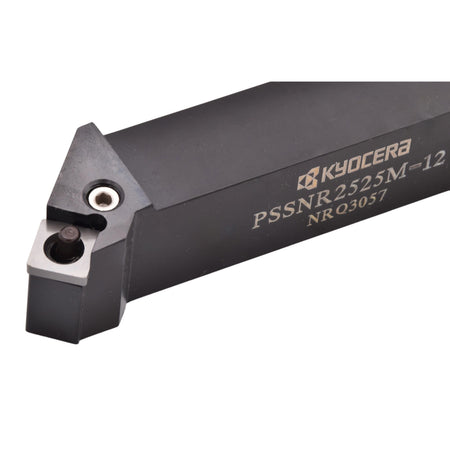

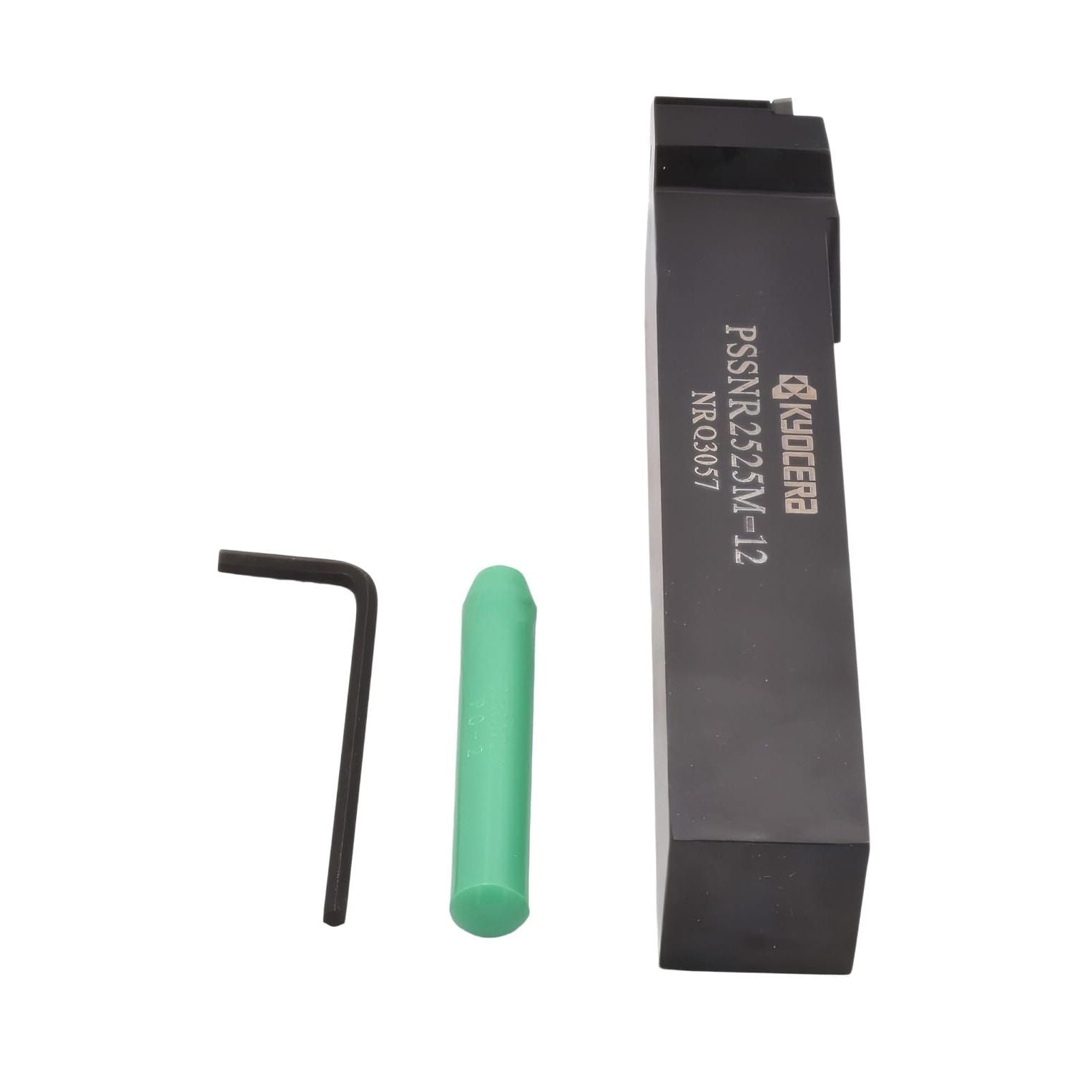

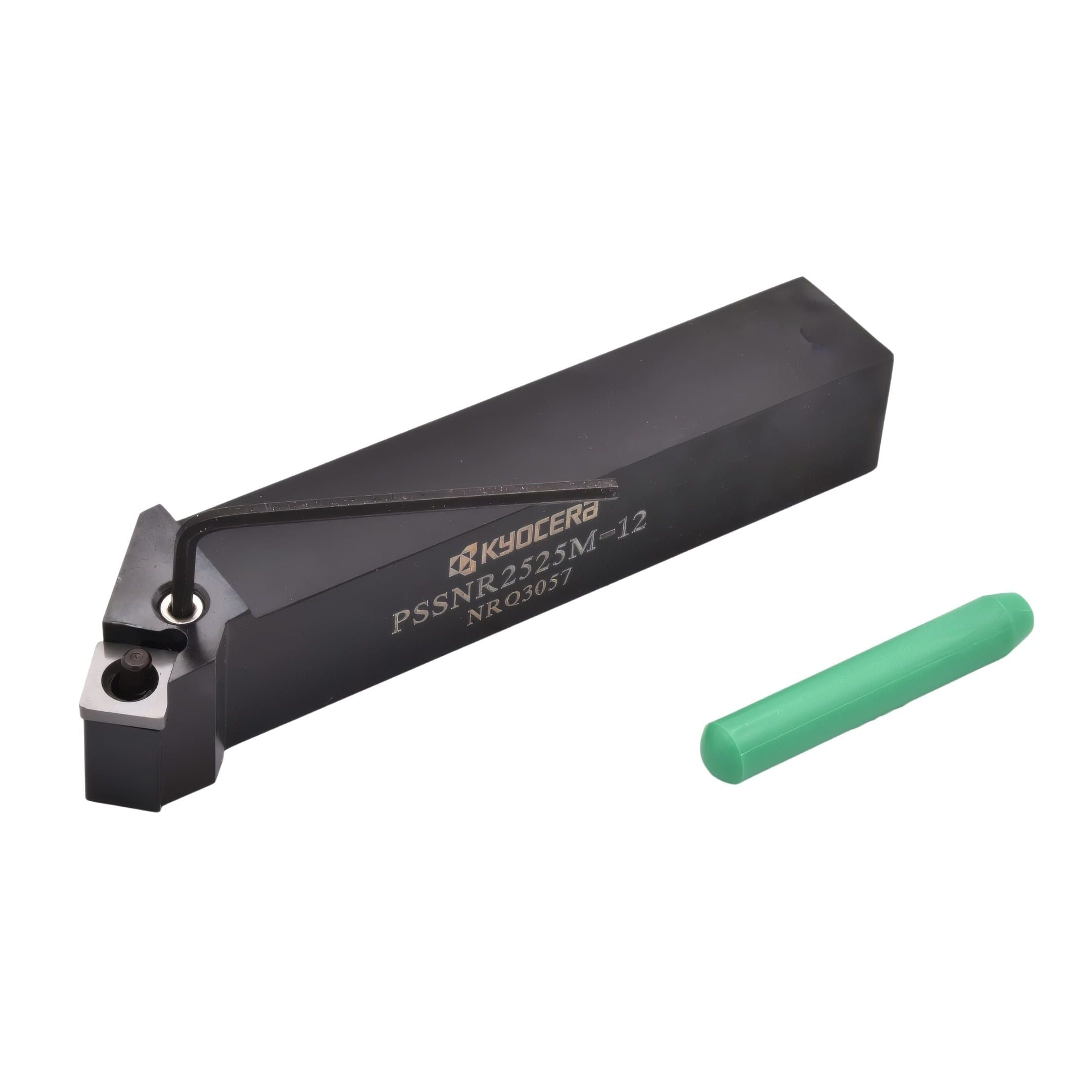

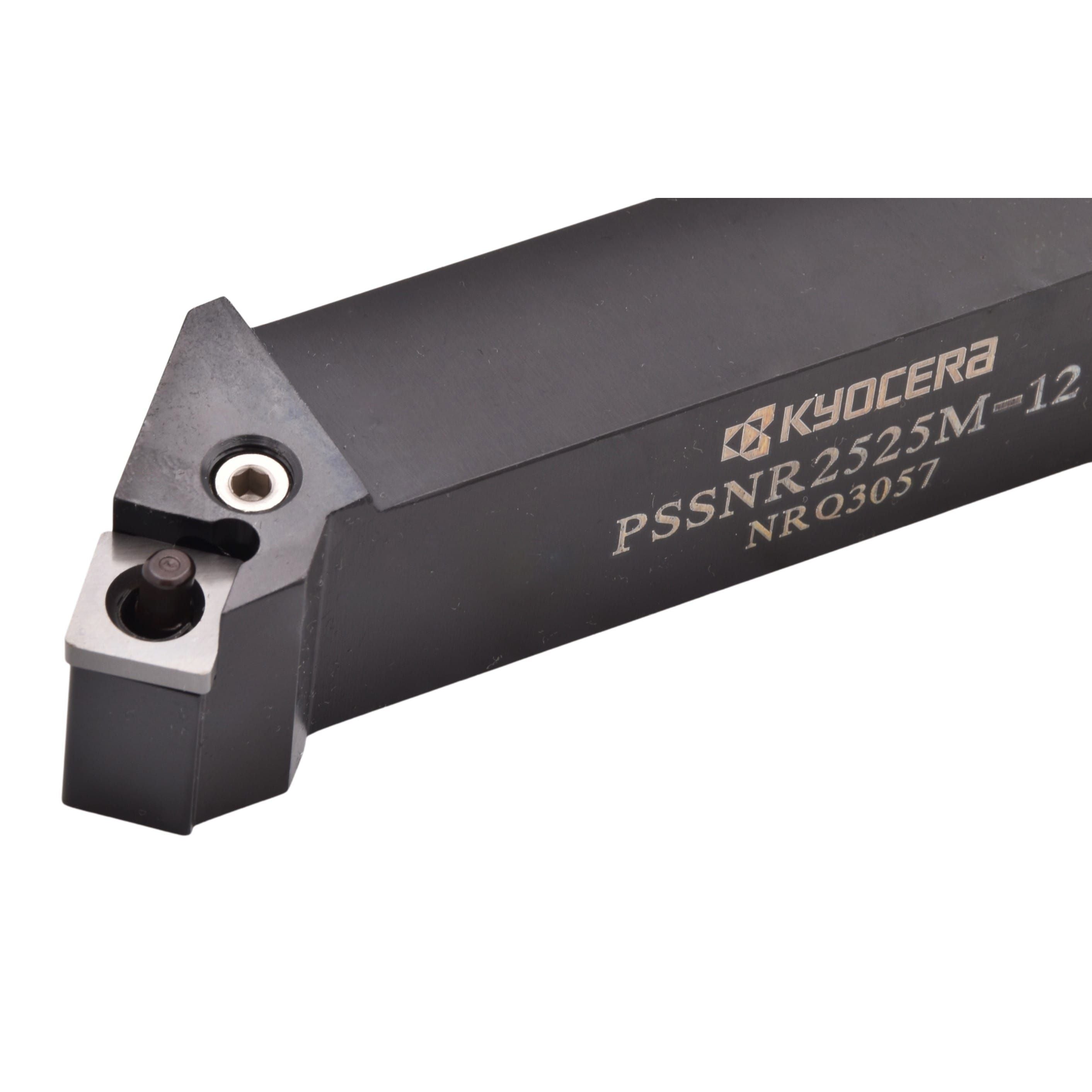

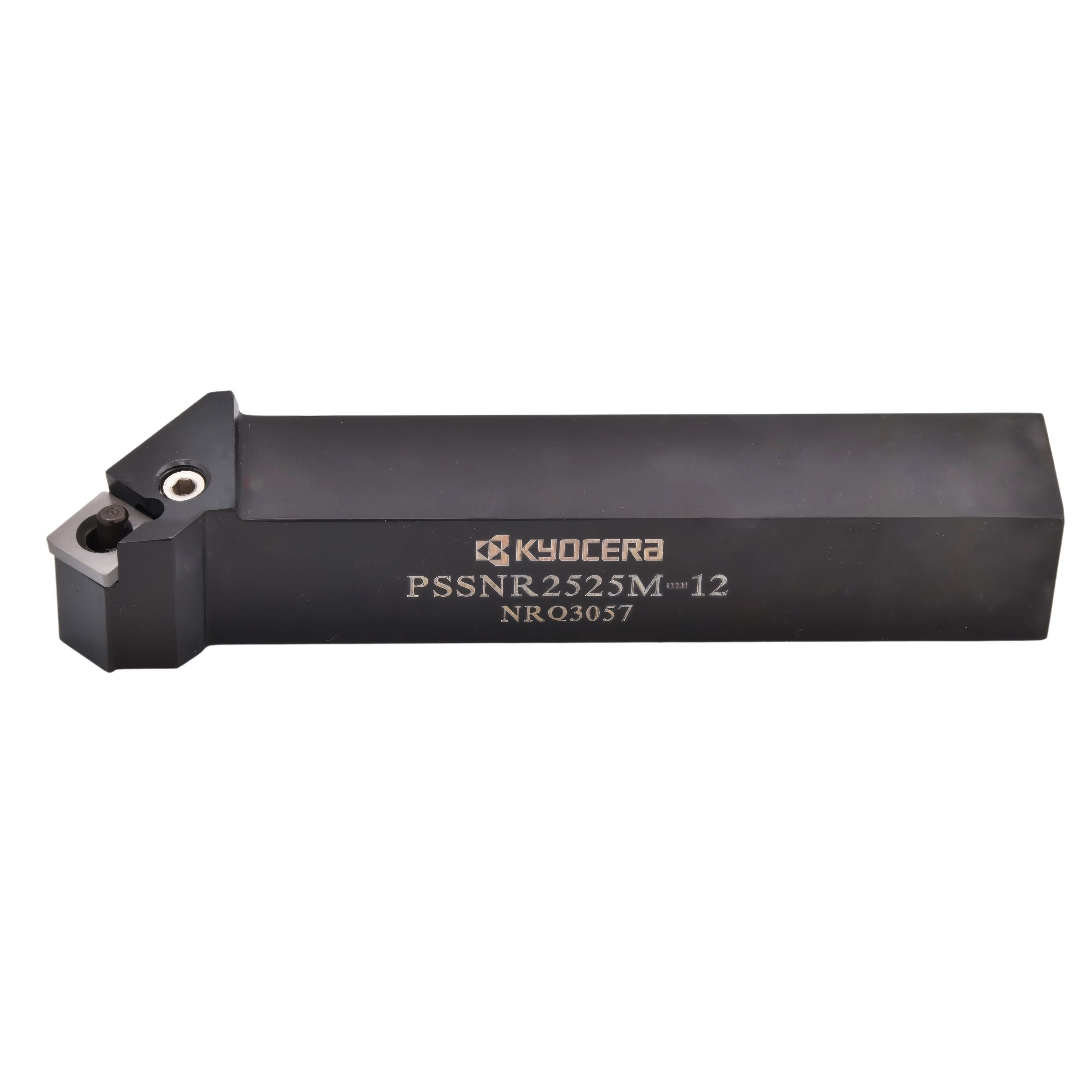

Kyocera PSSNR2525M-12 Right Hand Turning Toolholder 25 x 25 mm

Professional quality Kyocera PSSNR2525M-12 turning toolholder designed for reliable external turning and facing applications. This right-hand toolholder features a rigid 25 x 25 mm square shank and a 45° cutting edge angle for stable and accurate machining with size 12 negative inserts.

The PSSNR2525M-12 is designed for use with compatible SNMG-style inserts and provides a robust toolholding solution for general-purpose turning operations. With a 150 mm overall length and 25 mm functional height, it offers dependable rigidity and positioning on compatible CNC and conventional lathes. The toolholder does not feature internal coolant delivery.

Product Features

• Genuine Kyocera turning toolholder
• Right-hand configuration
• 25 x 25 mm square shank for rigid tool mounting
• Suitable for size 12 negative turning inserts
• 45° tool cutting edge angle
• 150 mm overall and functional length
• 25 mm functional height
• 0.8 mm standard corner radius specification
• No internal coolant
• Suitable for external turning and facing applications

Technical Specifications

• Brand: Kyocera
• Model: PSSNR2525M-12
• Item No.: THC00260
• EAN: 4960664004393
• Toolholder Type: Turning Toolholder
• Hand: Right
• Shank Width (B): 25 mm
• Shank Height (H): 25 mm
• Insert Size: 12
• Tool Cutting Edge Angle (KAPR): 45°
• Insert Included Angle (EPSR): 90°
• Major Clearance Angle (AN): 0°
• Radial Rake Angle (GAMF): 0°
• Axial Rake Angle (GAMP): -8°
• Functional Height (HF): 25 mm
• Cutting Edge Length (L): 12.7 mm
• Inscribed Circle Diameter (IC): 12.7 mm
• Corner Radius (RE): 0.8 mm
• Insert Thickness (S): 4.76 mm
• Functional Length (LF): 150 mm
• Overall Length (OAL): 150 mm
• Head Length (LH): 29 mm
• Functional Width (WF): 32 mm
• Functional Width 2 (WF2): 23.4 mm
• Functional Width Secondary (WFS): 23.4 mm
• Internal Coolant: No

Applications

Ideal for general-purpose external turning and facing operations on CNC and conventional lathes where a rigid right-hand toolholder for size 12 negative inserts is required.

Note: Cutting insert is not included unless specifically stated in the product listing.

The Kyocera listing confirms the PSSNR2525M-12 model, item number THC00260, EAN, 25 mm shank dimensions, right-hand configuration, size 12 insert capacity, 150 mm length and no internal coolant. The Kyocera catalogue also identifies the PSSN family as external turning/facing toolholders and shows the 25 mm shank and 150 mm length for the 2525M-12 size.
