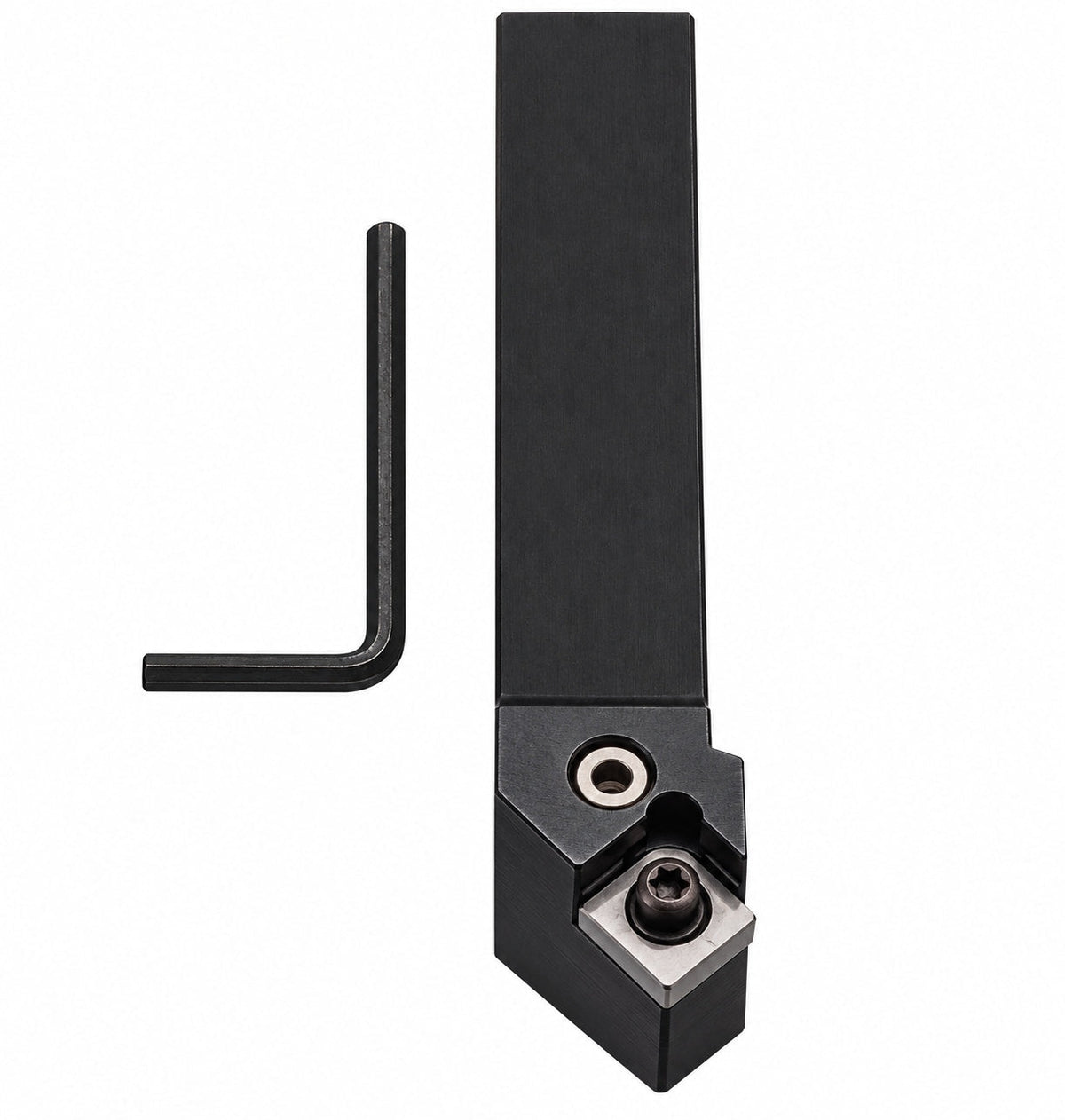

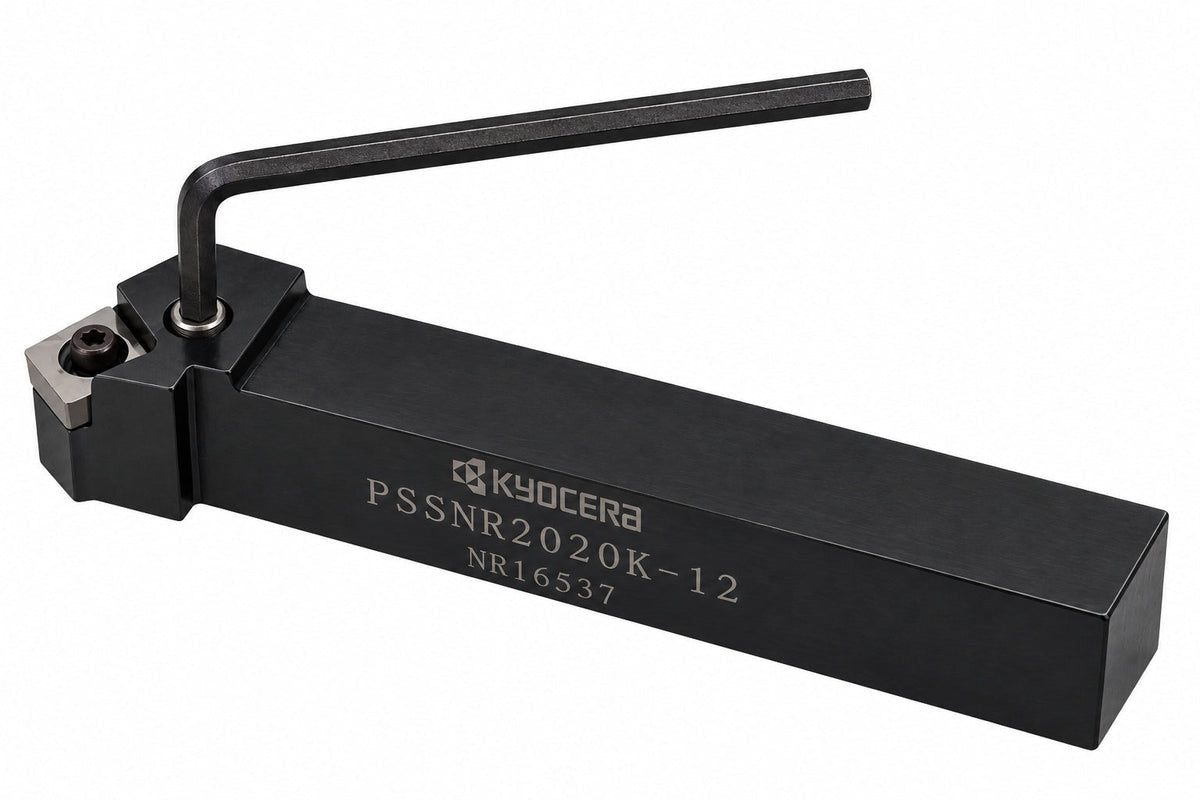

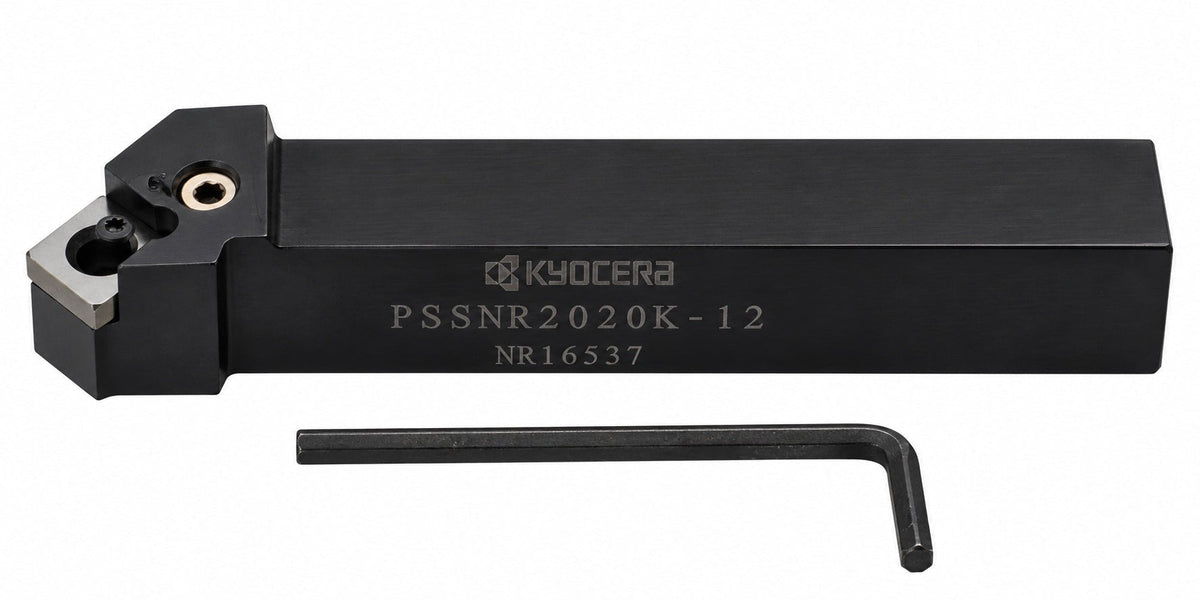

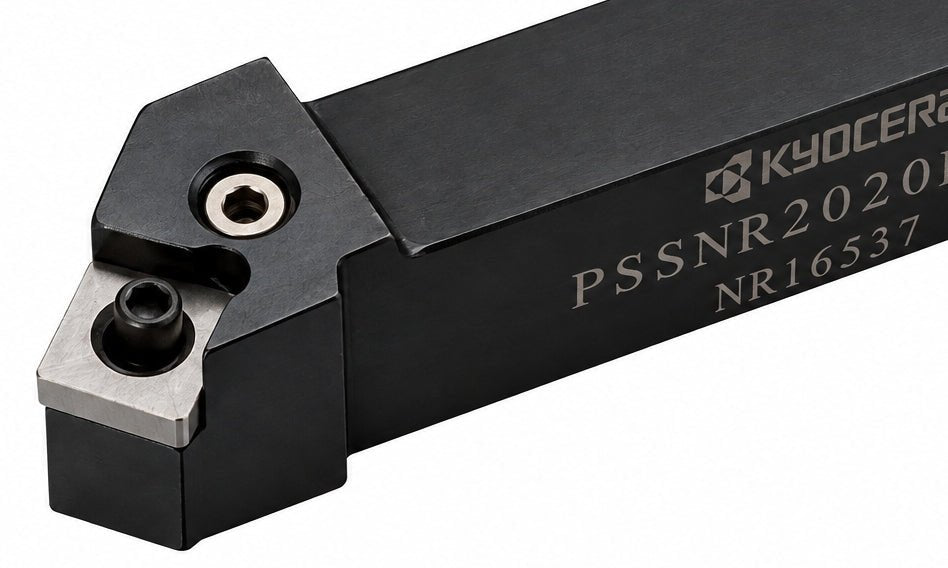

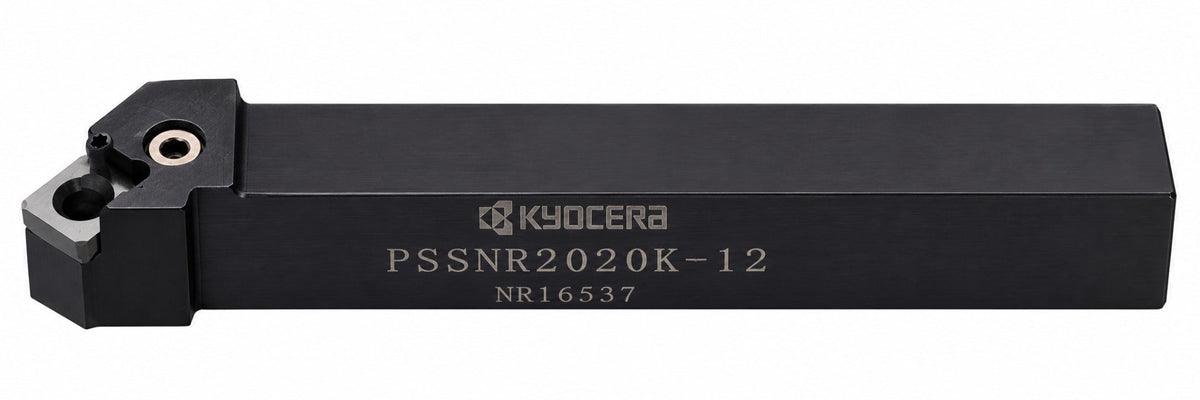

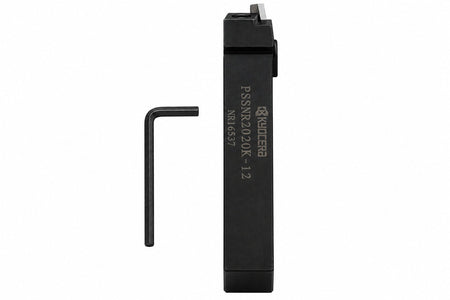

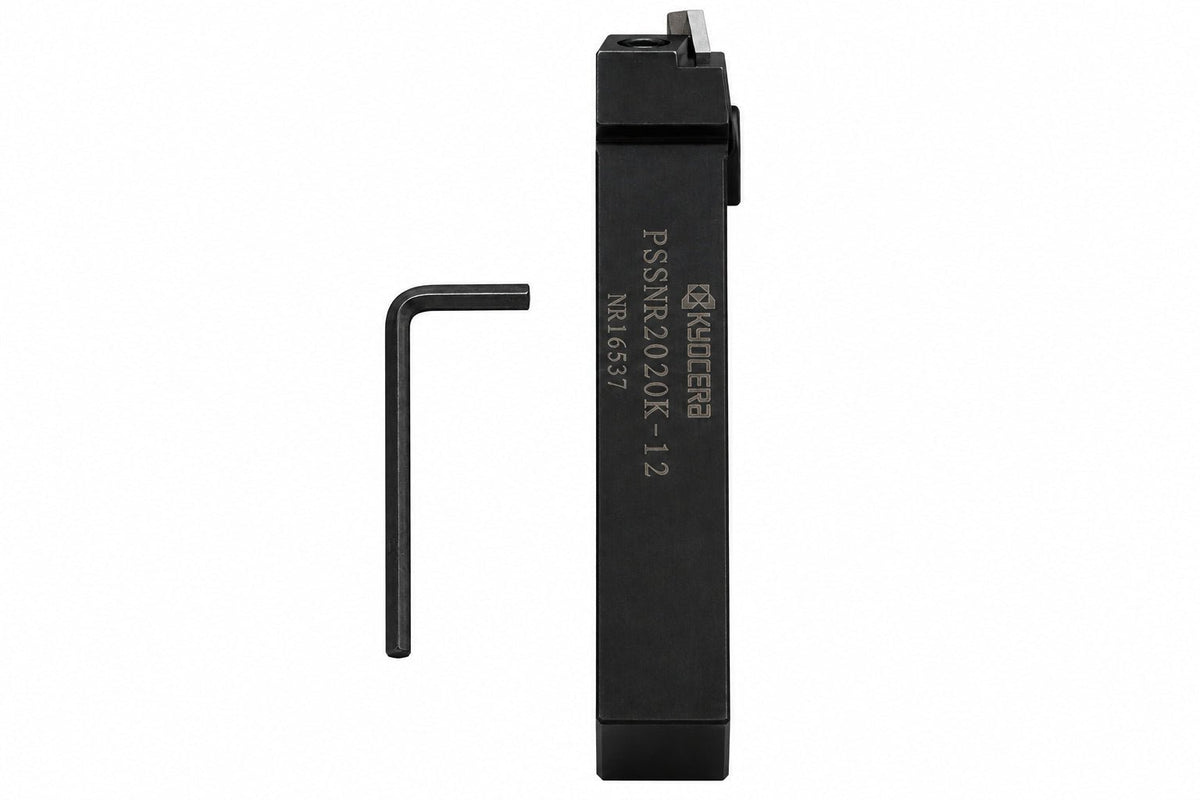

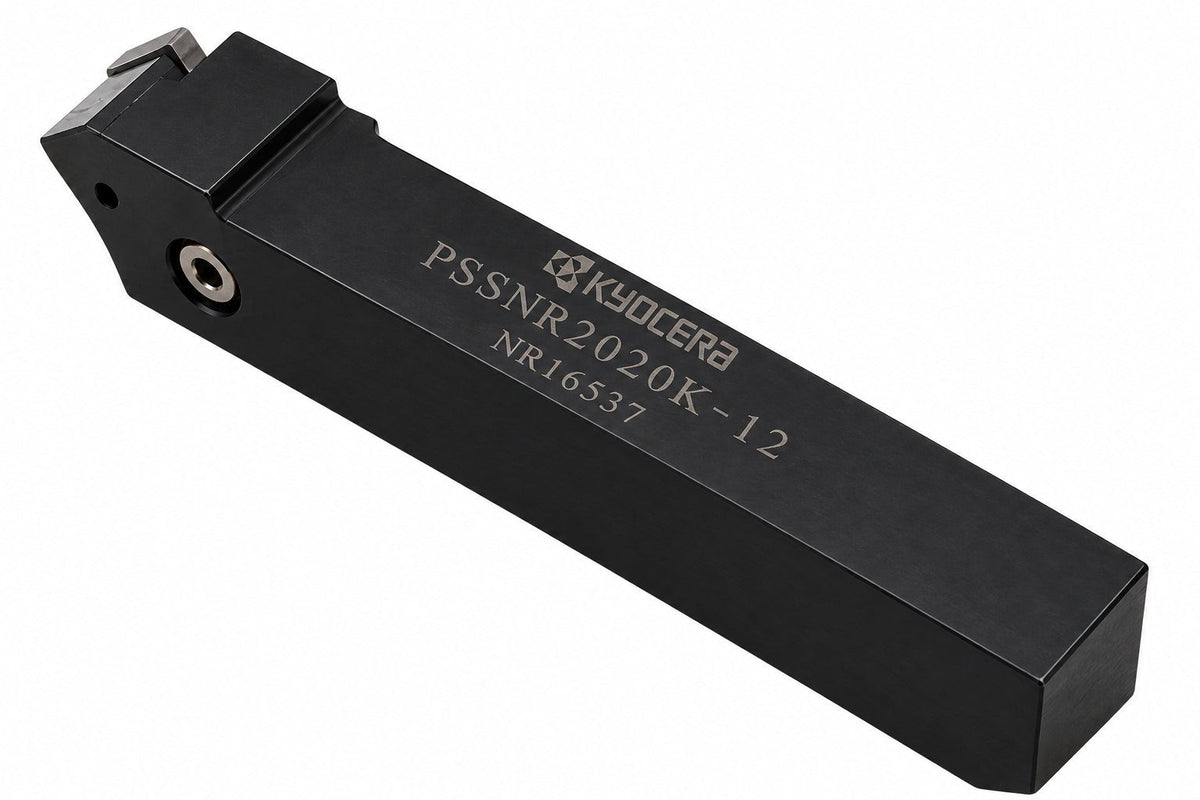

Kyocera PSSNR2020K-12 20mm Right Hand Turning Toolholder for 12mm Inserts

Professional quality Kyocera PSSNR2020K-12 turning toolholder designed for compatible 12mm inserts in turning applications. This right-hand toolholder features a 20mm shank width, 20mm shank height and 125mm overall length, providing a compact and rigid tooling solution for machining operations.

The PSSNR2020K-12 features a 90° insert included angle, 45° tool cutting edge angle, 0° radial rake angle and -8° axial rake angle. The toolholder has a 0.8mm corner radius specification and does not include internal coolant.

Product Features

• Genuine Kyocera turning toolholder
• Right-hand configuration
• Designed for 12mm insert size
• 20mm shank width
• 20mm shank height
• 125mm overall length
• 29mm head length
• 90° insert included angle
• 45° tool cutting edge angle
• 0° radial rake angle
• -8° axial rake angle
• 0.8mm corner radius specification
• No internal coolant

Technical Specifications

• Brand: Kyocera
• Part Number: PSSNR2020K-12
• Item Number: THC00240
• Tool Type: Turning Toolholder
• Type: Right
• Hand: Right
• Insert Size: 12
• Shank Width (B): 20mm
• Shank Height (H): 20mm
• Functional Height (HF): 20mm
• Overall Length (OAL): 125mm
• Functional Length (LF): 125mm
• Head Length (LH): 29mm
• Insert Included Angle (EPSR): 90°
• Tool Cutting Edge Angle (KAPR): 45°
• Major Clearance Angle (AN): 0°
• Radial Rake Angle (GAMF): 0°
• Axial Rake Angle (GAMP): -8°
• Inscribed Circle Diameter (IC): 12.7mm
• Cutting Edge Length (L): 12.7mm
• Corner Radius (RE): 0.8mm
• Insert Thickness (S): 4.76mm
• Functional Width (WF): 25mm
• Functional Width 2 (WF2): 16.4mm
• Functional Width Secondary (WFS): 16.4mm
• Internal Coolant: No

Applications

The Kyocera PSSNR2020K-12 is designed for turning applications requiring a right-hand toolholder with a 20mm shank and compatible 12mm inserts. Its compact dimensions and specified cutting geometry make it suitable for machining operations using inserts matching the listed specifications.
