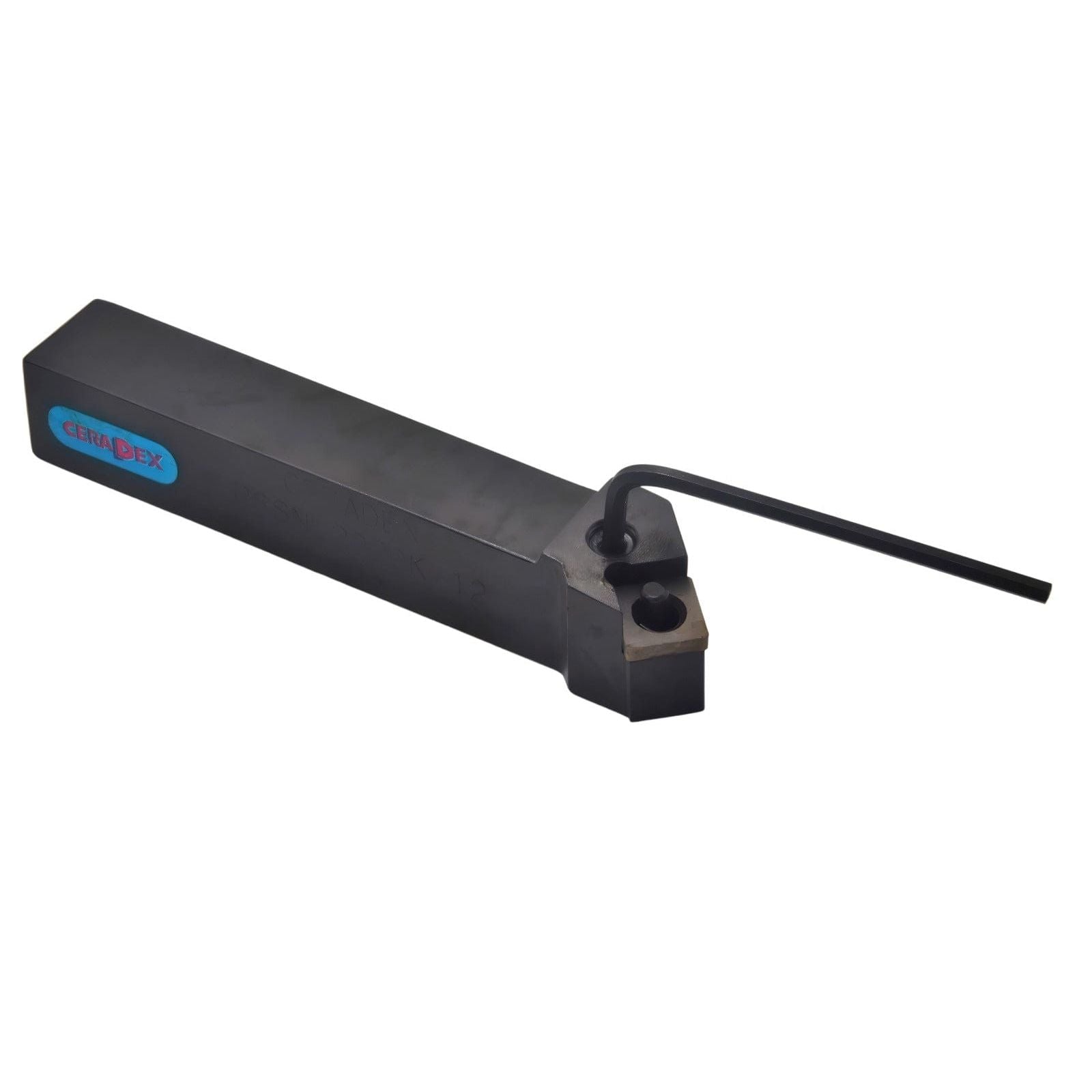

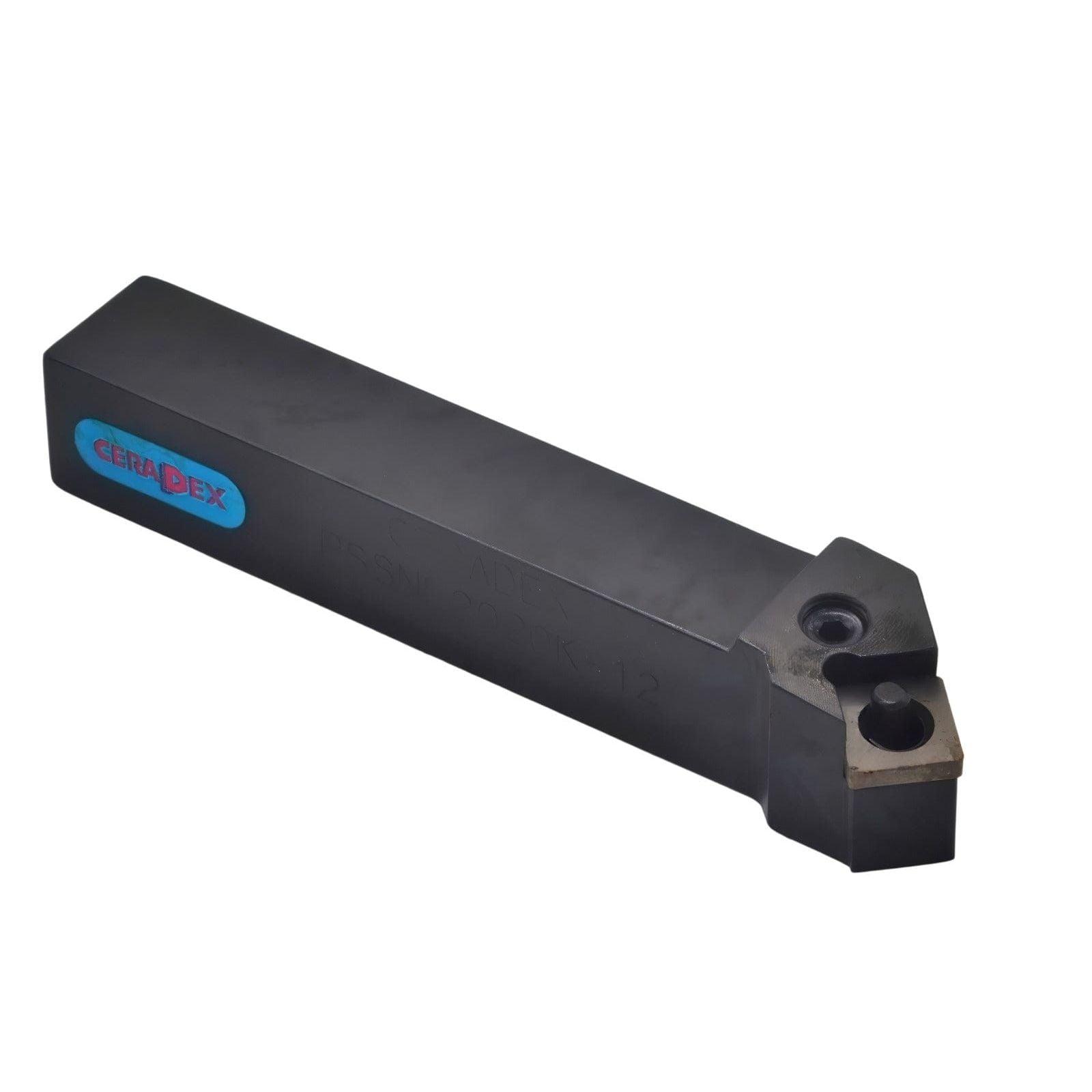

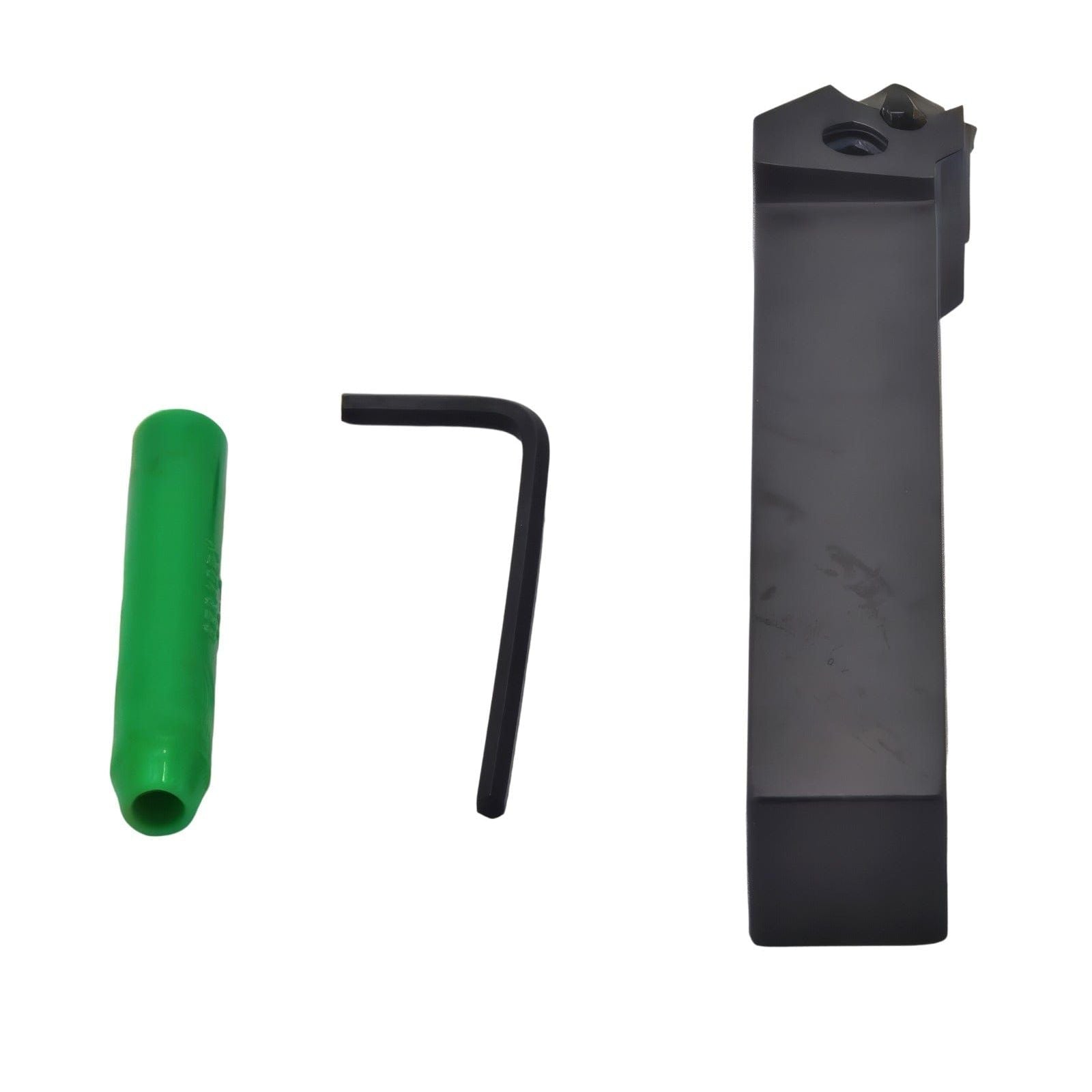

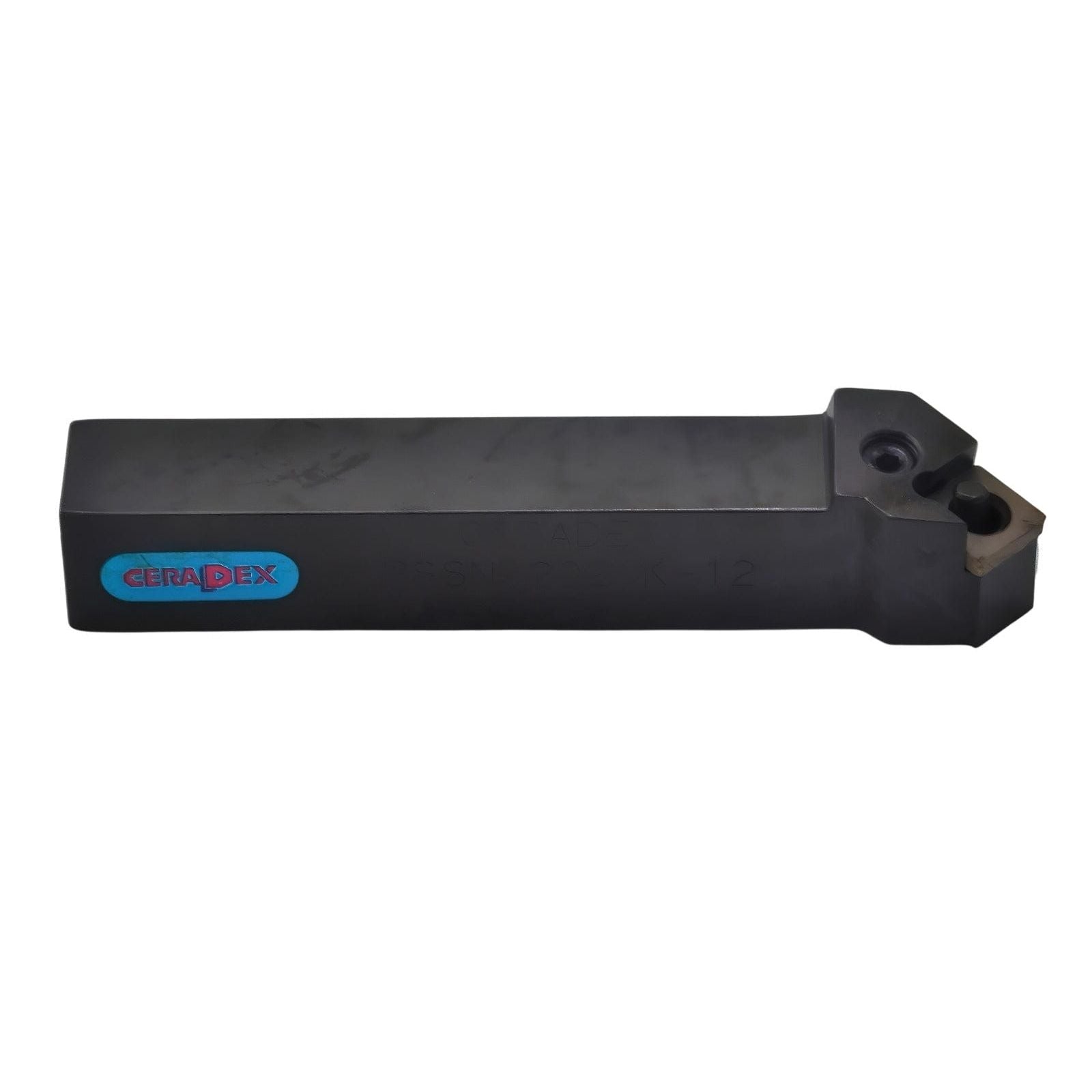

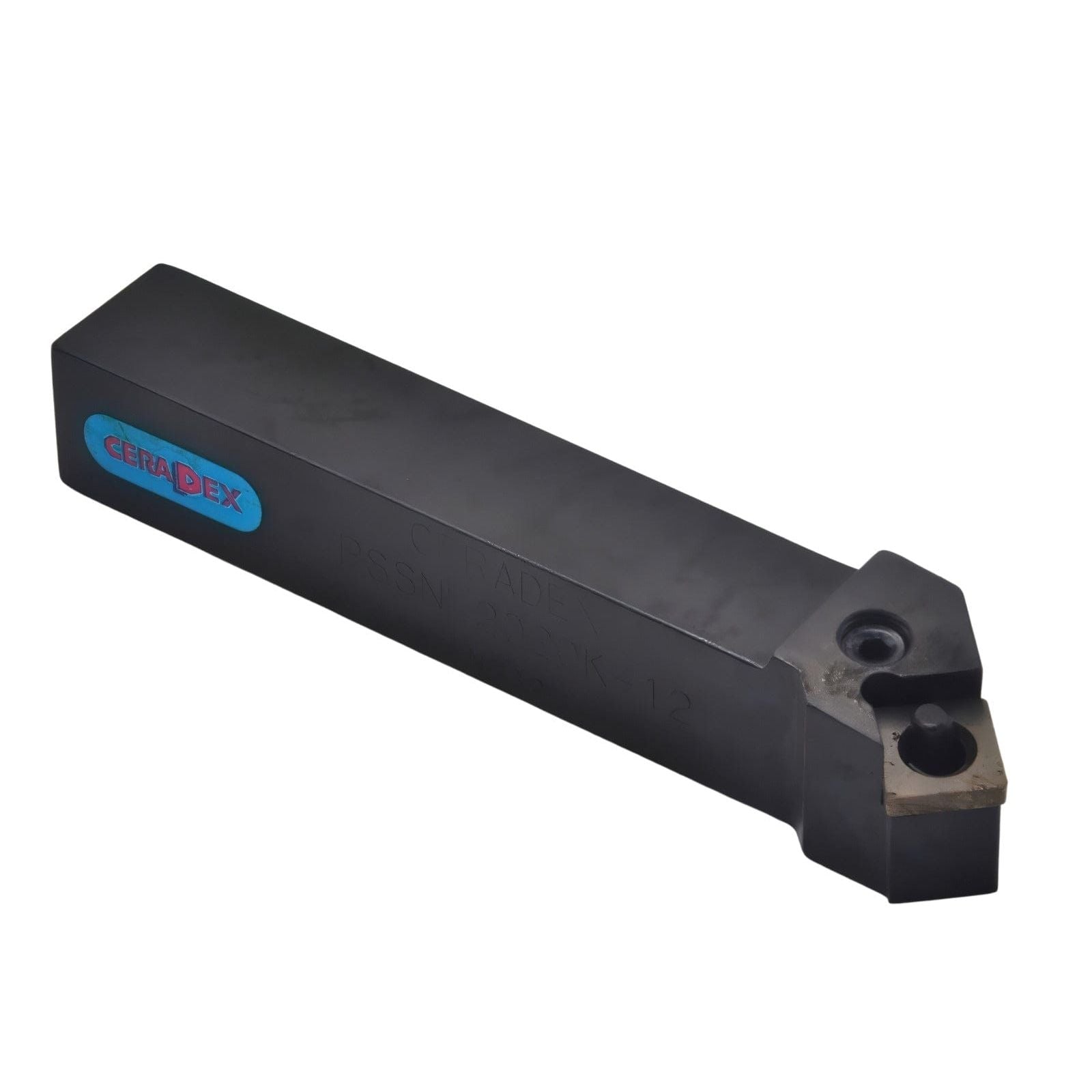

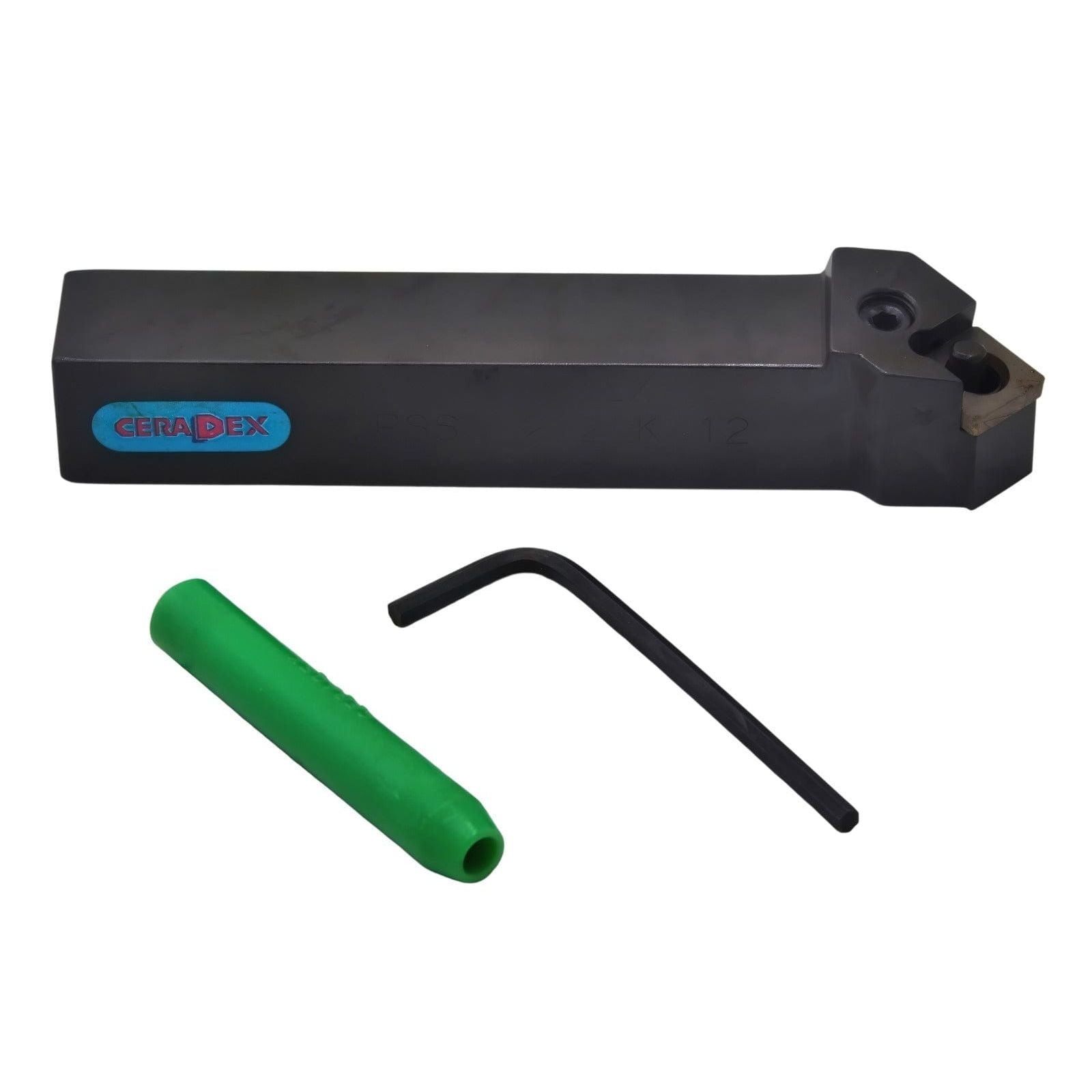

Kyocera PSSNL2020K-12 – External Turning Toolholder (THC00250)

Kyocera PSSNL2020K-12 – External Turning Toolholder (THC00250)

The Kyocera PSSNL2020K-12 is a precision external turning toolholder designed for stable, high-accuracy turning operations. It features a shank width of 20 mm and height of 20 mm, a total length (OAL) of 125 mm, and a head length (LH) of 29 mm. This left-hand toolholder uses insert size 12 and is built without internal coolant for simple, reliable performance. :contentReference[oaicite:0]{index=0}

Key Features & Benefits

• Shank section 20 mm × 20 mm — delivers strong rigidity in compact-sized setups.
• Left-hand orientation — suits turning applications requiring reverse direction.
• Total length 125 mm and head length 29 mm — optimized for reach and stability in external turning.
• Insert size 12 — standard configuration for excellent insert availability.
• No internal coolant — simplifies setup and maintenance in standard coolant or dry conditions.

Technical Specifications

Item No: THC00250
Shank Width (B): 20 mm
Shank Height (H): 20 mm
Insert Size: 12
Total Length (OAL): 125 mm
Head Length (LH): 29 mm
Type: Left-hand
Internal Coolant: No
