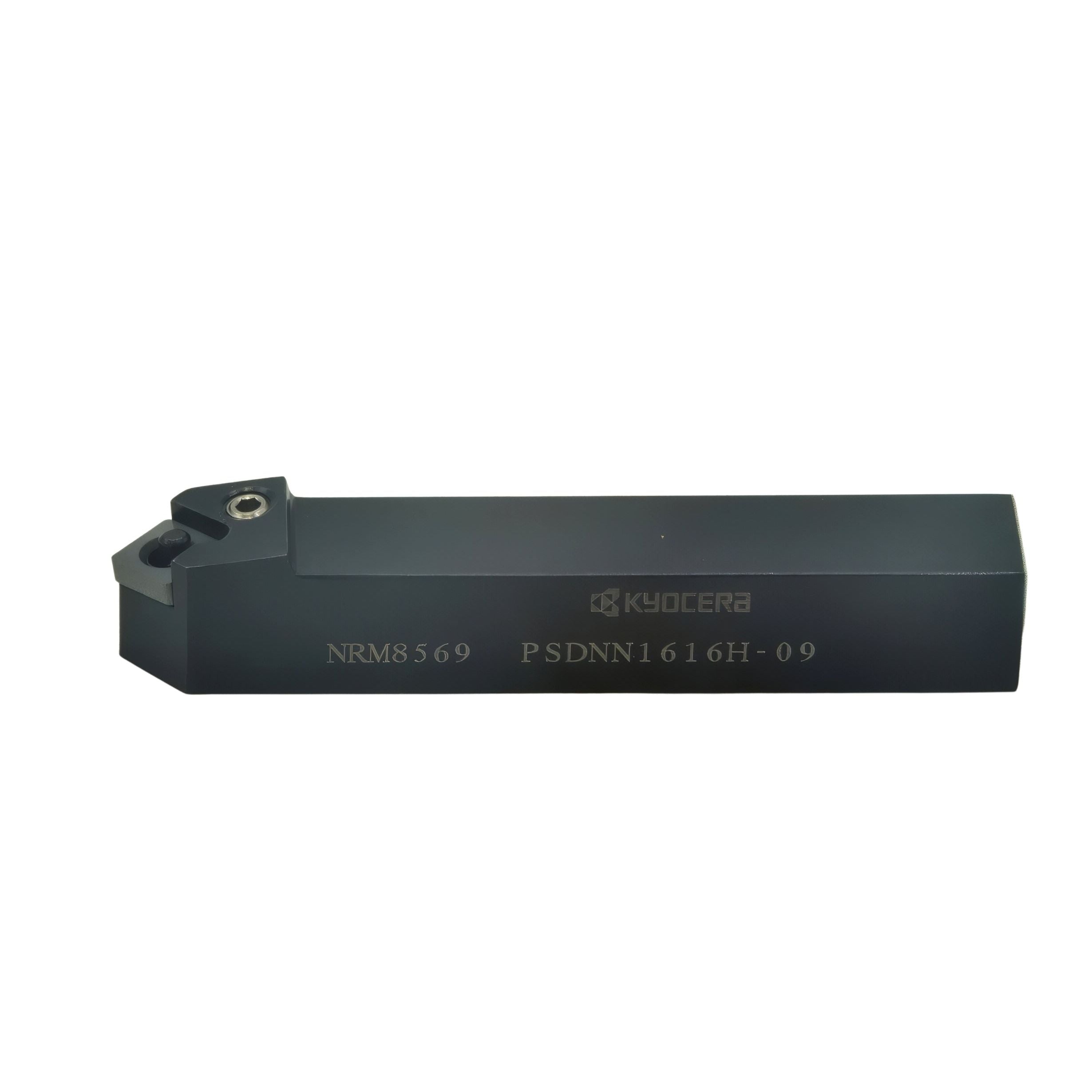

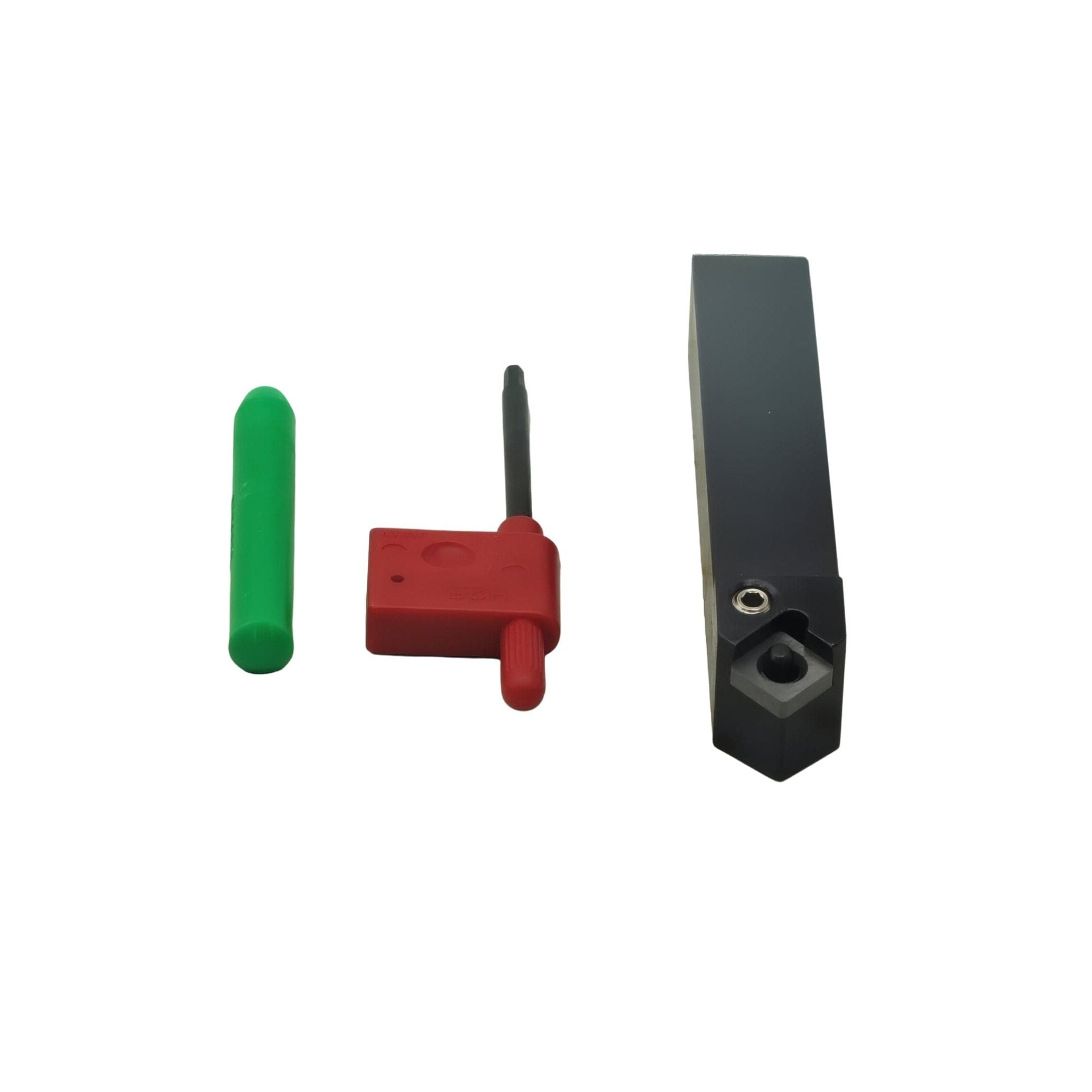

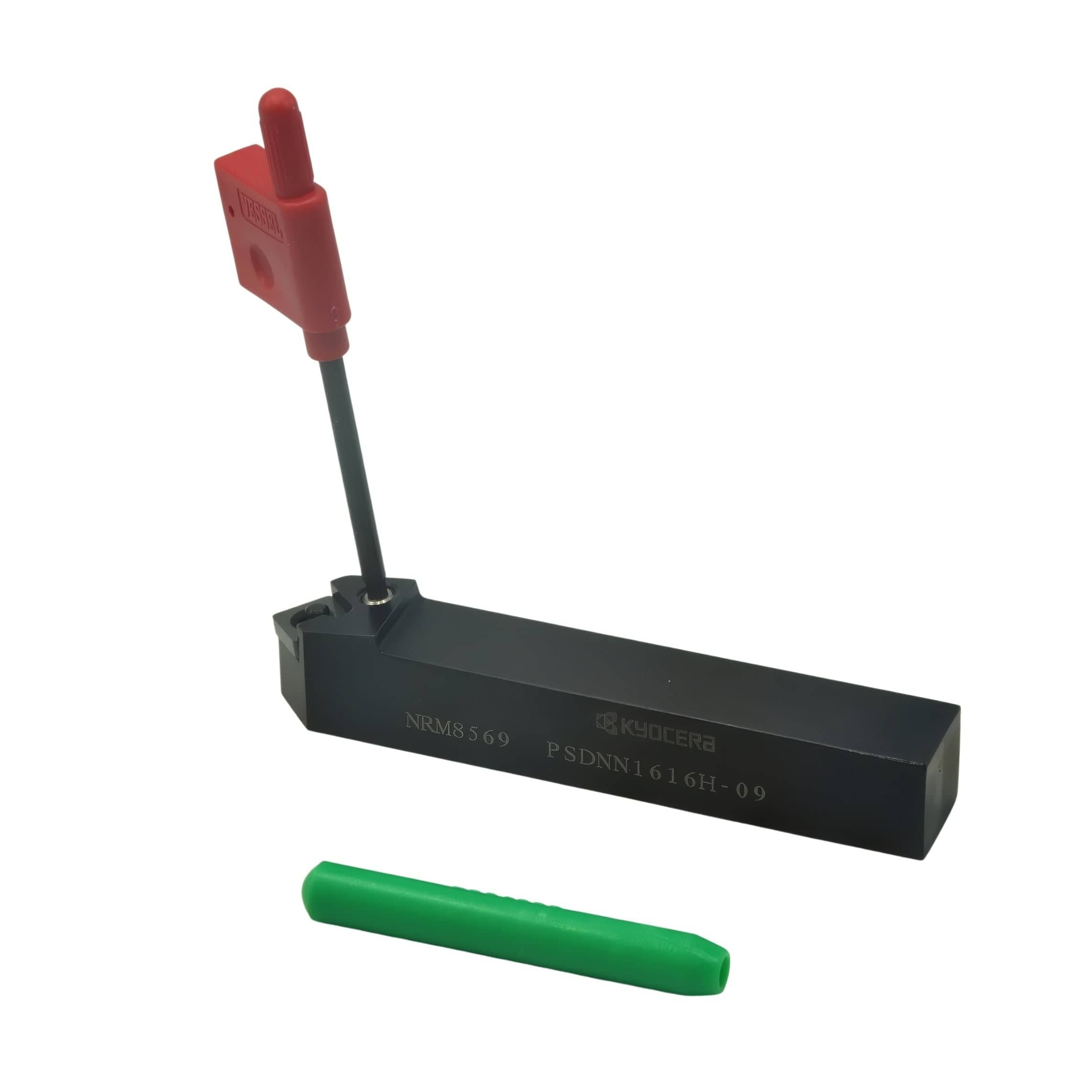

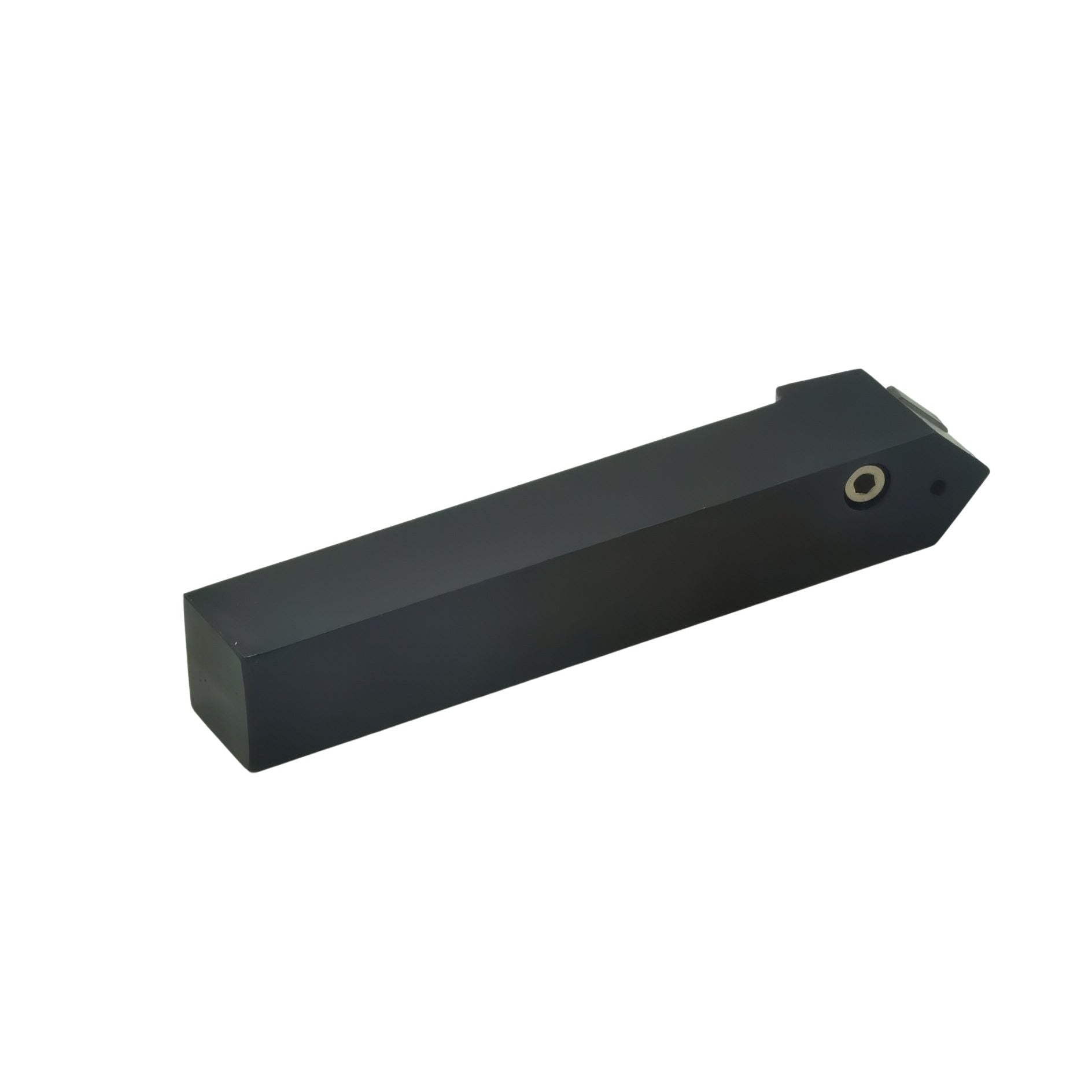

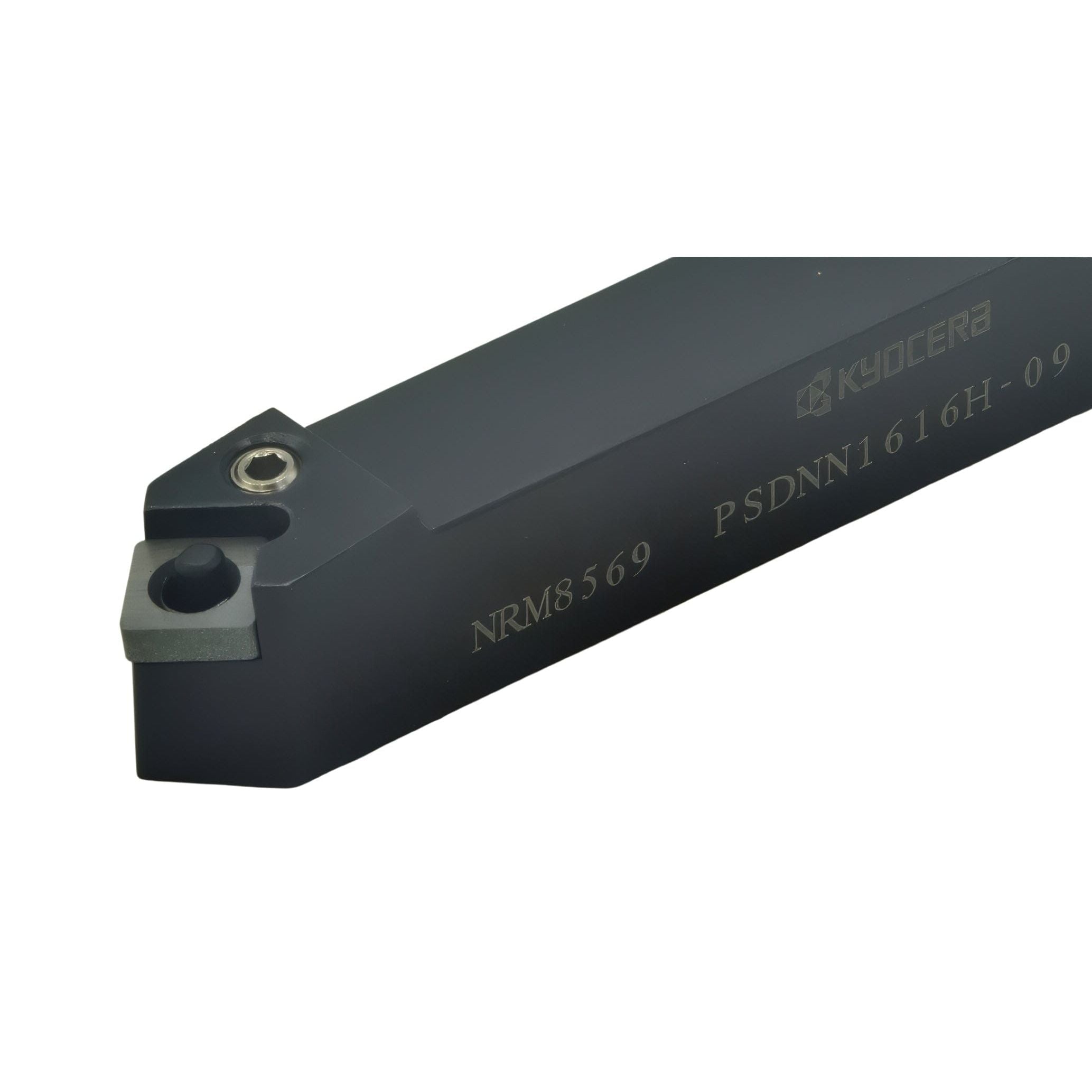

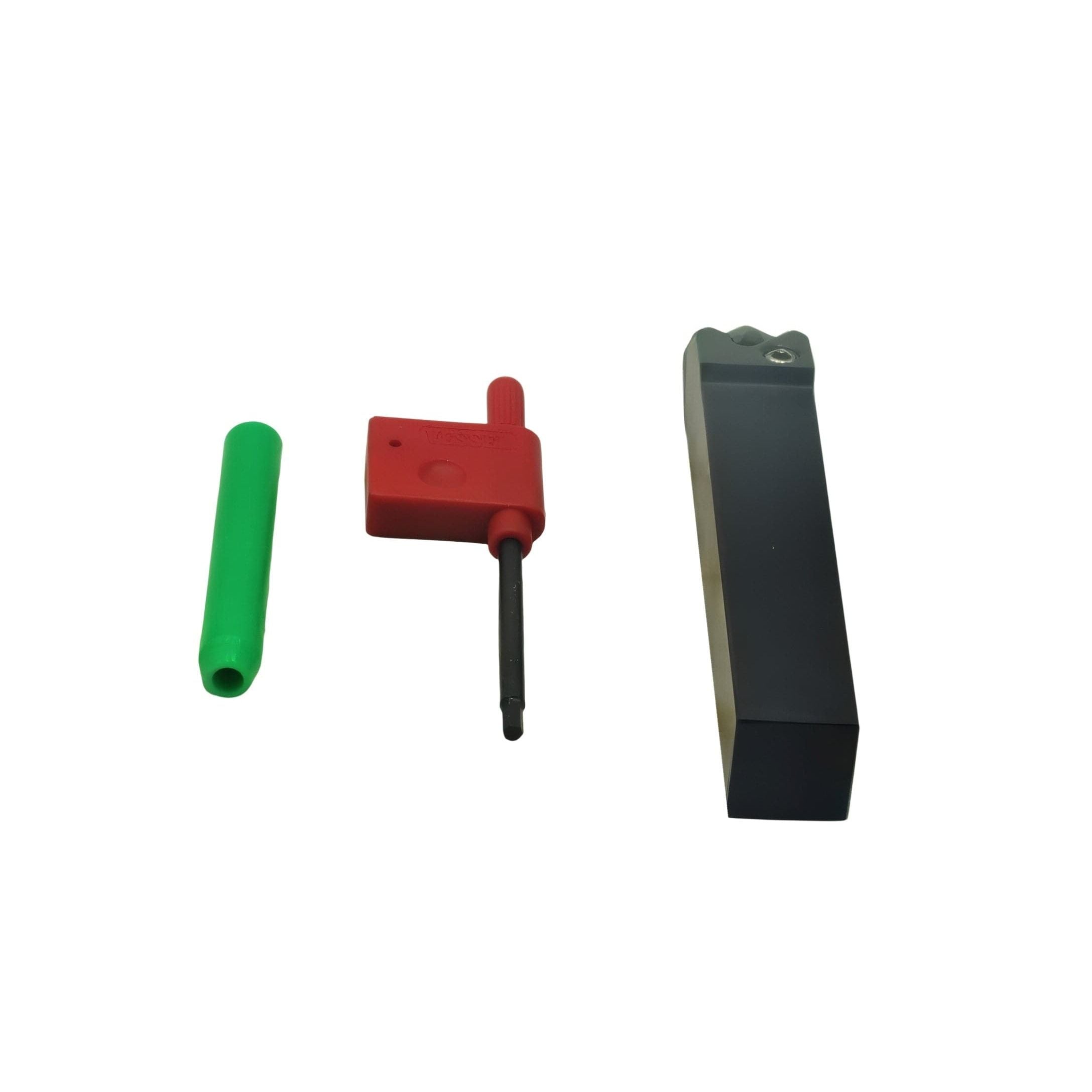

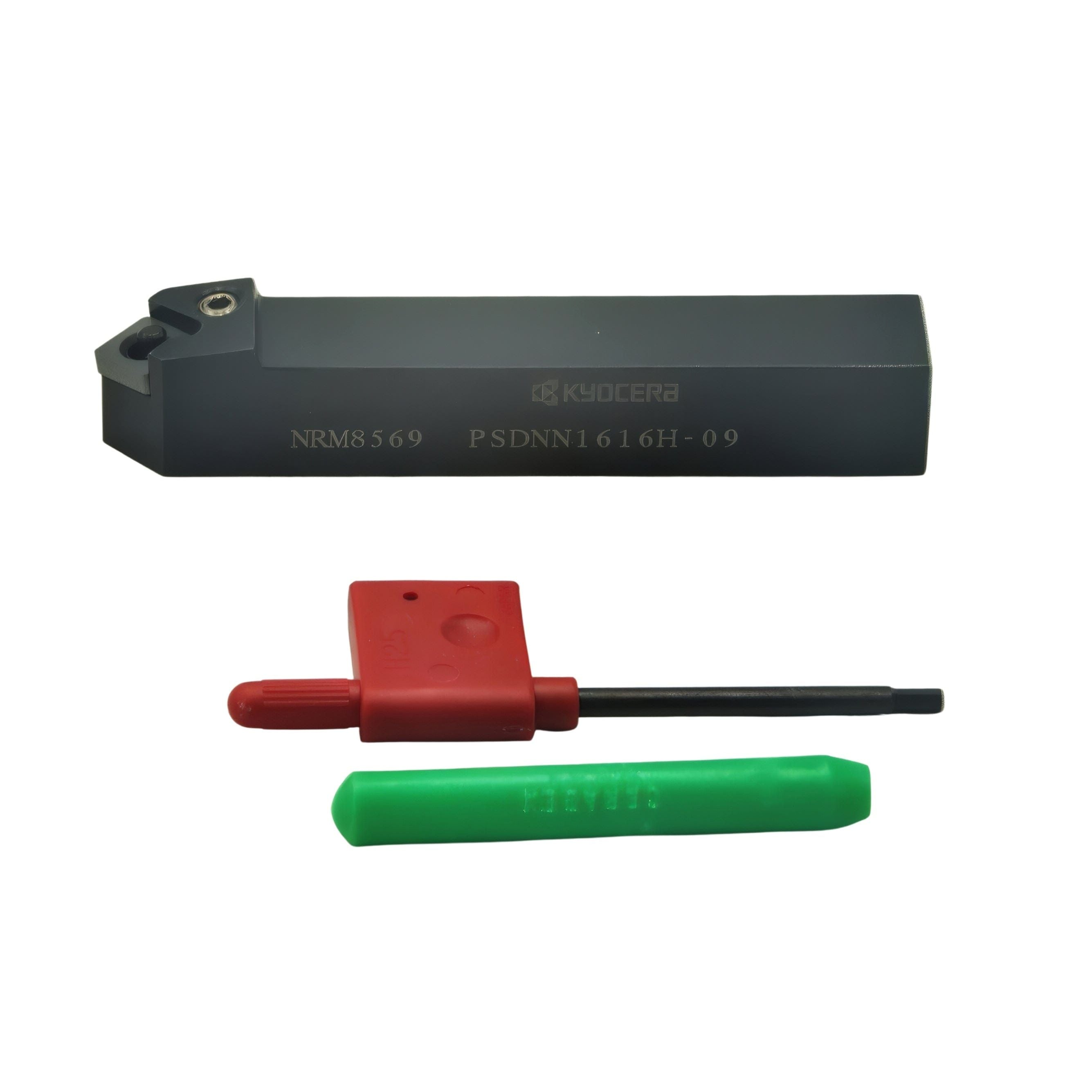

Kyocera PSDNN1616H-09 External Turning Toolholder
Couldn't load pickup availability
The Kyocera PSDNN1616H-09 is a compact, high-precision external turning toolholder designed for stable machining in confined setups and smaller lathes. Featuring a rigid 16 × 16 mm square shank, this holder delivers excellent control, reduced vibration, and reliable performance for precision turning operations.
Manufactured to ISO standards, the PSDNN configuration is designed to accept size 09 inserts, ensuring secure clamping and consistent insert positioning. Its compact form factor makes it ideal for light to medium-duty turning, profiling, and general external machining applications where space and accessibility are critical.
Key Features & Benefits
- Toolholder Type: External turning toolholder (PSDNN)
- Shank Size: 16 × 16 mm square shank
- Insert Size: 09
- Type: N configuration
- Compact Design: Ideal for small lathes and tight machining envelopes
- Applications: External turning, light roughing, and semi-finishing
- ISO Standard: ISO-compliant for reliable insert compatibility
Technical Specifications
- Part Number: PSDNN1616H-09
- Shank Width (B): 16 mm
- Shank Height (H): 16 mm
- Insert Size: 09
- Type: N
- Total Length (OAL): 100 mm
- Head Length (LH): 21 mm
- Internal Coolant: No
- Brand: Kyocera
Kyocera is a globally recognised leader in cutting tool technology, delivering precision-engineered solutions known for durability, accuracy, and consistent machining performance across a wide range of industrial applications.
