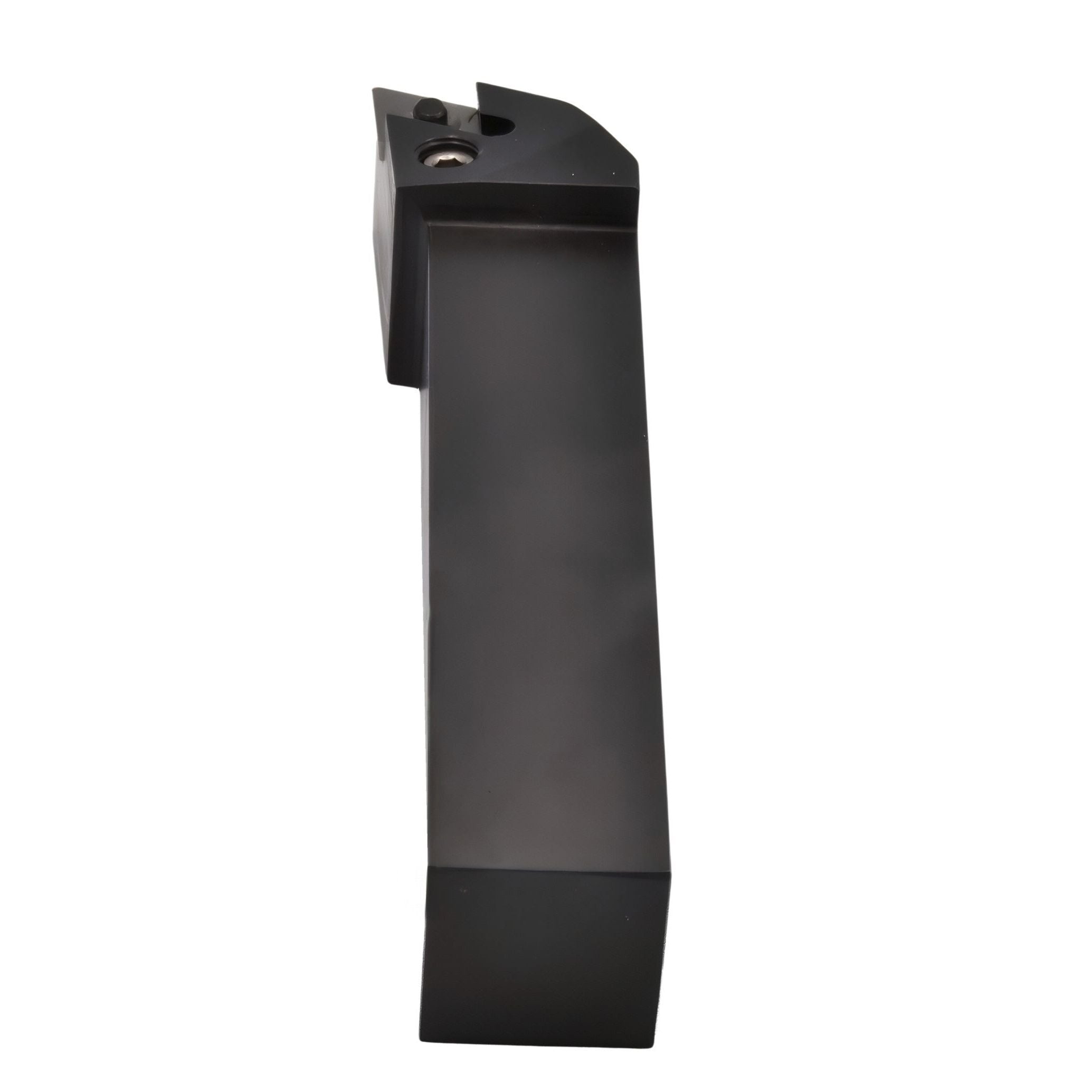

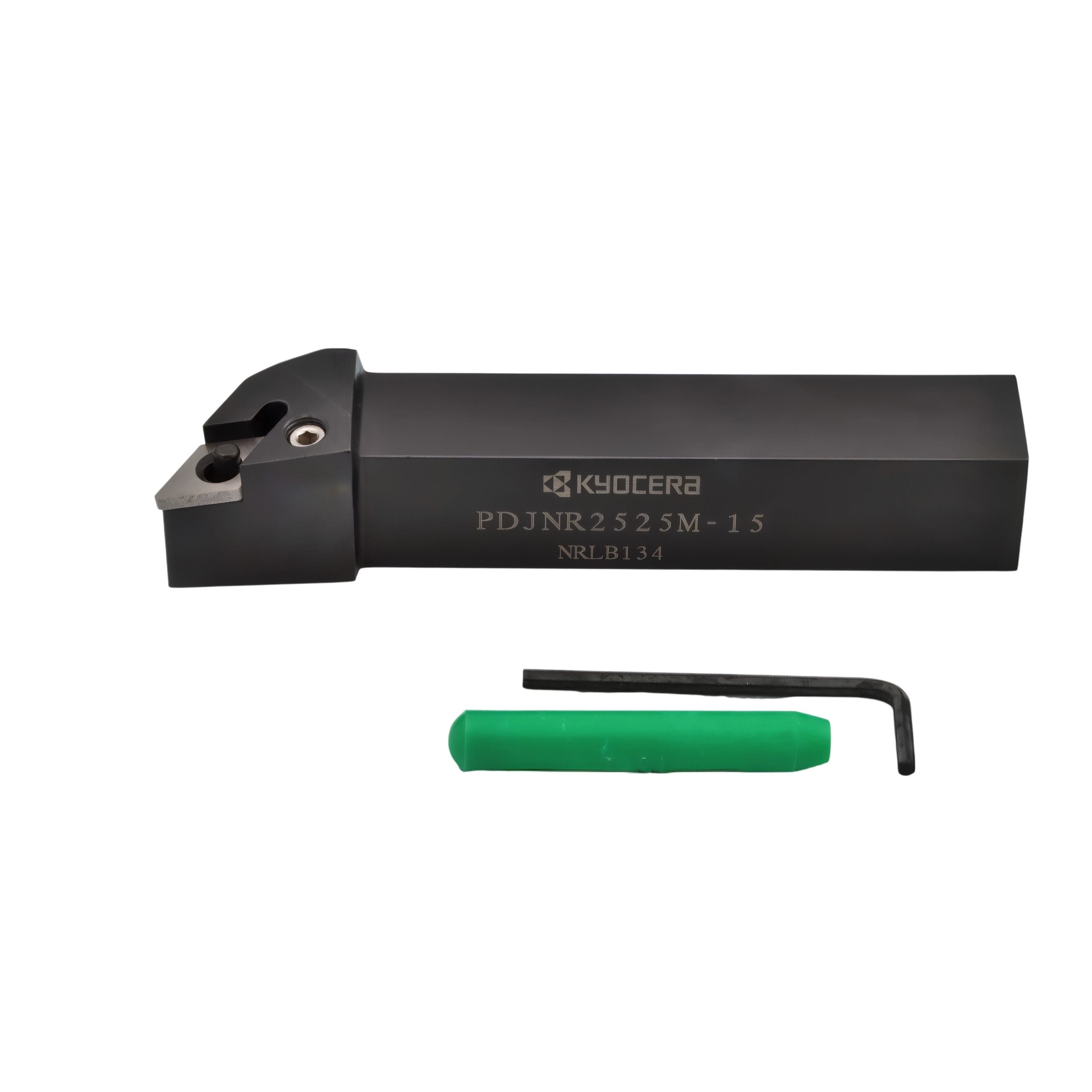

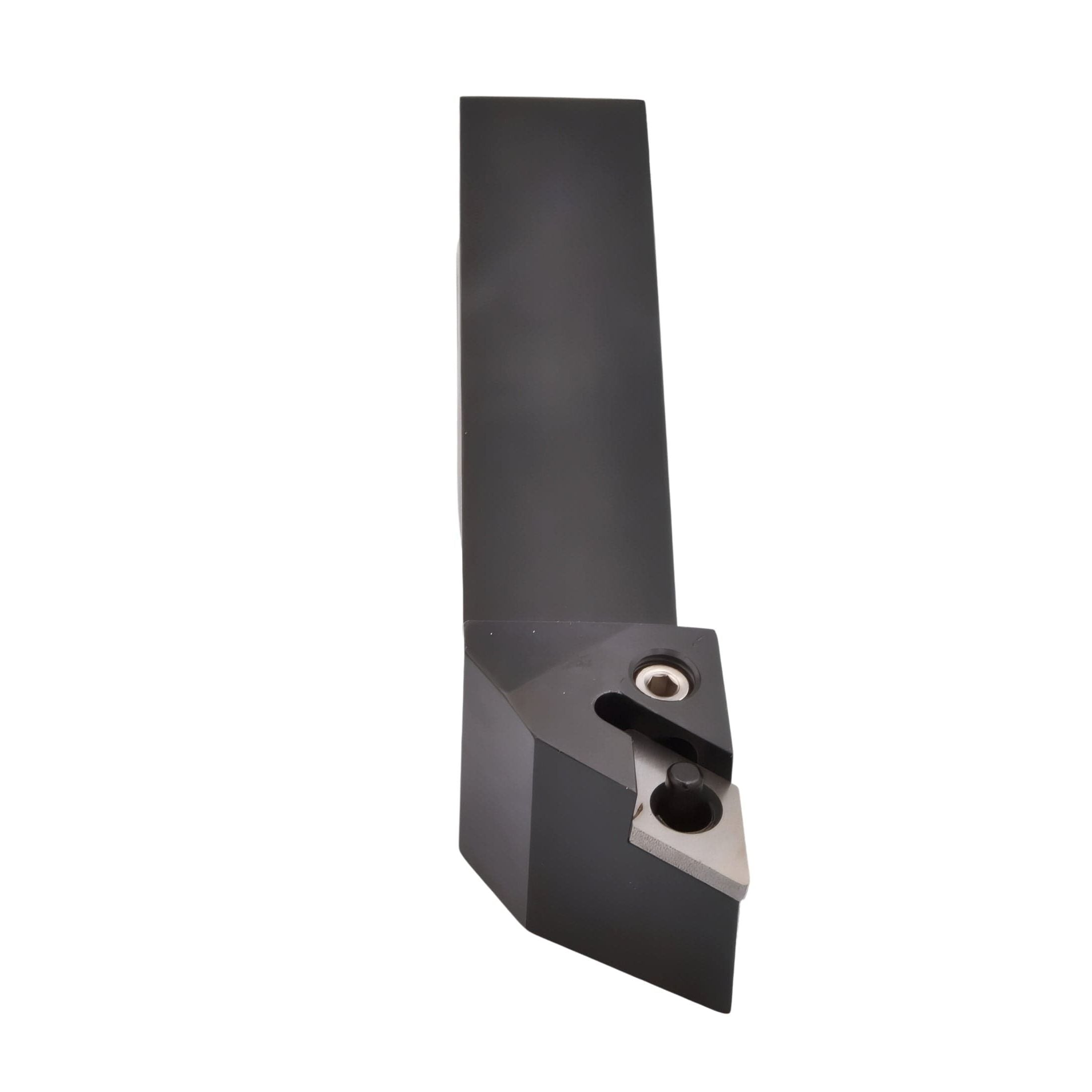

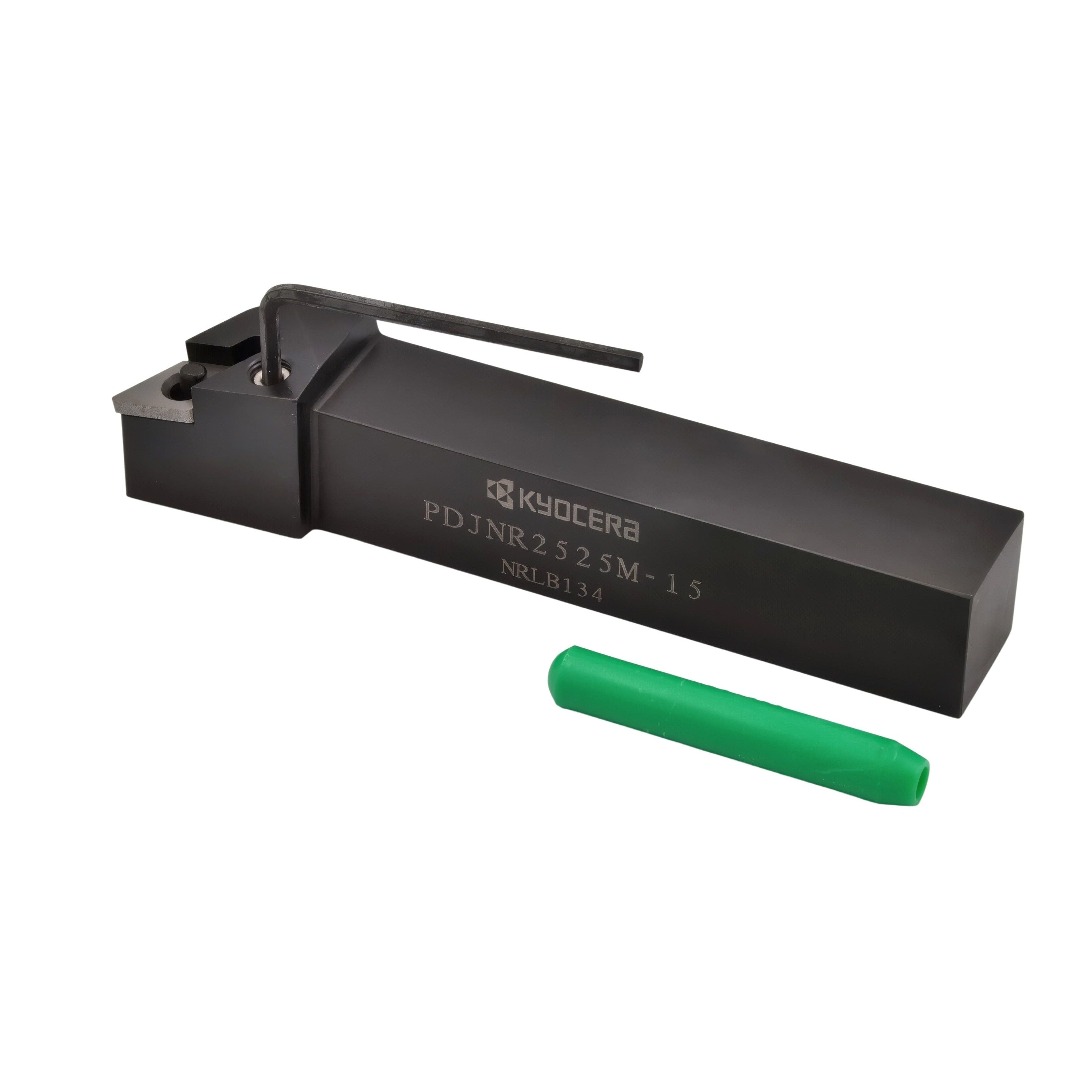

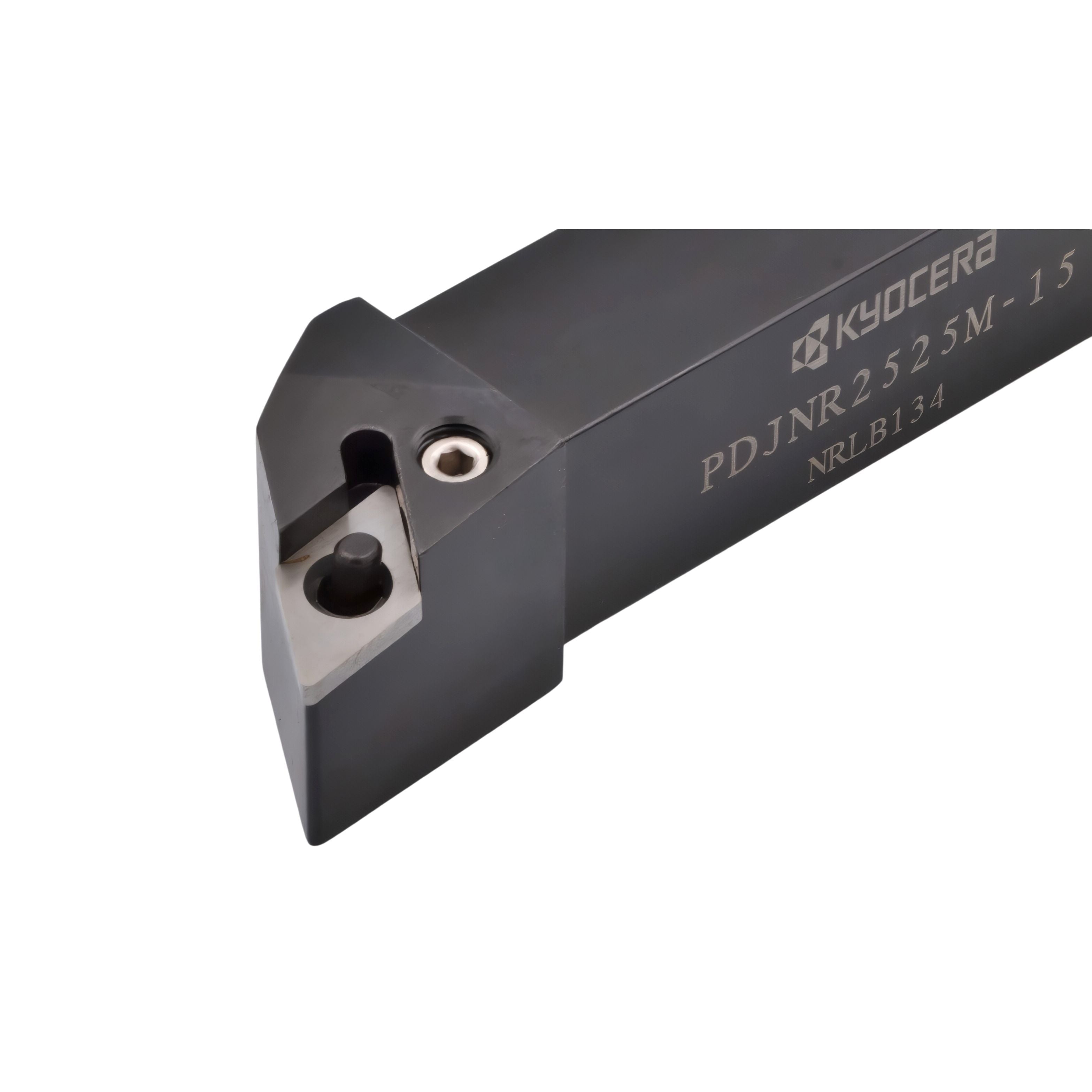

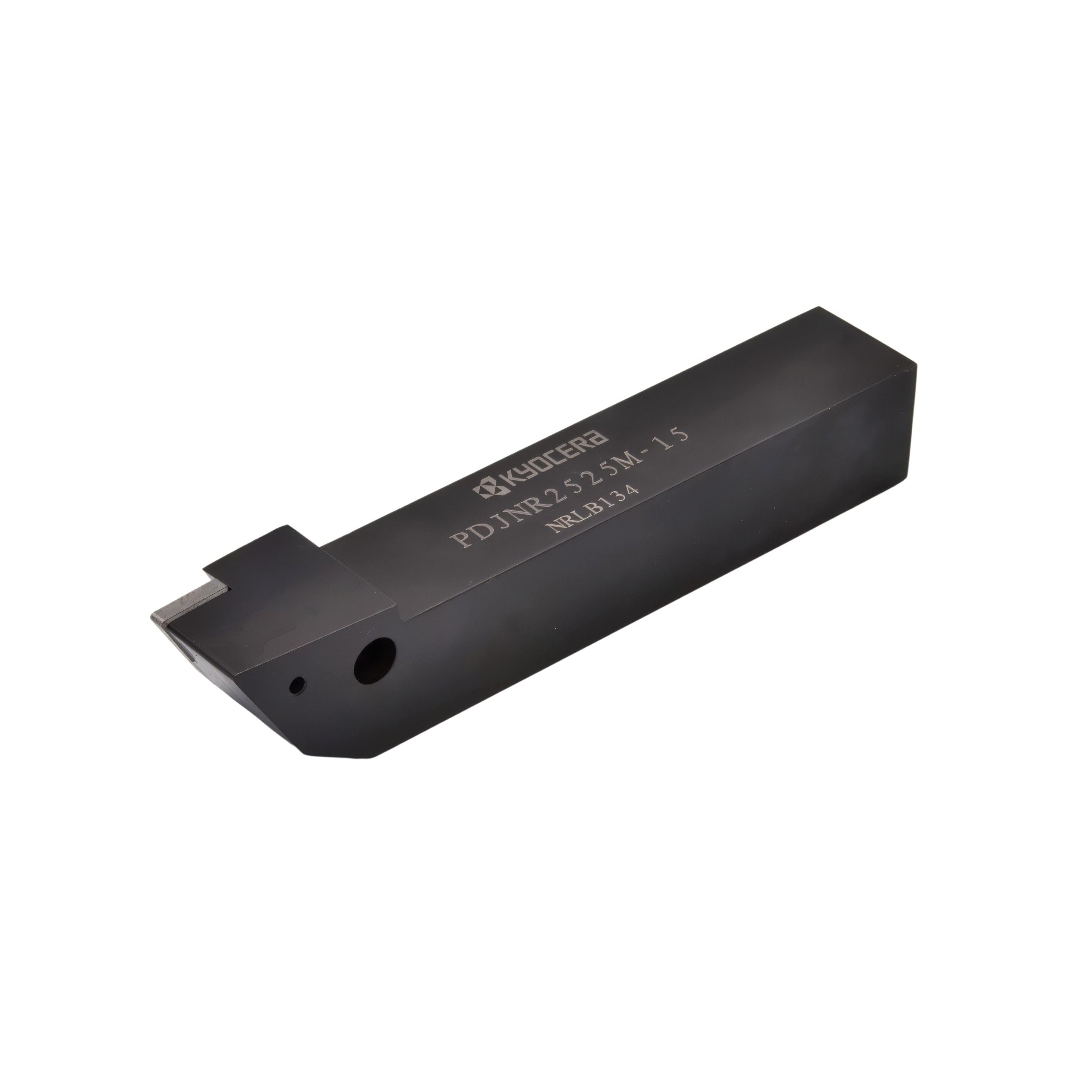

Kyocera PDJNR2525M-15 External Turning Toolholder
Couldn't load pickup availability
The Kyocera PDJNR2525M-15 is a precision external turning toolholder designed for stable and efficient turning operations on CNC and conventional lathes. Manufactured from high-strength alloy steel, this toolholder delivers excellent rigidity and vibration resistance, ensuring consistent cutting performance and improved surface finish in a wide range of machining applications.
This toolholder features the PDJNR holder configuration and is designed to securely clamp ISO size 15 diamond-shaped carbide inserts. The robust 25 mm × 25 mm square shank provides strong clamping stability in the tool turret, enabling reliable roughing and finishing operations. Its rigid design supports accurate machining of steels, stainless steels, and general engineering materials while maintaining dependable insert positioning and cutting geometry.
Key Features & Benefits
- Precision external turning toolholder for general turning operations
- PDJNR holder style compatible with ISO size 15 inserts
- Rigid alloy steel construction improves machining stability
- 25 × 25 mm square shank for secure turret mounting
- Accurate insert clamping for consistent cutting geometry
- Suitable for roughing and finishing operations
- Designed for CNC lathes and conventional turning machines
- Provides reliable performance in steel and general machining applications
Technical Specifications
- Brand: Kyocera
- Model: PDJNR2525M-15
- Item Number: THC00770
- Product Type: External Turning Toolholder
- Holder Style: PDJNR
- Insert Size: 15
- Shank Width (B): 25 mm
- Shank Height (H): 25 mm
- Total Length (OAL): 150 mm
- Head Length (LH): 36 mm
- Hand: Right Hand
- Internal Coolant: No
- Material: Alloy Steel
Kyocera cutting tools are globally recognised for their precision engineering, durability, and machining reliability. Their indexable turning toolholders are designed to provide secure insert clamping, excellent rigidity, and consistent cutting performance across a wide range of turning applications in modern manufacturing environments.
