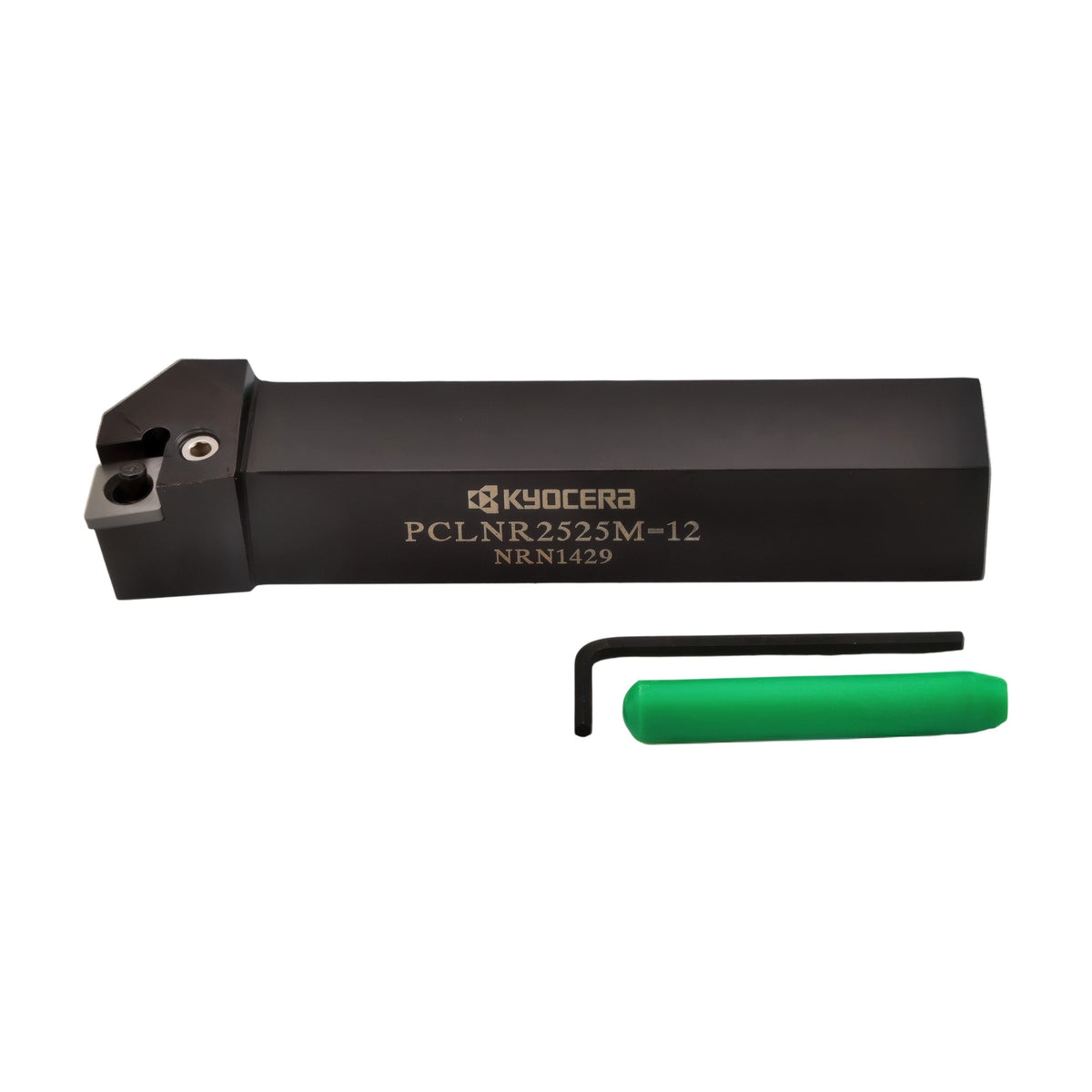

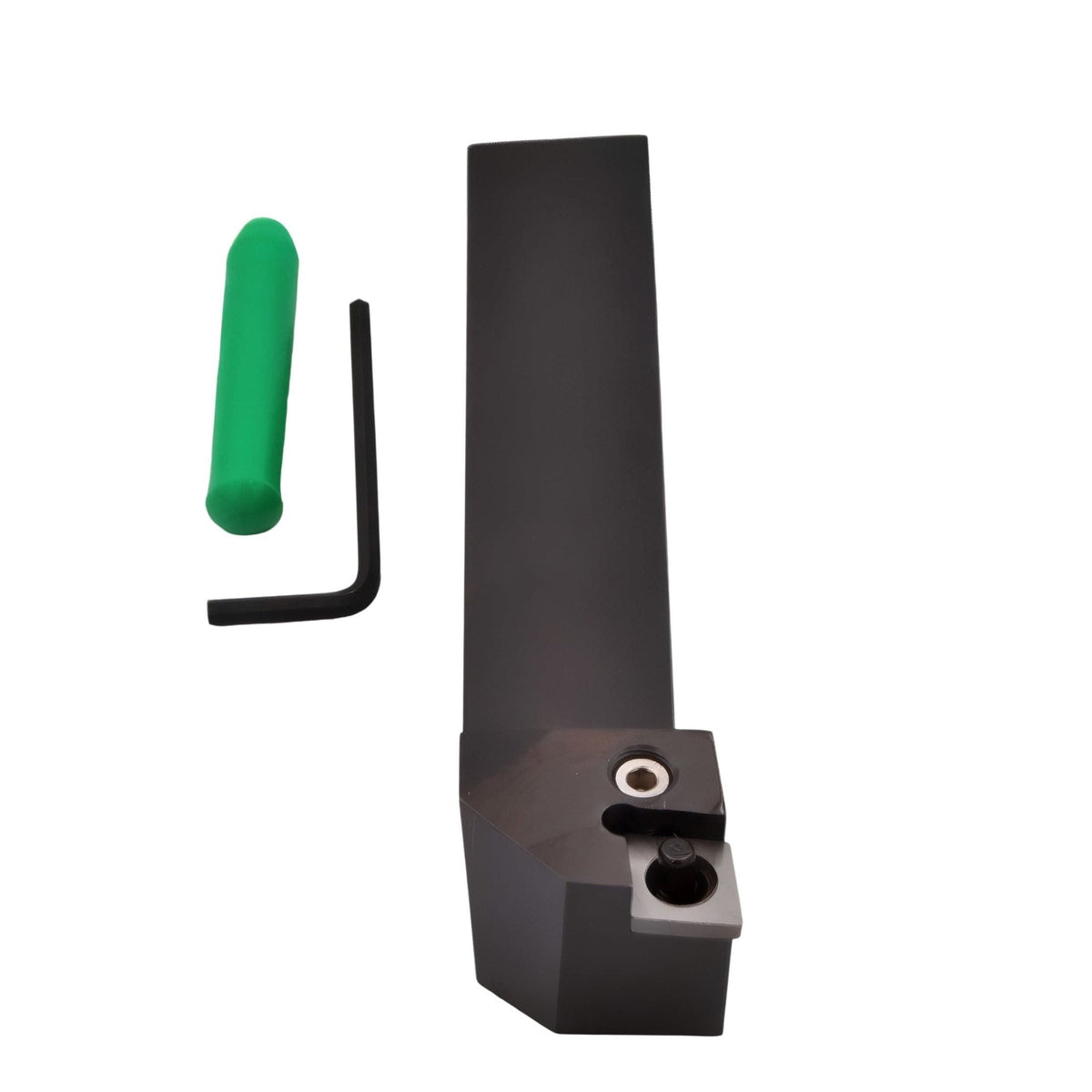

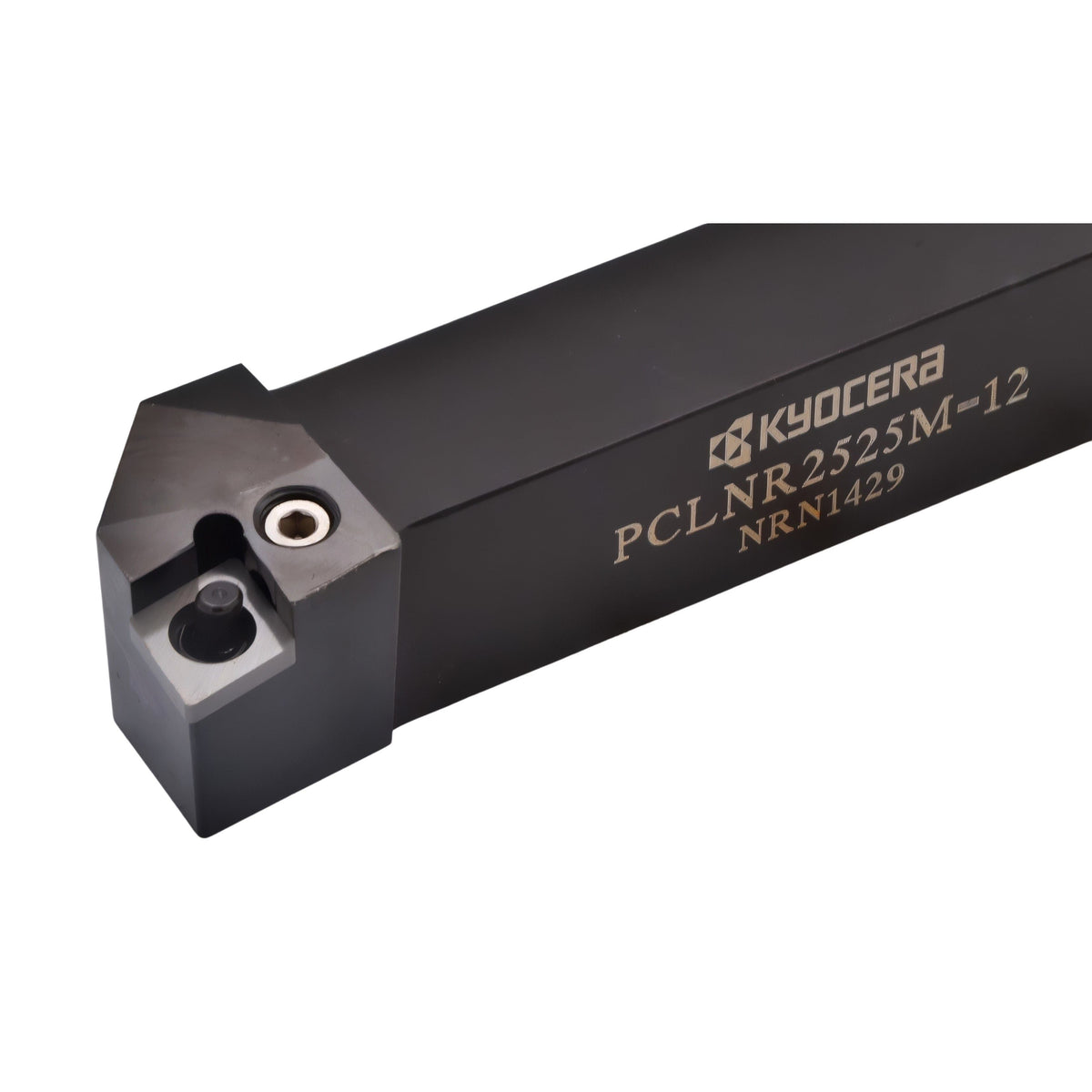

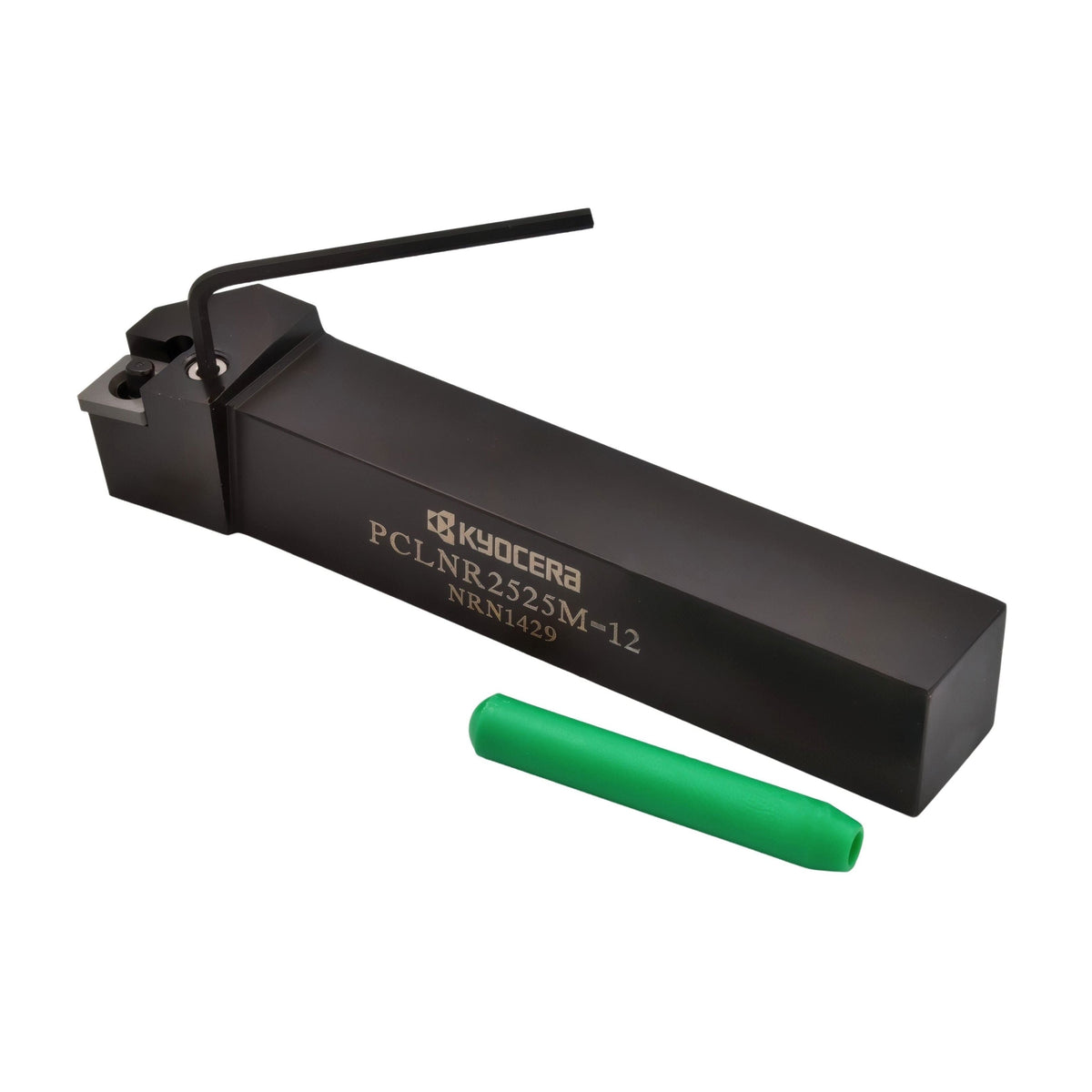

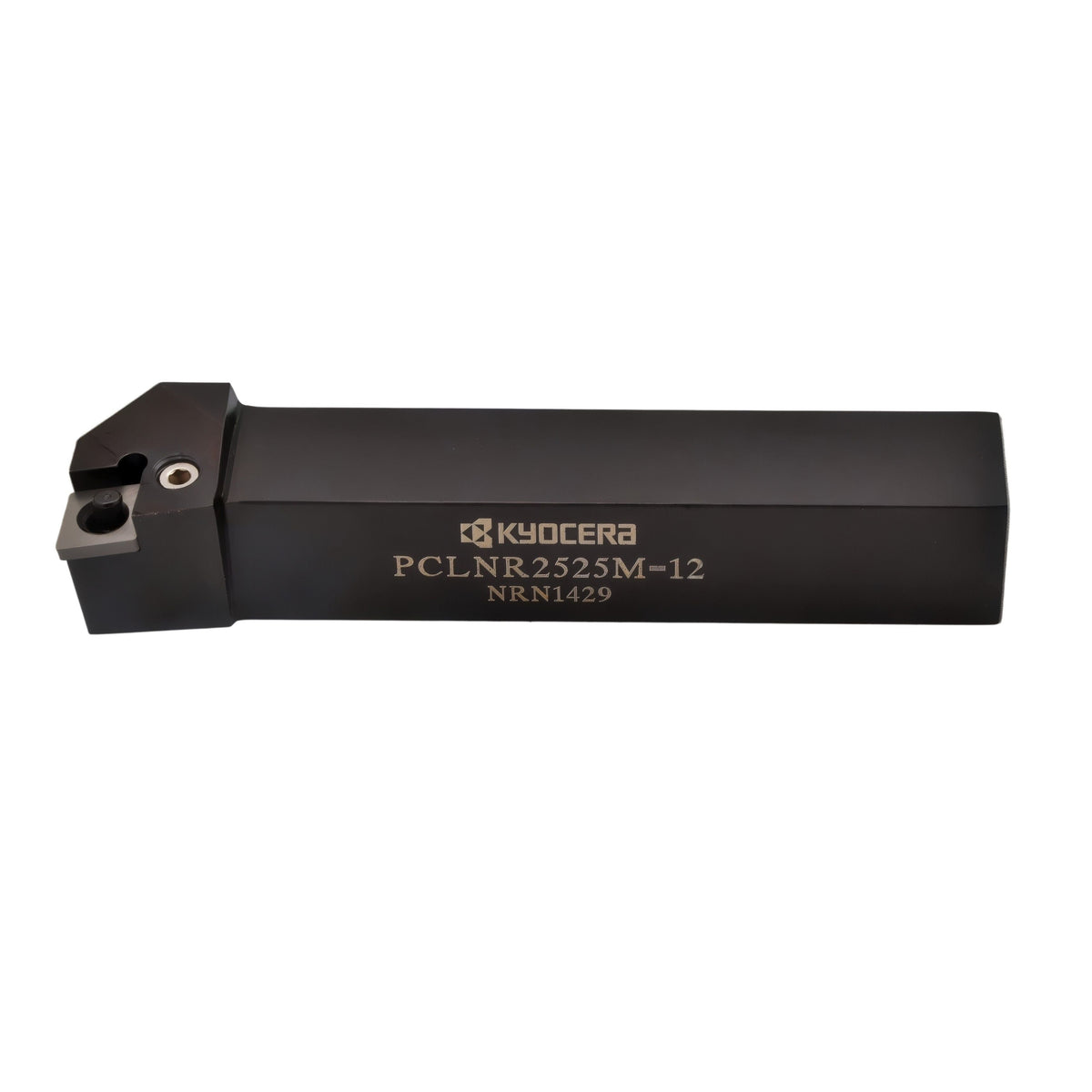

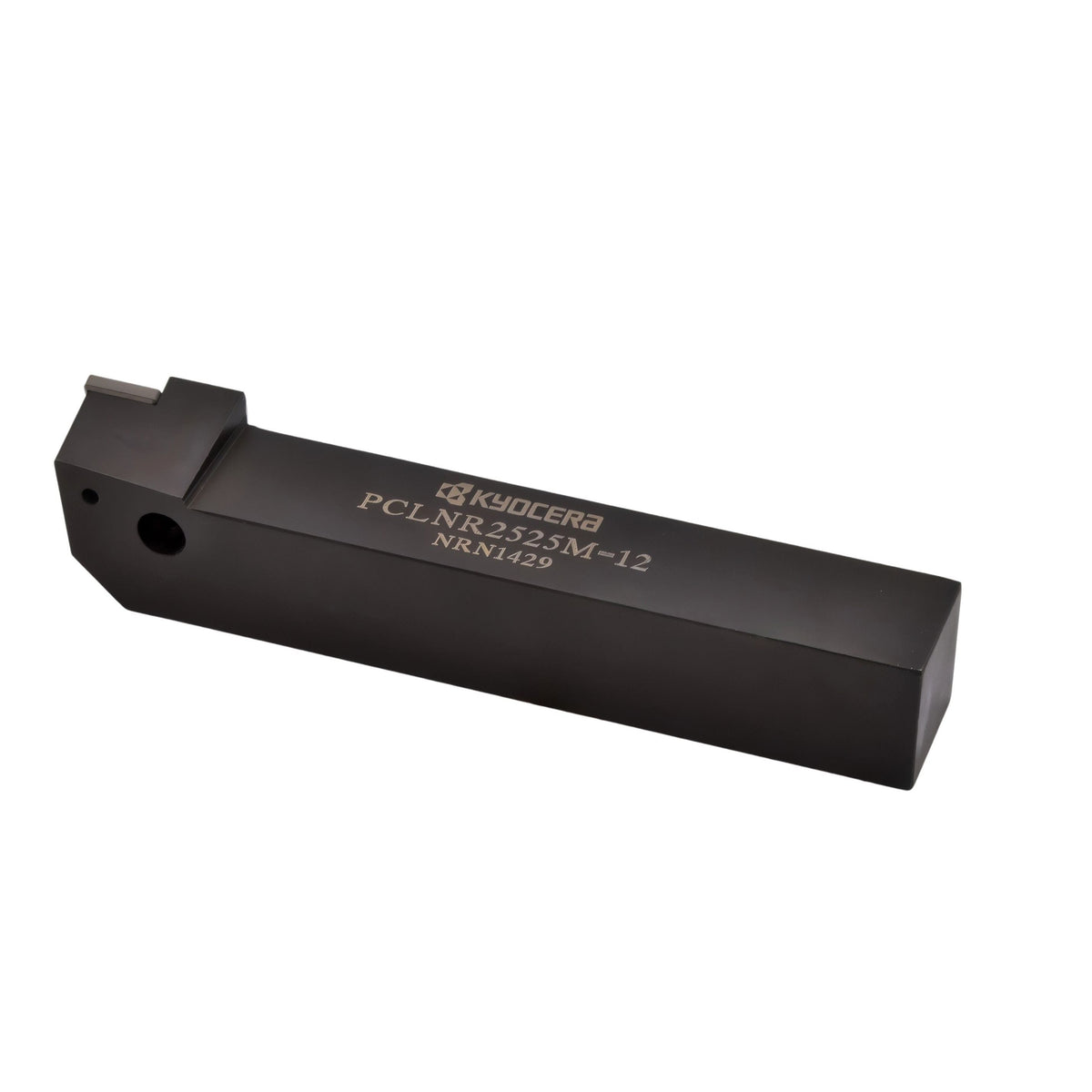

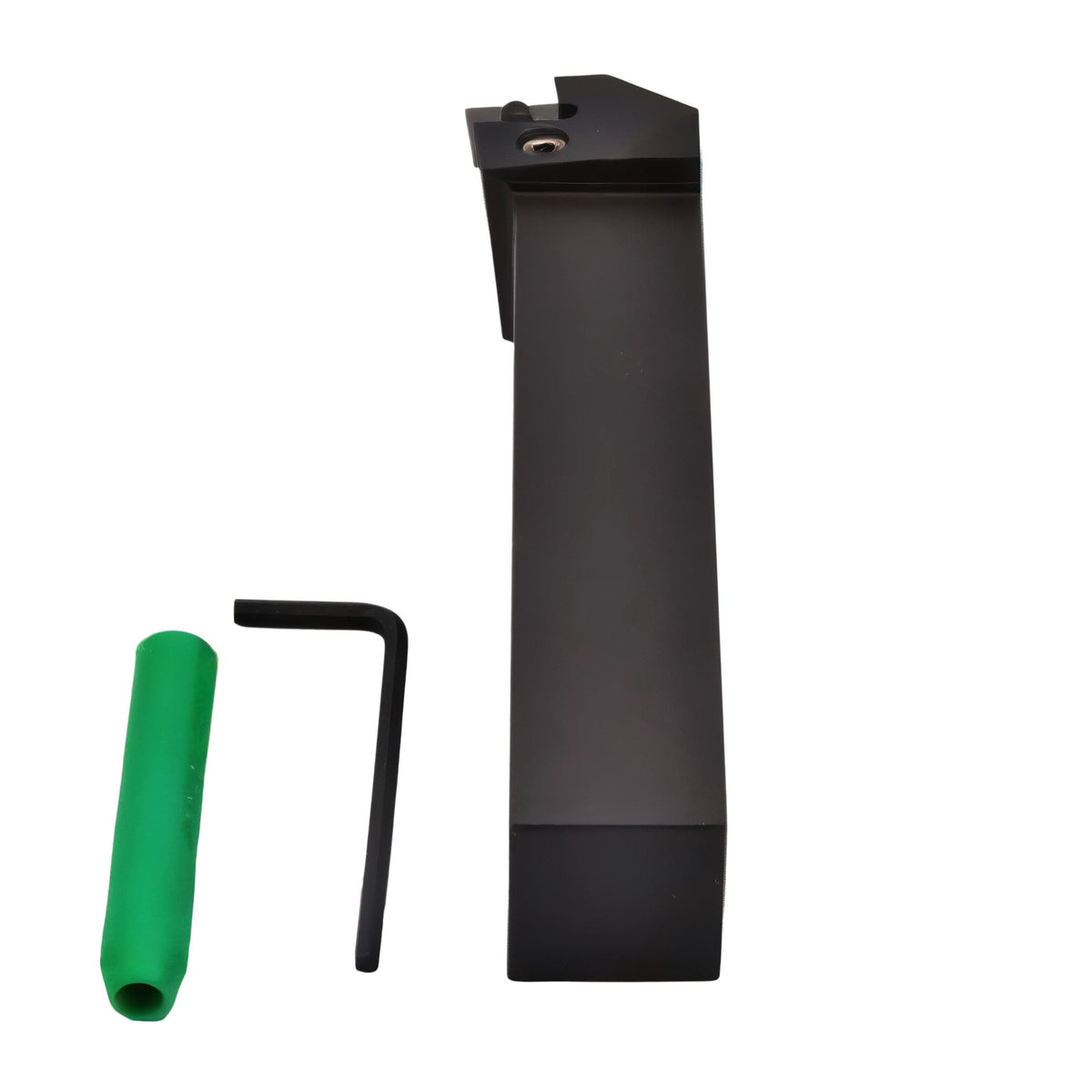

Kyocera PCLNR2525M-12 External Turning Toolholder – THC00710
Couldn't load pickup availability
The Kyocera PCLNR2525M-12 external turning toolholder is designed for heavy-duty machining, offering exceptional rigidity and stability for demanding turning and facing operations. With its larger 25 × 25 mm shank, this holder provides enhanced strength and reduced vibration, making it ideal for higher cutting loads and improved surface finish.
Featuring a right-hand configuration and PCLNR geometry, this toolholder is compatible with CNMG-style 80° negative inserts, delivering excellent edge strength for both roughing and finishing applications. The reliable lever-lock clamping system ensures secure insert positioning and quick replacement, improving productivity in CNC and conventional lathe environments.
Key Features & Benefits
- External turning toolholder for turning and facing applications
- PCLNR holder style compatible with CNMG 80° inserts
- Right-hand configuration for standard machining setups
- Heavy-duty 25 × 25 mm shank for maximum rigidity
- Lever-lock clamping system for secure insert retention
- Suitable for roughing and finishing operations
- Reduced vibration for improved machining accuracy
- Ideal for CNC and manual lathe applications
Technical Specifications
- Brand: Kyocera
- Model: PCLNR2525M-12
- Item Number: THC00710
- Product Type: External Turning Toolholder
- Holder Style: PCLNR
- Insert Type: CNMG (80° Rhombic, Negative)
- Insert Size: 12
- Shank Size: 25 × 25 mm
- Hand: Right
- Clamping System: Lever Lock
- Material: Steel
- Total Length: 150 mm
- Head Length: 27 mm
- Clearance Angle: 0°
- Insert Included Angle: 80°
- Rake Angle (Radial/Axial): -6° / -6°
- Tool Cutting Edge Angle: 95°
- Cutting Edge Length: 12.896 mm
- Corner Radius: 0.8 mm
- Insert Thickness: 4.76 mm
- Internal Coolant: No
Kyocera is globally recognised for precision-engineered cutting tools, delivering consistent performance, durability, and reliability across a wide range of machining applications.
