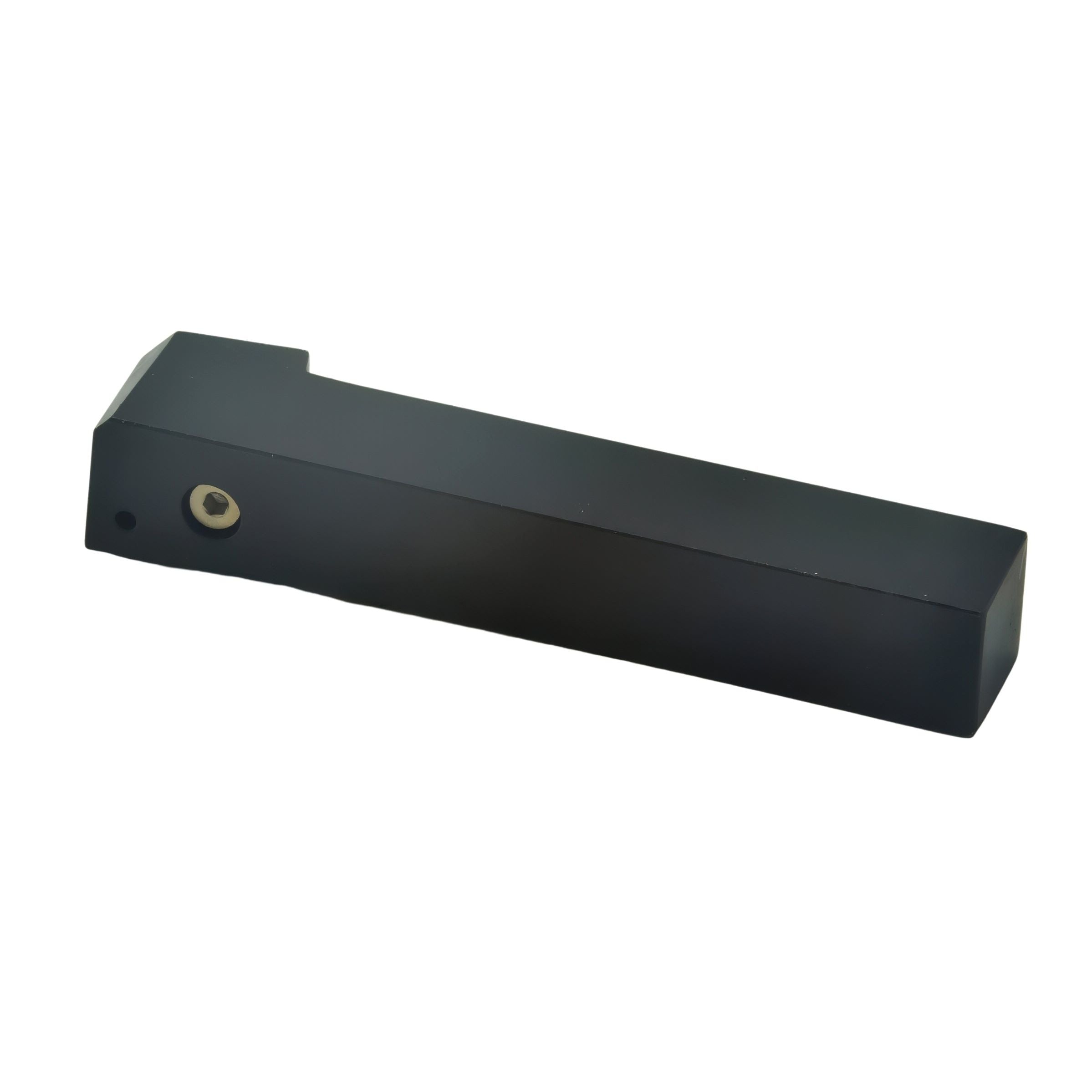

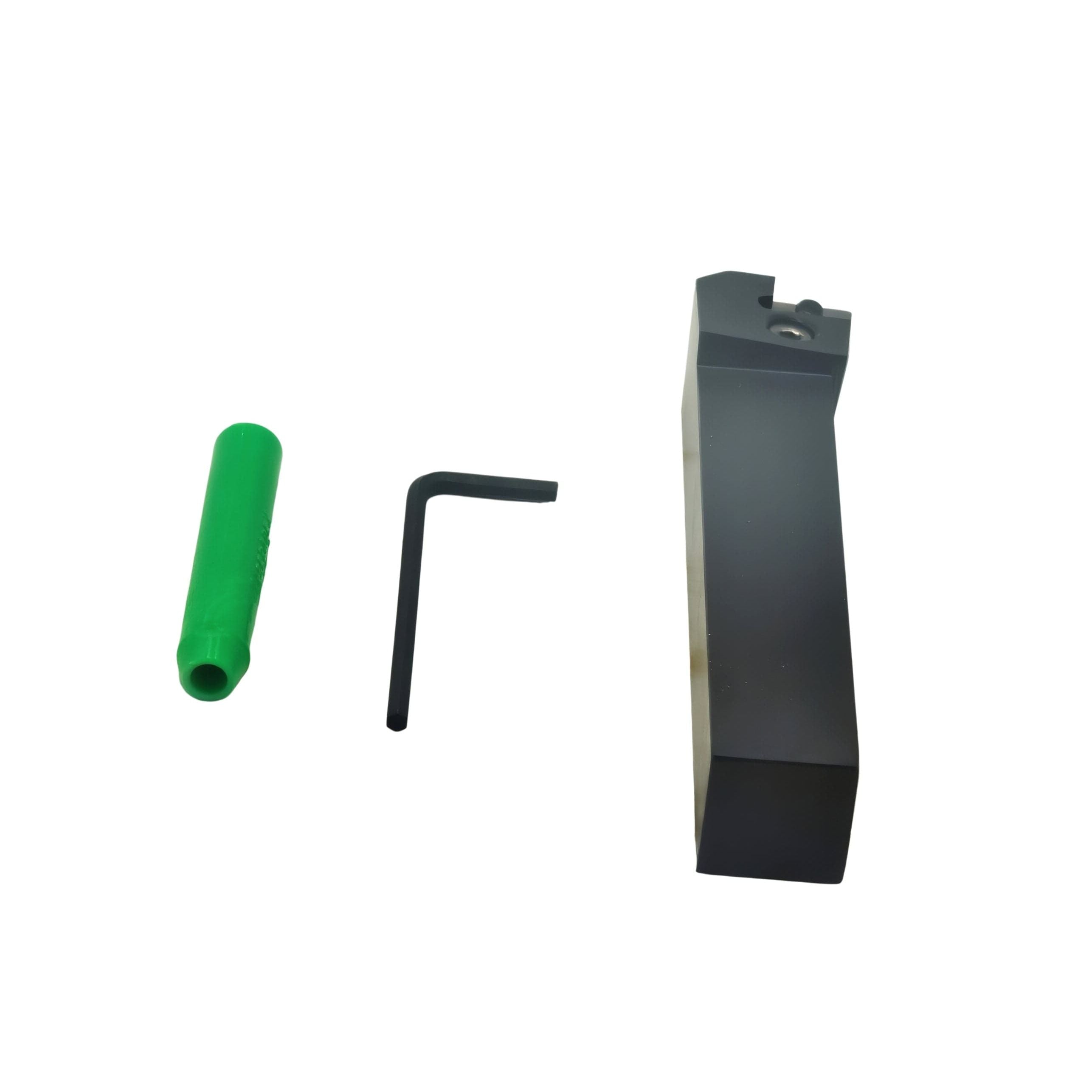

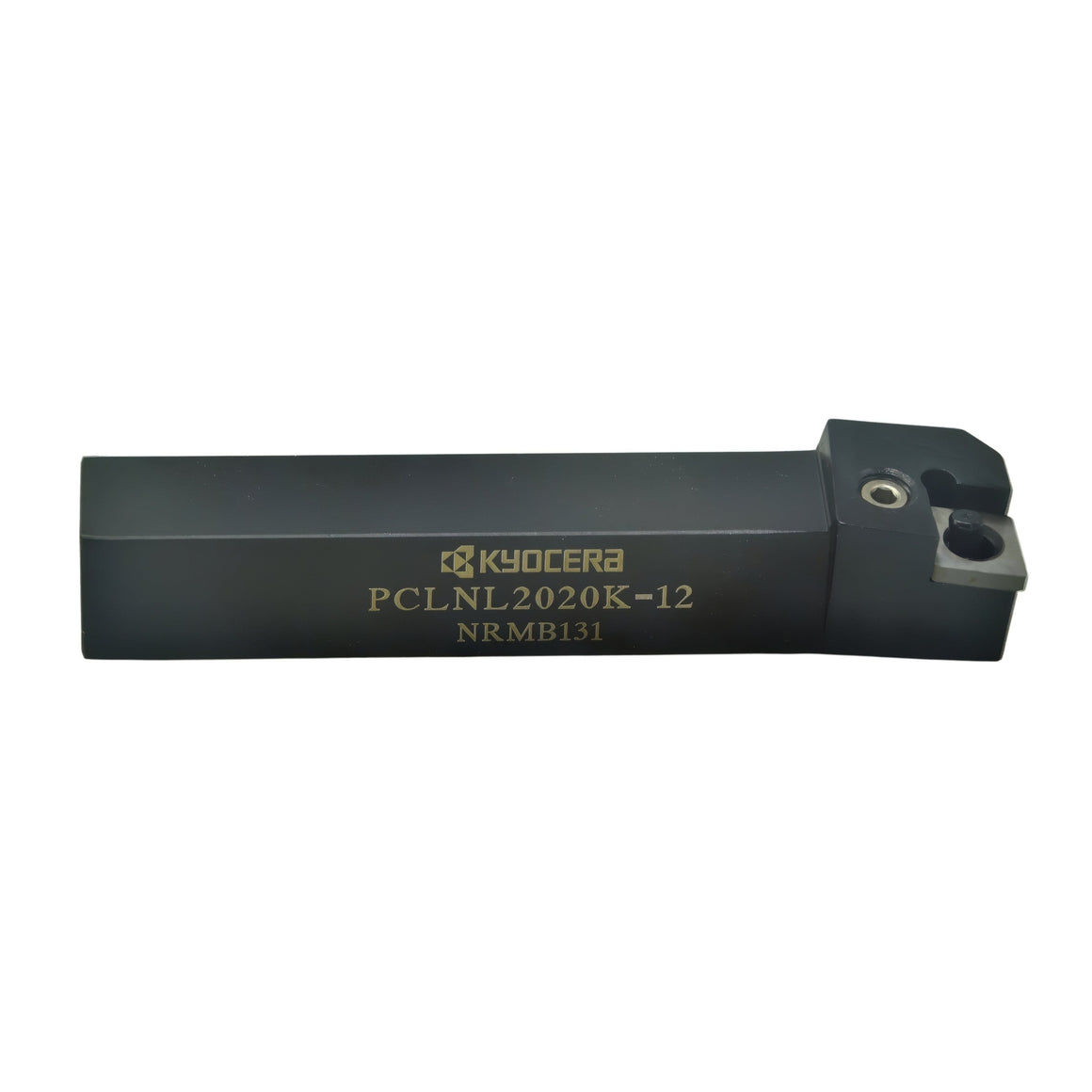

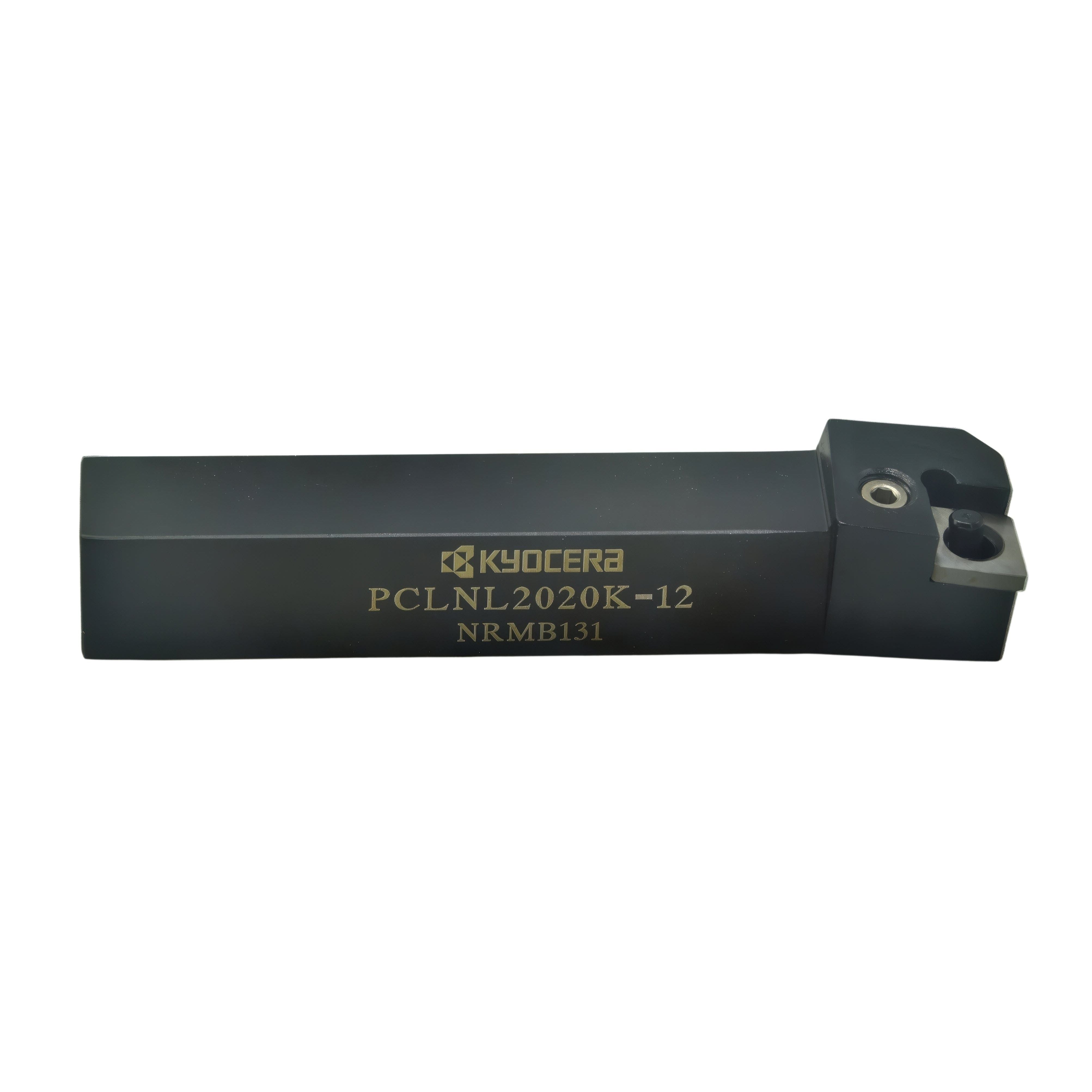

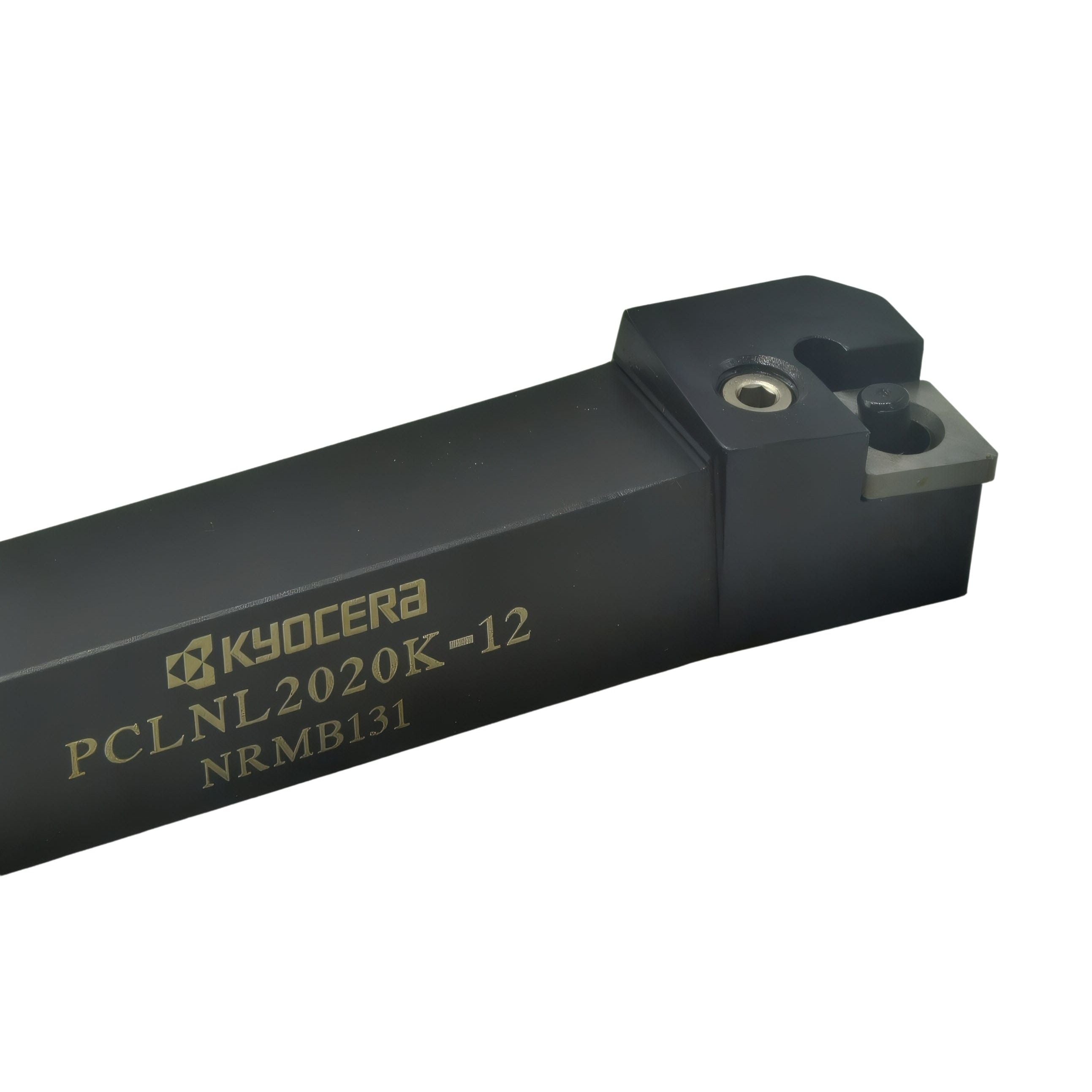

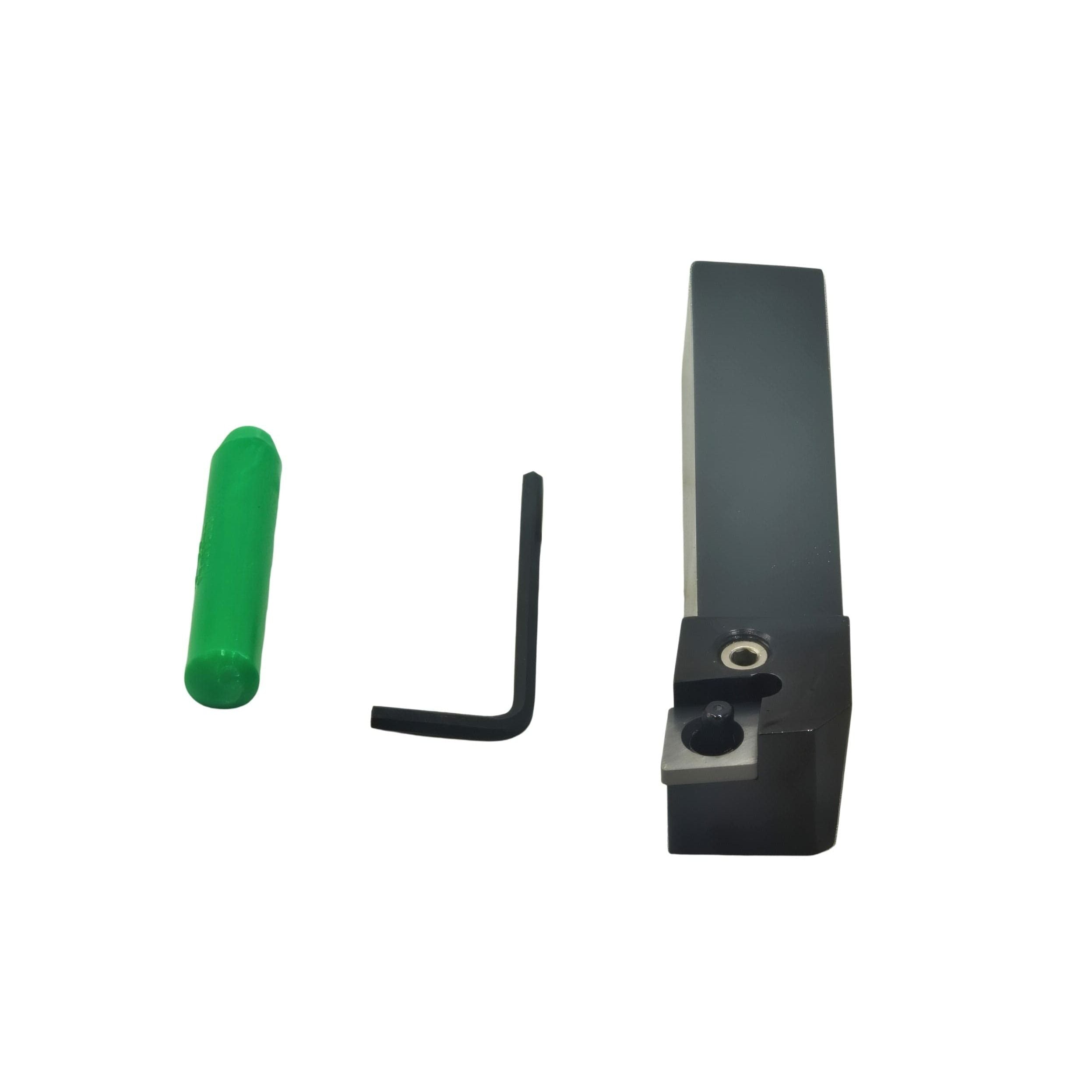

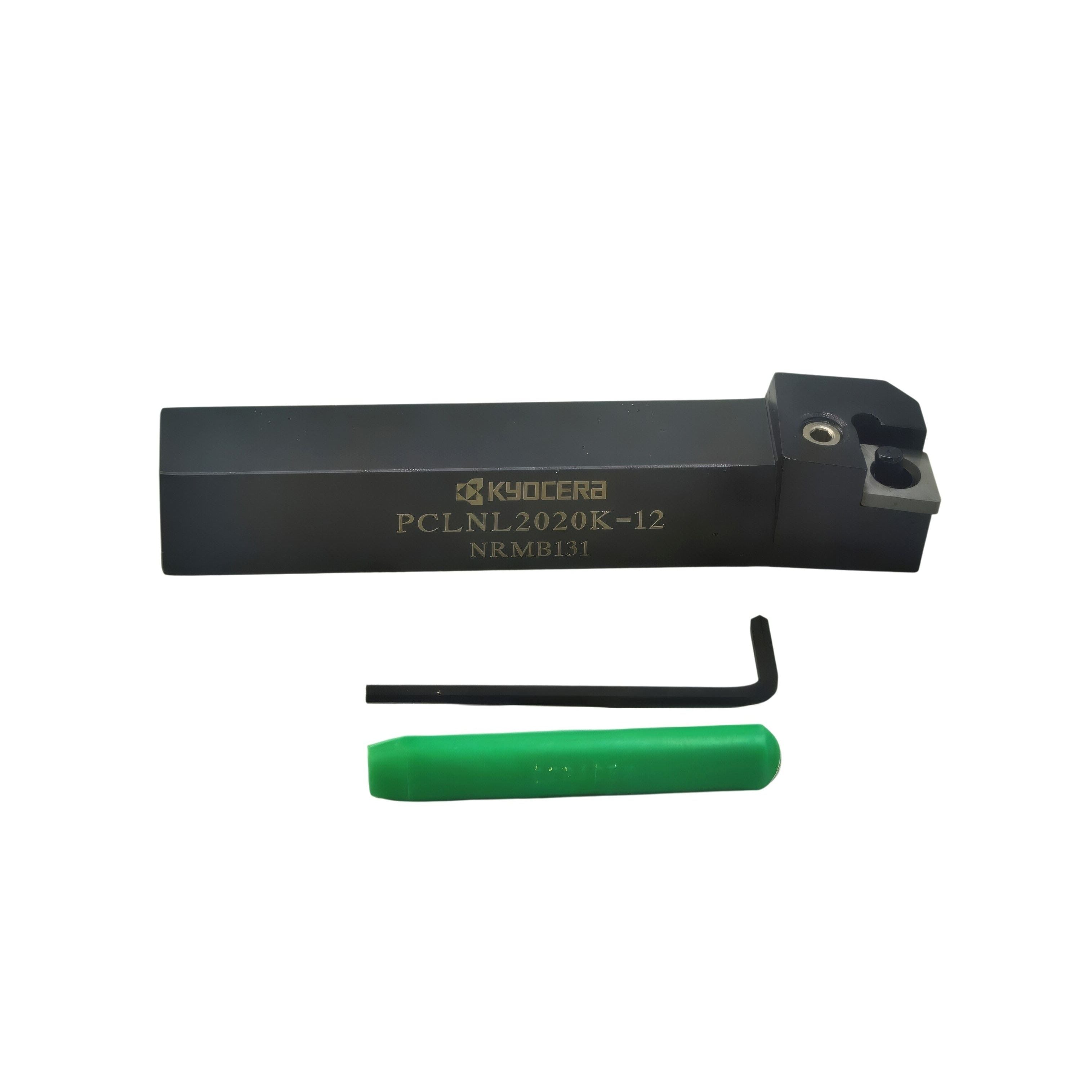

Kyocera PCLNL2020K-12 External Turning Toolholder
Couldn't load pickup availability
The Kyocera PCLNL2020K-12 is a precision external turning toolholder engineered for stable and accurate machining in CNC and conventional lathe applications. Featuring a rigid 20 × 20 mm square shank and a left-hand cutting orientation, this toolholder provides excellent control and vibration resistance during roughing and finishing operations.
Designed to ISO standards, the PCLNL configuration accepts CNMG size 12 inserts, making it a versatile solution for machining steels, stainless steels, and cast iron. Its robust clamping system ensures secure insert positioning, consistent cutting performance, and extended tool life in demanding production environments.
Key Features & Benefits
- Toolholder Type: External turning toolholder (PCLNL)
- Shank Size: 20 × 20 mm square shank
- Insert Size: 12 (CNMG style inserts)
- Cutting Direction: Left-hand
- Clamping Method: Rigid clamp system for secure insert retention
- Applications: Roughing, semi-finishing, and general external turning
- ISO Standard: ISO-compliant design for reliable insert compatibility
Technical Specifications
- Part Number: PCLNL2020K-12
- Shank Width (B): 20 mm
- Shank Height (H): 20 mm
- Insert Size: 12
- Cutting Direction: Left
- Total Length (OAL): 125 mm
- Head Length (LH): 27 mm
- Internal Coolant: No
- Brand: Kyocera
Kyocera is a global leader in cutting tool technology, known for precision engineering, advanced materials, and exceptional durability. Kyocera toolholders are widely trusted in automotive, aerospace, and general engineering industries worldwide.
