Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

SKU: MFWN90063R4TM
(0)

Kyocera MFWN90063R-4T-M 63mm Milling Toolholder (4 Inserts 22mm Bore Internal Coolant)

Only 1 left
$1,368.95

Kyocera MFWN90063R-4T-M 63mm Milling Toolholder (4 Inserts 22mm Bore Internal Coolant)

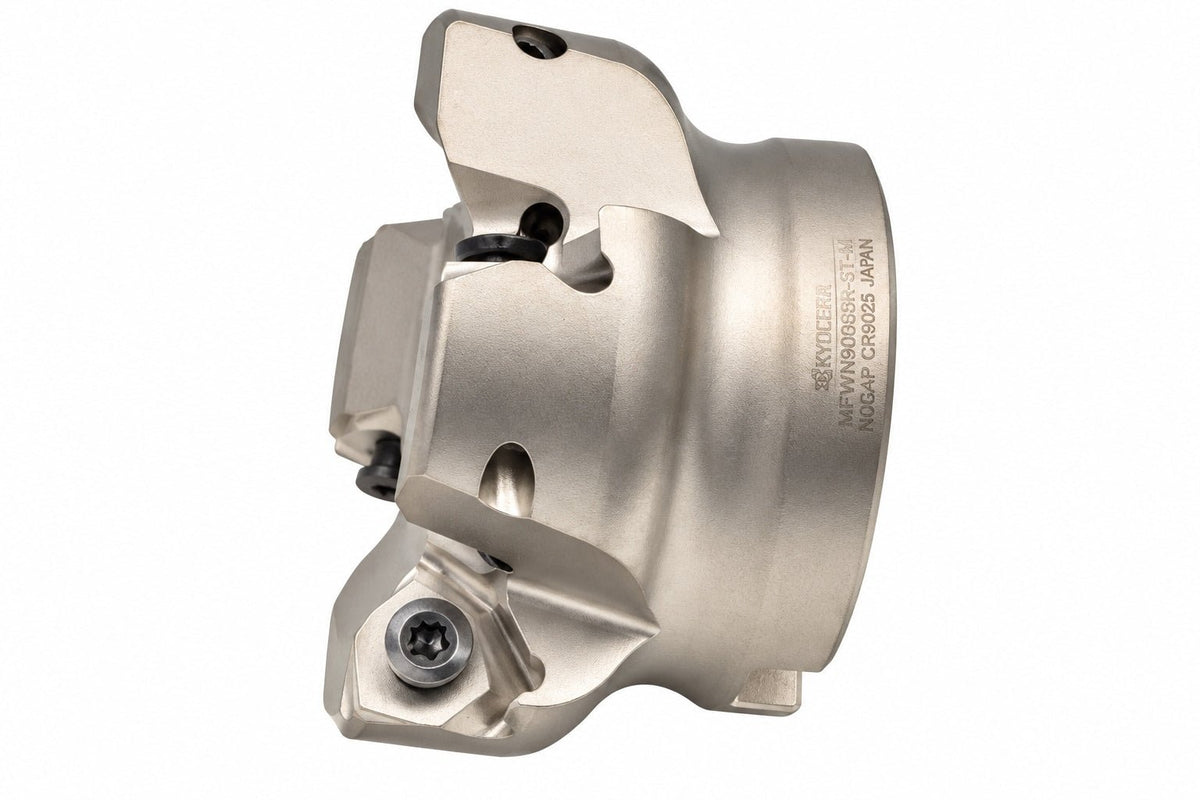

The Kyocera MFWN90063R-4T-M Milling Toolholder is a precision-engineered milling cutter designed for efficient face milling operations. Featuring a 63mm cutting diameter, a 90° cutting angle, and a four-insert configuration, it supports productive material removal and accurate machining. The 22mm connection bore provides a secure mounting interface, while the integrated internal coolant capability helps deliver coolant to the cutting area for effective heat management during machining.

Key Features & Benefits

  • 63mm Cutting Diameter: Designed for milling applications requiring a 63mm cutter diameter.
  • Four-Insert Configuration: Accommodates four face-mounted inserts for efficient cutting performance.
  • 90° Cutting Angle: Supports machining operations requiring a right-angle cutting geometry.
  • Internal Coolant: Helps direct coolant towards the cutting zone to manage heat during milling.
  • 8mm Maximum Depth of Cut: Provides a maximum cutting depth of 8mm, with a recommended depth of cut of 3mm.
  • 22mm Connection Bore: Designed for mounting on a compatible milling arbor or machine connection.
  • Compact Construction: Features a 40mm overall length for a compact tool setup.
  • High-Speed Capability: Supports a maximum rotational speed of 16,000 RPM, subject to appropriate operating conditions.

Technical Specifications

  • Brand: Kyocera
  • Model: MFWN90063R-4T-M
  • Item Number: THN04700
  • Tool Type: Milling Toolholder
  • Cutting Diameter: 63 mm
  • Number of Inserts: 4
  • Connection Bore Diameter: 22 mm
  • Cutting Angle: 90°
  • Maximum Depth of Cut: 8 mm
  • Recommended Depth of Cut: 3 mm
  • Maximum Rotational Speed: 16,000 RPM
  • Overall Length (OAL): 40 mm
  • Functional Length (LF): 40 mm
  • Contact Surface Diameter (Machine Side): 47 mm
  • Hub Diameter: 47 mm
  • Connection Bore Depth: 21 mm
  • Radial Rake Angle: -10°
  • Axial Rake Angle: 13°
  • Insert Included Angle: 80°
  • Inscribed Circle Diameter: 14.02 mm
  • Insert Thickness: 6.65 mm
  • Inside Corner Radius: 0.8 mm
  • Cutting Direction: Right-hand
  • Internal Coolant: Yes

The Kyocera MFWN90063R-4T-M Milling Toolholder is available from Twin Eagle Imports for face milling and other compatible milling applications requiring a 63mm cutter with four inserts and internal coolant capability. Please verify insert compatibility and machine connection requirements before use.
