SKU: MFH16-S16-03-2TX-PROMO
(0)

Kyocera MFH Mini Series - MFH16-S16-03-2TX Indexable Endmill - with 20x pcs LOGU030310ER-GM PR1825 Inserts

In stock
$569.00

Kyocera MFH Mini Series Promo

MFH16-S16-03-2TX Indexable Endmill - with 20x pcs LOGU030310ER-GM PR1825 Inserts

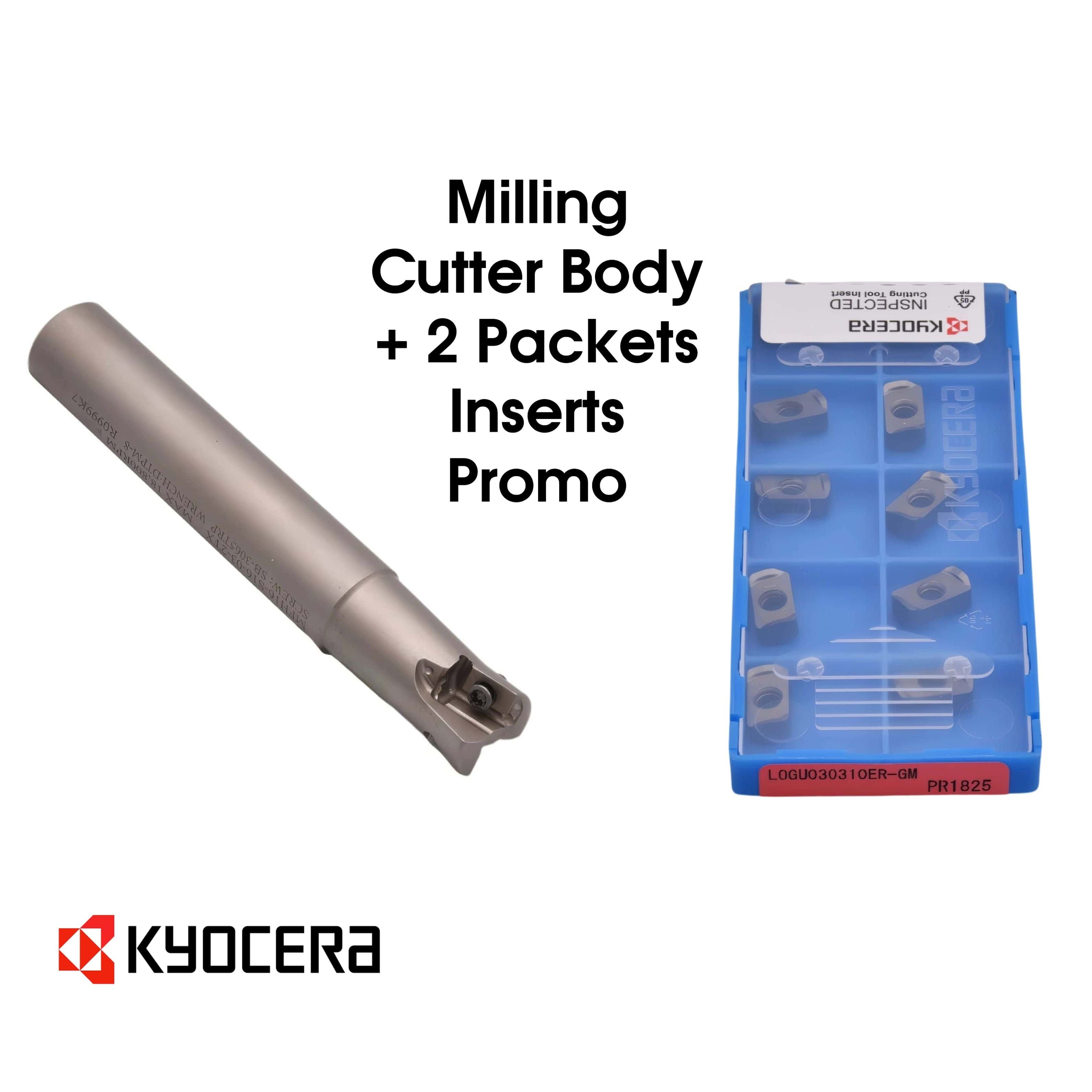

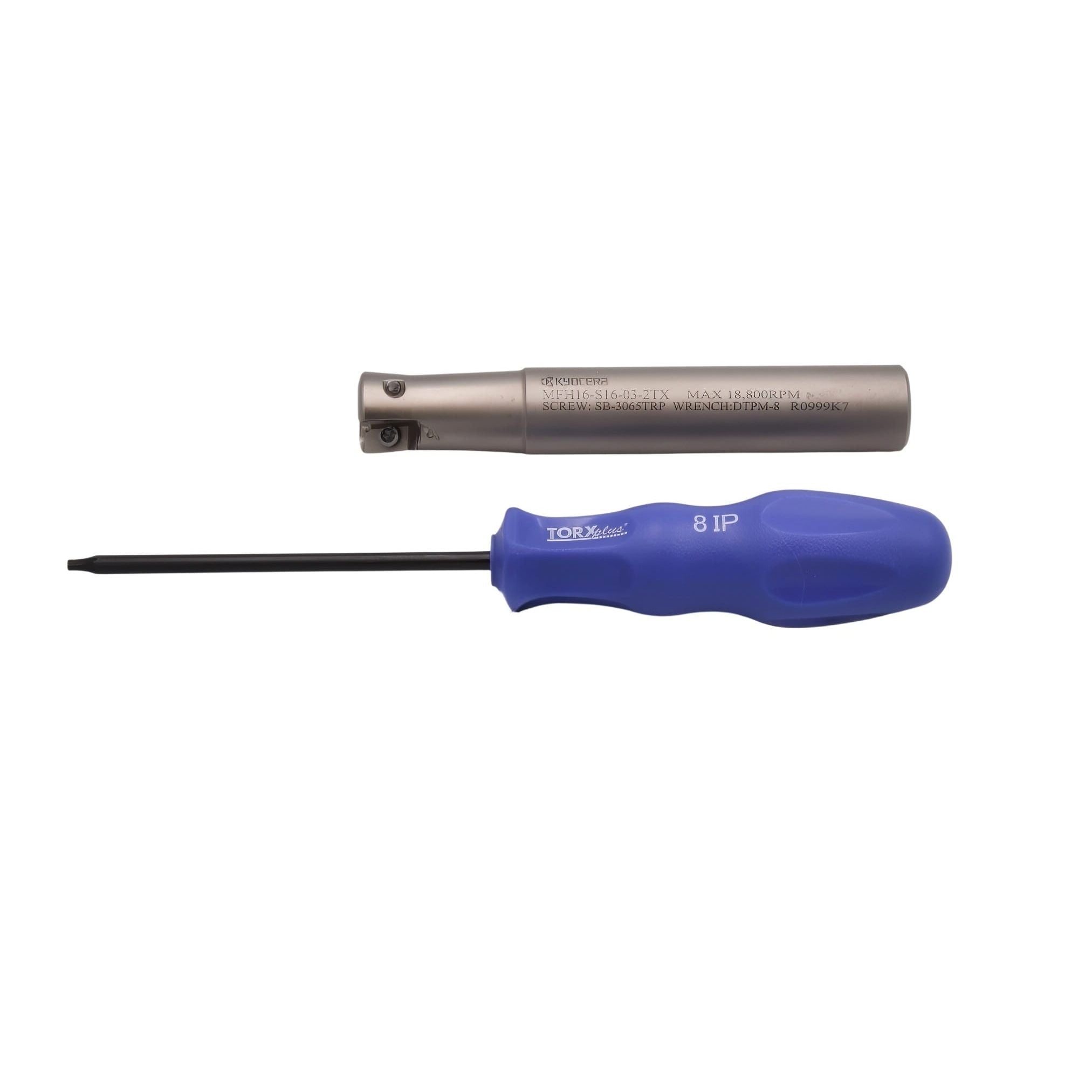

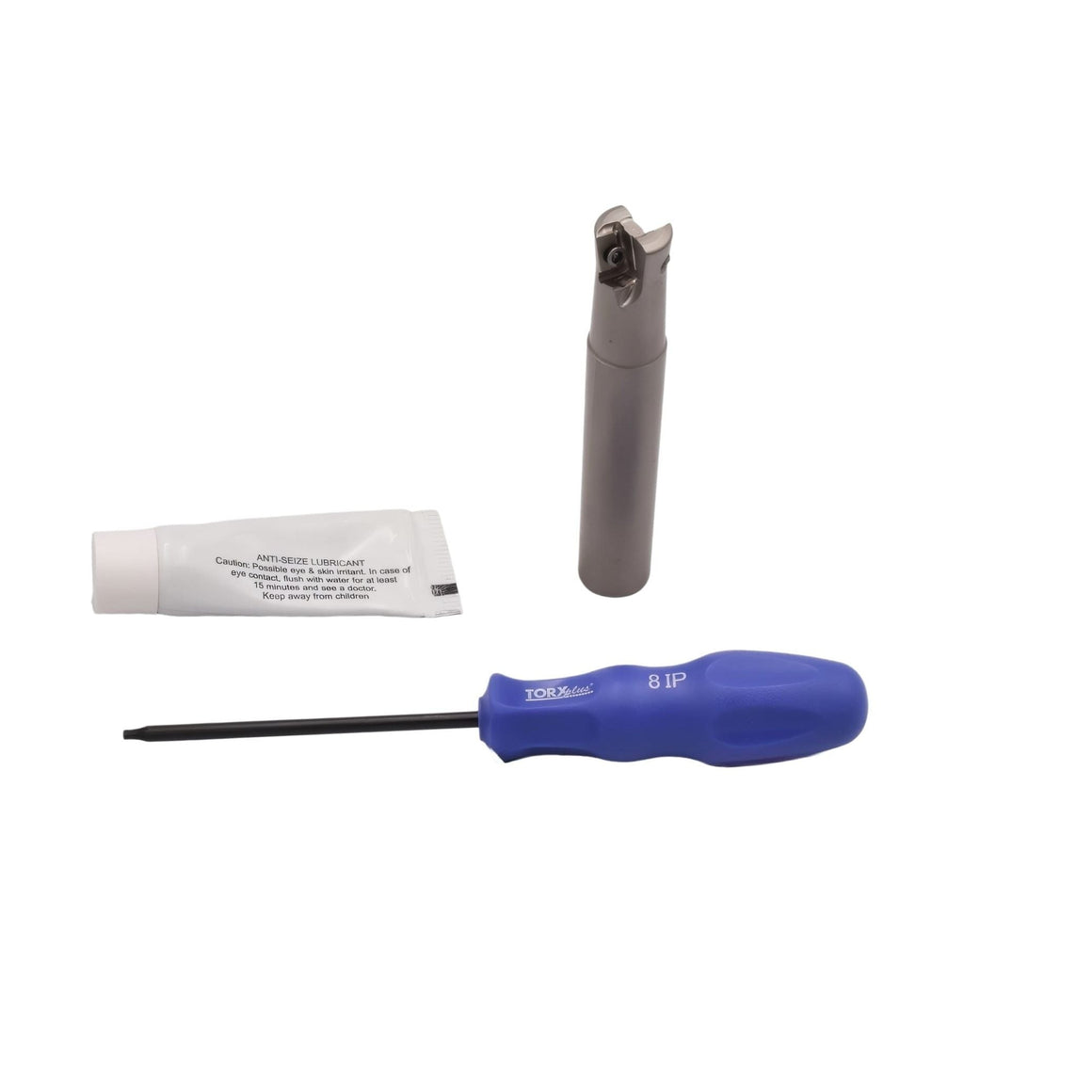

Professional-quality Kyocera high feed milling bundle combining the MFH16-S16-03-2T MFH Mini milling toolholder with 20 × genuine Kyocera LOGU030310ER-GM PR1825 indexable milling inserts.

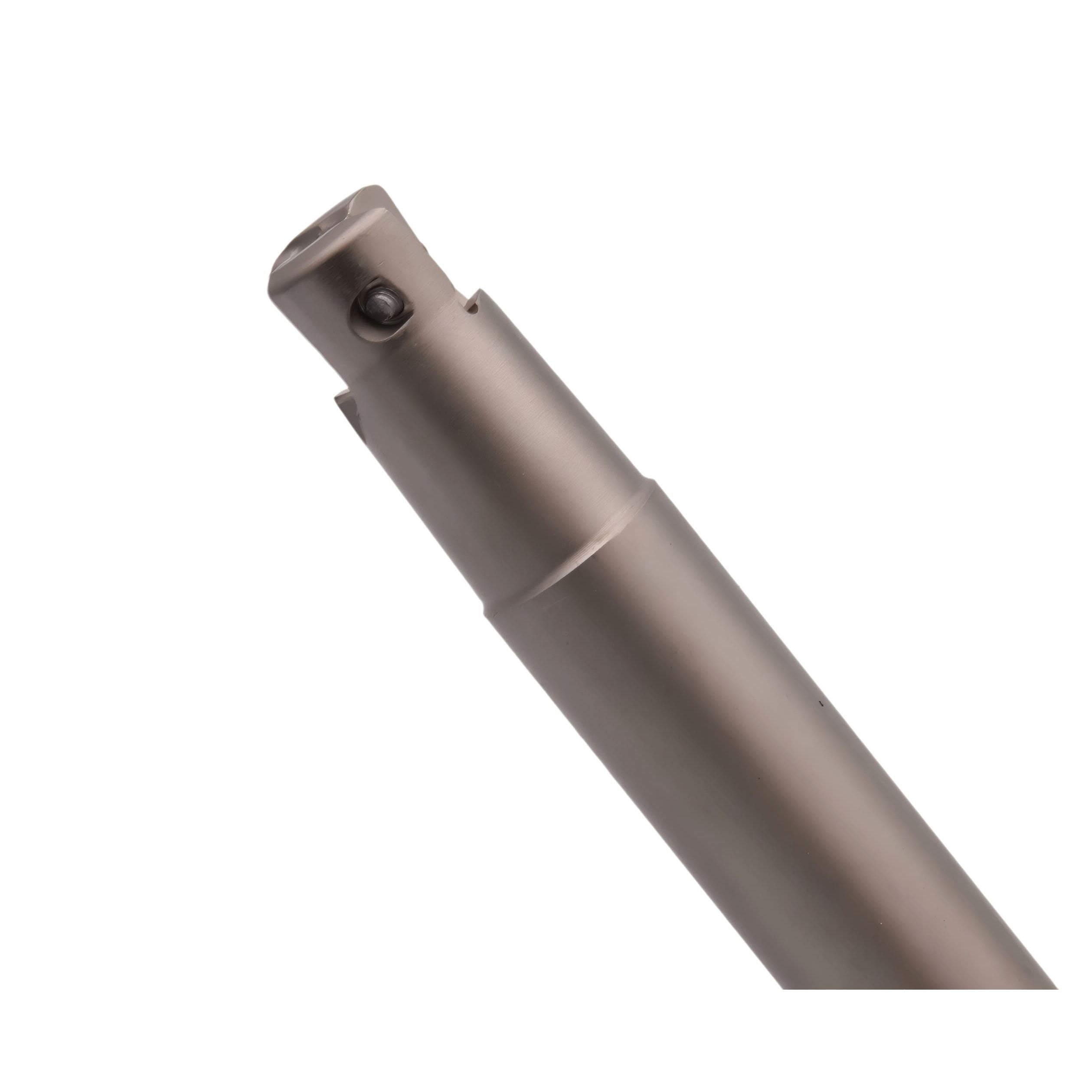

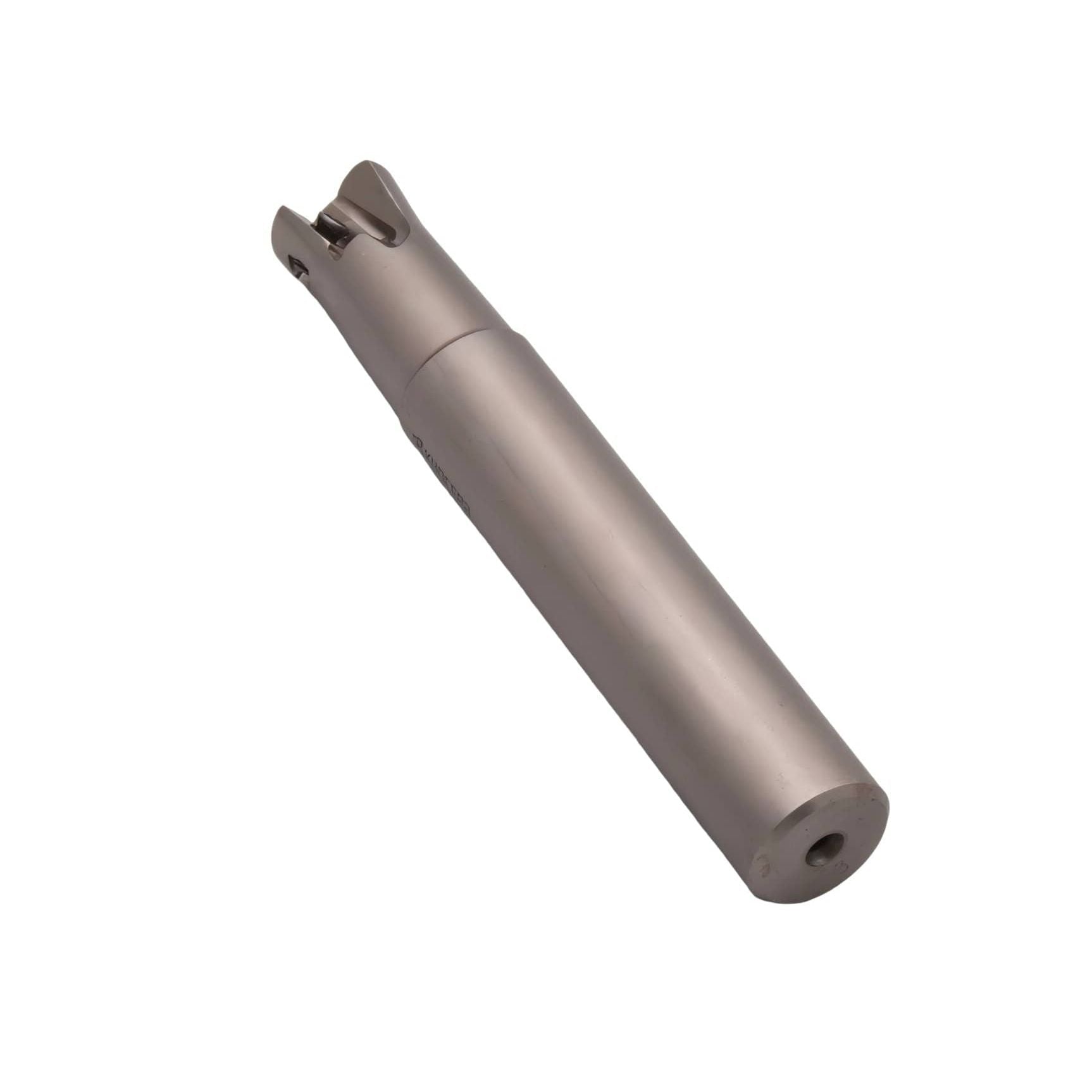

The Kyocera MFH Mini cutter features a 16 mm cutting diameter, 2 insert pockets and a 16 mm cylindrical shank, making it suitable for efficient roughing and high-productivity machining. Its convex cutting-edge design is intended to reduce cutting resistance and chatter for stable high-feed machining.

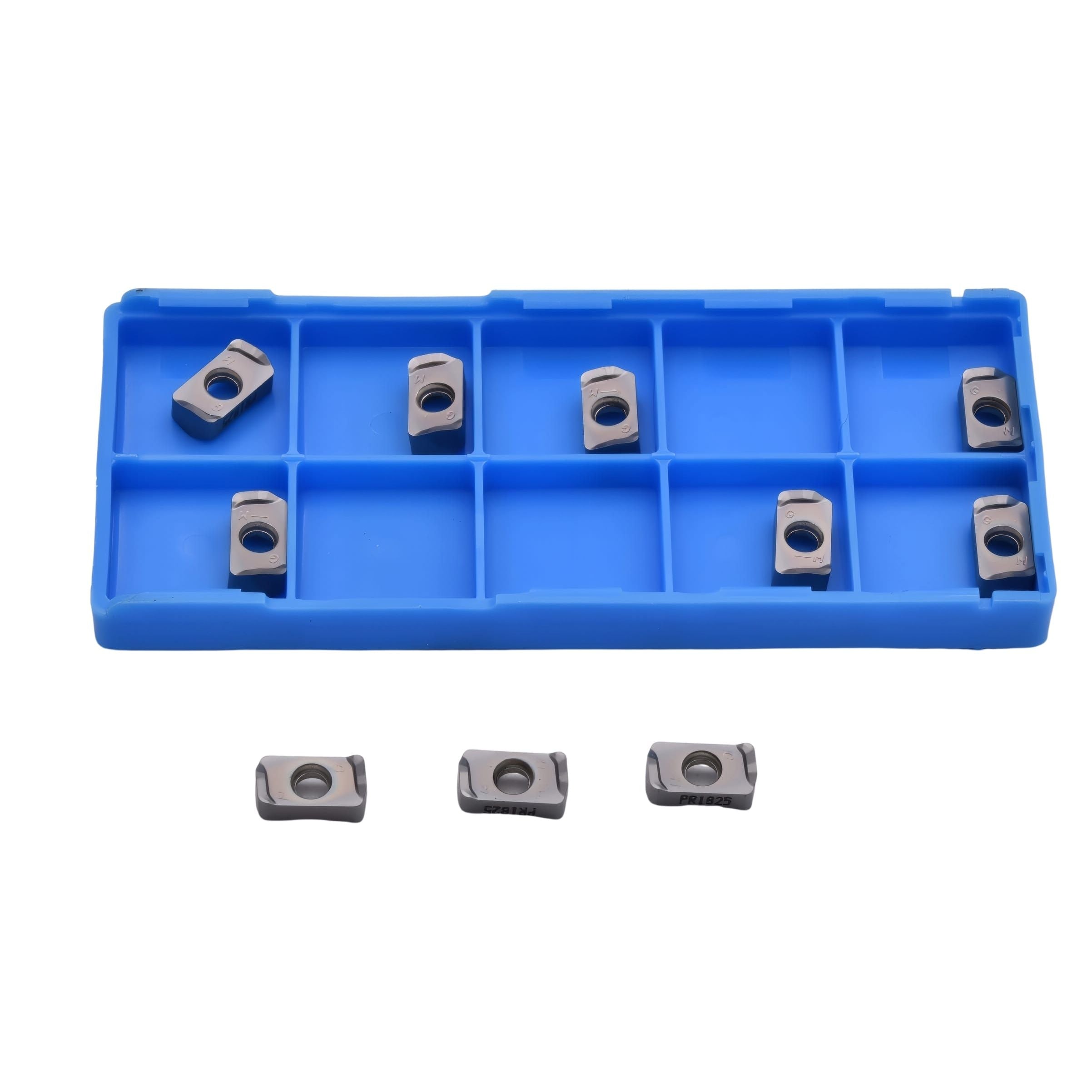

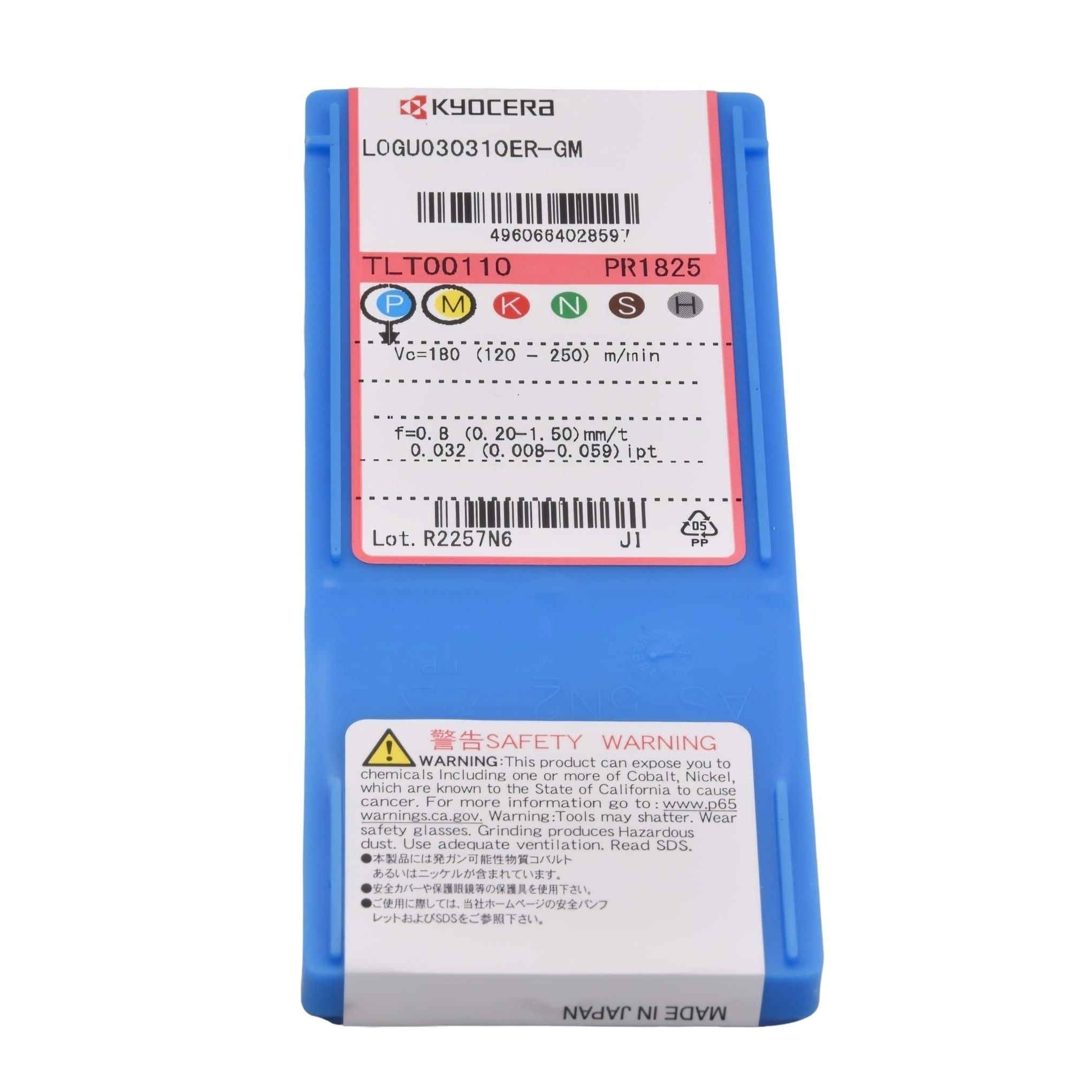

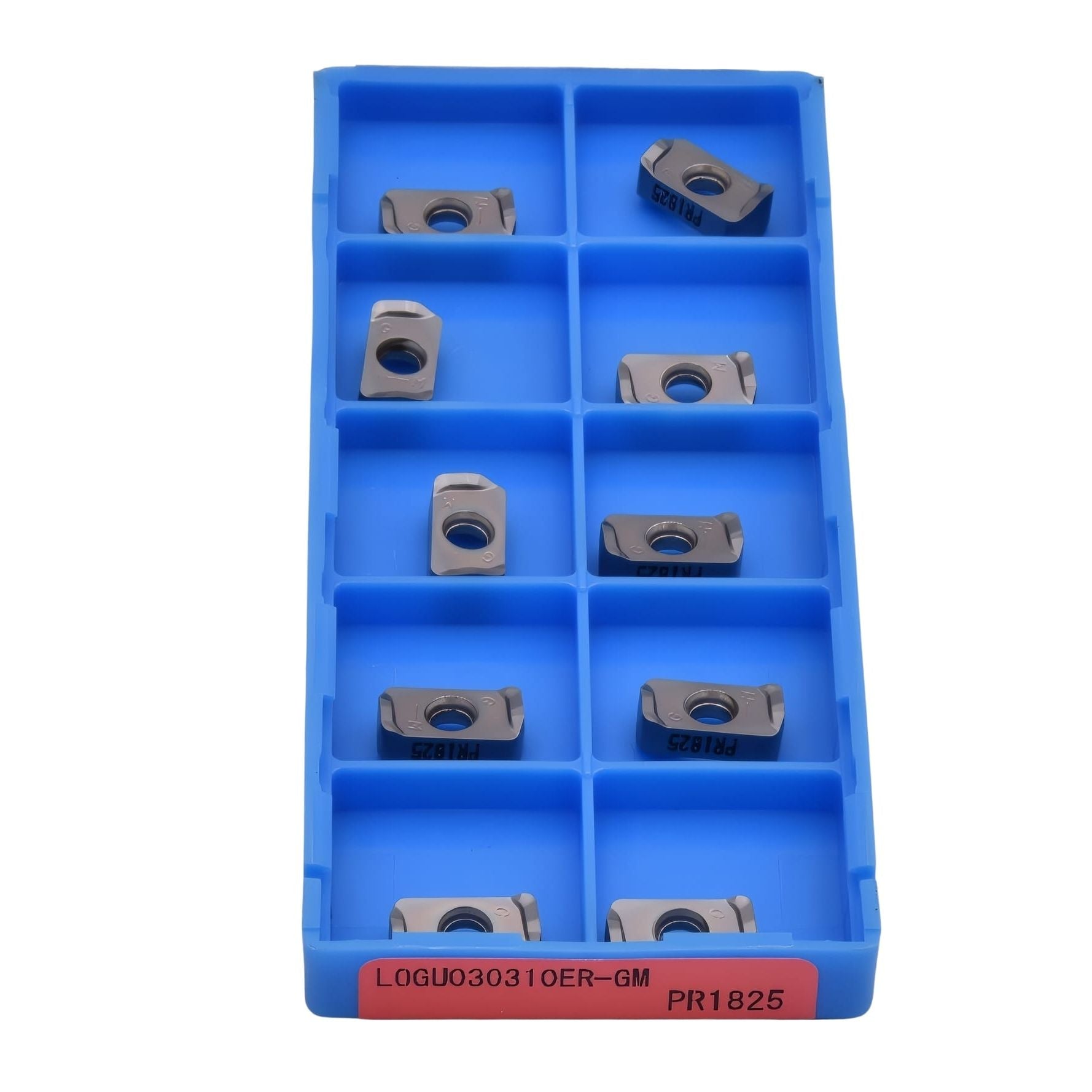

The included LOGU030310ER-GM inserts feature PR1825 grade, MEGACOAT NANO EX coating and GM chip breaker geometry, providing reliable wear resistance and controlled chip formation.

What's Included

  • 1 × Kyocera MFH16-S16-03-2T High Feed Milling Toolholder
  • 20 × Kyocera LOGU030310ER-GM PR1825 Indexable Milling Inserts
  • Total: 1 milling cutter + 20x LOGU030310ER-GM PR1825 Kyocera inserts

Milling Cutter Specifications

  • Brand: Kyocera
  • Model: MFH16-S16-03-2T
  • Item No.: THN07590
  • EAN: 4960664741229
  • Series: MFH Mini
  • Tool Type: High Feed Milling Toolholder
  • Cutting Diameter: 16 mm
  • Insert Pockets: 2
  • Insert Size: 03
  • Shank Type: Cylindrical
  • Shank Diameter: 16 mm
  • Shank Length: 70 mm
  • Overall Length: 100 mm
  • Functional Length: 100 mm
  • Head Length: 30 mm
  • Protruding Length: 35 mm
  • Body Diameter: 15 mm
  • Maximum Depth of Cut: 1 mm
  • Recommended Depth of Cut: 0.6 mm
  • Maximum Plunge Depth: 1 mm
  • Maximum Rotational Speed: 18,800 RPM
  • Internal Coolant: Yes
  • Cutting Direction: Right Hand
  • Corner Radius: 1 mm
  • Tool Cutting Edge Angle: 12°
  • Insert Included Angle: 75°
  • Axial Rake Angle: -10°
  • Insert Thickness: 3.92 mm

Insert Specifications

  • Brand: Kyocera
  • Insert Series: LOGU
  • Part Number: LOGU030310ER-GM
  • Grade: PR1825
  • Chip Breaker: GM
  • Coating: MEGACOAT NANO EX
  • Configuration: Right Hand
  • Corner Radius: 1.00 mm
  • Fixing Hole Diameter: 3.45 mm
  • Insert Included Angle: 90°
  • Insert Length: 11.9 mm
  • Insert Thickness: 3.96 mm
  • Insert Width: 6.2 mm
  • Quantity: 20 Inserts

Key Features

  • Genuine Kyocera MFH Mini milling toolholder
  • Genuine Kyocera LOGU030310ER-GM inserts
  • 20 inserts included
  • 16 mm cutting diameter
  • 2 insert pockets
  • PR1825 grade
  • MEGACOAT NANO EX coating
  • GM chip breaker for controlled chip formation
  • 1.0 mm corner radius
  • Internal coolant capability
  • Maximum spindle speed of 18,800 RPM
  • Designed for high-efficiency and high-feed machining

Applications

Suitable for:

  • High-efficiency rough machining
  • Facing
  • Helical milling
  • Plunging
  • Ramping
  • Shouldering
  • Slotting

The MFH Mini cutter and LOGU inserts are designed to provide stable high-feed machining with reduced cutting resistance, effective chip control and dependable wear resistance.

Bundle Contents

1 × Kyocera MFH16-S16-03-2T milling cutter
20 × Kyocera LOGU030310ER-GM PR1825 inserts

A complete 20-insert high-feed milling bundle ready for use
