Kyocera MFH Mini Series - MFH16-S16-03-2TX Indexable Endmill - Suits LOGU030310ER Inserts

Kyocera MFH16-S16-03-2T High Feed Milling Toolholder 16 mm

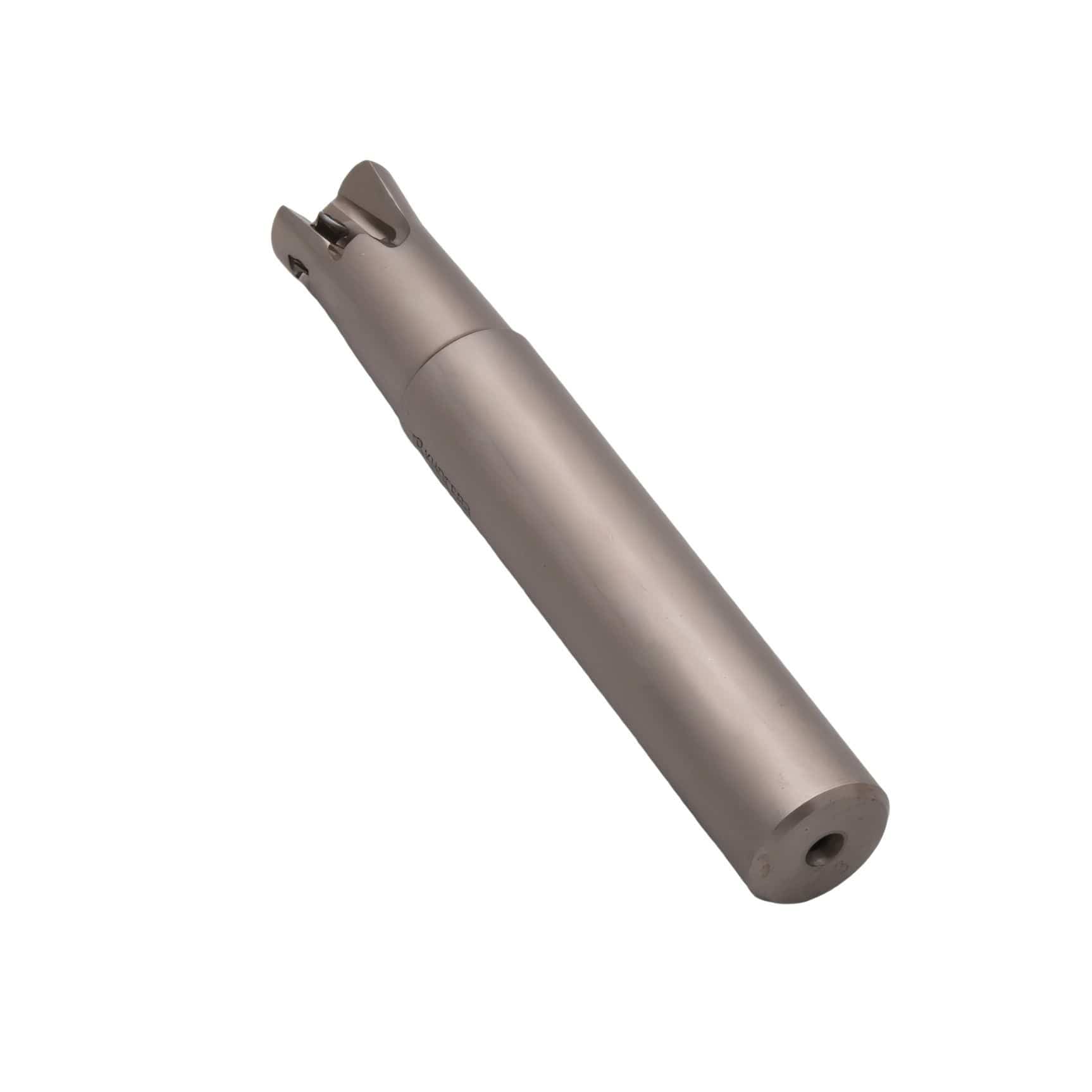

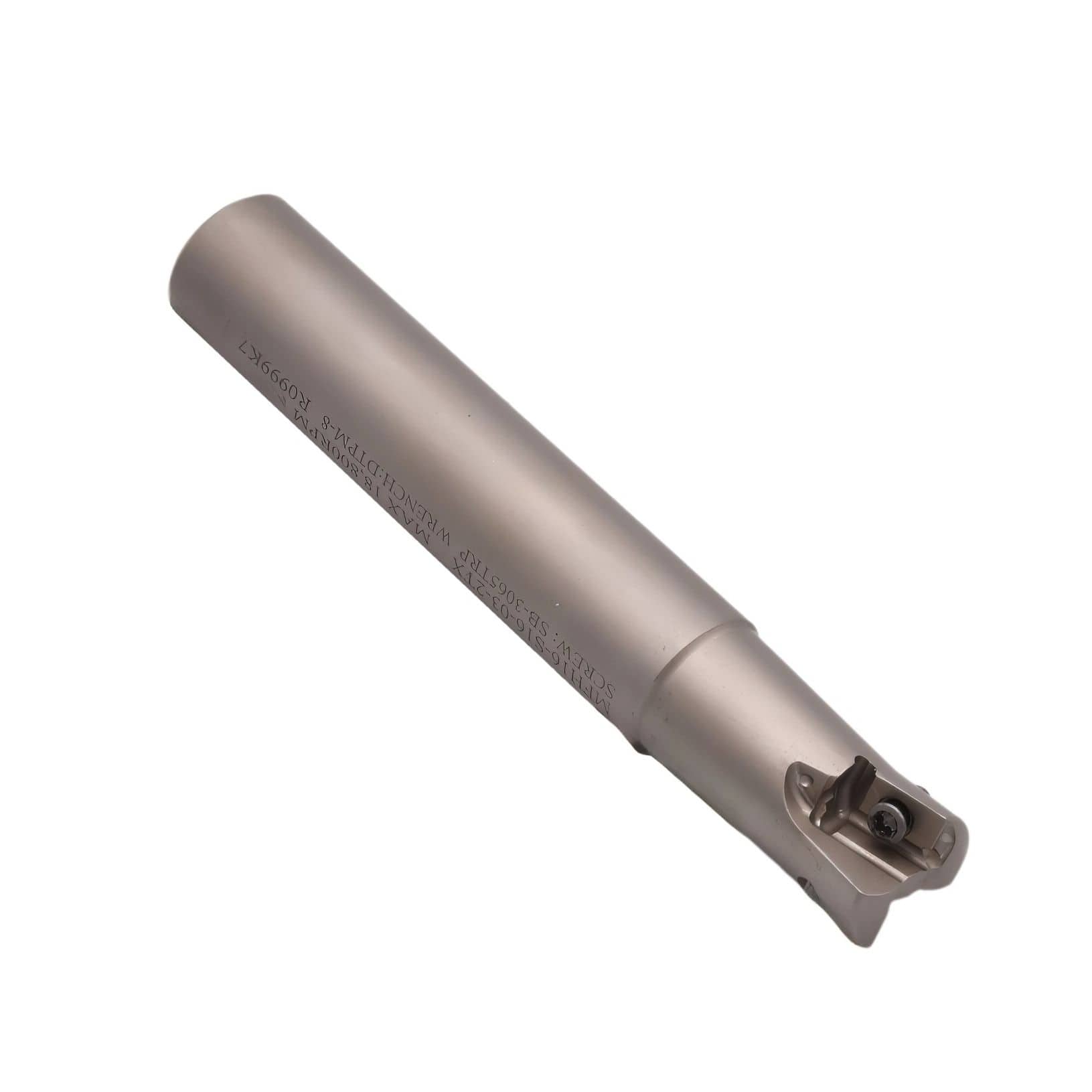

Professional quality Kyocera MFH16-S16-03-2T high feed milling toolholder designed for efficient roughing and high productivity machining applications. This MFH Mini cutter features a 16 mm cutting diameter, 2 insert pockets and a rigid 16 mm cylindrical shank for reliable tool mounting.

The MFH Mini series uses a convex cutting edge design to help reduce chatter and cutting resistance while providing stable high feed machining. The cutter is suitable for applications including facing, helical milling, plunging, ramping, shouldering and slotting. Kyocera specifies this model with internal coolant delivery, a maximum depth of cut of 1 mm and a maximum rotational speed of 18,800 RPM.

Product Features

• Genuine Kyocera MFH Mini high feed milling toolholder
• 16 mm cutting diameter
• 2 insert cutting edges
• 16 mm cylindrical shank
• 100 mm overall and functional length
• 30 mm head length
• Internal coolant capability
• Maximum depth of cut of 1 mm
• Recommended depth of cut of 0.6 mm
• Maximum rotational speed of 18,800 RPM
• Right-hand cutting direction
• Designed for high efficiency roughing applications

Technical Specifications

• Brand: Kyocera
• Model: MFH16-S16-03-2T
• Item No.: THN07590
• EAN: 4960664741229
• Tool Type: High Feed Milling Toolholder
• Series: MFH Mini
• Cutting Diameter (DC): 16 mm
• Cutting Diameter (DC): 8 mm
• Number of Inserts: 2
• Insert Size: 03
• Shank Type: Cylindrical
• Shank Diameter (DCON): 16 mm
• Shank Length (LS): 70 mm
• Overall Length (OAL): 100 mm
• Functional Length (LF): 100 mm
• Head Length (LH): 30 mm
• Protruding Length (LPR): 35 mm
• Body Diameter (BD): 15 mm
• Maximum Depth of Cut (APMX): 1 mm
• Recommended Depth of Cut (APREC): 0.6 mm
• Maximum Plunge Depth (AZ): 1 mm
• Maximum Face Groove Depth (CDXA): 6.2 mm
• Maximum Cutting Diameter (DCX): 16 mm
• Cutting Edge Length: 11.9 mm
• Tool Cutting Edge Angle (KAPR): 12°
• Insert Included Angle (EPSR): 75°
• Axial Rake Angle (GAMP): -10°
• Major Clearance Angle (AN): 0°
• Corner Radius (RE): 1 mm
• Insert Thickness (S): 3.92 mm
• Maximum Rotational Speed: 18,800 RPM
• Internal Coolant: Yes
• Hand: Right
• Face Mounted Insert Count: 2

Applications

Suitable for high efficiency rough machining, facing, helical milling, plunging, ramping, shouldering and slotting applications. The MFH Mini design is intended to provide stable high feed machining with reduced cutting resistance and excellent chatter resistance.

Compatible Inserts

This cutter is designed for compatible Kyocera MFH Mini inserts including LOGU 030310ER-GM. Inserts are not included unless specifically stated in the product listing.
