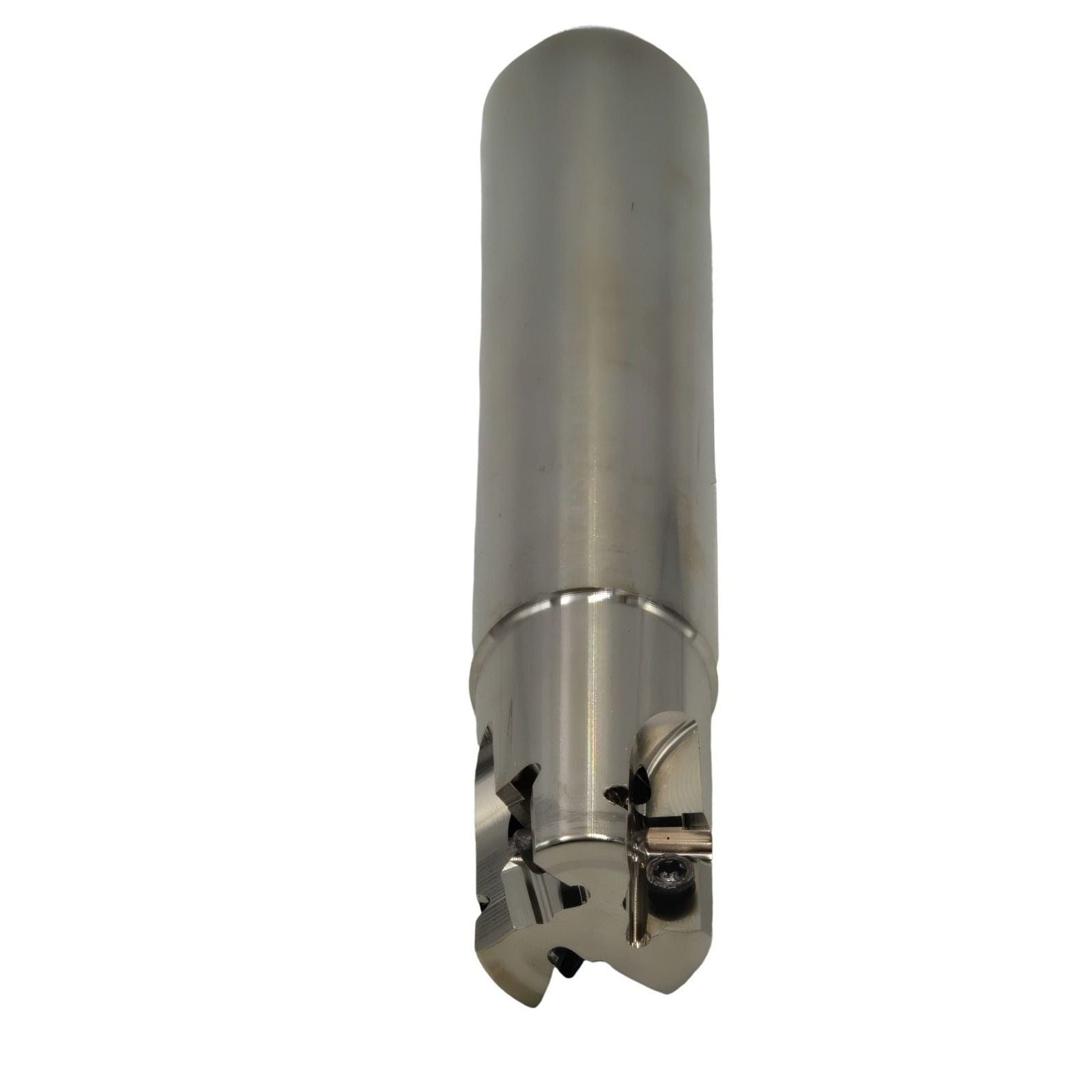

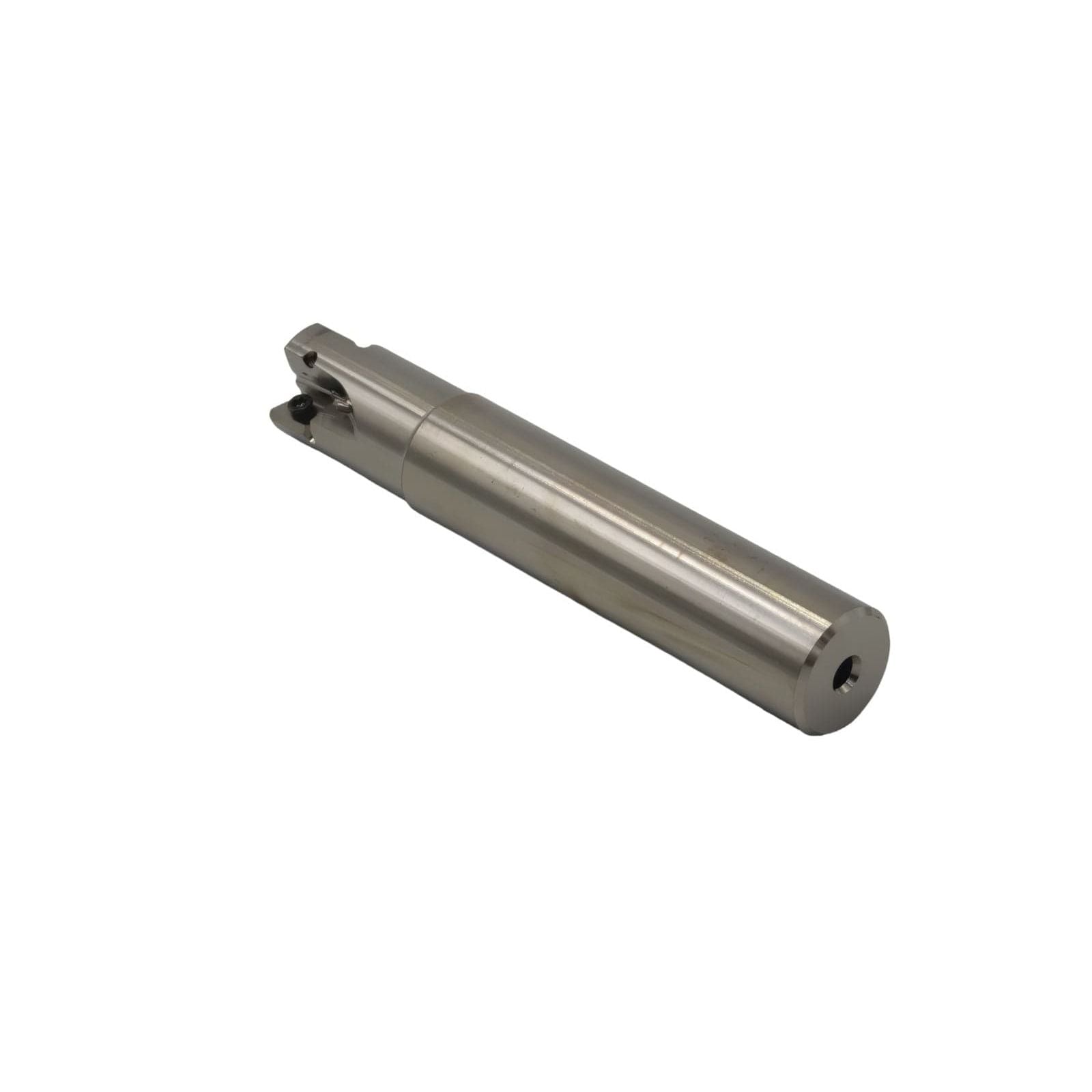

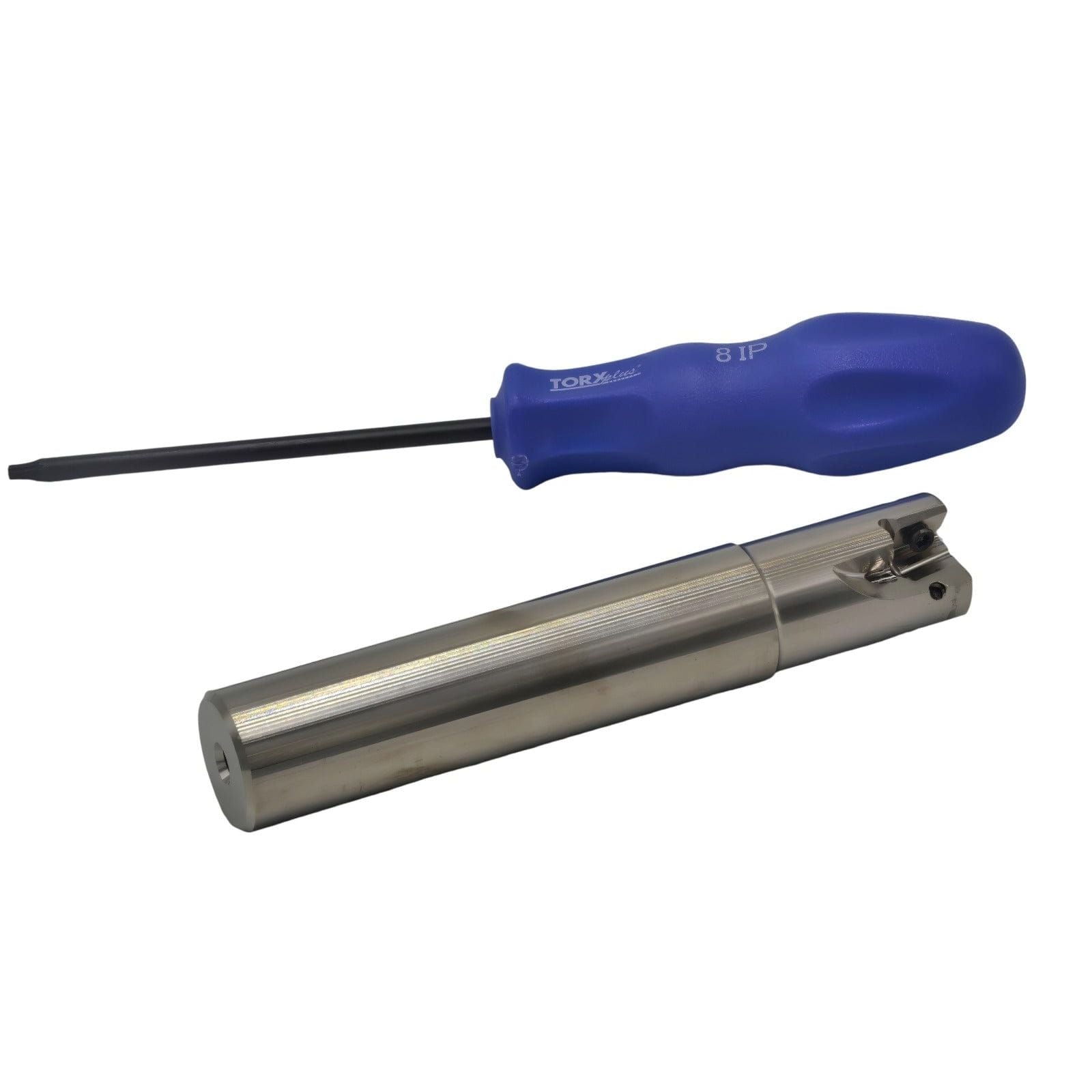

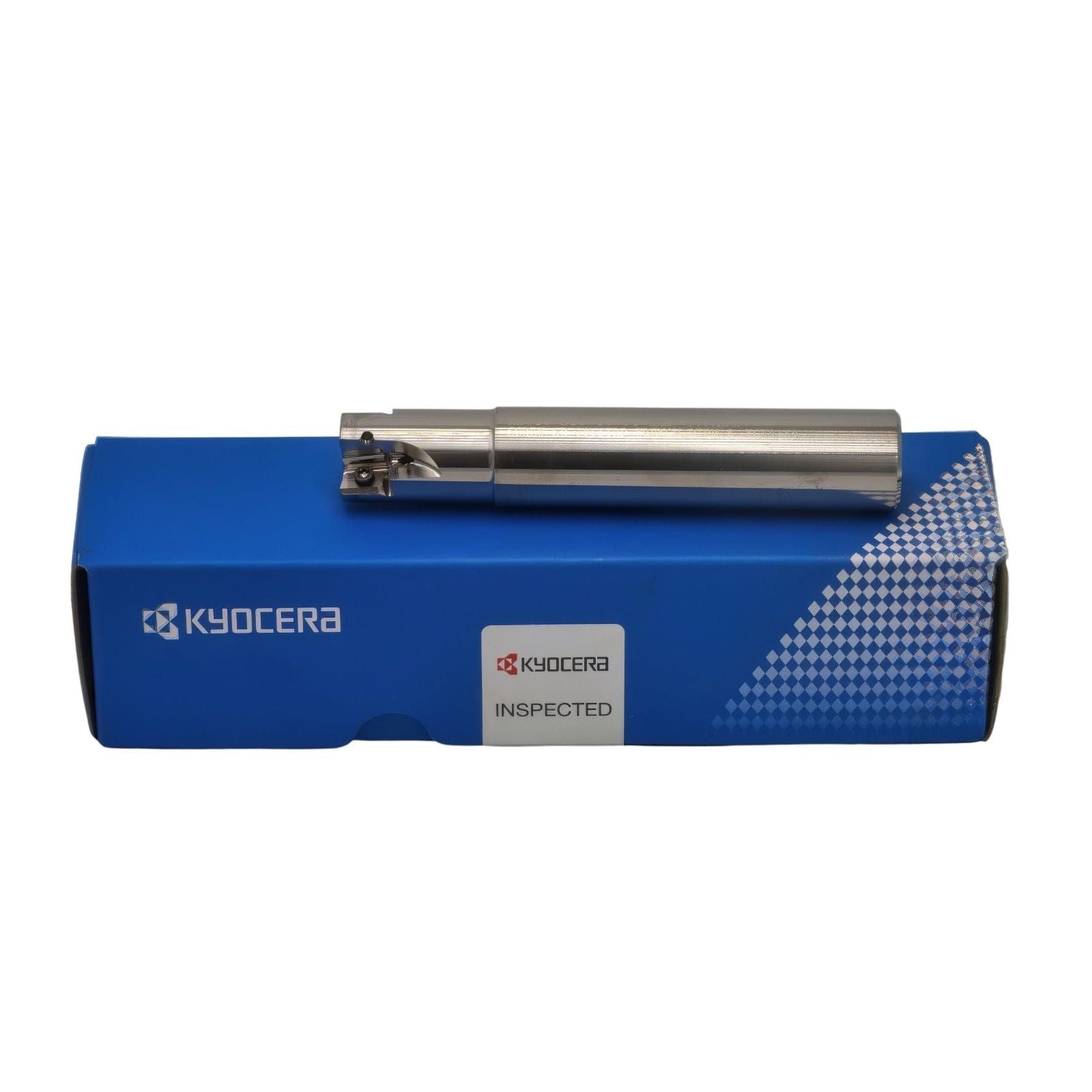

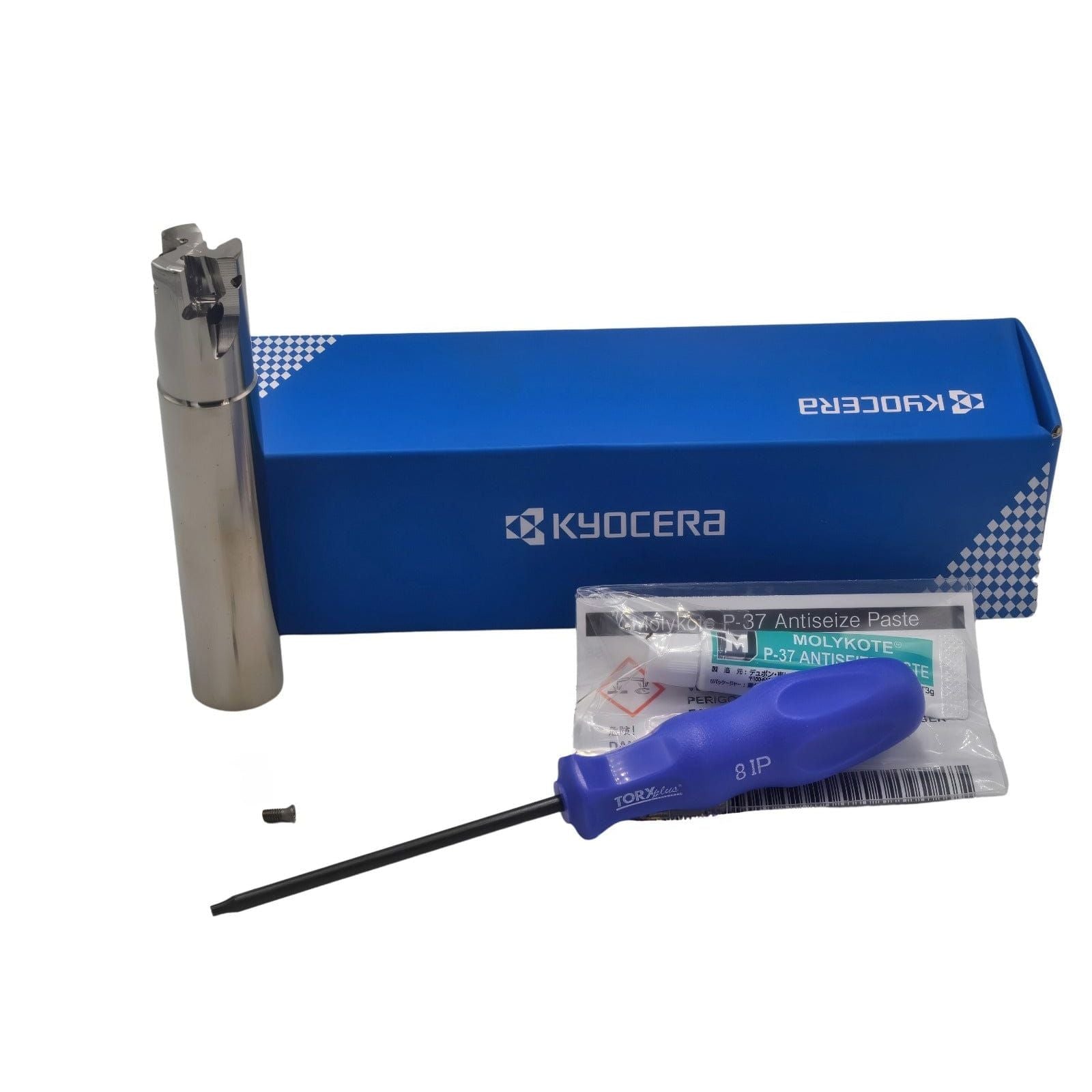

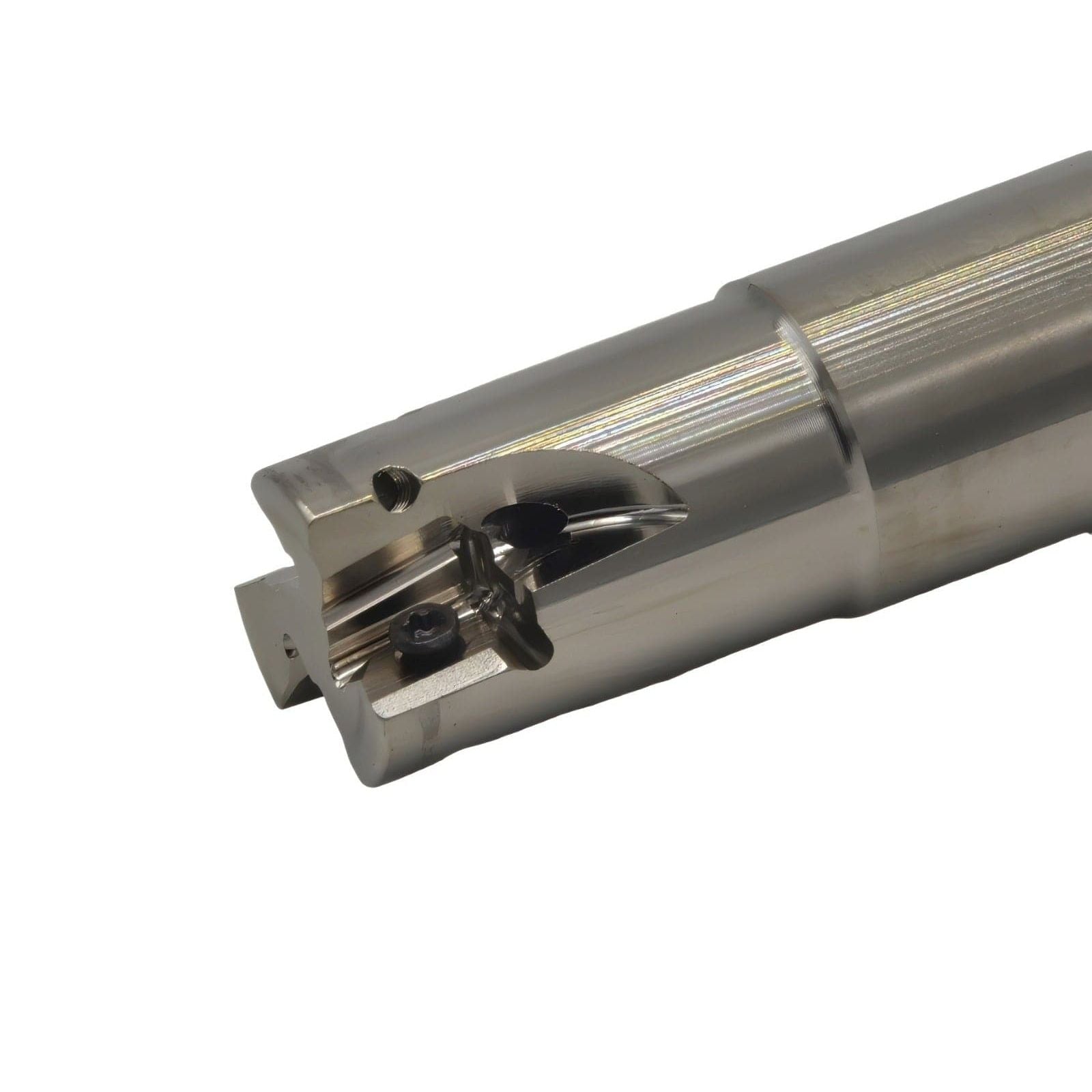

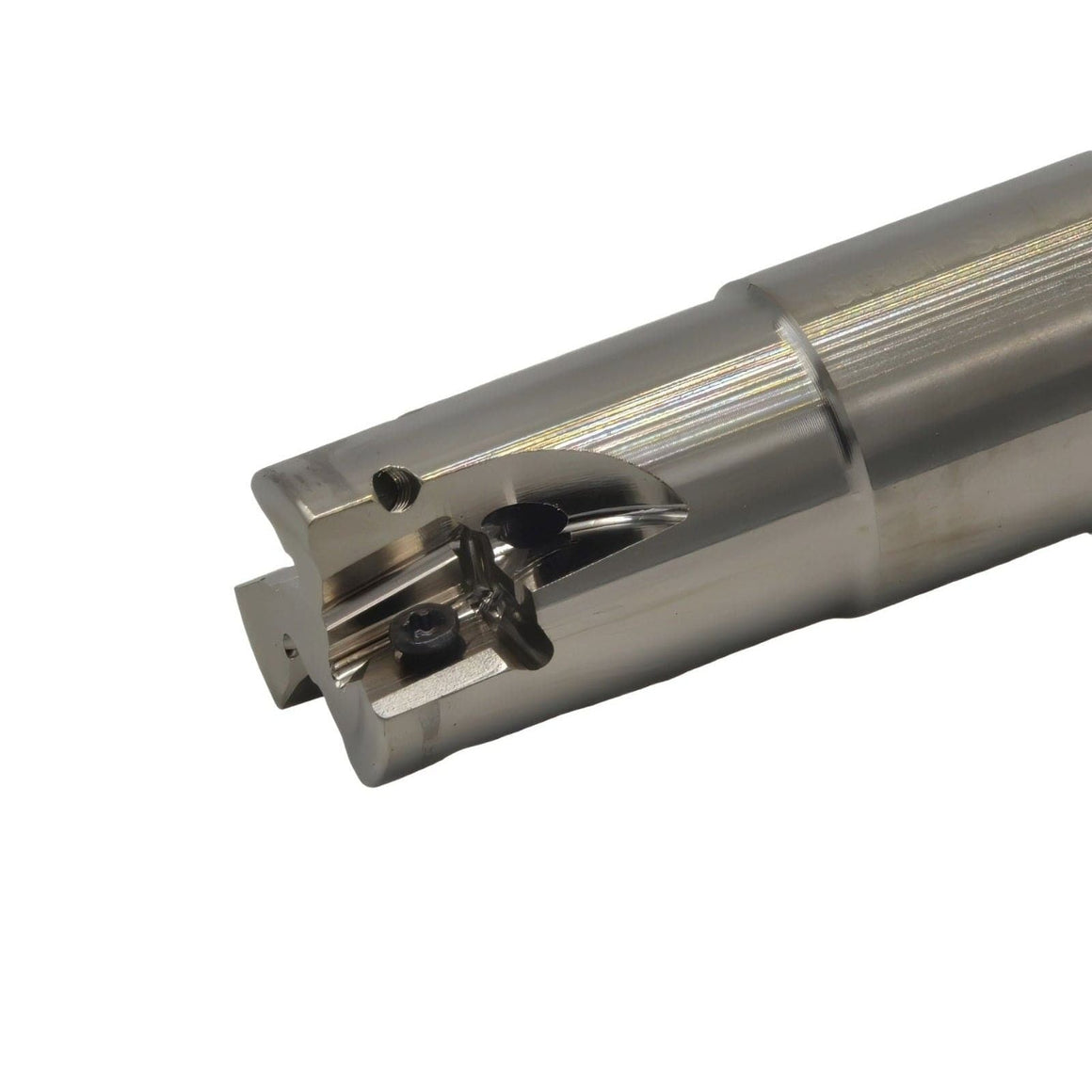

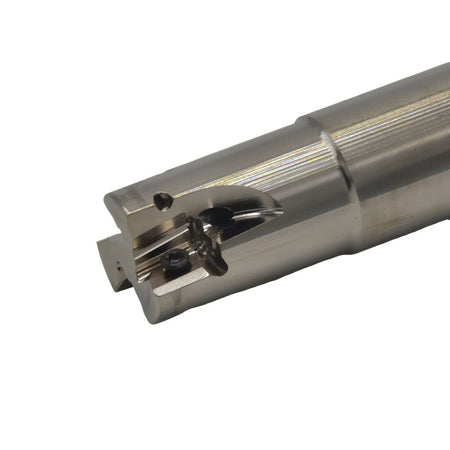

Kyocera MEW20-S20-10-3T – Ø20 mm Milling Toolholder (THN05011)
The Kyocera MEW20-S20-10-3T is a precision tool-holder designed for 90° milling operations with economical 4-edge inserts. With a cutter diameter of Ø20 mm, it accepts 3 inserts and features a total length (OAL) of 110 mm and a recess (LDN) of 30.0 mm. The cylindrical shank has a diameter (DCON) of 20 mm, and the design includes internal coolant.
Key Features & Benefits
• Ø20 mm diameter suited for 90° milling applications.
• Accepts 3 inserts—efficient edge usage and indexing.
• Total length of 110 mm and recess of 30.0 mm—compact and high-rigidity design.
• Cylindrical shank Ø20 mm—fits standard toolholder spindles.
• Internal coolant enabled—enhances tool life and chip evacuation under coolant flow.
Technical Specifications
Item No: THN05011
Diameter (DC): Ø20 mm
Number of Inserts: 3
Total Length (OAL): 110 mm
Recess (LDN): 30.0 mm
Shank Diameter (DCON): Ø20 mm
Shank Type: Cylindrical
Cutting Angle: 90°
Internal Coolant: Yes
Insert Size: 10
