Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

SKU: MEW040R154TM
(0)

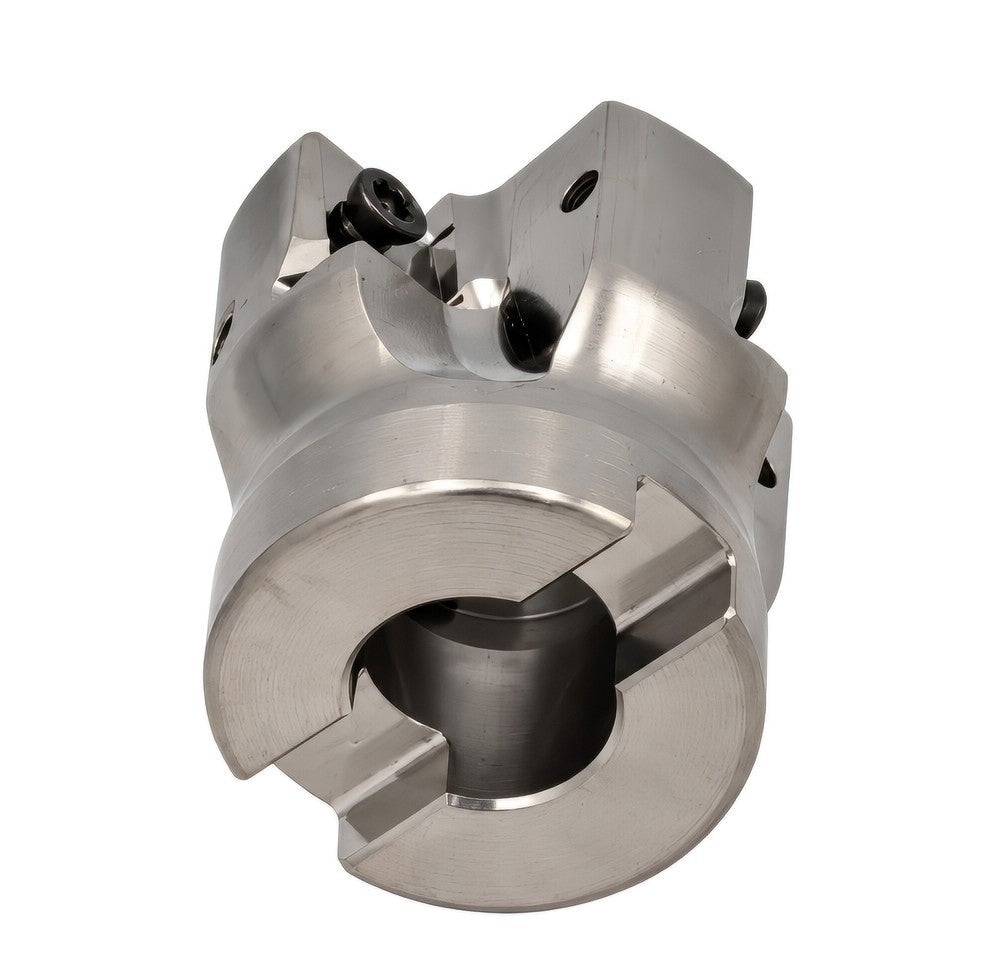

Kyocera MEW040R-15-4T-M 40mm Milling Toolholder (4 Inserts 16mm Bore Internal Coolant)

Only 1 left
$979.47

Kyocera MEW040R-15-4T-M 40mm Milling Toolholder (4 Inserts 16mm Bore Internal Coolant)

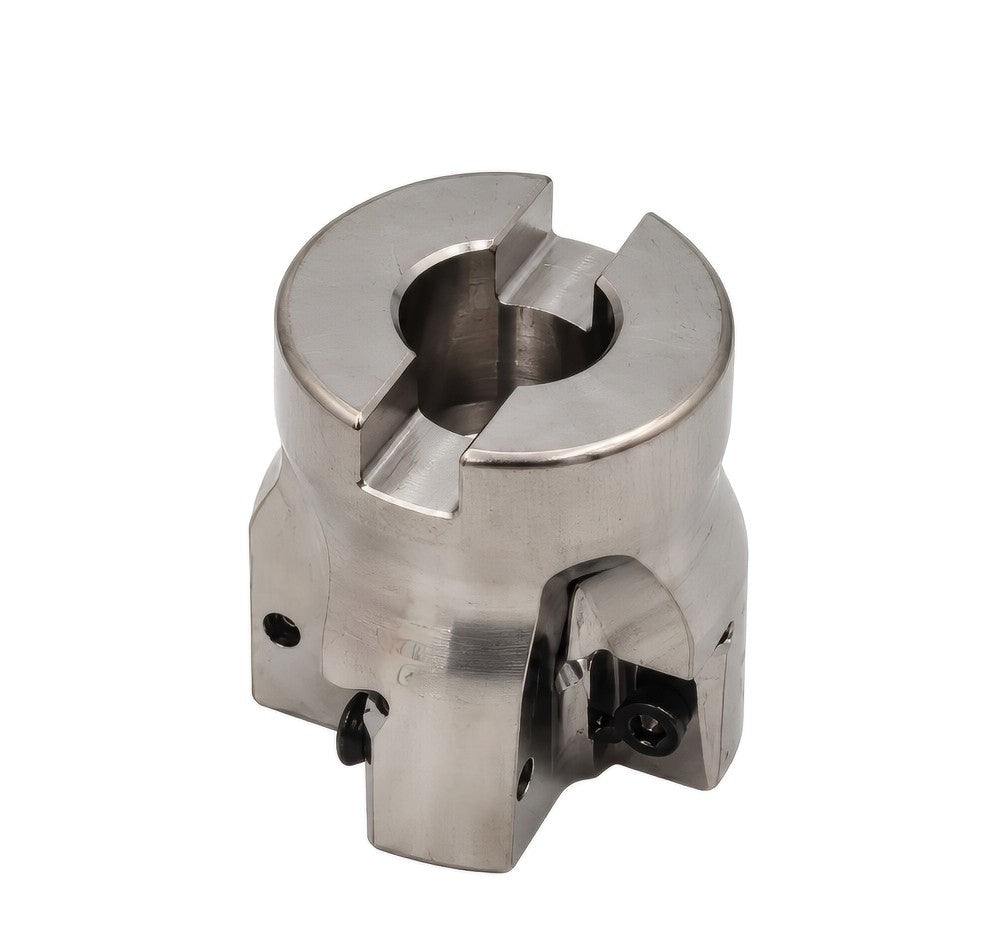

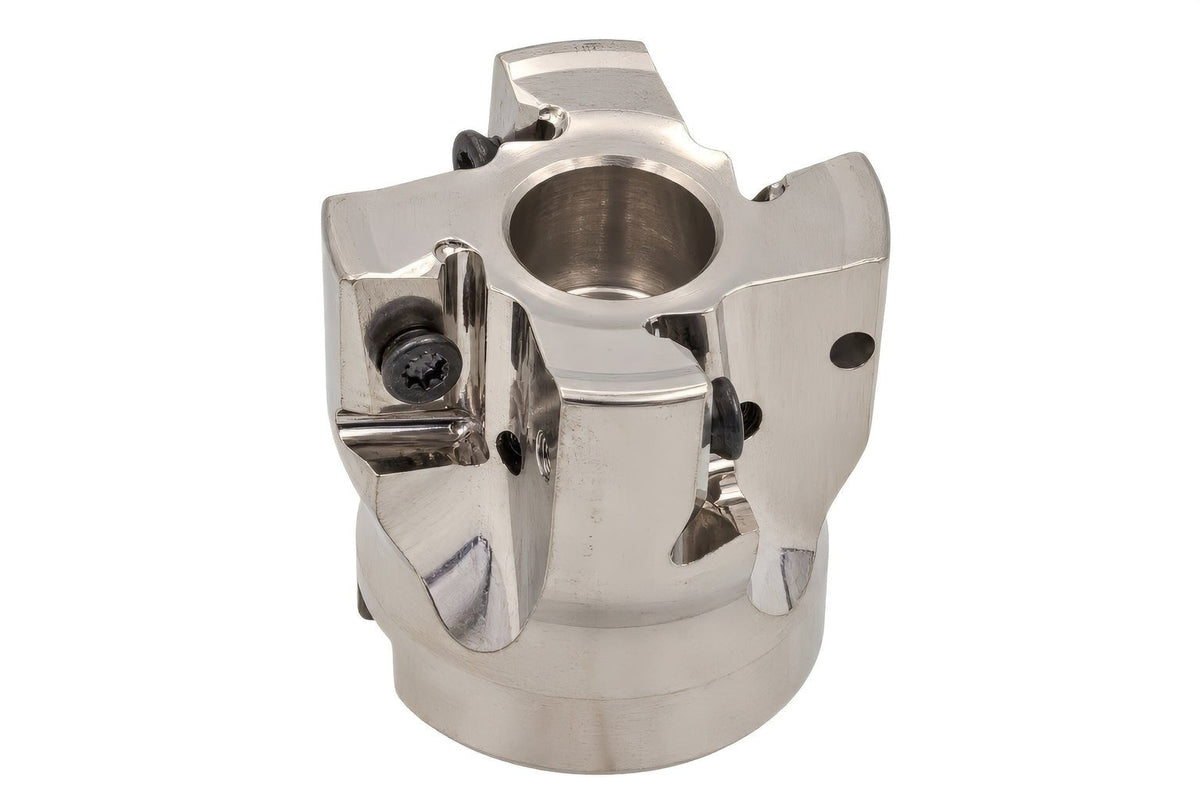

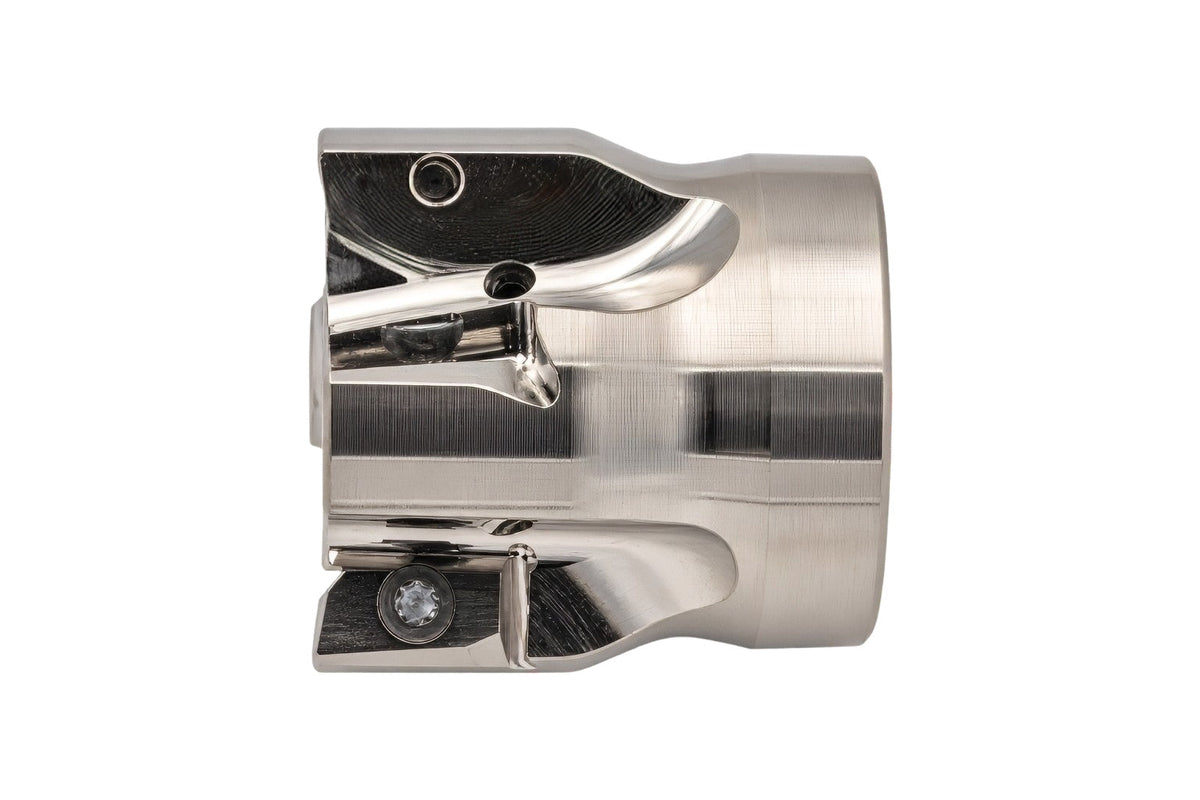

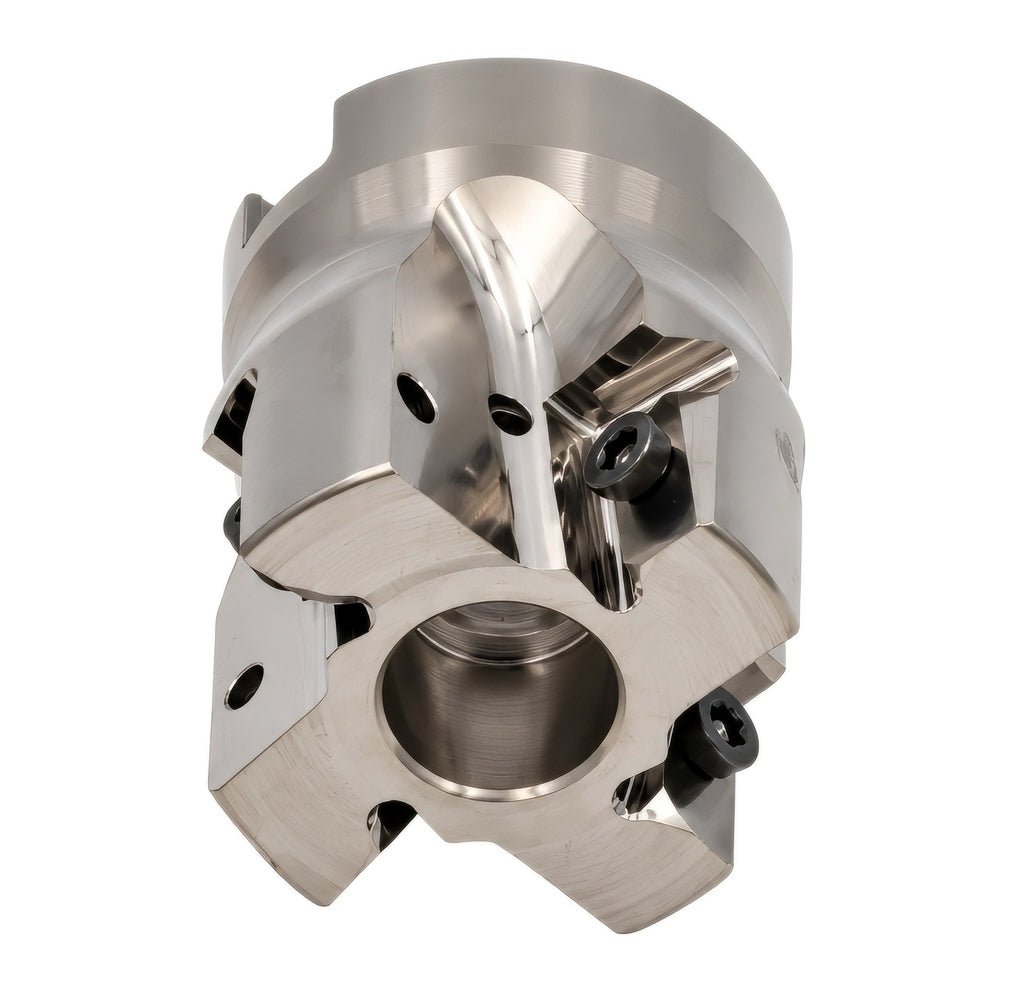

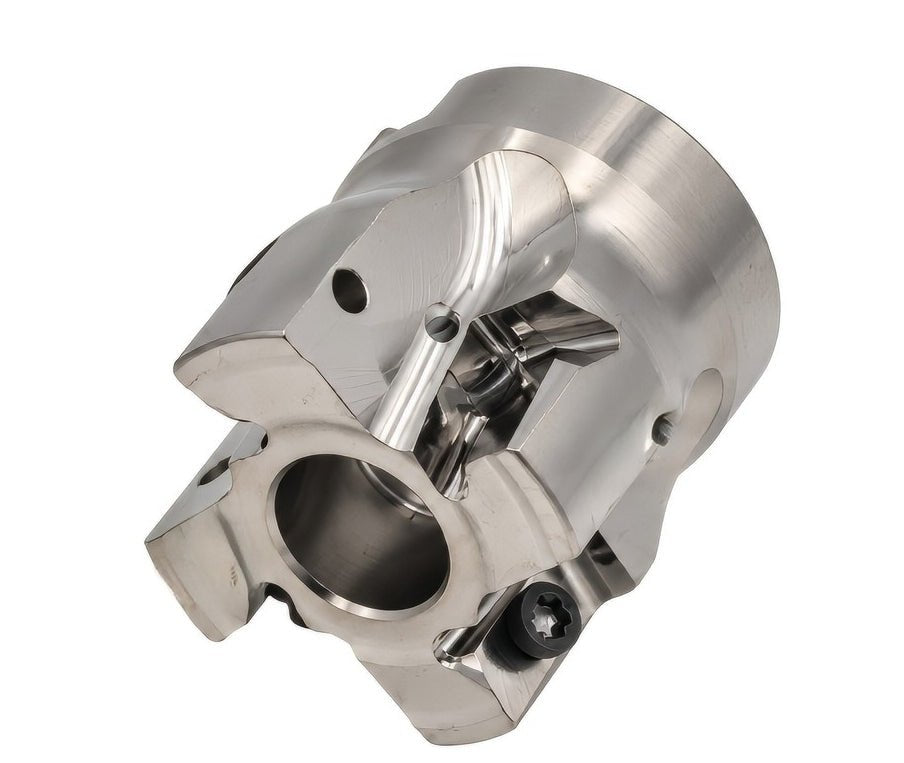

The Kyocera MEW040R-15-4T-M Milling Toolholder is a precision-engineered milling cutter designed for efficient material removal and accurate machining. Featuring a 40mm cutting diameter, a 90° cutting edge angle, and a four-insert configuration, it supports productive milling operations with consistent cutting performance. The 16mm connection bore provides a mounting interface for compatible equipment, while the integrated internal coolant system helps deliver coolant to the cutting area for effective heat management. With a maximum depth of cut of 15mm, this toolholder is designed for compatible milling applications requiring deeper cutting capability.

Key Features & Benefits

  • 40mm Cutting Diameter: Designed for milling operations requiring a 40mm cutter diameter.
  • Four-Insert Configuration: Accommodates four face-mounted inserts for efficient material removal.
  • 90° Cutting Edge Angle: Supports milling applications requiring a right-angle cutting geometry.
  • Internal Coolant: Helps deliver coolant to the cutting zone to manage heat during machining.
  • 15mm Maximum Depth of Cut: Provides a maximum cutting depth of 15mm, with a recommended depth of cut of 3mm.
  • 16mm Connection Bore: Designed for mounting on compatible milling equipment.
  • 0.8mm Inside Corner Radius: Features a specified inside corner radius of 0.8mm.
  • High-Speed Capability: Supports a maximum rotational speed of 25,000 RPM, subject to appropriate operating conditions.
  • Compact Construction: Features a 40mm overall length for a compact tool setup.

Technical Specifications

  • Brand: Kyocera
  • Model: MEW040R-15-4T-M
  • Item Number: THN05180
  • EAN: 4960664648672
  • Tool Type: Milling Toolholder
  • Cutting Diameter: 40 mm
  • Number of Inserts: 4
  • Connection Bore Diameter: 16 mm
  • Cutting Edge Angle: 90°
  • Maximum Depth of Cut: 15 mm
  • Recommended Depth of Cut: 3 mm
  • Overall Length (OAL): 40 mm
  • Functional Length (LF): 40 mm
  • Machine-Side Contact Surface Diameter: 34 mm
  • Hub Diameter: 34 mm
  • Connection Bore Depth: 19 mm
  • Radial Rake Angle: -21°
  • Axial Rake Angle: 10°
  • Insert Included Angle: 88°
  • Inscribed Circle Diameter: 9.2 mm
  • Cutting Edge Length: 15.7 mm
  • Insert Thickness: 5.6 mm
  • Insert Width: 9.2 mm
  • Inside Corner Radius: 0.8 mm
  • Cutting Direction: Right-hand
  • Internal Coolant: Yes
  • Maximum Rotational Speed: 25,000 RPM

The Kyocera MEW040R-15-4T-M Milling Toolholder is available from Twin Eagle Imports for compatible milling applications requiring a 40mm cutter with four inserts and internal coolant capability. Please verify insert compatibility and machine connection requirements before use.
