Kyocera MEV32-S25-06-4T – Ø32 mm Indexable Shoulder Milling Toolholder (THN08483)
Couldn't load pickup availability
Kyocera MEV32-S25-06-4T – Ø32 mm Indexable Shoulder Milling Toolholder (THN08483)

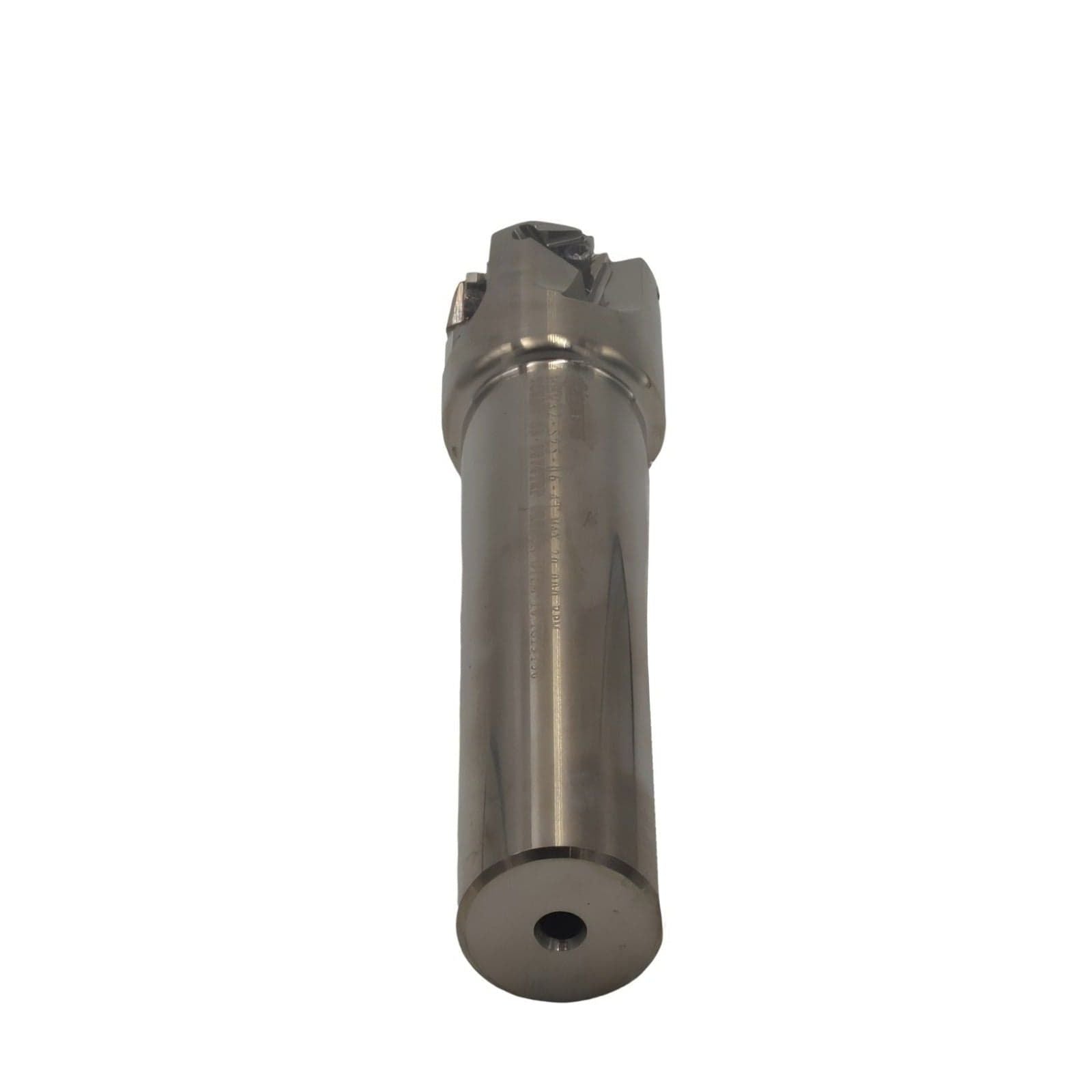

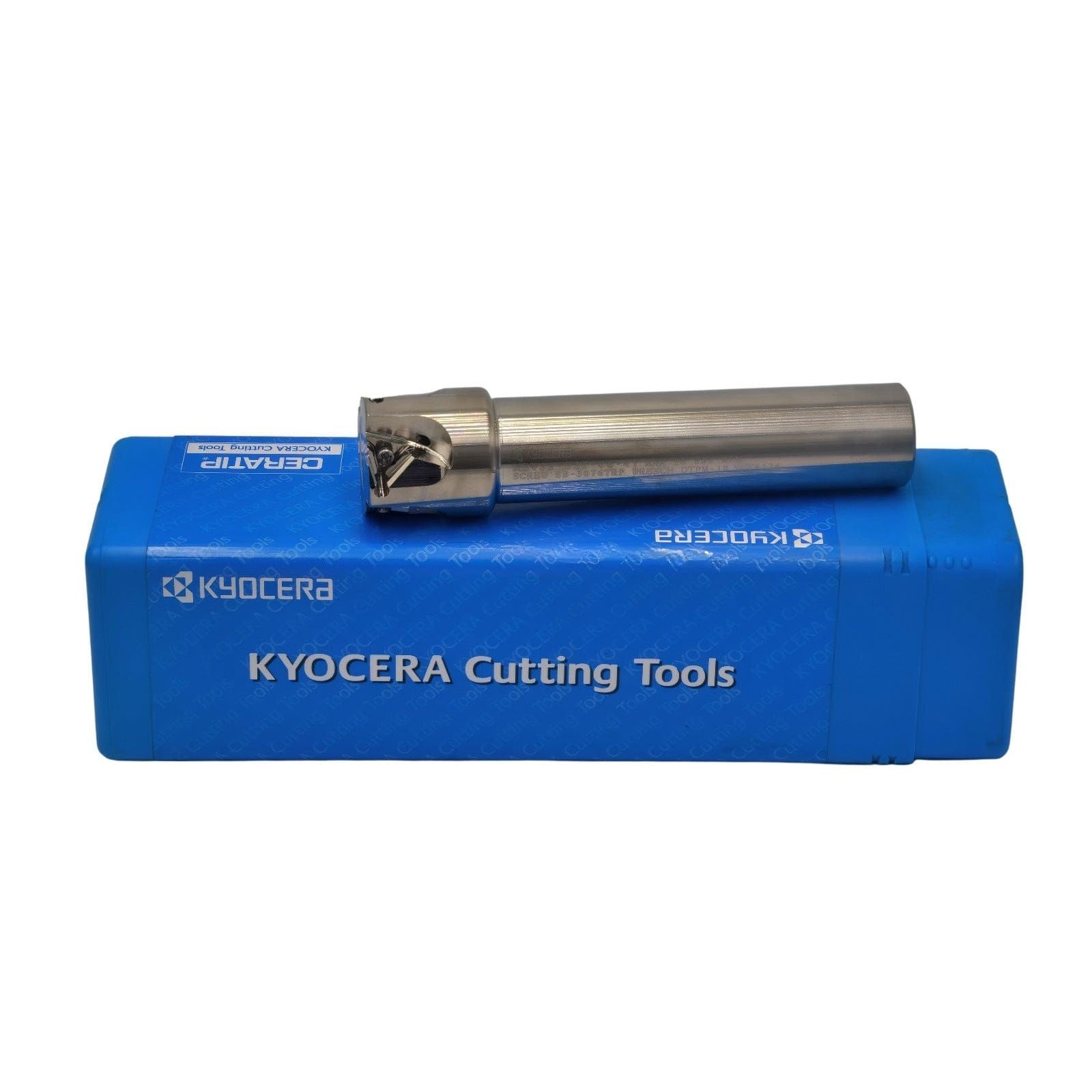

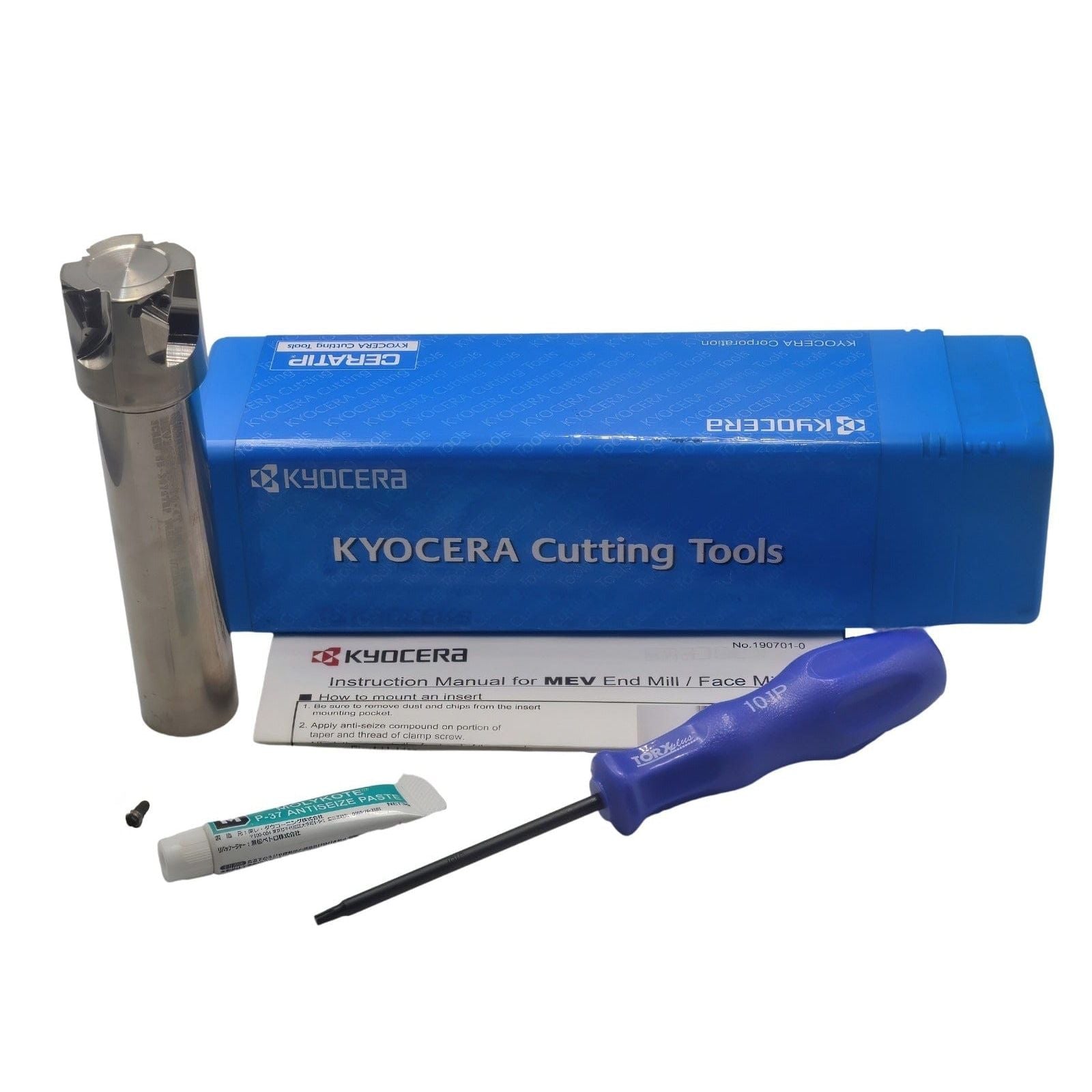

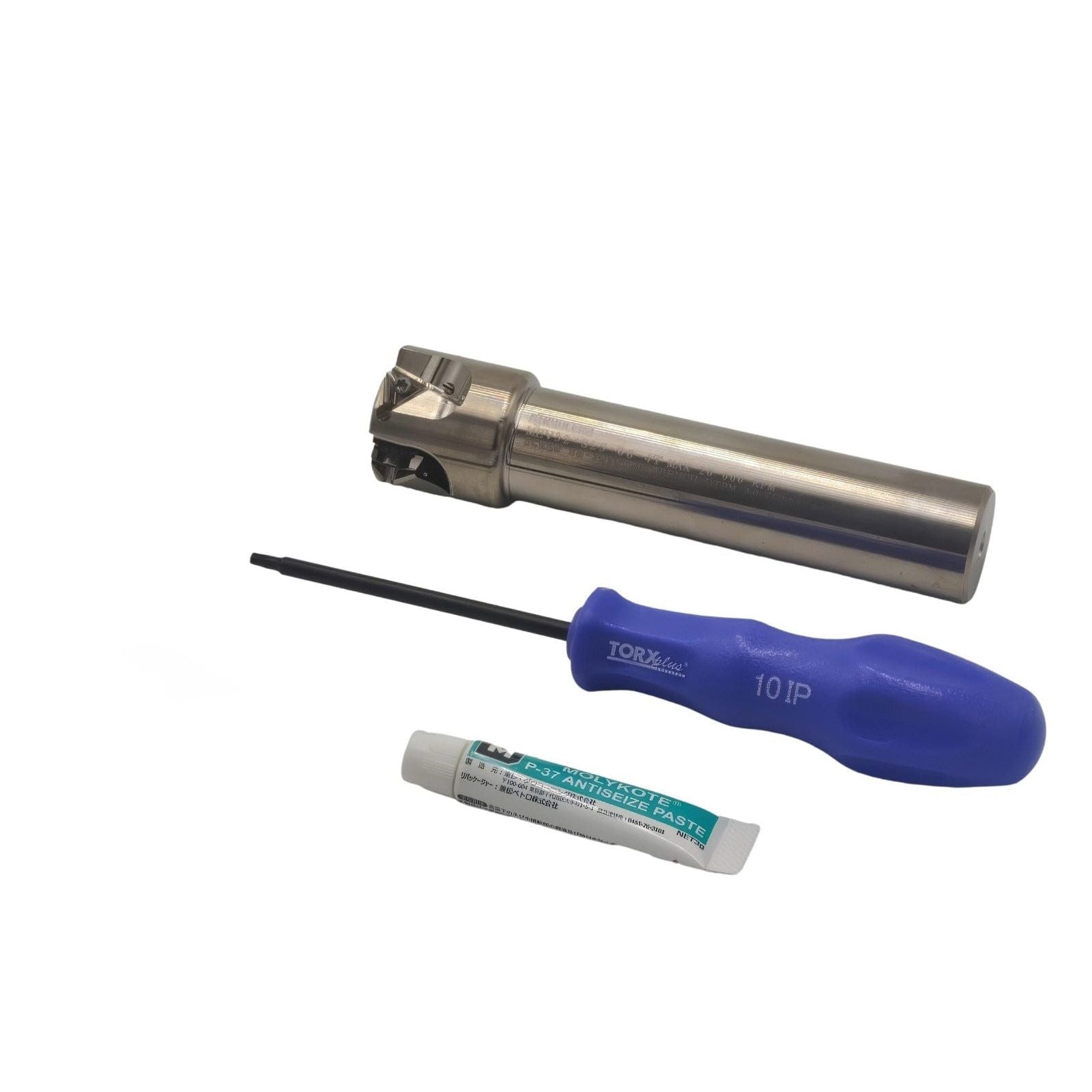

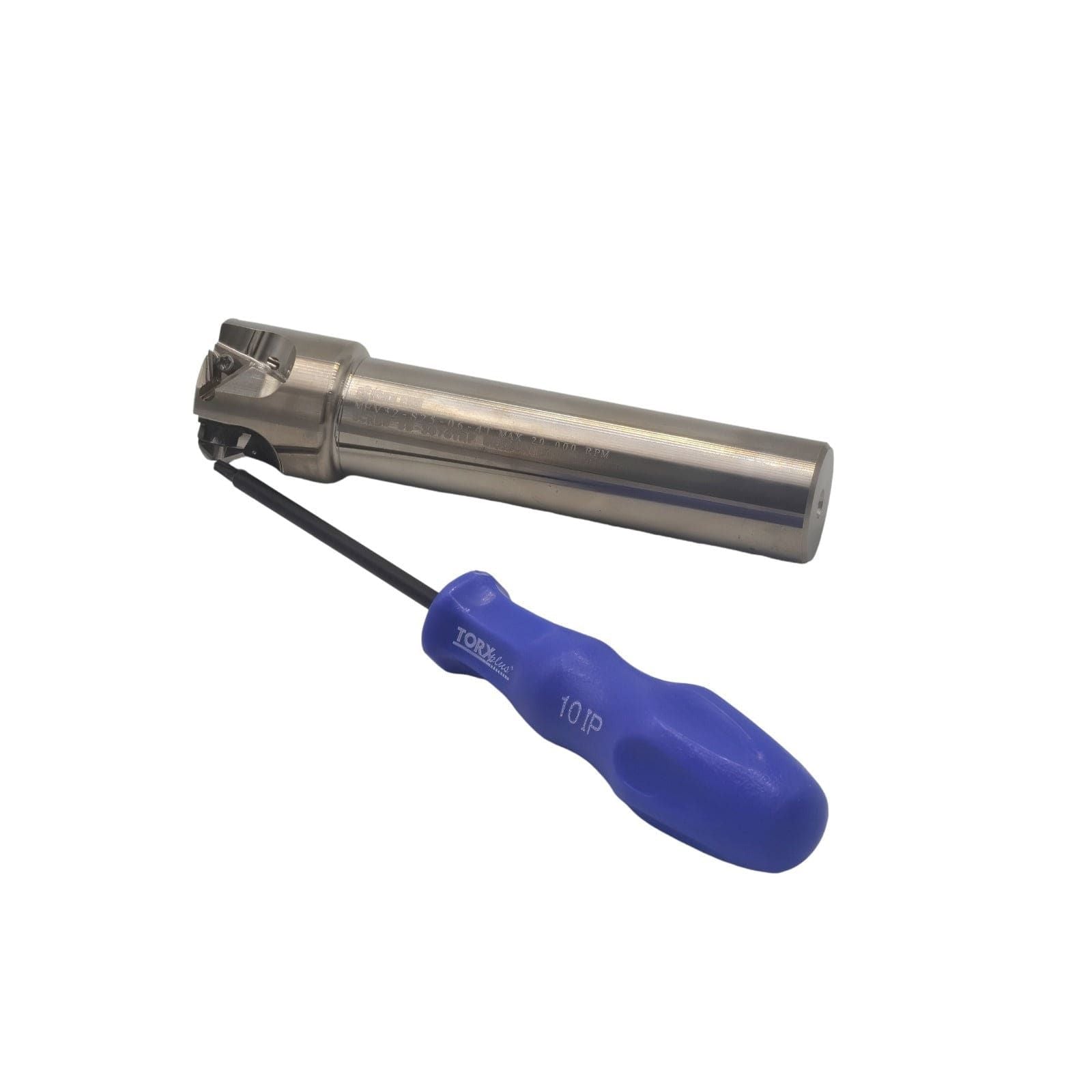

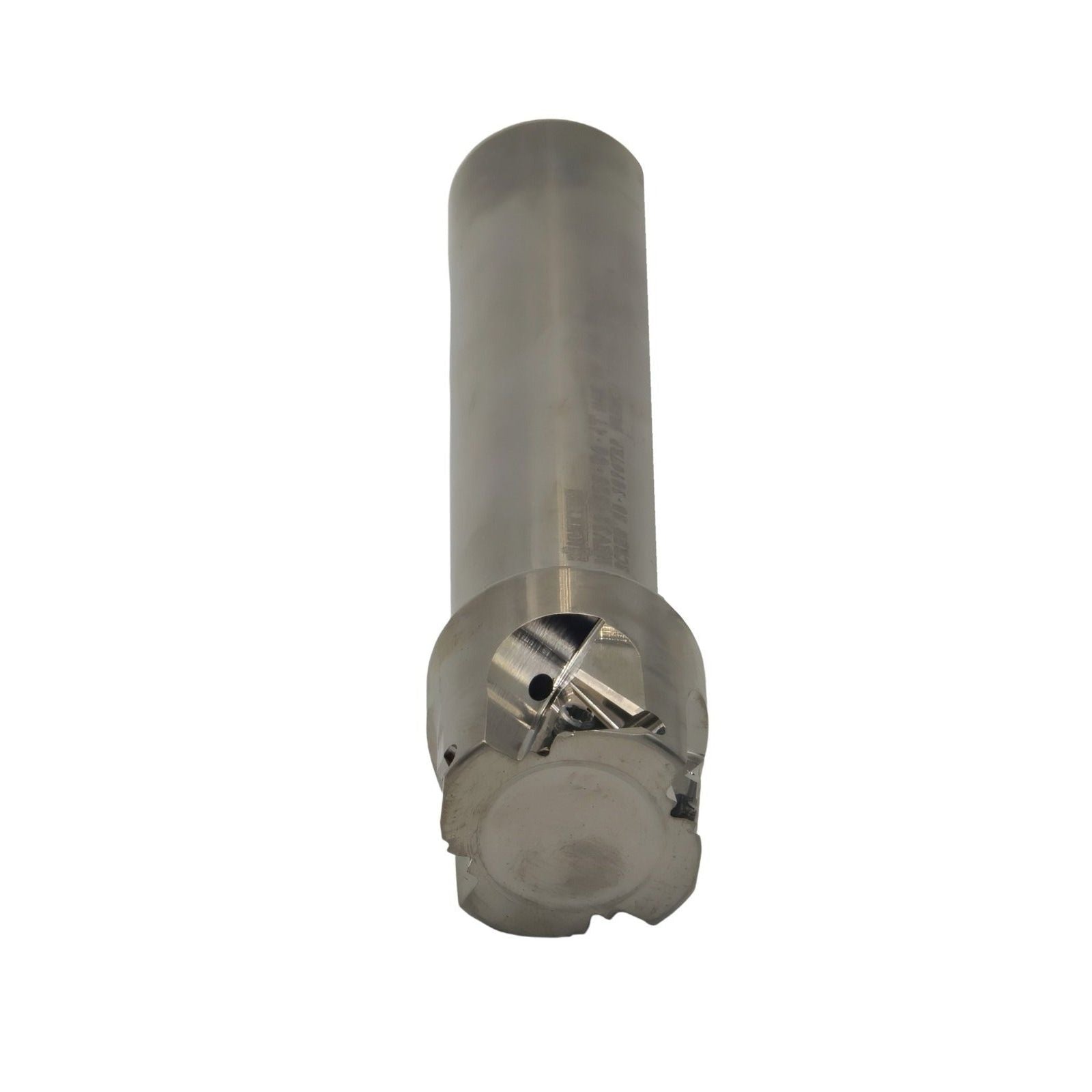

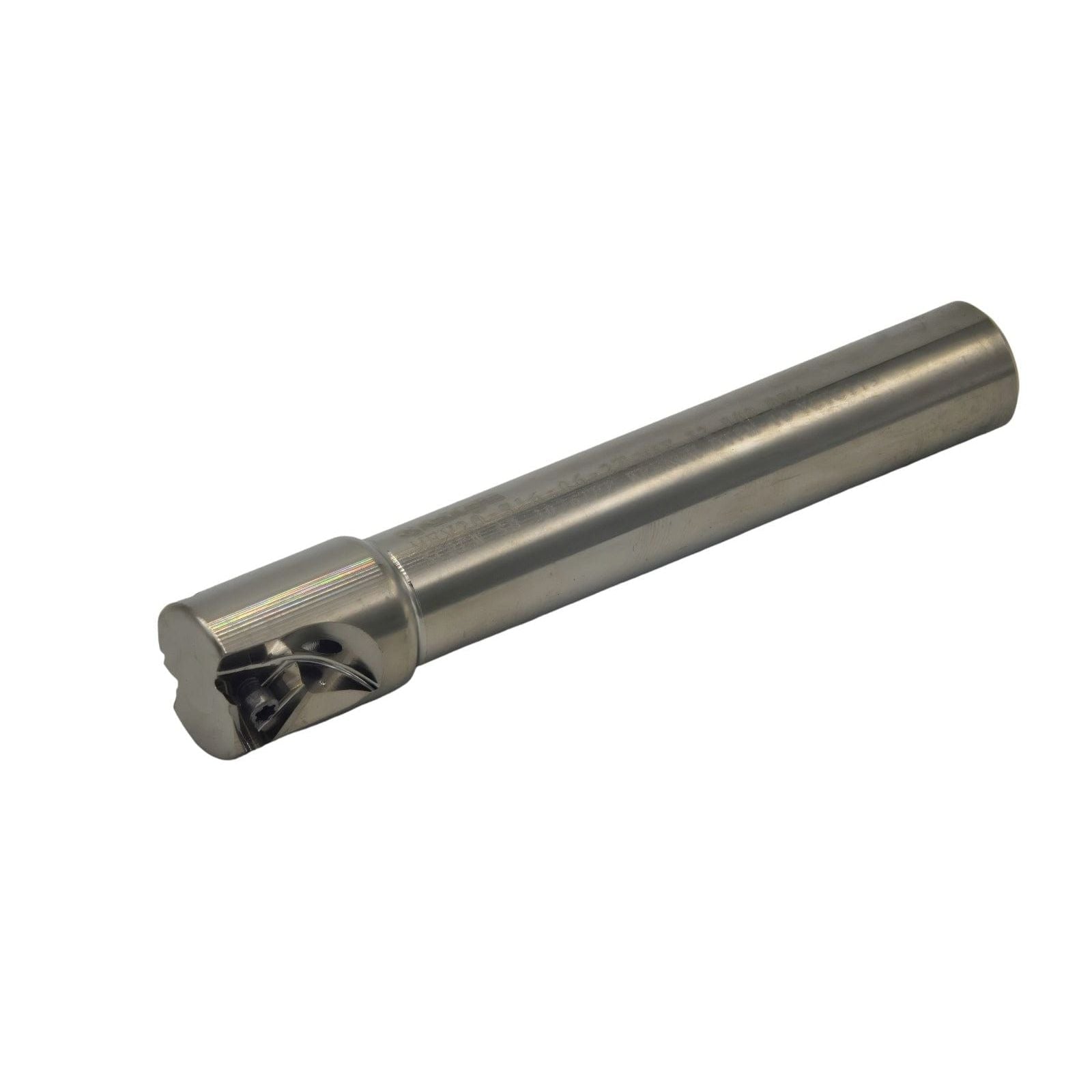

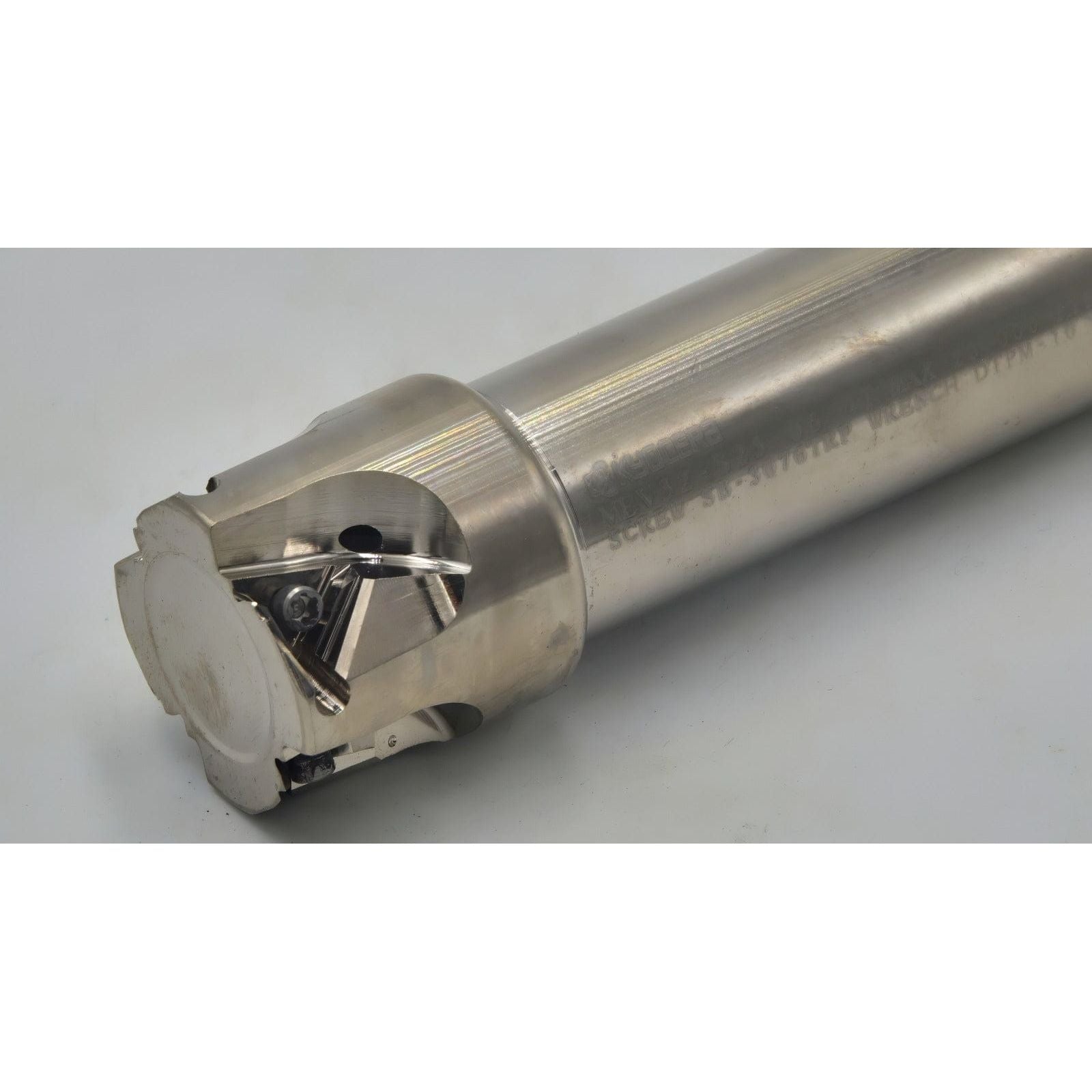

The Kyocera MEV32-S25-06-4T is a precision toolholder designed for shoulder-milling operations. With a cutter diameter of Ø32 mm and a shank diameter of Ø25 mm (cylindrical), this holder accommodates 4 inserts and features a total length (OAL) of 150 mm along with a recess (LDN) of 29.0 mm. Internal coolant is built in to enhance performance and tool life.
Key Features & Benefits
• Ø32 mm diameter toolholder suited for 4-insert configuration.
• Shank diameter 25 mm—high rigidity in a compact shank size.
• Total length 150 mm—sufficient reach for shoulder milling while maintaining stability.
• Recess (LDN) 29.0 mm—optimized for precise depth control.
• Internal coolant design—promotes improved chip evacuation and extended tool life.
Technical Specifications
Item No: THN08483
Diameter (DC): Ø32 mm
Number of Inserts: 4
Total Length (OAL): 150 mm
Recess (LDN): 29.0 mm
Shank Diameter (DCON): Ø25 mm
Shank Type: Cylindrical
Internal Coolant: Yes
