Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

SKU: MEA14S12
(0)

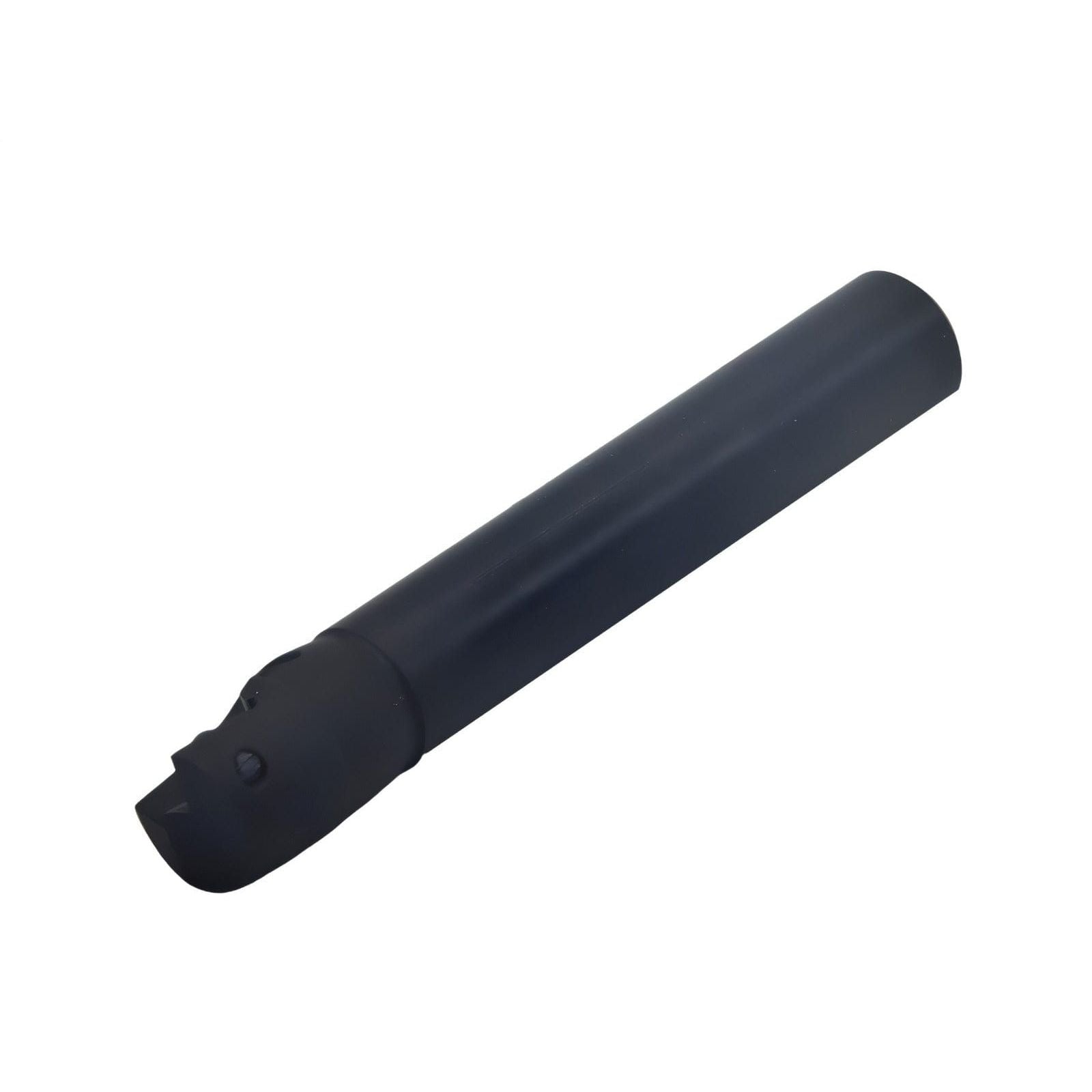

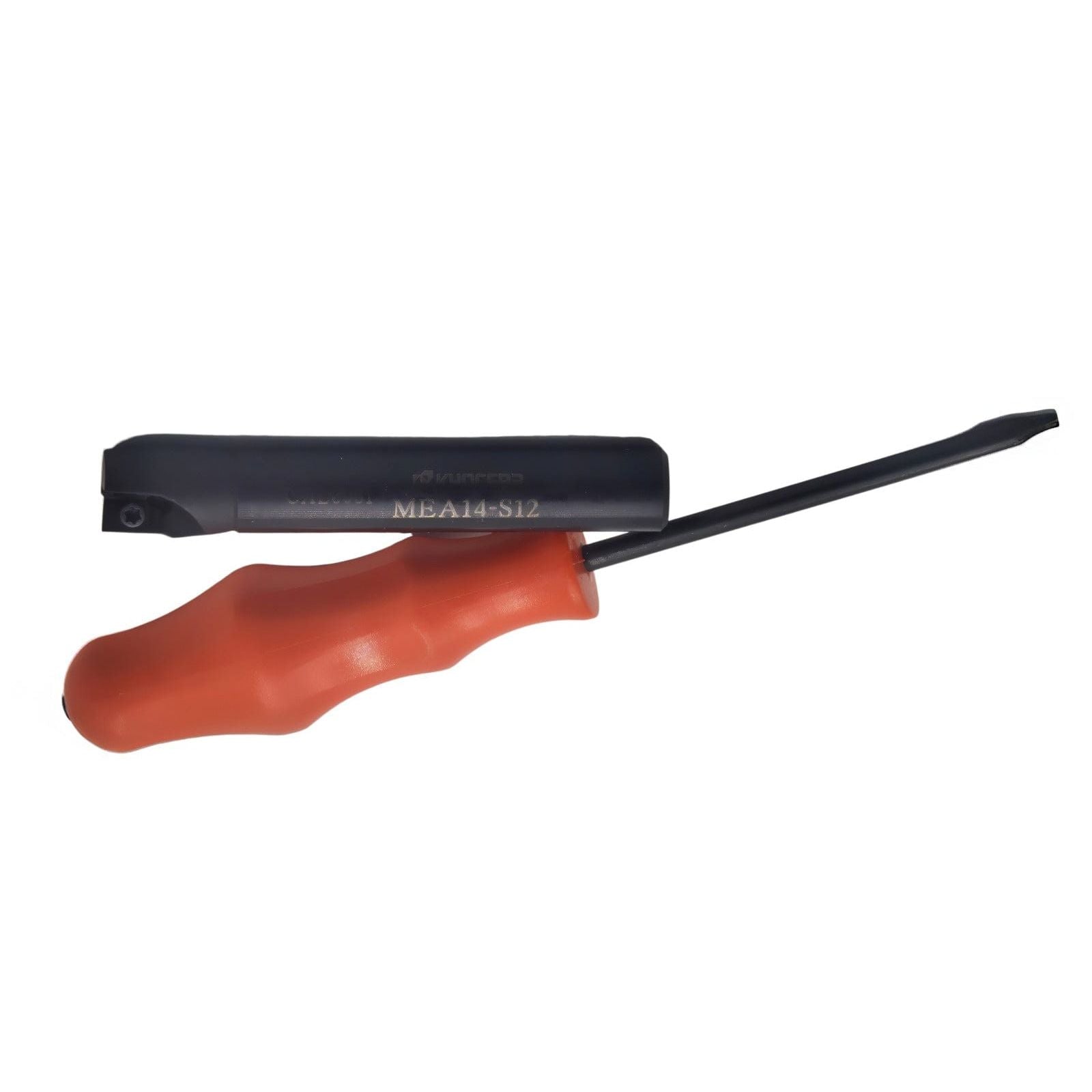

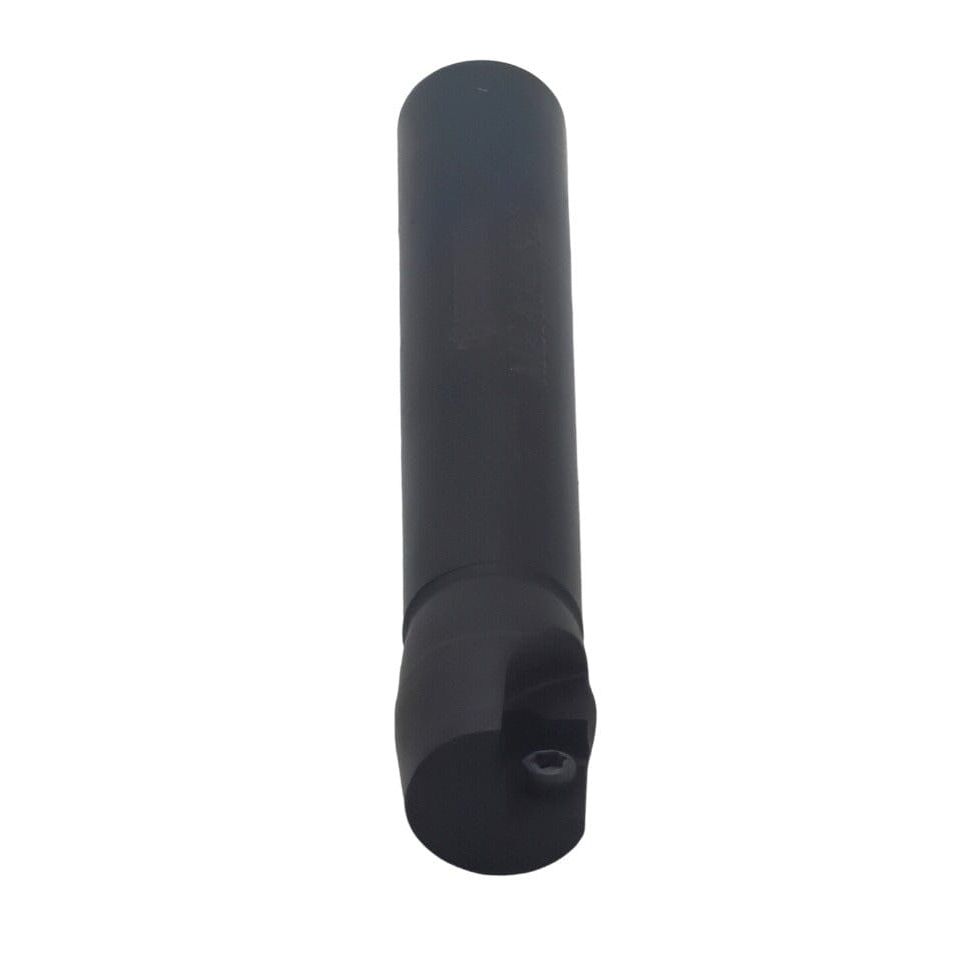

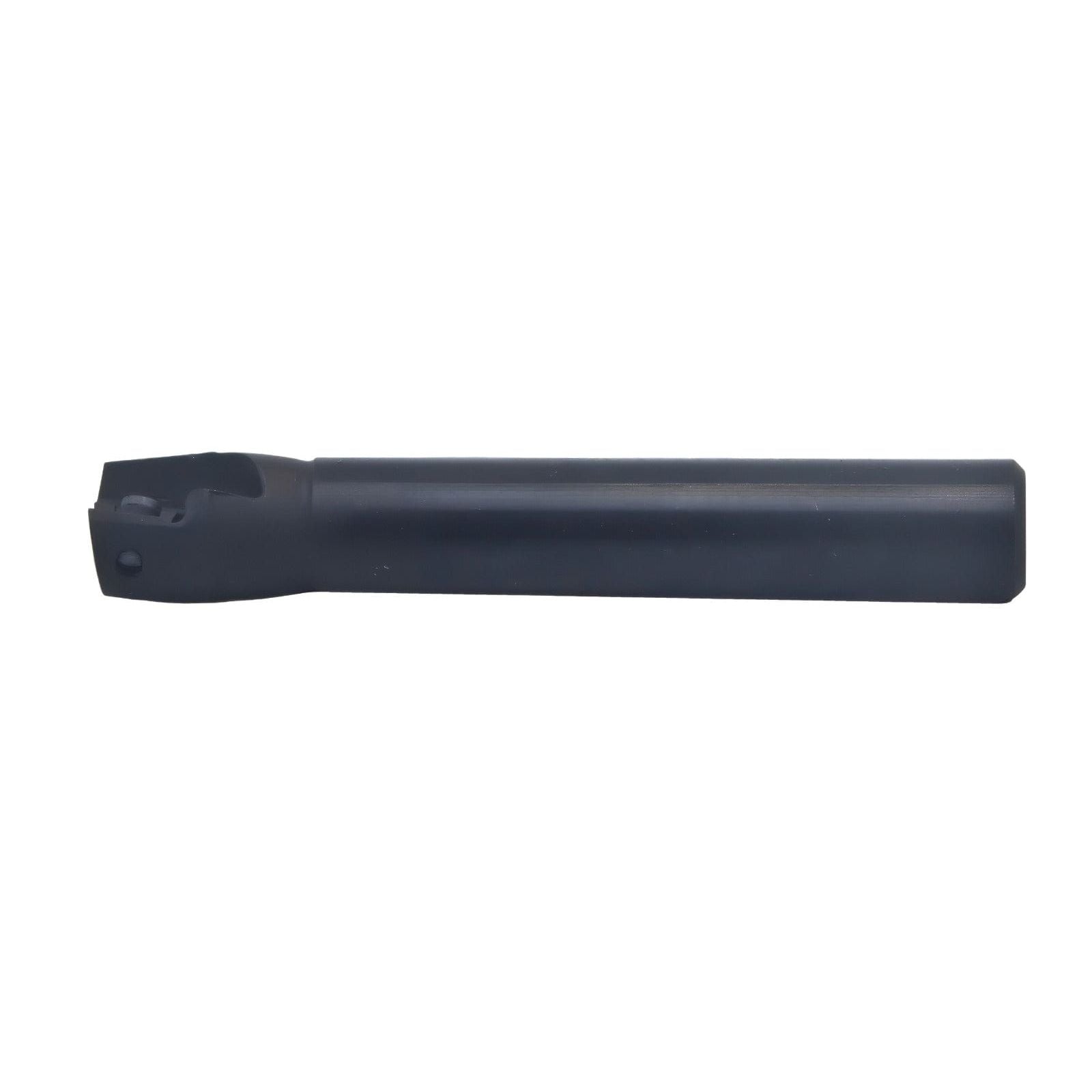

Kyocera MEA14-S12 – Ø14 mm Indexable End Mill (THN00140)

Only 1 left
$226.90

Kyocera MEA14-S12 – Ø14 mm Indexable End Mill (THN00140)

The Kyocera MEA14-S12 is a precision indexable end mill designed for efficient shoulder and contour milling applications. With a cutter diameter of Ø14 mm and a 12 mm cylindrical shank, this compact tool provides excellent rigidity and balance for high-accuracy machining in small to medium-sized components. It accommodates 2 inserts and features a total length (OAL) of 100 mm and a recess (LDN) of 25.0 mm—ideal for smooth chip evacuation and stable cutting performance in tight setups.

Key Features & Benefits

• Ø14 mm diameter toolholder for fine precision milling.
• 2-insert configuration—delivers stable cutting and reduced vibration.
• Total length 100 mm and recess 25.0 mm—optimized for compact milling setups.
• Cylindrical shank Ø12 mm—fits standard collet or end-mill holders.
• Non-coolant-through design for simplified setup and reduced maintenance.

Technical Specifications

Item No: THN00140
Diameter (DC): Ø14 mm
Number of Inserts: 2
Total Length (OAL): 100 mm
Recess (LDN): 25.0 mm
Shank Diameter (DCON): Ø12 mm
Shank Type: Cylindrical
Internal Coolant: No
