Kyocera LS-32 Shim TPC01440 for PSSN Toolholders

In stock
$22.00

Kyocera LS-32 Shim TPC01440 for PSSN Toolholders

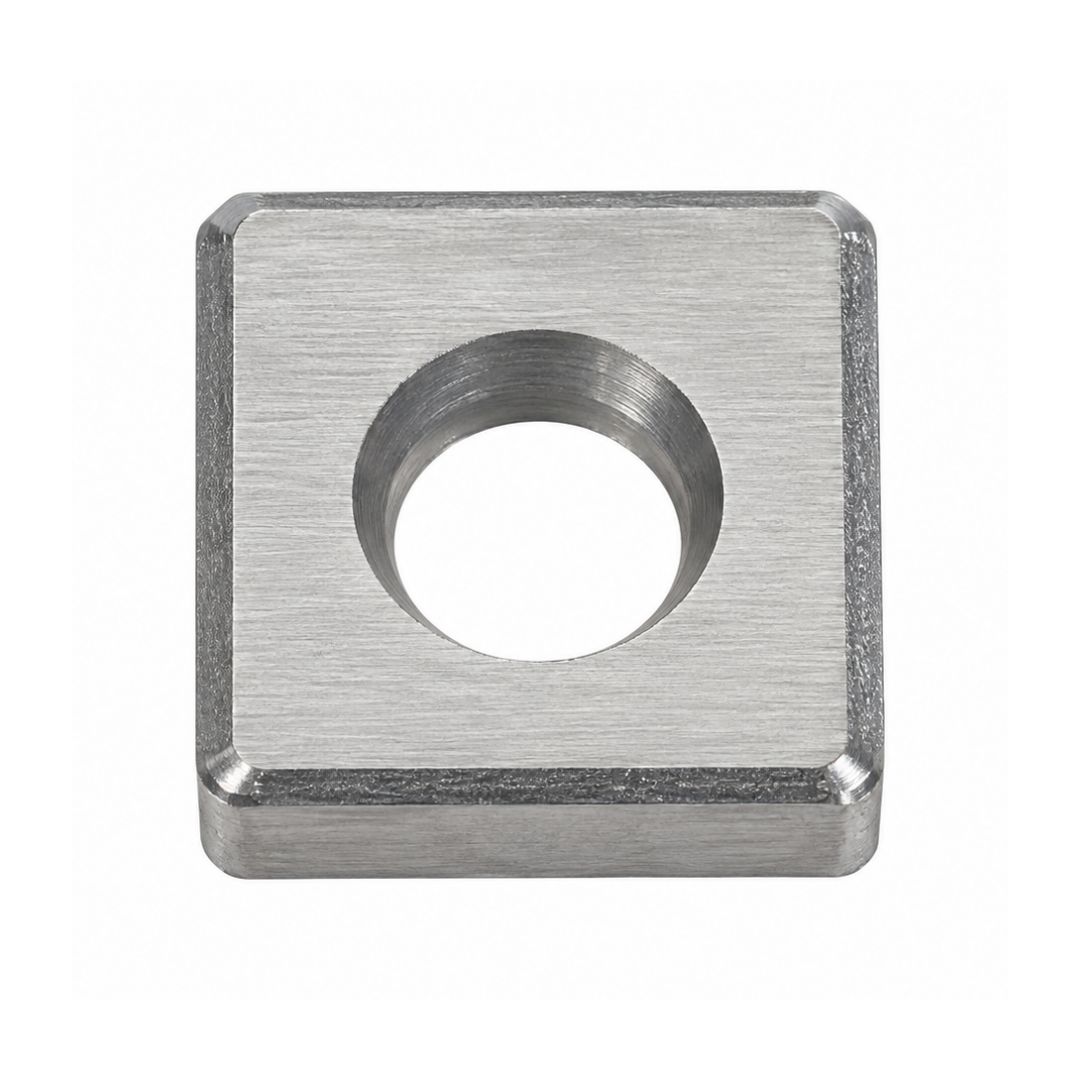

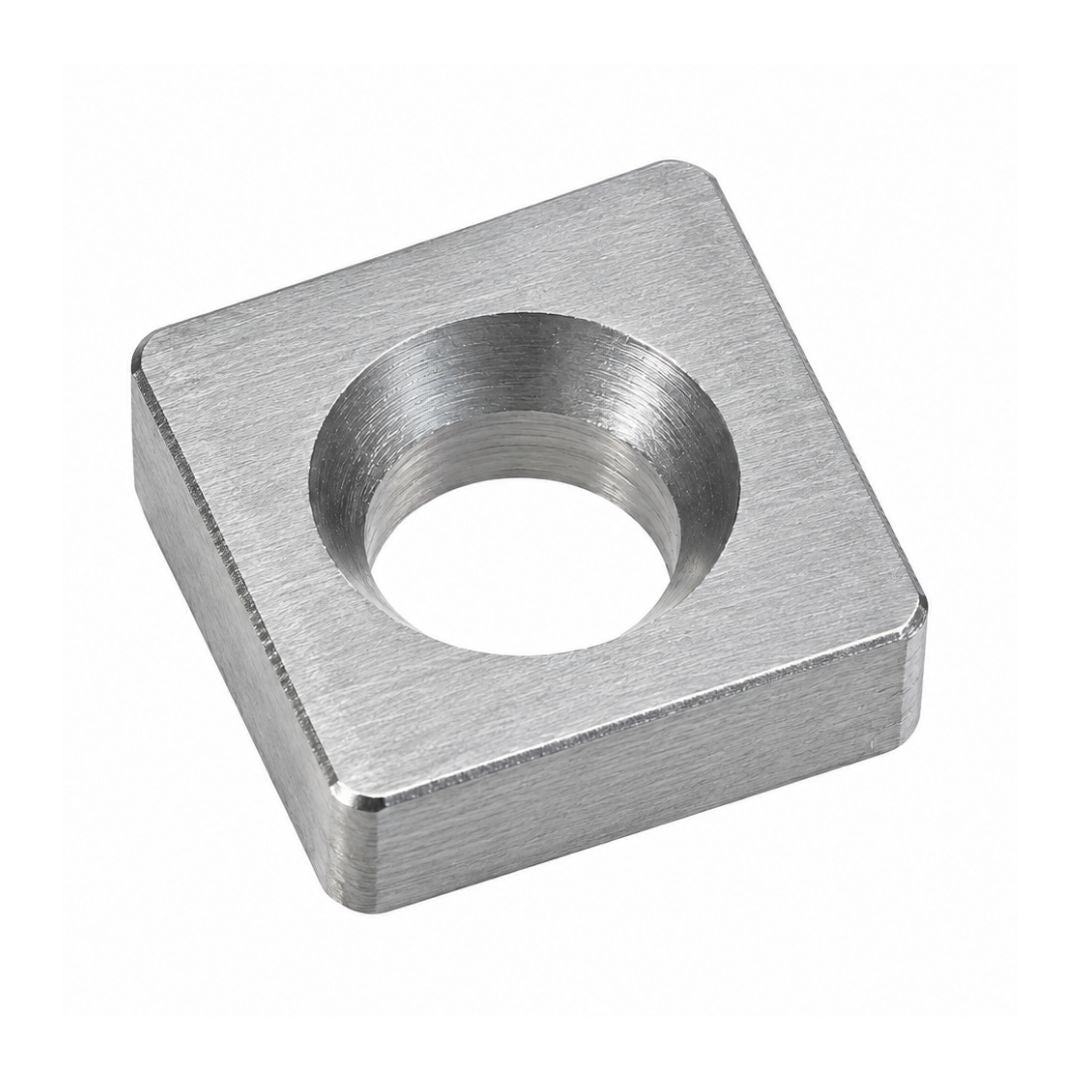

The Kyocera LS-32 is a replacement shim designed for compatible PSSN toolholders. It is listed as a spare shim for selected Kyocera external turning toolholders and provides the required support for compatible inserts.

Compatible Toolholders

  • PSSN& 1616H-09
  • PSSN& 2020K-12
  • PSSN& 2525M-12

Applicable Inserts

  • SNUG0903...
  • SNUA1204...
  • SNUG1204...
  • SNUM1204...

Product Specifications

  • Brand: Kyocera
  • Spare Part Type: Shim
  • Shim Model: LS-32
  • Item No.: TPC01440
  • Toolholder Series: PSSN&
  • Standard Corner-R (RE): 0.8 mm
  • Side Rake Angle: -8°
  • Inclination Angle: 0°
  • Compatible Toolholder: 1616H-09, 2020K-12, 2525M-12

Important Notes

When using inserts with a corner-R (RE) greater than 1.6 mm, additional modifications to the shim may be necessary to prevent interference between the workpiece and shim.

For PSSN& toolholders using handed inserts, use a right-hand insert with a right-hand toolholder and a left-hand insert with a left-hand toolholder for external turning. For facing operations, use a left-hand insert with a right-hand toolholder and a right-hand insert with a left-hand toolholder.
