Kyocera LS-11 Lock Screw Spare Part TPC01370

In stock
$22.00

Kyocera LS-11 Lock Screw Spare Part TPC01370

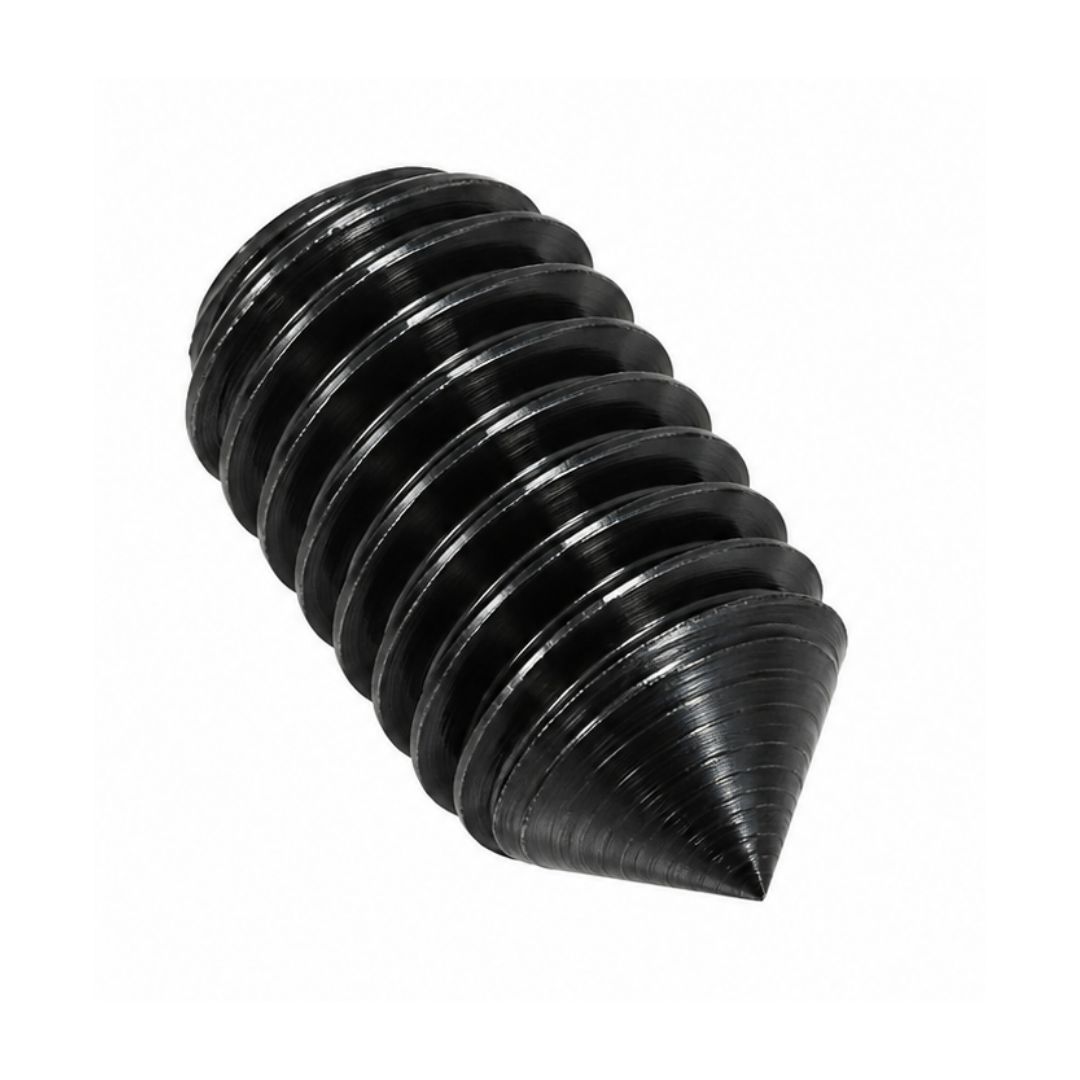

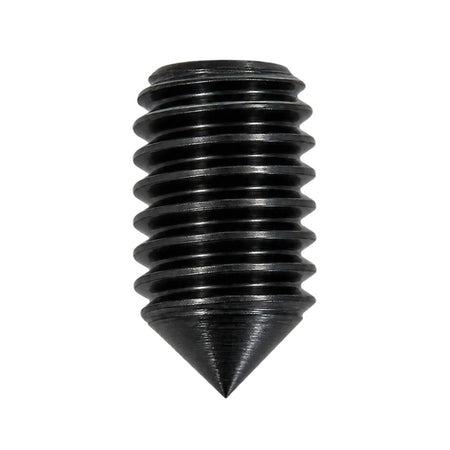

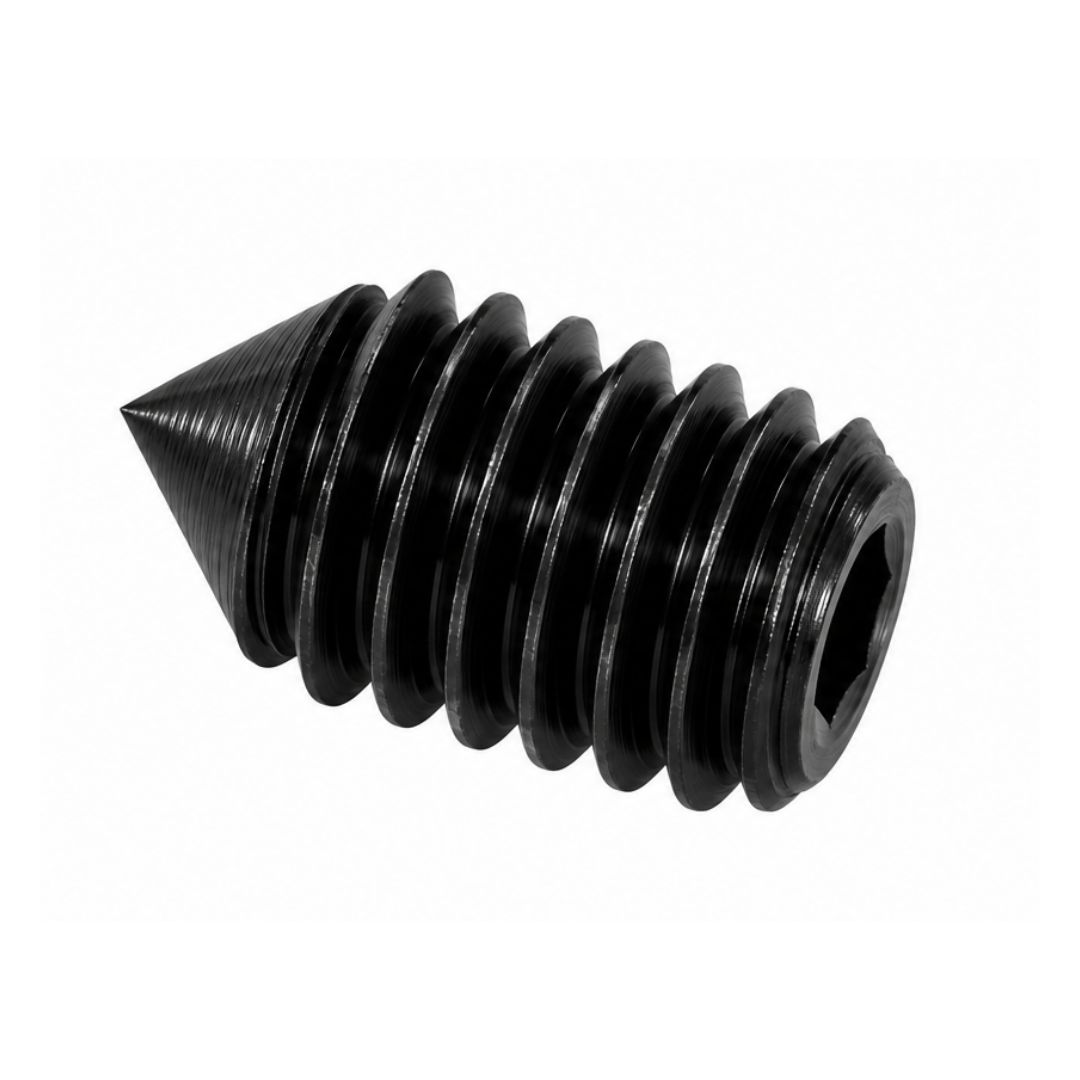

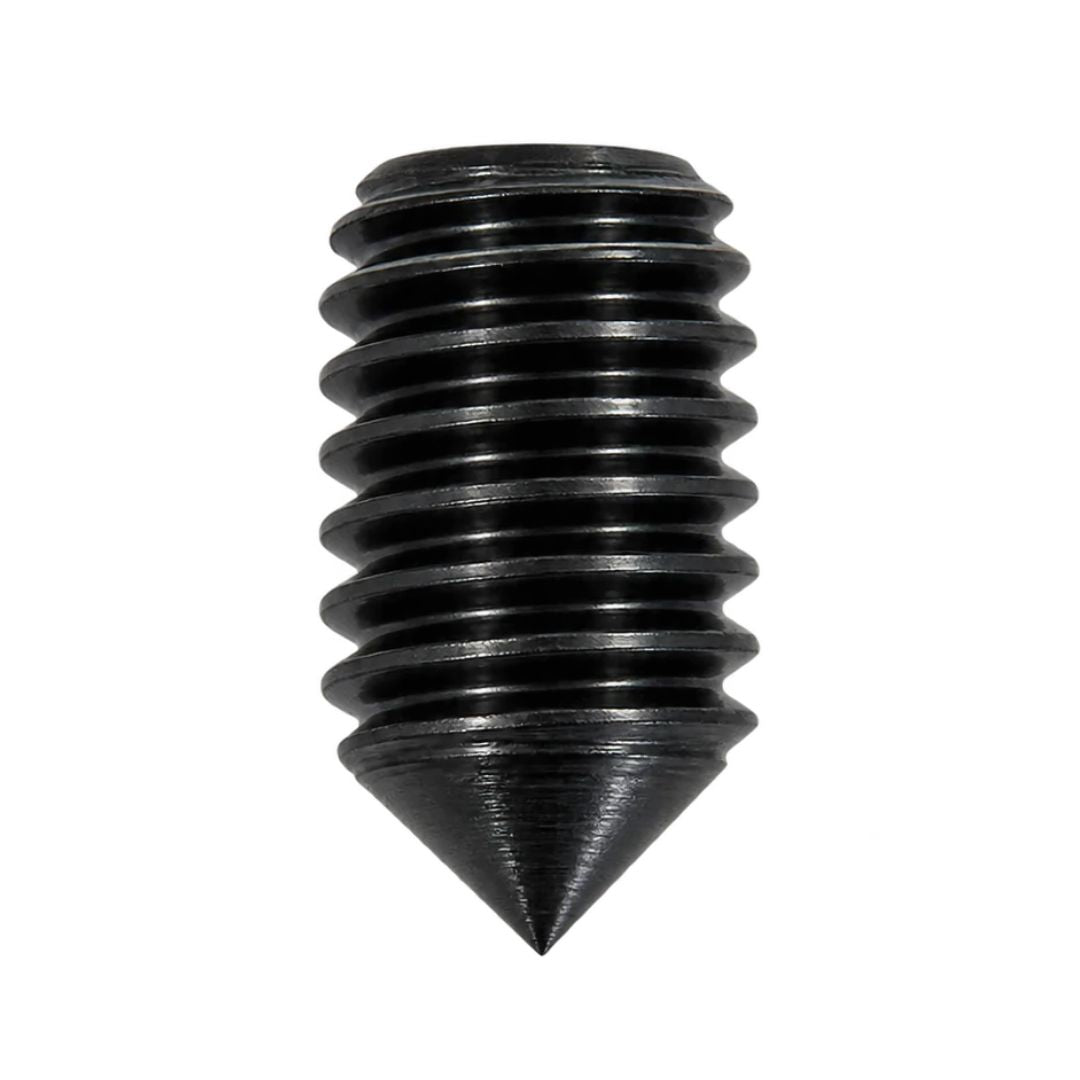

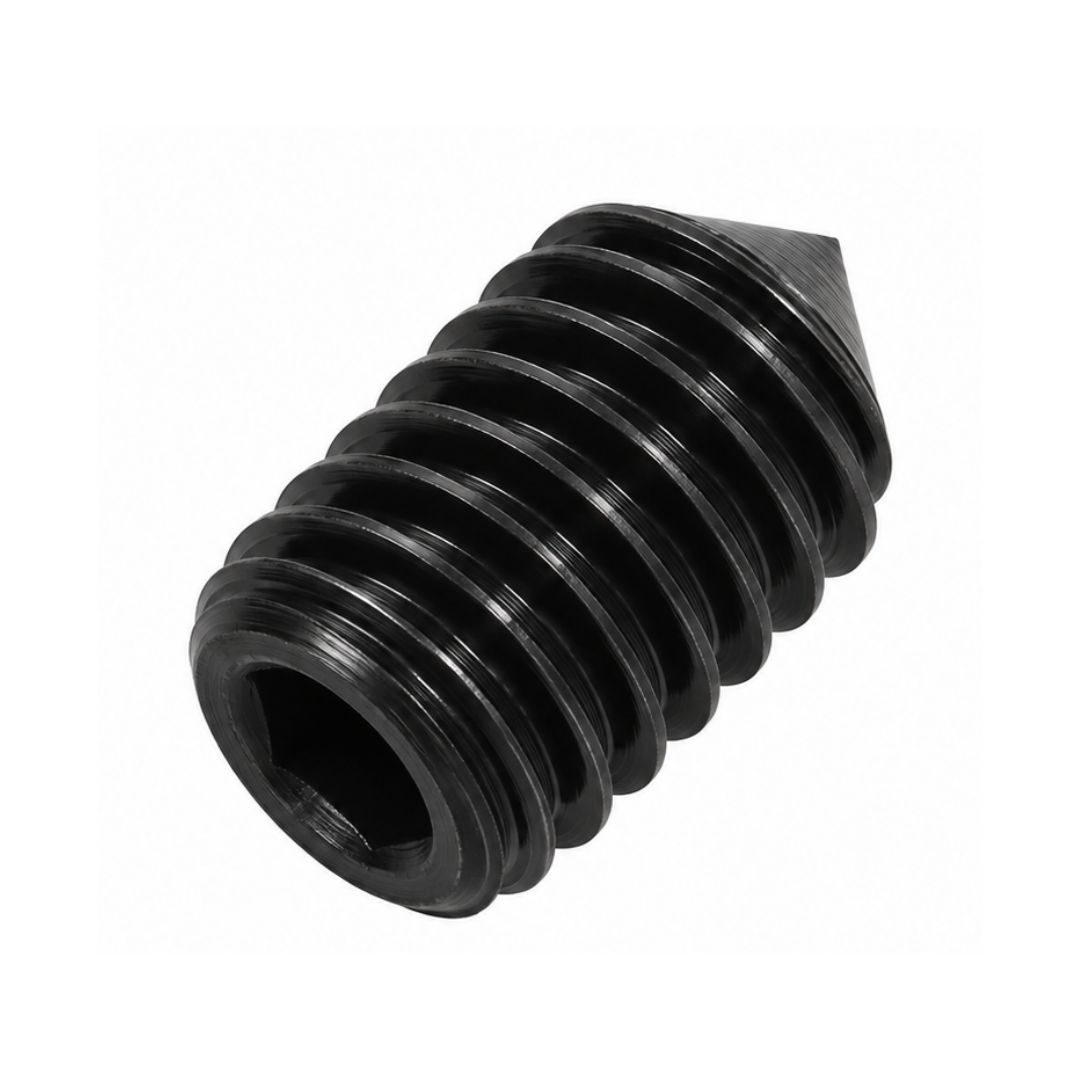

Genuine Kyocera LS-11 replacement lock screw for compatible PVPN toolholder configurations. The manufacturer specifies LS-11 for the PVPN& 2020K-16Q and 2525M-16Q toolholders.

Key Features

  • Genuine Kyocera spare part
  • Replacement lock screw
  • For compatible PVPN toolholders
  • Specified for 16-size toolholder configurations

Product Specifications

  • Brand: Kyocera
  • Part Number: LS-11
  • Item No.: TPC01370
  • Spare Part Type: Lock Screw
  • Compatible Toolholder: PVPN& 2020K-16Q
  • Compatible Toolholder: PVPN& 2525M-16Q
  • Applicable Inserts: VNUA1604..., VNUG1604..., VNUM1604...
  • Lock Pin: LP-2S / LP-6S
  • Shim: KVN-32
  • Wrench: LW-3
  • Side Rake Angle: -13°
  • Inclination Angle: -10°

Note: When using inserts with a corner radius greater than 1.2 mm, additional modifications to the shim may be necessary to prevent interference between the workpiece and shim.
