Kyocera LL-1N Pin Spare Part TPC01121

In stock
$22.00

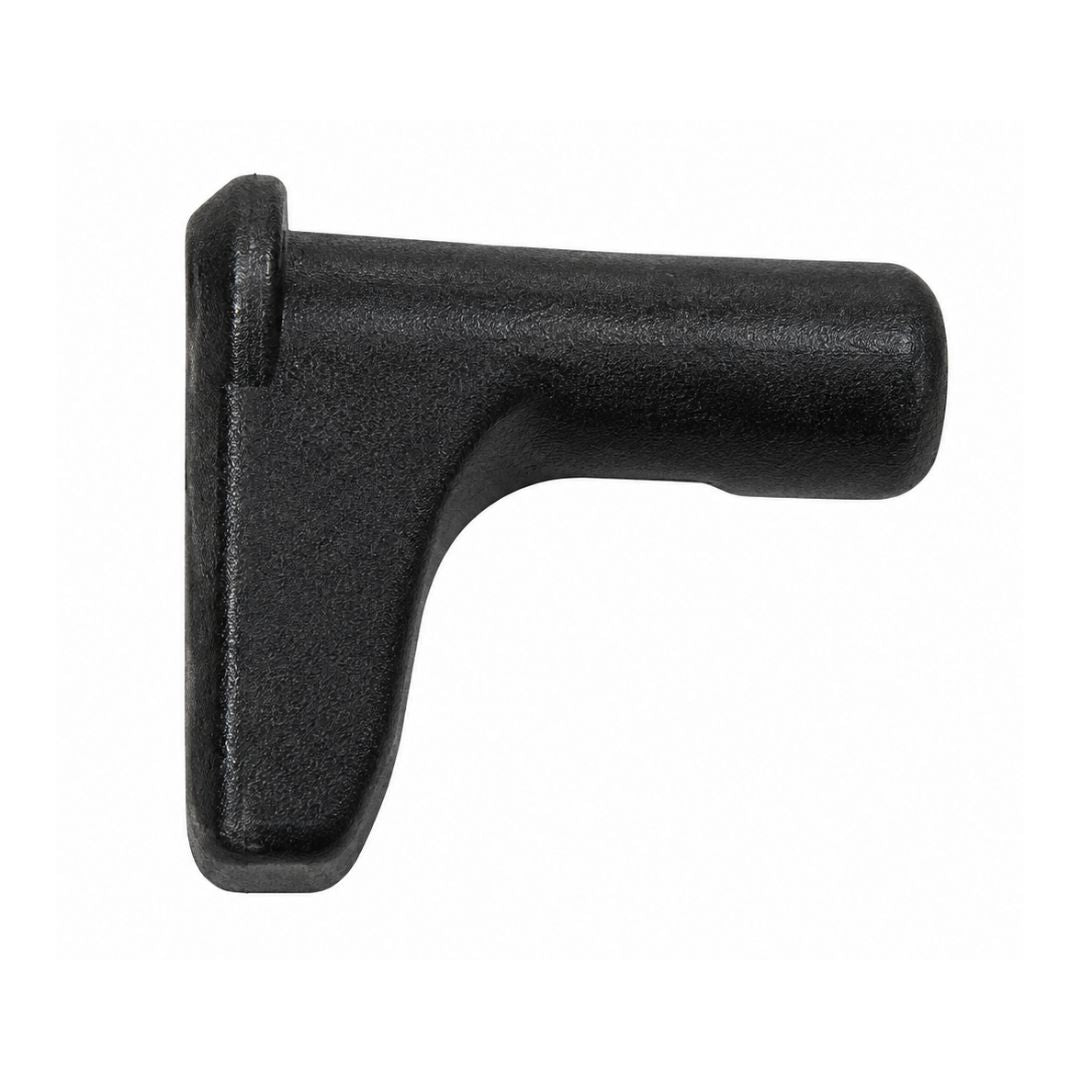

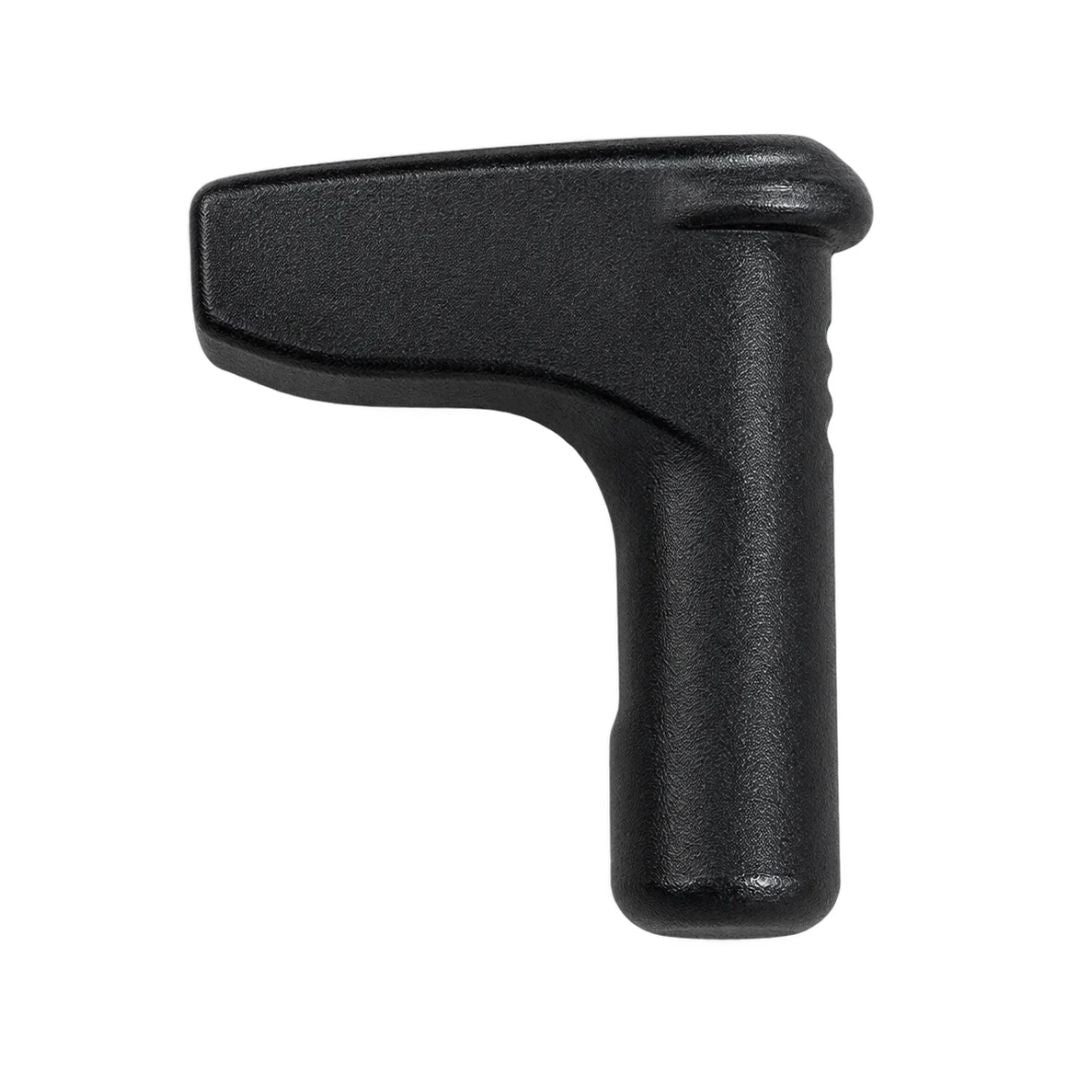

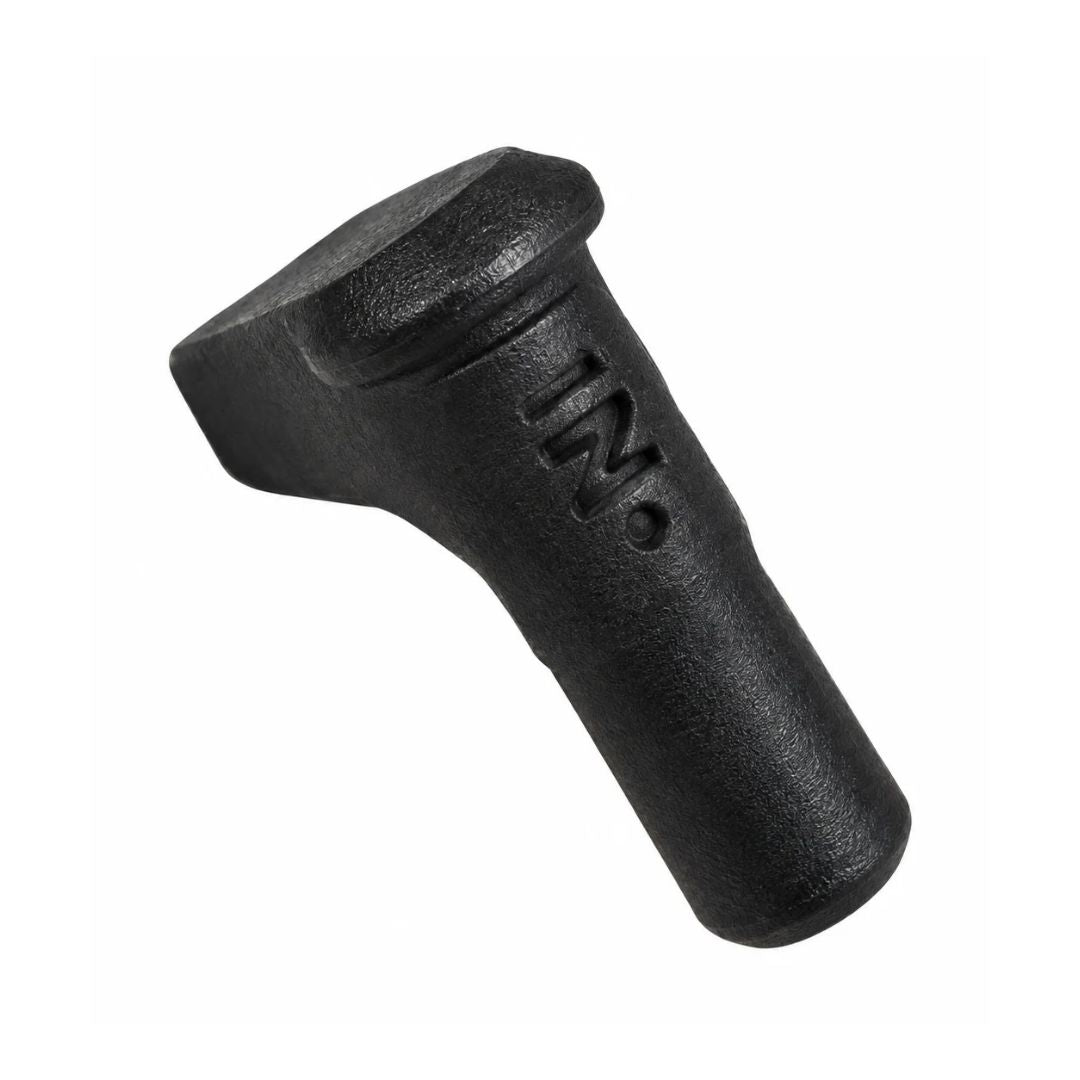

Kyocera LL-1N Pin Spare Part TPC01121

Genuine Kyocera LL-1N replacement pin for compatible PCLN toolholder configurations. The manufacturer specifies LL-1N for the 09-size PCLN toolholder configurations.

Key Features

  • Genuine Kyocera spare part
  • Replacement pin
  • For compatible PCLN toolholders
  • Specified for 09-size toolholder configurations

Product Specifications

  • Brand: Kyocera
  • Part Number: LL-1N
  • Item No.: TPC01121
  • Spare Part Type: Pin
  • Compatible Toolholder: PCLN& 1616H-09
  • Compatible Toolholder: PCLN& 2020K-09
  • Compatible Toolholder: PCLN& 2525M-09
  • Applicable Inserts: CNUG0904...
  • Lever: LL-1N
  • Lock Screw: LS-1N
  • Punch: PC-1
  • Shim Pin: LSP-1
  • Shim: LC-32N
  • Wrench: FH-2.5

Note: When using inserts with a corner radius greater than 1.6 mm, a suitable shim is required to prevent interference between the workpiece and shim. When using inserts with an SX chipbreaker, the corresponding -C type shim should be prepared separately.
