SKU: KTKB32-3S
(0)

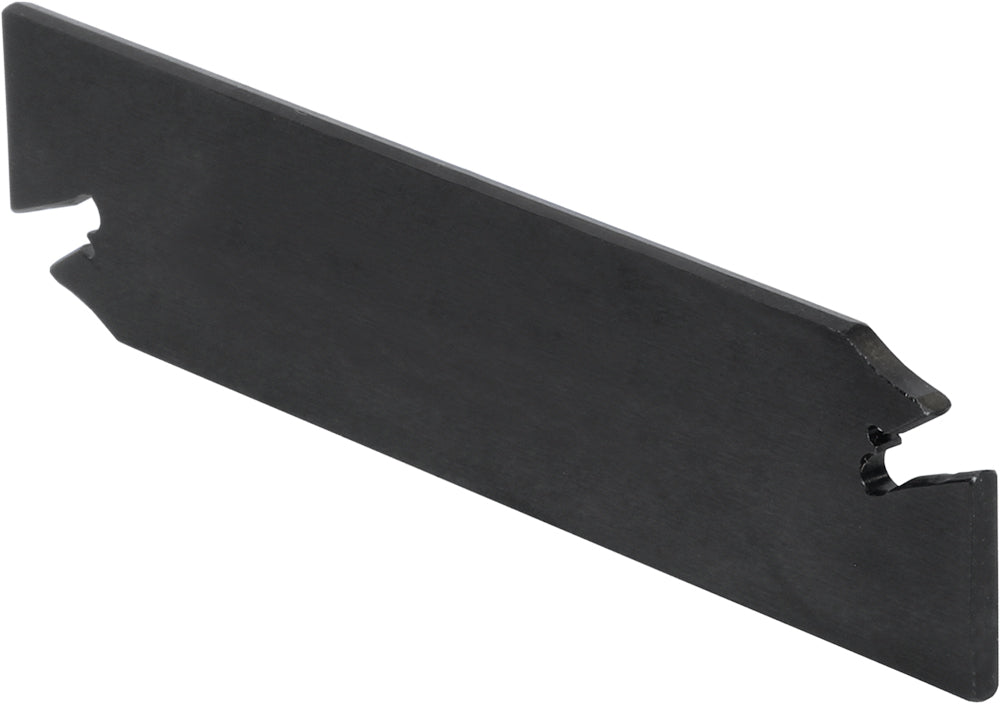

Kyocera KTKB32-3S 3.00 mm 150mm OAL Neutral Parting Toolholder

In stock
$223.30

The Kyocera KTKB32-3S is a turning toolholder featuring a 3.00 mm grooving width, 150 mm overall length and a maximum workpiece parting diameter of 100 mm. The toolholder has a neutral hand configuration, a 2.6 mm blade dimension, a 3.1 mm cutting width and a 25 mm functional height.

Key Features

  • Kyocera KTKB series turning toolholder
  • 3.00 mm grooving width
  • 2.6 mm blade dimension
  • 3.1 mm cutting width
  • 150 mm overall and functional length
  • 25 mm functional height
  • Maximum workpiece parting diameter of 100 mm
  • Neutral hand configuration

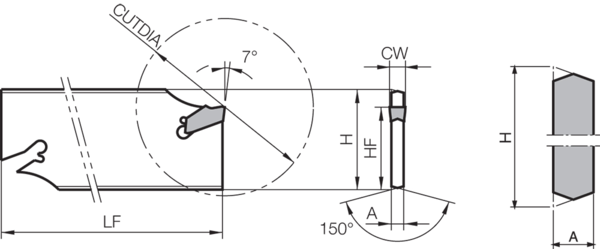

Technical Specifications

  • Brand: Kyocera
  • Model: KTKB32-3S
  • Item No.: THP05220
  • Tool Type: Turning Toolholder
  • Grooving Width: 3.00 mm
  • Blade Dimension: 2.6 mm
  • Cutting Width: 3.1 mm
  • Maximum Workpiece Parting Diameter: 100 mm
  • Hand: Neutral
  • Functional Height: 25 mm
  • Functional Length: 150 mm
  • Overall Length: 150 mm
